USER MANUAL Multiquick 9 MQ 9037X BRAUN

*certain models only

1cm 100g 100g 50g10g 90g+ 7 80g 80g 100 g max. sec. speed max. 300g 300g 350g200g 200g 200g30g sec. speed 1cm Parmesan 10 10 30-45 555

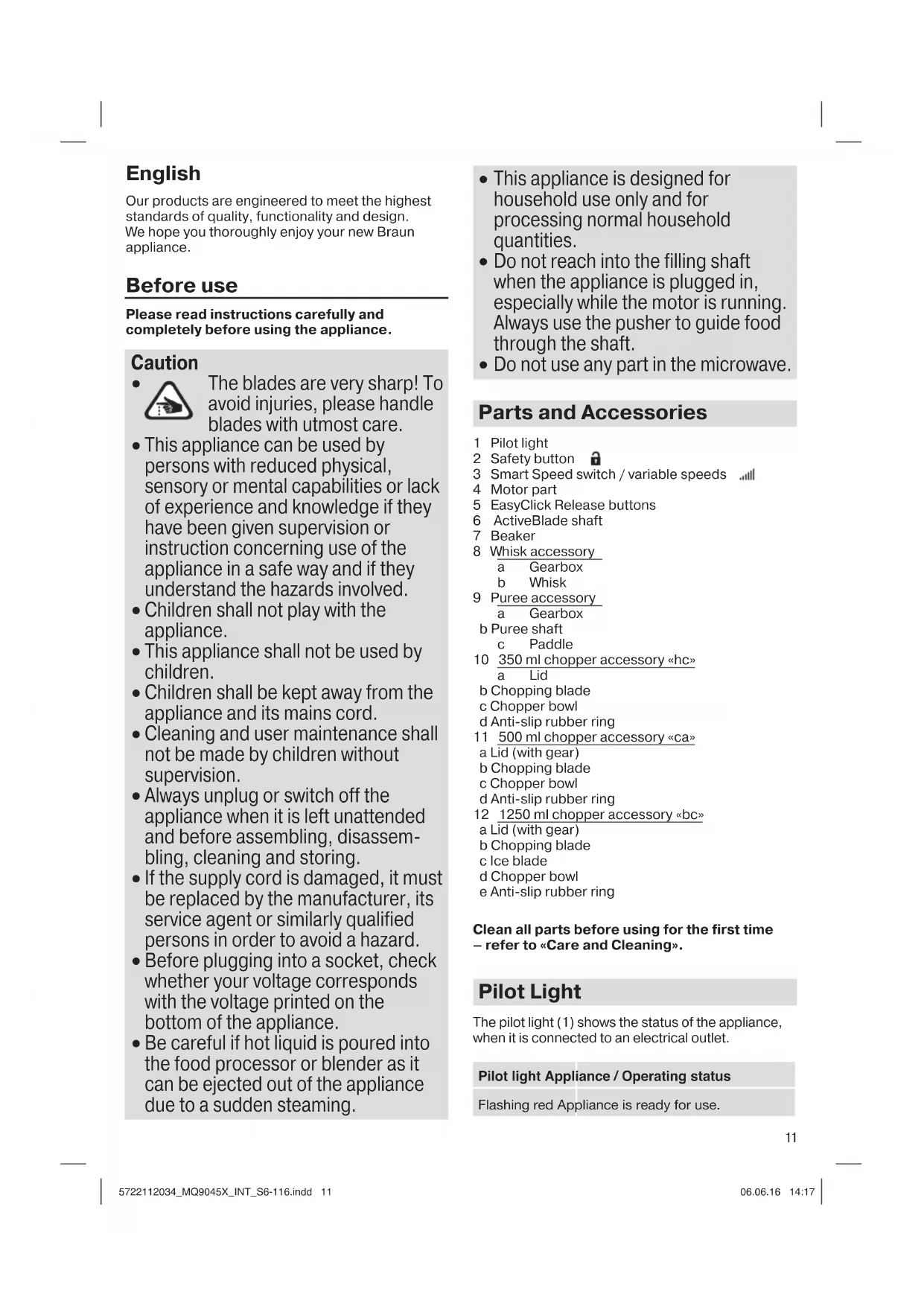

The blades are very sharp! To avoid injuries, please handle blades with utmost care.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

This appliance shall not be used by children.

Children shall be kept away from the appliance and its mains cord.

Cleaning and user maintenance shall not be made by children without supervision.

Always unplug or switch off the appliance when it is left unattended and before assembling, disassem- bling, cleaning and storing.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.

Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

This appliance is designed for household use only and for processing normal household quantities.

Do not reach into the filling shaft when the appliance is plugged in, especially while the motor is running. Always use the pusher to guide food through the shaft.

Do not use any part in the microwave. Parts and Accessories 1 Pilot light 2 Safety button 3 Smart Speed switch / variable speeds 4 Motor part 5 EasyClick Release buttons 6 ActiveBlade shaft 7 Beaker 8 Whisk accessory a Gearbox b Whisk 9 Puree accessory a Gearbox b Puree shaft c Paddle 10 350 ml chopper accessory «hc» a Lid b Chopping blade c Chopper bowl d Anti-slip rubber ring 11 500 ml chopper accessory «ca» a Lid (with gear) b Chopping blade c Chopper bowl d Anti-slip rubber ring 12 1250 ml chopper accessory «bc» a Lid (with gear) b Chopping blade c Ice blade d Chopper bowl e Anti-slip rubber ring Clean all parts before using for the first time – refer to «Care and Cleaning». Pilot Light The pilot light (1) shows the status of the appliance, when it is connected to an electrical outlet. Pilot light Appliance / Operating status Flashing red Appliance is ready for use. 5722112034_MQ9045X_INT_S6-116.indd 115722112034_MQ9045X_INT_S6-116.indd 11 06.06.16 14:1706.06.16 14:1712 Solid green Appliance is released (switch re- lease button is pressed) and can be switched on. Solid Red Early warning about overheating. Motor slows down, step by step, till shut off . Let the device cool down. It is ready for use again when the pilot light fl ashes red. If the maximum speed decreases under high load and long running time you can still finish your preparation, however you should let the appliance cool down afterwards. How to Use the Appliance Smart Speed Switch for Variable Speeds One squeeze, all speeds. The more you press, the higher the speed. The higher the speed, the faster and finer the blending and chopping results. One handed operation: the Smart Speed switch (3) allows you to turn on the appliance and control the speed with one hand. Operating your Hand Blender First use: Remove the transportation lock from the motor part (4) by pulling it at the red strap. Switching On (A) The appliance comes equipped with a safety button for releasing the Smart Speed switch. To safely turn it on, follow these points:

• Press the safety button (2) with your thumb. The Pilot Light will turn solid green.

• Immediately press the Smart Speed switch and adjust to the desired speed. Note: If the Smart Speed switch is not pressed within 2 seconds, the appliance cannot be switched on for safety reasons. The pilot light will flash red. To switch the appliance on, start again with first step.

• During operation you do not need to keep the safety button pressed. ActiveBlade Shaft (B) The hand blender is equipped with an ActiveBlade shaft, which enables the knife extend to the bottom of the bell. The adjustment is made automatically by pressure required in blending tasks, especially suited to mix hard foods e.g raw fruits and vegetables. It is also perfectly suited for preparing dips, sauces, salad dressings, soups, baby food, as well as drinks, smoothies and milkshakes. For best results, use the highest speed. Assembly and Operation

• Attach the ActiveBlade shaft (6) to the motor part until it clicks.

• Place the ActiveBlade shaft into the mixture to be blended. Then switch the appliance on as described above.

• Blend ingredients to the desired consistency using a gentle up-and-down motion. Depending on the pressure applied, the ActiveBlade shaft will depress and blade will extend.

• After use, unplug the hand blender and press the release buttons (5) to detach the ActiveBlade shaft. Caution

• Do not let liquids or ingredients overlap the green line of the blending shaft.

• If using the appliance to purée hot food in a saucepan or pot, remove the saucepan or pot from the heat source and ensure the liquid is not boiling. Allow hot food to cool slightly to avoid risk of scalding.

• Do not let the hand blender sit in a hot pan on the cooktop when not in use.

• Do not scratch the ActiveBlade Shaft over the bottom of pans and pots. Recipe Example: Mayonnaise 250 g oil (e.g. sunflower oil), 1 egg and 1 extra egg yolk, 1–2 tbsp. vinegar, Salt and pepper to taste

• Place all ingredients (at room temperature) into the beaker in the order as above.

• Place the hand blender at the bottom of the beaker. Blend at maximum speed until the oil starts emulsifying.

• With the hand blender still running, slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. NOTE: Processing time: approx. 1 minute for salads and up to 2 minutes for a thicker mayonnaise (e.g. for dip). Whisk Accessory (B) Use the whisk only for whipping cream, beating egg whites, making sponge cakes and ready-mix desserts. Assembly and Operation

• Attach the whisk (8b) to the gearbox (8a).

• Align the motor part with the assembled whisk attachment and push the pieces together until they click. 5722112034_MQ9045X_INT_S6-116.indd 125722112034_MQ9045X_INT_S6-116.indd 12 06.06.16 14:1706.06.16 14:1713

• After use, unplug and press the release buttons to detach the motor part. Then pull the whisk out of the gearbox. Tips for Best Results

• Move the whisk clockwise while holding it at a slight incline.

• To prevent splattering, start slowly and use the whisk attachment in deep containers or pans.

• Place the whisk in a bowl and only then switch the appliance on.

• Always ensure the whisk and mixing bowl are completely clean and free of fat before whisking egg whites. Only whip up to 4 egg whites. Recipe Example: Whipped Cream 400 ml chilled cream (min. 30% fat content,

• Start with low speed (light pressure on the switch) and increase the speed (more pressure on switch) while whipping.

• Always use fresh chilled cream to achieve greater and more stable volume when whisking. Puree Accessory (C) The puree accessory can be used to mash cooked vegetables and fruits such as potatoes, sweet potatoes, tomatoes, plums and apples. Before Use

• Do not mash hard or uncooked food, as this may damage the unit.

• Peel and remove any stones or hard parts; cook and drain then mash the fruit/vegetable. Assembly and Operation

• Fit the gearbox (9a) to the shaft (9b) by turning in a clockwise direction until it locks into place.

• Turn the puree accessory upside down and fit the paddle (9c) over the central hub and turn counter- clockwise to locate. (If the gearbox is not fitted properly, then the paddle will not secure in place).

• Align the assembled puree accessory with the motor body and click the two parts together. Plug in.

• Dip the puree accessory into the ingredients and switch on the appliance.

• Using a gentle up and down motion, move the puree accessory through the ingredients until the desired texture is achieved.

• Release the Smart Speed switch and ensure the puree accessory has completely stopped turning before removing it from the food.

• After use, unplug the appliance. Remove the paddle (9c) by turning clockwise.

• Press the release buttons to detach the puree accessory from the motor part. Separate the gearbox from the shaft by turning counter- clockwise. Caution

• Never use the puree accessory in a saucepan over direct heat.

• Always remove the saucepan from the heat and allow to cool slightly.

• Sit the saucepan or bowl on a stable, flat surface, and support it with your free hand.

• Do not tap the puree accessory on the side of the cooking vessel during or after use. Use a spatula to scrape excess food away.

• For best results when mashing never fill a saucepan or bowl more than half full with food.

• Do not process more than one batch without interruption.

• Let the appliance cool down for 4 minutes before you continue processing. Recipe Example: Mashed Potatoes 1 kg cooked potatoes 200 ml warm milk

• Place the potatoes in a bowl and mash for 30 seconds (3/4 way on the Smart Speed switch)

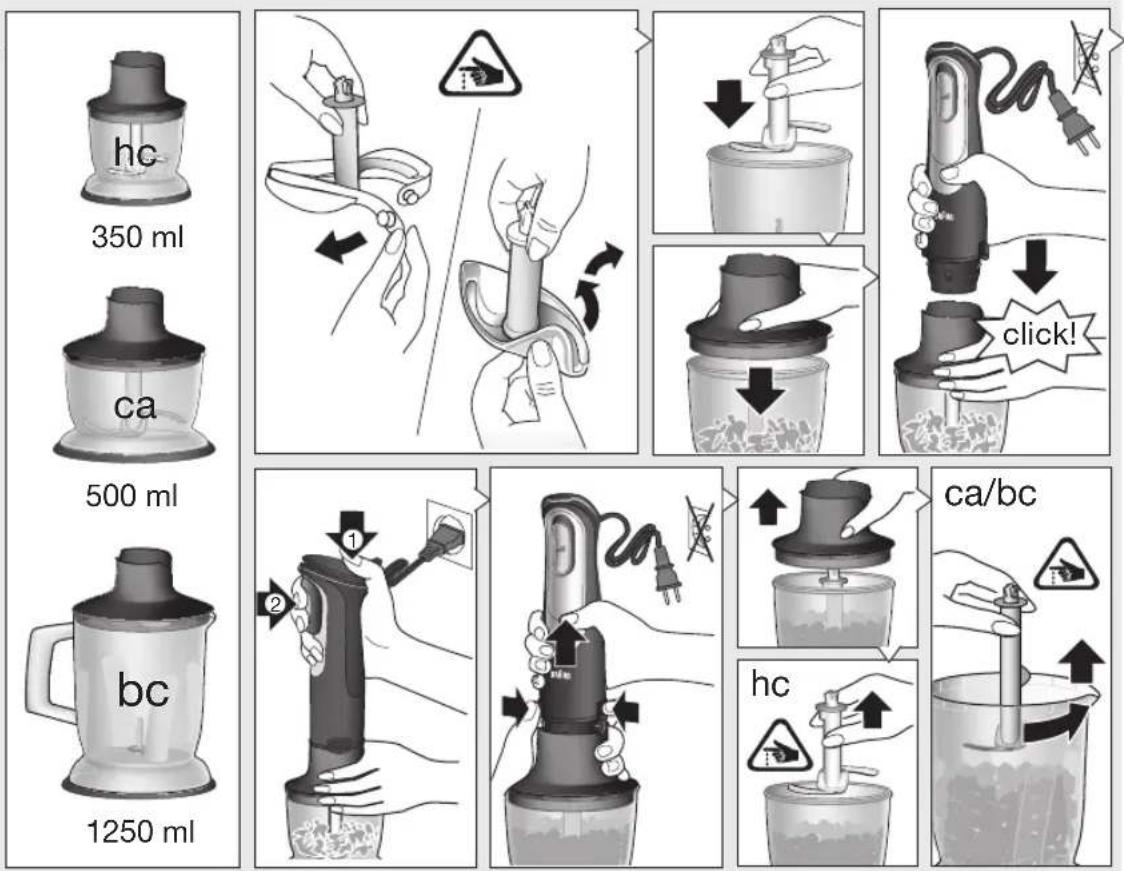

• Add the milk. Resume mashing for another 30 seconds. Chopper Accessory (D) The choppers (10/11/12) are perfectly suited for chopping meat, hard cheese, onions, herbs, garlic, vegetables, bread, crackers and nuts. Use the «hc» chopper (10) for fine results. Use the «ca» and «bc» chopper (11/12) for larger quantities and for hard foods. Furthermore, the «bc» chopper (12) offers a variety of other applications like shakes, drinks, purées, batter or crushed ice. Refer to the Processing Guide D for maximum quantities, recommended times and speeds. Maximum operation time for the «hc» chopper: 2 minutes for large amounts of wet ingredients, 30 seconds for dry or hard ingredients or amounts < 100g. Immediately stop processing when motor speed decreases and/or strong vibrations occur. Before Use

• Pre-cut foods into small pieces for easier chopping.

• Remove any bones, tendons and gristle from meat to help prevent damage to the blades.

• Make sure the anti-slip rubber ring (10d/11d/12e) is attached to the bottom of the chopper bowl. Assembly and Operation

• Carefully remove the plastic cover from the blade. 5722112034_MQ9045X_INT_S6-116.indd 135722112034_MQ9045X_INT_S6-116.indd 13 06.06.16 14:1706.06.16 14:1714

• The blades (10b/11b/12b, 12c) are very sharp! Always hold them by the upper plastic part and handle them carefully.

• Place the blade on the center pin of the chopper bowl (10c/11c/12d). Press it down and give it a turn so that it locks into place.

• Fill the chopper with food and put on the lid (10a/11a/12a).

• For ice crushing, use the special ice blade (12c) and fill up to 7 ice cubes into the chopper bowl (12d).

• Align the chopper with the motor part (4) and click together.

• To operate the chopper, switch on the appliance. During processing, hold the motor part with one hand and the chopper bowl with the other.

• Always chop harder foods (e.g. parmesan cheese) at full speed.

• When chopping is complete, unplug and press the release buttons (5) to detach the motor part.

• Lift the lid up. Carefully take out the blade before pouring out the contents of the bowl. To remove the blade, slightly turn it then pull it off. Caution

• Do not use the chopper accessories (10/11/12) with chopping blades to process extremely hard foods, such as unshelled nuts, ice cubes, coffee beans, grains, or hard spices e.g. nutmeg. Processing these foods could damage the blades.

• Only the «bc» chopper accessory (12) with the special ice blade is allowed to crush ice cubes.

• Never place the chopper bowls in the microwave oven. «bc» Recipe Example: Pancake Batter 375 ml milk 250 g plain flour 2 eggs

• Pour milk into the «bc» bowl, then add flour and finally the eggs.

• Using full speed, mix the batter until smooth. «hc» Recipe example: Honey-Prunes (as a pancake stuffing or spread): 50 g prunes 100 g creamy honey

• Fill the «hc» chopper bowl with prunes and creamy honey.

• Store at 3°C in refrigerator for 24 hours.

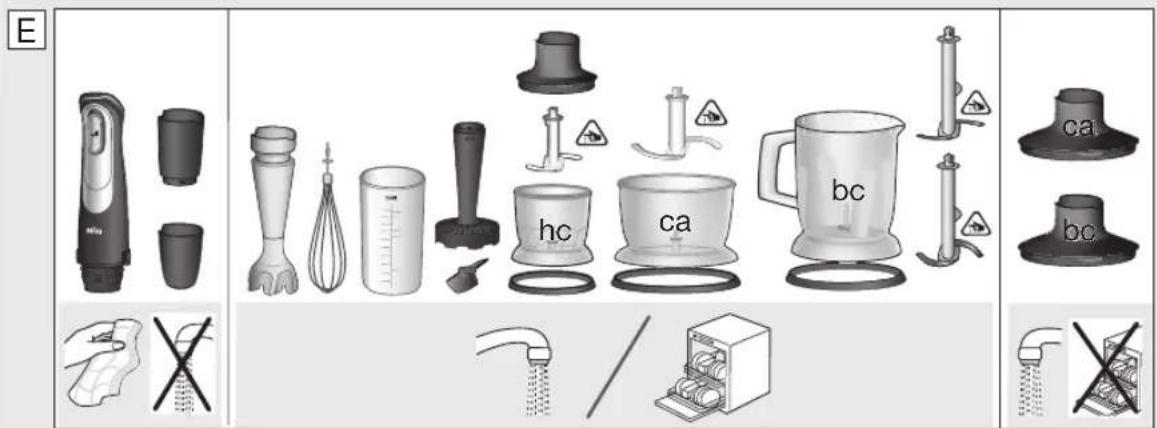

• Chop 1,5 seconds at maximum speed (fully press the Smart Speed switch). Care and Cleaning (E)

• Always clean the hand blender thoroughly after use.

• Unplug hand blender before cleaning.

• Do not immerse the motor part (4) or gearboxes (8a, 9a) in water or any other liquid. Clean with a damp cloth only.

• The lid (11a/12a) can be rinsed under running water. Do not immerse in water, nor place in a dishwasher.

• All other parts can be cleaned in a dishwasher. Do not use abrasive cleaners that could scratch the surface.

• You may remove the anti-slip rubber rings from the bottom of the bowls for an extra thorough clean.

• When processing foods with high pigment content (e.g. carrots), the accessories may become discolored. Wipe these parts with vegetable oil before cleaning them. Both the design specifications and these user instructions are subject to change without notice. Subject to change without notice. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Materials and accessories coming into contact with food conform to EEC regulation 1935/2004. For UK Only Guarantee Information All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected. Please keep your receipt as this will form the basis of your guarantee. In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

For service in the Republic of Ireland please call:

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.

• The product is used and maintained in accordance with the User Instructions. 5722112034_MQ9045X_INT_S6-116.indd 145722112034_MQ9045X_INT_S6-116.indd 14 06.06.16 14:1706.06.16 14:1715

• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.

• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.

• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.

• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water. Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages. Braun Household, New Lane, Havant, Hampshire PO9 2NH www.braunhousehold.co.uk Thank You for choosing Braun. We are confident that you will get excellent service from this product.
