USER MANUAL PHS 160 E5 PARKSIDE

• of the dust collection box p. 28
• Storage p. 28
• Waste Disposal/Environmental Protection p. 28
• Spare Parts/Accessories p. 29
• Trouble Shooting p. 30
• Guarantee p. 31
• Repair Service p. 32
• Service-Center p. 32

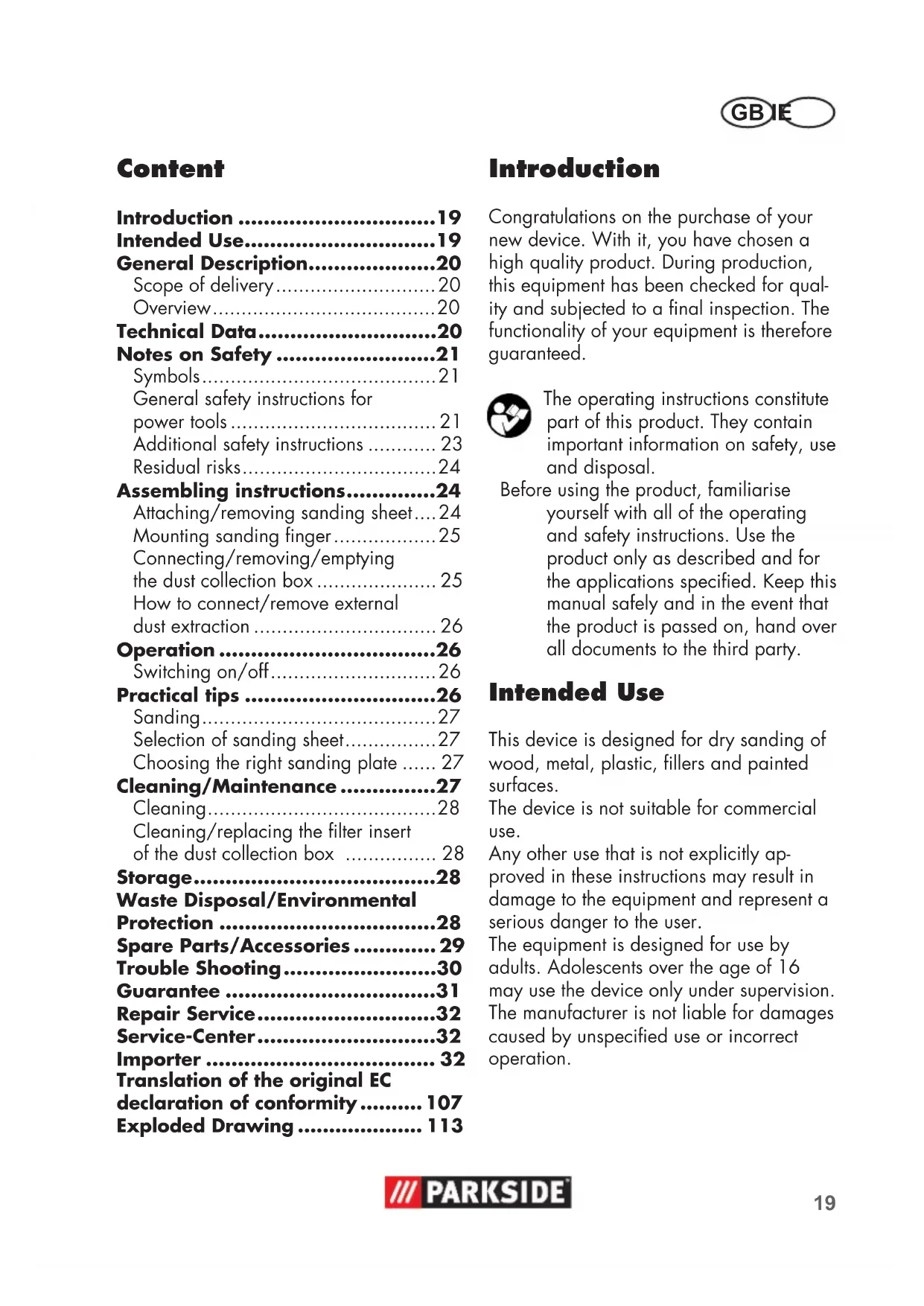

• Importer Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for qual- p. 32

functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for

manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended Use This device is designed for dry sanding of

surfaces. The device is not suitable for commercial use. Any other use that is not explicitly ap- proved in these instructions may result in damage to the equipment and represent a serious danger to the user. The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. The manufacturer is not liable for damages

General Description The illustration of the principal functioning parts can be found on the foldout page. Scope of delivery Carefully unpack the trimmer and check that it is complete. Dispose of the packag- ing material correctly.

• 3 sanding sheets (two-part)

14 3 sanding sheets for sanding

15 Extraction holes for sandig plate 16 Clamping lever for unlocking sanding plate

= 3 dB Sound power level

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to com- pare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission

value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Try to keep the exposure to vibra- tions as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).GB IE

Notes on Safety This section details the basic safety instruc- tions for working with the appliance. Symbols Symbols on the Equipment Warning! Warning! Electric shock hazard. Always unplug the device before working on it. Read through the instruction manual carefully. Wear ear and eye protection Wear breathing protection Wear safety gloves Protection class II (Double insulation) Electrical appliances must not be disposed of with the domestic waste. Symbols in the manual Warning symbols with in- formation on damage and injury prevention. Instruction symbols with information on preventing damage. Connect the machine to the power supply. Pull the mains plug. Help symbols with information on improving tool handling. General safety instructions for power tools WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions

and/or severe injuries. Retain all safety directions and in- structions for future use. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

• Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents.

• Do not operate power tools in explosive atmospheres, such as

Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi-GB IE

reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inlu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury.

• Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce per- sonal injuries.

• Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with

power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times. This enables better control of the pow- er tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jew- ellery or long hair can be caught in moving parts.

• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and prop- erly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.GB IE

• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

• Disconnect the plug from the power source and/or the bat- tery pack from the power tool before making any adjust- ments, changing accessories, or storing power tools. Such preven- tive safety measures reduce the risk of starting the power tool accidentaIly.

• Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly main- tained power tools.

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation.

• Hold the device by the insu- lated gripping surfaces when performing work in which the cutting tool may come into con- tact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

• Have your power tool serviced

ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional safety instructions Warning! Sanding can result in the formation of haz- ardous dusts (e.g. arising from materials with paints containing lead, materials containing asbestos, metals or some wood types) which can present a hazard to the operator or persons in the vicinity. Make sure that the workplace is well ventilated. Always wear safety goggles, safety gloves and respiratory protection.

• Secure the workpiece. A work- piece that is retained with clamping appliances or a vice is held more se- curely than with your hand.

• Only use the power tool for dry sanding. Avoid using on damp materials. Penetration of water into the power tool increases the risk of electric shock.GB IE

• Avoid overheating the sanded object and the sander itself. Pos-

• The workpiece gets hot dur- ing grinding. Do not touch the machined area, allow it to cool down. There is a risk of burning. Do not use coolants or the like.

• Always empty the dust con- tainer before work breaks. Sanding dust in the dust sack, micro

under unfavourable conditions such

metals. Particular hazards are caused if the sanding dust is mixed with paint, polyurethane residues or other chemi- cal substances, or if the sanded object is hot after long working periods. Please check the operating manual of your vacuum cleaner whether it is suit- able for the suction of grinding chips.

• Connect the appliance to a power socket with a residual current circuit breaker of rated residual current no more than 30 mA.

• If the supply cord of this power tool is damaged, it must be re- placed by a specially prepared cord available through the ser- vice organization. Residual risks Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Lung damage, if suitable respiratory protection is not worn; b) Cuts c) Ear damage if working without ear protection. d) Eye damage if suitable eye protection is not worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro-

circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we rec- ommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the ma- chine. Assembling instructions Pull the mains plug before any ad- justments, maintenance or repair. Danger of electric shock. Attaching/removing sanding sheet Clean the sanding disc before you attach a sanding sheet. Use only appropriate sanding sheet sizes. Sanding sheets, which ex- tend beyond the sanding disc, can cause injuries and can cause the sanding sheets to block or tear.GB IE

for rapid attachment of the sanding sheet (12). The sanding sheets (12) comprise 2 parts and can be individually replaced depend- ing on wear. To achieve optimal sanding results, only use sanding sheets with the right grain size. Attaching sanding sheet:

1. Press both parts of the sanding

and the holes are placed directly above the extraction openings (15) of the sanding plate (10). Removing sanding sheet:

2. Pull the sanding sheet (12) from

the sanding plate (10). Only perform sanding once both sanding sheets are mounted.

You can replace the pre-mounted sanding

vided in the scope of delivery. Unmounting sanding plate:

1. Open the clamping lever (16)

and turn it in the direction of the sanding sheet until it reaches the stop.

2. Remove the front section of the

from above against the back section of the sanding plate (10)

4. To lock, turn the clamping lever

(16) into its original position. Attaching sanding sheet for

5. Press the sanding plate for the

6. Place a sanding sheet onto the

back section of the sanding plate (10). This will prevents soiling of the Velcro. Connecting/removing/emp- tying the dust collection box Connecting the dust collection box:

1. Before connecting, ensure that

the dust collection box (8) is

2. Press the release button (4) on the

dust collection box (8). Slide the dust collection box (8) all the way onto the connection for dust ex- traction (9). The two lugs (9a) on the connection for dust extraction

3. Let go of the release button (4).

It will click into place above the

4. Press the release button (4) and

pull the dust collection box (8) out. Emptying the dust collection box:

box (8) again. Empty the dust collection box regu- larly to ensure optimal suction. How to connect/remove external dust extraction Connecting external dust extraction

1. Push the external dust extraction

adaptor (11) as far as it will go on the dust extraction connector (9).

2. Connect the extraction hose from

a vacuum cleaner (sold separate- ly) to the external dust extraction adaptor (11). Removing external dust extraction

1. Remove the extraction hose

from the external dust extraction adaptor (11).

2. Disconnect the adapter for exter-

nal dust extraction (11). If necessary, you can connect the suction tube of a vacuum cleaner directly to the device without an adapter. Operation Switching on/off Make sure that the power supply voltage matches the voltage rat- ing indicated on the device‘s type plate. Connect the machine to the power supply.

1. To switch on, lick the on/off

switch (1) to position „I“. The tool will power on.

2. To switch off, lick the on/off

switch (1) to position „0“. The tool will power off. Practical tips When working with the ap- pliance, always wear suita- ble clothing and appropriate protective equipment. Prior to each use it must be ensured that the appliance is working correctly. Personal protective equip- ment and a fully functional appliance reduce the risk of injuries and accidents. Do not use the device without a dust collection box or external dust extraction. Use of a dust extraction can reduce hazards caused by dust. When using sanding sheets without ventilation holes, dust extraction is not possible. Make sure that the workplace is well ventilated.GB IE

Pull the mains plug before any ad- justments, maintenance or repair. Danger of electric shock. Sanding

• Move the appliance against the work- piece once it is switched on.

• After machining, lift the sanding disc up before turning off the device.

• Always lead the mains cable towards the back and away from the device.

• Clean the sanding plate before you at- tach a sanding sheet.

• Only work with sanding sheets in per- fect condition to achieve good sanding results.

• Work with low and even pressure and even forward pressure. This protects the appliance and the sanding sheet.

• Grind rough corners and edges with the top or side edge of the sanding sheet. If the front tip of the triangular sanding sheet is worn, the sanding sheet can be removed, rotated and put back into place.

• Do not use the same sanding sheet to sand different materials (e.g. metal and then wood).

• Empty the dust collection box or the vacuum cleaner regularly in order to ensure optimal suction. Selection of sanding sheet Grain size Application P 60 P 80 for pre-sanding rough wood surfaces P 120 P 180 for plain sanding P 240

painted surfaces Choosing the right sanding plate Pre-mounted sanding plate:

• For sanding/grinding large surfaces as well as corners, edges and outer curves.

• For machining small slots and narrow intermediate spaces. Cleaning/Maintenance Pull the mains plug before any ad- justments, maintenance or repair. Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts. The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.GB IE

Cleaning Do not spray the appliance with water and do not im- merse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably dam- age the appliance.

• Clean the sanding sheet with a vacu- um cleaner or knock it out.

2. Pull the mounting frame (17)

warm water and soap and let it dry. Replace a heavily contaminated

“Spare Parts/Accessories”).

• Store the device in a dry place well out of reach of children.

• Empty the dust collection box before storing the device (see “Connecting/ removing/emptying the dust collection box”). Waste Disposal/Envi- ronmental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recy-

them. Electric units do not belong with domestic waste.

• Return the unit to a recycling centre. The plastic and metal parts employed can be separated out and thus recy- cled use can be implemented. Ask our Service-Center for details.

• Defective units returned to us will be disposed of for free.GB IE

Spare Parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” Page 32). Please have the order number mentioned below ready. Position Description Order No. instruction manual 10 Sanding plate, premounted 91104224

Trouble Shooting Problem Possible Cause Error correction Device doesn‘t start Mains voltage missing Main circuit breaker is tripped Check the socket, mains cable, line, mains plug, repairs to be carried

sary, check main circuit breaker. On/off switch (

be defective Repair by Customer Care Engine faulty Device works with interruptions Internal loose contact Repair by Customer Care On/off switch (

broken Engine is slowing down and stops Device is overloaded through workpiece Reduce pressure on grinding tool Workpiece unsuitable Poor grinding performance Sanding sheet unsuitable for the workpiece to be processed Use a suitable sanding sheet or sanding disc (see “Assembling in- structions”) Worn sanding sheet Insert a new sanding sheet (see “Assembling instructions”) Sanding sheet wears down quickly Sanding sheet unsuitable for the workpiece to be processed Use a suitable sanding sheet (see “Assembling instructions”) Too much pressure applied Reduce the pressureGB IE

Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. tools, sanding sheets) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of

manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure quick handling of you issue, please follow the following directions:

tion number (IAN 303400) ready as proof of purchase for all enquiries.

• Should functional errors or other de- fects occur, please initially contact the

telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.GB IE

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt)

the defect and when it occurred. In or- der to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with ad- equate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: grizzly@lidl.ie IAN 303400 Importer Please note that the following address is not a service address. Please initially con-

= 3 dB Vibrations (a

Translation of the original EC declaration of conformity We hereby conirm that the Detail sander model PHS 160 E5 Serial number 201810000001 - 201810177250 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: EN 60745-1:2009/A11:2010 • EN 60745-2-4:2009/A11:2011 EN 55014-1:2006/A2:2011 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321:2009 This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, Germany

of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Christian Frank Documentation Representative108
