DRYWALL SANDER / WAND- UND DECKEN- SCHLEIFER / PONCEUSE MURS ET PLAFONDS PWDS 920 D4

GB / IE

DRYWALL SANDER

Translation of the original instructions

FR / BE

PONCEUSE MURS ET PLAFONDS

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE / AT / CH

GB/IE Translation of the original instructions Page 1

DE/AT/CH	Originalbetriebsanleitung	Seite	17
FR/BE	Traduction des instructions d'origine Page 33
NL/BE	Vertaling van de originele gebruiksaanwijzing Pagina 53
CZ	Překlad originálního provozního návodu Strana 69
PL	Tlumaczenie oryginalnej instrukcji obsługi			Strona	85
SK	Preklad originálneho návodu na obsluhu		Strana	101
ES	Traducción del manual de instrucciones original			Página	117
DK	Oversættelse af den originale driftsvejledning			Side	133
IT	Traduzione delle istruzioni d'uso originali			Pagina	147
HU	Az originál használati utasítás fordítása			Oldal	163

Technical diagram of a mechanical assembly with numbered components, likely illustrating a transmission or assembly process.

A 6 7 8 9 10 11

B 12 13 14 C 15 16

D E 17 18 19 F 20 21 22

Contents

Introduction 2

Intended use....2

Features 2

Package contents 2

Technical data 2

General power tool safety warnings....3

1. Work area safety 4

2. Electrical safety 4

3. Personal safety 4

4. Power tool use and care 5

5. Service 5

Safety instructions for all applications 5

Kickback and corresponding safety instructions....7

Additional safety instructions for sanding with sandpaper 7

Additional safety instructions 7

Before use....8

Selecting a sanding sheet 8

Changing the sanding sheets 9

Assembling the tool 9

Installing the dust extraction system 9

Mounting the adapter for external extraction 10

Operating instructions....10

Sanding 10

Operation 10

Switching on 10

Switching off 10

Setting the rotational speed 10

Switching the LED light on/off 11

Maintenance and cleaning 11

Changing the carbon brushes 11

Changing the sanding plate (round) 1 1

Changing the sanding head 12

Storage and handling of the recommended accessory tools 12

Disposal....12

Kompernass Handels GmbH warranty....13

Service....14

Importer....14

Translation of the original Conformity Declaration....15

Ordering replacement parts 15

Introduction

Congratulations on the purchase of your new tool. You have selected a high-quality product. The operating instructions are a part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all instructions regarding safety and use. Use the product only as described and for the specified range of applications. Please also pass on all documents to any future owner.

Intended use

Proper use of this power tool includes the following activities:

• Removal of paint, wallpaper and adhesive residues.
• Sanding of plastered or primed drywall.
• Sanding of wooden walls or ceilings (natural or plywood).

The LED light on this tool is designed to illuminate the direct working area of the tool in unfavourable lighting conditions.

Any other usage or modification of the tool is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage resulting from improper use. The tool is not intended for commercial use.

Features

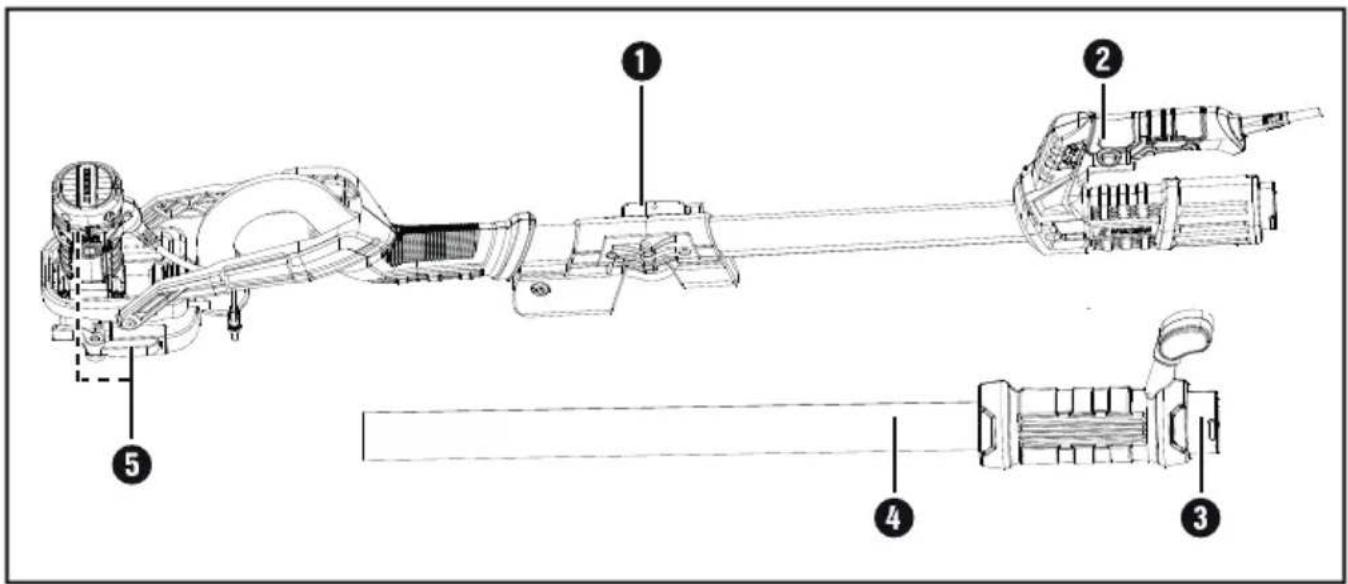

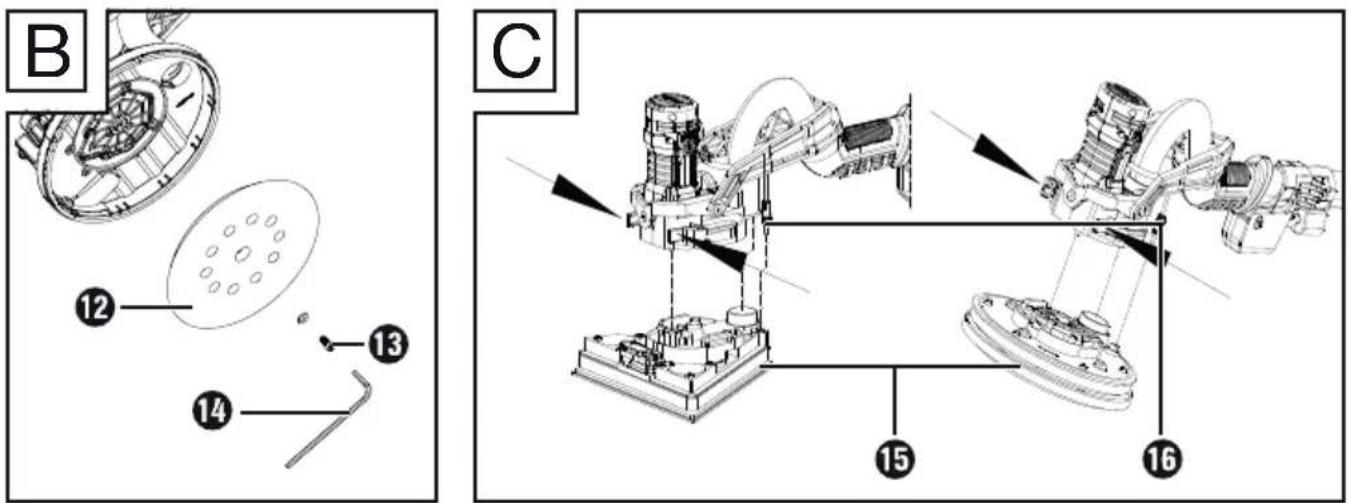

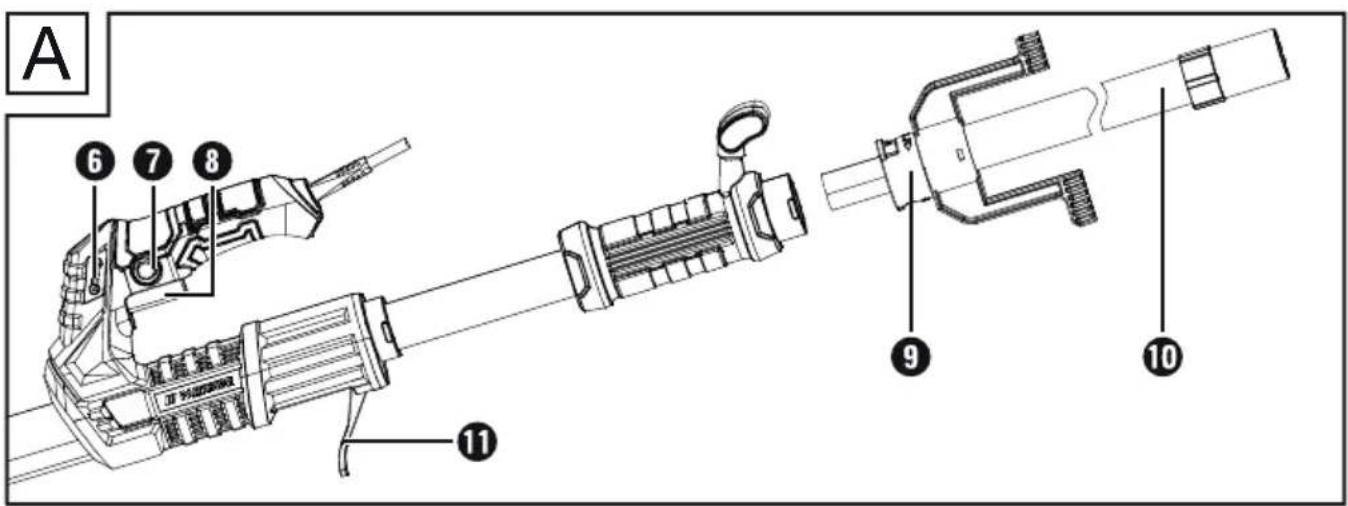

① Retaining clip
② Control unit
③ Extraction nozzle
4 Extension tube
⑤ Locking clips
6 Speed button
⑦ Locking button
⑧ On/Off switch

⑨ Extraction hose lock
⑩ Extraction hose
⑪ Tube clamp
⑫ Sanding plate
⑬ Screw
14 Hex key
15 Sanding head
16 Power supply
⑰ Cover for carbon brush
18 Slotted screwdriver
19 Button for LED light
20 Sanding sheet
21 Carbon brushes
22 Adapter for dust extraction

Package contents

1 drywall sander
1 rectangular sanding head
1 round sanding head
12 sanding sheets (grain: 80/100/120/150/180/240)
1 hex key
1 slotted screwdriver
1 dust extractor adapter
1 spare set of carbon brushes
1 extraction hose
1 set of operating instructions

Always use the power tool with both hands

Technical data

Rated voltage 230 V \~, 50Hz (AC)

Rated power

consumption 710 W

Rated speed • n 800–1800 rpm

▼ n₀ 2900-6600 rpm

Rated capacity ∅ 215 mm;

28.5 × 28.5 cm

Protection class II/ (double insulation)

Technical specifications LED

Input voltage 230 V \~ (AC)

Output 12 V --- (DC)

LED Max. 8 W

Light 600 lm; 6500 K

Noise and vibration data

Noise measurement value determined in accordance with EN 62841. The A-weighted noise level of the power tool is typically:

Noise emission value

Round sanding head

Sound pressure level L _PA = 89.8 dB

Uncertainty K = 3 dB

Sound power level L _WA = 97.8 dB

Uncertainty K = 3 dB

Rectangular sanding head

Sound pressure level L _PA = 90.7 dB

Uncertainty K = 3 dB

Sound power level L _WA = 98.7 dB

Uncertainty K = 3 dB

Wear hearing protection!

Total vibration value

Round sanding head

Front handle a _h ≤ 2.5 m/s

Rear handle a_h ≤ 2.5 m/s

Uncertainty K = 1.5 m/s ^2

Rectangular sanding head

Front handle a _h.=6.552 m/s^2

Rear handle a_h_1=5.351 m/s^2

Uncertainty K = 1.5 m/s ^4

NOTE

The vibration emission values and noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.

NOTE

The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.

It is necessary to establish safety measures to protect the operator based on an estimation of the vibration load during actual use (wherein all states of operation must be included, e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When working outdoors with an electrical power tool, always use extension cords that are also suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.

b) Use personal protective equipment. Always wear safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to get lulled into a false sense of security, and do not ignore the safety regulations for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children, and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for all applications General safety instructions for sanding with sandpaper

a) This power tool is designed to be used as a sandpaper sander. Read all the safety information, instructions, diagrams and data that you receive with the tool. Failure to observe the following instructions can lead to an electrical shock, fire and/or serious injuries.
b) This power tool is not suitable for grinding, working with steel brushes, polishing, cutting holes or abrasive cutting. Using the power tool for applications for which it is not designed can lead to hazards and injuries.
c) Do not use the power tool for any function for which it is not expressly designed and intended by its manufacturer. Such a conversion can result in loss of control and serious bodily injury.

d) Do not use accessories that are not specifically designed and specified by the manufacturer for this power tool. Just because you can attach the accessories to your power tool does not guarantee they are safe to use.
e) The maximum permissible speed of the accessory tool being used must be at least as high as the maximum speed specified for the power tool.

Accessories that rotate faster than the permissible rate can break and throw pieces into the air.

f) The external diameter and thickness of the accessory tool being used must comply with the specified dimensions of your power tool. Incorrectly dimensioned accessory tools cannot be sufficiently shielded or controlled.
g) The dimensions for fastening the accessory tool must match the dimensions of the fasteners of the power tool. Accessory tools that cannot be fitted precisely onto the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.
h) Never use damaged accessory tools. Before each use, check tools such as sanding discs for chipping and cracks and sanding plates for cracks, wear or heavy wear. If the power tool or the accessory tool in use is dropped, check to see if it is damaged or use an undamaged accessory tool. When you have checked and inserted the accessory tool, ensure that you and any other people in the vicinity remain outside of the plane of the rotating accessory tool and allow the tool to rotate at maximum speed for one minute. Damaged accessory tools usually break during the test period.
i) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or safety goggles.

As required, use a dust mask, hearing protection, protective gloves or a special apron that will protect you from grit and material particles. Protect your eyes from flying debris that may be produced during certain applications. Dust or filter masks must be used to filter any dust produced by the application. Long-term exposure to loud noise can cause hearing loss.

j) Ensure that any bystanders are at a safe distance from your work area. Anyone who enters the workspace must wear personal protective equipment. Fragments of the workpiece or broken accessory tools can fly off and cause injury – even outside the immediate work area.
k) Keep the power cord away from any rotating accessories. If you lose control of the tool, the cord may get caught or cut and your hand or arm could get caught in the rotating accessory tool.
I) Never put the power tool down until the accessory tool has come to a complete standstill. The rotating accessory tool could come into contact with the surface and cause you to lose control of the power tool.
m) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to an injury (for example, a cut or puncture wound).
n) Clean the ventilation slits of your power tool regularly. The motor fan draws dust into the housing, and a heavy accumulation of metal dust can cause electrical hazards.
o) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite these materials.
p) Do not use any accessory tools that require a liquid coolant. The use of water or other liquid coolants may lead to an electric shock.

Kickback and corresponding safety instructions

Kickback is a sudden reaction caused when a rotating accessory tool, e.g. sanding disc, sanding plate, wire brush, etc., catches or jams. Catching or jamming leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool turns rapidly against the direction of rotation of the accessory tool caught in the blockage.

If, for example, a sanding disc catches or jams in a workpiece, the edge of the sanding disc projecting into the workpiece can get caught and break off the sanding disc or cause a kickback. The sanding disc can then fly towards or away from the operator, depending on the direction of rotation of the disc at the blockage. This can also cause sanding discs to break.

Kickbacks are caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.

a) Hold the power tool firmly in both hands, and position your body and arms so they can absorb the force of the kickback. Always use the additional handle, if available, so that you have the maximum possible control over the kickback forces or reaction forces at full speed. By taking adequate precautions, the operator can stay in control of the kickback and reaction forces.

b) Keep your hands clear of a rotating accessory tool at all times. The accessory tool could move over your hand in the event of a kickback.

c) Avoid having any part of your body in the area in which the power tool is likely to move in the event of a kick-back. The kickback will force the power tool in the opposite direction to the direction of rotation of the sanding disc at the blockage.

d) Take special care when working near corners, sharp edges, etc. Do not allow the accessory tool to bounce back from the workpiece or to jam. The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or a kickback.

e) Do not use chainsaw blades designed for cutting wood, segmented diamond cutting discs with a segment pitch greater than 10 mm or any toothed saw blade. These kinds of accessories often cause a kickback or loss of control.

Additional safety instructions for sanding with sandpaper

a) Use sanding sheets of the correct size, and follow the manufacturer's instructions for selecting the sanding sheets. Sanding sheets that protrude beyond the sanding plate can cause injuries and lead to catching or tearing of the sanding sheets or cause kickback.

Additional safety instructions

⚠ WARNING! Always wear safety goggles.

⚠ WARNING! Always wear a dust mask.

■ Unlock the On/Off switch and move it to the off position if the power supply is interrupted, e.g. due to a power failure or unplugging of the mains plug. This prevents an uncontrolled restart.

■ Use the power tool for dry sanding only. Water entering a power tool will increase the risk of electric shock.

■ Always switch on the electrical power tool before applying it to the workpiece, and do not switch it off until you have lifted it off the workpiece. The power tool can move suddenly.

■ Do not use worn, torn or heavily clogged sanding tools. Damaged sanding tools can tear, fly off and injure someone.
■ Always use the supplied extraction hose or a suitable dust extractor when operating the power tool. The use of an extraction system can reduce hazards caused by dust.
■ Attention! This could cause a fire! Avoid overheating of the material being sanded as well as the sander. Always empty the dust collector before taking work breaks. Under unfavourable conditions, sanding dust in the dust sack, microfilter, paper sack (or in the filter sack or filter of the vacuum cleaner) can ignite, e.g. due to flying sparks when sanding metals. This is a particular risk if the dust is mixed with paint or polyurethane residues or other chemicals and the workpiece has become hot after being worked for a long time.
■ Hold the power tool firmly with both hands when working, and ensure that you have secure footing. The power tool is guided more safely with two hands.
■ Wear ear muffs, goggles, dust mask and gloves if necessary. Use a dust mask that is at least a class FFP2 particle-filtering half mask.
■ Use a dust extractor when working on stone. The vacuum cleaner must be approved for the extraction of stone dust. Using these devices reduces dust hazards.
■ Do not touch accessory tools until they have cooled down. The accessory tools become very hot when working.

■ Wear protective gloves when changing the accessory tools. Accessory tools become warm during prolonged use.
■ Do not process materials that release substances that are hazardous to health, e.g. beech or oak wood dust, rock dust or asbestos. These substances are considered carcinogenic.
■ Inform yourself about the applicable regulations/laws concerning the handling of dust hazardous to health in your country.

■ Never touch the running sanding tool. There is a risk of personal injury.

If necessary, use a scaffold for working. When working on a ladder, you cannot ensure a secure footing.

Before use

WARNING! RISK OF INJURY!

▶ Always remove the plug from the power socket before working on the tool!

CAUTION!

▶ Wear protective gloves when changing tools. There is a risk of injury if the accessory tools are touched.

Selecting a sanding sheet

Removal and surface

The material removal rate and surface quality are determined by the grain of the sanding sheet.

◆ Please note that you need to use sand-papers with different grains for working different materials.

In the table below, you will find some recommended values which will help you determine which sanding sheet p to use for which job.

Wood	Sandingsheet/grain
Working wood 80–240
Pre-sanding of unfinished,unplaned beams andplanks, for example	80
Surface sanding 80, 100, 120
Fine sanding of hardwoods 1	80, 240

Paint/varnishes	Sandingsheet/grain
Working on coats of paint/ varnish or primers such as filler	80–240
Removal of paint 80
Sanding undercoat 80, 100, 120
Final sanding of primers before painting	180, 240

Changing the sanding sheets

The surface of the sanding plate 12 consists of a hook and loop fabric so that you can fasten sanding sheets 20 quickly and easily. The triangular sanding sheets 20 can be fitted on the rectangular sanding head in a similar way.

Before attaching a new sanding sheet 20, remove dirt and dust from the sanding plate 12, e.g. with a brush.
Place the sanding sheet 20 flush against the edge of the sanding plate 12. Then place the sanding sheet 20 on the sanding plate 12 and press it down firmly. Make sure that the extraction holes on the sanding sheet 20 and the sanding plate 12 match up.
To remove the sanding sheet 20, lift the edge and pull it off the sanding plate 12.

Assembling the tool

◆ Close the hinge on the retaining clip ①. Fix the tool using the retaining clip ①. Note the 🔔 symbols on the retaining clip ①.

♦ Insert the appropriate end of the extension tube ④ into the appropriate opening of the control unit ②.
♦ Fix the extension tube ④ in the desired position using the tube clamp ⑪. Take care not to exceed the maximum mark on the extension tube ④.

Installing the dust extraction system

Dust from materials such as lead-based paints, some types of wood, minerals and metal can be harmful to health. Touching or inhaling the dusts may cause allergic reactions and/or respiratory illnesses of the user or people in the vicinity. Certain dusts such as oak or beech dust are considered carcinogenic, especially in combination with wood treatment additives (chromate, wood preservatives). Materials containing asbestos may only be worked on by specialists.

■ Always use a dust extractor.
■ Operate the power tool either with a dust bag or connect a dust and chip extraction device.
■ Ensure that your workplace is adequately ventilated.
■ We recommend you wear a respirator with a class P2 filter.
■ Avoid kinking the extraction hose 10.

Follow the regulations that apply in your country regarding the materials to be worked.

♦ Plug the inlet side of the extraction hose ⑩ onto the extraction nozzle ③ (see Fig.A).
♦ Turn the lock ⑨ towards the 🔒 ▶ symbol.

◆ To remove the extraction hose ⑩, turn the lock ⑨ towards the ◀ symbol.

Mounting the adapter for external extraction

If necessary, attach the dust extraction adapter ② to the appropriate end of the extraction hose ⑩.
◆ Connect a dust extraction system.

NOTE

- When working with wood or materials that produce dust that is hazardous to health, the device must be connected to a suitable, tested extraction device (e.g. in accordance with dust class M as per EN 60335-2-69). You can also connect a Parkside NT vacuum cleaner.

Operating instructions

WARNING! RISK OF INJURY!

▶ Always remove the plug from the power socket before working on the tool!
▶ Wait until the tool has come to a standstill before putting it down.

The removal rate and the surface quality are determined by the selection of the sanding tool, the preselected speed level and the contact pressure.

Only sanding tools that are in perfect condition provide a good sanding performance and protect the tool.

Sanding

■ Hold the tool firmly with both hands when working, and ensure that you have secure footing. The tool is guided more safely with two hands.

◆ Connect your extraction system (internal or external extraction).
◆ For external extraction

If possible, work with the remote switch-off or the automatic start/stop function of the vacuum cleaner. The vacuum cleaner switches on automatically and switches off again after a time delay in order to remove the remaining dust from the suction hose.

♦ Switch on the tool. Place it with the entire sanding surface on the material being worked. Move it over the workpiece with moderate pressure.
◆ To prolong the service life of the accessory tool, ensure that you apply even pressure.
◆ Use of excessive pressure does not lead to a greater removal rate, but rather to increased wear of the accessory tool.
◆ Lift the tool off the working surface.

◆ For internal extraction

Let the power tool run for a few more seconds to remove the remaining dust from the extraction hose ⑩.

Operation

Tool direction of rotation!

Switching on

To switch on the tool, press the On/Off switch ⑧. To lock the On/Off switch ⑧, press the locking button ⑦.

Switching off

To switch off the power tool, let go of the On/Off switch 8. If it is locked, press the On/Off switch 8 briefly and then release it.

Setting the rotational speed

Before starting work, set the speed to suit the application. Use a low speed for coarse sanding; increase the speed for fine sanding.

The required rotational speed depends on the material being processed and can be determined through practical tests.

■ Adjust the speed by pressing the buttons 6.

◆ Press the + button ⑥ to increase the speed.

◆ Press the – button ⑥ to reduce the speed.

NOTE

The accessory tool continues rotating after switching off. Wait until the accessory tool has come to a standstill before putting down the tool.

Switching the LED light on/off

◆ Press the button 19 for the LED light to switch the light on.

◆ Press the button 19 for the LED light again to increase the intensity.

◆ Press the button 19 for the LED light again to switch the light off.

NOTE

▶ The power supply ⑯ must be connected to the respective sanding head ⑮ for the light to function.
▶ The LED light on this tool is designed to illuminate the direct working area of the tool in unfavourable lighting conditions.

The LED light is not suitable for lighting rooms in houses.

The light source of this tool can only be repla manufacturer or experts the manufacturer.

This product contains a light source of energy efficiency class E.
If the cable of this light is damaged, it must be replaced only by the manufacturer, its customer service or a similarly qualified person in order to prevent a hazard.

Maintenance and cleaning

WARNING! RISK OF INJURY! Switch the tool off and remove the power plug before starting any work on the tool.

The tool is maintenance-free.

■ Do not use any sharp objects to clean the tool. Do not allow any liquids to get into the tool. Otherwise the tool could be damaged.
■ Clean the tool regularly, preferably immediately after completion of the work.
- Clean the housing with a dry cloth – do not use petrol, solvents or cleaners that can attack the plastic.
■ Ventilation openings must never be obstructed.
■ Remove any sanding dust stuck to the tool with a brush.

NOTE

▶ Replacement parts not listed (such as carbon brushes, switches or sandpaper) can be ordered via our Service Hotline.

Changing the carbon brushes

◆ Using the slotted screwdriver 18, open the cover 17 of the carbon brush (see Fig. D).
♦ Replace the carbon brushes 21.
♦ Reinstall the cover 17 of the carbon brush using the slotted screwdriver 18.

Changing the sanding plate (round)

♦ Loosen the screw 13 including the washer ring using the hex key 14 (see Fig. B).
♦ Remove the sanding plate 12, and replace it with a new one.

♦ Reinsert the screw 13, including the washer ring, and tighten it again using the hex key 14.

Changing the sanding head

◆ Remove the power supply 16.
- Loosen the two locking clips ⑤ and remove the installed sanding head ⑮.
Place the new sanding head 15 under the motor unit (see Fig. C). Make sure that the extraction system connects with the respective opening. Make sure that the locking clips 5 lock correctly.
Connect the power supply 16

Storage and handling of the recommended accessory tools

■ Sanding tools must be treated with care and transported carefully.
■ Sanding tools should be stored in such a way that they are not exposed to mechanical damage or environmental influences (e.g. damp).

Disposal

Applies only to France

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Do not dispose of power tools in your normal domestic waste!

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

This appliance has a 3-year warranty valid from the date of purchase. If included with the product on delivery, the battery packs of the X12V and X20V Team series also come with a 3-year warranty from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not cover product parts that are subject to normal wear and tear and can therefore be considered wearing parts, such as saw blades, replacement blades, abrasive papers, etc. or for damage to fragile parts, such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

The warranty does not apply to

■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 456313_2410 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional faults or other defects occur, please first contact the service department listed below by telephone or use our contact form, which you can find on parkside-diy.com in the Service category.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can view and download these instructions along with many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your

country and use the search box to search for the operating instructions. Enter the article number (IAN) 456313_2410 to find the operating instructions for your article.

Service

GB Service Great Britain

Tel.: [phone]

Contact form on parkside-diy.com

IE Service Ireland

Tel.: [phone]

Contact form on parkside-diy.com

IAN 456313_2410

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU) ^*

* The manufacturer bears the sole responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Applied harmonised standards

EN 62841-1:2015+A11:2022

EN 62841-2-4:2014

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

Type designation of machine: Drywall sander PWDS 920 D4

Year of manufacture: 03–2025

Serial number: IAN 456313_2410

Bochum, 07/11/2024

Sofy Fosky

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smart-phone/tablet. You can use this QR code to go directly to our

website to view and order the available spare parts.

NOTE

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail.
▶ Always quote the article number (IAN) 456313_2410 in your order.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Inhaltsverzeichnis

Einleitung 18

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

WAARSCHUWING! LETSELGEVAAR!

:\\56&+8:,1\*□□ /(76/\*(9\\5□

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

Typové označenie stroja: Nástenná a stropná brúska PWDS 920 D4

Rok výroby: 03–2025

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

Maskinens typebetegnelse:

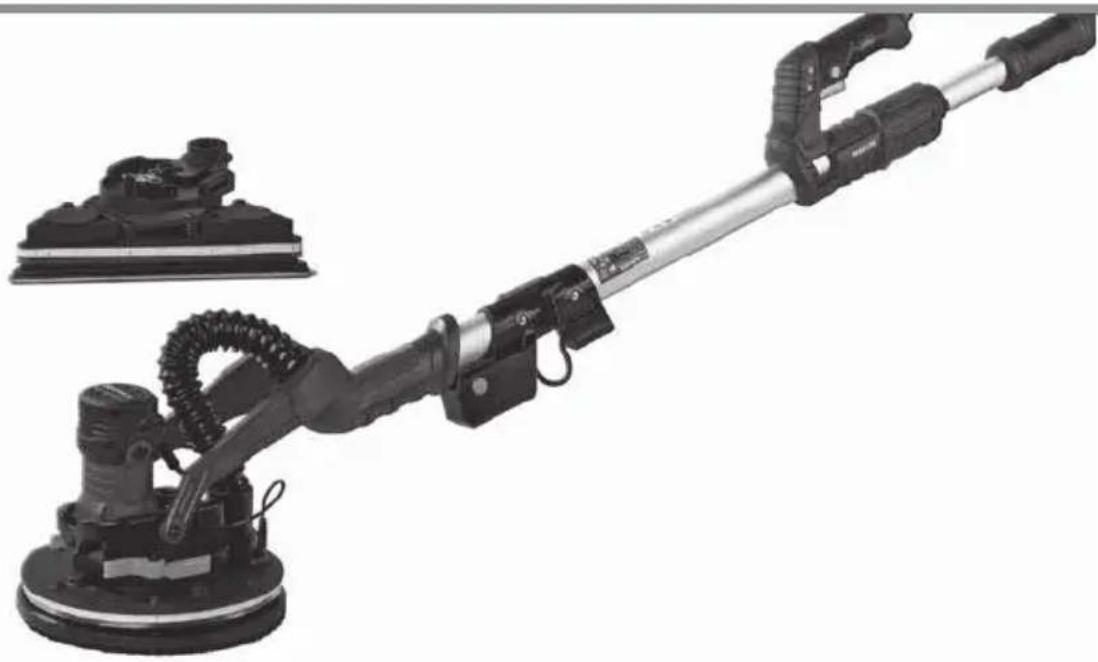

Væg-/girafsliber PWDS 920 D4

Produktionsår: 03–2025

Serienummer: IAN 456313_2410

Bochum, 07.11.2024

Safond Furds

CE

Semi Uguzlu

- Kvalitetschef -

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

RUGXODWV1@P#EH#OOKW#VD

V#L#TA

/('OûPSD[EH]NLNDSFVROûVD

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

Németország

www.kompernass.com

EN IEC 62841-2-3:2021+A11:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A2:2024

EN 61000-3-3: 2013/A2:2021

EN IEC 63000:2018

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
