USER MANUAL PEH 30 C3 PARKSIDE

PDF ONLINE www.lidl-service.com

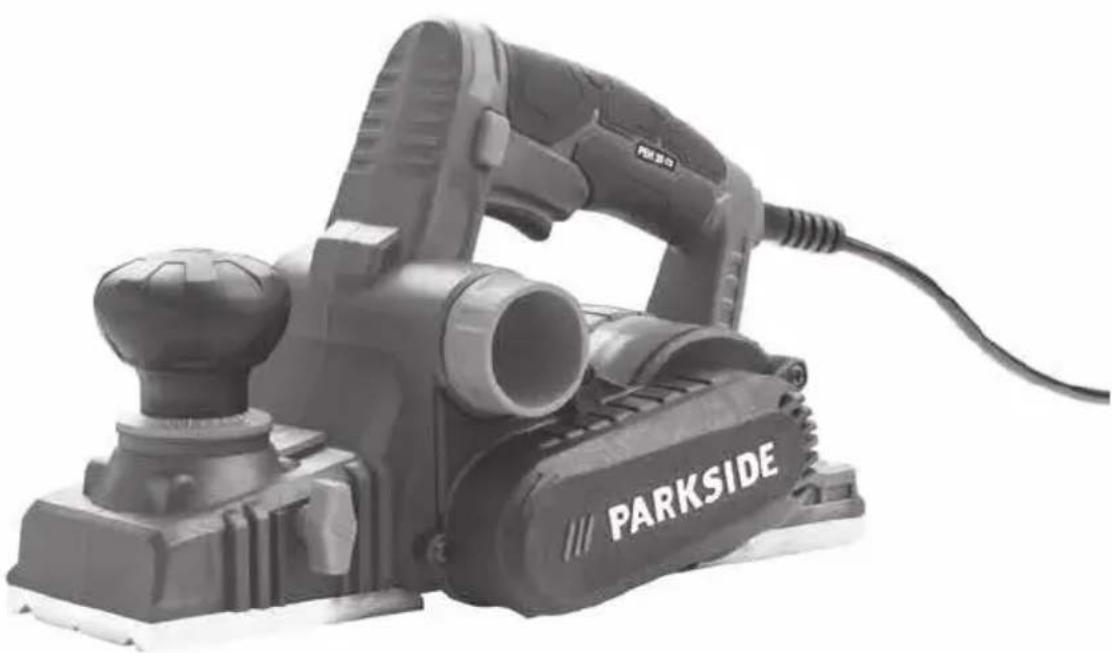

Black-and-white photo of a Parkside electric tool with visible branding and control panel (no text or symbols on the device itself)

ELEKTROHOBEL / ELECTRIC PLANER

RABOT ÉLECTRIQUE PEH 30 C3

DE AT CH

ELEKTROHOBEL

Translation of the original instructions

NL BE

ELEKTRISCHE SCHAAF

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Labeled diagram of a parkside electric motor with numbered parts for identification

A 15 B 16

C ⑰ ⑦ ⑳

E 20a 20

G ⑫ ⑪

D 18 19 20 21

F 23 24 25

H 26 22

Inhaltsverzeichnis

Einleitung 2

Handgriff: a_h = 10,8 m/s^2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

General power tool safety warnings....15

1. Work area safety 15
2. Electrical safety 15
3. Personal safety 16
4. Power tool use and care 16
5. Service 17
   Appliance-specific safety instructions for power planers 17
   Original accessories/auxiliary equipment 18

Operation....18

Switching on and off 18
Setting the cut depth 18
Dust/chip extraction (see fig. A) 18
Parking shoe (see fig. B) 18
Planing 18
Chamfering edges 19
Using the rip fence 19
Using the fold depth stop 19
Removing/replacing the planing blade 20 (see figs. C - E) 19
Replacing the drive belt (see fig. F) 20

Maintenance and cleaning 20

Disposal 20

Kompernass Handels GmbH warranty 21

Service 22

Importer 22

Translation of the original Conformity Declaration 22

ELECTRIC PLANER PEH 30 C3

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The appliance is designed for planing workpieces such as beams or planks that are firmly held in place. The appliance is also suitable for chamfering edges and for grooving. Any other uses of or modifications to the appliance are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. This appliance is not intended for commercial use.

Equipment

① Safety lock-out
② ON/OFF switch
3 Chip ejector (optionally right/left)
4 Belt cover
5 Screws for belt cover
6 Rip fence
⑦ Fastening screw for rip fence
8 Lock nut for setting the fold width
8a Connecting piece
8b Connecting screw
8c Washer
9 Plane sole
10 V grooves
⑪ Fastening screw for the fold depth stop
12 Fold depth stop
14 Cut depth scale
15 Adapter for external extraction
16 Parking shoe
17 Cutter block
18 Clamping element

13 Dial for setting the cut depth (additional handle)

19 Fastening screw for the planing blade
20 Planing blade
20a Tensioning plate groove
21 Lateral cutter block guard

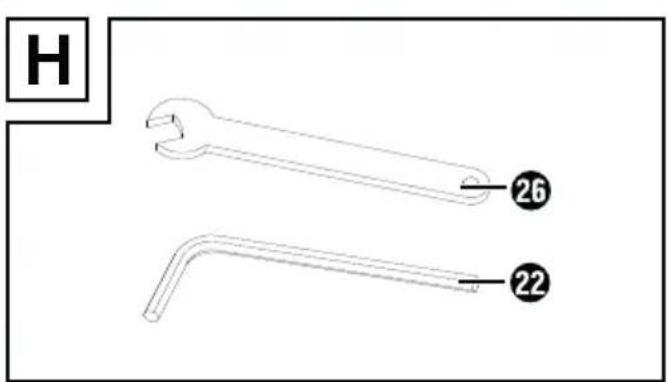

22 Hex key
23 Drive belt
24 Large belt wheel
25 Small belt wheel
26 Open-ended spanner

Package contents

1 electric planer PEH 30 C3
1 guide fence
1 fold depth stop
1 hex key
1 open-ended spanner
1 adapter for external extraction
1 operating manual

Technical data

Rated voltage: 230 V \~ 50 Hz (AC)

Nominal output: 750 W

Rated idle

speed: 0 13000 rpm n

Plane width: 82 mm

Cut depth: 0-3 mm

Fold depth: max. 24 mm

Protection class: II / ☐ (double insulation)

Noise and vibration data:

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows:

Noise emission value:

Sound pressure level: L _PA = 97 dB(A)

Sound power level: L_WA = 108 dB(A)

Uncertainty: K = 3 dB

hearing protection!

Total vibration value:

Handle: a_h=10.8 m/s^2

Additional handle: a _h=8.8 m/s^2

Uncertainty: K = 1.5 m/s ^2

NOTE

For an accurate estimate of the vibration load during a specific working period, the periods during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the vibration load over the total working period.
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

eral power tool safety warnings

WARNING!

▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for power planers

■ Wait until the cutter block comes to a complete standstill before putting down the power tool. An exposed, rotating cutter block can catch in the surface and cause a loss of control which could result in serious injuries.
■ Hold the power tool by the insulated handles as the cutter block can come into contact with its own power cable. Contact with a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
- Fix and secure the workpiece to a sturdy work surface using clamps or other methods. If you hold the workpiece in your hands or against your body only it will remain unstable, and this can result in loss of control.
Do not insert your fingers into the chip ejector ③. You can injure yourself on rotating parts!

■ Always switch the appliance on before applying it to the workpiece. Otherwise, there is a risk of kickback if the planing blade catches in the workpiece.
■ The plane sol ^9 must lie flat on the workpiece when working. Otherwise, there is a risk of injury due to the plane jamming.

■ Never plane over metal objects. The planing blade/cutter block 17 could be damaged.

■ Materials containing asbestos may not be processed. Asbestos is a known carcinogen.
■ Dusts can be produced while working that are hazardous to health, inflammable or explosive. Wear a dust mask and use a suitable dust/chip extractor. Some dusts are carcinogenic.
When working for extended periods of time on wood and, in particular, materials that produce dust which is hazardous to health, connect the appliance to an appropriate external dust extraction appliance. Do not use the power planer if the battery is damaged. Damaged cables increase the risk of electric shock.
■ Do not rest your hands next to or in front of the appliance and the area being worked. Otherwise, there is a risk of injury if you slip.
In case of danger, remove the plug from the socket immediately.
■ Always remove the plug from the power socket in event of danger, during work breaks, when working on the appliance (e.g. when changing planing blade).
■ Always route the power cord towards the rear, away from the appliance.
■ Use only sharp planing blades.
■ Do not soak the materials or the area to be worked with liquids containing solvents.
■ Avoid all contact with rotating parts.
■ Never use the appliance for other purposes and only with original parts/accessories.
■ Hold the appliance firmly while working. Ensure that your stance is secure and stable.
■ The appliance must always be kept clean, dry and free from oil and grease.

Original accessories/auxiliary equipment

■ Use only the auxiliary equipment and accessories specified in the operating instructions. Using parts or accessories other than those recommended in the operating instructions can lead to a risk of injury.

Operation

Switching on and off

Switching on:

• First, press the safety lock-out ^1 .
• Then press and hold the ON/OFF switch ^2 .

Switching off:

◆ Release the ON/OFF switch②.

NOTE

For safety reasons, the ON/OFF switch ^2 cannot be locked.

Setting the cut depth

Use the dial 16b set the cutting depth in stages (level 1-3) according to the cut depth scale 14

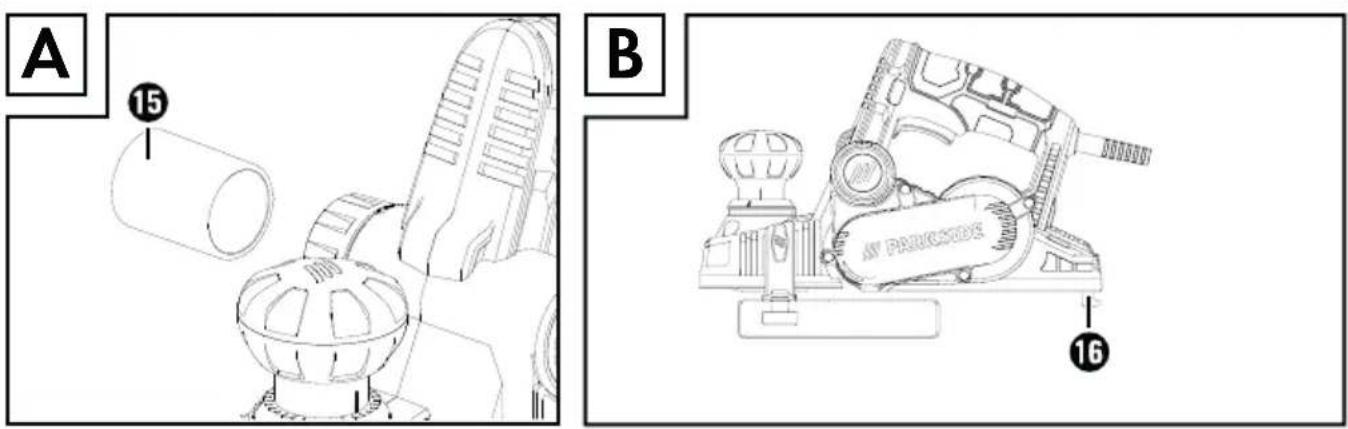

Dust/chip extraction (see fig. A)

WARNING! Always wear a dust mask!

WARNING! RISK OF INJURY

▶ Always remove the plug from the power socket before working on the appliance.

Adjustable chip ejector (left/right):

◆ Unlock the chip ejecto③ by turning it in the opposite direction to the arrow (from the "LOCK" position).
◆ Pull the chip ejector 3 out of the appliance.

◆ The chip ejecto③ can be attached to the plane on the left or the right.
♦ Push the chip ejecto③ into the appliance.
♦ Lock the chip ejecto③ by turning it to the position "LOCK".

External extraction:

When using dust extraction systems, e.g. a workshop extractor, it may be necessary to use the adapter for external extraction ^15 . The vacuum cleaner must be suitable for the material being processed.

Connecting:

♦ Push the adapter for external extraction ^15 firmly into the chip ejector ^3
♦ Push the hose of a suitable dust extraction appliance (e.g. a workshop vacuum cleaner) onto the chip ejector ③ (or the adapter for external extraction ⑮f required).

Removal:

◆ Pull the hose of the vacuum cleaner off the chip ejector ③ or the adapter.
◆ Pull the adapter for external extraction off.

Parking shoe (see fig. B)

The parking shoe 16 allows you to put down the appliance without risking damage to the workpiece. While working, the parking shoe 16's flipped up and rear part of the plane sole 9's exposed.

Planing

CAUTION! RISK OF KICKBACK!

Always switch the appliance on before applying it to the workpiece.

◆ Set desired cut depth.
♦ Switch the appliance on.
◆ Place the appliance with the front part of the plane sole ⑨ on the workpiece.
◆ Move the appliance with straight, even motions over the workpiece.

♦ Push forward slowly and do not exert excessive pressure on the plane sole ⑨ Excessive speed reduces the surface finish and can lead to a jam in the chip ejector.

Chamfering edges

The V grooves 10 in the front plane sole 48 how easy chamfering of workpiece edges.

◆ Use the V groove that corresponds to the chamfer width required.

◆ Place the planer with the V groove onto the workpiece edge and guide it forwards.

Using the rip fence

To fit the rip fence, guide the connecting screw 8b through the connecting piece 8a and the rip fence 6

Place the washer 8c on the connecting screw 8b.

♦ Screw the lock nu8 onto the connecting screw 8b.

◆ Fit the rip fence onto the appliance using the fastening screw

- Undo the lock nu8 and set the desired width.

◆ Retighten the lock nu8.

◆ Ensure that the plane is applied with lateral pressure.

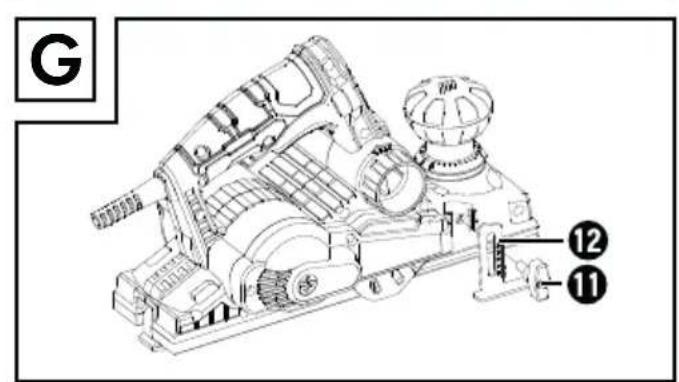

Using the fold depth stop

◆ Fit the fold depth stops onto the appliance using the fastening screw 11

◆ Set the desired fold depth using the fold depth stop 12.

◆ Repeat the planing process several times until the required fold depth is achieved.

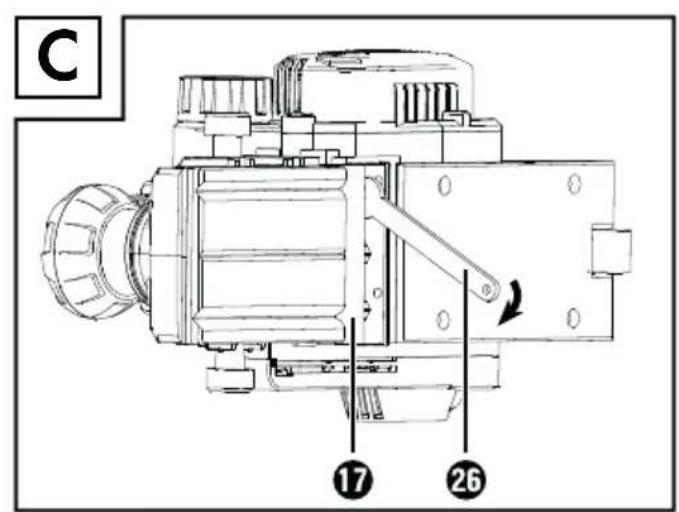

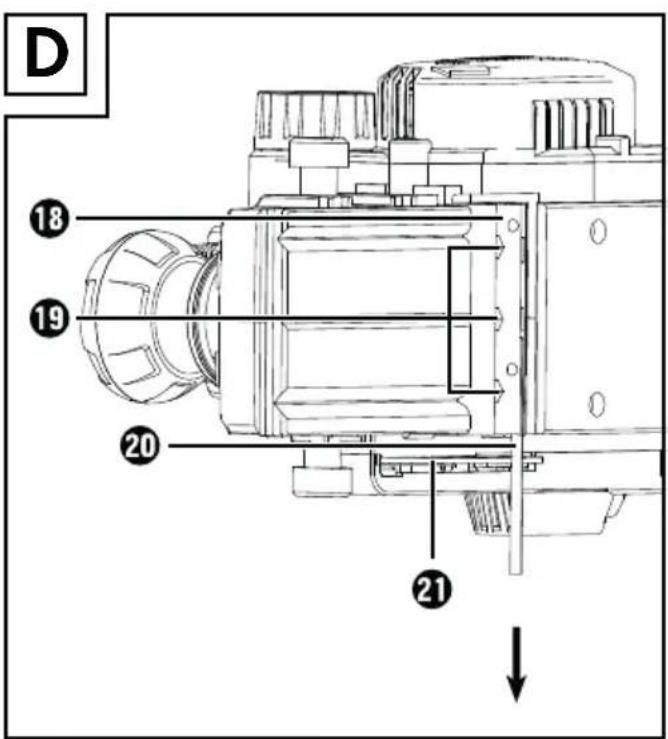

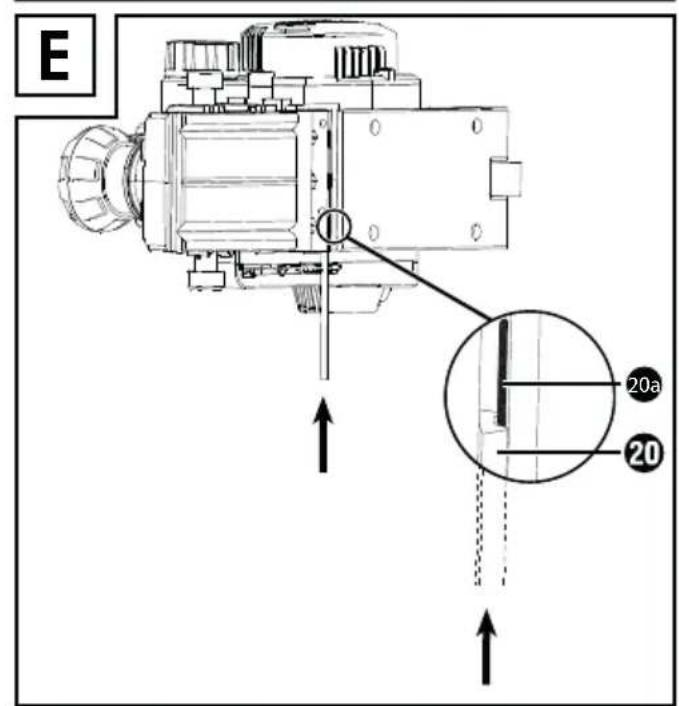

Removing/replacing the planing blade 20(see figs. C - E)

WARNING! RISK OF INJURY

▶ Always remove the plug from the power socket before working on the appliance.

CAUTION!

There is a risk of injury due to the cutting edges of the planing blade 20!

Never touch the planing blade 20 on its cutting edges.

The planing blade 2 has two cutting edges and can be turned.

◆ Replace the planing blades when both cutting edges are blunt.

Do not try to sharpen the planing blade ^20

Turn the planing blade 28r replace it

WARNING! RISK OF INJURY

▶ Wear suitable protective gloves when changing the planing blades.

NOTE

Do not undo the two hex socket screws. These are used for adjusting the height of the cutter block. No adjustment is required if you use the planing blades sold by the manufacturer. Use only the planing knives supplied by the manufacturer.

▶ When changing the blade, always replace both blades to prevent an imbalance.

▶ Unscrew only one blade to start with. This will allow you to use the factory-mounted second blade for reference when reassembling later.

Use the supplied open-ended spanner 26 to undo the 3 fastening screws 19 a little way so that the planing blade 20 can be moved (see fig. C).

♦ Push the movable cutter block guard 21 into the slot in the housing.

◆ Push the planing blade 20 sideways out of the clamping element 14 (see fig. D)

NOTE

The planing blade 20 may be factory-bonded with protective lacquer. It is not necessary to re-bond the blade.
Fit either a new or turned blade in the reverse order. Make sure that the notch on the planing blade 20 slides into the tensioning plate groove 20a (see fig. E).
- Planing blade ^20 can be purchased exclusively from the address given below (see section "Service"). Do not use planing blades from other manufacturers.

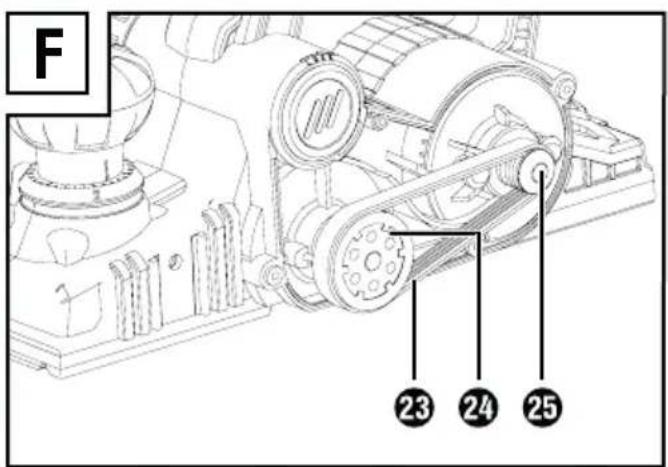

Replacing the drive belt (see fig. F)

WARNING! RISK OF INJURY

▶ Always remove the plug from the power socket before working on the appliance.
◆ Remove the screw 5 and detach the drive belt cover 4
◆ Remove the worn drive be
◆ Fit the new drive belt onto the small belt wheel 24 first and then turn the drive belt 23 and pull it onto the large belt wheel 24
♦ Replace the drive belt cove ^4 and fix it in place using the screws ^5

Maintenance and cleaning

WARNING! RISK OF INJURY

▶ Always remove the plug from the power socket before working on the appliance.

◆ Keep the appliance and the ventilation slits clean to ensure fault-free operation.
◆ Clean the chip ejecto 3 regularly.
To clean a blocked chip ejector, use a suitable tool (e.g. a piece of wood, compressed air, etc.).
◆ Use a dry cloth to clean the housing.
◆ Use a brush to remove any dust stuck to the appliance.

- Never use sharp objects, petrol, solvents or cleansers which can damage plastic. Do not allow any liquids to get into the interior of the appliance.

NOTE

▶ Spare parts which are not listed (e.g. carbon brushes, planing blades) can be ordered exclusively via our Service Hotline.

Disposal

The packaging consists of environmentally friendly material. It can be disposed of in the local recycling containers.

Do not dispose of power tools in your normal domestic waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

Your local community or municipal authorities can provide information on how to dispose of the appliance.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary.

The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: Plastics,

20–22: Paper and cardboard,

80-98: Composites.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

KompernassHandelsGmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to

the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.

NOTE

For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).

Service

GB Service Great Britain Tel.: [phone] E-Mail: [e-mail]

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 317249_1904

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

Electromagnetic Compatibility (2014/30/EU)

RoHS Directive (2011/65/EU)*

* The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 62841-1:2015

EN 62841-2-14:2015

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Type designation of machine:

Electric planer PEH 30 C3

Year of manufacture: 07 - 2019

Serial number: IAN 317249_1904

Bochum, 04/09/2019

Jeddyush CE

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Table des matières

Introduction 24

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

⚠ WAARSCHUWING! LETSELGEVAAR

⚠ WAARSCHUWING! LETSELGEVAAR

⚠ WAARSCHUWING! LETSELGEVAAR

⚠ WAARSCHUWING! LETSELGEVAAR

⚠ WAARSCHUWING! LETSELGEVAAR

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Sofia Fyond

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Sofia Fyerson

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations
