Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The device is intended for drilling screws in and out in wood, metal or plastic.

The user or operator is responsible for accidents causing injury to other people or damage to property.

The manufacturer cannot be held liable for damage when the trimmer is not used in conformity with its intended purpose or due to incorrect operation.

General description

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Interchangeable cordless screwdriver
• Battery-charger
• 14 Bits, 25 mm
• Extension bit holder
• Utility belt
• Instruction Manual

The illustrations are on the fold-out pages.

Overview

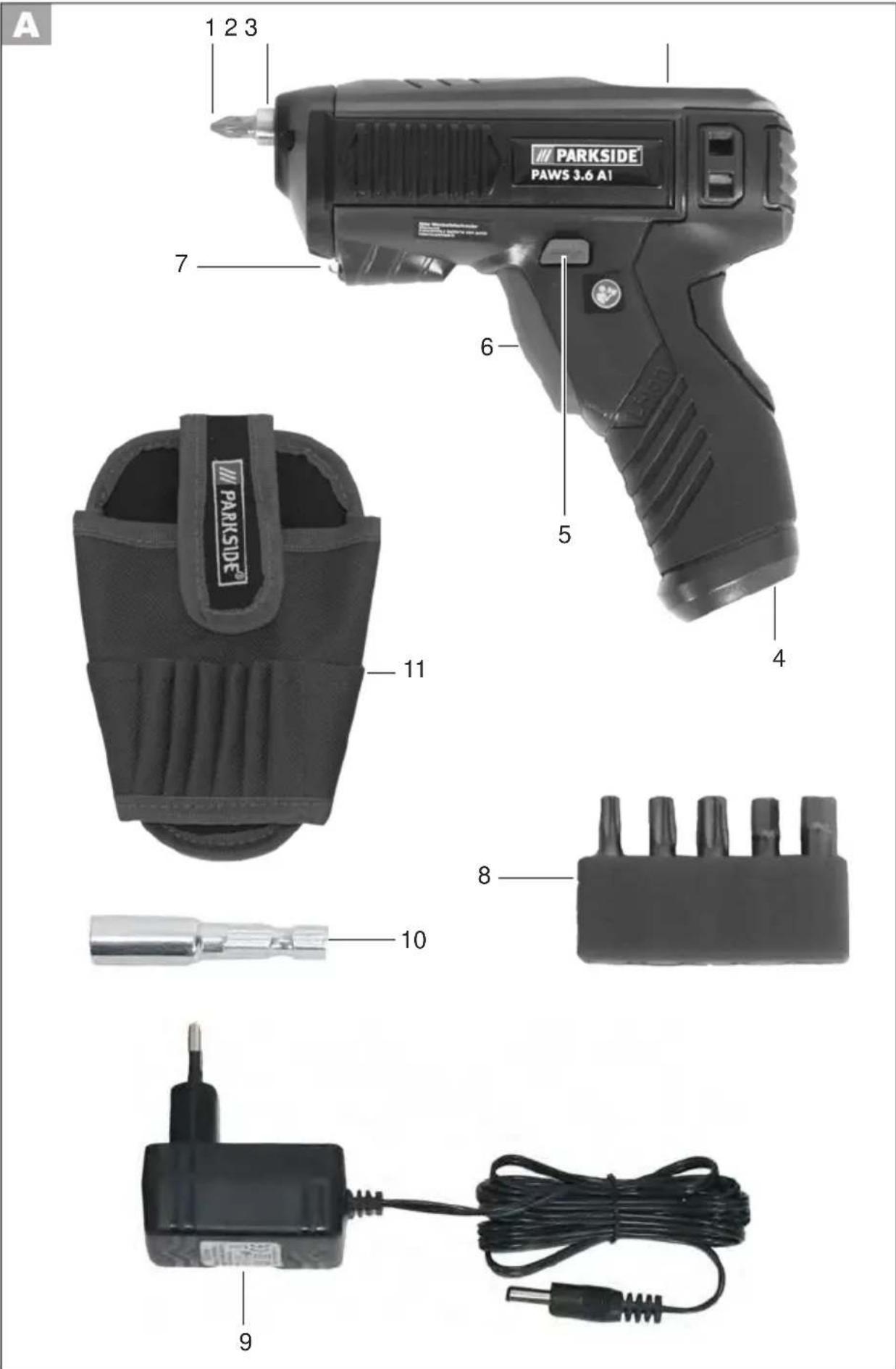

1 Bit

2 Bit holder
3 Battery Indicator (not visible)
4 Charging socket (not visible)
5 Direction of rotation switch
6 On/off switch
7 LED working light
8 5 Exchange bits with holder
9 Battery-charger
10 Extension bit holder
11 Utility belt

12 Slide of the interchangeable cordless screwdriver

Functional description

The interchangeable cordless screwdriver clockwise/anti-clockwise rotation has a bit changeable drum (can be fitted 9 times with 25 mm bits), a 6-point bit holder and an LED work light. Maximum torque of 4 Nm.

Technical data

Appliance

Motor voltage....3,6 V==

Idling speed ( n_0 ) .....200 min ^-1

Weight

(without battery charger) .....0,486 kg

Sound power level

(L_pA) 62,2 dB(A), K=3 dB(A)

Sound power level (L _wA )

Guaranteed 76 dB(A)

Measured ..... 73,2 dB(A); K= 3 dB(A)

Vibration (a_n)

Screwdriving without impact

0,198 m/s ^2 , K= 1,5 m/§

Battery (Li-Ion)

Nominal voltage ....3,6 V=

Capacity.... 1,5 Ah

Charging time ...... ca. 3 h

Recharger ......JLH060600500G

Nominal consumption....9 W

Uptake voltage/Input

...100-240 V\~, 50-60 Hz, max. 500 mA

Voltage output/Output

6 V==500 mA

Output power ......max. 6 W

Protection class ......□ II

Protection category.... IPXO

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed.

Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

GB

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety instructions

Ensure that the safety instructions are observed when operating the appliance.

Symbols and icons

Symbols on the appliance:

Carefully read these Operating Instructions.

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the recharger:

Warning!

Before using for the first time, carefully read through the user manual

The recharger is for indoor use only.

Pole orientation

Protection class II

Electrical appliances must not be disposed of with the domestic waste.

Symbols in the manual

Warning symbols with in- formation on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-slip safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

GB

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord.

Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small

metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

7) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

b) Recharge the batteries indoors only because the battery charger is designed for indoor use only.

c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

e) Allow a hot battery to cool before charging.

f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

g) Do not use non-rechargeable batteries!

8) CORRECT HANDLING OF THE BATTERY CHARGER

- This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

- Keep the equipment away from children and pets. Children should be supervised in order to ensure that they do not play with the equipment.

• To charge the battery, use only the charger supplied.

Risk of fire and explosion. This ensures that the safety of the device is maintained.

- Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

- Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

GB

- Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.

- Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

- Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

- Avoid mechanical damage to the charger. This can result in internal short circuits.

- Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

- The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. Slot the battery into the base and plug the battery charger into a mains outlet.

- When the battery is fully charged, unplug the charger from the mains and from the appliance.

- Do not charge the battery continuously since this may damage the battery cells. Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.

- Do not use the charger to charge non-rechargeable batteries.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts b) Ear damage if working without ear protection.

c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

There is a risk of injury due to electric shock.

Only use the original charger from the package to charge the battery. Mind not to charge the appliance for more than 3 hours at a time. If you do, the battery and the appliance may be damaged and longer charging times would be a waste of energy. Excessive charging will void the warranty.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Recharging the battery

1. Connect the charger plug to the charging socket (A4) of the device.
2. Plug the battery charger (A9) into a mains outlet.
3. When the battery is fully re-charged unplug the battery charger (A9) from the mains.

Red LED lights up Battery charging Green LEDs light up Battery fully charged

Checking the battery charge level

The battery's charge level is indicated by the charge state indicator (A 3).

The state of charge of the battery is displayed by illuminating the appropriate LED lights. In order to activate the display, the on/off switch (A 6) must be pressed.

Green LED lights up

Battery fully charged

Red LED lights up

Battery needs to be charged

Operation

1. Direction switch

You can toggle between right and left rotation by pushing the direction of rotation switch (A 5).

If you move the direction switch (A5) to the middle position, the device is secured against being switched on.

The direction changed may only be performed in stand-still mode!

2. Bit selection from the bit changeable drum

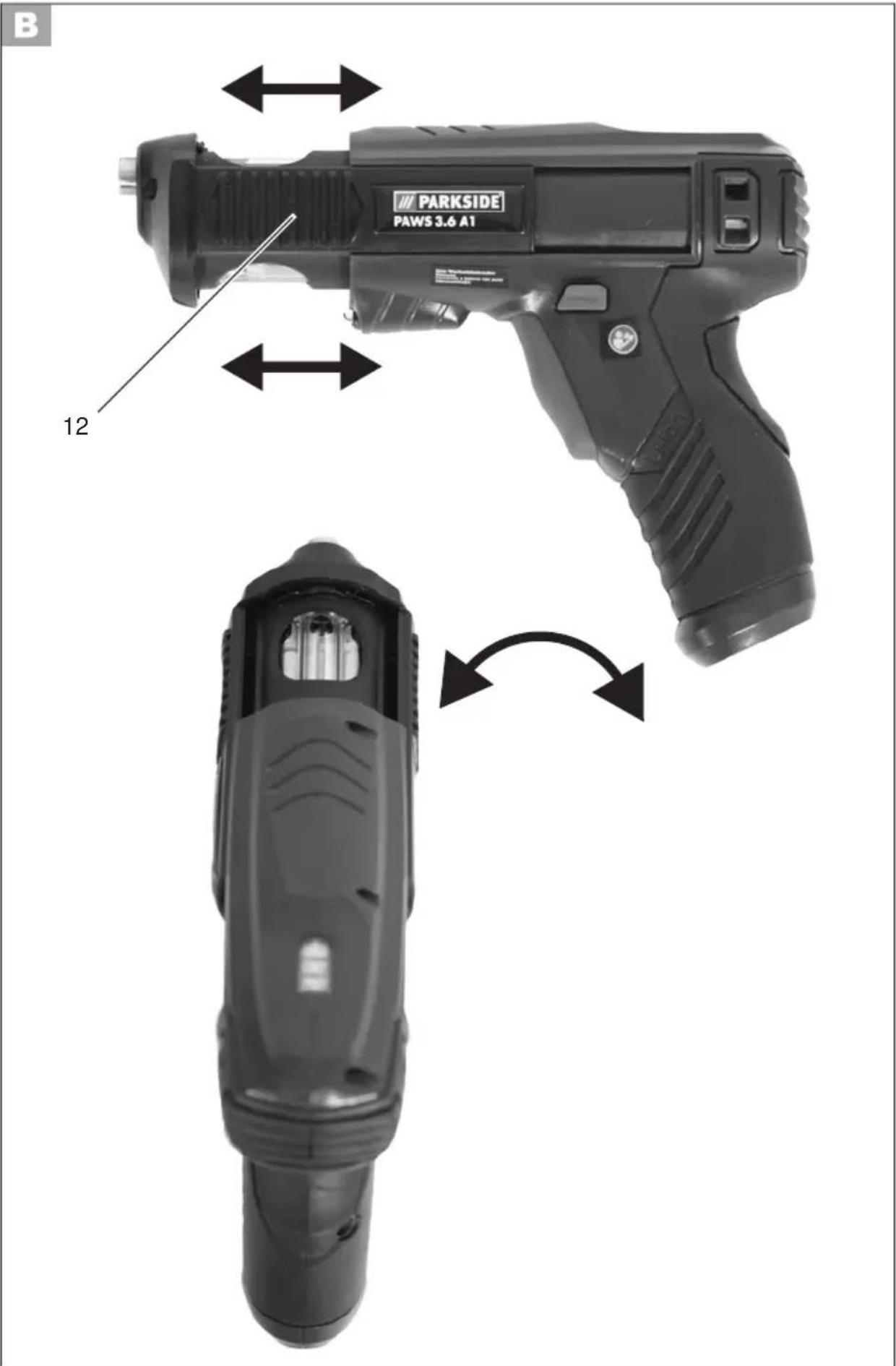

Push the slide of the interchangeable cordless screwdriver (B 12) forward.

Turn the bit changeable drum to the left or right until the desired bit is located on top and is in line with the bit holder (A2). The bit changeable drum engages audibly.

GB

Push the slide of the interchangeable cordless screwdriver (B 12) to the back.

Only grab the side of the slide of the interchangeable cordless screwdriver.

Caution, risk of injury caused by pinching!

The selected bit is automatically fixed in the bit holder (A2).

3. Use extension bit holder

Remove the current bit (1) from the bit holder (A2).

Insert the extension bit holder (A10) into the bit holder (A2). It may be that you need to rotate the extension bit holder (A10) slightly because of the 6-point bit holder. Completely insert the extension bit holder (A10) into the bit holder (A2). The extension bit holder (A10) is held firmly by the duct and the magnetic holder.

To remove the extension bit holder (A 10), simply remove the extension bit holder from the bit holder (A 2).

4. Switching on/off

Press the on/off switch (6) to start the device. To turn it off, release the on-off button.

If you move the direction switch (A 5) to the middle position, the device is secured against being switched on.

The LED lamp can continue to be used by activating the switch block. To do so, press the on/off switch.

5. Bit change in the bit changeable drum

Select the bit that should be replaced (see chapter „2. Bit selection from the bit changeable drum”). To remove the bit, simply remove the bit from the bit holder (A 2).

Insert a suitable 6-point bit in the bit holder (A2). Because of the 6-point bit holder, it may be that you need to rotate the bit slightly. Slide the bit right into the bit holder (A2). The bit is held firmly by the duct and the magnetic holder.

Cleaning and maintenance

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

- Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush.

Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.

Maintenance

The appliance is maintenance free.

Storage

- Keep the device supplied, dry and out of reach of children.

- Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage period.

- During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

- Store the equipment between 10°C and 25°C. During storage, avoid extreme cold or heat so the battery does not lose power. In order to keep the battery well charged, avoid exposing the appliance to extreme heat or cold in storage

Disposal and protection of the environment

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

Do not dispose of the device with the battery installed in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

- Dispose of the equipment with the battery discharged. Do not open the equipment or the battery.

- Dispose of the equipment in accordance with the local regulations. Take the equipment to a collection point, where it will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.

- Defective units returned to us will be disposed of for free.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and item number (IAN 60489) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 60489

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 43). Please have the order number mentioned below ready.

5 Exchange bits with holder 91103180

Utility belt 91103181

Extension bit holder 91103182

Battery-charger 91103183

GB Translation of the original EC declaration of conformity
We hereby confirm that theInterchangeable cordless screwdriverDesign Series PAWS 3.6 A1Serial Number201406000001 - 201407215000conforms with the following applicable relevant version of the EU guidelines :
2006/42/EC 2004/108/EC 2006/95/EC 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012 EN 60745-1:2009+A11:2010EN 60745-2-2:2010 EN 62233:2008EN 55014-1/A2:2011 EN 55014-2/A1:2001+A2:2008 EN 62471:2008EN 61000-3-2/A2:2009 EN 61000-3-3:2008 EN 60335-2-29/A2:2010
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power levelguaranteed: 76 dB(A)measured: 73.2 dB(A)Compliance evaluation process carried out in accordance withAppendix V, 2000/14/EC
This declaration of conformity (14)** is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGAm Gewerbepark 264823 Groß-Umstadt 30.07.2014Germany	Volker LappasDocumentation Representative

*The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
**The last two digits of the year in which the CE marking was affixed.

B PARKSIDE PAWS 3.6 A1 12

GRIZZLY TOOLS GMBH & CO. KG

Am Gewerbepark 2
