Product Type	Cordless Drill/Driver
Brand	Parkside
Model	PABS 20Li D5
Rated Voltage	20 V (DC)
No-load speed (1st gear)	0-400 min⁻¹
No-load speed (2nd gear)	0-1400 min⁻¹
Chuck capacity	max. Ø 13 mm
Max. drilling diameter (steel)	13 mm
Max. drilling diameter (wood)	30 mm
Compatible battery type	PAP 20 A1 (2 Ah), PAP 20 A2 (3 Ah), PAP 20 A3 (4 Ah)
Compatible charger	PLG 20 A1, PLG 20 A2, PLG 20 A3, PDSLG 20 A1
Charging time (2 Ah battery)	Approx. 60 min (with PLG 20 A1)
Charging time (3 Ah battery)	Approx. 90 min (with PLG 20 A1)
Charging time (4 Ah battery)	Approx. 120 min (with PLG 20 A1)
Number of speeds	2
Variable speed	Yes, by trigger pressure
Forward/reverse rotation	Yes
LED work light	Yes
Spindle lock	Automatic
Sound pressure level	LpA = 68.4 dB(A), uncertainty K = 5 dB
Sound power level	LWA = 79.4 dB(A), uncertainty K = 5 dB
Vibration (drilling in metal)	ah = 2.5 m/s², uncertainty K = 1.5 m/s²
Weight (approx.)	1.2 kg (without battery)
Included items	Drill, 60 mm adapter, 8 bits (PH1/2/3, PZ1/2/3, SL5/6), case, manual
Warranty	3 years

Frequently Asked Questions - PABS 20Li D5 PARKSIDE

What types of batteries can I use with the Parkside PABS 20Li D5 drill/driver?

The PABS 20Li D5 drill/driver is compatible with Parkside X20V Team batteries: PAP 20 A1 (2 Ah), PAP 20 A2 (3 Ah), and PAP 20 A3 (4 Ah). Use only the recommended batteries to avoid any risk.

How long does it take to charge the battery?

The charging time depends on the charger and battery capacity. For example, with the PLG 20 A1 charger (2.4 A), a 2 Ah battery charges in about 60 minutes, a 3 Ah in 90 minutes, and a 4 Ah in 120 minutes. Use compatible chargers from the PLG 20 or PDSLG 20 A1 series.

How to adjust the rotation speed?

The drill is equipped with a variable speed trigger. Light pressure gives a low speed, more pressure increases the speed. In addition, a 2-speed selector allows you to choose between low speed (0-400 min⁻¹) for high torque and high speed (0-1400 min⁻¹) for drilling.

Can I drill into metal with this drill?

Yes, it can drill into metal up to 13 mm diameter. Use HSS drill bits and lubricate with cutting oil for best results. Start with a 3 mm pilot hole if necessary.

What is the maximum drilling depth in wood?

The maximum drilling diameter in wood is 30 mm. Use wood drill bits with a centering tip. For small screws in softwood, you can screw directly without pre-drilling.

How to maintain the drill/driver?

Before any maintenance, turn off the device and remove the battery. Clean the housing with a dry cloth. Do not use gasoline, solvent, or aggressive cleaner. No lubrication is required. For lithium-ion batteries, store them at a temperature between 0 and 50°C, with an optimal charge level of 50 to 80%.

What are the important safety instructions?

Always wear safety glasses. Hold the tool by insulated surfaces when drilling to avoid electric shock. Do not use the tool in explosive atmospheres. Keep children away. Use only recommended batteries and chargers.

How to change a bit or drill?

The drill has an automatic spindle lock. With the motor off, turn the chuck to open it, insert the tool, then tighten by turning the chuck. The lock releases automatically when starting.

Where can I find spare parts?

Spare parts not listed (such as battery or switch) can be ordered through Parkside after-sales service. Contact customer service at 0800 919270 (France) or 070 270 171 (Belgium). Have your IAN number (344905_2004) ready.

Does the warranty cover batteries?

Yes, batteries from the X 12 V and X 20 V Team series are guaranteed for 3 years from the date of purchase, under the same conditions as the tool. The warranty does not cover normal wear of battery capacity.

USER MANUAL PABS 20Li D5 PARKSIDE

AKKU-BOHRSCHRAUBER / CORDLESS DRILL / PERCEUSE-VISSEUSE SANS FIL PABS 20-Li D5

DE AT CH

AKKU-BOHRSCHRAUBER

Translation of the original instructions

NL BE

ACCU-SCHROEFBOORMACHINE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Translation of the original instructions Page 15

All Parkside tools and the chargers PLG 20 A1/PLG 20 A2/PLG 20 A3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/PAP 20 A2 / PAP 20 A3 battery pack.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

General power tool safety warnings. 17

1.Work area safety 18
2. Electrical safety 18
3. Personal safety 18
4. Power tool use and care 19
5.Use and handling of the cordless electrical power tool. 19
6. Service 20

Safety instructions for drills 20

Original accessories/attachments 20

Safety guidelines for battery chargers 21

Before use 21

Charging the battery pack (see fig. A) 21
Inserting/removing the battery pack 21
Checking the battery charge level 22
Changing tools 22
Torque selection ring/drill setting. 22
2-speed gearbox 22

Use 22

Switching on/off 22
Setting the rotational speed 22
Changing the direction of rotation 23
Tips and tricks 23

Maintenance and cleaning 24

Service 26
Importer
Disposal 26
Original declaration of conformity 27

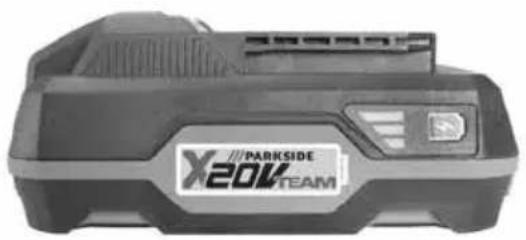

Ordering a replacement battery 28
Telephone ordering 28

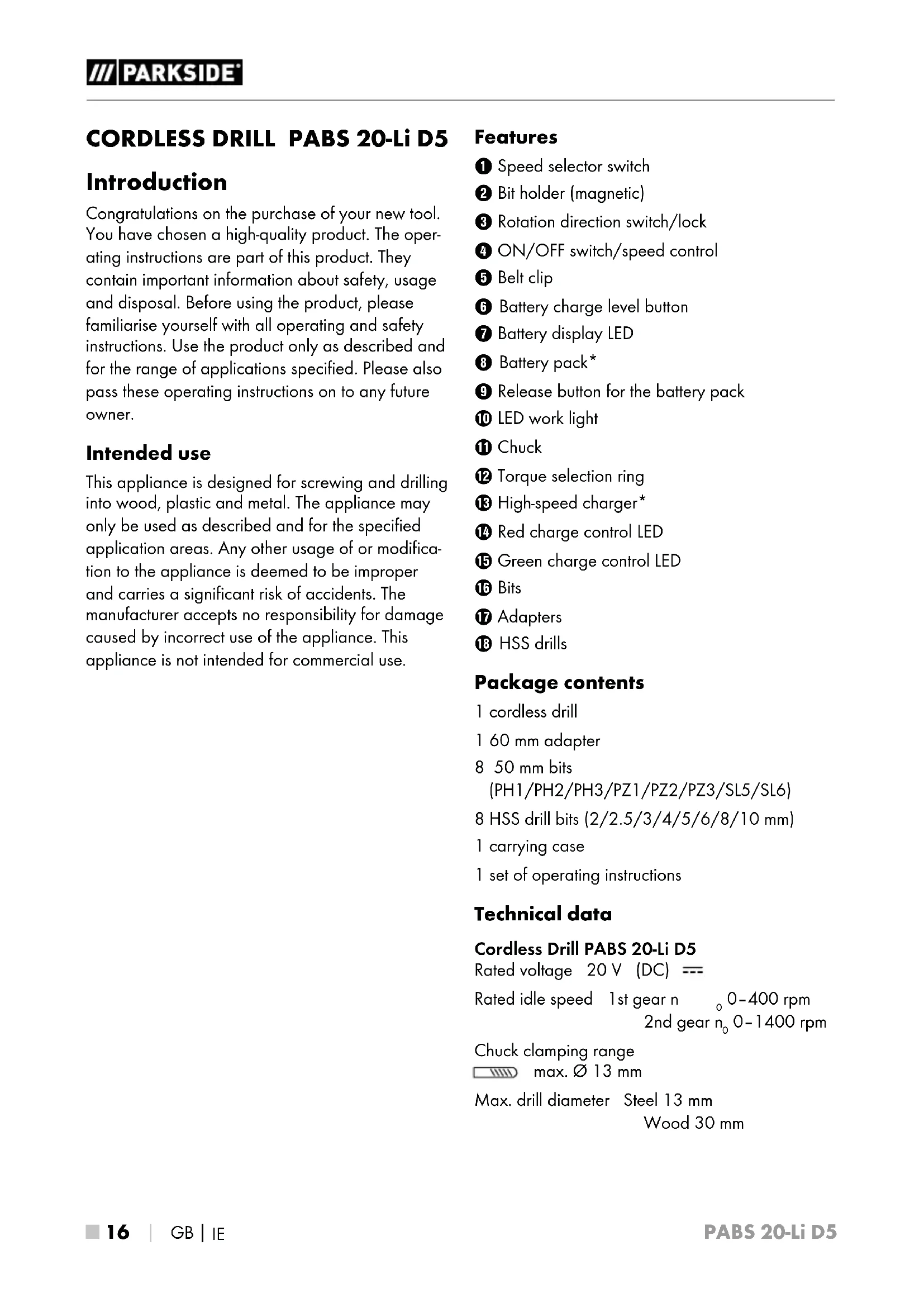

CORDLESS DRILL PABS 20-Li D5

Introduction

Congratulations on the purchase of your new tool. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is designed for screwing and drilling into wood, plastic and metal. The appliance may only be used as described and for the specified application areas. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage caused by incorrect use of the appliance. This appliance is not intended for commercial use.

Features

Speed selector switch
Bit holder (magnetic)
Rotation direction switch/lock
ON/OFF switch/speed control
5 Belt clip
6 Battery charge level button
7 Battery display LED
Battery pack
9 Release button for the battery pack
LED work light
Chuck
12 Torque selection ring
High-speed charger
14 Red charge control LED
15 Green charge control LED
16 Bits
Adapters
HSS drills

Package contents

1 cordless drill
1 60 mm adapter
8 50 mm bits

PH1/PH2/PH3/PZ1/PZ2/PZ3/SL5/SL6)

8 HSS drill bits (2/2.5/3/4/5/6/8/10 mm)
1 carrying case
1 set of operating instructions

Technical data

Cordless Drill PABS 20-Li D5

Rated voltage 20V (DC) ---

Rated idle speed 1st gear n 0 - 400 rpm

2nd gear n_0 0-1400 rpm

Chuck clamping range

max.013mm

Max. drill diameter Steel 13 mm

Wood 30 mm

PAP 20 A1* battery

Type			LITHIUM
Rated voltage	20 V	--- (DC)
Capacity		2
Cells	5

High-speed battery charger PLG 20 A1*

INPUT

Rated voltage 230-240 V\~,50 Hz (AC)

Rated power consumption 65 W

Fuse (internal) 3.15 A

OUTPUT

Rated voltage 21.5V (DC)

Rated current 2.4 A

Charging time approx. 60 min

Protection class II /

(double insulation)

• BATTERY AND CHARGER ARE NOT SUPPLIED

Noise emission value

Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:

Sound pressure level L _pA = 68.4 dB (A)

Uncertainty K K_PA = 5 ~dB

Sound power level L WA = 79.4 dB (A)

Uncertainty K K_WA = 5dB

Vibration emission value

Total vibration values (vector total of three directions) determined in accordance with EN 62841:

Screwing Vibration emission value a_h = 2.5 m/s^2

Uncertainty K = 1.5m / s^2

Drilling in metal Vibration emission value a_h,D = 2.5m / s^2

Uncertainty K = 1.5m / s^2

NOTE

ION

The vibration emission values and the noise emission values given in these instructions

Ah have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.

The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

WARNING!

Depending on the manner in which the power tool is being used and, in particular, the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing on jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is a risk of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper-clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
e) Do not use a damaged or modified battery. Damaged or modified batteries may behave unexpectedly and cause fires, explosions or pose a risk of injury.
f) Do not expose a battery to fire or excessively high temperatures. Fire or temperatures in excess of 130^ (265^) can cause an explosion.
g) Follow all instructions regarding charging and never charge the battery or the cordless tool outside of the temperature range given in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the battery and increase the risk of fire.

CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.

Protect the recharge

able battery from heat (for example, from continuous exposure to sunlight), fire, water and moisture. There is a risk of explosion.

6. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never try to repair damaged batteries. Maintenance of batteries should only be carried out by the manufacturer or an approved customer service centre.

Safety instructions for drills

Safety instructions for all work

Hold the tool by the insulated gripping surfaces when performing work where the screws or the accessory tool may hit hidden power lines. If the accessory tool or a screw comes into contact with a live wire, this may make exposed metal parts of the power tool live and could give the operator an electric shock.
Collect any dust that is produced; for example, using a vacuum cleaner.

Safety information for using long drill bits

Do not use a higher rotational speed than the maximum permissible speed. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece and this can lead to injuries.
Always start drilling at a low speed and with the drill bit in contact with the workpiece. At higher speeds, the drill bit can bend slightly if allowed to turn freely without being in contact with the workpiece and this can lead to injuries.
Do not exert excessive pressure and only apply pressure along the length of the drill bit (no lateral pressure). Drill bits can bend and break which can lead to a loss of control and injuries.

Original accessories/attachments

Use only the accessories and additional equipment that are specified in the operating instructions and are compatible with the appliance.

WARNING!

Do not use any accessories that are not recommended by PARKSIDE. This can lead to electric shock and fire.

Safety guidelines for battery chargers

This tool may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the tool safely and are aware of the potential risks. Do not allow children to use the tool as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

The charger is suitable for indoor use only.

WARNING!

To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.

ATTENTION!

This charger can only charge the following batteries: PAP 20 A1/PAP 20 A2/PAP 20 A3.
A current list of battery compatibility can be found at www.Lidl.de/Akku.

Before use

Charging the battery pack (see fig. A)

CAUTION!

Always disconnect the mains plug before removing the battery pack 8 from or inserting it into the charger.

NOTE

• Never charge the battery pack at an ambient temperature of below 10^ or above 40^ . If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The storage climate should be cool and dry and the ambient temperature should be between 0^ and 50^ .

Insert the battery pack 8 into the high-speed charger 13 (see fig. A).
Insert the mains plug into the mains power socket. The control LED 14 lights up red to indicate that charging is in progress.
The green control LED 15 indicates that charging is complete and the battery pack 8 is ready for use.
Push the battery pack ⑧ back into the appliance.

Inserting/removing the battery pack

Inserting the battery pack

Set the rotation direction switch 3 to the middle position (lock). Snap the battery pack 8 into the handle.

Removing the battery pack

Press the release button 9 and remove the battery pack 8.

Checking the battery charge level

Press the battery charge level button 6 to check the charge level of the battery. The status/remaining charge is shown on the battery display LED 7 as follows: GREEN/RED/ORANGE = maximum charge/performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery

Changing tools

Your cordless screwdriver has a fully automatic spindle lock SPINDLE LOCK

When the motor is at a standstill, the drive train is locked so that you can open the drill chuck by turning it after you have attached the desired tool and locked it in place by turning the chuck you can continue working. The spindle lock is released automatically when the motor is started (by pressing the ON/OFF switch).

Torque selection ring/drill setting

You can set the torque using the torque selection ring 12.

Select a low level for small screws or soft materials.
Select a high level for large screws, hard materials or removing screws.
For drilling operations, select the drill setting by moving the torque selection ring to the position.

2-speed gearbox

CAUTION!

Operate the speed selector switch 1 only when the appliance is at a standstill. Otherwise, the tool could be damaged.

In first gear

(speed selector switch 1 in position 1),

you can reach a speed of approx. 400 rpm and a high torque. This setting is suitable for all screwing jobs.

In second gear

(speed selector switch 1 in position 2),

you can reach a speed of approx. 1400 rpm for carrying out drilling work.

Use

Switching on/off

Turn on

Press and hold the ON/OFF switch 4 to start up the appliance. The LED work light 10 lights up when the ON/OFF switch 4 is pressed lightly or fully. This provides illumination of the work area in poor lighting conditions.

Switching off

Release the ON/OFF switch 4 to switch off the appliance.

Setting the rotational speed

The ON/OFF switch 4 has a variable speed control. Pressing the ON/OFF switch 4 lightly yields a low speed. Increasing the pressure in creases the speed.

NOTE

The integrated motor brake ensures that the tool stops quickly.

Changing the direction of rotation

Change the direction of rotation by pushing the rotation direction switch 3 to the right or left.

Tips and tricks

Tip! How to do things correctly.

Before operation, check whether the screw or drill insert is correctly fitted, i.e. centred in the drill chuck.

Screw bits are labelled according to their dimensions and their shape. If you are uncertain, always check first whether the bit fits tightly in the screw head without any play.

Torque

Smaller screws/bits can be damaged if you set too high a torque or too high a speed.

Hard screw joints (in metal)

Particularly high torques occur, e.g. in metal screw joints made using drive sockets. Select a low rotational speed.

Soft screw joints (e.g. in soft wood)

Here, too, you should use a low rotational speed, e.g. to avoid damaging the surface of the wood upon contact with the screw head. Use a countersink.

When drilling in wood, metal and other materials, observe the following:

Use a high speed for drill bits with a small diameter and a low speed for drill bits with a large diameter.
Select a low speed for hard materials and a high speed for soft materials.
Secure or fasten the workpiece in a clamp or vice (if possible).

Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting.
Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.

Drilling in metal

Use a metal drill (HSS). For optimum results, cool the drill bit with cutting oil. Metal drill bits can also be used to drill into plastics. Start with a 3mm drill bit and then increase the size until the desired hole diameter is achieved.

Drilling in wood

Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood without predrilling.

Maintenance and cleaning

WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The cordless screwdriver is maintenance-free.

The appliance must always be kept clean, dry and free from oil or grease.
Never allow liquids to get into the tool.
Use a dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is going to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage environment is cool and dry.

NOTE

• Replacement parts that are not listed (such as batteries, switches) can be ordered via our Service Hotline.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).

This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

The warranty period does not apply to

Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 344905_2004.

WARNING!

Have your tools repaired by the Service Centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Always ensure that the power plug and power cord are replaced only by the manufacturer of the appliance or the company customer service. This will ensure that the safety of the appliance is maintained.

Service

GB Service Great Britain Tel.:[phone] E-Mail: [e-mail]
IE Service Ireland Tel.:[phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 344905_2004

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

Disposal

The packaging is made from environmentally friendly material and can be disposed of at your local recycling centres.

Do not dispose of power tools in the normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be

collected separately and recycled in an environmentally compatible manner.

Li-ion

Do not dispose of batteries in your normal household waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Return the

battery pack and/or the appliance via the collection facilities offered.

Please contact your local authority or town council for information about disposal options for used power tools/battery packs.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material compo

nents for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

Original declaration of conformity

We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2014/35/EU, only charger)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic tools.

Related harmonised standards

EN 62841-1:2015

EN 62841-2-1:2018

EN 60335-1:2012/A2:2019

EN 60335-2-29:2004/A11:2018

EN 62233:2008

EN 55014-1:2006/A2:2011

EN 55014-1:2017

EN 55014-2:1997/A2:2008

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-2:2019

EN 61000-3-3:2013

EN 61000-3-3:2013/A1:2019

EN 50581:2012

Type/appliance designation: Cordless Drill PABS 20-Li D5

Year of manufacture: 08-2020

Serial Number: IAN 344905_2004

Bochum, 18/08/2020

Semi Uguzlu

• Quality Manager -

We reserve the right to make technical changes in the context of further product development.

Ordering a replacement battery

If you want to order a replacement battery for your tool, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

• Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

Telephone ordering

GB Service Great Britain Tel.: [phone]

IE Service Ireland Tel.: [phone]

(0,08 EUR/Min., peak · 0,06 EUR/Min., off peak)

To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN 344905) in case of questions. The article number can be found on the type plate or the title page of these instructions.

Sommaire

Introduction 30

8 forets HSS (2/2,5/3/4/5/6/8/10 mm)

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Recyclage

Directive relative aux machines (2006/42/CE)

Directive RoHS (2011/65/EU)*

• Responsible qualite -

1 accu-schroefboormachine
1 adapter 60 mm
8 bits 50 mm

PH1/PH2/PH3/PZ1/PZ2/PZ3/SL5/SL6)

8 HSS-boren (2/2,5/3/4/5/6/8/10 mm)

1 koffer

Tip! Zo handelt u correct.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Utylizacja

8 HSS vrtaku (2/2,5/3/4/5/6/8/10 mm)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÈMECKO

www.kompernass.com

Likvidace

Neurcitosf K K WA = 5 dB

Hodnota emisi vibraci

Celkovi hodnoty vibraci (sucet vektorov trochsmerov) zisfované podla EN 62841

Skrutkovanie hodnota emisi vibraci

a_h = 2,5m / s^2 neurcitosf K = 1,5m / s^2

Vftanie do kovu: hodnota emisi vibraci

_h,D = 2,5m / s^2 neurcitosf K = 1,5m / s^2

UPOZORNENIE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Likvidácia

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompermass.com
