General description ......32

Function description.... 32

Extent of the delivery 32

Overview 32

Technical data ......33

Safety information 33

Symbols 33

General safety instructions for power tools 34

Correct handling of the battery charger 37

Charging process ......38

Charging the battery 38

Initial Operation ....38

Switching ON and OFF 38

Checking the charge status of the rechargeable battery 38

Set the direction of rotation 39

Inserting/replacing bits 39

Torque setting 39

Handle setting 39

Use as a torch 39

Cleaning/Maintenance ....40

Cleaning 40

Maintenance 40

Storage 40

Disposal and the environment .... 40

Spare parts/Accessories .....41

Guarantee 41

Repair Service 42

Service-Center 42

Importer 42

Translation of the original EC declaration of conformity .....45

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended use

The device is intended for drilling screws in and out in wood, metal or plastic and for light drilling operations. The device is not suitable for commercial use.

Any other use not specifically mentioned in this manual can lead to damage to the unit and may present a serious hazard to the user.

The manufacturer will not be held responsible for damage or injuries caused by use outside that stipulated by the manual or by improper handling.

General description

The illustration of the principal functioning parts can be found on the front and back foldout pages.

Function description

The cordless screwdriver with clockwise/ anticlockwise rotation has 6 torque steps, one drilling level and one LED work light. Furthermore, the device can be used as a torch.

Please read the following descriptions for the function of the various controlling parts of the unit.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

Dispose of the packaging material correctly.

• Cordless screwdriver
• Charger
• 26 bits
• 1 Bit holder
• Case
• Instruction Manual

26 bits:

Slot	SL		25mm 3No4·5·6·750mm 5No.
Cross	PZ		25mm 50mm	No. PZ0·2x PZ1·2x PZ2·PZ3No. PZ2
Cross	PH		25mm	No. PH0·2x PH1·2x PH2·PH3
Torx	T		25mm	No. T10·T15·T20·T25
Hexagonal	H		25mm	No. H3·H4·H5

Overview

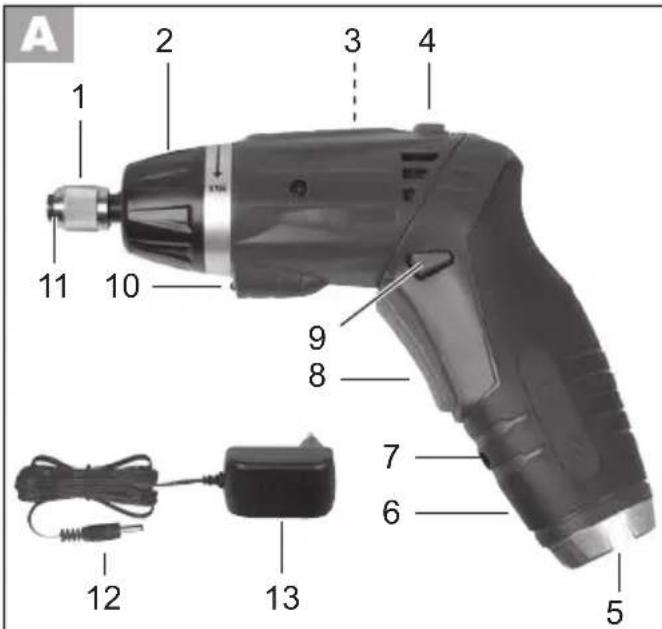

1 Spring sleeve

2 Torque setting

3 Battery Indicator (not visible)

4 Release key for handle setting

5 Torch

6 Handle

7 Charging socket

8 On/Off switch

9 Direction switch

10 LED work light

11 Bit adapter

12 Charging cable connector

13 Charger

14 Bits

15 Bit holder

Technical data

Unit ...... PSSA 3.6 C4

Motor voltage ....3.6 V==; 1.5 Ah

Rated speed ( n_0 ) 200 min ^-1

Torque max. 4 Nm

Protection class ....... III

Weight (without charger) .....0.43 kg

Sound pressure level ( L_pA ) ..... 55.4 dB(A)

K=3 dB

Sound power level ( L_WA ) ..... 66.4 dB(A)

K=3 dB

Vibration ( a_h ) .....0.37 m/s ^2 , K= 1.5 m/

Battery (Li-Ion)

Battery cells 1

Nominal voltage ....3.6 V=

Capacity 1.5 Ah

Charging time .... approx. 1 h

Charger ...... JLH120501650G

Nominal consumption .....15 W

Voltage input ..... 100-240 V\~, 50-60 Hz

Voltage Output ....5 V==; 1650 mA

Protection class ...... □ II

Protection category ...... IPXO

The noise and vibration levels have been calculated according to the norms stated in the conformity statement. Technical and optical alterations to serve progress may be made without notice. All measurements, instructions and other data given in this manual are therefore given without guarantee of correctness. Legal claims made on the basis of this manual are therefore excluded.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Safety information

When using the device, please observe the safety instructions.

Symbols

Symbols in the manual

Warning symbols (instead of the exclamation mark, the danger may be explained) with information on damage and injury prevention.

Instruction symbols (the instruction may be explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

GB

Symbols on the unit

Before using for the first time, carefully read through the user manual.

Do not dispose of the device with the battery installed in household waste.

Symbols on the charger

Attention!

Read the manual.

The charger is for indoor use only.

Pole orientation

Protection class II

Electric devices do not belong with domestic waste.

General safety instructions for power tools

WARNING! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool

outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper

footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

GB

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Hold the device by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.
5) CAREFUL HANDLING AND USE OF BATTERY DEVICES
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
7) SPECIFIC SAFETY INSTRUCTIONS FOR POWER SCREWDRIVERS:
a) Hold the appliance by the insulated handle grips when performing work in which the screw may come into contact with hidden wiring or its own power cord. If the screw were to come into contact with a live electrical cable, metal parts of the appliance could also become live and cause an electric shock.
8) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS
a) Do not subject the battery to strong sunlight over long pe-

riods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.

b) Allow a hot battery to cool before charging.
c) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

Correct handling of the battery charger

a) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
b) Do not use the charger to charge non-rechargeable batteries.
c) To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.
d) Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a de-

fective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

e) Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
f) Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device. This ensures that the battery and charger are not damaged.
g) Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
h) Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
i) Avoid mechanical damage to the charger. This can result in internal short circuits.
j) Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
k) In order to minimise the risk of electric shock, pull the charger plug out of the socket prior to cleaning it.
I) If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

Charging process

Do not expose the battery to extreme conditions such as heat and impact. There is a risk of injury from leaking electrolyte solution! In case of contact, rinse with water or neutraliser and consult a doctor if contact has occurred with eyes etc.

Charge the battery only in dry areas. There is a risk of injury from electric shock.

• The device may only be powered with SELV (Safety Extra Low Voltage) as marked on the device.
• Before initial use, charge the battery installed in the equipment. Do not charge the battery for several short periods in succession.
• To charge the Li-ion battery integrated in the appliance, use the battery charger supplied.
• In all cases, observe the applicable safety information as well as the regulations and directions for environmental protection.
• Defects resulting from improper handling are not subject to the guarantee.

Charging the battery

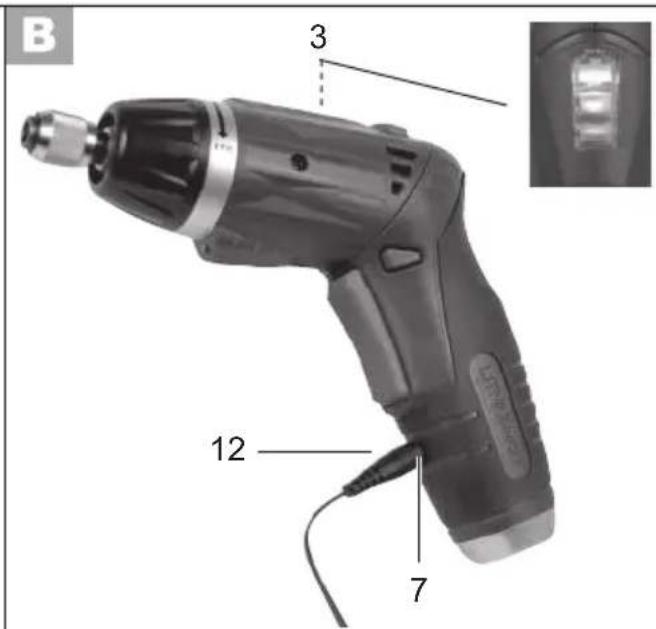

1. Connect the charging cable connector (12) with the charging socket (7) of the device.

2. Plug the charger (A 13) into an electrical outlet.

3. The battery indicator (3) lights up:

red => Start of charging

red and yellow =>

Battery appr. half charged

red-yellow-green =>

Battery fully charged.

1. After the charging process, disconnect the charger (A 13) from the mains supply.

Initial Operation

Switching ON and OFF

1. Press the on/off switch (8) to start the device. The LED work light (10) lights up during operation.

2. To turn it off, release the on/off switch (8).

Overload protection: The safety cut-off of the device switches off in case of overload. Release the On/Off switch, the device can be switched on again after a few seconds.

Checking the charge status of the rechargeable battery

The battery indicator (B3) signalises the state of charge of the battery.

- Press the On/Off switch, the state of charge of the battery is displayed by turning on the 3 coloured LED lights:

red-yellow-green =>

Battery fully charged

red and yellow =>

Battery appr. half charged

red =>

Battery is empty, please charge.

Set the direction of rotation

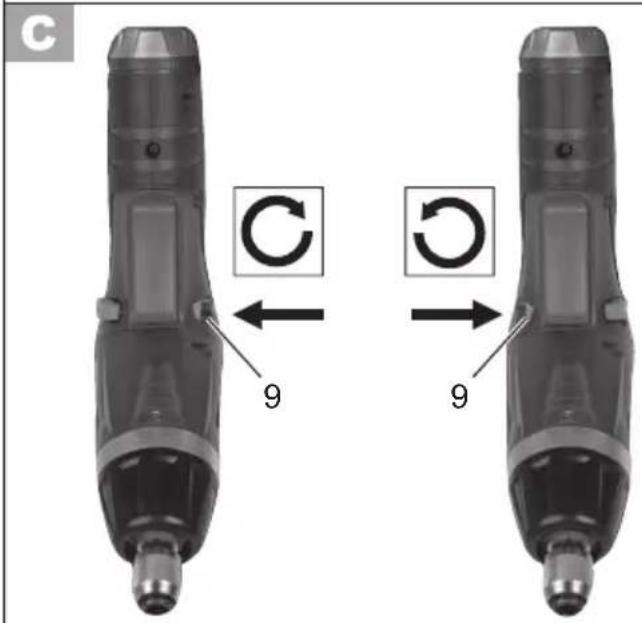

You can select the direction of rotation with the direction switch (clockwise and anticlockwise direction) and secure the device against accidental start up.

1. Wait for the device to shut-down.

2. Clockwise direction: Press direction switch (9) to the right.

1. Anticlockwise direction: Press direction switch (9) to the left.

1. Switch lock: Bring direction switch to neutral position.

Direction switch may only be activated at a standstill to prevent damage to the transmission.

Inserting/replacing bits

Prior to commencing any work on the device, bring the direction switch (A 9) to the neutral position in order to prevent an accidental start up.

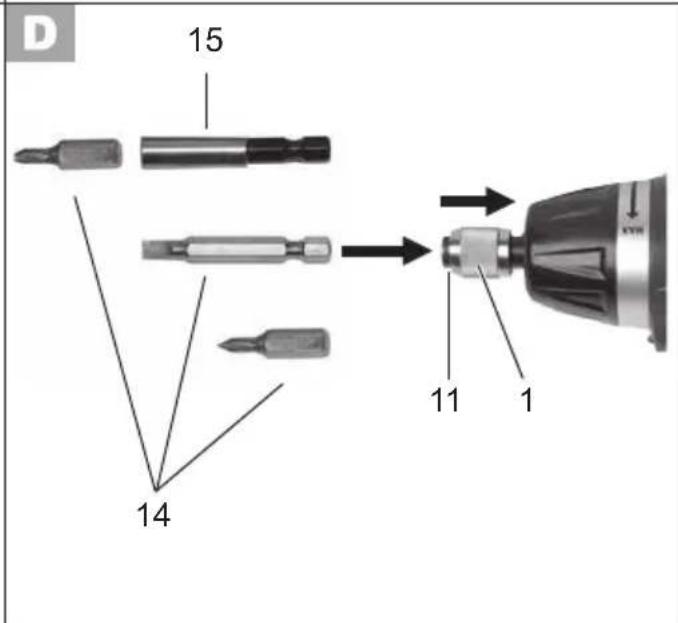

1. Insert the desired bit (14) or bit holder (15) into the bit adapter (11). It locks into place audibly.

2. To remove the bit or bit holder pull the spring sleeve (1) back.

3. With the spring sleeve (1) pulled back remove the bit or bit holder from the bit adapter (11). Release the spring sleeve.

Torque setting

Always turn off the device, before setting the torque.

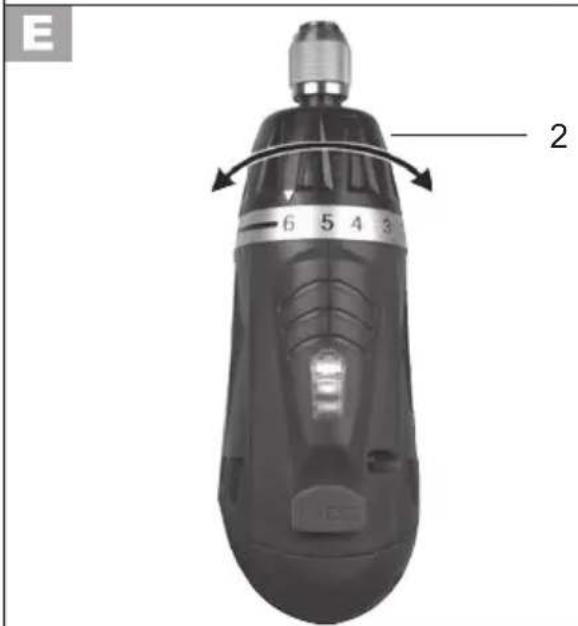

1. Turn the adjusting ring (2) to select the desired torque: Step 1 -> lowest torque, Step MAX -> highest torque (4 Nm).

Screws: Steps 1 - 6

Drilling: Step MAX.

1. Start with a lower torque step and increase according to requirement.

The necessary torque is dependent on:

- the type and hardness of the material to be treated; - the type and length of the screws used.

Handle setting

Prior to commencing any work on the device, bring the direction switch (A 9) to the neutral position in order to prevent an accidental start up.

The device can be locked in two hand settings:

- Pistol grip position

- Rod position

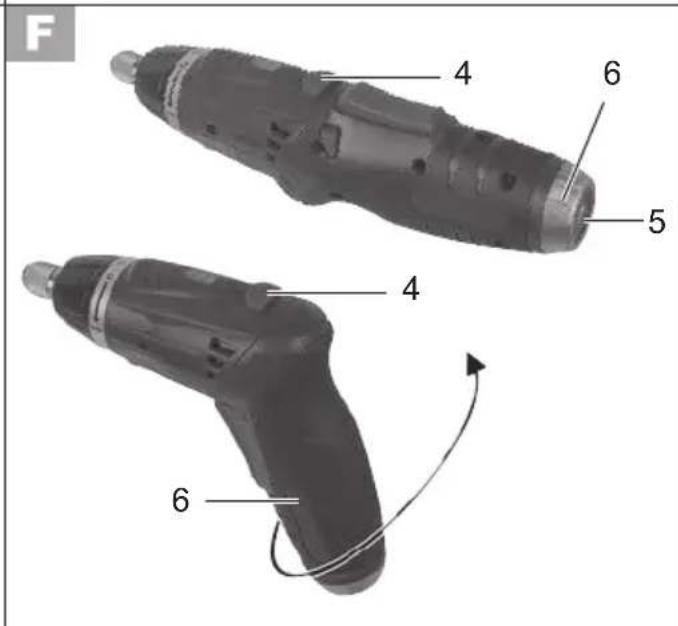

Press the release key PRESS (4) and turn the handle (6) of the device by 180°. It locks into place audibly.

Use as a torch

1. Press the torch lens (5) on the underside of the handle (6). The torch LEDs light up.

2. To switch off the LEDs press the torch lens (5) again.

Cleaning/Maintenance

Leave any work not covered in this manual to our Service Centre. Only use original parts. There is a risk of injury!

Cleaning

Clean and service the device regularly as follows. This guarantees a long life for your unit:

Do not jet water onto the appliance and do not clean it under flowing water. This would result in the danger of an electric shock and the appliance could be damaged.

- Keep the ventilation slits, motor housing and handles on the equipment clean. To do this, use a damp cloth or brush.

Never use cleaning agents or solvents, which can cause irreparable damage to the unit.

Maintenance

The device is maintenance free.

Storage

• Keep the device in the blade guard supplied, dry and out of reach of children.
• Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage period.
• Store the device between 10^ and 25^ . During storage, avoid extreme

cold or heat so the battery does not lose power.

- During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

Disposal and the environment

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

Do not dispose of the device with the battery installed in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Dispose of the equipment with the battery discharged. Do not open the equipment or the battery.
• Dispose of the equipment in accordance with the local regulations. Take the equipment to a collection point, where it will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 42). Please have the order number mentioned below ready.

26 Bits 91104080

Bit holder 91104081

Charger EU 80001066

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. bits, charger) or to cover damage to breakable parts (e.g. switches, batteries).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 273473) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 273473

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

	Translation of the original EC declaration of conformity
We hereby confirm that the Cordless screwdriver model PSSA 3.6 C4 Serial number 201601000001-201603265000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009+A11:2010 • EN 60745-2-2:2010 EN 55014-1/A2:2011 • EN 55014-2/A1:2001+A2:2008 • EN 62471:2008 EN 61000-3-2:2014 • EN 61000-3-3:2013 EN 60335-2-29/A2:2010 • EN 60335-1/A11:2014 • EN 62233:2008
This declaration of conformity (16)** is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, GERMANY 07.04.2016	Volker Lappas Documentation Representative

Translation of the original EC declaration of conformity

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.

20160125-rev02-ts

GRIZZLY TOOLS GMBH & CO. KG
