USER MANUAL UG 706080 MIELE

Guide to the appliance 34
Guide to the appliance 34
External DOS modules and chemical agents 34
Water demineralisation 35
Partial demineralisation cartridges with flow meter 35
Full demineralisation cartridges with conductivity meter 35

Warning and Safety instructions 36

Technical safety 36
Correct use 37
Safety with children 37
Disposal 37

Caring for the environment 38
Disposal of the packing material 38
Disposing of your old machine 38

Opening and closing the door 39

Opening the door 39
Closing the door 39

External DOS modules and chemical agents 40

Instructions for use 40
Replacing or refilling containers 40

Water demineralisation 41

FM Flow meter (partial demineralisation) 41
CM Conductivity meter (full demineralisation) 42
Connection options 43

Connect the cartridge using the screw connectors. 43
Connecting cartridges with quick release couplings 43

Connecting cartridges to the mains water supply and the washer-disinfector 44

Venting the cartridges 44
Inserting a cartridge 44

Removing a cartridge 44
LP 2800 empty cartridge 44
4. Filling an empty LP 2800 cartridge with single use resin 45

Unclamping the lid 45
Filling with resin. 45

Wall mounted FlowMeter / ConductivityMeter 47
Maintenance 47

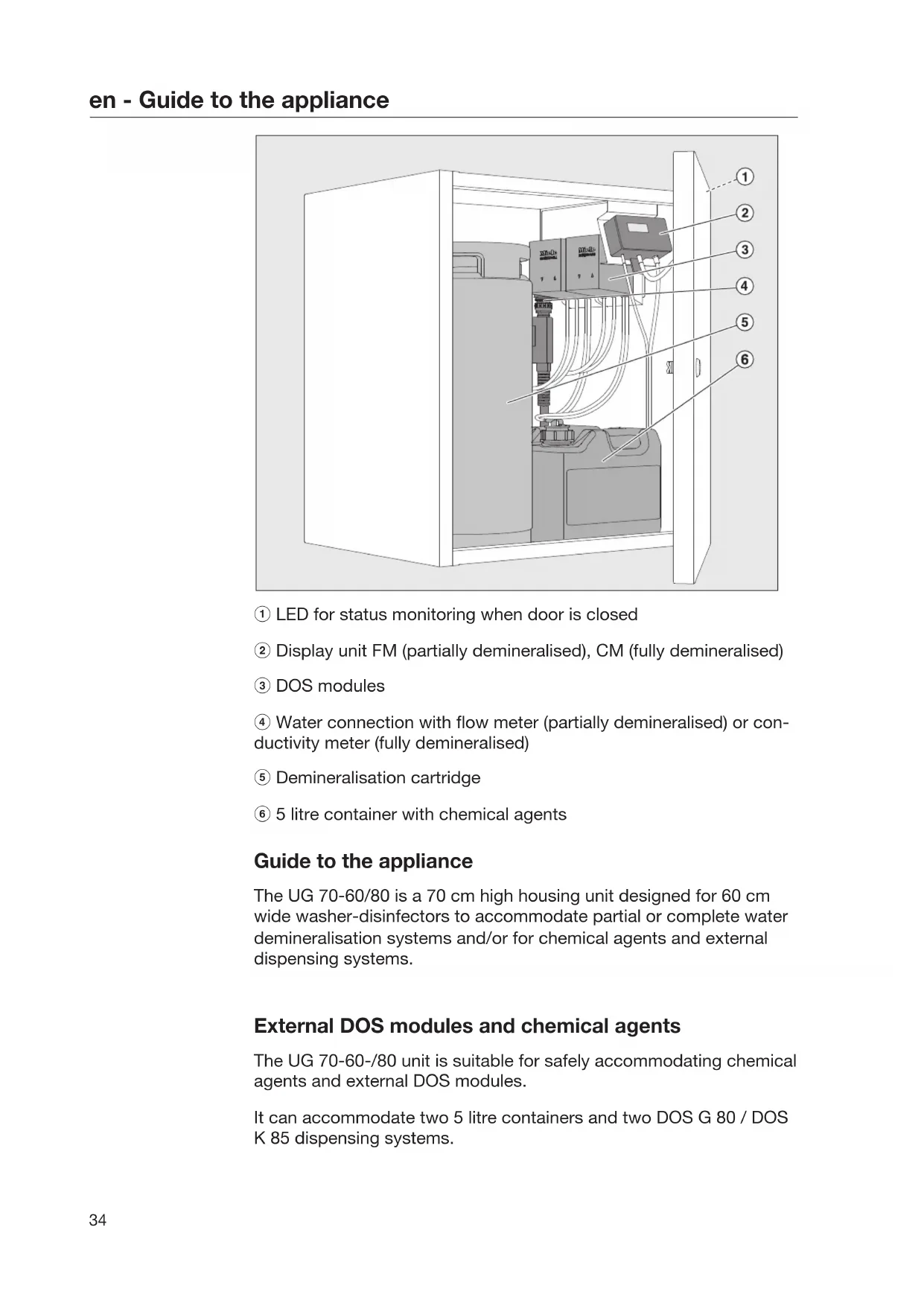

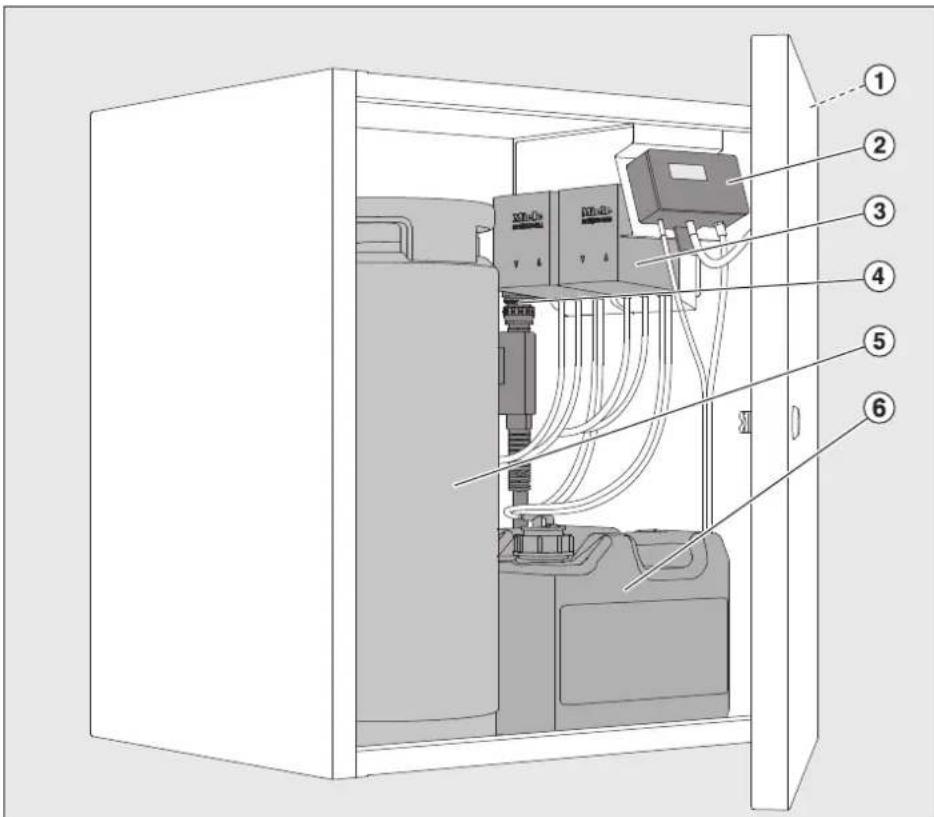

① LED for status monitoring when door is closed
② Display unit FM (partially demineralised), CM (fully demineralised)
③ DOS modules
④ Water connection with flow meter (partially demineralised) or conductivity meter (fully demineralised)
⑤ Demineralisation cartridge
5 litre container with chemical agents

Guide to the appliance

The UG 70-60/80 is a 70~cm high housing unit designed for 60~cm wide washer-disinfectors to accommodate partial or complete water demineralisation systems and/or for chemical agents and external dispensing systems.

External DOS modules and chemical agents

The UG 70-60-/80 unit is suitable for safely accommodating chemical agents and external DOS modules.

It can accommodate two 5 litre containers and two DOS G 80 / DOS K 85 dispensing systems.

The DOS modules are equipped with a monitor which sends a message to the washer-disinfector if the level drops below the minimum.

Water demineralisation

Two water demineralisation cartridges can also be accommodated in the UG 70-60/80 unit, each with a meter and a display unit.

Partial demineralisation cartridges with flow meter

With partial demineralisation, carbonate hardness is reduced by binding calcium and magnesium ions, thereby reducing the mineral content of the water.

The flow meter indicates when the cartridge requires changing.

• TE P 2000 partial demineralisation cartridge

Filled with 12.5 I resin.

• TE P 2800 partial demineralisation cartridge

Filled with 19 I resin.

Full demineralisation cartridges with conductivity meter

Full demineralisation removes all salts and minerals from water.

The conductivity meter shows the conductivity level of the demineralised water in S / cm (microsiemens per centimetre) to enable quality control of the demineralised water.

• VEP 2000 full demineralisation cartridge

Filled with 12.5 I resin.

• VEP 2800 full demineralisation cartridge

Filled with 19 I resin.

The cartridges are filled with renewable resin which can be regenerated after depletion. The whole cartridge can be sent to a regeneration station for reprocessing.

The UG 70-60/80 unit has to be commissioned before first use and operators trained in its use by a Miele technician or authorised person only.

Please follow the operating instructions for the water demineralisation cartridges, conductivity meter, flow meter and the washer-disinfector, and pay particular attention to the warning and safety instructions regarding contact with chemical agents.

The UG 70-60/80 unit and built-in accessories comply with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the unit, please read these instructions carefully before using it, and any accessories in it, for the first time. They contain important information on its installation, safe use and maintenance. Keep these instructions in a safe place and pass them on to any future owner.

Technical safety

The UG 70-60/80 unit and built-in accessories must only be installed, commissioned, maintained and repaired by the Miele Service Department or an authorised Miele Service dealer. Installation, repairs and other work by unqualified persons could be dangerous and Miele will not be held liable.
The unit must only be operated by appropriately trained personnel. They must be instructed and trained regularly.
- Check the UG 70-60/80 unit and built-in accessories before use for any visible damage. Do not use a damaged unit. It could be dangerous.
In the event of a damaged or leaking UG 70-60/80 unit, switch it off immediately and call the Miele Service Department or an authorised Miele Service dealer.
National plumbing regulations must be observed.

Correct use

The water from demineralisation cartridges is not drinking water.
- Never clean the UG 70-60/80 unit or near vicinity with a water hose or a pressure washer.
Ensure that the stainless steel outer casing of the appliance does not come into contact with solutions or steam containing acid to avoid any corrosion damage.
- When replacing resin, use only tested and approved single use resin.
This unit must only be connected to Miele-approved machines.

Safety with children

Supervise children in the vicinity of the UG 70-60/80 unit and do not let them play with it. There is a danger, among other things, of getting locked inside it.
Children must not operate the UG 70-60/80 unit.

Disposal

For safety and environmental reasons, all residual resin and water must be disposed of in accordance with relevant safety regulations. Disable the door lock so that children cannot become trapped inside before disposing of the UG 70-60/80 unit appropriately.
Single use resin or resin which cannot be reactivated must be disposed of together with refuse or other similar industrial waste in accordance with EWC Waste disposal code 190905 for saturated or spent ion exchange resins.

Miele cannot be held liable for damage caused by non-compliance with these Warning and Safety instructions.

Disposal of the packing material

The packaging is designed to protect against transportation damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites.

Disposing of your old machine

Electrical and electronic machines often contain valuable materials. They also contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your machine. Please do not therefore dispose of it with your household waste.

Please dispose of it at your local community waste collection / recycling centre or contact your dealer for advice.

Ensure that it presents no danger to children while being stored for disposal.

Opening the door

• Insert the key into the lock and turn it anti-clockwise to unlock the door.

The key can be left in the lock and used as a handle to pull the door open.

Closing the door

Push the door shut.
Turn the key clockwise as far as it will go.

The key will be ejected by a spring mechanism.

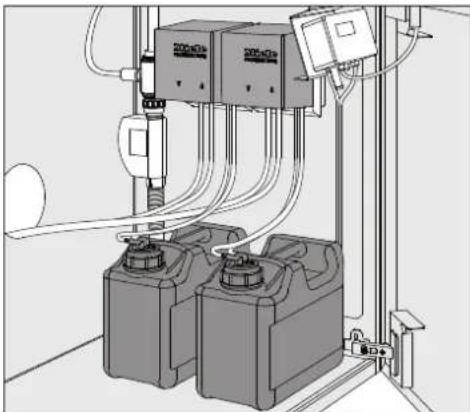

Instructions for use

The external DOS modules automatically dispense chemical agents at the correct programme stages.

Replacing or refilling containers

• Fill the relevant container with chemical agent when a refill reminder appears in the washer-disinfector's display.

• Refill the container in good time to prevent the dispensing system being emptied completely.

• If a container has been emptied, the dispensing system has to be vented before the start of the next programme.

• Follow the information in the operating instructions for the washer disinfector.

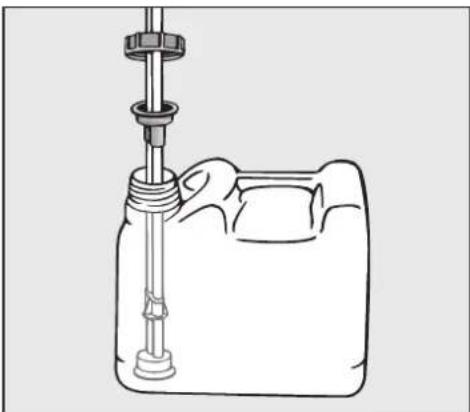

• Unscrew and remove the siphon and place it on a surface which is easy to clean.
  Fill or replace the container, fit the siphon and secure the lid.

Feed the siphon into the container until it reaches the bottom.

Make sure the hose is not kinked.

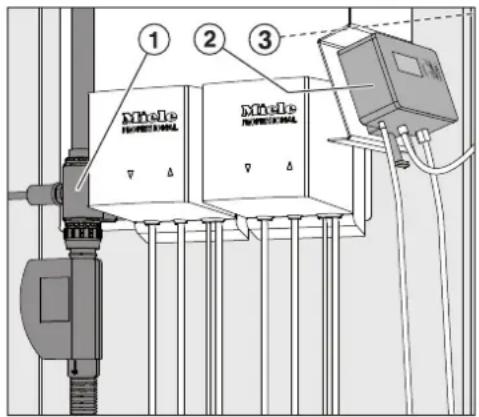

FM Flow meter (partial demineralisation)

A throughput monitor ① measures the amount of processed water and displays this in the FM flow meter ②.

If the set amount is exceeded, or if there is a fault, an optical LED lights up ③ and an acoustic signal is given.

If the demineralisation cartridge is depleted it must be replaced with a new one and the spent resin sent away for reprocessing.

• TE P 2000 and TE P 2800 cartridges:

Send cartridges filled with spent resin away for reprocessing.

• LP 2800 cartridge:

Replace the resin. The E 316 Resin replacement set is supplied with its own instruction manual.

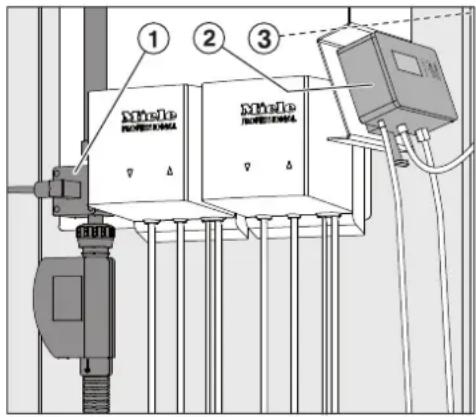

CM Conductivity meter (full demineralisation)

A conductivity module 1 measures the conductivity level of the demineralised water in a range from 0 - 199.9 S / cm (microsiemens per centimetre) and displays this in the conductivity meter 2. This enables quality control of the demineralised water.

If the defined limit value is reached or if a fault occurs, an optical LED lights up ③ and an acoustic signal is given.

If the demineralisation cartridge is depleted it must be replaced with a new one and the spent resin sent away for reprocessing.

-VE P 2000 and VE P 2800 cartridges:

Send cartridges filled with spent resin away for reprocessing.

LP 2800 cartridge:

Replace the resin. The E 316 Resin replacement set is supplied with its own instruction manual.

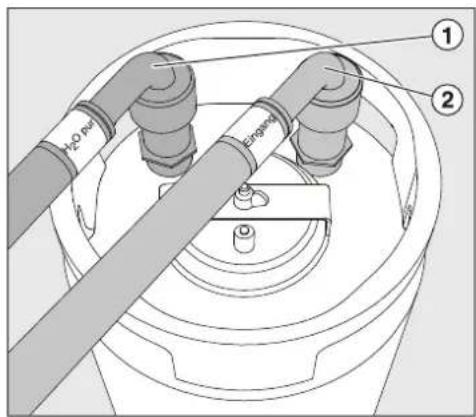

Connection options

• Unscrew the safety caps from the cartridge connectors.

Connect the cartridge using the screw connectors.

• Connect the hoses according to the colour coding on the cartridge connectors, "Inlet (Eingang)" (red) to "In" ② , "H2O pur" (green) to "Out" ① .

Connecting cartridges with quick release couplings

The cartridges and hoses can be fitted with quick release couplings (optional accessory) for rapid changing and reconnection.

When installing for the first time, screw the male part of the quick release couplings to the threaded cartridge connectors (in-out). Check for leaks before using for the first time.

• Connect the hoses with the relevant colour coding to the cartridge couplings and press down until they click firmly into place.
  To release a quick release coupling pull the ring on the end of the hose upwards and pull the hose off.

Connecting cartridges to the mains water supply and the washer-disinfector

Guide the hoses through the openings provided on the back panel of the UG 70-60/80 unit.
Ensure that the hoses are not kinked when doing this.
- Connect the "H2O pur" (green) hose to the solenoid valve for AD water or to the AD water inlet hose for the washer-disinfector.
- Connect the "Inlet (Eingang)" (red) hose to the on-site cold water mains supply stopcock.

Important

Water pressure (flow pressure) must be between 250 - 1000 kPa pressure (2.5 - 10 bar).

The water temperature must not exceed 20^

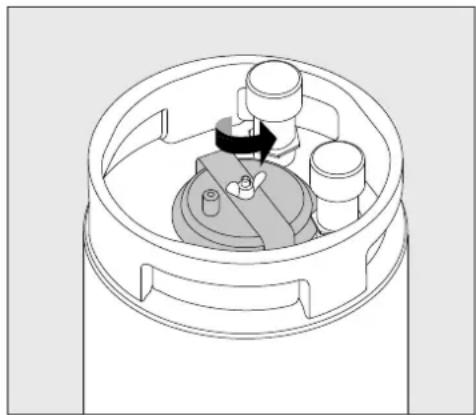

Venting the cartridges

• Open the valve by turning it anti-clockwise.
• Open the cold water stopcock until water escapes from the valve.
  Then close the valve.

The demineralisation cartridge is now ready for use.

Inserting a cartridge

• Place the connected cartridges into the back of the UG 70-60/80 unit.

The front area can be used to accommodate a spare cartridge.

Removing a cartridge

Close the cold water stopcock.
- Open the stopcock for drawing manual AD water (if available), or:
- Open the valve on the cartridge to release any pressure.

While doing this, water can escape which should be wiped up with a cloth.

Unscrew the hoses.
Upend the cartridge to drain the residual water into a suitable outlet.

LP 2800 empty cartridge

The LP 2800 cartridge is supplied unfilled and must be filled on site with 19 l of single use resin prior to use (see "Filling an empty LP 2800 cartridge with single use resin").

When depleted replace the spent resin with new single use resin.

Single use resin or resin which cannot be reactivated must be disposed of together with refuse or other similar industrial waste in accordance with EWC Waste disposal code 190905 for saturated or spent ion exchange resins.

For easy filling and refilling of an empty LP 2800 cartridge, we recommend the following as basic equipment in addition to the cartridge:

• The original Miele E 316 refill set for single use resin, consisting of a 30 l plastic barrel with special lid and funnel.
• 2 × 10 bags of single use resin for demineralisation with filter bag for depleted resin, E 315.

Filling an empty LP 2800 cartridge with single use resin

The empty LP 2800 cartridge can be either filled with resin for partial demineralisation or for full demineralisation (E 315).

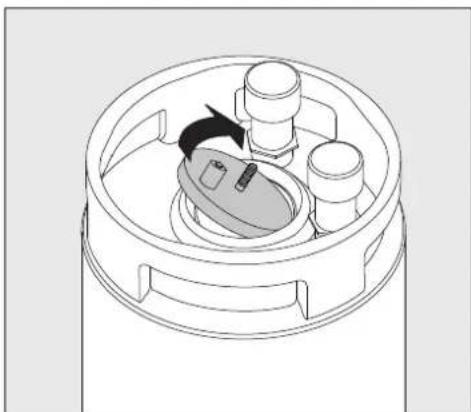

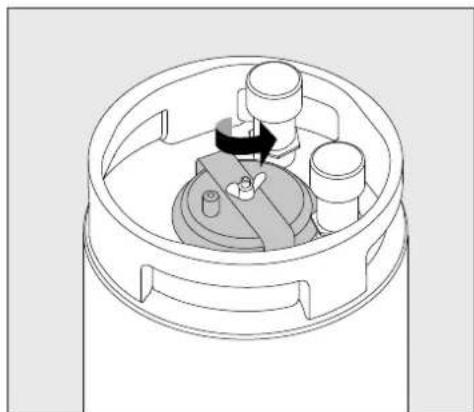

Unclamping the lid

• Loosen the wing nut (hold the lid while doing this so that it does not fall into the cartridge).
  Remove the clamp.

Open the lid.

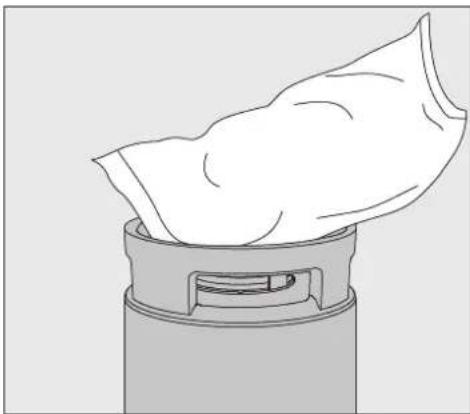

Filling with resin

Place the funnel in the cartridge.
- Cut the corners off both bags of single use resin and empty the contents into the cartridge.
- Remove any residual resin from the mouth of the cartridge.
- Replace the lid, hold it tightly by the valve and secure it with the clamp and wing nut.

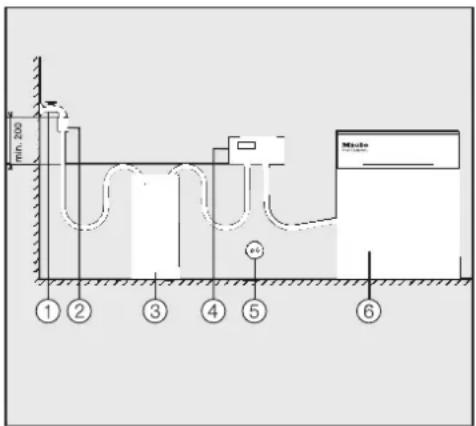

Wall mounted FlowMeter / ConductivityMeter

The water quality display devices can be mounted outside the UG 70-60/80 unit on the wall.

A suitable wall bracket is supplied with the display devices.

For alternative installation the sequence of individual components must be observed:

The display device is always connected behind the water demineralisation cartridge, i.e. in the following order: water stopcock 1 - nonreturn valve with pipe aerator according to DIN EN 1717 2 - water demineralisation cartridge 3 - display device FM/CM 4 - washer-disinfector 6.

Electrical connection 5 is made via a switched plug and socket.

Maintenance

The UG 70-60/80 unit should be serviced at the same time as the washer-disinfector by Miele Service.
