TVSKNAVS502 - Wall mount for screen KONIG - Free user manual and instructions

Product type	Wall mount for screen
Brand	Konig
Model	TVSKNAVS502
VESA compatibility	75 / 100 / 200 / 400 mm
Compatible screen types	LCD, Plasma, Projector
Material	Steel (estimated)
Mounting	Wall mount, for solid concrete or wooden studs
Tilt	Adjustable (tilt models)
Installation	Must be performed by an expert
Installation surface	Solid concrete or wooden studs (no drywall)
Maximum load	Respect a safety factor of 3x the weight of the equipment
Maintenance	Clean with a dry cloth, no solvents or abrasives
Warranty	Limited, does not cover misuse or overloading
Box contents	Wall mount, hardware, key, manual

Frequently Asked Questions - TVSKNAVS502 KONIG

How to install this Konig TVSKNAVS502 wall mount?

Installation must be performed by an expert. First, attach the wall plate to the solid concrete wall or onto wooden studs following the template. Drill holes 7.5 cm deep with a 10 mm concrete drill bit for plastic anchors. Then mount the screen onto the plate according to compatible VESA standards (75/100/200/400 mm). Use the provided key to tighten without overtightening.

What types of screens are compatible with this mount?

This wall mount is designed for LCD, Plasma screens and projectors conforming to VESA 75/100/200/400 mm standards. Check the mounting points on the back of your device.

What is the maximum weight supported by the mount?

The exact load capacity is not specified, but it is imperative that the wall supports a redundant weight factor of 3 times the total weight of your equipment. Never exceed the allowed load or the warranty will be void.

Can I install this mount on a drywall wall?

No, the manual formally advises against installation on drywall or wooden panels. Use only solid concrete or wooden studs.

How to adjust the tilt of the mount?

For tilt models, gently pull the left and right top edges to adjust the angle. Use a Phillips screwdriver to lock the tilt mechanism at the desired position.

How often should the installation be checked?

One month after installation, then every six months, check that the mount is securely fixed and that screws and nuts are not loosening. If loosening occurs, reinforce the relevant points.

What to do if a part is missing from the box?

Before starting, ensure all parts are present and intact. If a part is missing or damaged, stop the installation and contact your dealer for a replacement.

Can I use this mount with a non-VESA screen?

This mount is designed for VESA 75/100/200/400 mm standards. If your screen is not VESA compatible, you will need a specific adapter. Check the manual to verify compatibility of your mounting points.

What tools are needed for installation?

You will need a drill with a 10 mm concrete bit, a spirit level, a Phillips screwdriver for tilt adjustment, and the provided key. For wooden studs, use a stud finder.

Does the warranty cover damage if I install the mount incorrectly?

No, the limited warranty does not cover misuse, overloading, incorrect installation, or unauthorized modifications. Follow the instructions strictly to keep the warranty valid.

USER MANUAL TVSKNAVS502 KONIG

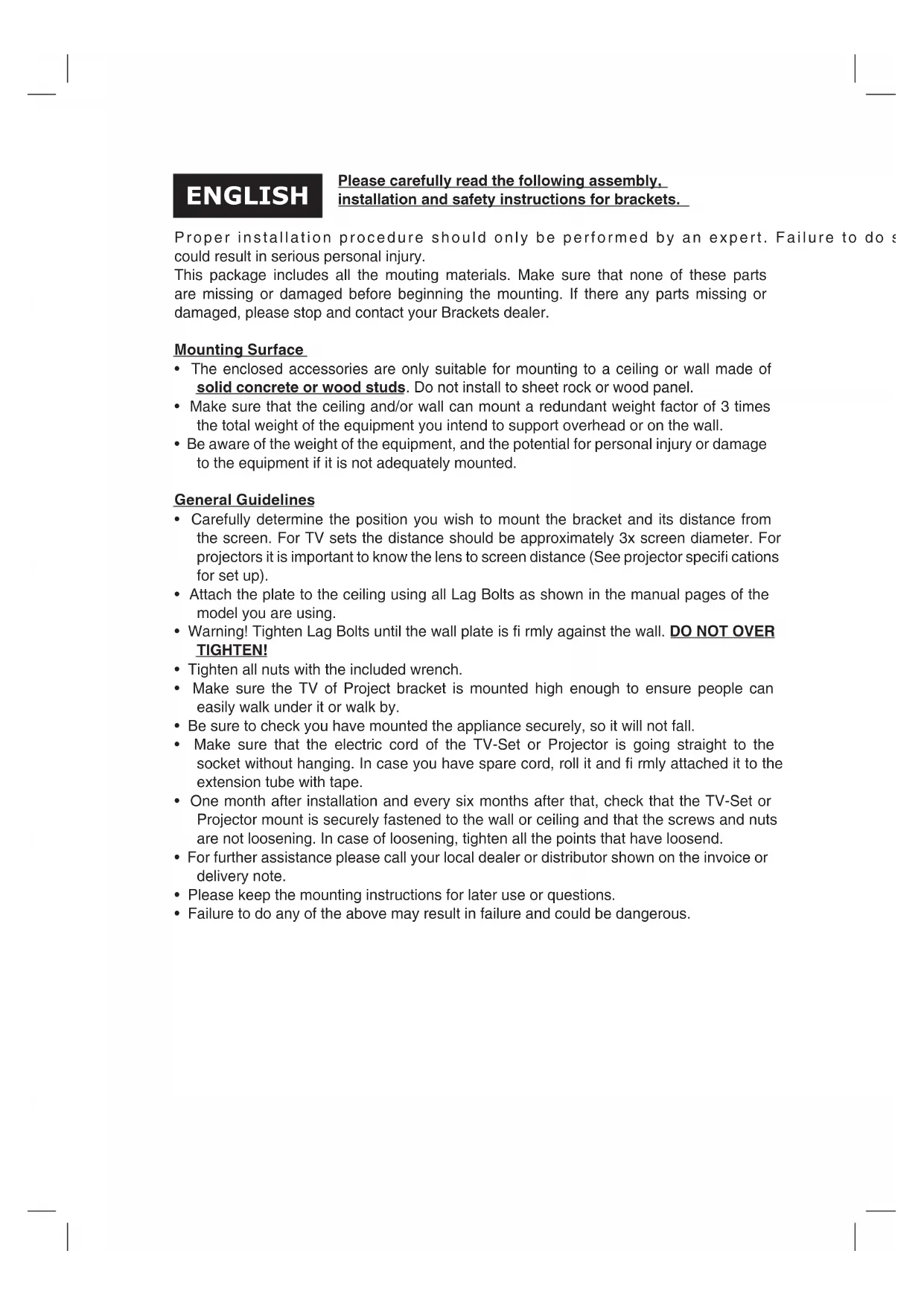

Please carefully read the following assembly, installation and safety instructions for brackets.

Proper installation procedure should only be performed by an expert. Failure to do s could result in serious personal injury.

This package includes all the mouting materials. Make sure that none of these parts are missing or damaged before beginning the mounting. If there any parts missing or damaged, please stop and contact your Brackets dealer.

Mounting Surface

• The enclosed accessories are only suitable for mounting to a ceiling or wall made of solid concrete or wood studs. Do not install to sheet rock or wood panel.
• Make sure that the ceiling and/or wall can mount a redundant weight factor of 3 times the total weight of the equipment you intend to support overhead or on the wall.
• Be aware of the weight of the equipment, and the potential for personal injury or damage to the equipment if it is not adequately mounted.

General Guidelines

• Carefully determine the position you wish to mount the bracket and its distance from the screen. For TV sets the distance should be approximately 3x screen diameter. For projectors it is important to know the lens to screen distance (See projector specifications for set up).
• Attach the plate to the ceiling using all Lag Bolts as shown in the manual pages of the model you are using.
• Warning! Tighten Lag Bolts until the wall plate is firmly against the wall. DO NOT OVER TIGHTEN!
• Tighten all nuts with the included wrench.
• Make sure the TV of Project bracket is mounted high enough to ensure people can easily walk under it or walk by.
• Be sure to check you have mounted the appliance securely, so it will not fall.
• Make sure that the electric cord of the TV-Set or Projector is going straight to the socket without hanging. In case you have spare cord, roll it and firmly attached it to the extension tube with tape.
• One month after installation and every six months after that, check that the TV-Set or Projector mount is securely fastened to the wall or ceiling and that the screws and nuts are not loosening. In case of loosening, tighten all the points that have loosend.
• For further assistance please call your local dealer or distributor shown on the invoice or delivery note.
• Please keep the mounting instructions for later use or questions.
• Failure to do any of the above may result in failure and could be dangerous.

Installation procedure

Step 1:

Invert the display and place it on a soft and flat at surface. Locate the mounting points on the back of the display.

Many LCD manufacturers conform to VESA standards. The VESA standard defi nes the physical mounting interfaces. The LCD mount conforms to VESA 75/100/200/400 patterns.

Plasma monitors come with a random set of holes.

Note! Do not over tighten the screws. This may cause damage to the display or bracket.

Before you begin, determine the desired mounting location.

Step 2:

Assemble the wall plate using the hardware and wrenches provided.

Note! Tighten screws uniformly to prevent distortion that might affect the assembly process. Do not tighten with excessive force. Failure to follow these instructions may cause excessive stress to the screws, greatly reducing their strength.

Solid concrete wall assembly: Carefully inspect the area where the LCD\Plasma\Projector mount is to be installed. Check for any damage or loose cement.

Caution! When drilling holes in a cement wall or wooden studs, be absolutely sure there are no water pipes or electrical wiring behind the wall. Use the wall plate to mark the positions of the drilling holes.

Drill holes 3" deep using a (10 mm) masonry drill bit. Insert the plastic anchors into the hole and tap flush until the washer is even with the concrete surface. Place the back plate onto the concrete surface and slowly tighten each nut onto its respective anchor.

Wood studs assembly:

Use a stud sensor (sold separately) to locate framing near the desired mounting position. Note! Framing beams are typically 1-1/2"-2" wide and spaced 16" on center. We recommend locating more than one stud to find a trend in stud spacing. Using a sharp device penetrate the drywall to identify the true center of the stud. Using the wall plate base as a template, position the wall plate base vertically. Mark the hole position on the wall, making sure you use the center screw holes. Use a level to check horizontal alignment of marks.

Step 3:

For tilting models, gently pull the left and the right upper edges of the display to extend the mount to its desired display tilting angle. Using a Phillips screwdriver, adjust the tilt mechanism to its desired position. LCD mount models are designed to maintain their tilting angle by using fi nger tips on the back of the monitor. Keeping the display far from the tilting mechanism, turn the Philips screw to its desired angle.

Step 4:

Once the mounting of the display is completed, you can tills move the display from side to side to optimize the final position of the display. Gently slide the unit from left to right over the steel rods on the wall plate.

LIMITED WARRANTY

• No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.
• If a claim is made under this guarantee, the bracket should be returned, with the original purchasing document to your dealer or distributor.

• This warranty does not apply to:

• Over loading beyond permitted load

- When the bracket is misused

- Normal wear

- Friction damages

- Coating defects

• Defects caused by loosened screws, nuts

• Ceiling bracket mounted to a wall or visa versa

- In case of faulty use, not stated in instructions

- Modifi cation or repairs made by non authorized workshops

• Damage caused by a accident

Maintenance

- Only use dry cloth to clean the bracket. Do not use cleaning solvents or abrasives.

General

• Designs and specifications are subject to change without notice.
• All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.
