USER MANUAL TVSKNAVS501 KONIG

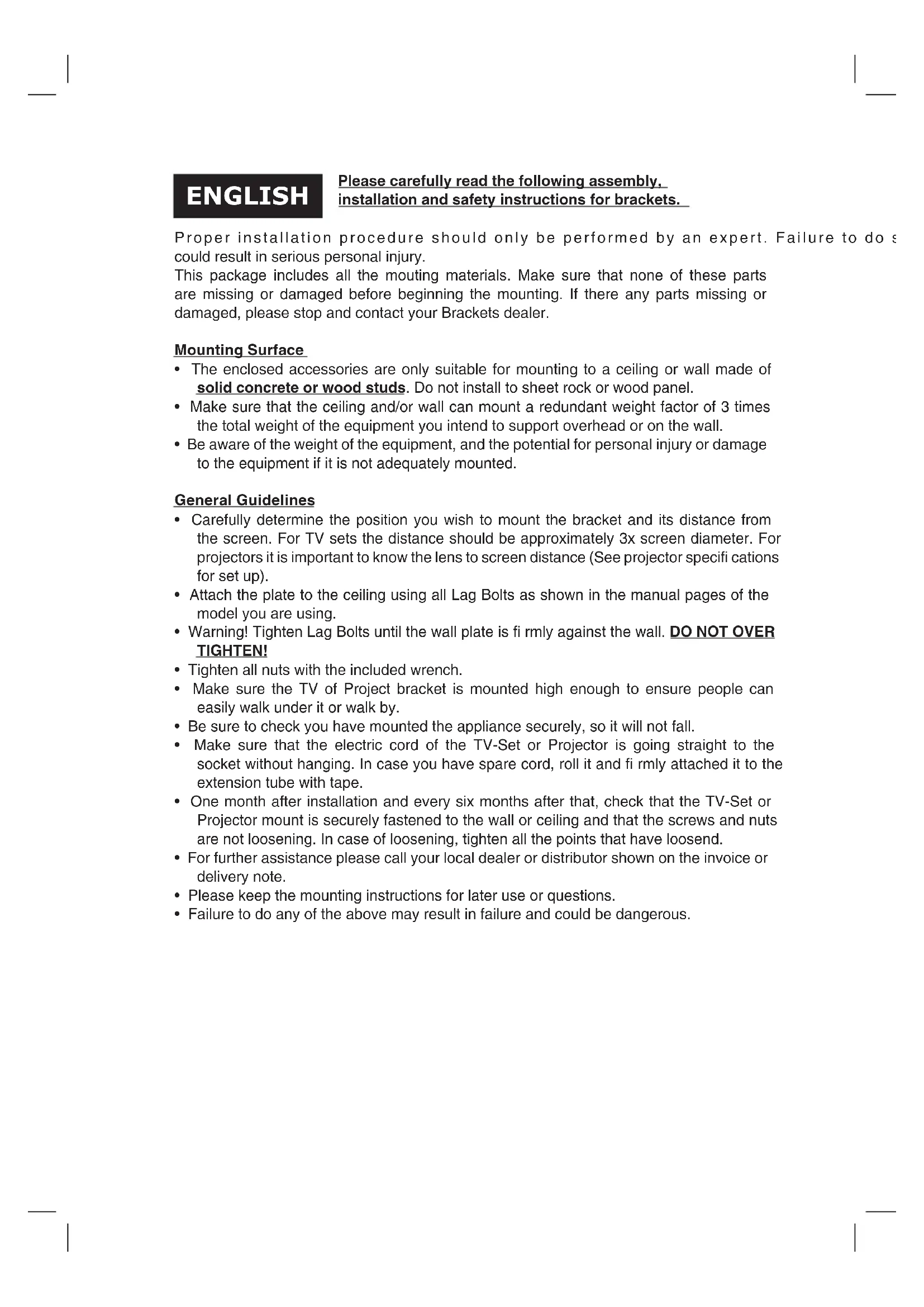

Please carefully read the following assembly, installation and safety instructions for brackets. Proper installation procedure should only be performed by an expert. Failure to do so could result in serious personal injury. This package includes all the mouting materials. Make sure that none of these parts are missing or damaged before beginning the mounting. If there any parts missing or damaged, please stop and contact your Brackets dealer. Mounting Surface

• The enclosed accessories are only suitable for mounting to a ceiling or wall made of solid concrete or wood studs. Do not install to sheet rock or wood panel.

• Make sure that the ceiling and/or wall can mount a redundant weight factor of 3 times the total weight of the equipment you intend to support overhead or on the wall.

• Be aware of the weight of the equipment, and the potential for personal injury or damage to the equipment if it is not adequately mounted. General Guidelines

• Carefully determine the position you wish to mount the bracket and its distance from the screen. For TV sets the distance should be approximately 3x screen diameter. For projectors it is important to know the lens to screen distance (See projector specifi cations for set up).

• Attach the plate to the ceiling using all Lag Bolts as shown in the manual pages of the model you are using.

• Warning! Tighten Lag Bolts until the wall plate is fi rmly against the wall. DO NOT OVER TIGHTEN!

• Tighten all nuts with the included wrench.

• Make sure the TV of Project bracket is mounted high enough to ensure people can easily walk under it or walk by.

• Be sure to check you have mounted the appliance securely, so it will not fall.

• Make sure that the electric cord of the TV-Set or Projector is going straight to the socket without hanging. In case you have spare cord, roll it and fi rmly attached it to the extension tube with tape.

• One month after installation and every six months after that, check that the TV-Set or Projector mount is securely fastened to the wall or ceiling and that the screws and nuts are not loosening. In case of loosening, tighten all the points that have loosend.

• For further assistance please call your local dealer or distributor shown on the invoice or delivery note.

• Please keep the mounting instructions for later use or questions.

• Failure to do any of the above may result in failure and could be dangerous. ENGLISH2 Installation procedure Step 1: Invert the display and place it on a soft and fl at surface. Locate the mounting points on the back of the display. Many LCD manufacturers conform to VESA standards. The VESA standard defi nes the physical mounting interfaces. The LCD mount conforms to VESA 75/100/200/400 patterns. Plasma monitors come with a random set of holes. Note! Do not over tighten the screws. This may cause damage to the display or bracket. Before you begin, determine the desired mounting location. Step 2: Assemble the wall plate using the hardware and wrenches provided. Note! Tighten screws uniformly to prevent distortion that might affect the assembly process. Do not tighten with excessive force. Failure to follow these instructions may cause excessive stress to the screws, greatly reducing their strength. Solid concrete wall assembly: Carefully inspect the area where the LCD\Plasma\ Projector mount is to be installed. Check for any damage or loose cement. Caution! When drilling holes in a cement wall or wooden studs, be absolutely sure there are no water pipes or electrical wiring behind the wall. Use the wall plate to mark the positions of the drilling holes. Drill holes 3” deep using a (10 mm) masonry drill bit. Insert the plastic anchors into the hole and tap fl ush until the washer is even with the concrete surface. Place the back plate onto the concrete surface and slowly tighten each nut onto its respective anchor. Wood studs assembly: Use a stud sensor (sold separately) to locate framing near the desired mounting position. Note! Framing beams are typically 1-1/2”- 2” wide and spaced 16” on center. We recommend locating more than one stud to fi nd a trend in stud spacing. Using a sharp device penetrate the drywall to identify the true center of the stud. Using the wall plate base as a template, position the wall plate base vertically. Mark the hole position on the wall, making sure you use the center screw holes. Use a level to check horizontal alignment of marks. Step 3: For tilting models, gently pull the left and the right upper edges of the display to extend the mount to its desired display tilting angle. Using a Phillips screwdriver, adjust the tilt mechanism to its desired position. LCD mount models are designed to maintain their tilting angle by using fi nger tips on the back of the monitor. Keeping the display far from the tilting mechanism, turn the Philips screw to its desired angle. Step 4: Once the mounting of the display is completed, you can tills move the display from side to side to optimize the fi nal position of the display. Gently slide the unit from left to right over the steel rods on the wall plate.3 LIMITED WARRANTY

• No guarantee or liability can be accepted for any changes and modifi cations of the product or damage caused due to incorrect use of this product.

• If a claim is made under this guarantee, the bracket should be returned, with the original purchasing document to your dealer or distributor.

• This warranty does not apply to:

• Over loading beyond permitted load

• When the bracket is misused

• Defects caused by loosened screws, nuts

• Ceiling bracket mounted to a wall or visa versa

• In case of faulty use, not stated in instructions

• Modifi cation or repairs made by non authorized workshops

• Damage caused by a accident Maintenance

• Only use dry cloth to clean the bracket. Do not use cleaning solvents or abrasives. General

• Designs and specifi cations are subject to change without notice.
