USER MANUAL CSBTTRNSM100 KONIG

Black electronic device labeled 'König' connected to a USB cable (no visible text or symbols beyond branding)

Audio transmitter with Bluetooth® Wireless Technology for headphones

KÖNIG

ENGLISH

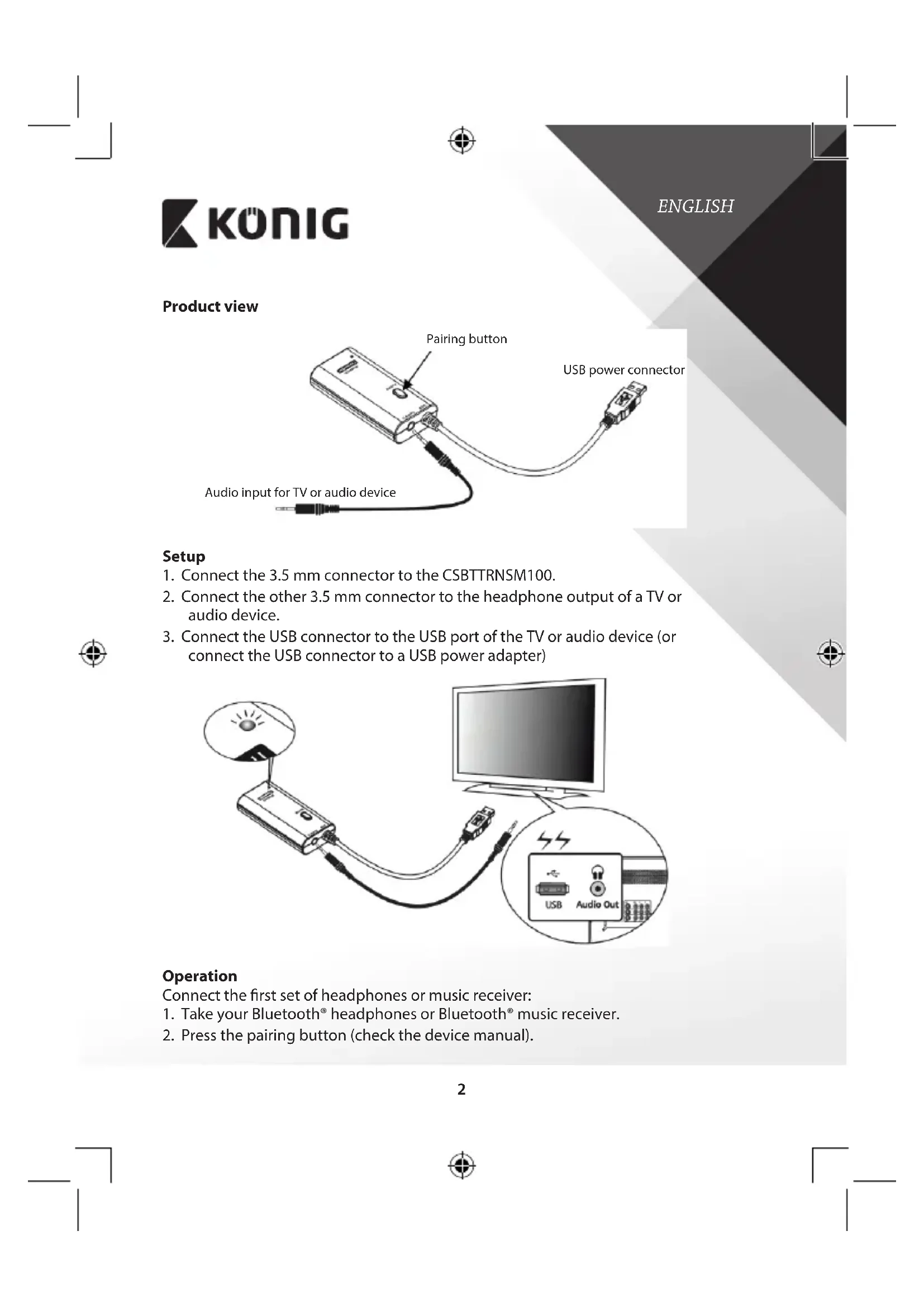

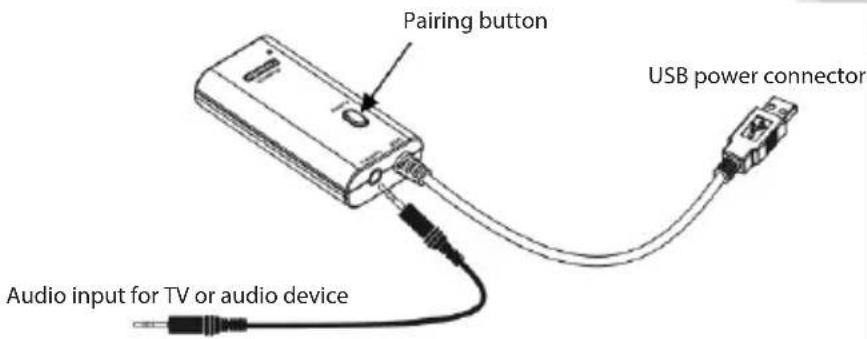

Product view

Pairing button USB power connector Audio input for TV or audio device

Setup

1. Connect the 3.5 mm connector to the CSBTTRNSM100.
2. Connect the other 3.5 mm connector to the headphone output of a TV or audio device.
3. Connect the USB connector to the USB port of the TV or audio device (or connect the USB connector to a USB power adapter)

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Operation

Connect the first set of headphones or music receiver:
1. Take your Bluetooth® headphones or Bluetooth® music receiver.
2. Press the pairing button (check the device manual).

KÖNIG

ENGLISH

1. After being connected for the first time, the two devices will recognise each other next time.

Connect the second set of headphones or music receiver:

1. Take the second set of Bluetooth® headphones or Bluetooth® music receiver.
2. Press the pairing button (check the device manual).
3. Press the pairing button on the CSBTTRNSM100 once for approx. 1 \~ 2 seconds. The LED light starts blinking while the transmitter searches for the second set of headphones or music receiver. The device that was connected first, is muted.
4. If the devices are connected, the LED light is constantly switched on.

Note

The CSBTTRNSM100 features the option to connect two Bluetooth® A2DP devices at the same time. If you would like to connect a second A2DP device, you need to reset the CSBTTRNSM100 to establish a new connection.

Reset

Press the pairing button on the CSBTTRNSM100 and release it again. The LED light on the CSBTTRNSM100 starts blinking while the transmitter is searching for A2DP devices nearby.

LED indication

Indication Meaning Description
Flash every 5 seconds Pairing	for a device in pairing mode
Constantly switched on Connected CSB	TTRNSM100 and device are connected

Troubleshooting

If you do not hear any sound coming from your headphones or music receiver, check the following:

• make sure the CSBTTRNSM100 is powered;
• make sure the audio cable is correctly connected to the CSBTTRNSM100;
• make sure that the audio source is working properly;
• make sure the volume of the audio source is set correctly;
• make sure your device is at a maximum distance of 10 metres of the audio transmitter.

KÖNIG

ENGLISH

Maintenance:

Clean the product only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
  • For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

KÖNIG

DEUTSCH

Produktansicht

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports

Betrieb

Diagram showing connection between a CD and a monitor with USB and audio output devices, including a light source icon.

Fonctionnement

Diagram showing connection between a CD and a monitor via USB and audio output, with an LED indicator light emitting a light source.

Bediening

Diagram showing connection between a CD and a monitor with USB and audio output labels

Funzionamento

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Funcionamiento

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Funcionamento

Diagram showing connection between a CD and a monitor with USB and audio output indicators, including a light source icon.

Használat

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports

Toimenpide

Diagram showing connection between a CD and a monitor with USB and audio output indicators, including a light source icon.

Användning

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Použití

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports

Functionare

Diagram showing connection between a CD and a monitor with USB and audio output devices, including a lamp and indicator lights.

Λειτουργία

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports.

Betjening

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Bruk

Diagram showing connection between a CD and a monitor with USB and audio output labels

Эксплуатация

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Çalıştırma

Diagram showing connection between a CD and a monitor with USB and audio output labels

Kasutamine

Diagram showing connection between an audio device and a computer monitor, with labeled USB and audio output components.

Používanie

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports

Ekspluatācija

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Naudojimas

Diagram showing connection between a CD and a monitor with USB and audio output indicators

Rad

Povežite prvi komplet slušalica ili prijamnik glazbe:

1. Preuzmite vaše Bluetooth® slušalice ili Bluetooth® prijamnik glazbe.
2. Pritisnite gumb uparivanje (pogledajte priručnik uređaja).

KÖNIG

HRVATSKI

Diagram showing connection between a CD and a monitor, with USB and audio output labels visible

Действие

Diagram showing connection between a CD and a monitor with USB and audio output labels

Obstuga

Diagram showing connection between a device and a computer monitor, with labeled USB and audio output ports

Postopek

We, NEDIS, as manufacturer, declare that product CSBTTRNSM100 from the brand König, produced in

Taiwan, was tested according to all relevant CE standards / regulations and passed all tests.

This includes, but is not limited to the R&TTE Directive 1999/5/EC (from June 2017, this will be replaced by the RED

Directive 2014/53/EU)

The complete Declaration of Conformity (+ safety datasheet if applicable) can be found and downloaded via

http://webshop.nedis.com

For other compliant-related information, please contact customer service desk for support:

via website: http://www.nedis.com

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
