Product type	In-ceiling speaker
Brand	Bose
Model	FreeSpace FS2C
Dimensions (speaker)	Diameter: 183 mm, Housing: 155 mm diameter x 125 mm depth
Required ceiling opening	165 mm diameter
Maximum ceiling thickness	38 mm
Net weight (unit)	1.63 kg
Gross weight (pair)	4.40 kg
Power supply	70V / 100V, 16 Ω
Adjustable power (70V)	1, 2, 4, 8, 16 W
Adjustable power (100V)	2, 4, 8, 16 W
Impedance in 16 Ω mode	16 W
Frequency response (UL)	95 Hz to 17,000 Hz
Coverage angle (vertical)	145° at -3 dB, 170° at -6 dB
Coverage angle (horizontal)	140° at -3 dB, 170° at -6 dB
Max. sound pressure level (16W, 70V)	86.7 dBA at 3.1 m (UL standard)
Usage	Indoor only
Standards	ANSI/UL 1480-2016, CAN/ULC-S541, EN 54-24, IP21C
Maintenance	Clean with dry cloth only
Safety	Installation by qualified professional, secondary fixation recommended
Warranty	Limited warranty (see PRO.BOSE.COM)
Included accessories	2 brackets, 2 grilles, installation guides (pair)

Frequently Asked Questions - FreeSpace FS2C BOSE

How to install the FreeSpace FS2C speaker?

Installation must be carried out by a professional technician. Follow these steps: cut an opening in the ceiling (165 mm), install the appropriate bracket, route the audio cable, connect the connector, insert the speaker and tighten the anchoring arm screws. Then attach the grille.

What accessories are needed for installation?

An adjustable ceiling bracket or mounting plate is required (not supplied). You can also use a 3/8 inch conduit fitting. Compatible accessories are listed on PRO.BOSE.COM.

How to adjust the speaker power?

Turn the transformer tap with a flat-head screwdriver to select the desired power: 1, 2, 4, 8 or 16 W in 70V; 2, 4, 8 or 16 W in 100V. The default setting is indicated on the product.

Is the speaker suitable for fire alarm systems?

Yes, it is certified EN 54-24 and ANSI/UL 1480 for fire alarm and evacuation applications. It complies with IP21C rating.

How to clean the FreeSpace FS2C speaker?

Use only a dry cloth to clean the speaker and grille. Do not use soap, detergent, alcohol or other chemicals that could damage the plastic.

Can I install the speaker in a bathroom or pool area?

No, this product is intended for dry indoor use only. Do not install it in humid environments such as indoor pools, saunas, steam rooms, etc.

What type of cable to use for connection?

Use cables from 18 AWG (0.8 mm) to 14 AWG (2.1 mm). Strip 6 mm of wire to connect to terminals. Follow wiring methods in compliance with local codes.

Is the speaker compatible with a ceramic terminal block?

Yes, the FreeSpace FS2C speaker has a mounting point for a ceramic terminal block (optional accessory). Refer to the corresponding installation guide on PRO.BOSE.COM.

What to do in case of a problem with the speaker?

Do not attempt to repair the product yourself. Entrust any maintenance to a certified service center or contact your dealer. For more information, visit PRO.BOSE.COM.

What is the warranty of the FreeSpace FS2C speaker?

This device is covered by a limited warranty. For details and duration, see PRO.BOSE.COM.

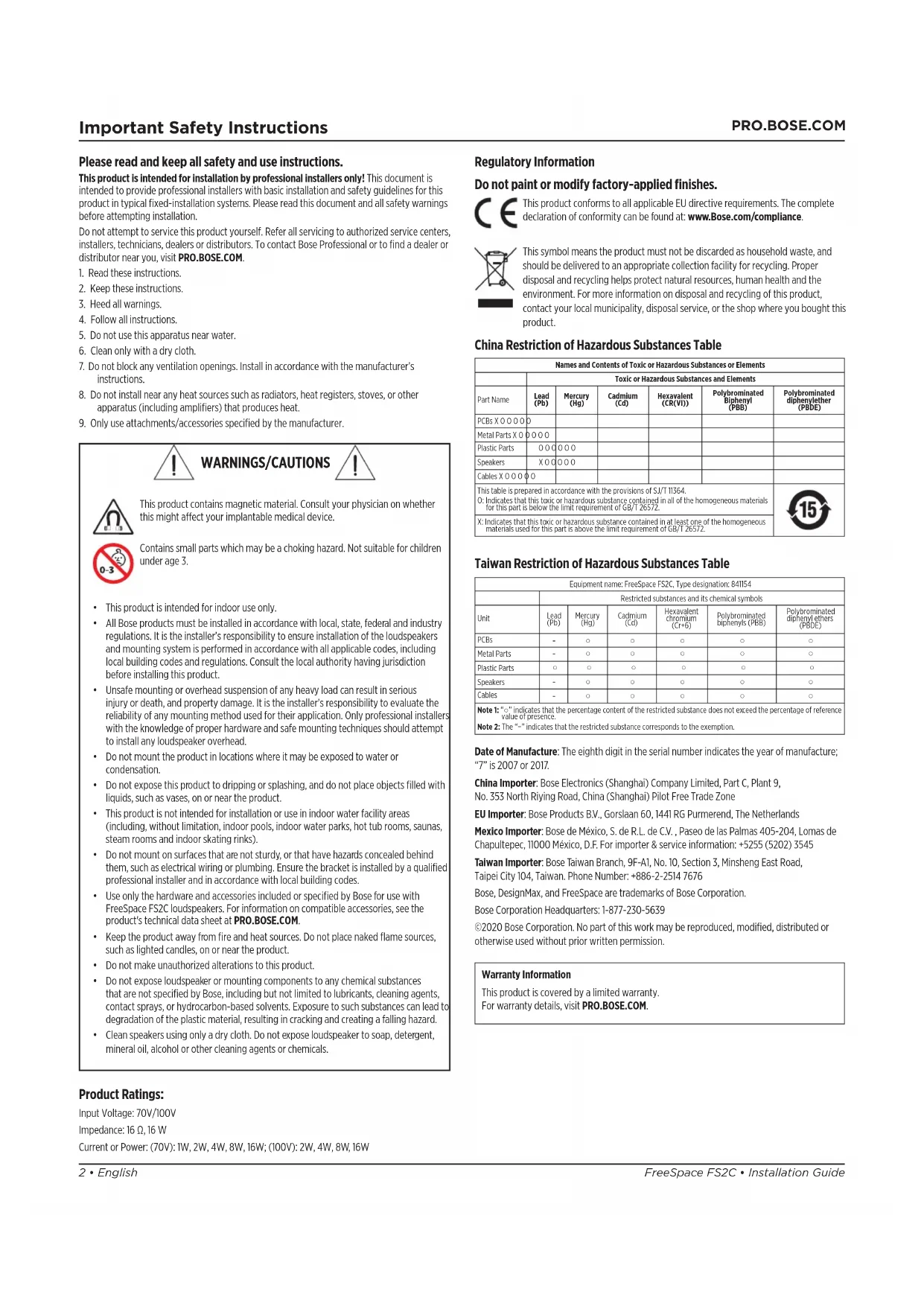

USER MANUAL FreeSpace FS2C BOSE

Installation Guide. 2

Guia de instalacion 9

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNING/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product is intended for indoor use only.
- All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
- Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
- Do not mount the product in locations where it may be exposed to water or condensation.
- Do not expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
- This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
- Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. Ensure the bracket is installed by a qualified professional installer and in accordance with local building codes.
- Use only the hardware and accessories included or specified by Bose for use with FreeSpace FS2C loudspeakers. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
- Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
- Do not make unauthorized alterations to this product.
- Do not expose loudspeaker or mounting components to any chemical substances that are not specified by Bose, including but not limited to lubricants, cleaning agents, contact sprays, or hydrocarbon-based solvents. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
- Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.

Regulatory Information

Do not paint or modify factory-applied finishes.

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead(Pb)	Mercury(Hg)	Cadmium(Cd)	Hexavalent(CR(VI))	PolybrominatedBiphenyl(PBB)	Polybrominated diphenylether(PBDE)
PCBs X 0 0 0 0 0	0
Metal Parts X 0 0 0 0	0 0 0 0
Plastic Parts	0 0 0 0	0 0 0
Socakers	X 0 0 0	0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of S.J/T 11364. O: indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.						15
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: FreeSpace FS2C, Type designation: 841154
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9,

No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road,

Taipei City 104, Taiwan. Phone Number: [phone]

Bose, DesignMax, and FreeSpace are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit PRO.BOSE.COM

Product Ratings:

Input Voltage: 70V/100V

Impedance: 16 Ω, 16 W

Current or Power: (70V): 1W, 2W, 4W, 8W, 16W; (100V): 2W, 4W, 8W, 16W

Package Contents

× 2 × 2 × 2 × 1

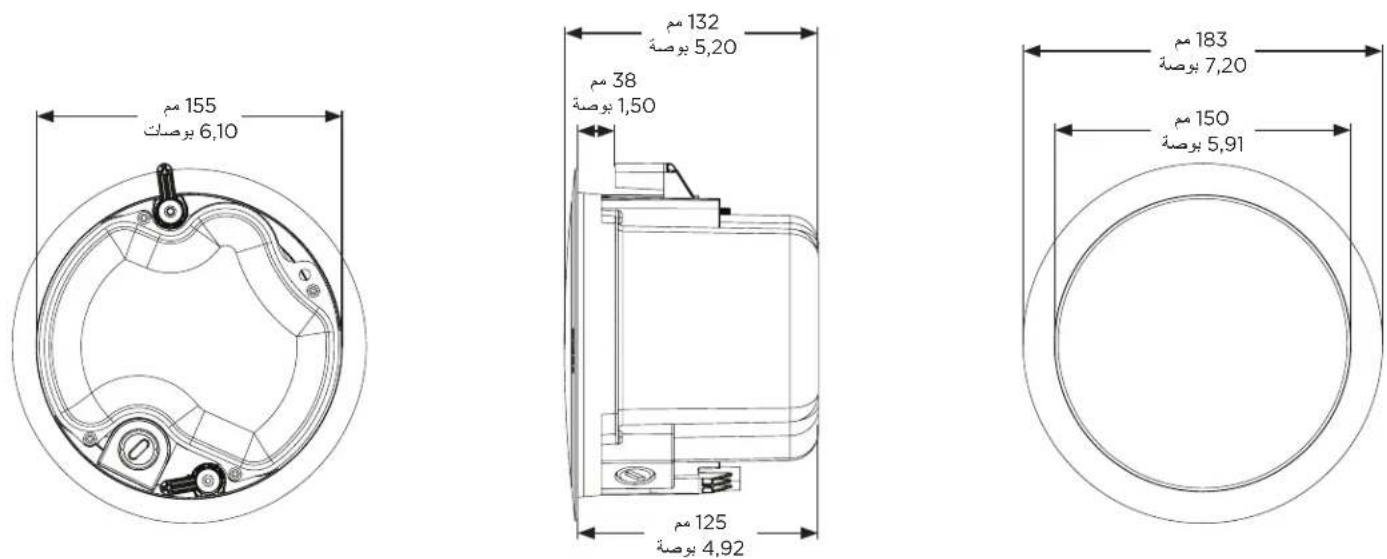

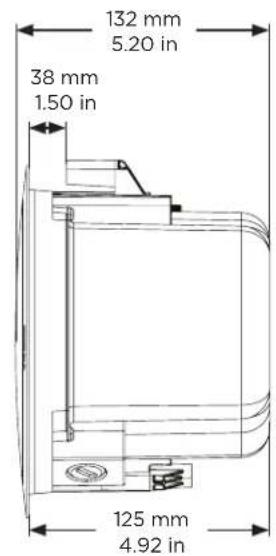

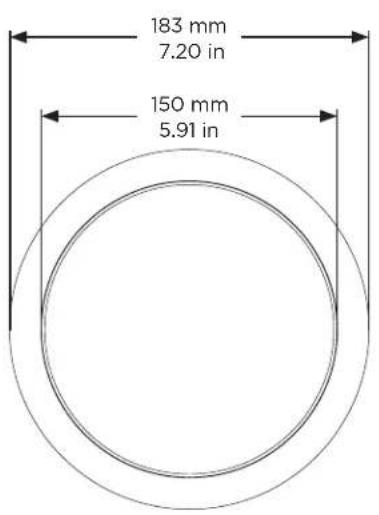

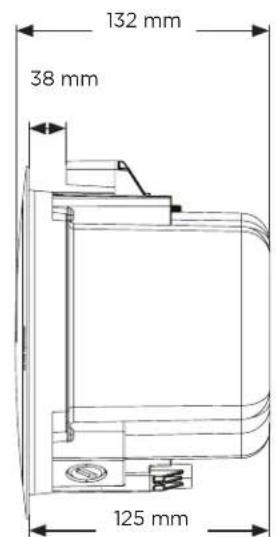

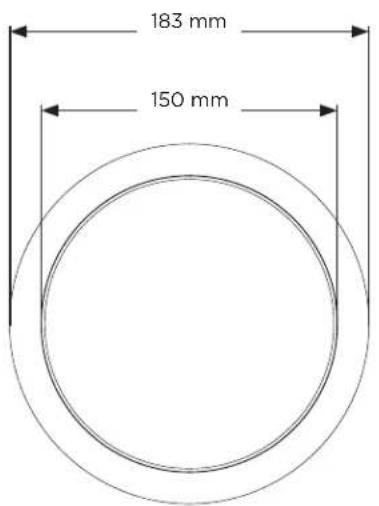

Product Dimensions

Technical Specifications

For additional specifications, see the FreeSpace FS2C technical data sheet at PRO.BOSE.COM. For EN 54-24 specifications (including required external EQ), see the FreeSpace FS2C EN 54-24 certified ratings (AM857600 Rev. 00) at PRO.BOSE.COM.

Physical
Product Dimensions Baffle diameter: 183 mm (7.20 in)

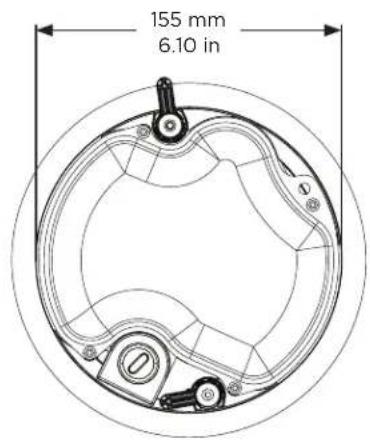

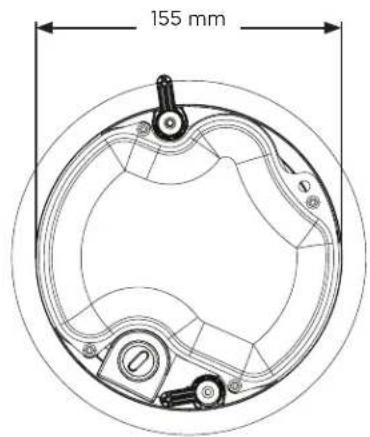

	Enclosure diameter: 155 mm (6.10 in)
	Backcan depth: 125 mm (4.92 in)
Hole cutout 165 mm (6.50 in)
Maximum Ceiling Thickness 38 mm (1.50 in)
Net Weight, Loudspeaker with grille (single)	1.63 kg (3.60 lb)
Shipping Weight (pair) 4.40 kg (9.70 lb)
Environmental Indoor Only

Important Installation Information

Before installing the loudspeaker, review Important Safety Instructions on page 2.

For fire and evacuation notification applications, environmental rated to IP21C per EN 54-24.

Installation Options

Installation Options and Accessories

One of the following is required for installation. See the related accessory installation guide at PRO.BOSE.COM for installation instructions.

Adjustable Tile Bridge (not included)
Rough-in Pan (not included)

1

2

Conduit Fitting

If using a flexible metal conduit, use with a 3/8 -inch conduit fitting or a 3/8 -inch dual (duplex) connector.

Note: Conduit fittings are not provided.

38 -inch single in 38 -inch duplex in/loop

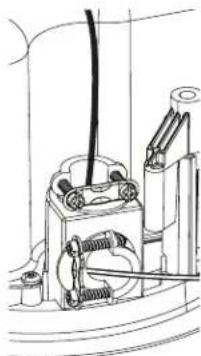

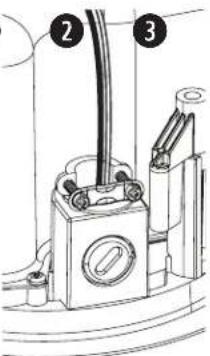

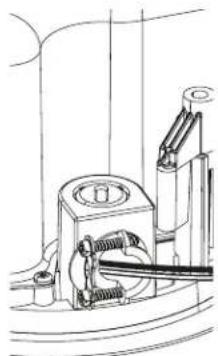

Choosing an Installation Method

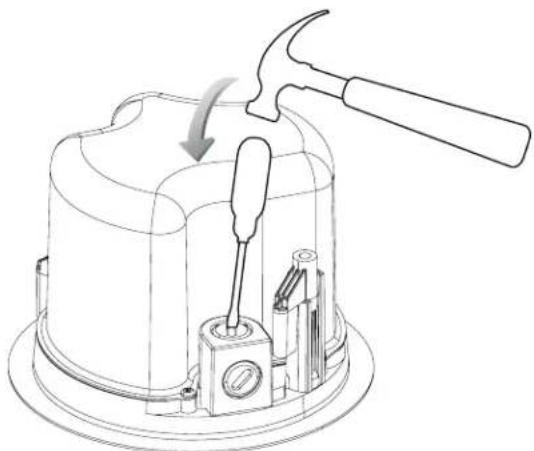

Top Knockout

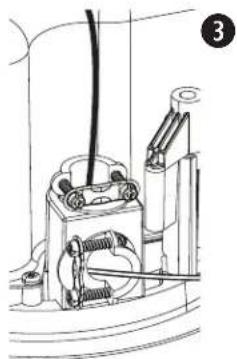

Use the top knockout when there is available space above the ceiling.

Side Knockout

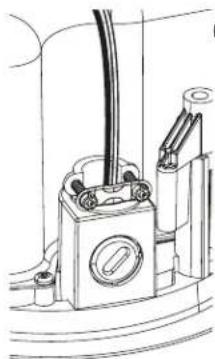

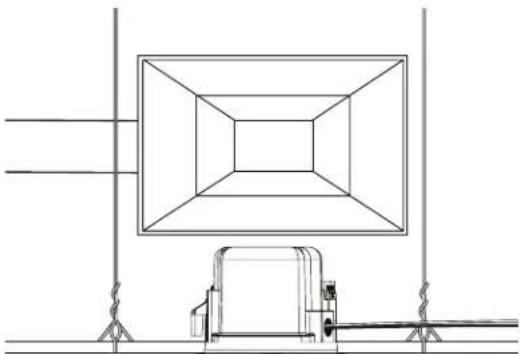

Use the side knockout when there is limited space above the ceiling.

Both Knockouts

Use both knockouts when an independent signal-in and signal-out wiring scheme is required and there is available space above the ceiling.

0

Wiring the Loudspeaker

Wire Gauge

The FreeSpace FS2C loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

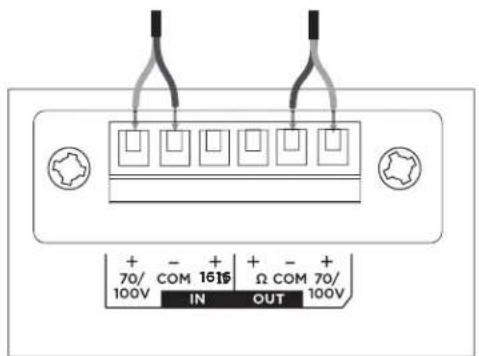

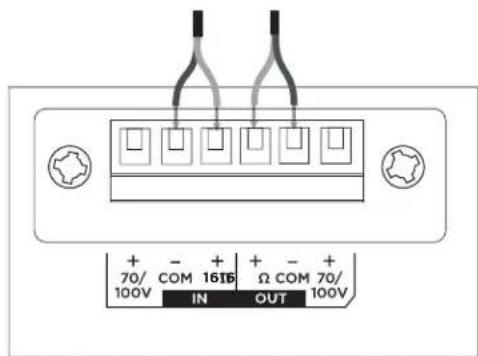

Connection Diagrams

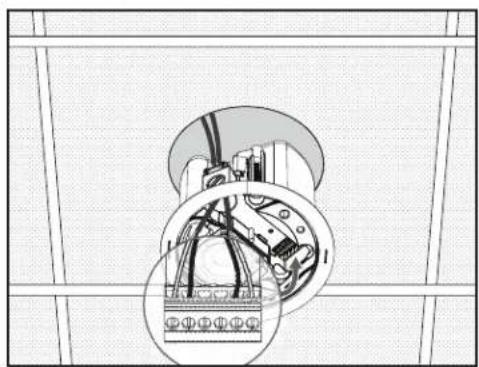

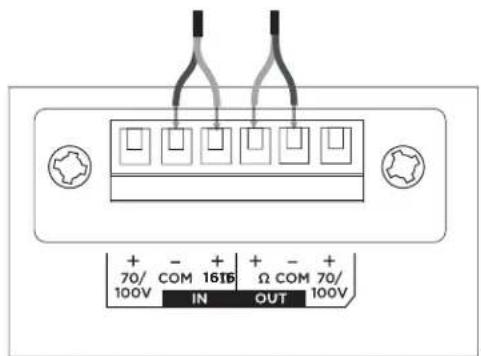

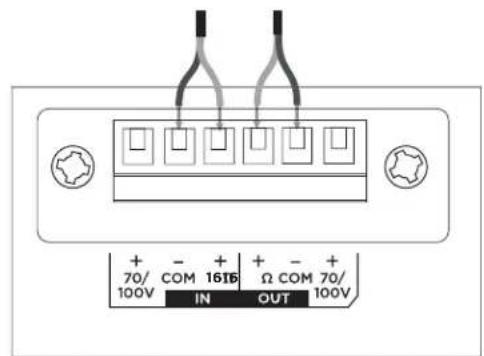

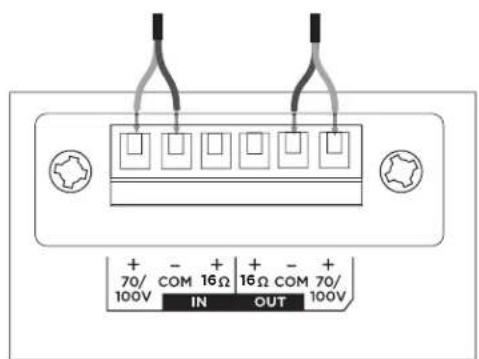

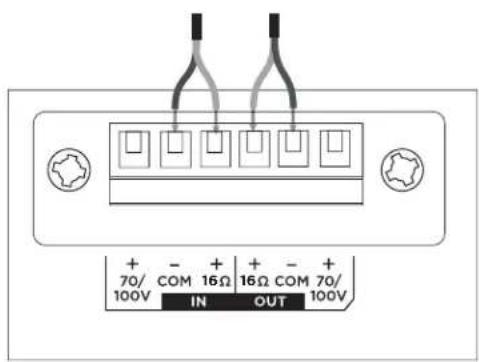

Expose six millimeters (14 inch) of bare wire to attach to the terminals.

Note: Wiring method must be in accordance with:

In Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

In the United States, The National Electrical Code, NFPA 70, and the National Fire Alarm and Signaling Code, NFPA 72.

70/100V 16Ω

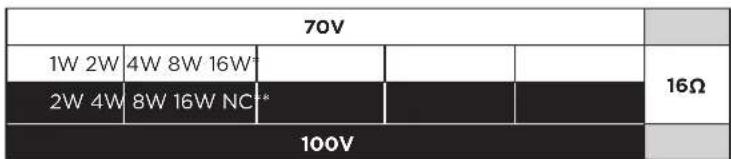

Loudspeaker Settings

* NC: No Connection (do not use) Factory default

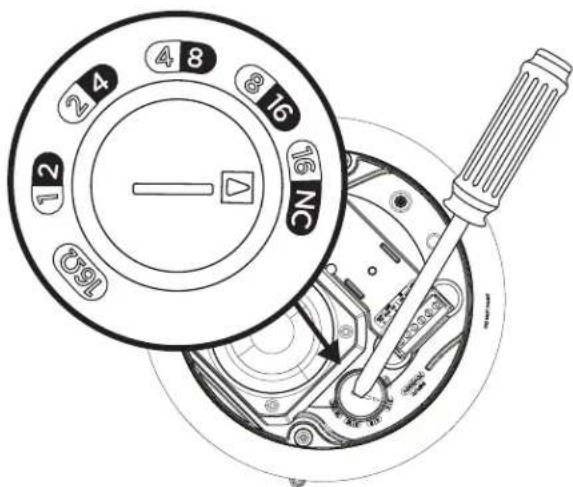

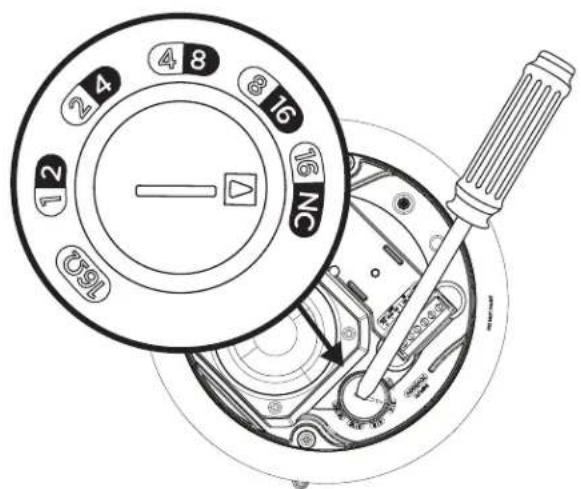

Transformer Tap Setting

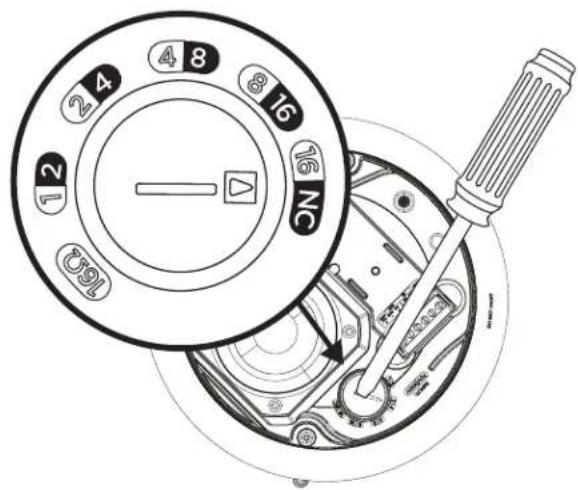

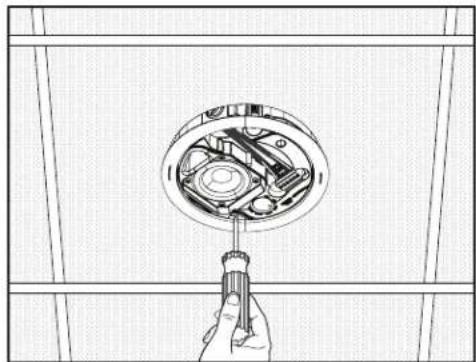

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

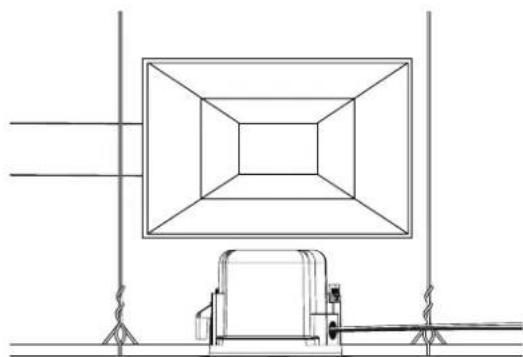

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

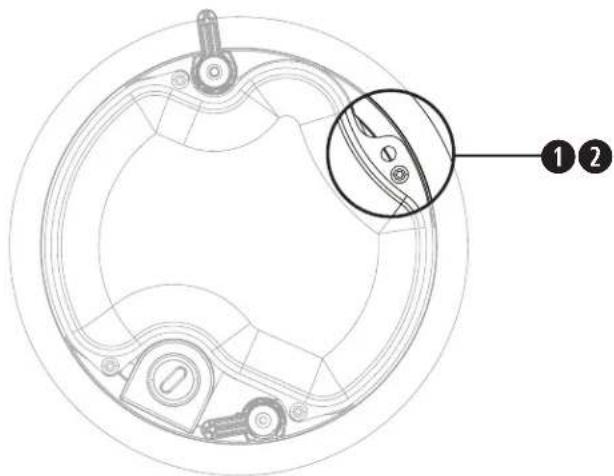

Bose recommends using (1) a safety wire or (2) a safety cable as a secondary securing mechanism. See the diagram to the right for safety attachment points.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Preparing a Tile Bridge Installation

Ceiling Tile

1. Remove the tile and use the template to trace a loudspeaker hole onto the tile. To center the template on the tile, draw an X by connecting the corners diagonally and center the template using the crossing point.
2. Cut a hole into the tile.
3. Install the tile bridge. For instructions on installing a tile bridge, see the installation guide for the applicable tile bridge at PRO.BOSE.COM.

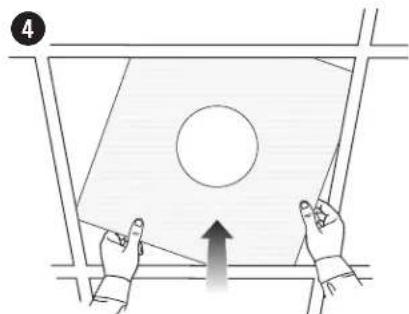

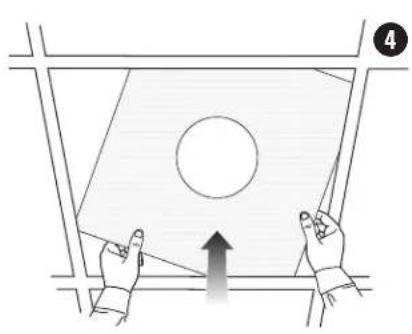

4. Replace the ceiling tile.

Hard Ceiling

1. Use the template to trace a hole onto the ceiling.
2. Cut a hole into the ceiling.
3. Install the tile bridge. For instructions on installing a tile bridge, see the installation guide for the applicable tile bridge at PRO.BOSE.COM.

Installing in Hard Ceiling Using a Rough-in Pan (New Construction)

For information on installing a rough-in pan, see the DesignMax and FreeSpace Rough-in Pan installation guide at PRO.BOSE.COM. Once the rough-in pan is installed, see Mounting the Loudspeaker on page 7.

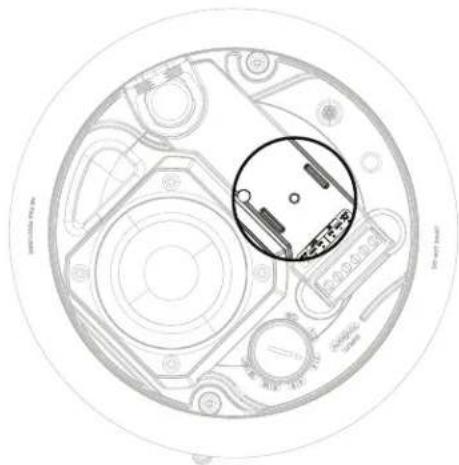

Ceramic Terminal Attachment Point

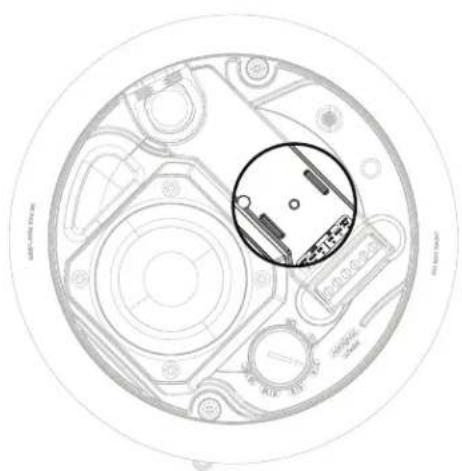

The FreeSpace FS2C is compatible with an optional ceramic terminal accessory. See the diagram for the location of the ceramic terminal attachment point. For more information on the ceramic terminal, see the ceramic terminal installation guide at PRO.BOSE.COM.

Mounting the Loudspeaker

1. Pass the audio wire through the wire opening.

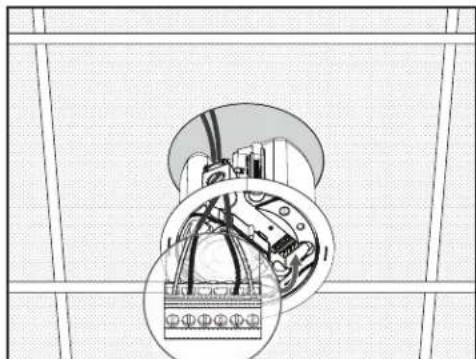

2. Wire the connector and insert the connector into the loudspeaker. Tighten the conduit fitting if applicable. For wiring information, see Wiring the Loudspeaker on page 5.

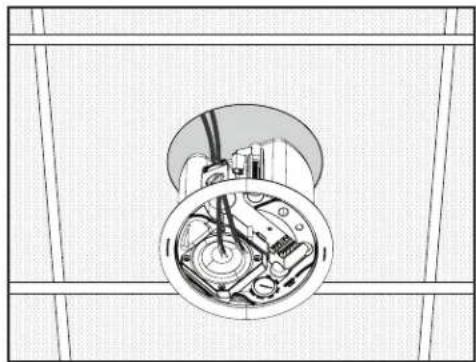

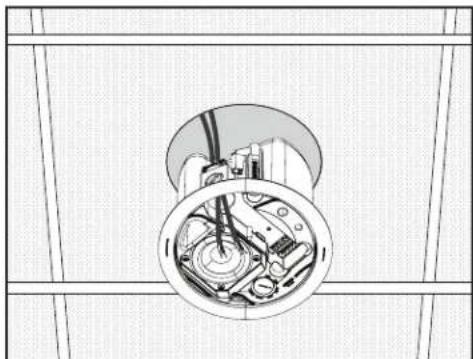

3. Insert the loudspeaker through the hole and into the tile bridge or rough-in pan (see page 6) and turn (counterclockwise) the anchor arm screws one half turn to release the anchor arms. Slowly lower the loudspeaker until the anchor arms engage on the tile bridge or rough-in pan.

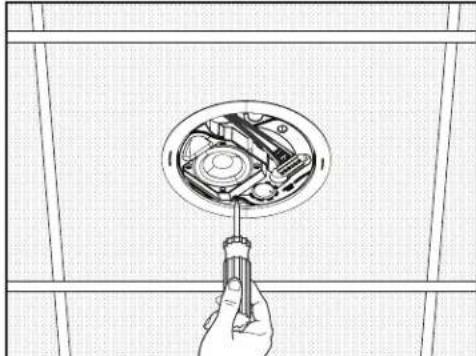

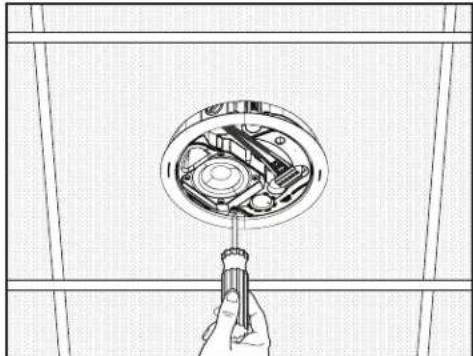

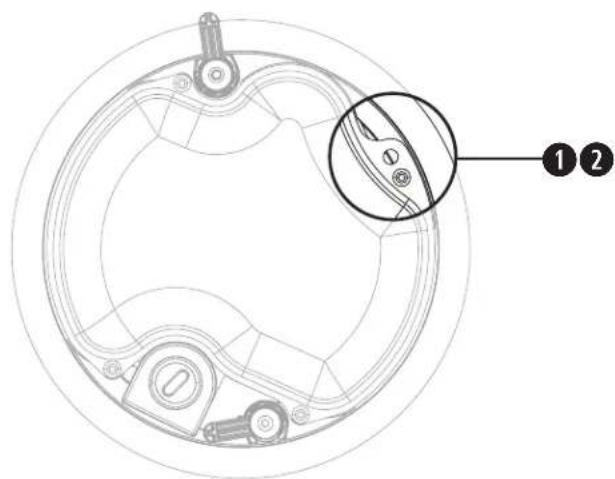

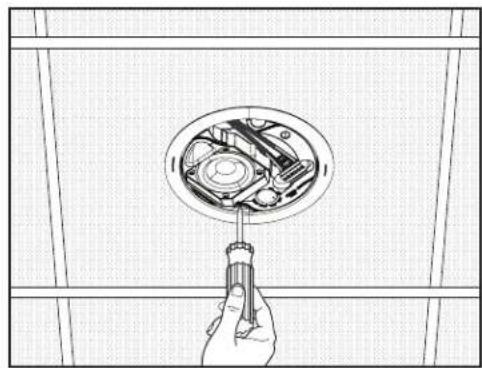

4. Tighten the anchor arm screws to secure the loudspeaker.

WARNING: Over-tightening or over-loosening the screws may result in damage to the anchor arms, the anchor attachment point, or the ceiling, which could lead to a falling hazard.

1

2

3

4

Attaching the Grille

Note: Before attaching the grille, adjust the loudspeaker tap settings to the appropriate setting for the installation. See Loudspeaker Settings on page 5.

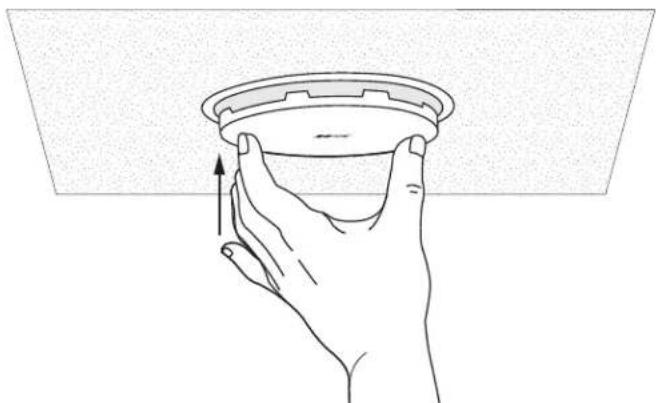

After determining the logo alignment appropriate for the installation, line up the grille with the inside of the loudspeaker enclosure and push upward until it is secured into place. If necessary, push the grille tabs inward to properly fit into the loudspeaker enclosure.

Removing the Grille

Insert a small tool (no larger than 1.5 millimeters in diameter) through the grille perforation at the edge of the grille and pull to disengage the grille.

CAUTION: Do not use a screwdriver to pry the grille from the enclosure. This could result in damage to the loudspeaker.

Safety and Regulatory Compliance

The Bose FreeSpace FS2C loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480-2016, CAN/ULC-S541

Fire Protective Signaling Use - UL Category UUMW/UUMW7, File Number S 3241. Control Number 42S9.

Not for use with DC-supervised systems.

Suitable for use indoors in dry locations.

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

Environmental: Type A (indoor applications)

Suitable for installation using Class 1, Class 2, or Class 3 wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 640.

Suitable for use with fire alarm circuit wiring methods in accordance with NFPA 70, National Electric Code, 2002, Article 760

Suitable for use in air handling plenum spaces.

UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.

NFPA 70, National Electric Code, 2002, Article 300-22 (c).

NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.10.2.6.5.

EMC Directive 89/336/EEC and Article 10 (1) of the directive, EN50081-1 and EN50082-1 as signified by the CE mark.

The FreeSpace FS2C loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

British Standard Code of Practice BS 5839, Part 8, when used with the ceramic terminal block and thermal fuse.

Tested to IEC60268-5.

Nominal Coverage Angle (per UL 1480) Vertical: 145^ / 25^ at -3dB ; 170^ / 5^ at -6dB

Horizontal: 140^ / 20^ at -3dB ; 170^ / 5^ at -6dB

UL Sensitivity Wattage Tap Sound Pressure Level dBA at 3.1 meters (10 feet):

Wattage CAN/ULC-S541 Canada Tap 70 V 100 V

1 W 77.3 dBA —

2 W 80.0 dBA 79.8 dBA

4 W 82.4 dBA 82.6 dBA

8 W 84.8 dBA 84.6 dBA

16 W 86.7 dBA 86.3 dBA

16 Ω 86.0 dBA —

Wattage	ANSI/UL 1480-2016 United States
Tap	70 V	100 V
1 W	71.9 dBA	—
2 W 74.5 dBA	74.9 dBA
4 W 77.2 dBA	77.5 dBA
8 W 79.8 dBA	79.9 dBA
16 W	82.1 dBA	82.2 dBA
16 Ω	82.6 dBA	—

SPLs given are per the UL 1480 specified reporting method.

Frequency response:

Fire alarm (UL): 95 Hz to 17000 Hz

CE 0843

Bose Corporation 100 The Mountain Rd, Framingham, MA 01701 20 DOP 434849-1

EN 54-24: 2008 Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings FreeSpace FS2C Provided options: Type A For DOP 434849-1, see pro.Bose.com/FS2CDOP

70 V
1 W 2 W 4 W 8 W 16 W*				16 Ω
2 W 4 W 8 W 16 W N C**
100 V

** NC: Sin conexión (no utilizes)* Predeterminad

Importateur pour la Chine: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Canada - CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

Etats-Unis - National Electrical Code, NFPA 70 et National Fire Alarm and Signaling Code, NFPA 72.

70/100 V 16 Ω

NFPA 70, National Electric Code, 2002, article 300-22 (c).

No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Potenze: (70 V): 1W, 2W, 4W, 8W, 16W; (100 V): 2W, 4W, 8W, 16W

In Canada, CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32.

Negli Stati Uniti, National Electrical Code, NFPA 70, e National Fire Alarm and Signaling Code, NFPA 72.

70/100 V 16 Ω

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. Gegevens importeur en service-informatique: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

Bose, DesignMax en FreeSpace waarhandelsmerken van Bose Corporation.

In Canada: CSA C22.1, Canadian Electrical Code, Part I, Safety Standard for Electrical Installations, Section 32;

In de VS: National Electrical Code, NFPA 70 en National Fire Alarm and Signaling Code, NFPA 72.

70/100 V 16 Ω

Luidsprekerinstallingen

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.

NFPA 70, National Electric Code, 2002, article 300-22 (c).

NFPA 90-A, 2002, Installation of Air Conditioning and Ventilation Systems, paragraaf 4.3.10.2.6.5.

Strømller effect: (70 V): 1W, 2W, 4W, 8W, 16W; (100 V): 2W, 4W, 8W, 16W

Innhold i pakken

× 2 × 2 × 2 × 1

Produktmal

Canada, CSA C22.1, Canadian

Electrical Code, Part I

and Signaling Code, NFPA 72.

70/100 V 16Ω

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenie UE: Bose Products B.V., Gorslaan 60, 1441 RG Purnerend, Holandia

Importer na terenie Meksyku: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. W celu uzyskania informaci o importerze i uskugach: [phone]

Importer na terenie Taiwanu: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Numer telephone: [phone]

Bose, DesignMax i FreeSpace sq znakami towarwymi firmy Bose Corporation.

Siedziba glowna firmy Bose Corporation: 1-877-230-5639

UL-2043. 《Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces》

Do not paint or modify factory-applied finishes.

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Bose Corporation Headquarters: 1-877-230-5639

EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

環境夕伊：A屋内用途）

UL-2043, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces

Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353:North Riying Road, China (Shanghai) Pilot Free Trade Zone

Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas: 3545 (5202) 5255+ dChapultepec, 11000 Mexico, D.F

Minsheng East Road, Taipei,3 Section,10.No,9F-A1,Bose Taiwan Branch: [phone]Taiwan,104 City

.Bose Corporation FreeSpace DesignMax Bose

1-877-230-5639:Bose 5

Bose Corporation 2020 all

a

Jiaiah Jia Cai jia

a

PRO.BOSE.COM 5yj jzj jzjj jzjj jzjj jzjj

1. 1. 1. 1. 1. 1. 1. 1. 1. 10.

y

y

L 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

PRO.BOSE.COM 8

1

1.2

3

4

alil jai jialj jaiil 5

1. jie 10000000000000000000000000000000000000000000

Aasssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

8

aill 5lll lllllllllllllllll

C

j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15 j 15

3.0 1

Jus y aiei i aaiy jay gaiy ayalal 8oBose ciaa Js wsi y

eaiia
+5 jill Jg 1olal oIogia
aiall Caiol gaoi

.79 1

FreeSpace FS2C 24-54 EN PRO.BOSE.COM

24-54 FreeSpace FS2C EN

PRO.BOSE.COM (00.Rev AM857600)

.24-54 EN IP21C

a a a a a a a a a a a a a a a a a a a a a a a a a a a a

3

2

G

#

（204 14 08）

16

100/70

Jugillcbhs

j（1/4）

1

sCAsC22.1

y 11111111111111

32

NFPA.

70

.72NFPA

Gwll 50

	العربية 70
العربية 16	*л, 16	л, 8	л, 4	л, 2	л, 1
	**NC	л, 16	л, 8	л, 4	л, 2
	العربية 100

(4.1)

aaii 15

J

a a

#

jL21 jLs pJsi

（）

a 1

aall cll g jil g aai g s jill C

Bose

aaii iiaaii aiee ieae eae ee eae

A

1

aai

aaii aai iaiy jai yjai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai jai

2

PRO.BOSE.COM 3

a 4

a

1.2

PRO.BOSE.COM 3

（）

PRO.BOSE.COM FreeSpace, DesignMax jiaaii aieaiee iieae 84

aallln e gaaal aall lgaia

JFEEE EEEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE EEE

gall sAs

daiiiaiey caiial

82 aai 10000000000000000000000000000000000000000000000000000000000000000000

AilSa yall yaiy 1

j 1

2

1

4

3

jai jji

y 82 aal

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

#

jaiil gaii diai jai iia aia saa gai jai ai jai (pa 1,5 pa laa y) sa

y

J 1

Bose 5FreeSpace FS2C

ANSI/UL 1480-2016 CAN/ULC-S541

.42S9 3241S UL UUMW/UUMW7-

yannn ynnn nnnn nn nnnn nn nnnn nn nnnn

aal jSla 1 aal

y 2008,24-54 EN

（a）A：g

640 2002 70 NFPA 2 1

.760 2002 p 1 70 NFPA

glll gill gll lgl

12043-UL

.300-22(c) 2002 70 NFPA

4.3.10.2.6.5. 8999999999999999999999999999999999999999999999999999999999999999999

CE EN50082-1,EN50081-1 10 89/336/EEC (EMC)

FeeSpace FS2C

y j 5839 BS

IEC60268-5
