The PURITY C1000 AC lter system has a lter capacity of 10.000 litres, irrespective of carbonate-hardness and the bypass proportion setting. All the intake water is ltered. PURITY Fresh C The PURITY Fresh C50 lter system has a lter capacity of 12.000 litres, irrespective of carbonate-hardness and the bypass proportion setting. All the intake water is ltered. Note: All stated capacities were tested and calculated based on standard application and machine conditions. This infor- mation may vary according to external inuencing factors (for example, uctuating water quality and/or machine type).8

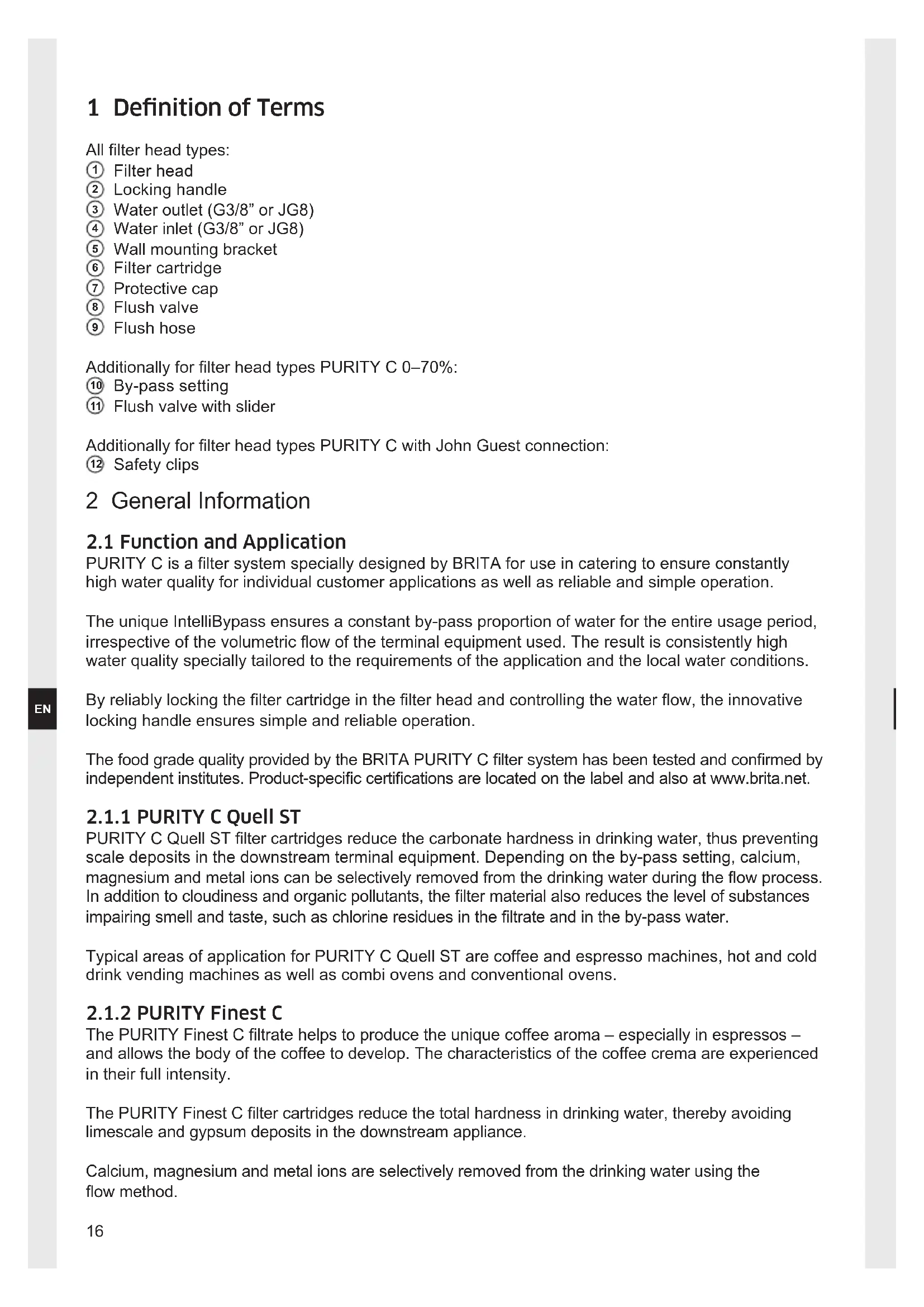

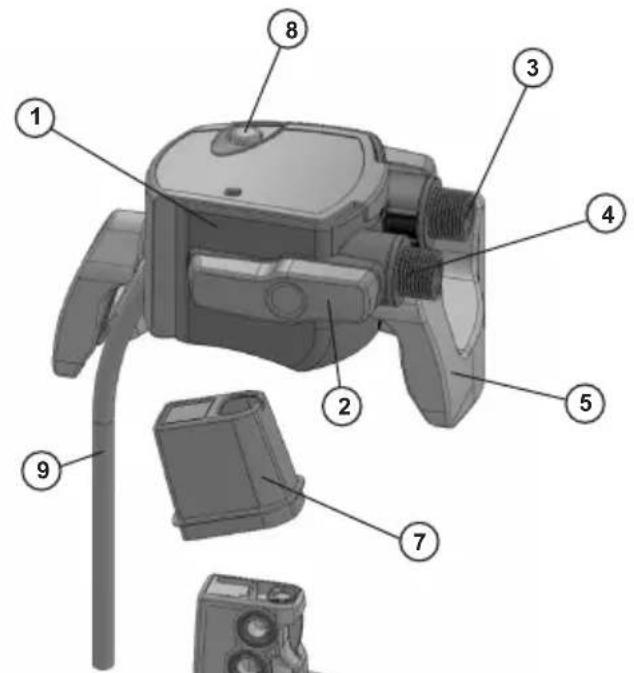

1 Denition of Terms All lter head types:

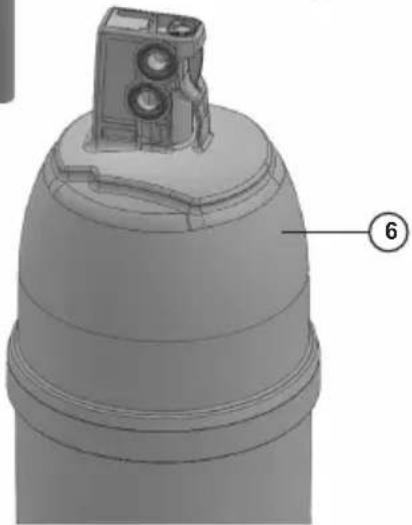

Wall mounting bracket

Flush hose Additionally for lter head types PURITY C 0–70%:

Flush valve with slider Additionally for lter head types PURITY C with John Guest connection:

2.1 Function and Application

PURITY C is a lter system specially designed by BRITA for use in catering to ensure constantly high water quality for individual customer applications as well as reliable and simple operation. The unique IntelliBypass ensures a constant by-pass proportion of water for the entire usage period, irrespective of the volumetric ow of the terminal equipment used. The result is consistently high water quality specially tailored to the requirements of the application and the local water conditions. By reliably locking the lter cartridge in the lter head and controlling the water ow, the innovative locking handle ensures simple and reliable operation. The food grade quality provided by the BRITA PURITY C lter system has been tested and conrmed by independent institutes. Product-specic certications are located on the label and also at www.brita.net.

2.1.1 PURITY C Quell ST

PURITY C Quell ST lter cartridges reduce the carbonate hardness in drinking water, thus preventing scale deposits in the downstream terminal equipment. Depending on the by-pass setting, calcium, magnesium and metal ions can be selectively removed from the drinking water during the ow process. In addition to cloudiness and organic pollutants, the lter material also reduces the level of substances impairing smell and taste, such as chlorine residues in the ltrate and in the by-pass water. Typical areas of application for PURITY C Quell ST are coffee and espresso machines, hot and cold drink vending machines as well as combi ovens and conventional ovens.

2.1.2 PURITY Finest C

The PURITY Finest C ltrate helps to produce the unique coffee aroma – especially in espressos – and allows the body of the coffee to develop. The characteristics of the coffee crema are experienced in their full intensity. The PURITY Finest C lter cartridges reduce the total hardness in drinking water, thereby avoiding limescale and gypsum deposits in the downstream appliance. Calcium, magnesium and metal ions are selectively removed from the drinking water using the ow method.17

The lter material not only reduces cloudiness and organic pollutants, but also the level of sub- stances that impair the smell and taste, such as chlorine residues in the ltrate. The PURITY Finest C is typically used in coffee and espresso machines.

Caution: The PURITY Finest C is not suitable for use with combi ovens and conventional ovens. Operation is not recommended in combination with domestic water-softening systems. PURITY Finest C cartridges must be operated with a bypass setting of 0 %.

2.1.3 PURITY Fresh C

In addition to minimising cloudiness and organic pollutants, PURITY Fresh C lter cartridges reduce substances that impair taste and smell in drinking water, such as chlorine and chlorine compounds. Particles that impair system functionality are trapped. The PURITY Fresh C lter system was developed especially for enhancing the taste and freshness of water for coffee, espresso and vending machines.

The PURITY C AC lter cartridge reduces cloudiness, organic pollutants as well as the level of substances impairing smell and taste, such as chlorine residues. The lter material retains particles down to a size of 0.5 μm. Typical areas of application for PURITY C AC are vending machines and on-tap watercoolers.

2.2 Warranty Provisions

The PURITY C lter system is subject to the statutory warranty of 2 years. A warranty claim may only be asserted if all instructions in this manual are followed and observed.

2.3 Storage/Transport

Adhere to the ambient conditions for storage and transport detailed in the technical data (Chapter 9). The manual should be seen as part of the product and kept for the whole service life of the lter system and passed on to subsequent owners.

2.4 Recycling/Disposal

The packaging material is suitable for recycling and can be reused. Please dispose of all materials in accordance with local regulations. BRITA takes back used lter cartridges for recycling at the addresses listed on the back of the cover, or the cartridges can be disposed of according to local regulations. If you decide not to return the lter cartridges, please dispose of all materials in accordance with local regulations. 3 Operating and Safety Instructions

3.1 Qualied Personnel

Installation and maintenance of the lter system shall only be carried out by trained and authorised personnel.

Perfect and safe operation of the product is subject to the installation, use and maintenance described in this manual. Only use lter cartridges intended for use with your lter system.18

Installation and cartridge exchanges must be performed precisely in accordance with the instructions in this manual. BRITA shall not be held liable for any damage, including subsequent damage, arising from the incorrect installation or use of the product.

3.4 Specic Safety Information

• Water used as intake water for the PURITY C water lter system must be of drinking water quality. The BRITA water lter system is only suitable for cold water use within the water intake temperature range stated in Chapter 9.

• If there are ofcial instructions to boil tap water, the lter system must be decommissioned. When the requirement to boil water comes to an end, the lter cartridge must be replaced and the connections cleaned.

• For hygiene reasons, the lter material of the cartridge is subjected to a special treatment with silver. A small quantity of silver, which is harmless to health, may be released into the water. This is in compliance with the World Health Organisation (WHO) recommendations for drinking water.

• It is generally recommended to boil tap water for certain groups of people (e.g. people with weakened immune systems, babies). This also applies to ltered water.

• Note for people with kidney disease or dialysis patients: During the lter process the potassium levels may increase slightly. If you suffer from kidney disease and/or have to stick to a special potassium diet, we recommend you consult your doctor beforehand.

• The water ltrate is classied in Category 2 according to EN 1717.

• BRITA recommends not to decommission the lter system for long periods. If the BRITA PURITY C lter system is not used for several days, we recommend that the lter system be ushed with the volume of water indicated in the table below. Filter cartridge Flushing volume after 2–3 days stagnation Flushing volume after 4 weeks stagnation PURITY C25* 1.4 litres 14 litres PURITY C50 2 litres 20 litres PURITY C150 3 litres 30 litres PURITY C300 6 litres 60 litres PURITY C500 10 litres 100 litres PURITY C1100 18 litres 180 litres PURITY C1000 AC 1 litre 10 litres *available only in Spain, France, Italy

• The lter system must not be opened or dismantled during operation. The lter cartridge must not be opened.

• Production date Production code – lter head – example: H 3375 01381 3 Production year, this example: 2013 37 Production week, this example: calendar week 37 5 Production day from Monday (1) to Friday (5); this example: Friday 01381 Serial identication number Production code lter cartridge – example: B3224350010 3 Production year, this example:2013 22 Production week, this example: calendar week 22 4 Production day from Monday(1) to Friday (2), this example: Thursday 35 Internal Identication No. of lter medium this example: No. 35 0010 Consecutive number of the lter cartridge, this example the tenth cartridge; reset the day changes19

3.5 Technical Safety Assembly Instructions

• The appliance in which the lter is used must be free of limescale and gypsum deposits prior to installation.

• Protect the lter system from sunlight and mechanical damage. Do not assemble near sources of heat and open ames.

• A stop valve must be installed before the lter system inlet hose.

• If the water pressure is greater than 8.6 bar, a pressure reducer must be installed in front of the lter system.

• When choosing the material for parts that come into contact with water after the BRITA lter system, it is important to remember that, due to the process, decarbonised water contains free carbon dioxide. For this reason, only materials that are compatible with free carbon dioxide must be used. We recommend the use of BRITA hoses.

• All parts must be installed in accordance with the country-specic guidelines on the installation of drinking water facilities. 4 Installation

Caution: Prior to installation, read the technical data (Chapter 9) and the operating and safety information (Chapter 3). After storage and transport below 0 °C, the product must be stored in the open original packaging for at least 24 hours before it is commissioned at the stated ambient temperatures (Chapter 9) for operation.

4.1 Assembling the lter head, water connection

• Close the water intake and switch off the power supply to the end device

• Fit the wall mounting bracket

in the intended position

Caution: When tting the bracket, note the installation dimensions, bending radii of the hoses and dimensions of the accessories (e.g. BRITA FlowMeter). When using the wall mount, install vertically only! The PURITY C1100 cannot be installed using the wall mounting bracket.

• Fit the hoses to the water inlet “IN”

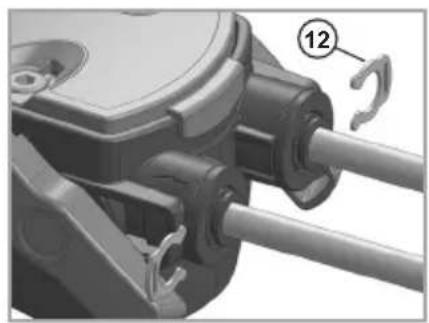

• Use at seals for G3/8” connections. For John Guest connections, use hoses with a diameter of 8 mm. In the case of John Guest connections, the two safety clips

must be inserted after tting the hose.

Caution: The tightening torque at G3/8” connections must not exceed 14 Nm! Only hose connections with at seals may be used, as hoses with conical screw connections damage the connections on the lter head and invalidate any warranty claim! We recommend the use of BRITA hoses.

(set to 30 % at the factory) and if necessary adjust this setting to the local carbonate hardness (PURITY C Quell ST) (chapter 4.2).

in the wall mounting bracket

4.2 By-pass setting for and capacity of PURITY C 0–70 % lter heads

• Determine the carbonate hardness (for PURITY C Quell ST lter cartridges) or total hardness (for PURITY Finest C lter cartridges) of the local water by performing the BRITA carbonate hardness test or BRITA total hardness test. Alternatively, your local water supplier will be able to provide information on the local water hardness.

• Determine the by-pass setting and capacity in line with the application and the carbonate and/or total hardness identied using the by-pass and capacity table (pages 2–6).

• Then turn the by-pass setting

• To ensure precise and continuous control of the degree of lter cartridge exhaustion, it is recommended to install the BRITA FlowMeter 10–100 A.

• Note: With PURITY C AC, PURITY Finest C and PURITY Fresh C lter cartridges, all of the intake water is ltered. The lter cartridge can be used with lter heads that have a variable or xed by-pass. The by-pass that may be set in the lter head is not taken into account.20

• Pull the ap of the protective cap

upwards and remove the protective cap.

• Note the next exchange date in the date eld on the lter cartridge resp. on the FilterManager app

in a vertical position.

Caution: The lter cartridge can only be inserted when the locking handle is open. Make sure that the lter cartridge is positioned correctly.

until you feel it engage.

• Open the water intake and switch on the terminal equipment’s power supply.

• Operate the ush valve

and ush the lter system until the ltered water runs clear and without bubbles. At least two empty lter cartridge volumes must be ushed (Chapter 9). Note: When bleeding/ushing, catch water emerging from the ush hose

in an appropriate container.

• Check system for any leaks. 5 Changing the Filter Cartridge The PURITY C lter cartridge must be replaced once the stated capacity has been reached (see Chapter 6), in accordance with manufacturer’s specications or no later than 12 months after commissioning, whichever occurs rst.

Caution: When changing a lter, examine all remaining parts carefully! Faulty parts must be replaced and contaminated parts should be cleaned! Read the operating and safety information (Chapter 3) before changing the cartridge. After storage and transport below 0 °C, the product must be stored in the open original packaging for at least 24 hours before it is commissioned at the stated ambient temperatures (Chapter 9) for operation. Note: When the locking handle is open, the water supply to the cartridge is interrupted and short-circuit operation with direct water ow from the water inlet

possible (if necessary, close water intake and switch off power supply to the terminal equipment).

and depressurise the system.

• Remove exhausted lter cartridge

,bearing in mind the weight of the cartridge. Note: The lter cartridge can be pivoted by 90° in the wall mounting bracket for easy removal.

• Perform the steps described at 4.3 and 4.4. 6 By-Pass and Capacity Tables The capacity tables for the PURITY C Quell ST and PURITY Finest C lter systems are provided on pages 2–6. The PURITY C AC and PURITY Fresh C lter systems have a lter capacity of 10,000 and 12,000 litres respectively, regardless of the carbonate hardness and the by-pass set. All intake water is ltered. Note: The stated capacities were tested and calculated based on standard application and machine conditions. This information may vary according to external inuencing factors (for example uctuating water quality and/or machine type).21

7 Repair Regularly check the lter system for leaks. Regularly check the hoses for kinks. Bent hoses must be replaced. The complete lter system must be replaced in rotation after a maximum of ten years. The hoses must be replaced in rotation after a maximum of ve years.

Caution: Before replacing lter systems or hoses, read the technical data (Chapter 9) and the operating and safety information (Chapter 3). Regularly clean the outside of the lter system with a soft, damp cloth.

Caution: Do not use any abrasive chemicals, cleaning solutions or astringent cleaning agents. 8 Troubleshooting

Cause: Water intake closed. Troubleshooting: Open the water intake at the upstream stop valve or by closing the locking handle

8.2 No or low water ow in spite of open water intake

Cause: Mains pressure too low. Troubleshooting: Check mains pressure. If the fault persists, check the lter system and lter cartridge and replace if necessary. Cause: Filter head not mounted in direction of ow. Troubleshooting: Dismantle lter head and install in direction of ow (Chapter 4).

Cause: Screwed connections not tted correctly. Troubleshooting: Check mains pressure. Check all screwed connections and mount according to

9 Technical Data PURITY C lter system with lter cartridge Operating pressure 2 bar to max. 8.6 bar Water intake temperature 4 °C to 30 °C Ambient temperature during operation 4 °C to 40 °C storage/transport –20 °C to 50 °C Water inlet and outlet connection G3/8” or John Guest 8 mm Filter system C25 Quell

• Comparable capacity as dened in DIN 18879-1:2007: The comparable capacity is a standardised parameter to facilitate com- parison of different lters. The comparable capacity is determined under extreme conditions. The usable capacity in practical operation is higher than the comparable capacity and may vary greatly depending on the usage conditions. ** Working ow range and associated pressure loss: 30–180 l/hr/0.2–1.4 bar EN24

• Minimum operating pressure: 2 bar • Maximum operating pressure: 8.6 bar

• Do not allow exposure to temperatures below 4 °C • Maximum operating temperature: 30 °C

• Nominal ow rates: PURITY C50 Quell ST (60 l/h), PURITY C150 Quell ST (60 l/h), PURITY C300 Quell ST (60 l/h), PURITY C500 Quell ST (100 l/h), PURITY C1100 Quell ST (100 l/h), PURITY Fresh C50 (60l/h), PURITY Finest C500 (100 l/h)

• This system must be installed according to local plumbing codes on the cold water line.

• Replacement Cartridges PURITY C50 Quell ST Pack 1, PURITY C150 Quell ST Pack 1, PURITY C300 Quell ST Pack 1, PURITY C500 Quell ST Pack 1, PURITY C1100 Quell ST Pack 1, PURITY C1000 AC Pack 1, PURITY Fresh C50 Pack 1, PURITY Finest C500 Pack 1

• This system requires regular replacement of the lter cartridge to maintain proper operation. Varying scale, chlorine, sediment, or organic substance levels may affect replacement frequency.

• Be sure to change the lter cartridge at least as indicated in the capacity table (refer to your Instruction Guide) or annually, whichever occurs rst, or whenever you detect a change in taste, odour, or a decrease in ow.

• Please ensure that a backow prevention device, meeting the requirements of AS/NZS 3500.1, is installed on the water supply inlet to the lter unit

Caution: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. SUBSTANCE REDUCTION The above listed Water Filter Systems have been tested and certied under NSF/ANSI 42 for reduction of chlorine, taste and odour. The performance of this product has been veried and substantiated as the test data summarised below indicates. These substances may not be in your water. Test Data for PURITY C50 Quell ST Substance Guidelines Average Inuent Concentration Maximum Efuent Concentration Minimum Percent Removal Average Efuent Concentration Average Percent Removal Chlorine NSF/ANSI 42 2.11 mg/l 0.40 mg/l 8 1 . 0 % 0.24 mg/l 8 8 . 7 % *Test Data for PURITY C150 Quell ST Substance Guidelines Average Inuent Concentration Maximum Efuent Concentration Minimum Percent Removal Average Efuent Concentration Average Percent Removal Chlorine NSF/ANSI 42 2.11 mg/l 0.40 mg/l 8 1 . 0 % 0.24 mg/l 8 8 . 7 %25

• Values calculated on basis of the C50 ** Values calculated on basis of the C500 Testing Conditions: Flow Rate: 0.25 GPM pH: 7.5+/–0.5 Pressure: 60+/– 3 psgi Temperature: 20+/–3 °C Refer to your Instruction Guide for more specic product and warranty information and to avoid contamination from improper handling and installation. Performance will vary based on local water conditions. The substances reduced by this product are not necessarily in your water. Buyer’s Signature Date Seller’s Signature Date This appliance meets the domestic water treatment appliance Standards AS/NZS 3497 and AS/NZS 4348 for the following water treatment process: Class Treatment type Function Pass I Microbiological Status Bacteriostatic Will stop bacteria increasing N/A II Microbiological Treatment Bacteria removal Virus removal Protozoa removal Will remove or inactivate bacteria Will remove or inactivate virus Will remove or inactivate Crypto-sporidium and Giardia N/A N/A N/A III Turbidity and particulate reduction Reduces cloudiness N/A IV Taste and odour reduction Reduces tastes and odours

V Chemical treatment Decreases chlorine

LEGEND: = pass N/A = Not Applicable26
