USER MANUAL Sport Luxe GRACO

Parts list Adult assembly required. 1 Head Support (on certain models) 2 Lower back support (on certain models) 3 Shoulder belt positioning clip 4 Armrest covers (on certain models) 5 Base 6 Body pillows (on certain models)

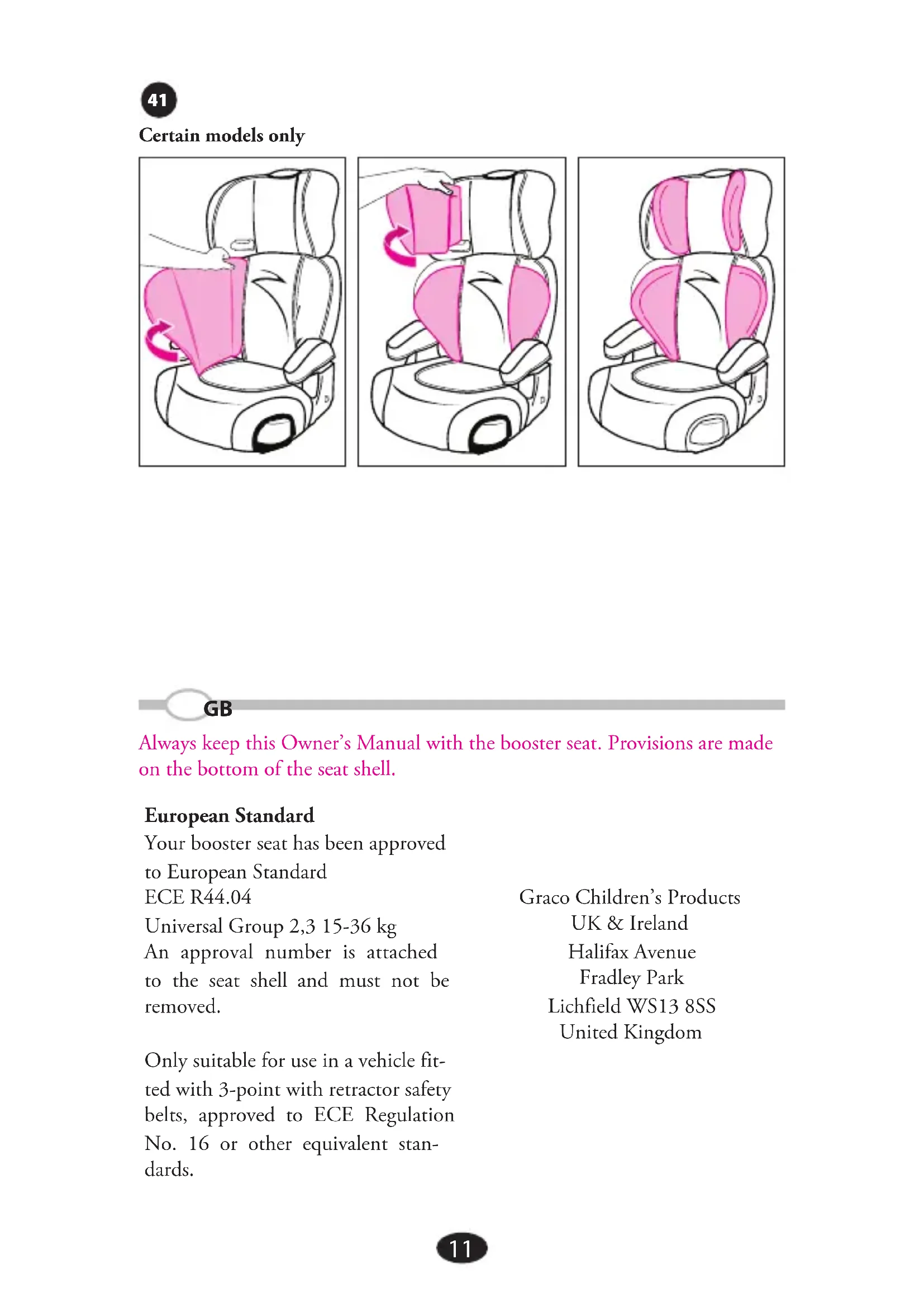

Certain models only European Standard Your booster seat has been approved to European Standard ECE R44.04 Universal Group 2,3 15-36 kg An approval number is attached to the seat shell and must not be removed. Only suitable for use in a vehicle fit- ted with 3-point with retractor safety belts, approved to ECE Regulation No. 16 or other equivalent stan- dards. GBGB Graco Children’s Products UK & Ireland Halifax Avenue Fradley Park Lichfield WS13 8SS United Kingdom Always keep this Owner’s Manual with the booster seat. Provisions are made on the bottom of the seat shell.12 WARNING DO NOT INSTALL OR USE THIS BOOSTER SEAT UNTIL YOU READ AND UNDERSTAND THE INSTRUCTIONS IN THIS MANUAL AND IN YOUR VEHICLE OWNER’S MANUAL. IT IS MOST IMPORTANT that the booster seat is correctly routed with the lap portion of the belt across the red belt guides under the arm- rests and the diagonal belt through the red shoulder belt guides when used with a back support or through the red shoulder belt positioning clip when used as a back-less booster. Ensure the belt web- bing is not twisted. DO TAKE CARE to locate and install the booster seat so that it is not liable to become trapped by a moveable seat or in a door of the vehicle. FAILURE TO PROPERLY USE THIS BOOSTER SEAT INCREASES THE RISK OF SERIOUS INJURY OR DEATH IN A SHARP TURN, SUDDEN STOP OR CRASH. DO NOT use another manufacturers seat cover with this booster seat. See your retailer for Graco replacement parts only. DO NOT USE in any configuration not shown in the instructions. DO NOT use alternative load-bearing points not shown in these instructions. According to accident statistics, CHILDREN ARE SAFER WHEN

PROPERLY RESTRAINED IN REAR VEHICLE SEATING

POSITIONS, RATHER THAN FRONT SEATING POSITIONS. For a vehicle with a front passenger air bag, refer to your vehicle owner’s manual as well as these instructions for booster seat installation. NEVER LEAVE YOUR CHILD UNATTENDED. NEVER LEAVE A BOOSTER SEAT UNSECURED IN YOUR VEHICLE. An unsecured booster seat can be thrown around and may injure occupants in a sharp turn, sudden stop or crash. Remove it or make sure that it is securely belted in the vehicle.

GB13 WARNING NEVER LEAVE LUGGAGE or other objects unsecured in a vehicle, they are liable to cause injuries in the event of a collision. REPLACE THE BOOSTER SEAT AFTER AN ACCIDENT OF ANY KIND. An accident can cause damage to the booster seat that you cannot see. DO NOT MODIFY YOUR BOOSTER SEAT or use any accessories or parts supplied by other manufacturers. NEVER USE BOOSTER SEAT IF IT HAS DAMAGED OR MISSING PARTS. DO NOT use a cut, frayed or damaged vehicle seat belt. THE BOOSTER SEAT CAN BECOME VERY HOT IF LEFT IN THE SUN. Contact with these parts can burn your child’s skin. Always touch the surface of any metal or plastic parts before putting your child in the booster seat. NEVER GIVE THIS BOOSTER SEAT to someone else without also giving them this manual. NEVER USE A SECOND-HAND BOOSTER SEAT or a booster seat whose history you do not know. NEVER USE THIS BOOSTER SEAT without the armrests attached to the base. Care and Maintenance

• CONTINUOUS USE OF BOOSTER SEAT MAY CAUSE DAMAGE TO VEHICLE SEAT. Use a towel or thin blanket to protect upholstery.

• METAL AND PLASTIC PARTS: clean with mild soap and cool water. No bleach or detergents.

• FROMTIMETOTIMECHECKYOURBOOSTERSEATfor worn parts, torn material and stitching. If damage is found, DO NOT try to modify the booster seat. Replace the booster seat.

• DONOTUSEBOOSTERSEATwithout its cover.14

FAILURE TO USE booster seat in a manner appropriate for your child’s size may increase the risk of serious injury or death. Weight and Height Limits To use this Graco booster seat, your child MUST meet ALL of the following requirements: With back support (approximately 3 to 12 years old) :

• weigh between 15-36 kg, and

• are between 96 and 150 cm in height, and

• the shoulder belt MUST lay across child’s shoulders in red zone as shown

and the lap portion is positioned low on the childs hips, and

• the child’s ears are below top of booster seat. If tops of ears are above top of seat, your child is too large for the booster seat Without back support (approximately 4 to 12 years old) :

• weigh between 15-36 kg, and

• are between 101 and 150 cm in height, and

• the shoulder belt MUST lay across child’s shoulders in red zone as shown

and the lap portion is positioned low on the childs hips, and

• when sitting on the booster seat, your child’s ears are below the top of the vehicle seat cushion / head rest. Your Graco booster seat can be used with or without the back support (on certain models) as long as the above requirements are met. UNSAFE Vehicle Seat Belt Systems DO NOT USE ANY OF THE FOLLOWING VEHICLE BELT SYSTEMS.

• NEVER use a lap-only belt.

• NEVER use a Passive Restraint Lap or Shoulder Belt Mounted on Door Assembling the booster seat To adjust armrests, remove screw and press in button on side of base as shown to raise or lower. Reinsert screw and tighten. CHECK to make sure armrests are securely attached by pulling up on them. Slip armrest covers (on certain models) onto armrests as shown. Your Graco booster seat is now ready to use. See “Securing Child in Vehicle with Shoulder Belt Positioning Clip”. FOR MODELS with a back support continue on to

Flip head support and lower back support over as shown. Squeeze red adjustment button and slide two pieces together until they snap into place. CHECK to make sure two pieces are securely snapped together by pulling on them. Attach elastic strap as shown. Flip seat over and insert the fabric from the head support underneath the fabric on the lower back support as shown. To make insertion of fabric easier, slide the upper and lower back pieces apart by squeezing the red adjustment button. Attach backrest to base. “U”-shaped hooks on bottom of backrest will interlock with bars on base. Make sure that no part of the seat covering interferes when attaching backrest to the base. Once backrest is securely attached to the base, push backrest up as shown. Your Graco booster seat is now ready to use. See “Using your Graco Booster Seat” and “Securing Your Child in Vehicle”.

GB15 FAILURE TO USE booster seat in a manner appropriate for your child’s size may increase the risk of serious injury or death. Weight and Height Limits To use this Graco booster seat, your child MUST meet ALL of the following requirements: With back support (approximately 3 to 12 years old) :

• weigh between 15-36 kg, and

• are between 96 and 150 cm in height, and

• the shoulder belt MUST lay across child’s shoulders in red zone as shown

and the lap portion is positioned low on the childs hips, and

• the child’s ears are below top of booster seat. If tops of ears are above top of seat, your child is too large for the booster seat Without back support (approximately 4 to 12 years old) :

• weigh between 15-36 kg, and

• are between 101 and 150 cm in height, and

• the shoulder belt MUST lay across child’s shoulders in red zone as shown

and the lap portion is positioned low on the childs hips, and

• when sitting on the booster seat, your child’s ears are below the top of the vehicle seat cushion / head rest. Your Graco booster seat can be used with or without the back support (on certain models) as long as the above requirements are met. UNSAFE Vehicle Seat Belt Systems DO NOT USE ANY OF THE FOLLOWING VEHICLE BELT SYSTEMS.

• NEVER use a lap-only belt.

• NEVER use a Passive Restraint Lap or Shoulder Belt Mounted on Door Assembling the booster seat To adjust armrests, remove screw and press in button on side of base as shown to raise or lower. Reinsert screw and tighten. CHECK to make sure armrests are securely attached by pulling up on them. Slip armrest covers (on certain models) onto armrests as shown. Your Graco booster seat is now ready to use. See “Securing Child in Vehicle with Shoulder Belt Positioning Clip”. FOR MODELS with a back support continue on to

Flip head support and lower back support over as shown. Squeeze red adjustment button and slide two pieces together until they snap into place. CHECK to make sure two pieces are securely snapped together by pulling on them. Attach elastic strap as shown. Flip seat over and insert the fabric from the head support underneath the fabric on the lower back support as shown. To make insertion of fabric easier, slide the upper and lower back pieces apart by squeezing the red adjustment button. Attach backrest to base. “U”-shaped hooks on bottom of backrest will interlock with bars on base. Make sure that no part of the seat covering interferes when attaching backrest to the base. Once backrest is securely attached to the base, push backrest up as shown. Your Graco booster seat is now ready to use. See “Using your Graco Booster Seat” and “Securing Your Child in Vehicle”.

GBVehicle belts MUST lay flat against child and MUST not be twisted. DO NOT use shoulder belt loose or positioned under child’s arm. DO NOT position vehicle belt over top of the armrests. It must pass under- neath the armrests. Make sure vehicle belt is NOT twisted. Lap portion of lap/shoulder belt MUST be low and snug on hips, just touching thighs. DO NOT allow child to slide down in booster seat. If child will not keep vehicle restraint properly positioned, DO NOT use this booster seat. Use a different child restraint system. Vehicle seat headrest must not interfere with booster seat head support. The front of booster seat MUST NOT hang over front of vehicle seat. The back of the booster seat MUST fit tight against the vehicle seat back as shown. Booster Seat Positions Your booster seat has two positions as shown. The back of the booster seat MUST fit tight against the vehicle seat back as shown in either the first or second position. DO NOT USE booster seat beyond reclined position. Securing your Child in Vehicle Place booster seat firmly against the back of a forward-facing vehicle seat equipped with a lap/shoulder belt only. Have your child sit in booster seat with their back flat against back of booster seat. Position shoulder belt through the shoulder belt guide shown in

. Fasten buckle and pull up on the shoulder belt to tighten. To ensure the correct head support height is obtained, the bottom of the headrest MUST be even with the top of child’s shoulders as shown

and the shoulder belt must be positioned in the red zone as shown in

The lap belt portion MUST pass under the armrests and be positioned low on the hips. Belt MUST NOT be twisted. If the belt lays across child’s neck, head or face, readjust head support height. Follow instructions, “Adjusting the Head Support” . Adjusting the Head Support BEFORE adjusting the head support height, have your child lean forward slightly. Squeeze the red adjustment button on top of seat and pull back support up until it snaps into one of the 6 height positions. To lower, squeeze red adjustment button and push down. CHECK to make sure it is securely snapped into one of the 6 height posi- tions by pulling up on head support. Securing Child in Vehicle with Shoulder Belt Positioning Clip The shoulder belt MUST lay across child’s shoulders in red zone as shown. If shoulder belt lays outside this zone, the shoulder belt positioning clip MUST be used. To attach clip to booster seat: Insert the loop end of strap around vertical bar on rear of seat as shown. The shoulder belt positioning clip MUST be attached onto the vertical bar of the base farthest from where the vehicle shoulder belt lays across the child. Pass the clip and strap through the loop end as shown and pull strap up. NOTE: Free end of strap should face front of seat. Slide the vehicle shoulder belt onto the clip as shown and pull strap down to tighten clip against child’s shoulder. Rear view of child sitting in seat The lap belt portion MUST pass under the armrests and be positioned low on the hips. The belt MUST NOT be twisted.

Cupholders To avoid burns, NEVER put hot liquids in your cupholders. Cupholders are included on both sides of the seat. To Remove Seat Cover Remove elastic loops and hooks from seat as shown. On some models, there is a plastic clip in the front of the seat pad on the base that will need to be removed before washing. Machine wash cover in cold water on delicate cycle and drip-dry. DO NOT USE BLEACH. To put the seat cover back on, reverse preceding instructions. Body Pillows (on certain models) Slide pillows through headrest and backrest as shown.

NOTICE: 1. This is a “Universal” child restraint. It is approved to Regulation No. 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats.

2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook

that the vehicle is capable of accepting a “Universal” child restraint for this age group.

3. This child restraint has been classified as “Universal” under more stringent condi-
