T 80 E - Hand dryer Starmix - Free user manual and instructions

Product type	Automatic hand dryer
Brand	Starmix
Model	T 80 E
Dimensions (L x D x H)	203 x 164 x 282 mm
Weight	2.3 kg
Rated power	1400 W
Heating power	1200 W
Motor power	200 W
Air flow	31 l/s
Drying time	Approximately 26 seconds
Electronic timer	30-60 seconds
Automatic shut-off	Yes
Automatic on/off	By proximity switch
Safety temperature limiter	Yes
Thermal cut-out	Yes
Air intake grille	Yes
Suction filter	Removable for cleaning
Recommended mounting height	1.15 m from floor to nozzle
Power supply	230 V ~ 50 Hz (estimated)
Electrical installation	Requires a bipolar switch with contact opening ≥3 mm
Cleaning	Vacuum the filter regularly
Compliance	VDE standards (Germany)
Warranty	According to reseller conditions

Frequently Asked Questions - T 80 E Starmix

How to install the Starmix T 80 E hand dryer?

Installation should be done by a specialist. Fix the base to the wall at 1.15 m from the floor, connect the power cable to the mains terminal, then close the cover. Observe safety distances and use a bipolar switch.

How to clean the suction filter?

Regularly vacuum the suction filter located on the lower part with a vacuum nozzle to remove lint and dust. If dirt adheres, use a brush.

What to do if the device does not turn on?

First check the mains power and circuit breaker. Make sure the cover is properly closed (otherwise cooling is insufficient). If the problem persists, contact a professional.

Can I use the T 80 E as a hair dryer?

No, the T 80 E is specifically designed as a hand dryer. For a hair dryer, see model TH 80 Z.

What is the drying time?

The relative drying time is approximately 26 seconds. The electronic timer is set from 30 to 60 seconds.

How to adjust the operating time?

Open the cover and turn the potentiometer adjustment screw (accessible above the heater) clockwise to increase the duration from 0.5 to 8 minutes.

Is it automatic turn-on?

Yes, the T 80 E is equipped with a proximity switch that triggers drying automatically when hands are placed under the nozzle.

What safety features are integrated?

The device has a temperature limiter and a thermal cut-out with a lead blade to prevent overheating.

What are the dimensions and weight?

Dimensions: 203 x 164 x 282 mm (L x D x H). Weight: 2.3 kg.

How to replace the filter?

The suction filter does not need to be replaced, just clean it regularly by vacuuming. To access it, open the cover.

USER MANUAL T 80 E Starmix

Mounting Instructions and

Directions for Use

Pages 8

① Top section
(2) Intake filter
(3) Base section
Push-button (not on model T 80 E)
⑤ Blow-out outlet

F

3. Technical features.

	T 80 T 80 E	TH 80 Z
Electronic short-path timer	30-60 sec.		0,5-8 min.
Adjustable running time
Automatic switch-off	X		X
Automatic no-touch ON/OFF switching
Safety temperature limiter		X
Thermal fusible cut-out	X	X	X
Air intake grille that can be cleaned	X	X	X
by suction	X	X	X

4. Mounting instructions.

The hot-air dryers should always be installed by an authorized specialist to ensure that all requisite

safety requirements are observed. A line-protecting switch or cut-out should be integrated into the electrical installation for the T 80 and TH 80 Z. A 2-pole circuit breaker with a contact opening of at least 3mm at each pole must be envisaged for the electrical installation.

These Operating Instructions have been drawn up to enable you to quickly familiarise yourself with your new appliance.

• Please read the following carefully before the appliance is used for the first time. These instructions contain important information for the use, safety, maintenance/care of the appliance.
  Familiarise yourself with the different functions of your new appliance in the same sequence as described in these instructions.
• Observe all instructions and explanations concerning the correct operation and use of the appliance. This will ensure that the appliance is always ready for use, and a long service life.
• Ensure that all remarks and instructions concerning safety are observed. This will help prevent accidents and protect your appliance from damage.
• Keep these Operating Instructions in a safe place so that, if required, they can be consulted at a later date.

The appliance complies with the accepted rules of technology and the current appliance safety laws. No liability is accepted for damage resulting from improper use of the appliance, or if it was not correctly operated.

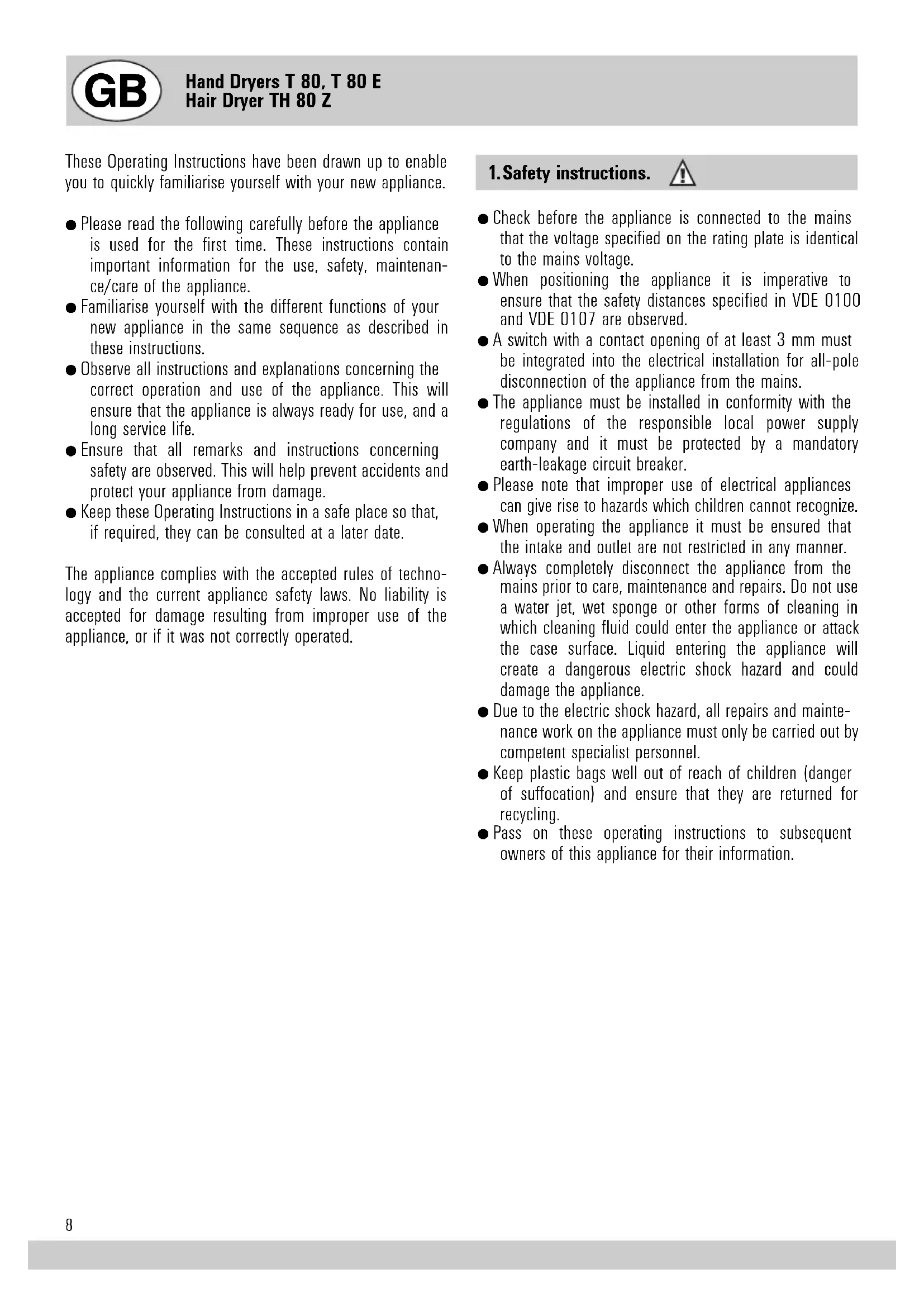

1. Safety instructions.

• Check before the appliance is connected to the mains that the voltage specified on the rating plate is identical to the mains voltage.
• When positioning the appliance it is imperative to ensure that the safety distances specified in VDE 0100 and VDE 0107 are observed.
• A switch with a contact opening of at least 3mm must be integrated into the electrical installation for all-pole disconnection of the appliance from the mains.
  The appliance must be installed in conformity with the regulations of the responsible local power supply company and it must be protected by a mandatory earth-leakage circuit breaker.
• Please note that improper use of electrical appliances can give rise to hazards which children cannot recognize.
• When operating the appliance it must be ensured that the intake and outlet are not restricted in any manner.
• Always completely disconnect the appliance from the mains prior to care, maintenance and repairs. Do not use a water jet, wet sponge or other forms of cleaning in which cleaning fluid could enter the appliance or attack the case surface. Liquid entering the appliance will create a dangerous electric shock hazard and could damage the appliance.
• Due to the electric shock hazard, all repairs and maintenance work on the appliance must only be carried out by competent specialist personnel.
• Keep plastic bags well out of reach of children (danger of suffocation) and ensure that they are returned for recycling.
  Pass on these operating instructions to subsequent owners of this appliance for their information.

2. Technical data.

	Hot-air hand dryer		Hot-air hair dryer
	T 80 T 80 E TH	80 Z
Rated Power Watt	1400	1400	1800
Heating capacity Watt	1200	1200	1600
Motor output Watt	200	200	200
Air volume l/s	31	31	31
Relative drying time s	26	26	-
Dimensions
w x d x h mm	203 x 164 x 282	203 x 164 x 282	203 x 164 x 282
Weight kg	2,2	2,3	2,2
Test symbols: øE CCA IP 23 CE	X	X	X

3. Technical features.

	T 80 T 80 E	TH 80 Z
Electronic short-path timer	30-60 sec.		0,5-8 min.
Adjustable running time
Automatic switch-off	X		X
Automatic no'touch
ON/OFF switching		X
Safety temperature limiter	X	X	X
Thermal fusible cut-out	X	X	X
Air intake grille that can be cleaned by suction	X	X	X

4. Mounting instructions.

The hot-air dryers should always be installed by an authorized specialist to ensure that all requisite safety requirements are observed. A line-protecting switch or cut-out should be integrated into the electrical installation for the T 80 and TH 80 Z. A 2-pole circuit breaker with a contact opening of at least 3mm at each pole must be envisaged for the electrical installation.

5. Mounting sequence.

1.Use a screwdriver to disengage the panel under the blow-out connection 5 above the rating plate). Unscrew the two screws in the air intake filter ② and push back the blow-out outlet slightly.
2. Swivel up the top section ① and remove.
3. After the installation point has been decided, use the mounting stencil to mark out the drilling holes (8 mm dia.) for 3 dowels. The appliance is supplied with screws and dowels. The most favourable mounting height is 1.15m (blow-out outlet from the floor) for the T 80 and T 80 E appliances, and 2.0m for the TH 80 Z. Observe the mounting stencil for the power supply cable entry point.
4. Insert the power supply cable. Secure the base section 3 to the wall. Conduct the power supply cable with a water run-off loop and connect to the mains terminal at the top on the left-hand side. Refer to the circuit diagram for the electrical connection.
5. The running time of the electronic timer is works adjusted to approx. 0.5 min for the T 80, and to 4 minutes for the TH 80 Z. This setting can be changed between a range of 0.5-8 min by turning the potentiometer setting screw clockwise (accessible through the hole over the heater when the top section is open).

The switching distance for the T 80 E - The distance between the bottom edge of the device and the hands or head. An expert can change this distance by turning the adjusting screw (accessible under the heater when the upper section is open) anti-clockwise (shorten) or clockwise (lengthen).

1. Insert the air intake filter ② and blow-out outlet ⑤ in the corresponding guides before the appliance is closed. Place the top section ① on the base section ③ and press firmly together.

Push the blow-out outlet right to the front and secure with the two screws (+ washers).

1. Press the panel over the rating plate back in.

For safety reasons always ensure that mains fuses are switched off prior to all interventions.

Trial runs must only be completed with a closed hood, otherwise the heater will not be sufficiently cooled.

6. Setting the height for the Starmix TH 80 Z hair dryer.

The robust, attractively styled Starmix THH 80 height adjustment, Order No. 11 10 01, ensures

that the hair dryer can be easily set to the height of any individual. This also greatly simplifies hair drying for children and people in wheelchairs.

As an alternative it is also possible to mount two hair dryers with 40~cm difference in height.

7.Cleaning and care.

The suction filter ② at the base must be cleaned periodically with a vacuum cleaner crevice nozzle to remove fluff and dust. Use a brush to remove grime firmly adhering in the filter openings.

The guarantee conditions for this appliance are as defined by our dealer in the country of sale. Please contact him if neesssar
