Product Type	Suction or recirculating (filtering) cooker hood
Electrical supply	220-240 V ~ 50/60 Hz (see rating plate)
Suction power	4 speeds: low, medium, high, intensive
Main functions	Anti-condensation function, automatic operation with sensor, SNAP connection and Elica hob, LED lighting, filter saturation indicators
Installation type	External exhaust or recirculation with activated charcoal filter (optional)
Minimum safety distance	45 cm for electric cooker, 60 cm for gas or mixed
Grease filter	Metallic, dishwasher safe (low temperature cycle)
Activated charcoal filter	Replace every 4 months max (not washable, not regenerable)
Lighting	Integrated LED, replacement by authorized service
Control panel	Touch control with 7 buttons and LED indicators
Maintenance	Clean grease filter monthly; empty condensation tray regularly; use damp cloth and neutral detergent
Safety	Disconnect before maintenance; do not flambé under the hood; use work gloves
Compatibility	Compatible with SNAP and Elica hobs (logical connection)
Sound levels	Variable according to speed (not specified in the manual)
Dimensions	Refer to the technical sheet of the specific model (not provided in the manual)
Weight	Not specified in the manual

Frequently Asked Questions - Majestic Sense ELICA

What are the operating modes of the Elica Majestic Sense hood?

The hood can operate in suction mode (external exhaust) or filtering mode (recirculation with activated charcoal filter). It also has an automatic mode with sensor that adjusts the speed according to fumes.

How to install the hood in recirculation version?

For recirculation use, you must install an activated charcoal filter (not supplied). Remove the grease filters, place the circular charcoal filters on the protection grids and turn clockwise. Make sure the hood is not connected to an exhaust duct.

How often should I clean the filters?

The grease filter should be cleaned once a month (or when the saturation indicator lights up). The charcoal filter must be replaced every 4 months maximum (or according to the indicator). Also clean the condensation tray regularly.

How to clean the grease filter?

Unlock the filter by pulling the spring handle. Wash it by hand with a non-aggressive detergent or in a dishwasher at low temperature with a short cycle. Note: the dishwasher may discolor the metal but does not affect its efficiency.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, reset the indicator by pressing and holding the corresponding key (see manual). The operation must be performed within the first minute after the hood is turned off.

What is the minimum distance between the hood and the hob?

The minimum distance is 45 cm for an electric cooker and 60 cm for a gas or mixed cooker. Also follow the instructions of the hob manufacturer.

Can I use the hood without the charcoal filter?

Yes, if you use the hood in suction version (external exhaust). The charcoal filter is only necessary in recirculation version to eliminate odors.

How to activate the anti-condensation function?

The anti-condensation function activates automatically each time the hood is started or manually by pressing and holding (3 seconds) the dedicated button, with the hood off. A beep confirms activation. It prevents condensation from forming on the hood.

What to do if the hood does not turn on?

First check the electrical supply (plug, circuit breaker). Make sure the hood is properly connected. If the problem persists, contact the authorized technical support service.

How to connect the hood to an Elica hob?

Make sure both the hood and the hob are powered on. Press the S key to activate automatic mode. If the connection fails, follow the reset procedure described in the manual (unplug/plug several times).

USER MANUAL Majestic Sense ELICA

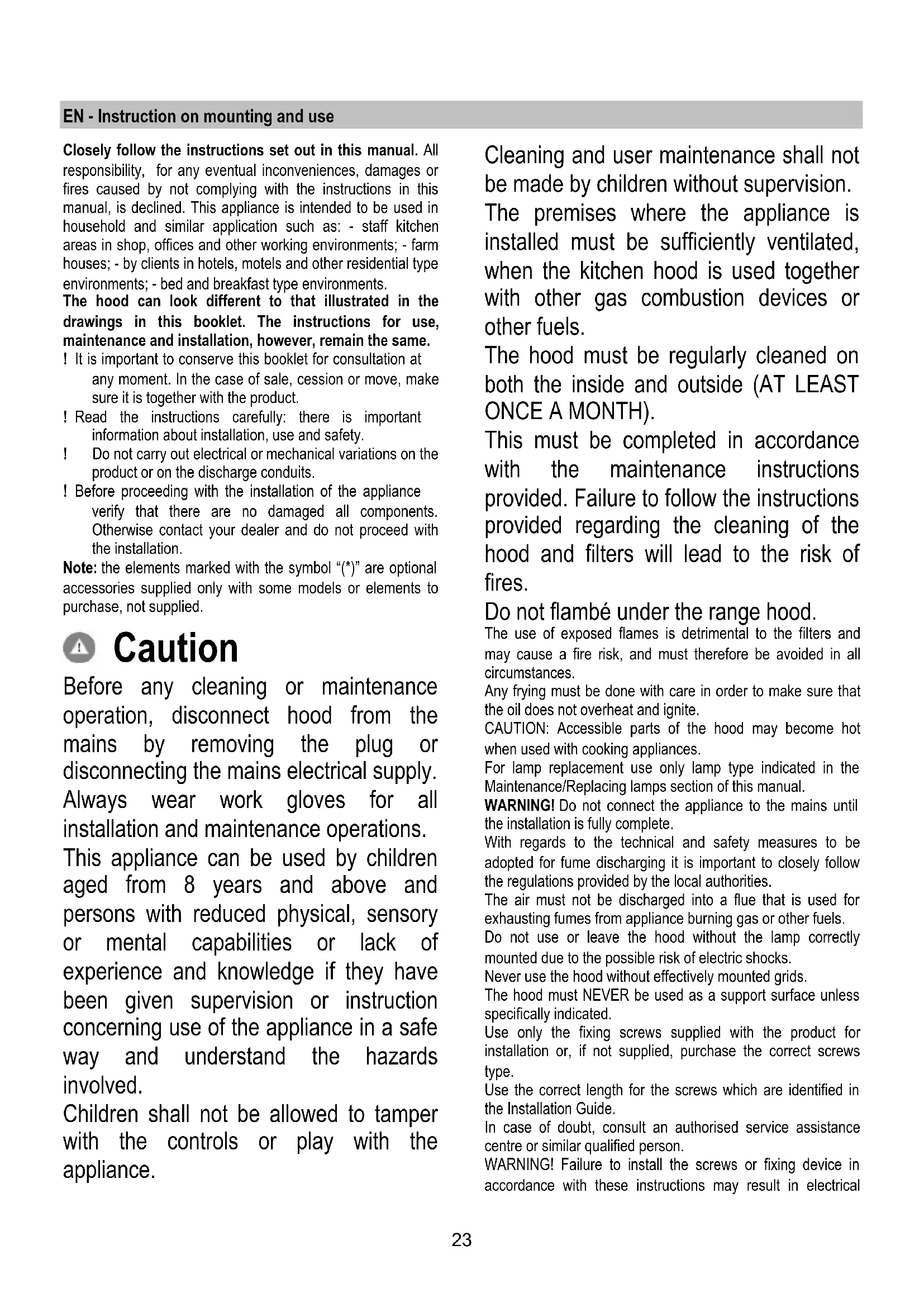

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
! Read the instructions carefully: there is important information about installation, use and safety.
! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: the elements marked with the symbol (^*) are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply. Always wear work gloves for all installation and maintenance operations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not be allowed to tamper with the controls or play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not flâbé under the range hood.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

Never use the hood without effectively mounted grids.

The hood must NEVER be used as a support surface unless specifically indicated.

Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

Use the correct length for the screws which are identified in the Installation Guide.

In case of doubt, consult an authorised service assistance centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical

hazards.

Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapour and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odour reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90^ ).
! Avoid drastic changes in the duct cross-section.

Filter version

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 45cm from electric cookers and 60cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.

Mounting

Before beginning installation:

• Check that the product purchased is of a suitable size for the chosen installation area.
• Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version.
• Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws (^) , guarantees (^) , etc.), eventually removing them and keeping them.

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Control panel with 7 buttons

To select the functions of the hood you simply touch the controls.

Automatic operation (sensor) and connection with SNAP^® and Eliba hob (See related paragraph)

Button ON/OFF 'Anti-condensation

Function': is used to prevent condensation from forming on the surface of the hood. To be activated when needed.

'Automatic anti-condensation Function': the hood enables the function every time it is switched on.

Automatic activation ON/OFF: with the hood off, press and hold the button (about 3 seconds until you hear a "beep" sound signal) to enable or disable the function.

Note: The anti-condensation function, in any case, is only activated with the motor started.

Attention! Even if this function is never activated, perform anyway the maintenance of the drain pan periodically, as indicated in section 'Maintenance - Cleaning - Maintenance of the drain pan'.

Button ON/OFF light

Press briefly to switch on or off the lighting of the hob.

Press and hold to switch on or off the ambient light (only certain models).

Button to select High and Intensive speed (suction power)

Press to activate High speed (Suction power).

Press again to activate Intensive speed (Suction power) (the button

flashes for 5 minutes then it returns to medium speed (suction power).

Button to select medium speed (suction power)

Button to select low speed (suction power) - when flashing it indicates you must wash the grease filter.

Button OFF motor (stand by)

Indicators of Filter Saturation

At regular time intervals, the hood signals the need to perform filter maintenance.

3+ 3+ on with steady light: perform grease filter maintenance.
3+ 3+ button flashing: perform activated charcoal filter maintenance.

Note: Filter saturation signal is visible within the first minute after switching off the hood; within this time, the reset of saturation indicators must be performed.

Reset of filter saturation indicators:

Press and hold the button

Activation of saturation indicator activated charcoal filter

Note: this operation must be performed with the hood off. This indicator is normally deactivated; press and hold the

3+ button to activate the function: the button lights up with steady light.

To deactivate the function, press and hold the button

: the button lights up flashing.

Automatic operation (sensor), connection with SNAP^® and Elica hob

Attention! The proper operation of the hood will depend on the 'Setting of parameters for Automatic Operation' (see dedicated section)

Note: Automatic operation with the hob is only possible with specific hobs. For further details, please contact the official dealer or authorised technical assistance centre.

Automatic operation (sensor)

S. (the central LED lights up

Press the button .(the central LED lights up in white). The hood will switch on at the most suitable speed ba the cooking fumes detected by the sensor on the hood.

Automatic operation of the hood with SNAP^®

Press the button .(the LEDs light up in orange) to indicate that the hood can operate automatically with the SNAP®

Note: SNAP® is an auxiliary suction unit that can operate together with the hood. For further information, please consult the manual supplied with SNAP®

Automatic operation of the hood with the Elica hob

Operation of the hood will also depend on use of the Elica hob.

Press the button .(the LEDs light up in white)

to indicate that the hood can automatically operate with the Elica hob; thus, hood operation will also depend on use of the Elica hob.

Note: Automatic operation with the hob is possible only with specific cooking hobs; for further details, please contact the authorised dealer or technical assistance centre.

Automatic operation of the hood with SNAP® and Elica hob

Press the button .(the LEDs light up in orange) to indicate that the hood can operate automat with the hob and the SNAP®

Setting of parameters for Automatic Operation

Note: All calibration, selection, setting and logical connection operations described below can be performed with the hood off (OFF).

The adjustment of parameters is regularly done automatically every time the hood is reconnected to the mains (e.g. with the first installation or after a blackout) or manually.

Manual setting

To be performed when you notice unsatisfactory functioning of the Automatic operation, and is done when normal environmental conditions persist in the kitchen.

Manual setting includes:

Hood calibration

Selection of hob (gas, induction, or electric)
- Logical connection between the hood and the hob (if you have an Elica hob).
- Logical connection between the hood and SNAP (if you have SNAP®).

Hood calibration

Press and hold the button, all button LEDs flash to indicate initiation of calibration; the process will last for approximately 5 minutes.

Selection of the hob (gas, induction, or electric)

Press and hold simultaneously the buttons 1 2 1 2 3 and: buttons and

start flashing for 5 seconds.

Within this timeframe, press:

1 button in case of gas hob

2 in case of electric hob 3 in case of induction ho

The preselected button remains lit to indicate the selection was performed, after 10 seconds the button flashes briefly to indicate that the performed selection was recorded.

Logical connection between the hood and the hob (if you have an Elica hob).

a. Simultaneously connect the hood and Elica hob.
b. the hood emits 2 acoustic signals (beeps) to indicate that it can receive the connection signal from the Elica hob.
c. the connection attempts with the Elica hob last for 5 minutes; within this time, the hood emits 3 consecutive acoustic signals (beeps) to indicate the successful connection with the Elica hob.
d. Check the successful connection with the Elica

hob: Press the button .(the LEDs light up in white).

S

In case the logical connection between the hood and Elica hob is not successful, proceed as indicated below:

Disconnect and reconnect the hood from/to the mains at least 5 times within 30 seconds.

Repeat the operations a-b-c-d described above

If an Elica hob is NOT mounted:

In this case the hood, after being connected to the mains power supply, will nonetheless attempt to connect to a hob: the hood will emit 2 beeps intermittently for roughly 5 minutes. Wait for the hood to terminate the connection attempts then proceed with deactivation of the electronic connection module as described below:

With the hood switched off, simultaneously press buttons

and for over 10 seconds; the hood will emit a long beep to signal deactivation.

If the Elica hob is purchased at a later stage

Complete the operations described below then repeat the operations described in the paragraph, "If an Elica hob is mounted".

Reactivation of the module for connection between the hood and Elica hob:

With the hood switched off, simultaneously press buttons

long beep to signal activation.

Logical connection between the hood and SNAP^® (if you possess a SNAP^® ).

Connection between the hood and SNAP^® is automatic. No other setting has to be performed.

Maintenance

Cleaning

Clean using ONLY the cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Maintenance of the drain pan.

The glass slide placed in the front drain pan allows you to check when the pan is full and must be emptied and cleaned. The pan must be emptied and cleaned anyway AT LEAST once a week or more frequently, based on the use of the hood.

The pan can be washed manually or in the dishwasher at low temperature and short cycle. Fig. 25

Grease filter

Fig. 10-22

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Charcoal filter (filter version only)

Fig. 21

It absorbs unpleasant odours caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least

every four months (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity). The charcoal filter may NOT be washed or regenerated.

Circular carbon filter

Apply one on each side as cover to both the shield grids of the motor impeller, then turn clockwise.

For the disassembly, turn counter-clockwise.

Replacing lamps

The hood is equipped with a lighting system based on LED technology.

The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.

For replacement, contact the technical service.

S. (O1 evoekiec uxvies (led)

θa avayouv μe Tnptokai φωc) kai θa δεiδouv oti o aToppoynapc εivai e θεση vε λεitoupynoει autóμata με μe TnV Eπiφáveia μayεipéμatoç Elica kai με SNAP®

Pouion twv napaetpwy ia tv autopatn leitoupyia

Knapp for Ijus ON/OFF

Tryck under denna period ned:

tangent 1 i det fall det ar fragan om en gasspishall

tangent 2 elektrisk spishall

det fall det ar fragan om en

Valojen ON/OFF painike

Moottorin OFF painike (stand by)
