USER MANUAL Latte Induzio 28470 UNOLD

Instructions for use Model 28470

Technical Specifications 16

Explanation of symbols 16

For your safety 16

Tips for optimal frothed milk 18

Before using the appliance the first time ....18

Magnetic attachments 18

Operation 18

Cleaning and care 19

Recipes 20

Salad Dressings - Recipes 20

Troubleshooting 21

Guarantee Conditions 22

Waste Disposal / Environmental Protection ...22

1 GB Lid with stirring rod

F Couvercle avec embout mélangeur
NL Deksel met roerstaaf
I Coperchio con agitatore
E Tapa con varilla agitadora
CZ Kryt s michací tyčkou
PL Pokrywa z mieszadtem

2 GB Attachment for hot milk

F Support pour le lait chaud
NL Opzetstuk voor hetemelk
I Accessorio per latte caldo
E Accesorio para leche caliente
CZ Nastavec na mlécnou penu
PL Nasadka do goracego mleka

3 GB Attachment for frothed milk

F Support pour la mousse de lait
NL Opzetstuk voor melkschuim
I Accessorio per schiuma di latte
E Accesorio para espuma de leche
CZ Nastavec na mlécnou penu
PL Nasadka do mlecznej piani

4 GB Removable milk canister

F Petit pot de lait amovible
NL Uitneembaar melkkannetje
I Bricchetto amovibile per il latte
E Jarra de leche extraíble
CZ Vyjímatelná konvička na mléko
PL Wyjmowany dzbanek na mleko

5 GB Housing

F Boitier
NL Behuizing
I Corpo esterno
E Carcasa
CZ Tleso
PL Obudowa

6 GB Control panel

F Panneau de commande
NL Bedieningsveld
I Pannello dei comandi
E Panel de mando
CZ Ovladací pole
PL Pole obstugi

6a GB Button for 35^

F Touche pour 35^
NL Toets voor 35^
I Tasti per 35^
E Tecla para 35^
CZ Tlačitko na 35 °C
PL Przycisk dla 35^

6b GB Button for 65^

F Touche pour 65^
NL Toets voor 65^
I Tasti per 65^
E Tecla para 65^
CZ Tlačitko na 65 °C
PL Przycisk dla 65^

6c GB Button for cold

F Touche pour froid
NL Toets voor koud
I Tasto per Freddo
E Tecla para frío
CZ Tlačítko studená
PL Przycisk dla zimnego mleka

6d GB Button for 75^

F Touche pour 75^ C
NL Toets voor 75^
I Tasto per 75^
E Tecla para 75^
CZ Tlačitko na 75 °C
PL Przycisk dla 75^

6e GB ON/OFF switch

F Interrupteur MARCHE / ARRET
NL AAN/UIT-schakelaar
I Interrupttore ON/OFF
E Interruptor CON/DES
CZ Spinač ZAP/VYP
PL Węcznik/woźcznik

TECHNISCHE DATEN

MaBe: Ca. 13,5 x 18,0 x 23,0 cm (L/B/H)

E-Mail [e-mail]

MENAGROS SA
Route der Servion
CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN TSCHECHIEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

Power cord: Approx. 72 cm

Weight: Approx. 1.56 kg

Colour: White

Container: Removable stainless steel canister

Features: Four temperature levels (35, 65, 75^ , cold), ON/OFF switch, indicator lights for all functions, two attachments (for milk froth and hot milk), removable stainless steel milk canister

Accessories: Instructions with recipes

Equipment features, technology, colours and design are subject to change without notice. Errors and omissions excepted

EXPLANATION OF SYMBOLS

This symbol indicates possible dangers that can result in injuries or damage to the appliance.

This symbol indicates a possible danger of burns. Always take special caution here.

FOR YOUR SAFETY

General safety instructions

1. Please read the following instructions and keep them on hand for later reference.
2. This appliance is not intended for use by persons (including children) with limited physical, sensory or mental abilities or with lack of experience or limited knowledge, unless they are supervised by a person who is responsible for their safety or who has been instructed in how to use the appliance.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Only connect the appliance to an AC power supply with voltage corresponding to the voltage specified on the rating plate.
6. Do not operate this appliance with an external timer or remote control system.

7. The base should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.

8. The appliance is intended for household use only, or for similar areas of use, such as,

9. kitchenettes in businesses, offices or other workplaces,
   agricultural enterprises,
   for use by guests in hotels, motels or other lodgings,
   in private guest houses or holiday homes.

10. Do not open the housing of the milk frother under any circumstances. This can result in electric shock.

11. Check the appliance, the plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance for inspection and repair to our customer service department (for address, see warranty terms). Unauthorized repairs can result in serious risks to the user and void the warranty.

Information on set-up and use of the appliance

1. Ensure that the electrical outlet used is easily accessible, in order to quickly unplug the connection cord in an emergency.

2. Never touch the appliance or power cord with wet hands.

3. Do not clean the milk frother in a dishwasher.
4. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
5. Never immerse the appliance or the power cord in water or other liquids.
6. Do not place the appliance or power cord near open flames during operation.
7. Always use the milk frother on a level, uncluttered and heat-resistant surface.
8. Make sure that the power cord does not hang over the edge of the counter top or table, since this can cause accidents, for example if small children pull on the cord.
9. Route the power cord so that there is no possibility of the cord being pulled or tripped over.
10. Never wrap the power cord around the appliance.
11. To unplug the appliance, always pull on the plug, never on the power cord.
12. Never use the power cord to carry the appliance.
13. Only use the milk frother indoors.
14. Use the appliance only for heating milk. Do not heat any other liquids, since this could damage the appliance.
15. Never heat objects such as cans or bottles in the milk frother.

16. Do not use the milk canister in the oven or microwave.

17. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing milk.

18. Never switch on the appliance if there is no milk in the canister.
19. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing milk - danger of burns!
20. Only grasp the milk canister by the handle, to prevent burns.
21. To avoid accidents, never touch the rotating parts of the appliance and do not insert objects or body parts into the appliance during operation.
22. Never fill the steel canister with more than 400ml to prevent the milk from boiling over.
23. Do not move the appliance as long as it is in operation, to prevent burns from splashing milk.
24. Allow the appliance to cool several minutes between uses.
25. To avoid damage, do not use the appliance with accessories of other manufacturers or brands.
26. Unplug the mains plug from the electrical outlet after use and before cleaning. Never leave the appliance unattended when the mains plug is plugged in.
27. Allow the appliance to cool before cleaning it.

Caution!

Do not open the lid while the milk is being heated.

If the canister is overfilled, hot milk can spray out.

Attention, the canister is very hot after the milk is heated - danger of burns!

For safety reasons, ensure that the contact points on the edge of the container and on the lid always remain dry and clean.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR OPTIMAL FROTHED MILK

The best results are obtained with milk that has been refrigerated.

You can use any type of milk for frothing. The best results are obtained with 1.5% skim milk.

But also try using other milk types from time to time, each type produces a different consistency of the froth.

For people with allergies we recommend soy milk.

Factors, such as freshness or degree of pasteurisation can have an effect on the frothing process.

However you can also produce a particularly creamy salad dressing with the milk frother.

BEFORE USING THE APPLIANCE THE FIRST TIME

1. Remove all packaging materials and any transport safeguards.

2. Clean all parts with a damp cloth, as described in the chapter "Cleaning and care" on page 19.

3. Check to make sure that the appliance is stable.

4. Connect the appliance to the mains supply (220-240 V~, 50/60 Hz) using the supply cable.

MAGNETIC ATTACHMENTS

The two attachments are magnetic and consequently can simply be placed on the stir rod on the lid. Simply fit the desired attachment on the stir rod, it stays on by itself.

Select this attachment for frothed milk. The attachment is shaped like a blunger

The smooth attachment is optimal for producing hot milk. For technical reasons some froth also forms when heating milk.

OPERATION

1. Place the removable milk canister in the appliance.
2. Select the desired attachment and fasten it on the stir rod. The attachments are magnetic and consequently are simply placed on the stir rod.

3. Pour the desired amount of milk into the canister. Comply with the minimum and maximum fill quantities to ensure an optimal function:

4. Frothed milk: Fill a minimum of 100ml and a maximum 200ml of milk in the container

Hot milk: Fill a minimum of 100 ml and a maximum 400 ml of milk in the container
For easier handling, appropriate marks are provided in the interior of the canister.

1. Close the appliance with the lid. Turn the lid until the black arrow on the lid is precisely above the symbol.

2. Connect the appliance to the mains supply. A signal tone will sound and all indicator lights will be illuminated for approx. three seconds. Then all indicator lights will go out.

3. Now press the ON/OFF button once. A signal tone will sound. All indicator lights will be continuously illuminated blue and the appliance fan will switch on briefly. Caution: If you do not push a button within approx. three minutes, the appliance will switch off.

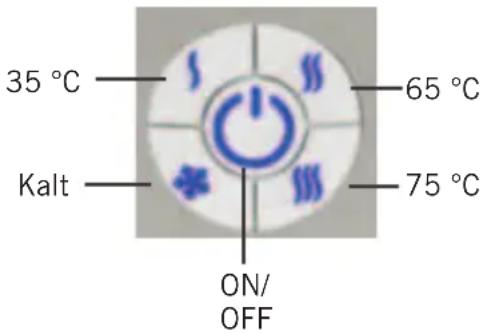

4. Select the desired temperature level: 35, 65 or 75^ or "Cold" for cold froth and press the appropriate button. The entry will be confirmed by a signal tone.

1. The indicator light of the pressed button will flash, the appliance starts with preparation.

2. If you would like to interrupt the preparation, press the "ON/OFF" button. However, if you want to select a different level, simply press the desired level, the appliance will change to this level, the button that you have just pressed will flash.

3. In approx. 90 seconds the milk froth or the hot milk is ready and the appliance stops automatically.

4. Now unlock the lid by turning it to the symbol and lift it upward and away from the appliance.
5. You can pour the finished milk froth into a container or use a ladle.
6. If you want to prepare more milk froth, please allow the appliance to cool off for 2 to 4 minutes. Clean all container as described in the chapter on Cleaning and Care.
7. Note that the integrated fan may still be heard for approx. 15 seconds after operation is concluded.
8. When you have finished preparing the milk, switch the appliance off by means of the "ON/OFF" switch and unplug the appliance from the electrical outlet.

Important: To prevent germ formation, do not allow any milk residues to remain in the canister. Consequently, clean the appliance after every use!

Attention the canister is very hot after the milk is heated - danger of burns!

CLEANING AND CARE

1. Before cleaning, always turn off the appliance and unplug it from the electrical outlet.
2. Allow the appliance to cool before cleaning it.
3. For hygienic reasons, the appliance must be cleaned immediately after use. Otherwise, harmful germs could form in the milk residues.
4. Do not immerse the power cord or housing in water or other liquids or wash them in the dishwasher.

5. Wipe off the lid and the stir rod with a damp cloth and a little dishwashing detergent. Never use harsh abrasives, steel wool, metal objects, hot cleaning agents or disinfectants, because they could cause damage.

6. The attachments can also be cleaned in the dishwasher (top basket, dishwashing program with maximum 40^ ). Do not clean the lid itself in a dishwasher!

7. Clean the inside of the canister with a soft cloth and warm water; you can add a little dishwashing detergent to the water, if you wish. If necessary let soften slightly to remove adhering residues. Then thoroughly rinse out the canister with warm water.
8. The appliance must be completely dry before you use it again.

RECIPES

With milk froth you can prepare hot and cold coffee specialties.

Capuccino - the classic Italian

It consists of 1/3 espresso, 1/3 hot milk and 1/3 milk froth. If you wish you may decorate it with chocolate powder.

Caffe Latte

This coffee is known in France as Café au lait, a milk coffee. It is also made of espresso. Add the desired quantity of heated milk and, if you wish, crown it with a bit of froth milk.

Latte Macchiato

A well prepared Latte Macchiato consists of various layers. Start with filling the milk into a high glass and then add alternately espresso, hot milk and milk froth. Allow the milk froth layer to settle before you add the espresso. Thus the layers will not intermingle. Mind that the espresso must be hot. If you wish to give flavour to it using for example syrup or liqueur, add these ingredients only to the hot milk and not to the espresso, as it would make the espresso sink too fast.

Mochaccino

Put 1 to 2 tsp. of chocolate syrup in a glass and add a bit of slightly cooled down milk froth.

Fill it up carefully with espresso. To finish, put a crown of milk froth or whipped cream on top and decorate with shaved chocolate or chocolate powder.

iced coffee

Pour cold, strong coffee into a high glass. Now add 1 to 2 balls of vanilla icecream and fill the glass up with cold milk froth. If you wish, you can decorate it with shaved chocolate.

But not only coffee specialties can be prepared with milk froth. Did you know, for example, that you can use milk froth instead of cream for delicious desserts? This will give you wonderful, easily digestible and creamy creations.

Try to use hot milk froth on fresh strawberries or your cereals, for example.

And also try a crown of milk froth on cream soup or serve the cream soup as mushroom or potato cappuccino.

You will find a lot more recipes in cookery books and on the Internet.

SALAD DRESSINGS - RECIPES

Please bear in mind that pieces of herbs, vegetables or fruit may get trapped in the coil. Therefore we recommend adding these ingredients at the final step using a fork.

Vinaigrette

Serves 4

4 tbs. of balsamic vinegar, 5 bs. of oil, salt, pepper

Emulsify the ingredients in the milk frother.

Fold in 1 tbs. of finely chopped onions, 1 tbs. of chopped chives, 1 tbs. of chervil leaves using a fork.

This dressing is ideal for rocket salads.

Herb Yoghurt Dressing

Serves 4

10 millilitres of cream, 100 millilitres of low fat yoghurt, 1 tbs. of vinegar, salt, pepper Emulsify the ingredients in the milk frother.

Stir in 2 finely chopped cloves of garlic and 1 tbs. each of basil, dill, chervil, rosemary, chives and thyme using a fork.

This dressing is ideal for cucumber salads.

Caraway Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 2 tsp. of caraway using a fork.

This dressing is ideal for coleslaw salads.

Roquefort Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 100g of finely diced Roquefort cheese using a fork.

This dressing is ideal for lamb's lettuce salads.

Curry Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 1 tsp. of curry powder using the milk frother.

This dressing is ideal for frisee endive salads.

Egg Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Stir in 2 finely diced hard-boiled eggs and 1 tbs. of chopped chives using a fork.

This dressing is ideal for potato salads.

Walnut Cream Yoghurt Dressing

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Stir in 1 tbs. each of chopped walnuts, pine nuts and pistachios using a fork.

This dressing is ideal for chicory salads.

Cheese Dressing

Serves 4

4 tbs. of cream, 4 tbs. of low fat yoghurt, 1 tbs. of wine vinegar, 2 tbs. of dry white wine, 2 tbs. of vegetable stock, salt, pepper

Emulsify all ingredients in the milk frother.

Stir in 2 tbs. of shaved Emmental cheese using a fork.

This dressing is ideal for tomato salads.

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

TROUBLESHOOTING

Possible faults are indicated by specific signal tones:

Signal tone Cause Solution
1 short tone/1 second Milk canister is not used Insert milk canister
3 short tones Lid is not properly closed Close the lid properly
1 short tone/4 seconds Fault in the power circuit Send the appiience to the service organization
1 long tone/4 seconds IGBT is overheated Send the appliance to the service organization
1 short tone & 1 long tone/4 seconds Wrong voltage Connect the appliance to an electrical outlet with 220-240 V~
1 short tone & 2 short tones/4 seconds
2 short tones/4 seconds Sensor is defective	Send the appliance to the service organization
2 long tones & 1 short tone/4 seconds Sensor is defective	Send the appliance to the service organization
2 long tones & 2 short tones/4 seconds Motor is defective	Send the appliance to the service organization

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

NOTICE D'UTILISATION MODELE 28470

SPÉCIFICATION TECHNIQUE

Puissance:600-800Watts,220-240V\~,50-60Hz

Dimensions: Env. 13,5 x 18,0 x 23,0 cm (l / l / h)

Cable d'alimentation: Env. 72 cm

Poids:Env.1,56kg

Couleur: Blanc

CONDITIONS DE GARANTIE

Medidas: Aprox. 13,5 x 18,0 x 23,0 cm (L/An/Al)

Cable de alimentacion: Aprox. 72 cm

Peso: Aprox. 1,56 kg

Color: Blanco

Recipiente: Jarra extraíble de acero fino
