USER MANUAL Latte Bricco 28447 UNOLD

Instructions for use Model 28440/28447

Technical specifications 18

Explanation of the symbols 18

For your safety. 18

Before using the appliance for the first time 19

Tips on how to obtain perfect milk froth 20

Removing the accessory for milk froth. 20

Milk frothing function 20

Milk heating function 21

Cleaning and care 22

Recipes 22

Salad Dressings - Recipes 23

Troubleshooting 23

Guarantee conditions 25

Waste Disposal / Environmental Protection 25

Specification technique 26

GB Button A for hot milk froth/hot milk

GB Button B for cold milk froth/salad dressings

GB Fixed accessory for hot milk

GB Accessory for frothed milk

E-Mail [e-mail]

MENAGROS SA
Route der Servion
CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN TSCHECHIEN

"Quadra-net" Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

Cable: Approx. 75 cm

Weight: Approx. 0.93kg

Colours: 28440 Latte Bricco white: White

28447 Latte Bricco brown: Brown

Capacity: Minimum 100 ml, maximum 200 ml for frothed milk/330 ml for hot milk

Jug: Non-stick coating

Base: With cable storage

Features: 330ml capacity, 360^ rotational contact connection, non-stick coating for easy cleaning, switches off automatically, can also be used to prepare creamy salad dressings

Accessories: Instruction manual with recipes

We reserve the right to introduce technical modifications.

EXPLANATION OF THE SYMBOLS

This symbol indicates potential hazards that may result in injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

General safety information

1. Please read the following information and keep it for future reference.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge, unless they are supervised or have been given instructions concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. Keep the appliance out of the reach of children.
5. Connect the appliance only to an AC power supply with the voltage indicated on the rating plate.

6. Do not operate this appliance with an external timer or remote control system.

7. The base must not come into contact with water or other liquids. If this happens, make sure that it is completely dry before using the appliance again.

8. This appliance is intended only for domestic use or similar, such as:

9. staff kitchen areas in shops, offices and other working environments
   agricultural enterprises

10. by guests in hotels, motels or other accommodation facilities,

11. bed and breakfast accommodation and holiday homes.

12. Never open the casing of the milk frother. There is a risk of electric shock.

13. Check the appliance, the plug and the cable regularly for wear or damage. If the cable or other parts are damaged, send the appliance or the base of the appliance to our customer service for inspection and repair

(see warranty conditions for the address). Improper repairs can cause considerable hazards for the users and will void the warranty.

Information for positioning and using the appliance

1. Make sure that the electrical socket you are using is easily accessible and that you can pull the plug out quickly in an emergency.
2. Never touch the appliance or cable with wet hands.
3. Do not clean the milk frother in a dishwasher.
4. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.
5. Never immerse the appliance or the cable in water or other liquids.
6. Do not place the appliance or cable near open flames during operation.
7. Always use the milk frother on a level, uncluttered and heat-resistant surface.
8. Make sure that the cable does not hang over the edge of the worktop or table, since this can cause accidents, for example if small children pull on the cable.
9. The cable must be laid so that it cannot be pulled out and that no one can trip over it.
10. Never wind the cable around the appliance, always use the cable storage on the base.
11. Always disconnect the cable from the wall socket by pulling on the plug, never on the cable.
12. Do not carry the base by the cable.
13. Use the milk frother only indoors.
14. Use the appliance only to heat milk or to prepare salad dressings. Do not heat other liquids, as this may damage the appliance.
15. Never heat other objects, such as cans or bottles, in the milk frother.
16. Do not use the jug in the oven or microwave.
17. Make sure that the lid of the appliance is always completely closed, to prevent injuries from hot splashing milk.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

1. Remove all packaging materials and transport safety equipment.
2. Clean all parts with a damp cloth, as described in „Cleaning and Care“ on page 22.

3. Check that the appliance stands firmly.

4. Never switch the appliance on if there is no milk in the jug.

5. Make sure that all users, especially children, are aware of the risk of injury from escaping steam or hot splashing milk - risk of burning.
6. Hold the appliance only by the handle to avoid burns.
7. To prevent injuries, never touch moving parts of the appliance and do not put objects or parts of your body into the appliance while it is running.
8. Never fill more than 330 ml milk into the appliance to prevent the milk boiling over.
9. Do not move the appliance while it is running to prevent scalding from splashing milk.
10. Allow the appliance to cool for several minutes between two operations.
11. To prevent damage, do not use the appliance with accessories from other manufacturers.
12. Disconnect the appliance from the wall socket after use and before cleaning it. Never leave the appliance unattended when it is plugged into the wall socket.
13. Allow the appliance to cool before cleaning it.
14. Never open the casing of the milk frother. There is danger of electric shock.

Caution!

Do not open the lid while milk is being heated.

If the jug is too full, hot milk may splash out.

For safety reasons, make sure that the contact on the edge of the jug in which the lid engages is always dry.

tips on how to oBtain perfect Milk froth

1. You will get the best results with milk from the refrigerator.
2. You can use any type of milk for froth, but you will get the best results with low fat milk (1.5%) . But try out other types of milk, as the consistency of the froth varies with each type.
3. We recommend soy milk for people with allergies.

4. Factors such as freshness or level of pasteurisation may have an effect on the frothing process.

5. The appliance heats milk to between 62 and 68^ which is the ideal temperature for milk froth for your coffee.

6. You can also prepare cold milk froth for iced coffee, for instance.
7. The milk frother can also be used to prepare especially creamy salad dressings.
8. Tip: To prevent hot milk sticking to the jug, you can spread a thin layer of butter inside the jug beforehand.

reMoVing the accessory for Milk froth

1. A white, two-part accessory is attached to the agitator.
2. To remove the white accessory for milk froth, hold the fixed part of the accessory for milk froth on the agitator and press the removable part out. Pay attention to the arrows on the fixed accessory. You can only press the removable part out in this direction. To attach the part again, carry out the above procedure in the reverse sequence.

Milk frothing function

1. Remove the jug from the base.

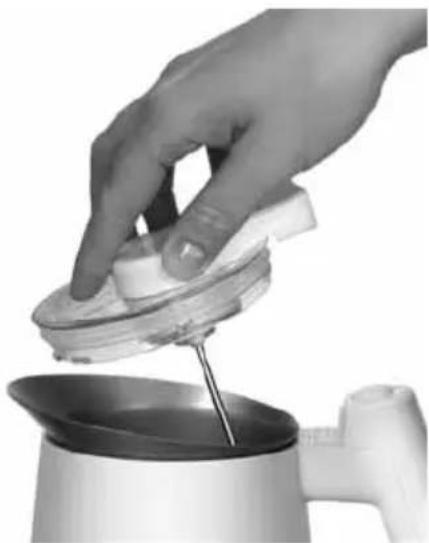

2. Press the locking button on the lid and remove the lid from the jug.

1. Attach the milk froth accessory to the agitator.

1. Add at least 100 ml milk (min. mark), but no more than 200ml (lower max. mark) to the jug. Never add more milk, since frothed milk expands and may overflow from the jug.

1. Replace the lid. Note: a safety function prevents the appliance being switched on if the lid does not sit properly. In this case, the button only flashes, but the appliance does not start. Press the lid on to the appliance until it clicks into place.

2. If you want to prepare hot milk froth, press button A.

3. If you want to prepare cold milk froth, press button B.

4. If you want to prepare a salad dressing, also press button B. Remember that you can

only prepare cold salad dressings with the appliance.

1. The corresponding indicator light shows that the appliance has started frothing the milk.
2. The milk froth is ready in about 120 seconds and the appliance stops automatically.
3. If you wish to interrupt the process, press the selected button again.
4. Press the locking button and remove the lid from the appliance.
5. You can now pour or spoon the milk froth into a container.
6. If you wish to froth more milk, allow the appliance to cool for 2 to 4 minutes. Then clean the jug as described in Cleaning and Care.

Important: Make sure that there is no milk residue in the jug to prevent germs forming. Clean the appliance after every use.

MILK HEATING FUNCTION

1. Prepare the appliance as described in "Frothing milk".
2. Remove the milk frother accessory from the agitator.

1. Add at least 100ml milk (min. mark), but no more than 330ml (top max. mark) to the jug. Never add more milk, since the milk may overflow from the jug.

1. Replace the lid. Note: a safety function prevents the appliance being switched on if the lid does not sit properly. In this case, the button only flashes, but the appliance does not start. Press the lid on to the appliance until it clicks into place.
2. To heat milk, press button A.
3. The indicator light shows that the appliance starts heating the milk.
4. If you wish to interrupt the process, press the selected button again.
5. Press the locking button and remove the lid from the appliance.
6. You can now pour the milk into a container.
7. If you wish to heat more milk, allow the appliance to cool for 2 to 4 minutes. Then clean the jug as described in Cleaning and Care.
8. Tip: When you are finished heating milk, replace the milk frother accessory so that it doesn't get lost.

Important: Make sure that there is no milk residue in the jug to prevent germs forming. Clean the appliance after every use!.

CLEANING AND CARE

1. Allow the appliance to cool before cleaning it.
2. Before you clean the appliance, always switch it off and pull the plug out of the wall socket.
3. For hygienic reasons, clean the appliance immediately after every use. Otherwise, harmful germs may form.
4. The cable, base and jug must not be immersed in water or any other liquid or be cleaned in the dishwasher.

5. Wipe the base, jug, lid, agitator and the accessory with a damp cloth and some washing-up liquid. Do not use any abrasive products, steel wool, metal objects, hot cleaning products or disinfectants, since they may damage the appliance. This applies especially to the non-stick coating inside the jug.

6. Clean the inside of the jug with a soft cloth and warm water with some mild washing-up liquid. Do not scrape stubborn residue with hard objects, otherwise you will damage the coating. If necessary, allow water to soak in to remove residue. Then rinse the jug thoroughly with warm water.

7. The lid has a sealing ring inside. This also has to be cleaned from time to time. To do this, remove the ring from the lid and clean it in warm water with washing-up liquid. Allow the ring to dry completely before attaching it to the lid again. Remember that the grooves on the sealing ring must face outward.
8. The appliance must be completely dry before you use it again.

RECIPES

With milk froth you can prepare hot and cold coffee specialties.

Capuccino - the classic Italian

It consists of 1/3 espresso, 1/3 hot milk and 1/3 milk froth. If you wish you may decorate it with chocolate powder.

Caffe Latte

This coffee is known in France as Café au lait, a milk coffee. It is also made of espresso. Add the desired quantity of heated milk and, if you wish, crown it with a bit of froth milk.

Latte Macchiato

A well prepared Latte Macchiato consists of various layers. Start with filling the milk into a high glass and then add alternately espresso, hot milk and milk froth. Allow the milk froth layer to settle before you add the espresso. Thus the layers will not intermingle. Mind that the espresso must be hot. If you wish to give flavour to it using for example syrup or liqueur, add these ingredients only to the hot milk and not to the espresso, as it would make the espresso sink too fast.

Mochaccino

Put 1 to 2 tsp. of chocolate syrup in a glass and add a bit of slightly cooled down milk froth.

Fill it up carefully with espresso. To finish, put a crown of milk froth or whipped cream on top and decorate with shaved chocolate or chocolate powder.

iced coffee

Pour cold, strong coffee into a high glass. Now add 1 to 2 balls of vanilla icecream and fill the glass up with cold milk froth. If you wish, you can decorate it with shaved chocolate.

But not only coffee specialties can be prepared with milk froth. Did you know, for example, that you can use milk froth instead of cream for delicious desserts? This will give you wonderful, easily digestible and creamy creations.

Try to use hot milk froth on fresh strawberries or your cereals, for example.

And also try a crown of milk froth on cream soup or serve the cream soup as mushroom or potato cappuccino.

You will find a lot more recipes in cookery books and on the Internet.

SALAD DRESSINGS - RECIPES

Please bear in mind that pieces of herbs, vegetables or fruit may get trapped in the coil. Therefore we recommend adding these ingredients at the final step using a fork.

Vinaigrette

Serves 4

4 tbs. of balsamic vinegar, 5 bs. of oil, salt, pepper

Emulsify the ingredients in the milk frother.

Fold in 1 tbs. of finely chopped onions, 1 tbs.

of chopped chives, 1 tbs. of chervil leaves using a fork.

This dressing is ideal for rocket salads.

Herb Yoghurt Dressing

Serves 4

10 millilitres of cream, 100 millilitres of low fat yoghurt, 1 tbs. of vinegar, salt, pepper

Emulsify the ingredients in the milk frother.

Stir in 2 finely chopped cloves of garlic and 1 tbs. each of basil, dill, chervil, rosemary, chives and thyme using a fork.

This dressing is ideal for cucumber salads.

Caraway Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 2 tsp. of caraway using a fork.

This dressing is ideal for coleslaw salads.

Roquefort Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 100g of finely diced Roquefort cheese using a fork.

This dressing is ideal for lamb's lettuce salads.

Curry Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Instead of the herbs, stir in 1 tsp. of curry powder using the milk frother.

This dressing is ideal for frisée endive salads.

Egg Cream Yoghurt Dressing

Serves 4

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Stir in 2 finely diced hard-boiled eggs and 1 tbs. of chopped chives using a fork.

This dressing is ideal for potato salads.

Walnut Cream Yoghurt Dressing

Prepare a basic dressing as described in the recipe for the herb yoghurt dressing.

Stir in 1 tbs. each of chopped walnuts, pine nuts and pistachios using a fork.

This dressing is ideal for chicory salads.

Cheese Dressing

Serves 4

4 tbs. of cream, 4 tbs. of low fat yoghurt, 1 tbs. of wine vinegar, 2 tbs. of dry white wine, 2 tbs. of vegetable stock, salt, pepper

Emulsify all ingredients in the milk frother.

Stir in 2 tbs. of shaved Emmental cheese using a fork.

This dressing is ideal for tomato salads.

TROUBLESHOOTING

Error Possible causes Solution
The indicator light does not light up	Appliance not connected to the mains	Plug the connector into the wall socket
	Temperature control Let the appliance cool down	ice cool down
Error Possible causes Solution
The appliance heats but the agitator does not rotate	Lid is not closed properly Close lid	properly and turn until it is fixed
	Contacts on the handle are dirty Clean	clean the contacts on the handle
	Excessive quantity of liquid Reduce	liquid quantity
Milk leaks from the lid Lid	is not closed properly Close lid properly	properly and turn until it is fixed
	Gasket at the lid is lacking or dirty	Clean the gasket and insert it

The authors have thoroughly considered and tested the recipes included in these operating instructions. Nevertheless, a guarantee cannot be accepted. The authors, respectively UNOLD AG and their assignees shall not be liable for personal injuries, material damages and financial loss.

GUARANTEE CONDITIONS

We guarantee our appliances for 24 months, or in case of commercial use for 12 months, from the date of purchase in case of defects that occur during normal use and are demonstrably due to a factory fault. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

SPECIFICATION TECHNIQUE

Puisance: 500-600W,220-240V\~,50/60Hz

Dimensions: Env. 19,6 × 12,3 × 20,3 cm (LO/LA/HA)

CONDITIONS DE GARANTIE

DIAGNOSTICA DEI PROBLEMI
