USER MANUAL MQ67185 SIEMENS

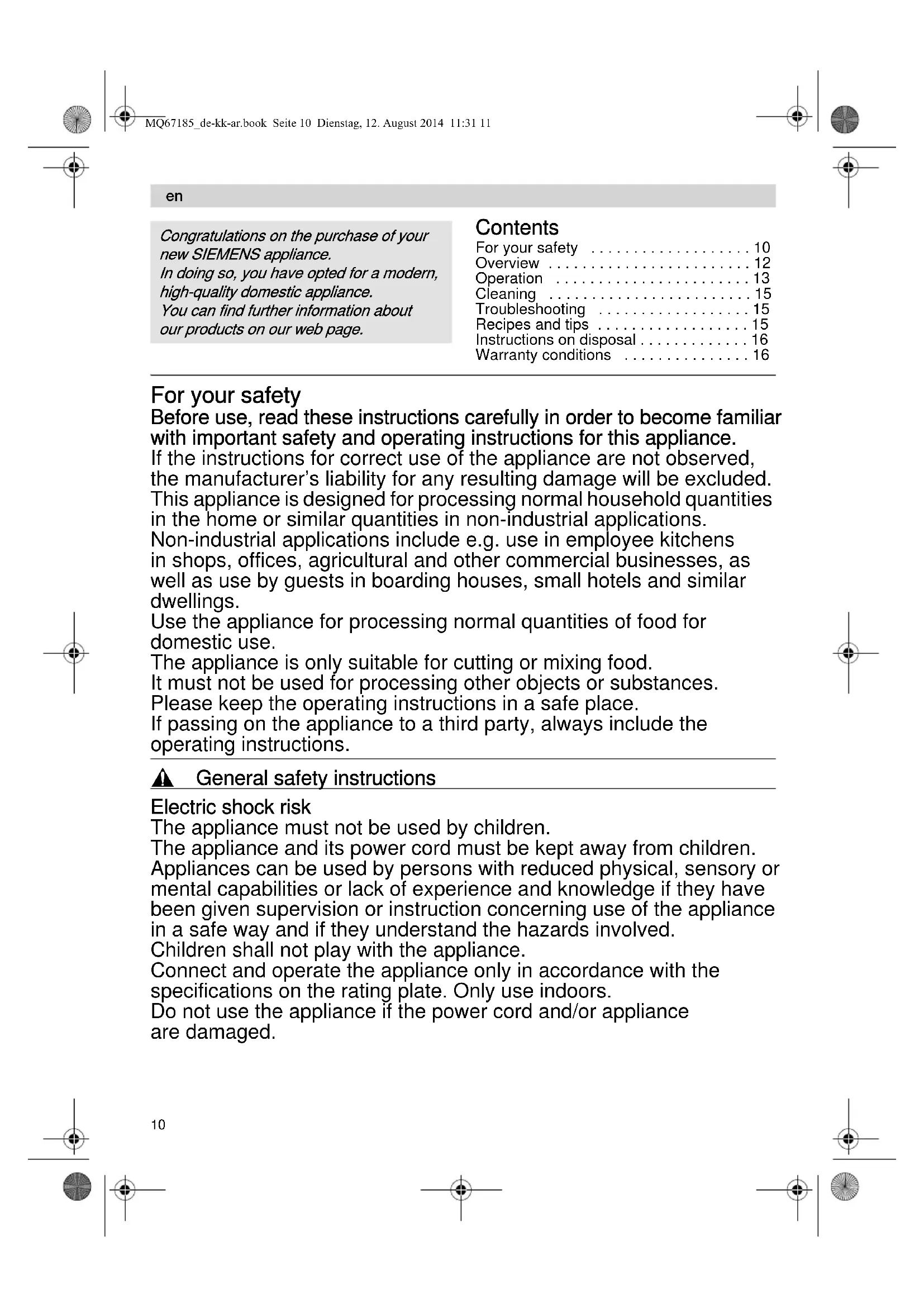

• Änderungen vorbehalten. MQ67185_de-kk-ar.book Seite 9 Dienstag, 12. August 2014 11:31 1110 Contents For your safety p. 10
• Overview p. 12
• Operation p. 13
• Cleaning p. 15
• Troubleshooting p. 15
• Recipes and tips p. 15
• Instructions on disposal p. 16
• Warranty conditions For your safety Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance. If the instructions for correct use of the appliance are not observed, the manufacturer’s liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use. The appliance is only suitable for cutting or mixing food. It must not be used for processing other objects or substances. Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions. , General safety instructions Electric shock risk The appliance must not be used by children. The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged. p. 16

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page. MQ67185_de-kk-ar.book Seite 10 Dienstag, 12. August 2014 11:31 1111 Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Do not place the power cord over sharp edges or hot surfaces. To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person. Only our customer service may repair the appliance. , Safety instructions for this appliance Risk of injury Electric shock risk Do not use the hand blender with damp hands and do not operate it at no load. Do not immerse the appliance in liquid above the blender foot-base unit connection point. Never immerse the base unit in liquids and do not clean in the dishwasher. Caution when processing hot liquids. Liquids may splash during processing. Never place blender foot on hot surfaces or use in very hot food. Leave hot food to cool down to at least 80 °C before processing with the blender! Before using the hand blender in a cooking pot, take the pot off the hotplate. Risk of injury from sharp blades/rotating drive! Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Never grip the blade in the blender foot. Never clean the blades with bare hands. Use a brush. Never grip the blades of the universal blade. Grip the universal blade by the edge of the plastic handle only. Exercise particular caution when handling the attachments! Note shape and location of the insert when inserting it into the carrier disc. Take hold of carrier disc by the designated recessed grips only. Do not place fingers in the feed tube. Only use the pusher when adding more ingredients. When working with the multifunction accessory, the base unit may be switched on only when the lid has been attached and screwed on tight. Do not touch blade with bare hands. Clean them with a brush.

MQ67185_de-kk-ar.book Seite 11 Dienstag, 12. August 2014 11:31 1112 Important! Operate the hand blender with original accessories only. Do not attach or remove accessories until the base unit is at a standstill. Never work with the hand blender/blender foot in the bowl of the multifunction accessory. The blender jug is not suitable for use in the microwave. The bowl of the multifunction accessory are not microwave-safe. Never immerse the lid of the multifunction accessory in liquids and do not wash in the dish washer. Recommendation: Never switch on the appliance for longer as you need to processing the ingredients. , Explanation of the symbols on the appliance or accessory Caution! Rotating tools. Do not place fingers in the feed tube. Overview Please fold out the illustrated pages. Fig. 1 Base unit 2 Power cord 3 Speed control Operating speed can be adjusted steplessly between the lowest ( ) and highest (12) speed (only in conjunction with button 4a). 4 ON button a Controllable speed (with speed control 3) b Turbo speed The hand blender remains switched on as long as an On button (a or b) is pressed. The turbo speed is used for the universal cutter (if included in delivery). 5 Release buttons To remove the blender foot, simultaneously press both release buttons. 6 Blender foot Attach the blender foot and lock into position. 7 Blender blade 8 Blender jug Using the blender jug will prevent the ingredients from splashing. 9Lid Place the lid on the blender jug to keep in the processed food. Multifunction accessory: 10 Bowl 11 Universal blade 12 Carrier disc for disc inserts 13 Disc inserts a) Slicing attachment – coarse b) Slicing attachment – fine c) Shredding insert – medium d) Grating disc insert – coarse 14 Lid with gears 15 Pusher

MQ67185_de-kk-ar.book Seite 12 Dienstag, 12. August 2014 11:31 1113 Operation Warning! The bottom of the receptacle which you use must not have any bumps or recesses. Before using the appliance for the first time, clean all parts of it. Blender foot The blender foot is suitable for blending mayonnaise, sauces, mixed drinks, baby food, cooked fruit and vegetables.For puréeing soups.It is recommended to use the supplied blender jug. However, other suitable receptacles can also be used.Fig. Completely unwind the power cord. Place the blender foot on the base unit and lock into position. Insert the mains plug. Place food in the blender jug or another tall receptacle. The appliance works better if there is some liquid in the ingredients. Set the required speed with the speed control (Fig. -5). It is recommended to use a low speed setting for liquids, hot food and for mixing (e.g. muesli in yoghurt). The high speed settings are recommen-ded for the processing of more solid foods. Firmly hold the hand blender and jug. Switch on the hand blender by pressing the required On button. When switching on the hand blender, hold it at a slight angle to prevent it from “sticking” to the bottom of the blender jug. The hand blender remains switched on as long as the On button is pressed. To prevent the ingredients from splashing, do not press the On button until the blender foot has been immersed in the ingredients.Always switch off the hand blender before taking it out of the processed food. Release the On button after processing.After using the appliance: Remove mains plug. Press the release buttons and remove the blender foot from the base unit. Multifunction accessory The multifunction accessory is suitable for cutting and shredding food. Warning! Multifunction accessory must be completely assembled before use! Caution! Before cutting meat, remove gristle, bones and sinews. The multifunction accessory is not suitable for cutting very hard food (coffee beans, radishes, nutmeg) and frozen food (fruit, etc.). Universal blade For cutting meat, hard cheese, onions, herbs, garlic, fruit, vegetables, nuts, almondsAlways observe the maximum quantities and processing times in the table (Fig. Fig.

Place bowl on a smooth and clean work surface. Insert universal blade. Add food. Warning! Universal blade must be upright in the bowl so that the lid fits correctly (Fig.=

Risk of injury from sharp blades/ rotating drive! While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients. After switching off, the drive continues running for a short time. Change tools only when the drive is at a standstill. When working with the multifunction accessory, the base unit may be switched on only when the lid has been attached and screwed on tight. The blade is sharp and can cause injury! Never grip the blades of the universal blade. Take hold of the universal blade by the plastic handle only. Do not touch blade with bare hands. Clean them with a brush. MQ67185_de-kk-ar.book Seite 13 Dienstag, 12. August 2014 11:31 1114 Place lid on the bowl and turn all the way anti-clockwise. If there are larger quantities of ingredients in the bowl, it may take a little more effort to attach the lid. If required, turn the three- winged coupling on the underside of the lid into the correct position. Place the base unit on the attachment and lock into position. Insert pusher. Insert the mains plug. Hold the base unit and universal cutter firmly and switch on the appliance (turbo speed). To add more ingredients, release the On button. Wait until the tool comes to a standstill. Remove the pusher and add ingredients through the feed tube. Release the On button after processing. After using the appliance: Remove mains plug. Press the release buttons and remove the base unit from the attachment. Turn lid clockwise and remove from the bowl. Take hold of the universal blade by the plastic handle and take out. Carrier disc with disc inserts Slicing attachment – coarse Set speed control to low speed for cutting: cucumbers, carrots, potatoes. Slicing attachment – fine Set speed control to low speed for cutting: cucumbers, carrots, beetroot, zucchini. Shredding insert – medium Set speed control to high speed for shredding: apples, carrots, cheese, cabbage. Grating disc insert – coarse Set speed control to high speed for grating: potatoes for dumplings, potato pancakes; fruit and vegetables for raw vegetable salad. Always observe the maximum quantities and processing times in the table (Fig.

Caution! The disc inserts must not be used for cutting very hard foods (Parmesan cheese, choco- late). The disc inserts are only partly suitable for processing fibrous foods (leek, celery, rhubarb). Fig. Place bowl on a smooth and clean work surface. Insert the required insert into the carrier disc. Note the form and the location (Fig. -1)! Take hold of carrier disc by the recessed grips and insert into the bowl. Place lid on the bowl and turn all the way anti-clockwise. Place the base unit on the attachment and lock into position. Insert the mains plug. Set the required speed with the speed control. Hold base unit and multifunction accessory firmly and switch appliance on. Put ingredients to be cut or shredded through the feed tube. When adding contents which are to be sliced or shredded, apply only light pressure to the pusher. Warning! Empty the bowl before it becomes so full that the cutting or grating contents reach the carrier disc. Release the On button after processing. After using the appliance: Remove mains plug. Press the release buttons and remove the base unit from the attachment. Turn lid clockwise and remove from the bowl.

The blade is sharp and can cause injury! Exercise particular caution when handling the attachments! Note shape and location of the insert when inserting it into the carrier disc. Take hold of carrier disc by the designated recessed grips only. Do not place fingers in the feed tube. Only use the pusher when adding more ingredients. MQ67185_de-kk-ar.book Seite 14 Dienstag, 12. August 2014 11:31 1115 Grip the carrier disc by the recessed grips and lift out of the bowl. Turn the carrier disc over and carefully press out the insert from the underside (Fig.

Cleaning Base unit and tools Warning! Never immerse the base unit in liquids and do not clean in the dishwasher. Do not use a steam cleaner! Surfaces may be damaged. Do not use abrasive cleaning agents. If processing e.g. red cabbage or carrots, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil. Pull out the mains plug! Wipe the base unit with a damp cloth and then wipe dry. The blender jug can be cleaned in the dishwasher. Clean the blender foot in the dishwasher or with a brush under running water. Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out. Multifunction accessory Warning! Never immerse the lid of the multifunction accessory in liquids and do not wash in the dish washer. Wipe lid with a damp cloth only or rinse briefly under running water. Bowl, universal blade, carrier discs and disc inserts are dishwasher-proof. Do not wedge plastic parts in the dishwasher as they could warp. Troubleshooting If the fault cannot be eliminated, please contact customer service. Recipes and tips Mayonnaise Tool: Blender foot 1 egg (egg yolk and egg white) 1 tbs. mustard 1 tbs. lemon juice or vinegar 200–250 ml oil Salt, pepper to taste Ingredients must be at the same temperature! Put the ingredients in the jug. Place hand blender in the bottom of the jug and switch on (turbo speed) until the mixture emulsifies. Slowly raise the switched on blender as far as the upper edge of the mixture and lower again until the mayonnaise is ready. Tip: According to this recipe you can also make mayonnaise with egg yolk only. However, use only half the amount of oil. Vegetable soup Tool: Blender foot 300 g potatoes 200 g carrots 1 small stick of celery 2 tomatoes 1 onion 50 g butter 2 l water Salt, pepper to taste Skin and seed the tomatoes. Chop up cleaned and washed vegetables and sauté in the hot butter. Add water and salt.

Fault Remedial action Appliance switches off during use. The overload protection feature has been activated.

Switch off the appliance and pull out the mains plug.

Leave the appliance to cool down for approx. 1 hour in order to deactivate the overload protection device.

Switch on appliance again. MQ67185_de-kk-ar.book Seite 15 Dienstag, 12. August 2014 11:31 1116 Leave to cook for a good 20–25 min. Take the pan off the cooker. Purée the soup in the pan with the blender. Season with salt and pepper. Crêpes dough Tool: Blender foot 250 ml of milk 1 egg 100 g flour 25 g melted cooled butter Put all ingredients in the jug in the indicated sequence and blend to a smooth dough. Blended milk drinks Tool: Blender foot 1 glass of milk 6 large strawberries

10 raspberries or 1 banana (sliced) Put the ingredients in the jug and blend. Add sugar to taste. Tip: For a milk shake add a scoop of ice cream or use very cold milk. Instructions on disposal This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment – WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances. Please ask your dealer or inquire at your local authority about current means of disposal. Warranty conditions The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
