Brand	Siemens
Model	MK3501M
Product type	Food processor
Dimensions (L x D x H)	40 x 30 x 35 cm
Weight	5.5 kg
Power supply	220-240 V, 50/60 Hz
Motor power	800 W
Bowl capacity	3.5 liters
Speeds	6 speeds + turbo
Main functions	Knead, mix, whisk, blend, chop
Included accessories	Bowl, whisk, dough hook, blender, knife, grater
Bowl material	Stainless steel
Care and cleaning	Dishwasher-safe accessories, hand-wash bowl
Safety	Bowl safety lock, automatic shut-off in case of overload
Spare parts	Available on the Siemens website or authorized retailers
Repairability	Repairability index 8.1/10
Warranty	2 years

Frequently Asked Questions - MK3501M SIEMENS

How to use the turbo mode?

The turbo mode is activated by turning the speed selector to the 'T' (turbo) position. Hold it down for maximum power. Do not use for more than 30 seconds.

Which accessories are compatible with the MK3501M?

The MK3501M is compatible with Siemens accessories from the MK3xxx series, including the whisk, dough hook, and blender. Check the reference in the manual.

How to clean the stainless steel bowl?

Wash the bowl by hand with warm water and dish soap. Avoid abrasive sponges to prevent scratching the surface. The bowl is also dishwasher-safe.

The appliance stops during use, what to do?

The automatic shut-off triggers in case of overload. Remove some of the food, let it cool for 5 minutes, then restart. If the problem persists, check that the bowl is properly locked.

Can I blend hot liquids?

Yes, but do not exceed 60°C to avoid splashes. Fill the blender halfway and cover the lid well.

How to adjust the speed?

Turn the speed selector from 1 (slow) to 6 (fast). The 'T' position is for turbo. Always start at speed 1 to avoid splatters.

Where to find the user manual?

The manual is available for free download on notice-facile.com in PDF format. You can also request a paper version from Siemens customer service.

The dough hook does not turn, what to check?

Make sure the hook is correctly inserted and the bowl is properly locked by turning the handle until it clicks. Also check that the appliance is not in 'turbo' mode.

Can I use the appliance without the bowl?

No, the food processor only works with the bowl in place. The lid must also be closed for safety reasons.

How to get a spare part?

Contact Siemens customer service or visit the online store. Use the reference MK3501M to order accessories or spare parts.

USER MANUAL MK3501M SIEMENS

Register your product online

This appliance is intended for domestic use and the household environment only. Use the appliance only for processing normal amounts of food and for normal amounts of time in domestic use. The appliance is suitable for mixing, kneading, beating, cutting and shredding food. The appliance must not be used for processing other substances or objects. Additional applications are possible if other accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the accessory parts for other appliances.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety notices

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give the appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

Never immerse the base unit in liquids or place under running water and do not clean in the dishwasher.

Before rectifying a fault, pull out the mains plug.

Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients.

After switching off, the drive continues running for a short time.

Change tools only when the drive is at a standstill.

Risk of injury from sharp blades/rotating drive!

Never reach into the attached blender jug!

Do not remove/attach the blender jug until the drive has stopped. Do not remove/attach the universal cutter jug until the drive has stopped.

Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush.

Do not grip the sharp blades or edges of the cutting discs. Grip the discs by the plastic part in the centre only!

Do not place fingers in the feed tube. Only use the pusher when adding more ingredients. Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,4 litres of hot or frothing liquid.

Risk of injury!

Never assemble accessories on the base unit.

Important!

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period. → “Cleaning and servicing” see page 18

Explanation of the symbols on the appliance or accessory

Caution! Rotating tools.

Do not place fingers in the feed tube.

Lock blade insert in the blender or universal cutter jug.

Remove blade insert from the blender or universal cutter jug.

Blade insert with blender/cutting blade

Blade insert with grinding blade

Congratulations on the purchase of your new Siemens appliance. You can find further information about our products on our website.

Contents

Intended use 13

Important safety notices 13

Overview 15

Operation 15

Cleaning and servicing 18

Troubleshooting 19

Storage 19

Disposal.... 19

Guarantee 19

Recipes / Ingredients / Processing ..... 20

Overview

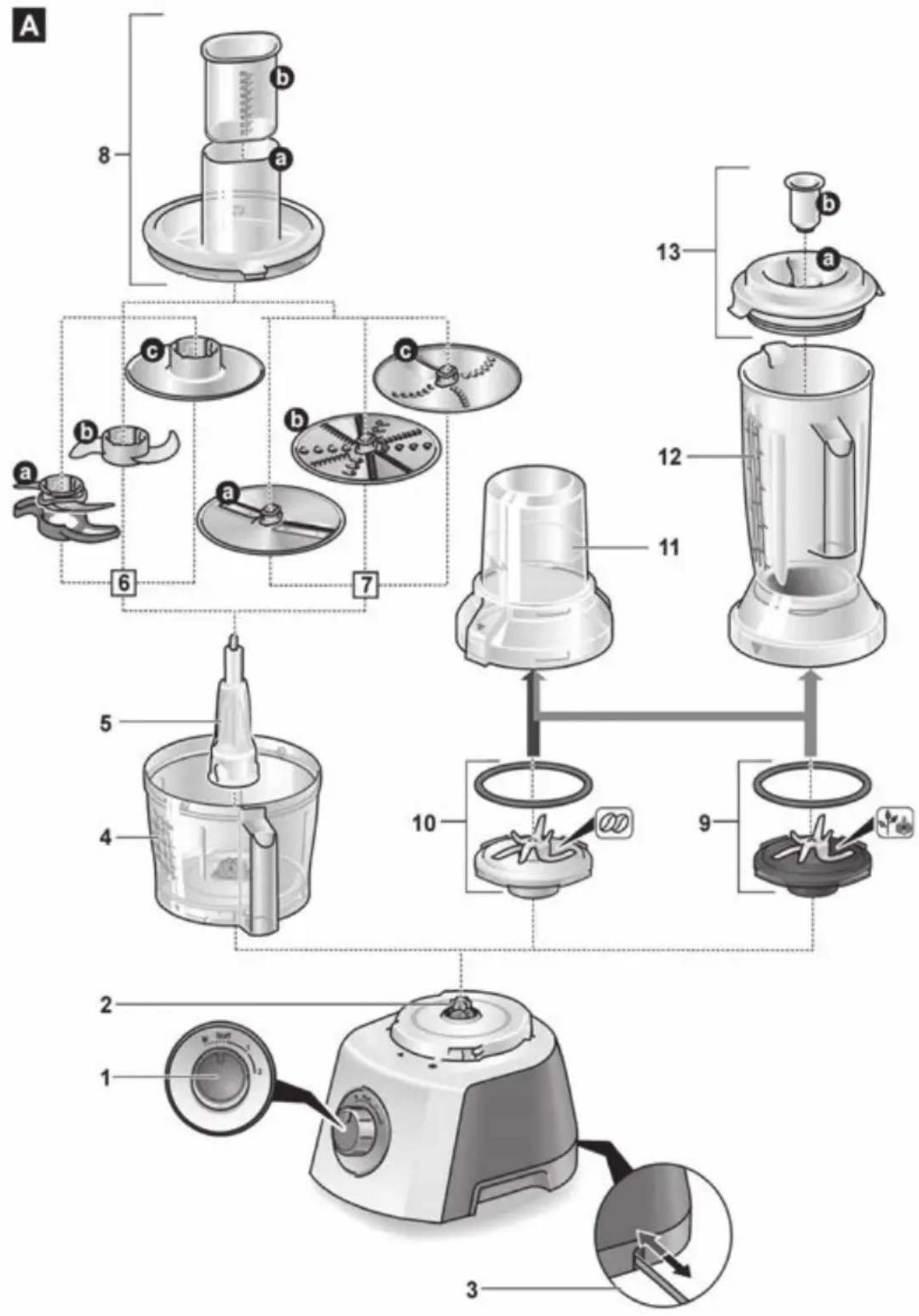

Fig. A

Base unit

1 Rotary switch

$$ 0 / \text { o f f } = \text { S t o p } $$

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–2, Operating speed:

1 = low speed - slow,

2 = high speed - fast.

2 Drive

3 Cord store

4 Bowl

5 Tool holder

6 Tools\*

a Universal blade with blade guard
b Kneading hook
c Beating disc

7 Cutting discs*

a Slicing reversible disc – thick/thin
b Shredding reversible disc – coarse/fine
c Reversible slicing/shredding disc

8 Lid

a Filler opening
b Pusher

Accessories*

9 Blade insert with blender/cutting blade and seal

10 Blade insert with grinding blade and seal

11 Universal cutter jug
12 Blender jug
13 Lid for blender

a Filler opening
b Funnel-shaped stopper

* for some models

If the universal cutter is not included, it can be ordered from customer service (order no. 12005833).

Operation

Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

Preparation

■ Place the base unit on a smooth, clean surface.
■ Pull cable out of the base unit to the required length.

Important information

• Use only the rotary switch to switch the appliance on or off.
• Never switch the appliance off by rotating the bowl, the blender or a tool.
• Do not switch the appliance on unless tools or accessories have been completely attached.

Bowl with accessories/tools

⚠️ Risk of injury from the rotating tools!

While the appliance is operating, never place fingers in the mixing bowl. Always use the pusher for adding ingredients. After switching off, the drive continues running for a short time. Change tools only when the drive is at a standstill.

Warning!

When working with the bowl, the appliance cannot be switched on until the bowl has been attached and the lid has been attached and screwed on tight.

Universal blade

for cutting, mincing, mixing.

⚠️ Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Grip the universal blade by the edge of the plastic handle only.

Kneading hook

for kneading dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips).

Beating disc

for cream, egg white and mayonnaise.

Fig. B

■ Attach the bowl (arrow on bowl on dot on the appliance ▼) and rotate as far as possible in a clockwise direction (▼).
■ Insert tool holder into the bowl.

■ Insert universal blade, whisking disc or kneading hook into the tool holder and release.

Note position of the tools when inserting them! Press tools all the way down.

Warning!

Do not add ingredients until the tools have been inserted.

■ Add ingredients.
■ Attach lid with pusher (match arrow on lid on dot on bowl ▼) and rotate in a clockwise direction (▼). Lid lug must be located fully in the slot in the bowl handle.

■ Insert the mains plug.
■ Set the rotary switch to the desired setting.
■ To add more ingredients, set the rotary switch to 0/off.
■ Remove the pusher and add ingredients through the feed tube. Pusher can be used as a measuring cup.

Cutting discs

⚠️ Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs. Grip the discs by the plastic part in the centre only! Do not place fingers in the feed tube. Only use the pusher when adding more ingredients.

Slicing reversible disc – thick/thin

for slicing fruit and vegetables.

Process at setting 1.

Identification on the reversible slicing disc: "grob" for the thick cutting side, "fein" for the thin cutting side

Warning!

The reversible slicing disc is not suitable for slicing hard cheese, bread, rolls or chocolate. Slice boiled, waxy potatoes only when they are cold.

Shredding reversible disc – coarse/fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan).

Process at setting 1.

Designation on the reversible shredding disc: "2" for the coarse shredding side "4" for the fine shredding side

Warning!

The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 2.

Reversible slicing/shredding disc for slicing and shredding fruit, vegetables and cheese. Process at setting 2.

Note: Do not process any hard foods using the slicing/grating reversible disc as this may blunt the blade. Use the slicing reversible disc (thick/thin) for this purpose.

Fig. C

■ Attach the bowl (arrow on bowl on dot on the appliance ▼) and rotate as far as possible in a clockwise direction (▼).
■ Insert tool holder into the bowl.

Depending on the required use:

■ Place cutting disc on tool holder. Turn required slicing/shredding side face up. Place disc on the disc holder so that the drivers on the tool holder grip the opening in the discs.
■ Attach lid with pusher (match arrow on lid on dot on bowl ▼) and rotate in a clockwise direction (▼). Lid lug must be located fully in the slot in the bowl handle.

■ Insert the mains plug.
■ Set the rotary switch to the desired setting.
■ Fill with contents which are to be sliced or shredded.
■ When adding contents which are to be sliced or shredded, apply only light pressure to the pusher. Remove the pusher and add ingredients through the feed tube.

Warning!

Empty the bowl before it becomes so full that the cutting or grating contents reach the carrier disc.

After using the appliance

■ Set the rotary switch to 0/off.
■ Remove mains plug.
■ Rotate the lid in an anti-clockwise direction and remove.

■ Remove tool:

Take tool holder together with universal blade, whisking disc or kneading hook out of the bowl. Remove the tools from the tool holder.

■ Take out the cutting discs by the plastic stud in the centre. Take tool holder out of the bowl.
■ Rotate bowl anti-clockwise and remove.
■ Clean all parts, see “Cleaning and servicing”.

Blender

Blade insert with blender/cutting blade for mixing liquid or semi-solid food, for cutting/chopping raw fruit and vegetables, for puréeing food.

⚠️ Risk of injury from sharp blades / rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill. Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,4 litres of hot or frothing liquid.

Warning!

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty.

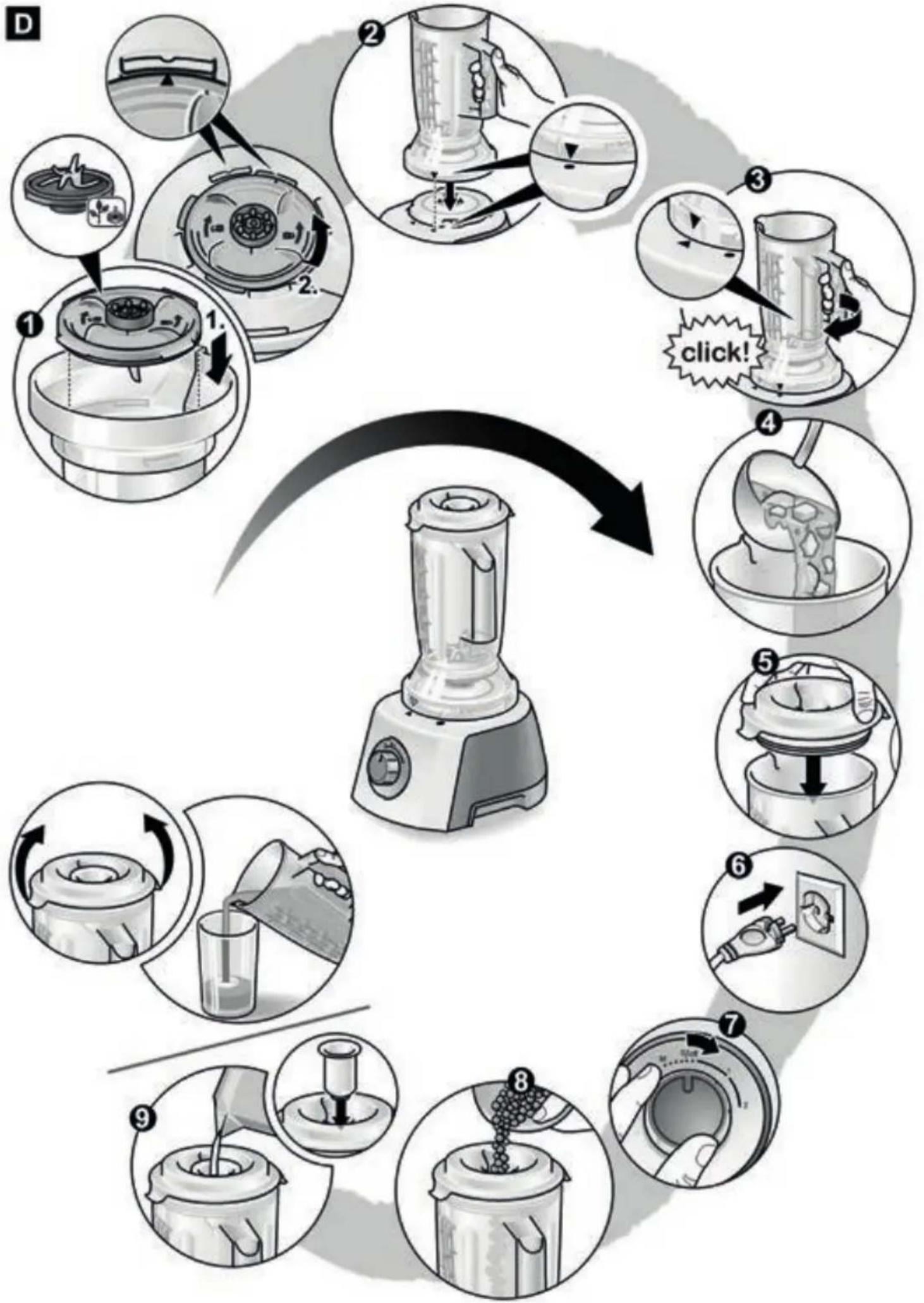

Fig. D

■ Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

■ Insert blade insert with blender/cutting blade 🍻 into the blender jug and lock anti-clockwise ( 🔒 ). Rotate the blade insert at least until the arrow matches up with the marking on the blender jug.

■ Turn blender jug over (blade insert face down).
■ Attach the blender jug (match arrow on the jug to the dot on the appliance ▼) and rotate as far as possible in a clockwise direction (▼).

en Cleaning and servicing

■ Add ingredients.

Maximum capacity, liquid = 1.0 litres (frothing or hot liquids max. 0.4 litres).

Optimal processing capacity – solids = 80 g.

■ Attach lid and press firmly. Hold lid while working.
■ Insert the mains plug.
■ Set the rotary switch to the desired setting.
■ To add more ingredients, set the rotary switch to 0/off.
■ Remove the lid and add ingredients

or

■ remove the funnel and gradually add solid ingredients through the refill opening

or

■ pour liquid ingredients through the funnel.

After using the appliance

■ Set the rotary switch to 0/off.
■ Remove mains plug.
■ Rotate the blender in an anti-clockwise direction and remove.
■ Remove lid.
■ Loosen blade insert clockwise (☐) and remove from the blender jug.
■ Clean all parts, see “Cleaning and servicing”.

Universal cutter

Use (depending on model):

- With the blade insert with blender/cutting blade 🍻 for cutting and chopping meat, hard cheese, onions, herbs, garlic, fruit, vegetables.

- With the blade insert with grinding blade ① for grinding and cutting fairly small quantities of spices (e.g. pepper, cumin, juniper, cinnamon, dried anise, saffron), grain (e.g. wheat, millet, linseeds), coffee and sugar.

⚠️ Risk of injury from sharp blades / rotating drive!

Do not remove/attach the universal cutter until the drive has stopped.

Do not touch blades of the blade insert with bare hands. Clean them with a brush.

Fig. F shows guide values for the maximum quantities and processing times when working with the universal cutter.

Fig. E

■ Put down universal cutter jug with the opening face up.
■ Add food, which is to be cut, in the jug.

Note MAX mark on the jug!

■ Place seal on the blade insert. Ensure that the seal is positioned correctly.

Important information

If the seal is damaged or not correctly positioned, liquid may run out.

■ Insert blade insert (☐/☐) into the universal cutter jug and lock anti-clockwise (☐).

■ Turn universal cutter over (blade insert face down).
■ Attach the universal cutter (arrow on jug on dot on the appliance ▼) and rotate all the way clockwise (▼).
■ Insert the mains plug.
■ Set the rotary switch to the desired setting.

Note: The longer the appliance remains switched on, the finer the ingredients are cut.

Recommendations on using the accessories can be found in the section "Recipes/Ingredients/Processing".

After using the appliance

■ Set the rotary switch to 0/off.
■ Remove mains plug.
■ Rotate universal cutter anti-clockwise and remove.
■ Turn universal cutter over (blade insert face up).
■ Loosen blade insert clockwise (☐) and remove from the universal cutter jug.
■ Empty jug.
■ Clean all parts, see “Cleaning and servicing”.

Cleaning and servicing

The appliance requires no maintenance.

Thorough cleaning protects the appliance from damage and keeps it functional.

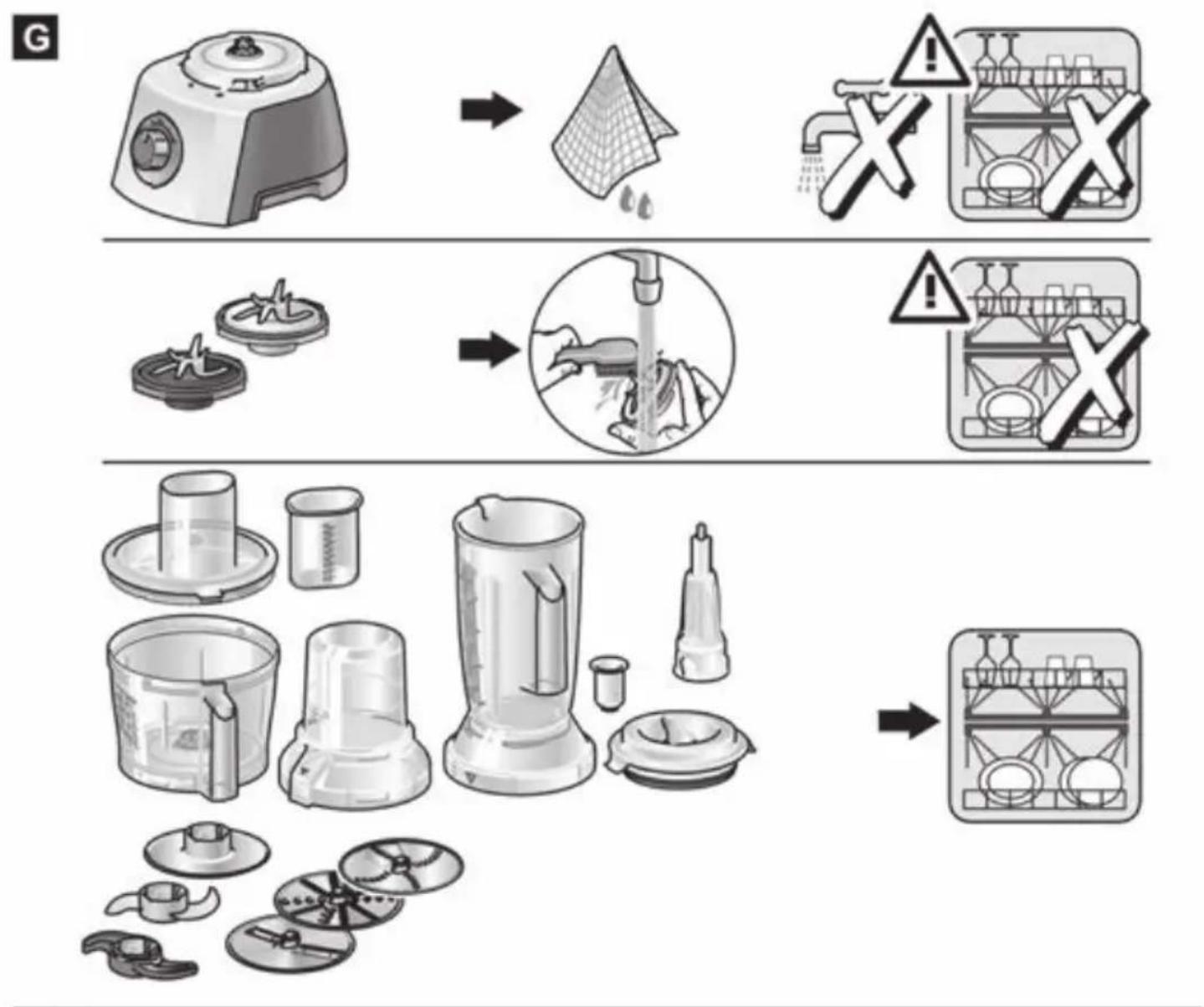

An overview of cleaning the individual parts can be found in Fig. G.

Risk of electric shock

Never immerse the base unit in water or place under running water.

Warning!

Surfaces may be damaged. Do not use abrasive cleaning agents.

Note: If processing e.g. carrots and red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

Cleaning the base unit

■ Remove mains plug.
■ Wipe the base unit with a damp cloth.
If required, use a little detergent.
■ Then dry the base unit.

Cleaning the bowl and accessories

⚠️ Risk of injury from sharp blades!

Do not touch blades of the universal blade with bare hands. When not in use, always store the universal blade in the blade guard. Clean them with a brush. Do not grip the sharp blades or edges of the cutting discs. Grip the discs by the plastic part in the centre only!

All parts are dishwasher-proof. Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender / universal cutter

⚠️ Risk of injury from sharp blades!

Do not touch blades of the blade insert with bare hands. Clean them with a brush.

The blender jug (without blade insert), lid and funnel are dishwasher-proof.

Do not clean the blade insert in the dishwasher, but under running water (do not soak in water). Remove seal for cleaning.

Troubleshooting

Risk of injury!

Before rectifying a fault, pull out the mains plug.

Fault:

Appliance does not start or appliance switches off during operation.

Possible cause:

Bowl or lid or the accessory has not been attached correctly or has become detached.

Remedial action:

■ Set the rotary switch to 0/off.
■ Correctly attach bowl/lid or accessory and screw on all the way.
■ Switch the appliance on again.

Important information

If the fault cannot be eliminated, please contact customer service (see customer service addresses at the end of this booklet).

Storage

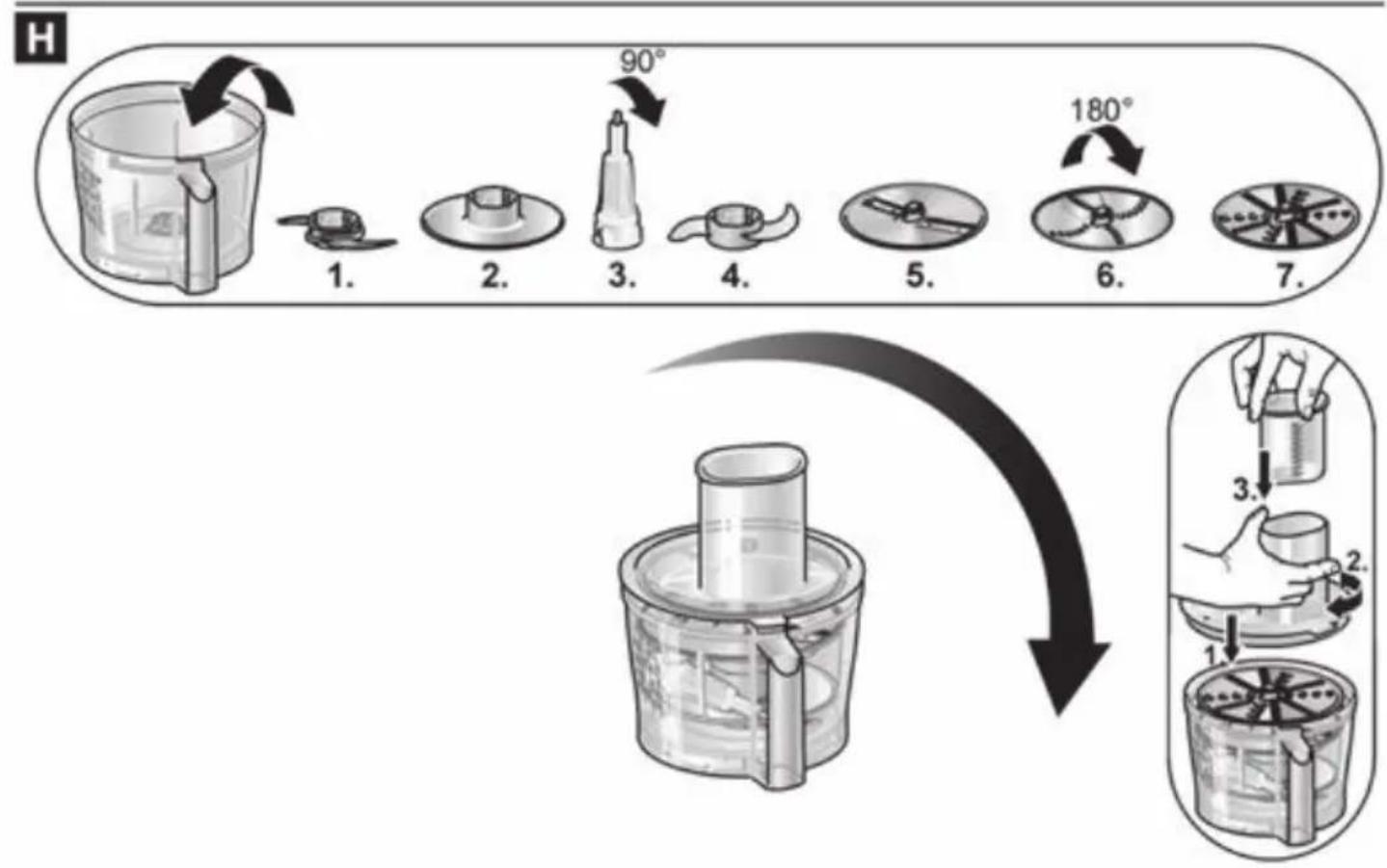

Fig. H

The tools can be stored in the bowl to save space.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Recipes / Ingredients / Processing

Tool Speed Time Recipes / Ingredients / Processing
	low approx.1-2 min	Yeast dough– Max. 500 g flour– 25 g yeast or 1 packet of dried yeast– 220 ml milk (room temperature)– 1 egg– 1 pinch of salt– 80 g sugar– 60 g butter– Graded rind of half a lemon■ Add all ingredients (except the milk) to the bowl.■ Set rotary switch to a low speed for 10 seconds.■ Add milk and stir at low speed for about 112 minutes.Ingredients should be at the same temperature. When the dough has a smooth appearance, place in a warm location.
	M Onions, garlic	– from 1 onion, quartered, up to 300 g– from 1 clove of garlic up to 300 g■ Process until it has been chopped to the required size.
	high Hard cheese (e.g. parmesan)	– 10 g to 200 g■ Cut the cheese into cubes.■ Process until it has been chopped to the required size.
	high Chocolate	– 50 g to 200 g■ Cut or break the chocolate into pieces.■ Process until it has been chopped to the required size.
	high Parsley	– 10 g to 50 g■ Process until it has been chopped to the required size.
	high Meat, liver (for mince, steak tartare, etc.)	– 50 g to 500 g■ Remove bones, gristle and sinews. Dice the meat.Making sausage meat, stuffing and pâté:■ Put meat (beef, pork, veal, poultry, or even fish, etc.) together with other ingredients and spices into the bowl and mix into a dough.
	high approx.1.5-2min	Strawberry sorbet– 250 g frozen strawberries– 100 g icing sugar– 180 ml cream■ Put all ingredients in the bowl. Switch on immediately, otherwise the mixture will go lumpy. Mix until a creamy sorbet forms.
	low Beaten egg white	– 2 to 6 egg whites■ Beat at a low speed.
	high Whipped cream- 200 g to 400 g■ Whisk at high speed.
	low/high	Mayonnaise- 1 egg- 1 tsp. mustard- 150-200 ml oil- 1 tbs. lemon juice or vinegar- 1 pinch of salt- 1 pinch of sugarIngredients should be at the same temperature.■ Mix all ingredients (except oil) for several seconds at setting 1.■ Switch appliance to setting 2, slowly pour oil through the feed tube and mix until the mixture emulsifies.Eat the mayonnaise immediately, do not store.
	high/M Nuts, almonds- 50 g to 200 g■ Remove shells completely, otherwise the blender blade will be blunted.■ Process until it has been chopped to the required size.
	high/M Puréeing fruit or vegetables- Apple sauce, spinach, carrot and tomato purée; raw or cooked■ Put ingredients and spices into the blender and purée.
	high Chocolate-milk- 80 g-100 g cooled chocolate- approx. 400 ml hot milk■ Chop up the chocolate in the blender, add the hot milk and mix briefly.
	M Honey and hazel nut spread (CNCM12C)- 20 g hazelnuts- 80 g blossom honey (room temperature)■ Put the nuts in the universal cutter jug and cut with the blender cutting blade for 5 seconds on setting M.■ Remove the universal cutter jug, turn it over and take out the blade insert.■ Add the honey. Close the universal cutter jug again with the blade and put on the base unit.■ Wait until all the honey has run down over the blade. Then mix everything for 5 seconds on setting M.
	Fig. F shows guide values for the maximum quantities and processing times when working with the universal cutter jug and the blade inserts.

⚠️ Fare for skoldning!

⚠️ Fare for skolding!

www.siemens-home.bsh-group.com/tr www.yetkiliservis.siemens-home.bsh-group.com

(waste electrical and electronic equipment – WEEE).

AU Australia BSH Home Appliances Pty. Ltd. Gate 1, 1555 Centre Road Clayton, Victoria 3168 Tel.: [phone]* mailto:[e-mail] www.siemens-home.bsh-group.com/au * Mo-Fr: 24 hours

BE Belgique, België, Belgium BSH Home Appliances S.A. – N.V. Avenue du Laerbeek 74 Laarbeeklaan 74 1090 Bruxelles – Brussel Tel.: [phone] mailto:[e-mail] www.siemens-home.bsh-group.com/be

BH Bahrain Bahrain Gas WLL Bldg 725 / Road 117 / Block Sheikh Salman Highway, Tubli-701; Bahrain Manama Tel.: [phone]* mailto:[e-mail] * Sun-Thu: 8.00 am to 6.00 pm (exclude public holidays)

BY Belarus, Беларусь ООО "БСХ Бытовая техника" тел.: [phone] mailto:[e-mail]

siemens-home.bsh-group.com

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

www.siemens-home.bsh-group.com/gr

HK Hong Kong,香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor, North Block,

Skyway House, 3 Sham Mong Road

Tai Kok Tsui, Kowloon,

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 030 (Macao)

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hk

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.siemens-home.bsh-group.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bhārat,भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House,

Main Bldg, 2nd Floor,

Plot No. 103,

Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

* Mo-Sa: 8.00 am to 8.00 pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

LB Lebanon

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

www.siemens-home.bsh-group.com/lu

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti, nr. 19-21, sect.1

13682 Bucuresti

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Россия

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SK Slovensko, Slovakia

www.siemens-home.bsh-group.com/sk/

www.siemens-home.bsh-group.com/tr

www.siemens-home.bsh-group.com/ua

XK Kosovo

Service-General SH.P.K.

rr. Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel.: 00381 (0) 290 330 723

Tel.: [phone]

mailto:[e-mail]

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

www.siemens-home.bsh-group.com

E

F

						M=1 sec
			X	120 g	15 s	2
			X	100 g	5–15 s	2
			X	50 g		(1–3)xM
			X	15x		(2–5)xM
			X	10 g		(2–5)xM
		X		60 g	40–60 s	2
		X		50 g		(5–10)xM
		X		100 g	40–60 s	2
		X		50 g	40–60 s	2

