| Product Type | Wireless Access Point |
| Brand | LevelOne |
| Model | WAB5010 |
| Default IP Address | 192.168.188.253 |
| Default Username | User / Admin |
| Default Password | admin / root |
| Power Supply | PoE 802.3at (WAN/POE port) or 12V/1A power adapter (not included) |
| Network Ports | 1 WAN/POE port 10/100 Mbps, 1 LAN port 10/100 Mbps |
| LED Display | Built-in OLED screen to display channel, IP, signal strength |
| LED Indicators | 5G (blinking green), LAN (solid green), WAN (solid green), SYS (slow/fast blinking solid green) |
| Reset Button | Yes (RST), press 10s with device powered on |
| Operating Modes | Access Point (master) and WDS Client (slave) |
| Management | Web interface (Web UI) via browser |
| Requirements | PC with IP address in range 192.168.188.2-250 |
| Package Contents | Access point, quick installation guide |
| Maintenance and Cleaning | Clean with a soft, dry cloth. Do not use solvents. |
| Security | WPA2, WPA, WEP (not specified by default, configurable via UI) |
| Spare Parts and Repairability | Power adapter sold separately. No spare parts available. |
Frequently Asked Questions - WAB5010 LEVELONE
User questions about WAB5010 LEVELONE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Access Point in PDF format for free! Find your manual WAB5010 - LEVELONE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WAB5010 by LEVELONE.
USER MANUAL WAB5010 LEVELONE
Quick Installation Guide
(WAB-5010)
V1.0
Digital Data Communications GmbH, Germany.
http://www.level1.com
Content
English. 1
Deutsch. 4
Francais. 8
Espanol. 11
Portugues. 15
Italiano. 19
Figure 1. 23
Figure 2. 23
Figure 3. 23
Package Contents
- Quick Installation Guide
- RJ45 Network Cable
- Pole Mounting Hose Clamp (40-64mm)
- Resource CD (User Manual, QIG)
English

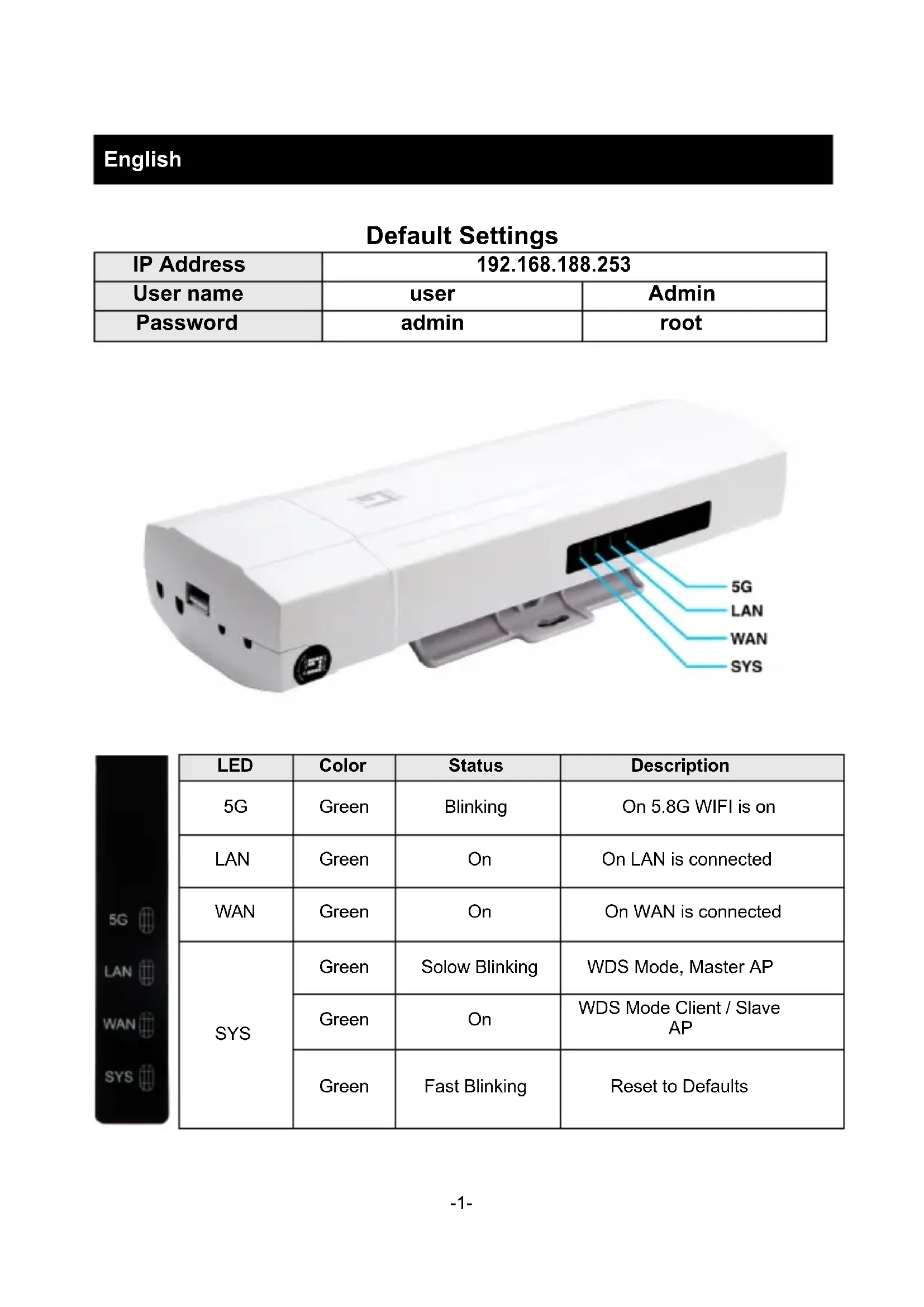

Default Settings
| IP Address | 192.168.188.253 | |
| User name | user | Admin |
| Password | admin | root |

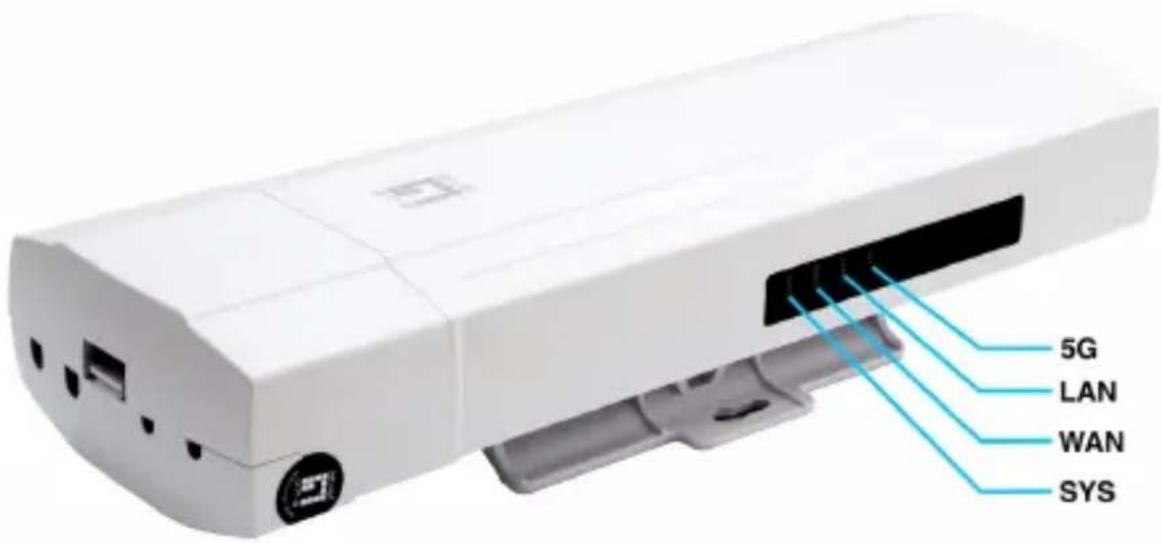

| LED | Color | Status | Description |
| 5G | Green | Blinking | On 5.8G WIFI is on |
| LAN | Green | On | On LAN is connected |
| WAN | Green | On | On WAN is connected |
| SYS | Green | Solow Blinking | WDS Mode, Master AP |
| Green | On | WDS Mode Client / Slave AP | |
| Green | Fast Blinking | Reset to Defaults |
Interface Description

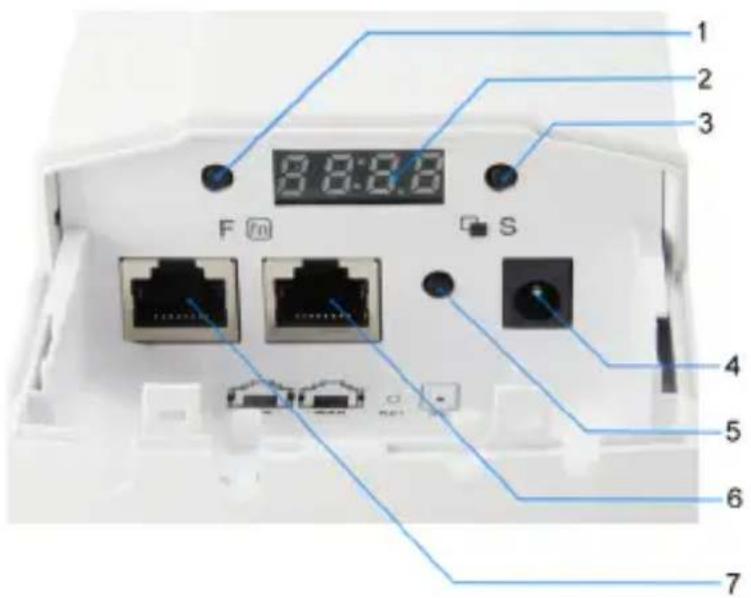

| Marked number | LED/Button/Interface | Description |
| 1 | LED display Function Button | Select modify location |
| 2 | LED display | show AP/Client operation mode, Channels, IP address and RF Power .(If not operate this LED display in 10 mins, the screen will be automatically black screen) |
| 3 | LED display Selection Button | Can select the Increase or decrease value ; View Channels, IP address and Signal strength status. |
| 4 | DC | 12V/1A DC input injector (Power adapter unit is to be ordered separately) |
| 5 | RST(Reset to Default) | With the AP powered on, press the Reset button for 10 seconds until the Signal Strength LED blink faster than ever. The AP will restart itself and reset the device to factory default settings. |
| 6 | WAN/POE port (10/100Mbps RJ45 port) | The WAN/POE port is used to connect to network devices, such as a switch OR POE adapter to power the device |
| 7 | LAN port (10/100Mbps RJ45 port) | The LAN port is used to connect to network devices, such as a switch or PC / NB |
| LED Display Content | Content Instruction | Remark |
| H 149 | H: Hotspot, WDS mode, Master AP 149: Channel is 149 | Show the channel of AP and Client; PIs note, the channel should be same of AP and Client. If not operate this LED display in 10 mins, the screen will be automatically black screen |
| C 149 | C: Client, WDS Mode, Slave AP 149: Channel is 149 | |
| A253 | A: IP Address 253: IP address is 192.168.188.253 | Show AP or Client's IP address; Remark: In AP and Clients, there is one device with IP address: 192.168.188.253; Other device with IP of 192.168.188.X, to avoid the IP address conflict. |
| P-42 | P: RF Power -42: The signal Strength is -42dBm | The signal strength is different if distance different. |
Hardware Installation
Power on the Device.
To power on the AP, you can use one of the following methods:
- Plug one end of your Ethernet cable into the WAN port of the AP, and the other end into a port on a PoE switch or a 802.3at PoE injector.
- Connect the power adapter. (Power adapter unit is to be ordered separately)
Configuring the Device
To set up and manage the AP, you can use one of the following methods:
- Connect the access point and your computer to the same switch or router. Manage the access point from the computer. (Figure 1)
Software Installation
To login to the LevelOne AP, please perform the following steps:
- Check Your Network Settings to login web UI.
Please make sure your PC can get IP address automatically, so the router can communicate with your PC during configuration. - Select "Control Panel" > "Network Connections".
- Right click the "Local Area Connection" and choose "Properties".
- Select the TCP/IP protocol for your network card.
-
Change the IP Address of PC: To configure the IP Address, click the network icon to open the Ethernet dialog to configure the IP Address. Select "Properties", choose "Internet Protocol (TCP/IP)" and select "Properties". Input the IP Address "192.168.188.2 ~ 192.168.188.250" and continue. (Figure 2)
-
Launch a Web browser (Microsoft Internet Explorer 8 for example), enter the AP's default LAN IP address 192.168.188.253 in the address bar, and then press Enter, as shown in the following picture. (Figure 3)
- Then enter the default user name of admin and password of admin in the User Name and Password fields, click "OK" to access the AP's Web GUI.
