USER MANUAL DR 3536 CLATRONIC

WAARSCHUWING: Verbrandingsgevaar!

WAARSCHUWING: Risico op letse!

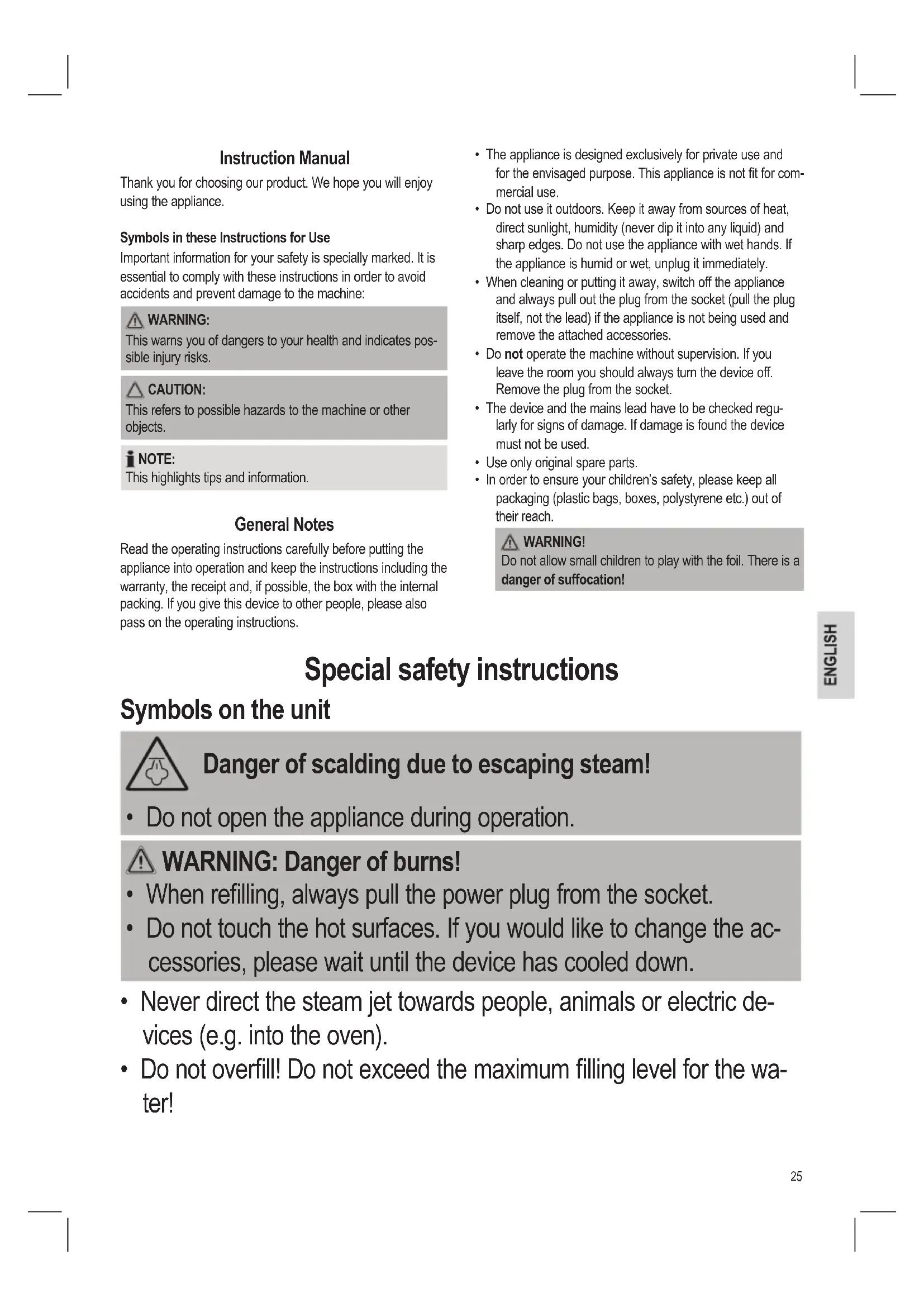

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety instructions

Symbols on the unit

Danger of scalding due to escaping steam!

• Do not open the appliance during operation.

WARNING: Danger of burns!

• When refilling, always pull the power plug from the socket.

• Do not touch the hot surfaces. If you would like to change the accessories, please wait until the device has cooled down.

• Never direct the steam jet towards people, animals or electric devices (e.g. into the oven).

• Do not overfill! Do not exceed the maximum filling level for the water!

• Only operate the appliance with water in the tank.

• The device must not be used to clean electrical equipment or installations.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on "Cleaning".

Overview of the Components

1 Hose
2 On/off switch
3 Carry handle
4 Lid / filling hole
5 Boiler / water tank
6 Handle
7 Release button on handle
8 Steam button
9 Extension pipes (2 pieces)
10 Floor brush
11 Window cleaning attachment
12 Jet nozzle attachment / Adapter for round brushes
13 Circular brush
14 Measuring cup
15 Funnel

Not shown:

Fleece cloth

Unpacking the Device

• Remove the main device and accessories from the box.
• Also remove any packaging materials that may be present.
• Check the scope of delivery.

Initial Operation

Fill in Water

NOTE:

• The maximum filling capacity is 600ml . Use the measuring cup provided.
• Recommendation: Use distilled water to prevent calcification.

CAUTION:

Do not use battery water, water from tumble dryers or water with additives such as cleaning agents, alcohol, fabric softener or other chemicals. They could cause hazards or damage to the appliance.

WARNING: Risk of injury!

1. Disconnect the mains plug from the wall socket.
2. Only open the appliance after the pressure has been released. Press the steam button to do so.

3. If the appliance is still warm, wait approx. 5 minutes until removing the lid.

4. Press down the lid and turn it anticlockwise to remove.

5. Pour any remaining water from the boiler in order to avoid overfilling.
6. Use the funnel to fill the boiler with a maximum of 600~ml of water.
7. Attach the lid by turning it clockwise and applying pressure at the same time.

Installation of accessories

• You have the option of attaching the individual nozzles directly onto the handle. Insert the accessory onto the handle until the button (7) clicks into place. To release the accessory, press the button (7) on the handle.
• The extension pipes enable you to work in large or high areas. Insert them into each other until the button on the pipe clicks into place. Attach the pipe to the handle as described above. To separate the pipes, press the button on the pipe again.
• If you want to clean sensitive floor surfaces, also attach the fleece cloth to the floor brush.
• For joins, fixtures and fittings or hard to reach areas, screw the round brush onto the jet nozzle attachment.

Electrical Connection

• Before inserting the plug into the socket. Make sure that the mains voltage to be used matches that of the device. You can find this information on the nameplate.
• Connect the device to a duly installed protective contact socket.

Using the Device

CAUTION:

Before you begin cleaning you should test the materials to be cleaned as to their suitability for cleaning with steam. Do not hold the steam nozzle for too long and too close in one position.

1. To switch on the appliance, set the on/off switch to position I.
2. Pressure starts building up in the boiler after approx. 6 minutes.
3. Press the steam button to generate steam.

OTE:

After a long period of non-use, it is normal that a small amount of condensation, which has formed in the pipe, will leak out at first.
- Using the appliance with the maximum water amount and in continuous operation will allow for steam generation of up to 15 minutes.

Filling the Water Tank during Operation

No steam will be discharged if the water tank is empty. The water has to be filled up as follows:

1. To switch off the appliance, set the on/off switch to position O.
2. Remove the mains plug from the socket!
3. Fill fresh water into the tank as described in the chapter "Fill in Water" (steps 1-6).
4. Connect the plug to the socket again and switch the appliance on to continue operation.

When you have finished using the device

1. To switch off the appliance, set the on/off switch to position O.
2. Remove the mains plug from the socket!
3. Let the unit cool down completely.
4. Empty the water tank.

Cleaning

WARNING:

• Always remove the mains plug before cleaning the device.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Before the device is put away or cleaned it must have completely cooled down.

• Clean the appliance and accessories with a slightly damp cloth.
• The fleece cloth can be machine-washed at 60^ . Do not dry in a tumble dryer.
• Regularly remove lime deposit from the boiler in order to ensure a long service life for the appliance. When doing so, use clean water without any additives.

Technical Data

Model: DR 3536

Power supply: 220 - 240 V~, 50/60 Hz

Power consumption: 1350 W

Protection class:

Max. steam capacity: 40 g/min

Tank capacity: 600 ml

Net weight: approx. 3.80 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obstugi
