USER MANUAL TB 1280 OLYMPIA

Exterior view of a modern OLYMPIA washing machine with paper and control buttons (no readable text or symbols)

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen

Germany

www.go-europe.com

Fragen und Service

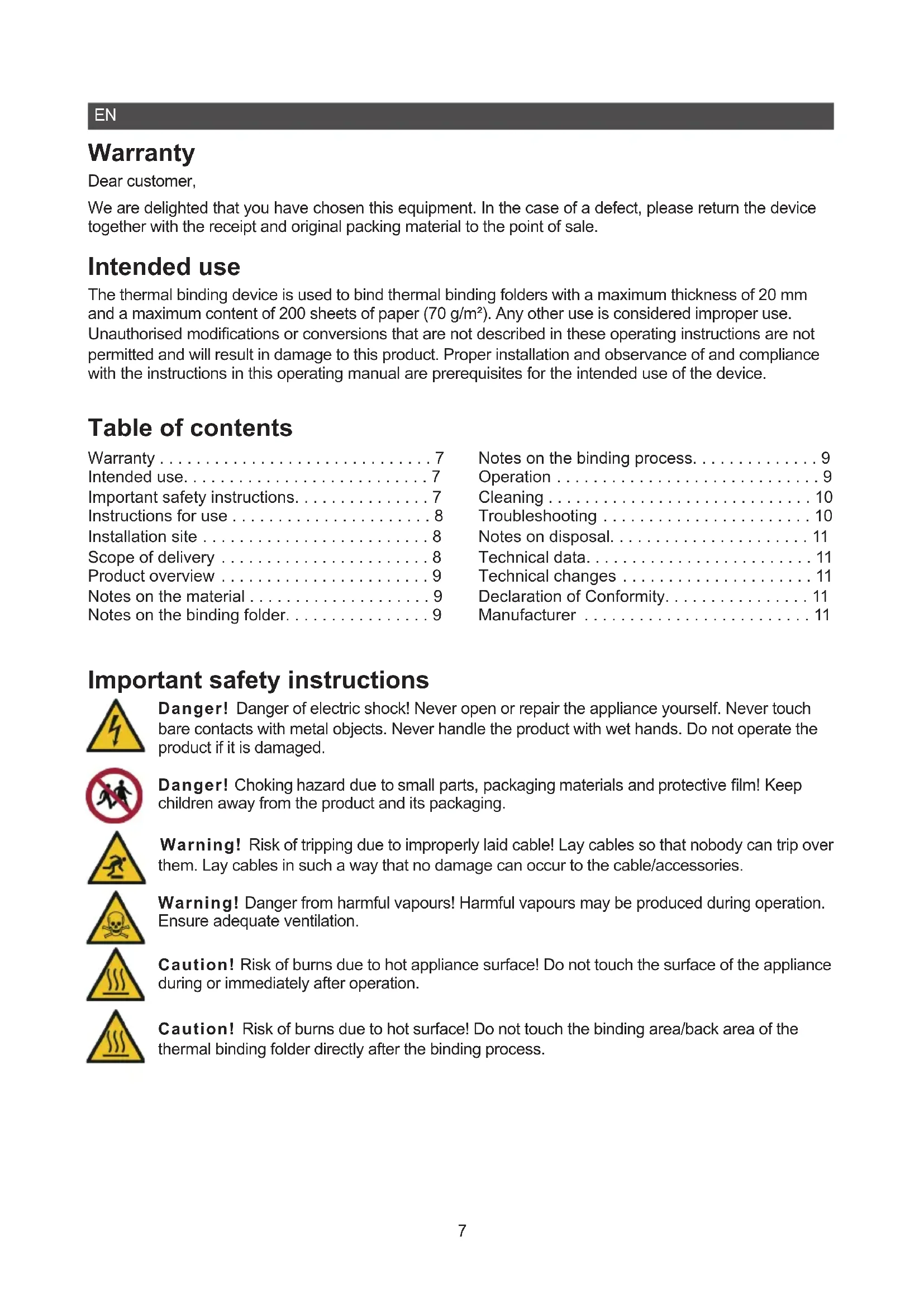

Lieber Kunde,

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The thermal binding device is used to bind thermal binding folders with a maximum thickness of 20 mm and a maximum content of 200 sheets of paper (70 g/m ^2 ). Any other use is considered improper use. Unauthorised modifications or conversions that are not described in these operating instructions are not permitted and will result in damage to this product. Proper installation and observance of and compliance with the instructions in this operating manual are prerequisites for the intended use of the device.

Table of contents

Warranty 7

Intended use....7

Important safety instructions....7

Instructions for use 8

Installation site 8

Scope of delivery 8

Product overview 9

Notes on the material 9

Notes on the binding folder....9

Notes on the binding process....9

Operation 9

Cleaning 10

Troubleshooting 10

Notes on disposal.... 11

Technical data....11

Technical changes 11

Declaration of Conformity....11

Manufacturer 11

Important safety instructions

Danger! Danger of electric shock! Never open or repair the appliance yourself. Never touch bare contacts with metal objects. Never handle the product with wet hands. Do not operate the product if it is damaged.

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Warning! Risk of tripping due to improperly laid cable! Lay cables so that nobody can trip over them. Lay cables in such a way that no damage can occur to the cable/accessories.

Warning! Danger from harmful vapours! Harmful vapours may be produced during operation. Ensure adequate ventilation.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns due to hot surface! Do not touch the binding area/back area of the thermal binding folder directly after the binding process.

Attention! Material damage due to improper operation! Only use thermal binding folders that meet the requirements listed under Technical Data.

Attention! Material damage possible! If the product exhibits unusual characteristics such as noise, odour or smoke, disconnect the power supply immediately.

Attention! Material damage possible! It cannot be ruled out that some varnishes, plastics, or furniture care products may attack and soften the material of the non-slip feet. To avoid marks on furniture, consider placing a non-slip mat under the appliance if necessary.

Instructions for use

Please read these operating instructions before connecting and using the product. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• Do not cover the product during operation.
• The product is not intended for commercial use.
• The product may only be used in well-ventilated indoor areas.
• Connect the device only to a properly installed and easily accessible power outlet. Observe the information under Technical data.
• Only use accessories that fulfil the requirements under Technical data.
• Do not leave the appliance unattended during operation.
• Ensure that the appliance is not used unsupervised by children or persons with reduced physical, sensory or mental capabilities.
• The appliance is not suitable for continuous operation.
• The appliance has an automatic switch-off function. The device switches off automatically after 90 minutes of inactivity.
• Disconnect the appliance from the power supply when not in use to prevent accidental operation.
• Switch off the appliance after the binding process, disconnect the mains plug from the socket and allow the appliance to cool down.

Installation site

Place the appliance on a stable, level surface near a power socket.

Scope of delivery

1 Thermal binding machine 1 Operating instructions

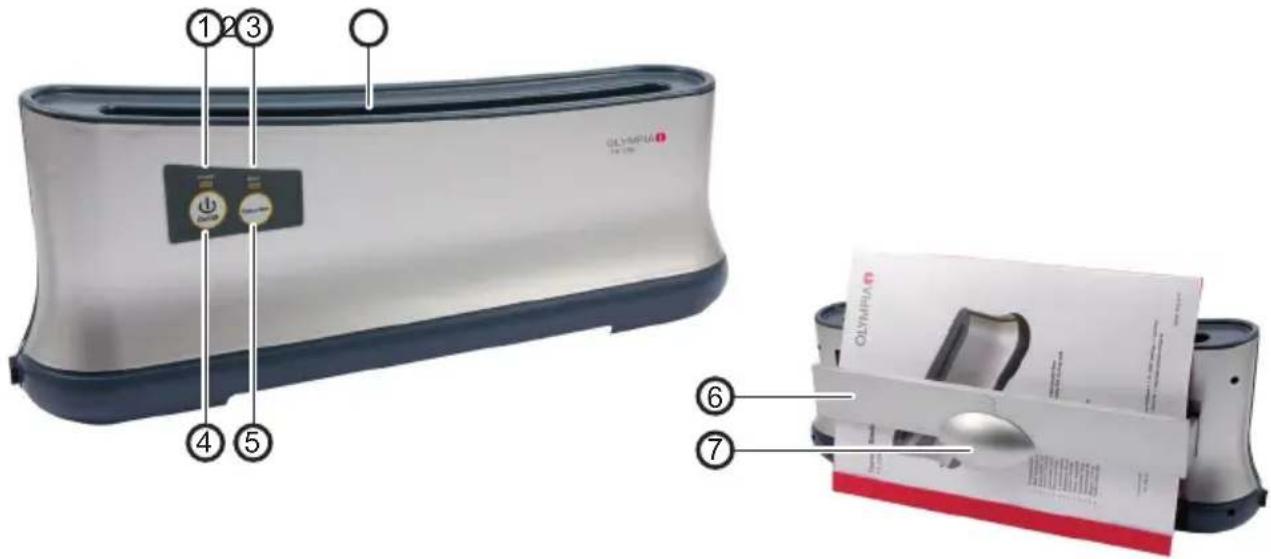

Product overview

OLYMPA 1800 ①②③ ④⑤ ⑥ ⑦

1 Power LED 5 Start button (Counter)
2 Status LED (Bind) 6 Cooling device
3 Functional area 7 Handle of the cooling device
4 On/off button (On/Off)

Notes on the material

• Do not bind any metallic, wet or uneven materials.
• Do not bind any heat-sensitive materials (e.g. thermal paper, ultrasound images).
• Do not bind laminated films or paper in transparent films.
• Official documents may lose their validity as a result of binding.
• Only bind loose sheets.

Notes on the binding folder

• Only use binding folders intended for thermal binding.
• Other binding folders are expressly not suitable for thermal binding.
• Select the appropriate size of the binding folder.

Notes on the binding process

• Do not introduce binding folders without contents into the catchment area.
• The cooling time between the binding processes is at least 10 minutes.

Operation

1 Connect the power plug to a properly installed socket.
2 Press the On/Off button to switch on the device. The Power LED lights up red.
3 The Status LED flashes red. The appliance heats up (approx. 3 minutes).

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Note: Wait until the appliance is fully heated up. Do not insert the thermal binding folder beforehand, as this will prevent it from fusing properly.

4 Place the documents to be bound in the thermal binding folder. Make sure that the documents are aligned in the thermal binding folder.

Attention! Material damage possible! Only use binding folders that are suitable for thermal binding.

5 The Status LED lights up green continuously and a signal tone sounds as soon as the device is ready for use.
6 Use the handle to pull the cooling device out of the appliance to open the functional area.
7 Place the thermal binding folder in the functional area with the closed side facing down.
8 Press the Start button to start the binding process.
9 The Status LED flashes red during the binding process. The binding process is completed after about 1 minute. The Status LED lights up green and three beeps sound.

Caution! Risk of burns due to hot surface! Do not touch the binding area/back area of the thermal binding folder directly after the binding process.

10 Remove the thermal binding folder at the cool end. Place the thermal binding folder in the cooling device for about 10 minutes.

Note: Observe the cooling time of at least 10 minutes. A cooling time that is too short can lead to incorrect results.

Note: The appliance has an automatic switch-off function. The device switches off automatically after 90 minutes of inactivity.

11 Press the On/Off button to switch off the device. The Power LED goes out.

Cleaning

Clean the outside of the appliance with a soft, dry, lint-free cloth. Do not use any cleaning agents or solvents.

Troubleshooting

Malfunction Solution

The device does not start Check that the mains plug is plugged in correctly.

The appliance has an automatic switch-off function. The device switches off automatically after 90 minutes of inactivity. Switch the device on again if necessary.

The appliance does not heat (any more) The appliance has an overheating protection function. Allow the appliance to cool down for at least 10 minutes.

The binding is faulty Check whether the thermal binding folder used is suitable for the device.

Check the information on maximum capacity under Technical data.

Observe the cooling time of at least 10 minutes.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1–7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

The adjacent symbol means that old electrical and electronic appliances must be disposed of separately from household waste in accordance with legal regulations. Dispose of your appliance at the collection point of your municipal waste disposal organisation.

Technical data

Tie max. 335 mm wide for DIN A4

Maximum capacity 200 sheets (70 g/m ^4 ) in 20 mm thermal binding folder

Operating time approx. 1 minute

Warm-up time 3-5 minutes

Cooling time min. 10 minutes

Automatic switch-off 90 minutes after inactivity

Input voltage 220 - 240 Vac, 50 Hz, 1,0 A

Weight 840 g

Dimensions (W x H x D) 419 x 104 x 164 mm

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Declaration of Conformity

The CE mark on the device confirms conformity. The Declaration of Conformity can be found at: www.go-europe.com

Manufacturer

GO Europe GmbH

Dimensions (L x H x P) 419 x 104 x 164 mm
