USER MANUAL Pipa icon Nuna

PIPAFIX™ base sold separately*

*must be used to meet i-Size standard

and PIPAFIXTM base instruction manual

Thanks for choosing Nuna!

Nuna designs distinctive, smart and exciting products.

Enjoy your Nuna PIPA icon!

Illustrations

Illustrations

Illustrations

Illustrations

Contents

Illustrations 1-8

English (EN) 10

Safety and recommendations 11

Product Information 12-13

Parts list 14

Warning 15-18

Installation concerns 18

Contents of the box 19

Handle adjustment 19

Installation with base 20-21

Height Adjustment 22

Securing child 23

Canopy 24

Cold Weather Boot 24

Detach canopy and seat pad 25

Installation without base 26

Cleaning and maintenance 27

Warranty and service 28

Where to find Nuna products 30

Francais (FR) 31

Nederlands (NL) 49

Deutsch (DE) 69

Italiano (IT) 89

Espanol (ES) 109

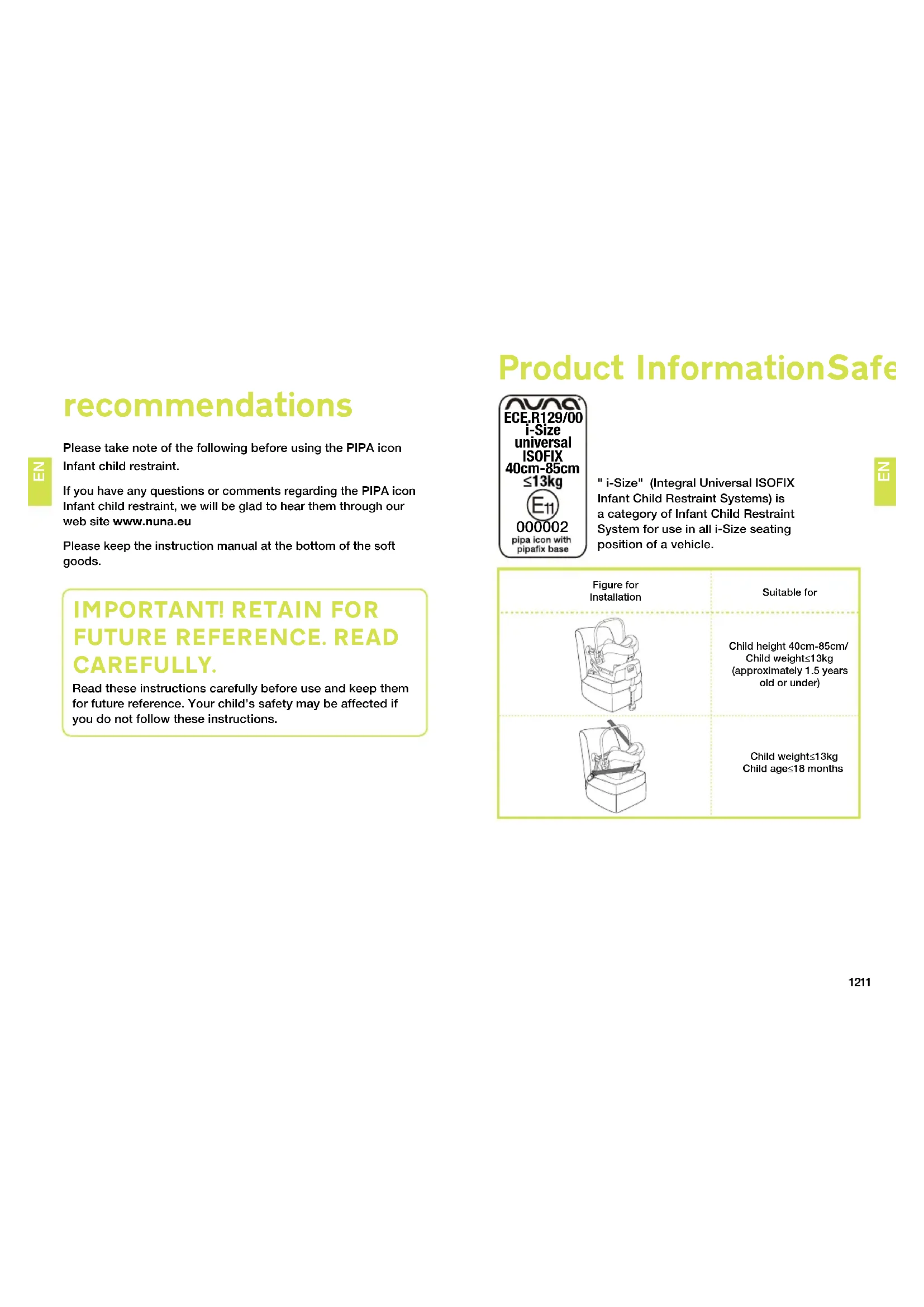

recommendations

Please take note of the following before using the PIPA icon. Infant child restraint.

If you have any questions or comments regarding the PIPA icon Infant child restraint, we will be glad to hear them through our web site www.nuna.eu

Please keep the instruction manual at the bottom of the soft goods.

IMPORTANT! RETAIN FOR FUTURE REFERENCE. READ CAREFULLY.

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

Product Information Safe

" i-Size" (Integral Universal ISOFIX Infant Child Restraint Systems) is a category of Infant Child Restraint System for use in all i-Size seating position of a vehicle.

1 According to the ECE R129/00 Regulation, the infant child restraint with Base is a Universal ISOFIX Class C, D infant child restraint and should be fitted using the ISOFIX connections.
2 This is an "i-Size" child restraint System. It is approved to Regulation ECE R129/00, for use in, "i-Size compatible" vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.
3 If in doubt, please consult the infant child restraint manufacturer or the retailer.

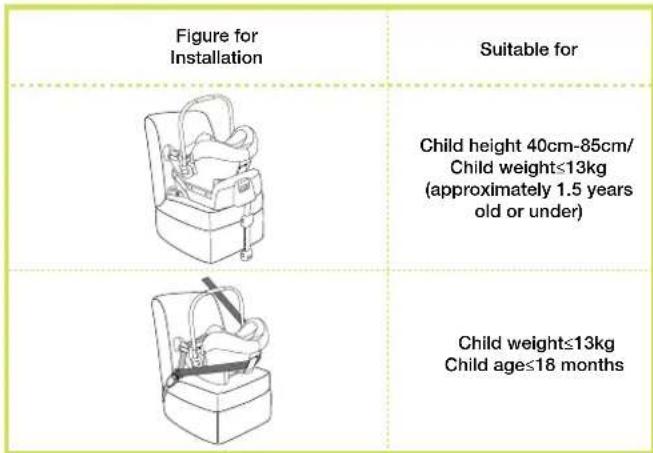

This is an i-Size ISOFIX INFANT CHILD RESTRAINT SYSTEM. It is approved to ECE R129/00 series of amendments for not all vehicle manufacture's handbooks list i-Size compatibility yet. This seat and base is also approved for use in ISOFIX compatible vehicles. Please refer to the vehicle manufacturer's website or consult your dealer.

It will fit vehicles with positions approved as i-Size ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the infant child restraint and of the fixture. If in doubt, consult either the infant child restraint manufacturer or vehicle manufacturer.

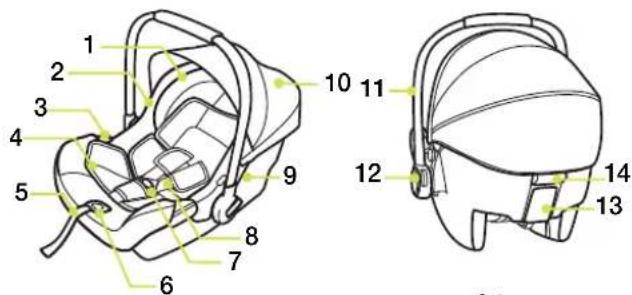

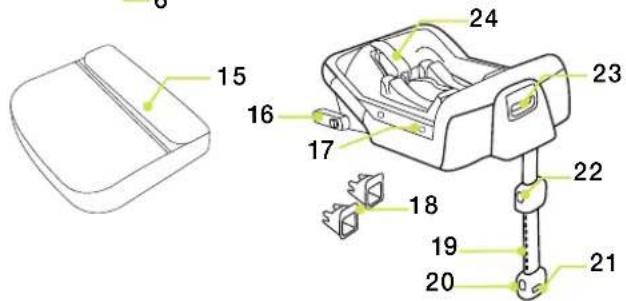

Parts list

Some module may vary depending on model

1 Head Support 14 Stroller Release Handle
2 Seat Pad 15 Cold Weather Boot
3 Side Guides 16 ISOFIX Connector
4 Infant Insert 17 Shell Indicator
5 Adjustment Webbing 18 ISOFIX Guides
6 Adjustment Button 19 Load Leg
7 Safety Buckle 20 Load Leg Adjust Button A
8 Shoulder Harness Straps 21 Load Leg Indicator
9 Canopy Mount 22 Load Leg Adjust Button B
10 Canopy 23 Infant Child Restraint 11 Handle Release Button
12 Handle Button 24 Lock-off
13 Rear Guide

Warning

#

NO infant child restraint can guarantee full protection from injury in an accident. However, proper use of this infant child restraint will reduce the risk of serious injury or death to your child.
To use this infant child restraint with the ISOFIX connections according to the ECE R129/00 Regulation, your child must meet the following requirements. Child height 40cm - 85cm /Child weight ≤ 13kg (approximately 1.5 years old or under).
To use this infant child restraint according to the ECE R129/00 Regulation, your child must meet the following requirements. Child weight ≤ 13kg / Child age ≤ 15 months
Any straps of infant child restraint and vehicle seat should be tightened and not twisted.
DO NOT install this infant child restraint without following the instructions in this manual or you may put your child at serious risk of injury or death.
NEVER leave your child unattended with this infant child restraint.
DO NOT make any modification to this infant child restraint or use it along with component parts from other manufacturers.
DO NOT use this infant child restraint if it has damaged or missing parts.
DO NOT have your child in large/oversized clothes because this may prevent your child from being properly and securely fastened by the shoulder harness straps and the crotch strap between the legs.

DO NOT leave this infant child restraint or other items unbelted or unsecured in your vehicle because unsecured infant child restraint can be thrown around and may injure occupants in a sharp turn, sudden stop, or collision.

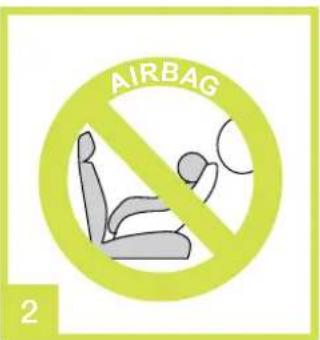

DO NOT place rear-facing infant child restraint on frontal seat with air bag. Death or serious injury may occur. Please reference vehicle owner's manual for more information.
NEVER use a second-hand infant child restraint or an infant child restraint whose history you do not know because they may have structural damage that endangers your child's safety.
NEVER use ropes or any other substitutes to secure infant child restraint in vehicle or to secure child into infant child restraint.
DO NOT use this infant child restraint without the soft goods.
The soft goods should not be replaced with any besides the ones recommended by the manufacturer. The soft goods constitute an integral part of the infant child restraint performance.
DO NOT put anything other than the recommended inner cushions in this infant child restraint.
Be sure that the infant child restraint is installed in such a way that no part of it interferes with movable seats or in the operation of vehicle doors.
DO NOT continue to use this infant child restraint after it has suffered any type of crash, even a minor one. Replace immediately as there may be invisible, structural damage from the crash.

Remove this infant child restraint and base from the vehicle seat when it is not in regular use.
Consult the distributor for issues concerning maintenance, repair and part replacement.
To avoid the risk of falling out, always secure the child using the safety harness when the child is placed in infant child restraint, even when the infant child restraint is not in the vehicle.
Before carrying the infant child restraint by hand, ensure that the child is fastened with the safety harness, and that the handle is correctly locked in a vertical position.
To avoid serious injury or death, NEVER place infant child restraint on elevated surface seat with child in it.
The parts of this infant child restraint should not be lubricated in any way.
Always secure child in infant child restraint, even on short trips, as this is when most accidents occur.
DO NOT use this infant child restraint for more than 5 years after the purchase date as parts may degrade over time, or from exposure to sunlight, and may not perform adequately in a crash.
Please keep this infant child restraint away from sunlight, otherwise it may be too hot for child's skin. Always touch test seat before placing child in it.
Frequently check the ISOFIX guides for dirt and clean them if necessary. Reliability can be effected by ingress of dirt, dust, food particles etc.
DO NOT place any objects in the load leg area in front of your base.
Correct Installation is only permitted by use of the ISOFIX connectors.

After your child is placed in this infant child restraint, the safety belt must be used correctly, and ensure that any lap strap is worn low down, so that the pelvis is firmly engaged.
DO NOT use any load bearing contact points other than those described in the instructions and marked on the infant child restraint.

Installation concerns

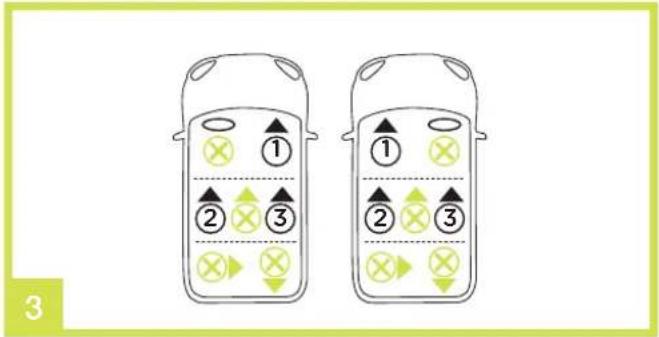

This infant child restraint with the Base is suitable for vehicle seats with i-Size ISOFIX anchor points. (1)
DO NOT place rear-facing infant child restraint on front seat with air bag. Death or serious injury may occur. (2) Please reference vehicle owner's manual for more information.
DO NOT install this infant child restraint on vehicle seats that face sideways or rearward with respect to the moving direction of the vehicle. (3)

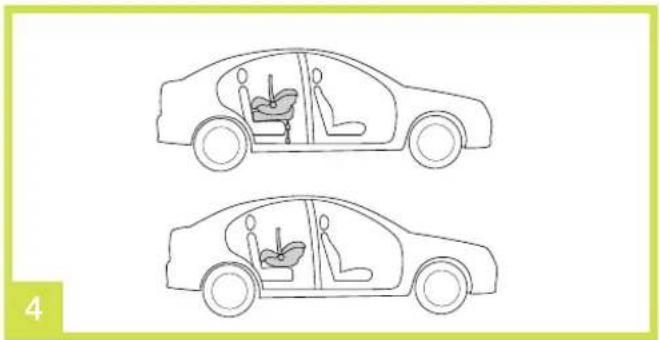

It is recommended to install this infant child restraint on the rear vehicle seat. (4)
DO NOT install this infant child restraint on vehicle seats unstable during installation.

Contents of the box

Infant Child Restraint

Cold Weather Boot

Tools Needed: None

Handle adjustment

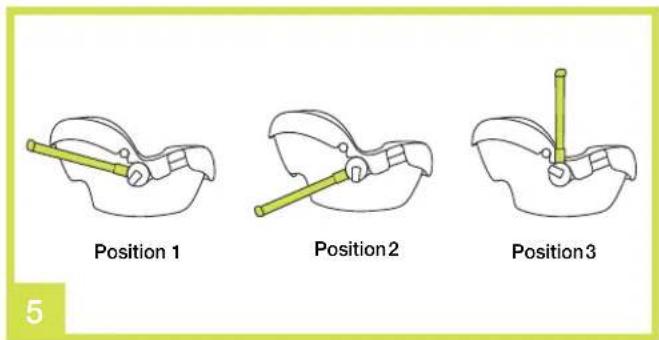

1 The handle of the infant child restraint can be adjusted to 3 positions.
Rocking position. (5) -1
Baby chair position. (5) -2
Position for car, hand or stroller transportation. (5) -3

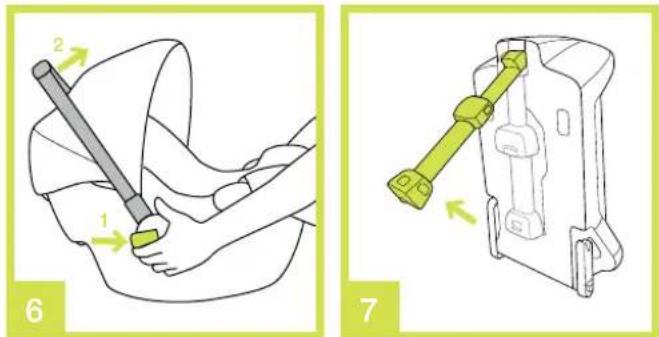

2 To adjust the handle positon, squeeze handle buttons on both sides to release it. (6) -1
3 Rotate handle until it clicks into any of the 3 positions. (6) -2

Installation with base

1 Unfold the load leg from storage compartment. (7)

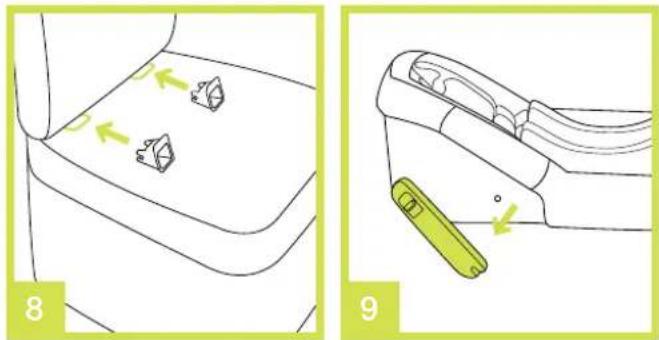

2 Fit the ISOFIX guides with the ISOFIX anchor points. (8) The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors.
3 Rotate the ISOFIX connectors 180 degrees until they are pointing in the direction of the ISOFIX guides. (9)

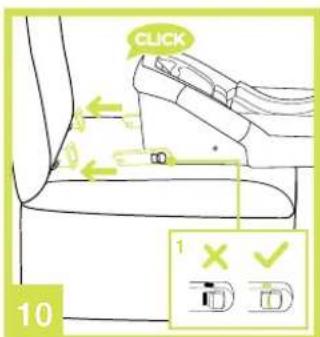

4 Line up the ISOFIX connectors with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points. (10)

Make sure that both ISOFIX connectors are securely attached to their ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on the both ISOFIX connectors should be completely green. (10) -1
Check to make sure the base is securely installed by pulling on the both ISOFIX connectors.
5 After placing the base on the vehicle seat, extend the load leg to floor (11). When the load leg indicator shows green means it is installed correctly, red means it is installed incorrectly. (11)

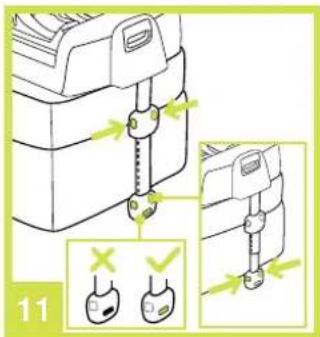

The load leg has 24 positions. When the load leg indicator shows red this means the load leg is in the wrong position.

Make sure the load leg is secure by pressing down on the front of the base.
Squeeze the load leg releasing button, then shorten the load leg upwards.

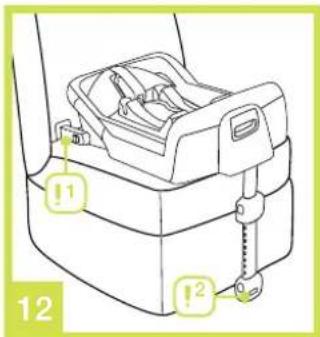

The completely assembled base is shown as (12)

The ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. (12) -1
The load leg must be installed correctly with green indicator. (12) -2

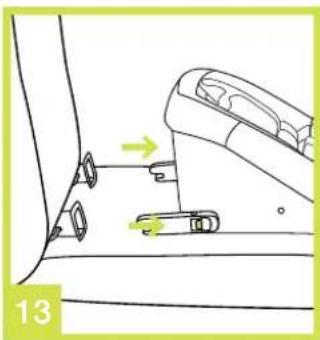

6 To remove the base, pull the base backwards while pressing the buttons on the ISOFIX connectors. (13)

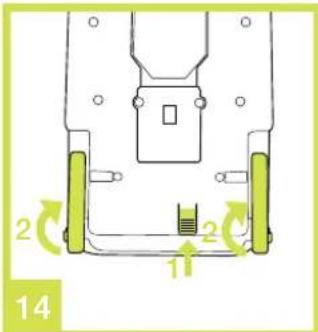

7 Press the ISOFIX releasing button to fold the ISOFIX. (14)

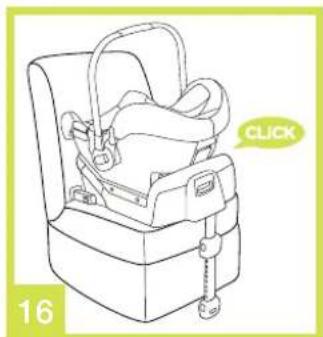

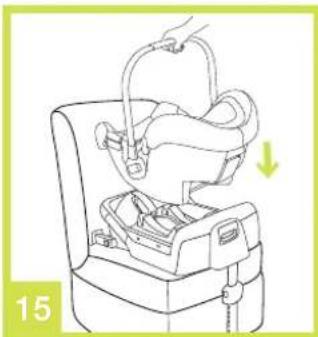

8 Push the infant child restraint down into the base (15), if the infant child restraint is secure, the infant child restraint indicator shows green. (16)

Pull up on the infant child restraint to be sure it is securely latched into the base.

9 Level line on carrier must be level to the ground when the infant child restraint is installed. (43)

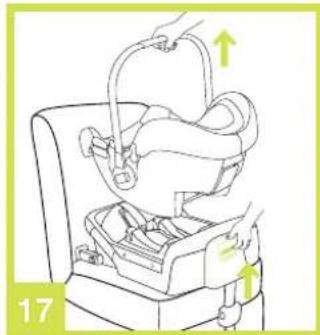

10 To release the infant child restraint, pull the infant child restraint up while squeezing the infant child restraint release button. (17)

Height Adjustment

for Head Support and Shoulder Harnesses

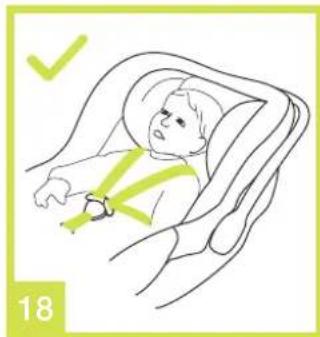

Check that Shoulder Harness Straps are set at the proper height. Please choose the proper pair of shoulder harness slots according to the child's height.

Shoulder Harness Straps must go into the harness slots nearest to your child's shoulders (18), but not above the shoulder line. (19)
If the Shoulder Harness Straps are not at proper height, the child might be ejected the infant child restraint if there is a crash.

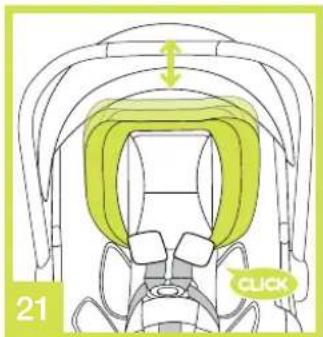

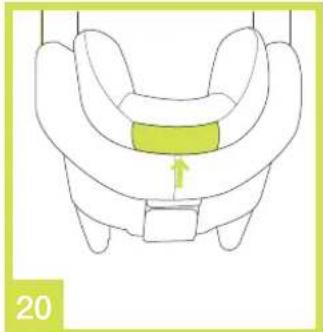

Squeeze the head support adjustment lever (20), meanwhile pull up or push down the head support until it snaps into one of the 7 positions. The head support positions are shown as (21).

Securing child

Use Infant Insert

We recommend using the full infant insert while the baby is under 60~cm or until they outgrow the insert. The infant insert increases side impact protection.

Detach the snaps on the head support to remove the head portion of the insert.

Remove the head support portion of the infant insert when the child's head no longer fits comfortably.

Remove the body portion of the infant insert when the infant's shoulders no longer fit comfortably.

Remove the infant insert cushion by detaching the snaps to allow more space when the infant does not fit comfortably.

The cushion can be used separately without being attached to the insert to bolster the infant's back for more comfort.

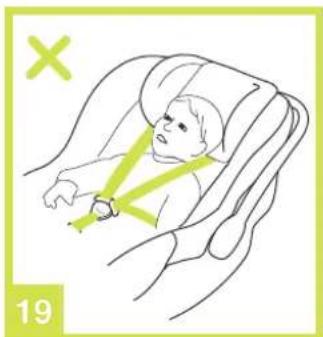

After the child is placed into the seat, check whether the Shoulder Harness Straps are at proper height.

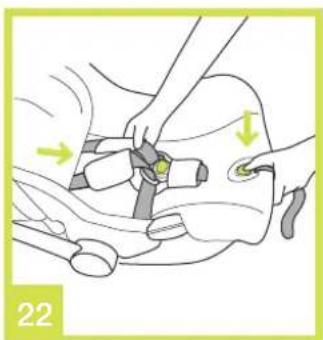

1 While pressing the adjustment button located at the front of the infant child restraint, pull completely the two Shoulder Harness Straps of the infant child restraint. (22)

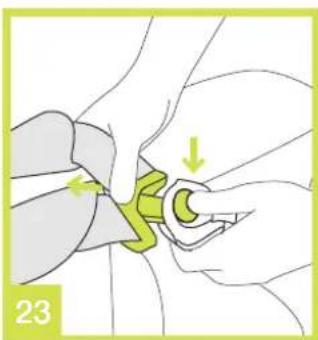

2 Unlock the buckle of the harnesses by pressing the red button. (23)

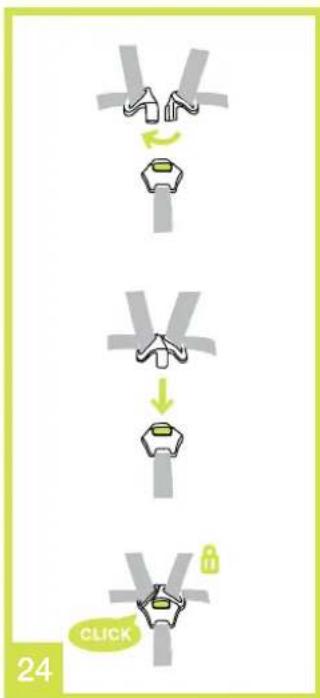

3 Place the child into the infant child restraint and lock the buckle. (25) Please refer to. (24)

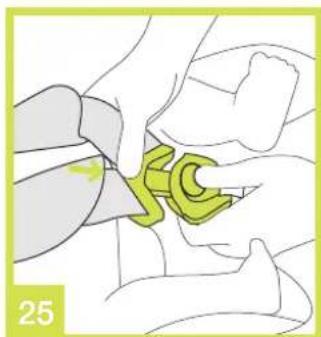

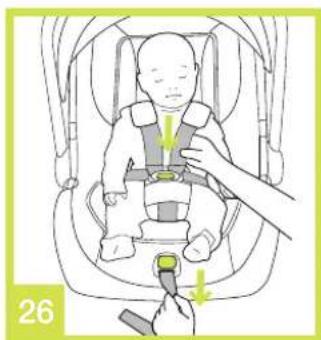

4 Tighten the shoulder harness straps by pulling the adjustment webbing. (26)

Make sure the space between the child and the Shoulder. Harness Straps is about the thickness of one hand.

Canopy

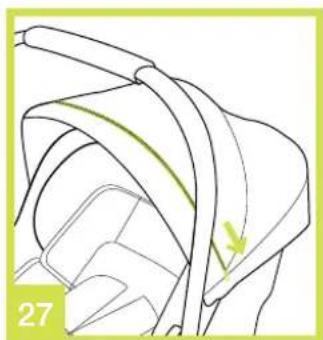

1 Unzip the zipper behind the front canopy bow. (27)

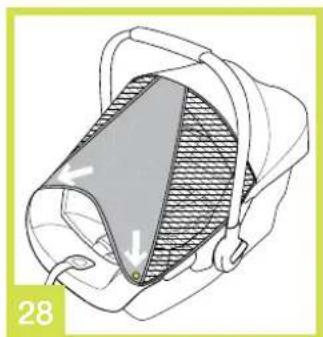

2 Pull the canopy out of the compartment. (28)

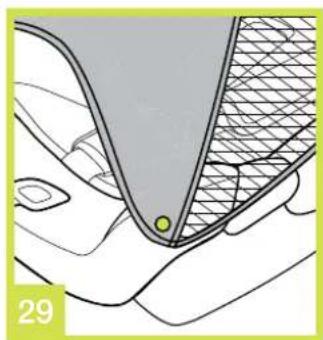

3 Attach the magnets on each corner to the front of the infant child restraint. (29)

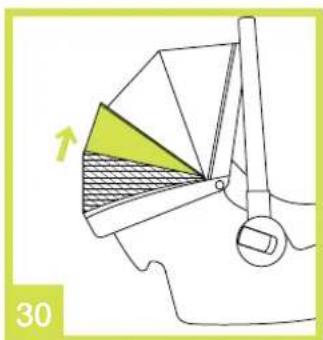

4 The zipper on the back of canopy can be opened for ventilation. (30)

Cold Weather Boot

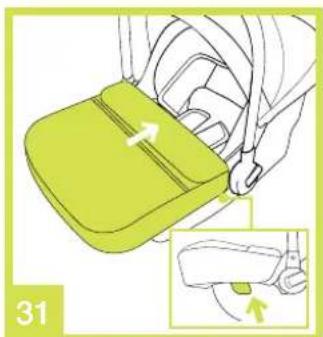

1 Cover the cold weather boot onto the infant child restraint, then attach the both sides to the infant child restraint with plastic pieces. (31)

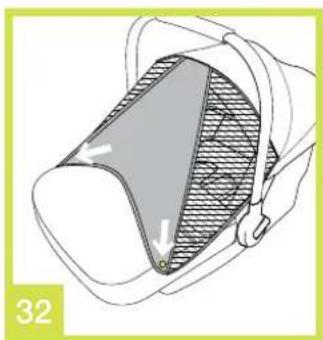

2 You can use cold weather boot and canopy simultaneously. (32)

Detach canopy and seat pad

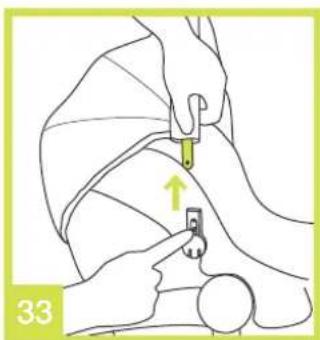

1 Detach the snaps to disassemble the canopy, press the button in the canopy mount and pull the canopy bow out. (33)

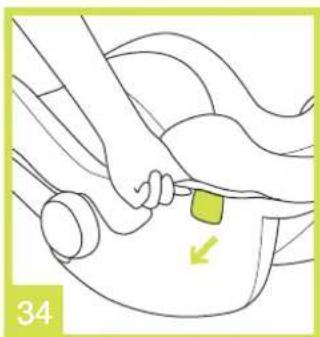

2 Pull the fastening pieces underneath the edge of the seat out. (34)
3 Press the red button to disengage the buckle (23). Remove the Infant Insert and crotch strap.
4 Detach the elastic band on the head support, and then remove the head support.

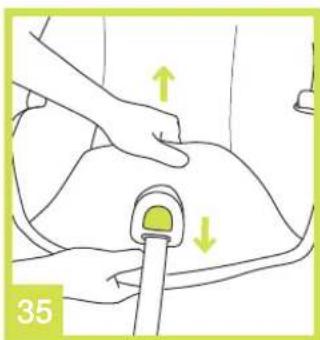

5 Remove the seat pad from the adjustment button as shown in. (35)

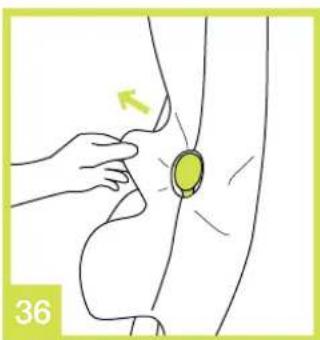

6 Remove the seat pad from the Stroller release button as shown in. (36)

Installation without base

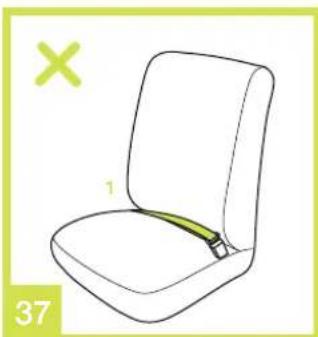

1 DO NOT install this infant child restraint on vehicle seats with Lap Belts. (37)

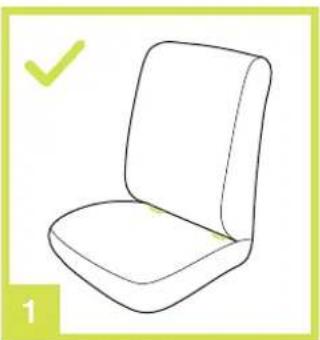

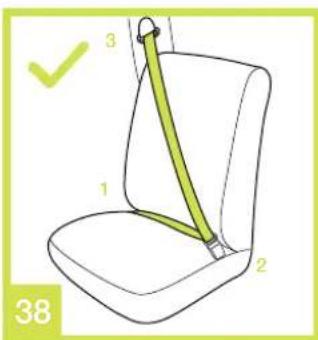

2 This infant child restraint is suitable for vehicle seats with a 3-point Retractor Safety Belt (without base) only. (38)

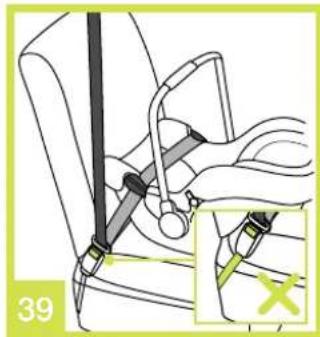

3 Place the infant child restraint onto the vehicle seat where you wish to put it. Pull the vehicle safety belt out and lock it into the vehicle buckle, sliding the vehicle lap belt into the side guides of the infant child restraint. (39)

The infant child restraint can not be used if the vehicle safety belt buckle (female buckle end) is too long to anchor the infant child restraint securely. (39)

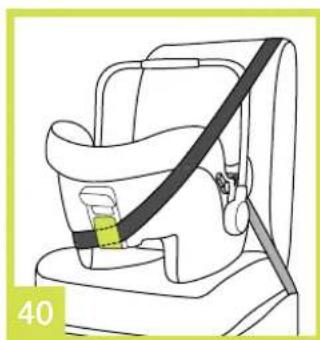

4 Slide diagonal belt into the rear guide. (40)

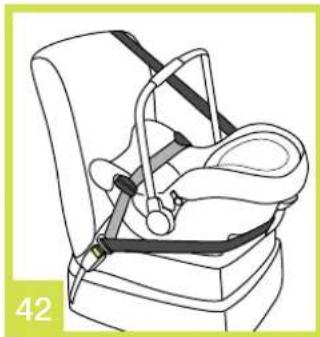

5 Pull the vehicle shoulder belt to fasten the infant child restraint tightly and securely. (41)
6 Level line on carrier must be level to the ground when the infant child restraint is installed. (43)

Tension the vehicle safety belt as much as possible, checking that it is not loose or twisted.
After installing the infant child restraint, always check that the vehicle belts are routed correctly and securely fastened into the vehicle buckle. (42)

Cleaning and maintenance

After removing the wedge from the insert, please store it somewhere that the child cannot access it.
Please wash the soft goods with cold water under 30^
Do not iron the soft goods.
Do not bleach or dry clean the soft goods.
Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the infant child restraint and base. It may cause damage to the product.
Use only mild detergent, water and a soft cloth to clean the infant child restraint shell, handle and harness straps and base.
Do not twist the soft goods to dry with great force. It may leave the soft goods with wrinkles.
Please hang dry the soft goods in the shade.
Please remove the infant child restraint and base from the vehicle seat if not in use for a long period of time. Put the infant child restraint and base in a cool, dry place and somewhere your child can not access it.

Warranty and service

The Nuna infant child restraint and base is covered by a one-year warranty. If this product shows a defect during the warranty period, please contact your retailer. If the retailer is unable to help you, they will make contact with the local Nuna distributor.

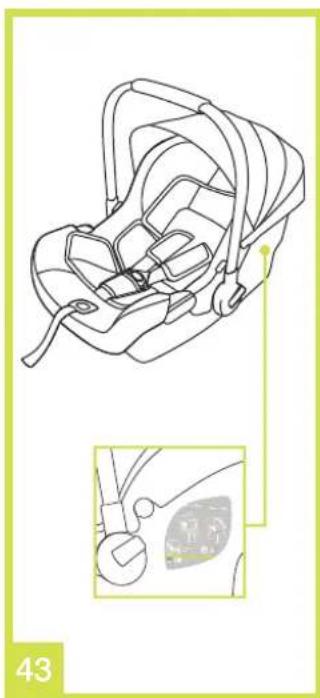

Please be aware that the model number and serial number located on the bottom of the base of the product will be required in the event of a warranty claim.

To register your product, please go to our website at nuna.eu

Terms of warranty

The warranty takes effect at the date of purchase of the product and is valid for one year. The warranty provides you with a right of repair but not a product exchange or return. The warranty will not be extended even if some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously..

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.
  If the defect results from normal wear.
• If the defect results from an accident.
• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.
• If the defect results from overloading (maximum weight = 13 kg).
• If repairs have been carried out by a third party.
• If the defect results from the use of accessories others than Nuna.

Where to find Nuna products?

If you are looking for Nuna retailers in your area, please consult our website: www.nuna.eu

Contact

We always look forward to improving our products and developing new ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

www.nuna.eu

Nuna International BV. De Beeke 8,5469 DW,ERP The Netherlands
