USER MANUAL TC78009 Toolland

EN OIL FILLED RADIATOR - 2000 W - 9 FINS

NL OLIEBADRADIATOR - 2000 W - 9 ELEMENTEN

FR RADIATEUR BAIN D'HUIL - 2000 W - 9 ÉLÉMENTS

ES RADIADOR DE ACEITE - 2000 W - 9 ALETAS

DE ÖLRADIATOR - 2000 W - 9 RIPEN

PT RADIADOR A ÓLEO - 2000 W - 9 ELEMENTOS

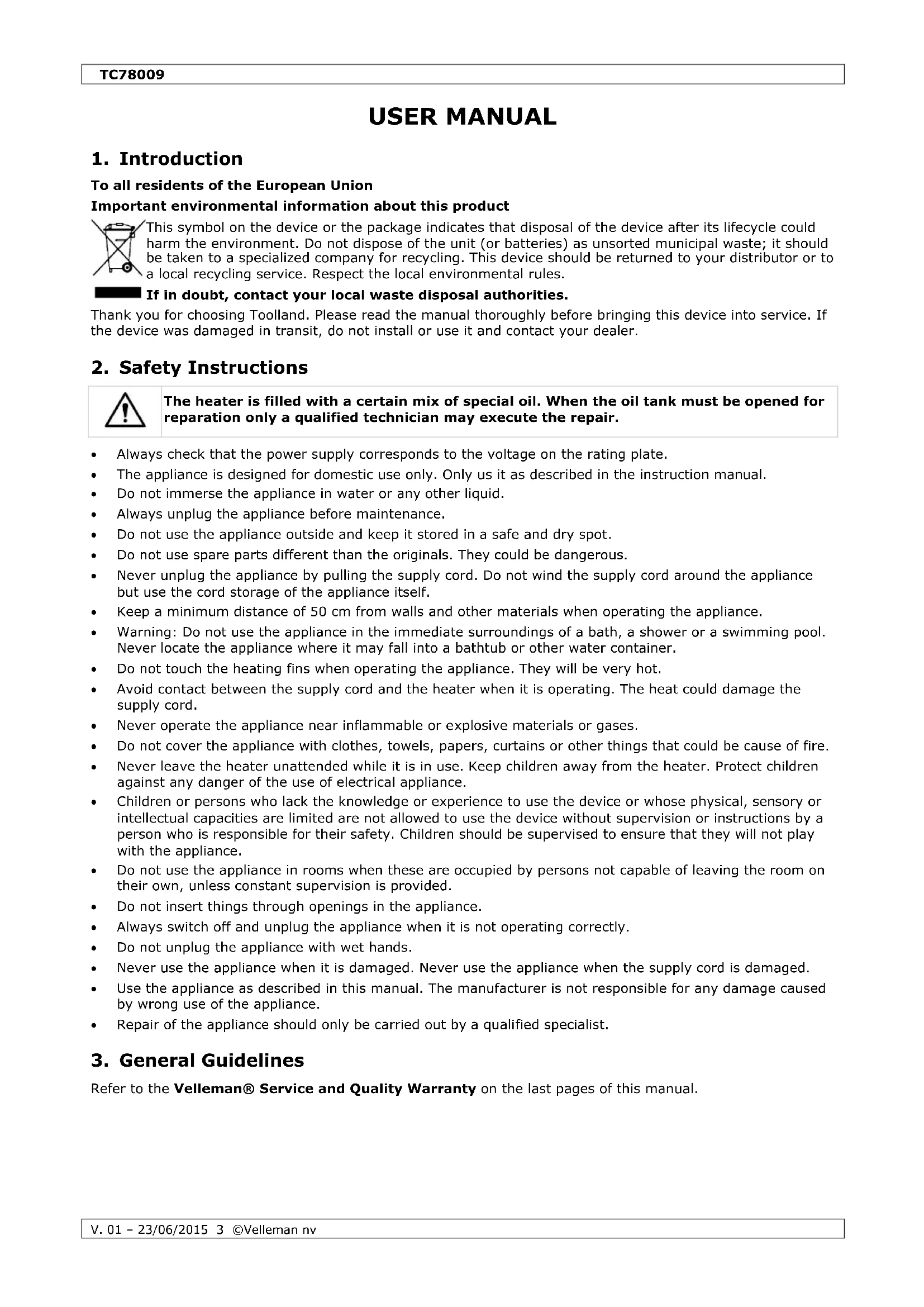

USER MANUAL 3

GEBRUIKERSHANDLEIDING 6

MODE D'EMPLOI 9

MANUAL DEL USUARIO 12

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Toolland. Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

The heater is filled with a certain mix of special oil. When the oil tank must be opened for reparation only a qualified technician may execute the repair.

Always check that the power supply corresponds to the voltage on the rating plate.
The appliance is designed for domestic use only. Only us it as described in the instruction manual.
- Do not immerse the appliance in water or any other liquid.
Always unplug the appliance before maintenance.
- Do not use the appliance outside and keep it stored in a safe and dry spot.
- Do not use spare parts different than the originals. They could be dangerous.
- Never unplug the appliance by pulling the supply cord. Do not wind the supply cord around the appliance but use the cord storage of the appliance itself.
- Keep a minimum distance of 50~cm from walls and other materials when operating the appliance.
- Warning: Do not use the appliance in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the appliance where it may fall into a bathtub or other water container.
- Do not touch the heating fins when operating the appliance. They will be very hot.
- Avoid contact between the supply cord and the heater when it is operating. The heat could damage the supply cord.
- Never operate the appliance near inflammable or explosive materials or gases.
Do not cover the appliance with clothes, towels, papers, curtains or other things that could be cause of fire.
- Never leave the heater unattended while it is in use. Keep children away from the heater. Protect children against any danger of the use of electrical appliance.
Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited are not allowed to use the device without supervision or instructions by a person who is responsible for their safety. Children should be supervised to ensure that they will not play with the appliance.
- Do not use the appliance in rooms when these are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
- Do not insert things through openings in the appliance.
Always switch off and unplug the appliance when it is not operating correctly.
- Do not unplug the appliance with wet hands.
- Never use the appliance when it is damaged. Never use the appliance when the supply cord is damaged.
- Use the appliance as described in this manual. The manufacturer is not responsible for any damage caused by wrong use of the appliance.
Repair of the appliance should only be carried out by a qualified specialist.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

4. Features

9 fins
- thermostat
- handle on top
on wheels
- overheating protection
3 heat settings

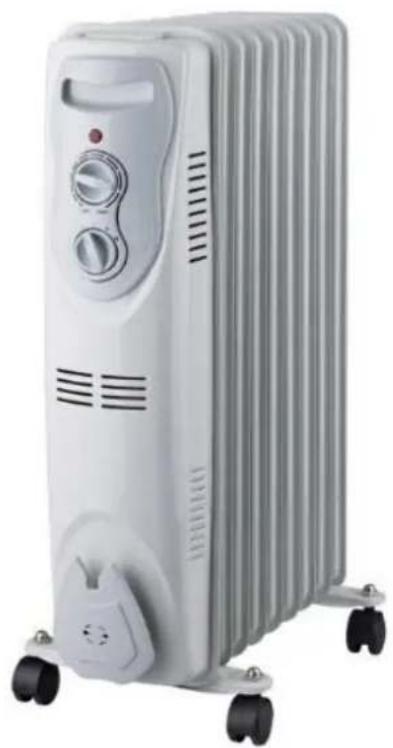

5. Overview

Refer to the illustrations on page 2 of this manual.

1	control light
2	thermostat
3	heat settings

4	cord storage
5	handle
6	wheels

6. Packaging

After packing out you must check the appliance for transport damages and missing pieces. Contact your dealer when you notice any damage.
- Do not throw away the packaging. You could use it when storing the appliance or for transportation.
- Please store the packaging well. Plastic bags and other packaging materials could be dangerous for children and pets.

7. Operation

Before operating the heater, you must attach the feet of the appliance. Never use the appliance without the feet.
- The heater could spread out a light odor when using it for the first time. This is normal and it will be reduced after some time of use.
- Your appliance is provided with a rotating control knob:

I = minimum (800 W)
II = medium (1000 W)
III = Maximum (2000 W)

• Rotate the thermostat knob clockwise to the desired position and switch the heater on.
• When your room reaches the desired temperature, you can slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch itself on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.
• To completely shut off the heater, turn the control knob to OFF (0), and remove the plug from the socket-outlet.

Your appliance will be hot during some time.

8. Overheating Protection

The appliance is provided with an overheating protection. This protection will switch off the appliance automatically when it notices a malfunction. In this case, switch off the appliance and pull out the supply cord. After a period of cooling down, the appliance will be ready to use again.

9. Cleaning and Maintenance

• Before any maintenance you must switch off and unplug the heater. Let it cool down because some parts could be hot after use.
  Clean the heater with a moist cloth. Do not clean it with water or submerse it in water or any other liquid.
• Never use solvents like gasoline, isoamyl, acetate, toluene, etc. to clean the heater.

10. Technical Specifications

power supply	230 VAC, 50 Hz
power consumption	2000 W

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.toolland.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion. You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions:

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article:

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
