APPEB04E - E-reader Approx - Free user manual and instructions

Product type	Electronic reader (e-reader)
Brand	Approx
Model	APPEB04E
Screen size	6 inches (e-ink technology)
Screen resolution	800 x 600 pixels
Internal memory	2 GB Flash
Expandable storage	Micro SD card up to 32 GB
Connectivity	USB 2.0 port (micro USB cable included)
Power supply	Rechargeable battery via USB (computer or power adapter)
Supported formats	Not specified in the manual
Main functions	Reading e-books, displaying photos, file explorer, settings
DRM management	Compatible with Adobe Digital Editions (ADE)
Box contents	APPEB04E device, quick installation guide, micro USB cable
System requirements	USB 2.0 port, Windows or later
Dimensions (estimated)	Approximately 160 x 120 x 10 mm
Weight (estimated)	Approximately 150 g
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to moisture or extreme temperatures. Use only the provided cable.
Spare parts and repairability	Contact the reseller or Approx support for assistance.

Frequently Asked Questions - APPEB04E Approx

How to turn the APPEB04E on and off?

Press and hold the Power button for 3 seconds to turn the device on or off.

How to charge the reader battery?

Connect the reader to a computer or USB power adapter via the included micro USB cable. The battery recharges automatically.

How to transfer books to the APPEB04E?

Connect the reader to a PC via USB. The device appears as a removable drive. Simply copy the eBook files into the desired folder. For DRM books, use Adobe Digital Editions.

What is the maximum supported memory capacity?

The device has 2 GB of internal memory and accepts a Micro SD card up to 32 GB to expand storage.

How to insert an SD card?

Insert the card correctly with the contacts facing up into the Micro SD card slot.

How to navigate menus?

Use the directional keys to move the cursor, the Enter key to confirm, the Menu key to display options, and the Back key to cancel or return.

How to change the system language?

From the main menu, select Settings then Language. Use the directional keys and Enter to choose your language.

How to read a book?

In the main menu, go to Library. Select a book with the directional keys and press Enter. Use the Next/Previous page keys to turn pages.

How to view photos?

From the main menu, select Photo. Choose a photo and press Enter to display it full screen. Use the Menu button for options.

What to do in case of a problem or breakdown?

Check the full manual available on our website or contact Approx support at [e-mail] for help.

USER MANUAL APPEB04E Approx

e-book reader 6" DIGITAL INK

Thank you for choosing eBook APPEB04E

Product description.

E-Book Digital ink 6'' in which you can read over 1400 books, view images at a resolution of 800x480 pixels.

Its compact and elegant design provides a nice look and robust at the same time, also with its shortcut keys, everything is at within your reach.

This E-Book has an internal memory of 2 GB flash and also includes a Micro SD card reader that allows you to expand your storage capabilities up to 32GB.

APPROX bet for the ideal solution for the good reader. Read your books as if it were of paper!

Package Contents

APPEB04E
Quick Install Guide
- Micro USB cable.

Note: Make sure your pack contains the elements described above. If you find something is missing or damaged, please contact your dealer.

System Requirements

• 1 USB 2.0 Port
• Windows Operating System or superior.

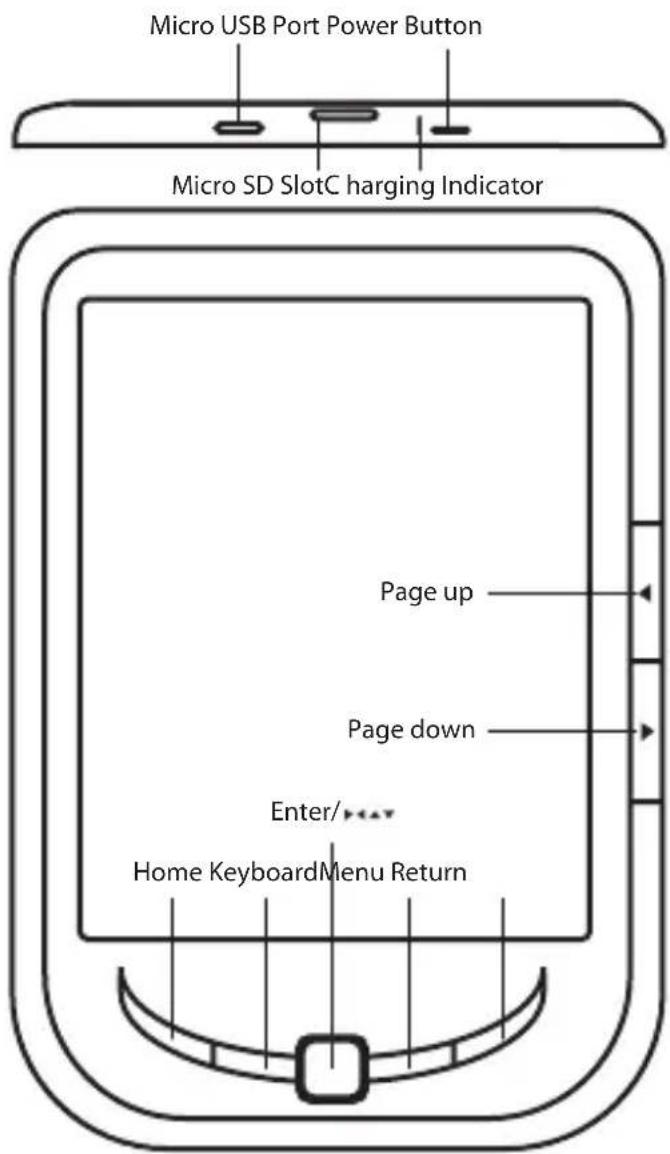

Description of the parts

Installation and configuration

1.1 Turning On/Off A

• Press and hold the Power button for 3 seconds to turn on/off

1.2 Charging

When battery power is low, charge it by connecting the reader to a computer or USB power adapter via the supplied USB cable.

1.3 Inserting a SD card

Insert the card correctly with the contact pin facing upwards.

1.4 Transfering and Importing Content

1. Connect the reader to PC via the supplied USB cable. Computer will recognize the device as a removable disk.
2. Perform normal file management operation like other USB device.

1.5 Importing DRM Contents

1. Download the Adobe Digital Editions (ADE) installer from http://www.adobe.com/products/digital editions/#fp.
2. Install ADE on your computer.
3. For first time user, you are required to register a ADE account.
4. Enter the user name and password to activate your Adobe account, then connect the Reader to PC.
5. Run ADE to authorize PC and Reader.
6. Download or buy eBooks from online ebook stores.

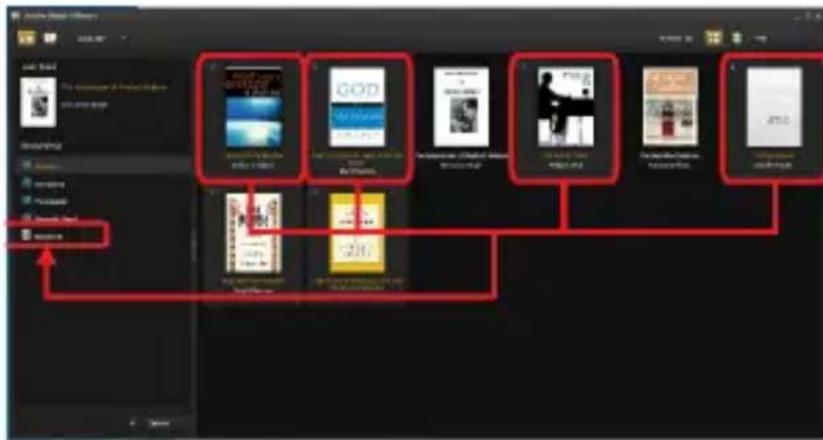

7. Drag and drop the selected item(s) into the Reader's Drive to transfer DRM eBooks as illustrated below.

1.6 Basics

Use the Directional buttons to move the cursor to the desired item from the list.

Press the Enter button to confirm the selection.

Press the Menu button to display option menu.

Press the Return button to cancel selection or return to previous menu, press and hold to return to Main Menu.

Press the Keyboard button to display/hide the keyboard.

1.7 Settings

From Main menu, select Settings and press the Enter button.

Use the Directional/Enter buttons to set system language and time.

1.8 Reading Books

From the Main menu, select Library and press the Enter button to enter book library.

• From home screen or book library, use the Directional buttons to select a book and press the Enter button to open.
• When reading, press Page up/down or Directional buttons to turn page.
• In reading page, press the Menu button to use the Option Menu.

1.9 Viewing photos

From Main menu, Select Photo and press the Enter button to enter photo viewer.

Select a photo and press the Enter button to full screen view.

Press the Menu button to use the option Menu.

1.10 File Explorer

From Main menu, select File Explorer and press the Enter button to enter file explorer.

• Select a folder or file to open.
• Press the Menu button to use the option Menu..

Support.

Please for more information on installing and configuring this product go to our web www.approx.es support section and download the complete guide or write an email to the following address: [e-mail]

Introduction.

1,10 to File Explorer

Ano to kupio uevou, epiEeFile Explorer kal patnoTo pAnkto Enter yia va eayTe To apxio Eepuvntnc.

1.3 Introducerea unui card SD

Introduci cardul in mod corect, cu pini de contact cu care se confronta in sus.

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product:

Brand name: APPROX IBERIA S.L.

Model no: APPEB04E

Product description: e-book reader 6" DIGITAL INK

The measurements shown in this test report were made in accordance with the procedures given in the:

EMC DIRECTIVE: 2004/108/EC
-RoHS DIRECTIVE: 2011/65/EU

To which this declaration is based on with full conformance to the following European norms and standards:

• EN 55022: 2006 + A1: 2007
• EN 55024: 2010

Signed Jan2014,

Jose Luis Ruiz Gomez

Managing Director

APPROX IBERIA SL.

ADD: Poligono Industrial Guadalquivir

C/Tecnología,5 Postcode:41120

Gelves (Sevilla), Spain.

Website: www.approx.es

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte专业技术/Technical support:

[e-mail]

MADE IN PRC

The content of this guide is subject to typographical errors
