APPEB04G - E-reader Approx - Free user manual and instructions

Product type	E-book reader
Brand	Approx
Model	APPEB04G
Screen size	6 inches
Display technology	E-Ink
Display resolution	800 x 600 pixels
Processor	Rockchip
Internal memory	4 GB (flash)
Expandable storage	Micro SD up to 32 GB
Supported book formats	EPUB, PDF, TXT, FB2
Connectivity	USB 2.0 (Micro USB)
Battery	Rechargeable via USB (lithium-ion)
Estimated battery life	Several weeks (depending on usage)
Estimated dimensions	175 x 122 x 10 mm
Estimated weight	200 g
Package contents	Device, Micro USB cable, quick start guide
Compatible operating system	Windows, macOS
Main functions	Reading books, photo viewer, file explorer, settings
Maintenance	Clean with a dry, soft cloth; avoid chemical products
Safety	Do not expose to water, shocks, or extreme temperatures
Spare parts	Contact Approx support
Repairability	Repair by authorized center recommended

Frequently Asked Questions - APPEB04G Approx

How to turn the device on or off?

Press and hold the Power button for about 3 seconds to turn the device on or off.

How to charge the battery?

Connect the provided USB cable to the device and then to a computer or USB power adapter. The battery will charge automatically.

How to transfer books from a computer?

Connect the reader to the PC via USB cable. The device will be recognized as a removable drive. Copy the files to the desired folder.

How to install a Micro SD card?

Insert the Micro SD card into the reader with the metal contacts facing up until it clicks.

How to open a book?

From the main menu, select Library, use the directional keys to choose a book, then press Enter.

How to turn pages while reading?

Use the Page Up and Page Down keys or the directional keys to go to the next or previous page.

How to change the system language?

Go to Settings from the main menu, then choose Language and select the desired language.

What to do if the device is unresponsive?

Press and hold the Power button for about 10 seconds to force a restart. If the problem persists, contact support.

How to manage DRM-protected books?

Download and install Adobe Digital Editions on your computer. Create an Adobe account, authorize the computer and the reader, then transfer books via ADE.

How to view photos?

From the main menu, select Photo. Use the directional keys to choose an image and press Enter to display it in full screen.

USER MANUAL APPEB04G Approx

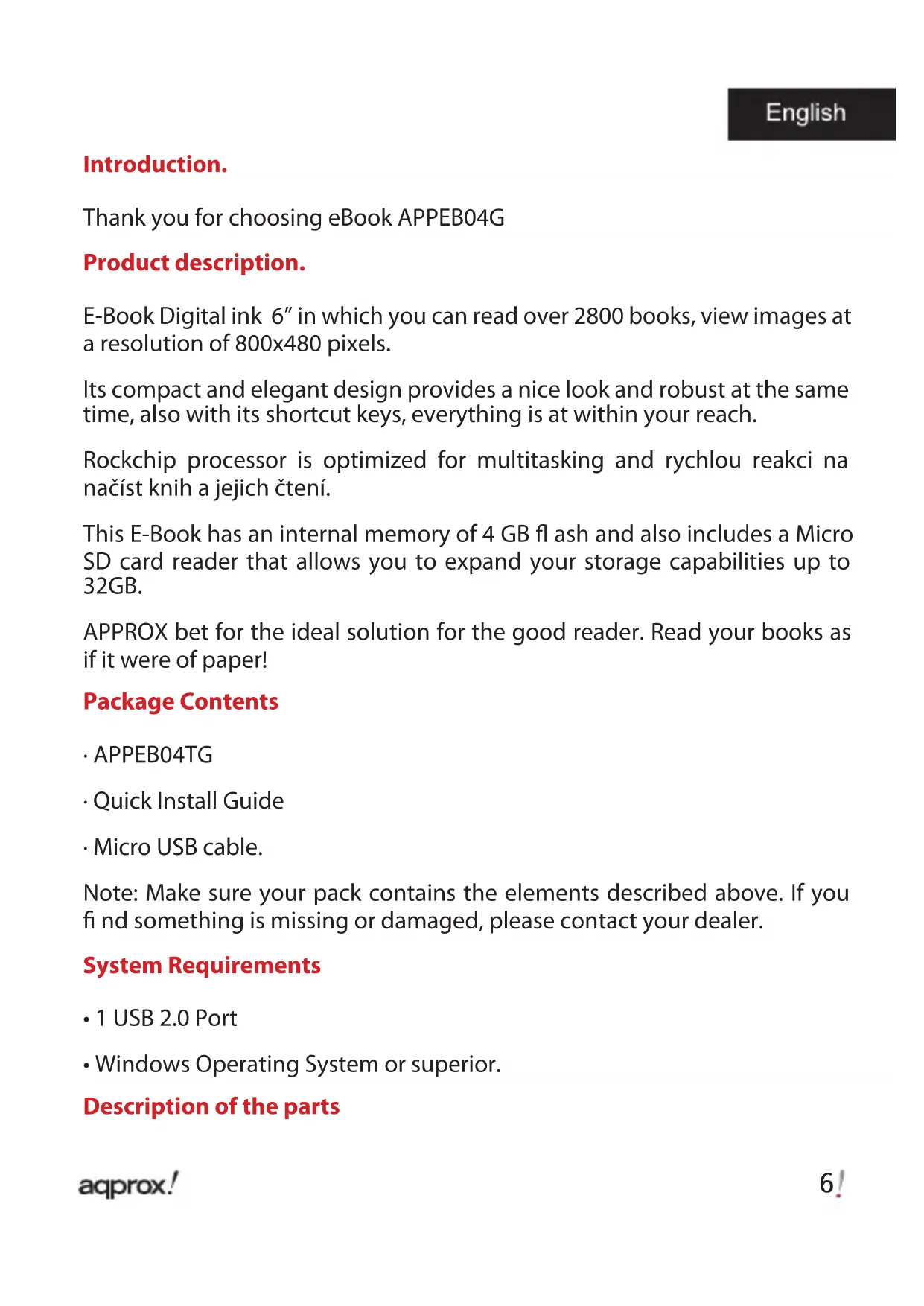

Thank you for choosing eBook APPEB04G

Product description.

E-Book Digital ink 6'' in which you can read over 2800 books, view images at a resolution of 800x480 pixels.

Its compact and elegant design provides a nice look and robust at the same time, also with its shortcut keys, everything is at within your reach.

This E-Book has an internal memory of 4 GB flash and also includes a Micro SD card reader that allows you to expand your storage capabilities up to 32GB.

APPROX bet for the ideal solution for the good reader. Read your books as if it were of paper!

Package Contents

• APPEB04TG

Quick Install Guide

• Micro USB cable.

Note: Make sure your pack contains the elements described above. If you find something is missing or damaged, please contact your dealer.

System Requirements

• 1 USB 2.0 Port

• Windows Operating System or superior.

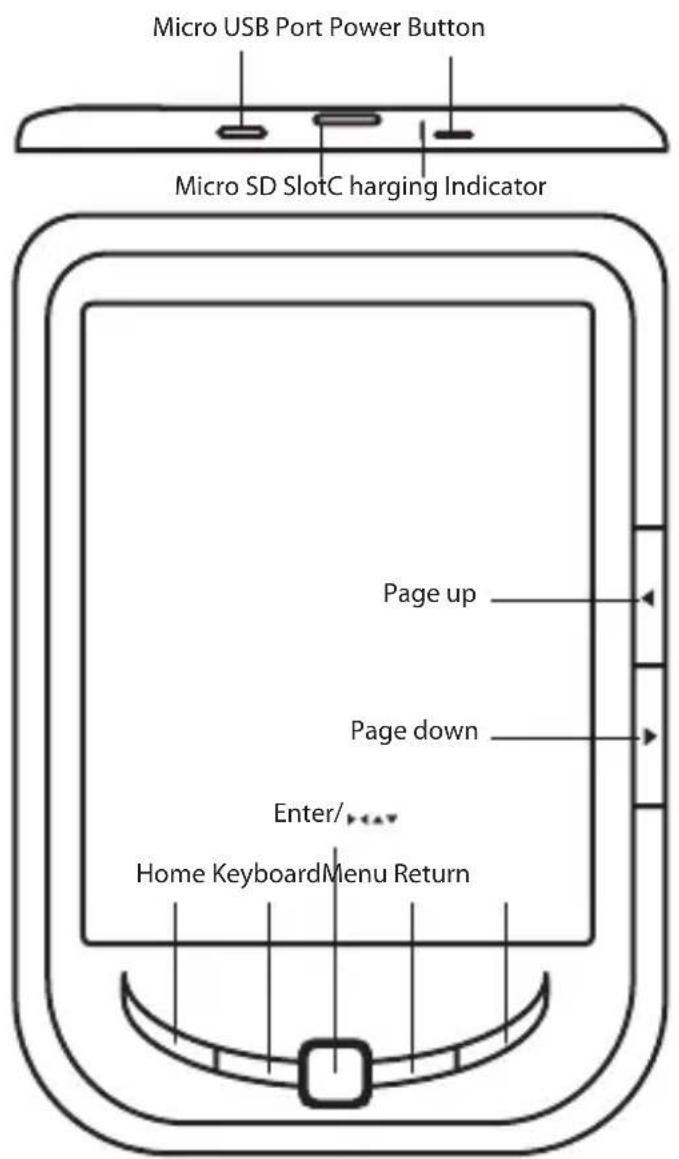

Description of the parts

aqprox!

Installation and configuration

1.1 Turning On/Off A

• Press and hold the Power button for 3 seconds to turn on/off

1.2 Charging

When battery power is low, charge it by connecting the reader to a computer or USB power adapter via the supplied USB cable.

1.3 Inserting a SD card

Insert the card correctly with the contact pin facing upwards.

1.4 Transfering and Importing Content

1. Connect the reader to PC via the supplied USB cable. Computer will recognize the device as a removable disk.

2. Perform normal file management operation like other USB device.

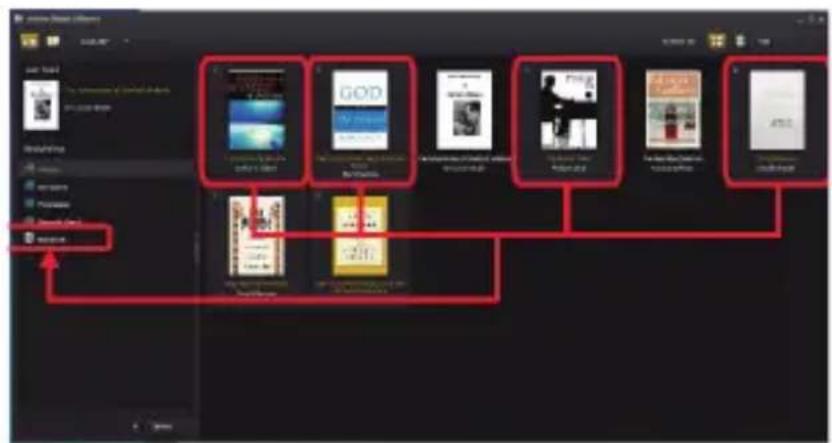

1.5 Importing DRM Contents

1. Download the Adobe Digital Editions (ADE) installer from http://www.adobe.com/products/digital editions/#fp.

2. Install ADE on your computer.

3. For first time user, you are required to register a ADE account.

4. Enter the user name and password to activate your Adobe account, then connect the Reader to PC.

5. Run ADE to authorize PC and Reader.

6. Download or buy eBooks from online ebook stores.

7. Drag and drop the selected item(s) into the Reader's Drive to transfer DRM eBooks as illustrated below.

1.6 Basics

Use the Directional buttons to move the cursor to the desired item from the list.

Press the Enter button to confirm the selection.

Press the Menu button to display option menu.

Press the Return button to cancel selection or return to previous menu, press and hold to return to Main Menu.

Press the Keyboard button to display/hide the keyboard.

1.7 Settings

From Main menu, select Settings and press the Enter button.

Use the Directional/Enter buttons to set system language and time.

1.8 Reading Books

From the Main menu, select Library and press the Enter button to enter book library.

• From home screen or book library, use the Directional buttons to select a book and press the Enter button to open.
• When reading, press Page up/down or Directional buttons to turn page.
• In reading page, press the Menu button to use the Option Menu.

1.9 Viewing photos

From Main menu, Select Photo and press the Enter button to enter photo viewer.

Select a photo and press the Enter button to full screen view.

Press the Menu button to use the option Menu.

1.10 File Explorer

From Main menu, select File Explorer and press the Enter button to enter fi le explorer.

• Select a folder or file to open.
• Press the Menu button to use the option Menu...

Support.

Please for more information on installing and configuring this product go to our web www.approx.es support section and download the complete guide or write an email to the following address: [e-mail]

Introduction.

1,10 to File Explorer

Ano to kupio uevou, epiEeFile Explorer kal patnoTo pAnkto Enter yia va eayTe To apxio Eepuvntnc.

1.3 Introducerea unui card SD

Introduci cardul in mod corect, cu pini de contact cu care se confronta in sus.

The content of this guide is subject to typographical errors
