USER MANUAL WX332 WORX
Not all the accessories illustrated or described are included in standard delivery.
TECHNICAL DATA
Type WX331 WX331.1 WX332
(330-359-designation of machinery, representative of rotary hammer)
| WX331 WX331.1 | WX332 | |
| Voltage 230-240V~50Hz | ||
| Power input 750W 800W | ||
| No load speed 0-1200/min | ||
| Impact rate 0-5000bpm | ||
| Impact energy 2.0J 2.5J | ||
| Protection class | ☐/II | |
| Drilling capacity max | ||
| Masonry 20mm 26mm | ||
| Steel 13mm | ||
| Wood | 30mm | |
| Machine weight | 2.3kg | 2.7kg |
NOISE INFORMATION
| When tested at hammer & drill mode | A weighted sound pressure \( {\mathrm{L}}_{\mathrm{{PA}}} = {90.4}\mathrm{\;{dB}} \) |
| A weighted sound power \( {\mathrm{L}}_{\mathrm{{WA}}} = {101.4}\mathrm{\;{dB}} \) |
| KPA & KWA: 3dB(A) | |
| When tested at hammer only mode according to 2000/14/EC | LPA=92.3dB |
| LWA=103.3dB | |
Wear ear protection when sound pressure is over
80dB(A)
VIBRATION INFORMATION
Vibration total values (triax cover sum) determined according to EN 60745
| Hammer drilling into concrete | Vibration emission value \( {\mathrm{a}}_{\mathrm{h},\mathrm{{HD}}} = {15.674}\mathrm{\;m}/\mathrm{s}{}^{2} \) |
| Uncertainty \( \mathrm{K} = {1.5}\mathrm{\;m}/\mathrm{s}{}^{2} \) | |
| Chiseling | Vibration emission value \( {\mathrm{a}}_{\mathrm{h},\text{ Cheq }} = {16.065}\mathrm{\;m}/\mathrm{s}{}^{2} \) |
| Uncertainty \( \mathrm{K} = {1.5}\mathrm{\;m}/\mathrm{s}{}^{2} \) |
The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.
WARNING: The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being drilled. The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.
This tool may cause hand-arm vibration syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of exposure level in the actual conditions
of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Avoid using tools in temperatures of 10^ or less. Plan your work schedule to spread any high vibration tool use across a number of days.
ACCESSIONS
| WX331 | WX331.1 | WX332 | |
| Auxiliary handle 1 | 1 1 | ||
| Depth gauge 1 1 1 | |||
| SDS drill bits / 5 3 | |||
| SDS flat chisel / / 1 |
We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
HAMMER SAFETY WARNINGS
- Wear ear protectors. Exposure to noise can cause hearing loss.
- Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
SYMBOLS
| To reduce the risk of injury, user must read instruction manual | |
| Double insulation |
| Warning |
| Wear ear protection |
| Wear eye protection |
| Wear dust mask |
| Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. |
| Before any work on the machine itself, pull the mains plug from the socket outlet. |
| Wear protective gloves |
| Concrete |
| High speed |
| Low speed |
| Tool holder |
| Drilling |
| Chiseling |
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction to ask carefully.
INTENDED USE
The machine is intended for hammer drilling in concrete, brick and stone as well as for light chiseling work. It is also suitable for drilling without impact in wood, metal, ceramic and plastic.
WARNING: Before any work on the machine, If, pull the mains plug.
OPERATION
| Action Figure | |
| INSERTING AND REMOVING DRILL BIT IN SDS | See Fig. A1&A2 |
| Adjusting the Auxiliary Handle See Fig | B |
| Using the Depth Gauge See Fig. C | |
| Plugging in the power See Fig. D | |
| On/Off Switch With Variable Speed Control | See Fig. E |
| FORWARD / REVERSE ROTATION CONTROLWARNING: Never change the direction of rotation while the tool is rotating, wait until it has stopped. | See Fig. F |
| Selecting The Operating Mode For simultaneous drilling and impacting of concrete or masonry, choose the Hammer drilling position.For screw driving, drilling into steel, wood and plastics choose the Rotary drilling position.For impacting only - for light chipping, chiseling and demolition applications choose the Hammer position.WARNING: The operating mode selector switch may be actuated only at a standstill.WARNING: Prolonged use will cause the aluminum housing to become hot, do not touch. | See Fig. G |
WORKING HINTS FOR YOUR DRILL (HAMMER)
If your power tool becomes over heated, set the speed to maximum and run no load for 2-3 minutes
to cool the motor. SDS-plus tungsten carbide drill bits should always be used for concrete and masonry. When drilling in metal, only use HSS drill bits in good condition. Always use a magnetic bit holder when using short screwdriver bits. Where possible use a pilot hole before drilling a large diameter hole.
MAINTENANCE
Remove the plug from the socket before carrying out any adjustment, servicing or maintenance.
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
ENVIRONMENTAL PROTECTION
Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your
local authorities or retailer for recycling advice.

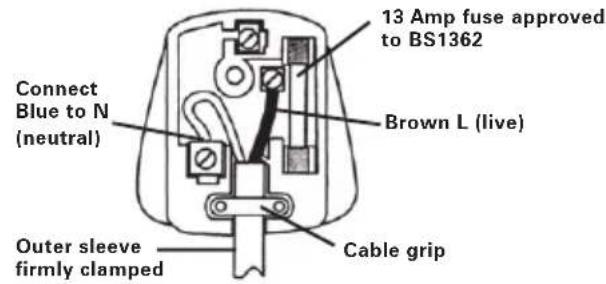

PLUG REPLACEMENT (UK & IRELAND ONLY)
If you need to replace the fitted plug then followthe instructions below.
IMPORTANT
The wires in the mains lead are colored in accordance with the following code:
Blue = Neutral
Brown = Live
As the colors of the wires in the mains lead of thisappliance may not correspond with the coloured markings identifying the terminals in your plug,proceed as follows. The wire which is coloured blue must be connected to the terminal which is marked with N. The wire which is coloured brown must be connected to the terminal which is marked with L.
WARNING: Never connect live or neutral wires to the earth terminal of the plug. Only approved 13ABS1363/A plug and the correct use.
NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent
engaging into a socket.
DECLARATION OF CONFORMITY
We,
POSITEC Germany GmbH
Declare that the product,
Description WORX Rotary hammer
Type WX331 WX331.1 WX332
(330~359--designation of machinery, representative of Rotary Hammer)
Function Hammering various materials
Complies with the following directives,
2006/42/EC, 2004/108/EC, 2011/65/EU
Standards conform to
EN 60745-1
EN 60745-2-6
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe)Ltd,
PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/30
Allen Ding
Deputy Chief Engineer, Testing & Certification
Typ WX331 WX331.1 WX332 (330~359--
Name: Russell Nicholson
Anschrift: Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/30
Allen Ding
INFORMATIONS RELATIVES AU BRUIT
| Lorsque testé en mode perçage et percussion | Niveau de pression acoustique \( {\mathrm{L}}_{\mathrm{{pA}}} = {90.4}\mathrm{\;{dB}} \) |
| Niveau de puissance acoustique \( {\mathrm{L}}_{\mathrm{{WA}}} = {101.4}\mathrm{\;{dB}} \) | |
| \( {\mathrm{K}}_{\mathrm{{PA}}} \) & \( {\mathrm{K}}_{\mathrm{{WA}}} : 3\mathrm{\;{dB}}\left( \mathrm{\;A}\right) \) | |
| Lorsque testé en mode percussion seul selon la 2000/14/EC | \( {\mathrm{L}}_{\mathrm{{PA}}} = {92.3}\mathrm{\;{dB}} \) |
| \( {\mathrm{L}}_{\mathrm{{WA}}} = {103.3}\mathrm{\;{dB}} \) | |
INFORMATIONS RELATIVES AUX VIBRATIONS
Box 152, Leeds, LS10 9DS, UK
Suzhou 2015/06/30
Allen Ding
WAARSCHUWING: Voor de
Type WX331WX331.1WX332
Standards in overeenstemming met,
EN 60745-1
EN 60745-2-6
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
DECLARATION OF CONFORMITY
My,
POSITEC Germany GmbH
DEKLARUJEMY, ZE PRODUKT.
TYP WX331WX331.1 WX332 (330~359--
Tipus WX331 WX331.1WX332 (330~359-
| WX331 | WX331.1 | WX3 | |
| Mâner suppli-mentar | 1 1 1 | ||
| Limitator adân-cime | 1 1 1 | ||
| Burghie SDS / 5 3 | |||
| Daltã plata SDS / / | 1 |
INFORMACE O HLUČNOSTI
Typ WX331 WX331.1 WX332 (330~359-
označeni stroje, zastupce Rotačni kladivo)
BEZPEČNOSTNÉ POKNY PRE KLADIVÁ
Tipo WX331 WX331.1 WX332
Vrsta izdelka WX331 WX331.1 WX332
(330~359—oznaka naprave, predstavnik rotacijskih kladiv)
2006/42/ES, 2004/108/ES, 2011/65/EU
