USER MANUAL LiIon Power GT 815 Wolf Garten

1 Middle grip
2 Telescoping handle
3 Edge adjustment
4 Cord cutter
5 Plant hoop guard
6 On-/Off-switch
7 Upper grip with cable holder
8 Battery
9 Handle angle adjustment

10 Cord spool

F

5 Ckob6aJnla3aunTbI paCTeHn

6 BkIIOuataTeB / BbIKIOUaTeB

7 BepxHpyKoRTka c yCTpOJCTBOM DnIa CHrTna HATXKeHn Ka6eJra

8 AkkymytnaTOp

9 PeryjTOp HakloHa cToiKn

10 KaTyuKa c KOpDoM

RO

1 Maner median

2 Tijä telescopica

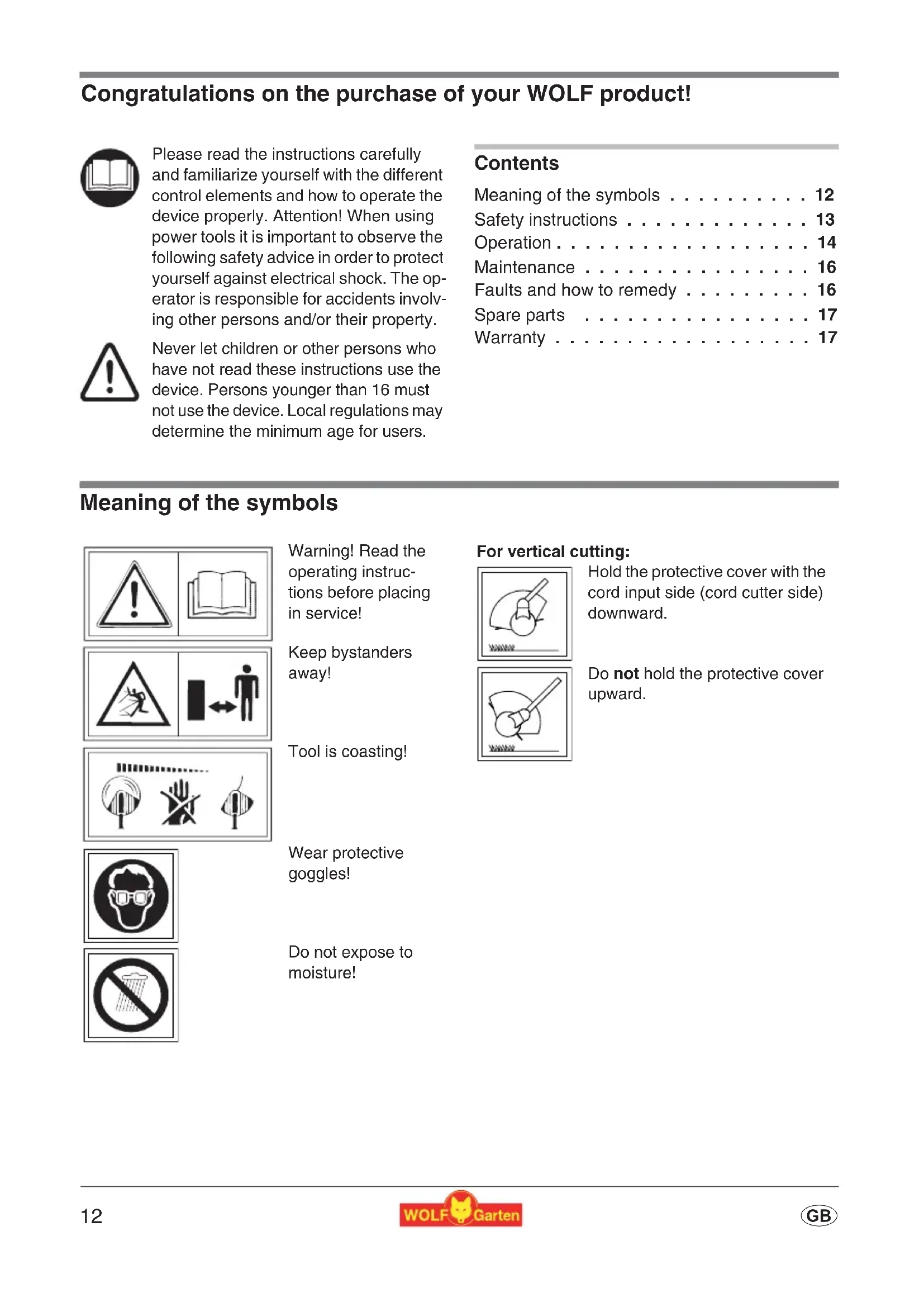

Congratulations on the purchase of your WOLF product!

Please read the instructions carefully and familiarize yourself with the different control elements and how to operate the device properly. Attention! When using power tools it is important to observe the following safety advice in order to protect yourself against electrical shock. The operator is responsible for accidents involving other persons and/or their property.

Never let children or other persons who have not read these instructions use the device. Persons younger than 16 must not use the device. Local regulations may determine the minimum age for users.

Contents

Meaning of the symbols 12

Safety instructions 13

Operation 14

Maintenance 16

Faults and how to remedy 16

Spare parts 17

Warranty 17

Meaning of the symbols

Warning! Read the operating instructions before placing in service!

Keep bystanders away!

Tool is coasting!

Wear protective goggles!

Do not expose to moisture!

For vertical cutting:

Hold the protective cover with the cord input side (cord cutter side) downward.

Do not hold the protective cover upward.

Safety instructions

General

• This trimmer is ideal for trimming lawn edges and small lawn areas in private gardens. The trimmer should not be used in public gardens, parks, sports grounds, streets etc. and in farming and forestry.
• Because of possible accidents the trimmer must not be used for:
• trimming of bushes and hedges
• cutting of flowers
• cutting garden by-products for composting
• For safety reasons, the trimmer is not for use by persons below 16 years of age and persons who are not familiar with its handling.
  Make sure that no persons (in particular children) or pets are in the vicinity of the working area. You are responsible for damages.
• Never operate the unit in the presence of individuals (particularly children) or animals.
  -Only operate the unit in daylight hours or if adequate artificial lightning is available.
• Use trimmer when the weather is dry and do not leave it outside when it rains.
• Use a residual current device (RCD) rated for a residual current not greater than 30mA .
• Never install metal cutting elements.

Before operating

• Before starting the trimmer, clear all string, wire etc. away from the area to be cut. Whilst cutting look out for foreign objects.
• Tool must not be used when the safety device or the covering is damaged.
• For safety reasons only original WOLF spare parts or parts appointed by the manufacturer shall be used. Please note the installation instructions!
  Before cleaning or adjusting the device, switch it off and remove the battery.

Working

Always keep hands and feet well clear of the cutting mechanism, particularly when starting the unit.

• Avoid injury from each of the components which serve to cut the line length. After pulling out a new length of line, always hold the unit in its normal operating position before starting it.
• When starting the trimmer hold its base parallel to the lawn area in order to avoid accidents.
• Keep your hands away from the moving cord.
  Wear eye protection!
  Always wear appropriate working clothes and sound footwear when using the trimmer.
  Before carrying the trimmer to the next lawn area to be cut, switch it off.
• Be careful when you go backwards. You may stumble!
• Never leave the trimmer without supervision. Store it in a safe place.
• The switches installed shall not be removed or bridged over, e. g. by binding the switch to the handle.
• Do not allow the cord spool to strike the ground or edges of working area. If the cord spool receives a hard knock, this will cause a strong vibration on the handle. If this occurs, the trimmer should be checked by a qualified service centre.

After operating

• When switching off the trimmer: Attention: the cutting tool does not stop immediately!
  Always wait for the cutting tool is stop.
• Before examining or cleaning the tool or before removing the safety device or the cord spool, switch off and disconnect the trimmer from the battery. Only use original WOLF cord spools and note the installation instructions!
  The cutting knife should not be cleaned under running water or under high-pressure.
• Faults shall only be repaired by appointed service centres or by the manufacturer.
  Make sure all air holes are free of dirt.
• Do not store the unit within reach of children.

Charger

The charger may only be used in dry rooms.

• Unplug cable connections only by pulling on the plug. Pulling on the cable could damage cable as well as plug and electrical safety could not be guaranteed.
• Never use the charger if cable, plug, or the device itself have been damaged through external influence. Bring the charger to the nearest repair shop.
• Under no circumstances should you open the charger. In case of a malfunction take the device to a repair shop.
• Charge the battery only with a suitable WOLF Garten charger. The use of other chargers might cause a fire or damage to the battery.

Battery

• As a result of incorrect use, fluid can leak from the rechargeable battery. Avoid contact with the fluid. In case of accidental contact, rinse with water. In case of fluid contact with the eyes, seek medical aid. Leaking battery fluid can cause irritation of the skin or burns.
  In the event of improper use of the battery pack, there is a risk of escaping hazardous vapours. Always ensure proper ventilation and immediately consult a doctor, if you feel unwell. The vapours might irritate the respiratory track.

Danger of fire!

• Never charge batteries in the vicinity of acids or easily flammable materials.
• Charge battery only at a temperature between 10 - 45^ . After a heavy load, first allow the battery to cool.

Danger of explosion!

• Protect the device from direct exposure to heat and fire.
• Do not place on heating units or expose to strong sunlight for an extended period.
• Operate the device only at temperatures between -10^ to +45^ .

Risk of short circuit!

• For disposal, transport or storage, pack the battery in a plastic bag or a cardboard box, or isolate the contacts with adhesive tape.
• Do not open the battery pack.

Safe disposal of batteries

WOLF-Garten batteries are designed according to the latest state of technology and optimized for the use in electric tools. Lithium ion cells contain hazardous substances and may therefore not be disposed off with normal household waste.
WOLF-Garten batteries are lithium ion cells and are therefore subject to special disposal regulations. Bring defective batteries to your specialist dealer. Before disposing of the tool, remove the battery.
WOLF-Garten wishes to encourage users to act in an environmentally friendly manner. It therefore guarantees to take back and recycle old batteries that are returned to WOLF-Garten dealers.

Disposal

Do not dispose of electrical equipment in domestic waste. Recycle equipment, accessories and packaging in an environment-friendly manner.

Operation

Operating times

• Please check noise abatement regulations

prevailing in your country.

Charging

The battery must be charged for approximately 2 hours before using it for the first time.

• Use only the original WOLF charger (part number 7420 069)!

• Use charging unit only in dry rooms!

• Remove the battery from the grass trimmer D .

• Connect the charger to the power mains E (3).

• Insert battery in the charger adapter (4).

Instructions for the handling of the charger

Red LED (5) is on: Battery is being charged.
Green LED (5) is on: Charge process completed.
Red LED flashing (5): Error

Self-discharge of batteries!

Remove the battery from the charger once it is fully charged.

General instructions:

regarding the battery In order to maintain the long service life of the battery, always follow the instructions below:

The lawn trimmer are automatically switched off when the battery voltage is low. The battery must then be recharged before the shears can be used again.
Always recharge the lithium-ion battery prior to any prolonged period of non-use, i.e. before storing the shears away in autumn.
The charging time is 2 hours for a battery that is completely empty.
- The lithium-ion rechargeable battery can be charged at any charge level and charging can be interrupted at any time without damaging the battery (no memory effect)

Settings

The lawn trimmer is equipped with a four-position adjustable working angle. This enables you to easily trim hard-to-reach areas in your garden. To set the ideal working position, please follow the instructions below.

The cutting head should be inclined slightly forward while trimming.

Working angle

Free trimming - Working angle 1 and 2 A

During free trimming, you should swing the trimmer in a semi-circular motion in front of your body.

• Set working angle. G

Trimming under bushes / on slopes - Working angle 3 B

• Set working angle. G

Edge function (horizontal cut) - Working angle 4 C

The edge function enables precise and convenient trimming along the edge of the lawn.

1. Turn cutting head 90^ . H
2. Set working angle . G

Plant hoop guard

The plant hoop guard protects bushes, trees and plants 1). When edging, the plant hoop guard must remain in the position illustrated in 2).

Telescoping handle and grip

The trimmer is adjusted to your body height by means of the telescoping handle and the middle grip J K.

On/off switch F2)

Thread adjustment (3)

The thread is adjusted with the tilt switch. Briefly tilt the running machine on a firm base, e.g. paving slab (approx. 3kg pressure). Approx. 2,5 cm cutting thread are the automatically paid out.

Tips on trimming

Cut high grass slowly, step by step.
- You can prolong the life of your trimmer by removing grass from the ventilation slots and the bottom of the trimmer before or after each use.
In order to take full advantage of the battery capacity, you should not switch the trimmer on and off unnecessarily.

Maintenance

Replacing the cord spool

The trimmer continues to spin after being switched off! Always remove battery before performing any work on the trimmer!

1. Hold spool case, turn cover in „AUF“ (open) direction of the arrow and remove it, remove empty thread cartridge M

2. Insert the thread end of the new thread cartridge through the thread lug N). Do not loosen the thread from the retainingslot of the thread cartridge N).

3. Slide thread cartridge over the metal knob. Pull end of thread until the thread is loosened from the retaining slot of the thread cartridge O. Ensure correct position of the thread from the thread cartridge to the thread lug.

4. Attach cover. One of the two arrow markings should point towards the thread lug. Press down on cover and turn to the right until it catches audibly () + (2)

When switched on, thread is cut off to operational length. Only switch machine on when in operational position.

Faults and how to remedy

Problem Cause Remedy
Tilt switch is not working.	·Spool is empty. ·Fit new spool. RQ-FA (71	17 081)
	·Dirt and debris in spool drive mechanism. ·	Clean parts with a brush.
	·Line is torn and stuck inside spool.	·Remove spool, check tightness of winding and replace spool in the usual way.
	·Line is „welded“ to itself or to spool through heat build-up.	·Remove welded line section, check tightness of winding and replace spool in the usual way.
String breaks too frequently	·Coil too dry or brittle.	·Place the coil in a container with water for approx. 24 hours. Dry and reinstall it.
	·String in contact with fence posts, trees, etc.	·Use plant guard.

When in doubt, always consult a WOLF service workshop.

Switch off the trimmer and disconnect the battery before inspecting, cleaning or working on the thread.

Spare parts

Ordering Number Designation of the item Description of the item
7117 081 RQ-FA Cord spool
7130 102 Plant hoop guard
7420 096 LI-ION POWER Pack 3 Battery
7420 068 Charger (UK)
Supplied by your dealer

Warranty

The warranty rules issued by our company or the importer apply to every country. As part of the warranty, we remedy malfunctions on your appliance free of charge provided that this malfunction is caused by a material or manufacturing defect. In the event of a warranty claim, please turn to your dealer or the nearest branch office.
