KHL37 - Laminating machine HAMA - Free user manual and instructions
Find the device manual for free KHL37 HAMA in PDF.
| Product Type | Laminating Machine |
| Brand | Hama |
| Model | KHL37 |
| Power Supply | 230 V AC, 50 Hz |
| Maximum Power | 730 W |
| Dimensions (L x H x D) | 54.8 x 11.8 x 18.6 cm |
| Net Weight | 6.8 kg |
| Maximum Laminating Width | 340 mm |
| Maximum Laminating Thickness | 0.7 mm |
| Maximum Pouch Thickness | 250 µm |
| Maximum Heating Time | 4 minutes |
| Maximum Speed | 430 mm/minute |
| Number of Heating Rollers | 4 |
| Heating System | Heating Shoe |
| Motor Type | Single-phase Motor |
| Cold Lamination | Yes |
| Hot Lamination | Yes |
| Manual Reverse Function | Yes |
| Automatic Shut-off (delay) | Yes (after 15 seconds) |
| Roller Cleaning | With included cleaning paper |
| Package Contents | Laminator, cleaning paper, instruction manual |
| CE Compliance | Directives 2006/95/EC and 2004/108/EC |
Frequently Asked Questions - KHL37 HAMA
User questions about KHL37 HAMA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Laminating machine in PDF format for free! Find your manual KHL37 - HAMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KHL37 by HAMA.
USER MANUAL KHL37 HAMA
Information on this instruction manual. 21
Copyright .21
Warning instructions 22
Intended use 23
Liability disclaimer 23
Safety 24
Fundamental safety precautions .24
Electric shock hazard .25
Risk of injury 25
Warning symbols on the unit . . . . 26
Setup and connection. 27
Unpacking 27
Scope of supply and transport inspection 27
Disposal of the packaging .28
Demands on the installation location 28
Electrical connection 28
Unit elements 29
Handling and operation 31
Application instructions 31
Switching the unit on and using it . 31
Hot lamination 31
Cold lamination 32
Switching the unit off. 33
Servicing 33
Cleaning and care 34
Safety precautions .34
Cleaning 34
Storage 34
Removal of failure. 35
Safety precautions. 35
Cause and removal of failure . . .35
Annex 36
Notes on EC Declaration of Conformity 36
Technical data 37

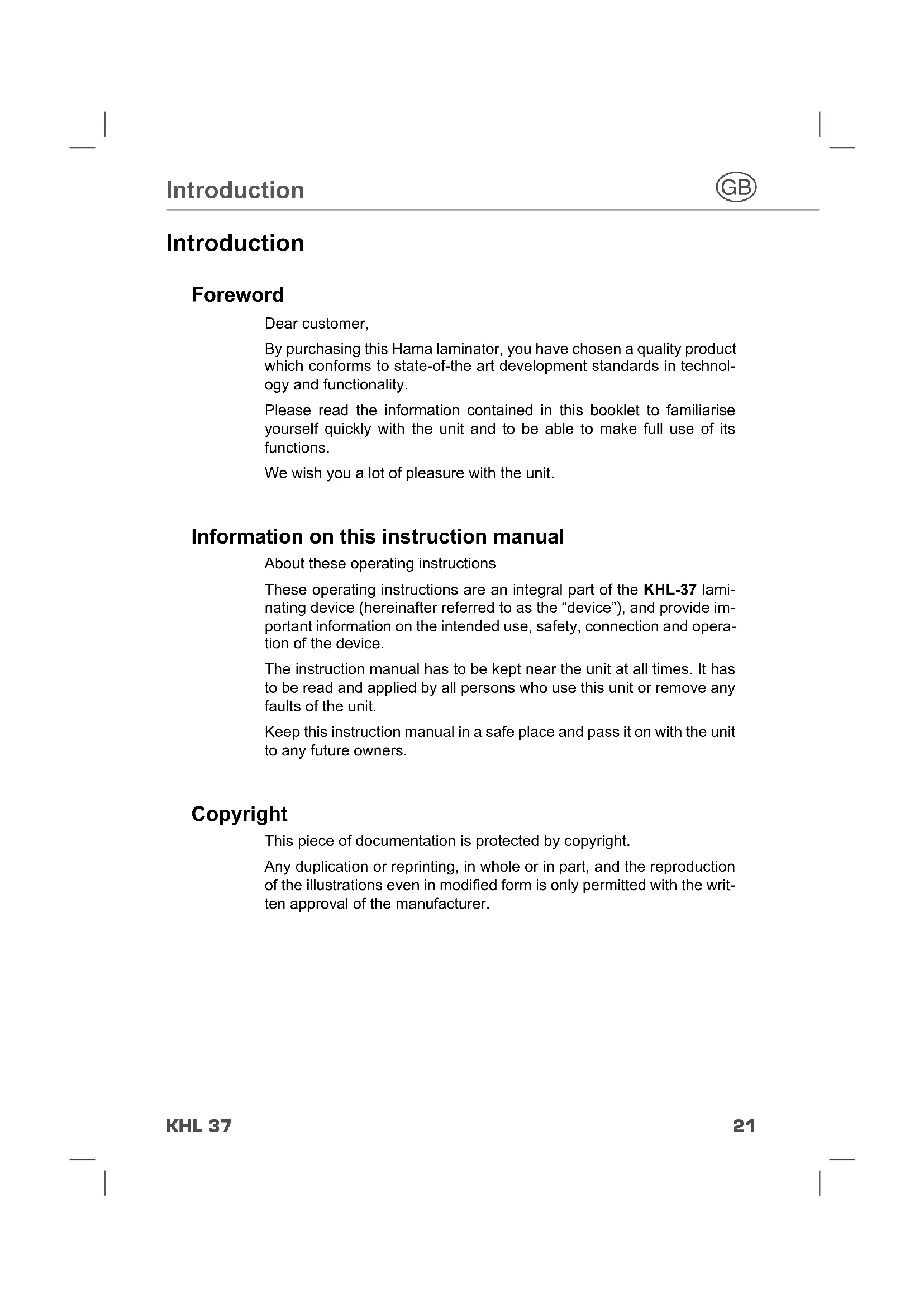

Introduction
Foreword
Dear customer,
By purchasing this Hama laminator, you have chosen a quality product which conforms to state-of-the-art development standards in technology and functionality.
Please read the information contained in this booklet to familiarise yourself quickly with the unit and to be able to make full use of its functions.
We wish you a lot of pleasure with the unit.
Information on this instruction manual
About these operating instructions
These operating instructions are an integral part of the KHL-37 laminating device (hereinafter referred to as the "device"), and provide important information on the intended use, safety, connection and operation of the device.
The instruction manual has to be kept near the unit at all times. It has to be read and applied by all persons who use this unit or remove any faults of the unit.
Keep this instruction manual in a safe place and pass it on with the unit to any future owners.
Copyright
This piece of documentation is protected by copyright.
Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Warning instructions
The following warnings are used in the present instruction manual:
DANGER
A warning of this category draws attention to an impending dangerous situation.
If the dangerous situation is not avoided, it may lead to serious injury or even death.
Follow the instructions in this warning to avoid the danger of serious injury or even death.
WARNING
A warning of this category draws attention to a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to injuries.
Follow the instructions in this warning to avoid the risk of injury.
CAUTION
A warning of this category draws attention to potential material damage.
If the situation is not avoided, it may lead to material damage.
Follow the instructions in this warning to avoid material damage.
NOTE
note draws attention to additional information that simplifi es the use of the appliance.
Intended use
This device is only intended for laminating documents indoors.
Use in any other or further way is not considered an intended use.
WARNING
Danger from use for other than the intended purpose!
If not used for its intended purpose or used in any other way, the unit may be or become a source of danger.
Use the unit only for its intended purpose.
Observe the procedures described in this instruction manual.
No claims of any kind will be accepted for damage or injury resulting from use of the unit for other than its intended purpose.
The risk has to be borne solely by the unit's owner.
Liability disclaimer
All technical information, data and instructions for the operation contained in this operating manual are in conformity with the last status prior to printing and shall be rendered on the basis of our previous experience and knowledge to the best of our belief.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the instruction manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Safety
This chapter contains important safety instructions for handling the unit.
This appliance complies with the prescribed safety regulations. Improper use can, however, result in personal injury and/or appliance damage.
Fundamental safety precautions
Observe the following safety instructions to ensure safe handling of the unit:
Inspect the unit for visible signs of damage before use. Do not use a damaged unit.
- Persons who due to their physical, mental or motor response abilities are unable to operate the unit may only use the unit under supervision or instruction by a responsible person.
- Permit repairs of the unit to be carried out only by an expert. Inexpert repairs shall cause the guarantee to expire.
Defective parts may only be replaced with original spare parts. Only these parts guarantee that the safety requirements are satisfi ed.
- Protect the unit against humidity and penetration of liquids and/or objects. In case of contact with liquids disconnect the unit from the power supply immediately.
Do not place any objects on the unit.
Electric shock hazard
DANGER
Electric shock hazard!
Contact with live leads or components poses a risk of serious injury or even death!
Observe the following safety precautions to avoid any electric shock hazard:
Do not use the unit if the mains lead or mains plug are damaged.
On no account should the housing of the unit be opened. Electric shock hazard if live connections are touched and/or the electrical and mechanical configuration is changed.
- Never immerse the unit or the mains plug in water or other liquids.
Risk of injury
WARNING
Risk of burns from casing
Observe the following safety precautions to avoid any injuries:
Do not touch the casing.
Warning symbols on the unit
The following warning symbols 1 see illustration in the chapter titled unit elements) have been attached to the unit:
Always insert the laminate into the device with the closed side of the film first.
Always make sure the size of the laminating fi lm is correct.
Do not touch the casing as it can become very hot.
WARNING
Risk of injury
Observe the warning symbols in order to prevent injury or damage of the unit.
Setup and connection
Unpacking
DANGER
Risk of suffocation caused by packaging material.
- Packaging materials must not be used as toys. Risk of suffocation.
Remove all parts of the unit and the operating manual from the box.
Prior to first use, remove all packaging materials and protective films from the unit.
NOTE
Do not remove the rating plate or any warning signs.
Scope of supply and transport inspection
As a standard feature, the unit is supplied with the following components:
- Laminating device
- Cleaning paper for cleaning the rollers
- Operating instructions
NOTE
Inspect the delivery for completeness and obvious signs of damage.
Disposal of the packaging
The packaging protects the unit from transport damage. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.
The return of the packaging to the material cycle helps conserve raw materials and reduces the production of waste. When no longer required, dispose of the packaging materials in accordance with the local regulations in force.
NOTE
- Keep the original packaging, if possible, during the warranty period in order to be able to pack the unit properly in the event of a warranty claim.
Demands on the installation location
For safe and trouble-free operation of the unit, the installation location has to satisfy the following requirements:
- Place the unit on a level horizontal surface.
- Do not install the unit in a hot, wet or very humid environment or in the vicinity of infl ammable materials.
- Set the unit up in such a way that it is not exposed to direct insolation.
- The mains socket has to be easily accessible so that the mains connection can be severed fast, if and when required.
Electrical connection
For safe and trouble-free operation of the unit, the following instructions have to be observed for the electrical connection:
Before connecting the unit, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data have to correspond in order to avoid damage to the unit.
- Protect the connecting cable from hot surface and sharp edges.
Make sure that the connecting cable is not taut or kinked.
- Do not permit the connecting cable to hang over edges (trip wire effect).

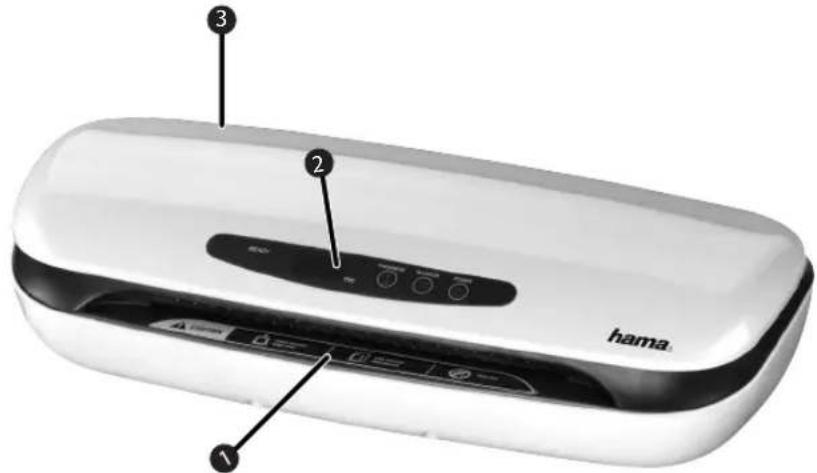

Unit elements
Warning symbols

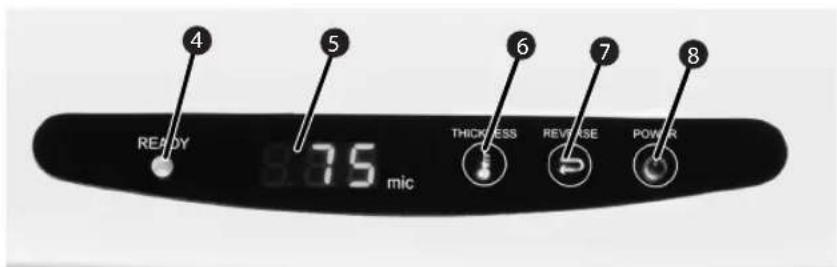

Display/controls
3 Connection line
Display/controls
Ready indicator
Set fi Im thickness display
Film thickness setting
7 Manuel reverse
On/off button
Handling and operation
Application instructions
Always set the correct temperature for the thickness of the laminating fi Im being used.
- When laminating thick paper or several sheets it is recommended to use fi lm with a low thickness.
Always wait until the first lamination is complete before starting the next.
Switching the unit on and using it
Press the on/off butt to switch on the device.
Hot lamination
After the device has been switched on, the default setting is 75~ which is shown on the display 5.
To change the setting press the button repeatedly until the desired fi lm thickness is shown on the display 5.
Place the document to be laminated in the appropriate pouch.
When the required operating temperature has been reached, the ready indicator 4 is constantly illuminated.
Insert the film pouch into the front opening of the device. Make sure that the sealed end is inserted first.
NOTE
Film pouches of all sizes should be inserted centrally into the front opening, so that they pass by the sensor.
The document is returned at the rear.
If the item has not been fully laminated, repeat the first steps.
NOTE
the item to be laminated has not passed through all 4 rollers approx. 15 seconds after the film pouch was inserted into the device, the reverse function is automatically switched on and the item is returned at the front of the device..
Press but if you wish to run the item through again.
DANGER
Laminated items coming out of the device may be too hot to touch.
NOTE
The laminated item is hot and easily bent. Place the item on a fl at surface and leave to cool, so that it does not roll up.
Cold lamination
After the device has been switched on the default setting is 75 m , which is shown on the display ⑤.
For cold lamination press butt repeatedly until "Cld" is shown on the display. 5.
Place the document to be laminated in the appropriate pouch.
If the device has been used for hot lamination it can take approx. 40 minutes until it has cooled down. The ready indicator is constantly illuminated.
Insert the film pouch into the front opening of the device. Make sure that the sealed end is inserted first.
NOTE
Film pouches of all sizes should be inserted centrally into the front opening, so that they pass by the sensor.
The document is returned at the rear.
f the item has not been fully laminated, repeat the first steps.
Cold lamination
HINWEIS
the item to be laminated has not passed through all 4 rollers approx. 15 seconds after the film pouch was inserted into the device, the reverse function is automatically switched on and the item is returned at the front of the device.
Press butt if you wish to run the item through again.
Switching the unit off
Press butt8. The ready indicator switches off.
Servicing
The rollers in the laminating device need to be cleared of dirt and any adhesive residue regularly. To do so, proceed as follows:
Switch the device on as previously described.
When the ready indicator flashes constantly, insert the cleaning paper into the device.
If a lot of dirt sticks to the paper turn it over and repeat the process again.
Cleaning and care
This chapter contains important information on cleaning and care of the unit.
Safety precautions
DANGER
Electric shock hazard!
Pull the mains plug out of the plug socket before starting cleaning.
WARNING
Risk of burns from casing!
Observe the following safety precautions to avoid any injuries:
Wait until the device has fully cooled down..
CAUTION
Damage of the unit caused by humidity!
Make sure that no humidity can get into the unit whilst cleaning in order to prevent an irreparable damage of the unit.
Cleaning
- Clean the unit with a dry cloth. In case of heavy soiling, the cloth may be moistened a bit.
Storage
If you do not want to use the unit for a longer period of time, switch the unit off and disconnect it from the power supply, and keep it at a clean and dry location without direct insolation.
Removal of failure
This chapter contains important information on cleaning and care of the unit. Please observe the notes to prevent dangers and damage.
Safety precautions
WARNING
Observe the following safety precautions to avoid any injuries and damage:
Repairs to electrical unit may only be carried out by specialists trained by the manufacturer. Unqualified repairs can pose considerable dangers for the user and serious damage to the unit.
Cause and removal of failure
The following table will help you locate and remedy smaller failures:
| Fault Possible cause Remedy | ||
| Nothing appears on the display 5 after pressing button 8. | On/off button has not been pressed. | Press the on/off button to switch on the device |
| Mains cable not connected correctly. | Make sure that mains plug has been connected to the mains socket. | |
| The mains socket does not provide any voltage. | Check the fuses. | |
| Unit is defective. | Contact after-sales service. | |
| Pouches are not properly laminated. | The temperature has not been set to the fi lm thickness being used. | Set the thickness to be used in the device by pressing the button 6. |
| A sound is played and the pouch is returned at the front. | The item to be laminated is possibly stuck or is too large to pass through the rollers. | Wait until the pouch is returned at the front of the device. Try again after approx. 15 seconds. Check that the item is not above the maximum allowed thickness. |
NOTE
If you cannot resolve the problem with the steps described above, please contact after-sales service.
Annex
Notes on EC Declaration of Conformity
Hama GmbH & Co. KG declares herewith that this unit is in conformity with the fundamental requirements and the other relevant regulations and stipulations of the Low-Voltage Directive 2006/95/EU and of the EMC Directive 2004/108/EU.
The complete original declaration of conformity is available on the Internet at http://www.hama.com.
Technical data
| Input voltage 230 VAC | |
| Mains frequency 50 Hz | |
| Maximum power consumption 730 W | |
| Dimensions (L x W x H) 54.8 x 11.8 x 18.6 cm | |
| Weight 6,8 kg | |
| Weight 7,3 kg | |
| Maximum laminating width 340 mm | |
| Maximum laminating thickness 0.7 mm | |
| Maximum pouch thickness 250 μm | |
| Maximum warm-up time 4 minutes | |
| Maximum speed 430 mm/minute | |
| Number of heating rollers 4 | |
| Heating system Heat shoe | |
| Motor type AC motor | |
| Cold lamination Yes |
Table des matieres
Introduction 39
Avant-propos 39
Chere cliente, cher client,
Note on environmental protection:
After the implementation of the European Directive 2002/96/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defi ne by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.
If products are defective:
Please contact your dealer or Hama Product Consulting if you have any product claims.
Internet/World Wide Web:
Product support, new drivers or product information can be found at www.hama.com
Support Hotline - Hama Product Consulting:
Tel. +49 (0) 9091 / 502-115 Fax +49 (0) 9091 / 502-272
D-86651 Monheim/Germany
www.hama.com
All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
