Brand	Geha
Model	Home & Office A4 Basic
Category	Laminating machine
Product type	Hot and cold laminator
Maximum document format	A4
Pouch thickness	80 to 100 micrometers
Maximum document thickness	0.6 mm
Laminating speed	Approximately 230 mm/min
Preheating time	Approximately 3 to 5 minutes
Power supply	220-240 V, 50/60 Hz
Max power consumption	265 W
Rated current	1.1 A
Main functions	Hot and cold lamination, ABS release button, operating indicator light
Maintenance and cleaning	Clean with a soft cloth only, do not immerse in water, do not use abrasive products
Safety	Do not touch hot surfaces, unplug before cleaning, do not laminate metal or conductive objects, use a compliant extension cord if necessary
Spare parts and repairability	Repairs only by an approved after-sales service, do not open the housing
General information	24-month warranty, keep the purchase receipt and original packaging

Frequently Asked Questions - Home & Office A4 Basic GEHA

What is the difference between hot and cold lamination?

Hot lamination uses heat to bond the pouch to the document, ideal for most papers. Cold lamination uses pressure without heat, suitable for heat-sensitive documents like thermal photos. Use the switch to select the mode.

How to know when the device is ready for hot lamination?

After turning on hot mode (switch to HOT), the red light turns on. When the blue light turns on, the device has reached the required temperature, after about 3 to 5 minutes of preheating.

Can I laminate photos I developed myself?

It is not recommended to laminate home-developed photos as they may not be completely dry and may stick incorrectly. Make sure the photos are completely dry before laminating.

What to do if the document gets stuck in the machine?

Press the ABS release button located on the back of the device. Then gently and slowly pull the pouch backwards to remove it. If the problem persists, contact customer service.

What pouch thickness should I use?

This laminator is designed for pouches with a thickness between 80 and 100 micrometers. Using thicker or thinner pouches may result in poor lamination or jamming.

Can I laminate thick objects like coins?

No, this device is intended for flat documents with a maximum thickness of 0.6 mm. Never laminate coins or thick objects, as this could damage the machine.

How to clean the laminator?

Unplug the device and let it cool down completely. Clean the exterior with a soft, dry cloth. Never use water, abrasive products or metal objects for cleaning.

Why does my laminated document look cloudy?

Some papers may appear cloudy after the first pass. You can run the document through the machine a second time (in hot mode) to improve clarity.

Can I use cold pouches in hot mode?

Yes, but it is recommended to use cold mode for cold pouches. If you use hot mode, switch the switch from HOT to COLD, then wait about 3 hours for the red light to turn off and the blue light to turn on.

What is the warranty period of this device?

The warranty is 24 months from the date of purchase. Keep the receipt and original packaging for any claim.

USER MANUAL Home & Office A4 Basic GEHA

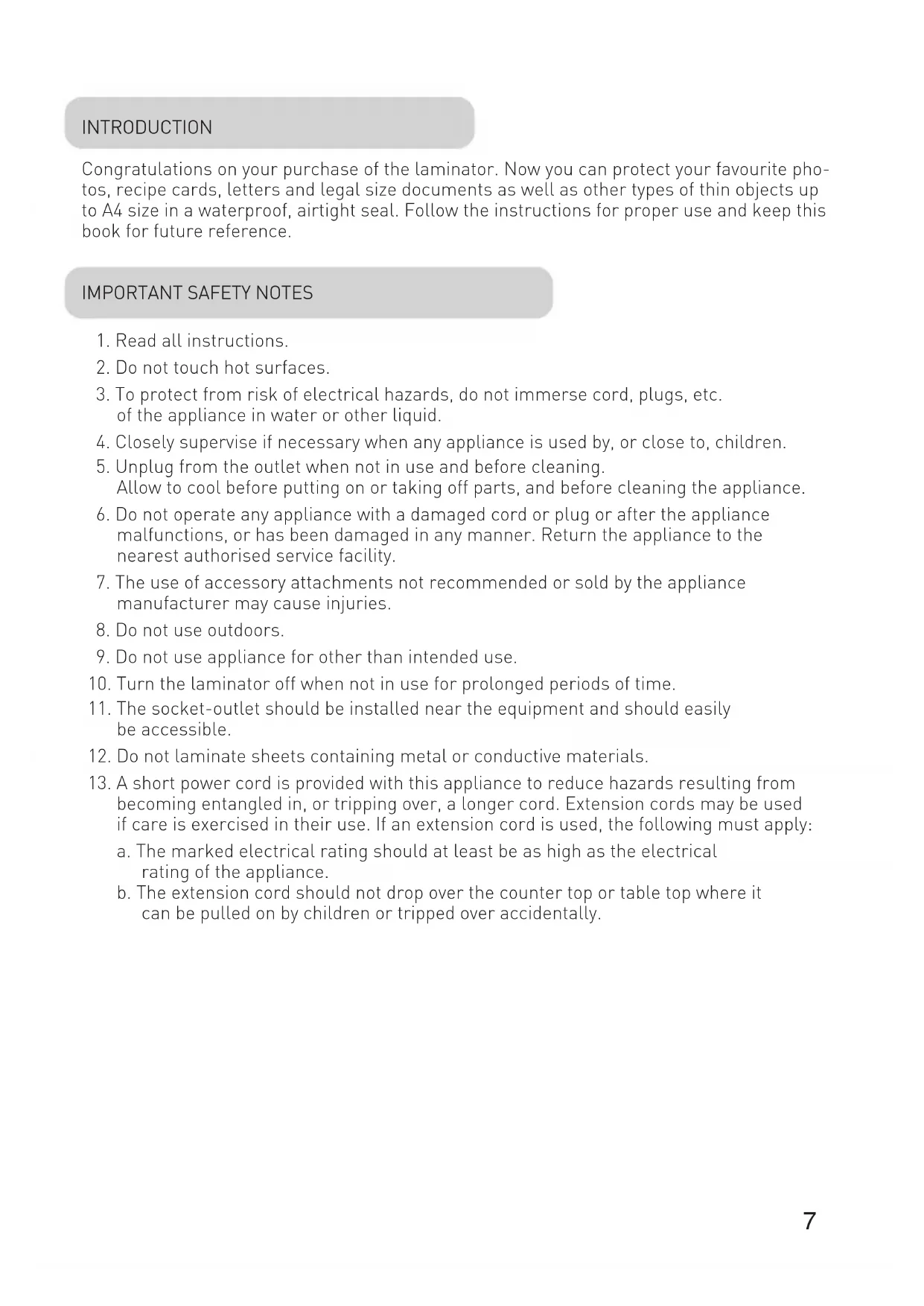

Congratulations on your purchase of the laminator. Now you can protect your favourite photos, recipe cards, letters and legal size documents as well as other types of thin objects up to A4 size in a waterproof, airtight seal. Follow the instructions for proper use and keep this book for future reference.

IMPORTANT SAFETY NOTES

1. Read all instructions.
2. Do not touch hot surfaces.
3. To protect from risk of electrical hazards, do not immerse cord, plugs, etc. of the appliance in water or other liquid.
4. Closely supervise if necessary when any appliance is used by, or close to, children.
5. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorised service facility.
7. The use of accessory attachments not recommended or sold by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not use appliance for other than intended use.
10. Turn the laminator off when not in use for prolonged periods of time.
11. The socket-outlet should be installed near the equipment and should easily be accessible.
12. Do not laminate sheets containing metal or conductive materials.
13. A short power cord is provided with this appliance to reduce hazards resulting from becoming entangled in, or tripping over, a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the following must apply:

a. The marked electrical rating should at least be as high as the electrical rating of the appliance.

b. The extension cord should not drop over the counter top or table top where it can be pulled on by children or tripped over accidentally.

HOW TO USE THE APPLIANCE

• We do not recommend laminating any type of self-developing photo.
• Any photo to be laminated must be dry before processing.
• Do not laminate any documents that appear thick or heavy, as they will get stuck in the laminator. If this occurs, please contact your local service centre for servicing.
• This product bonds the laminate sleeve to the items processed. It is a permanent seal and cannot be removed.
• We do not recommend laminating any collector's items of value or any item you may wish to remove at a later date. Do not attempt to laminate coins or thicker items.

Fig. 1

1 Pouch exit
2 ABS Anti Blockage button
3 Pouch entrance
4 Sliding switch
5 Operating indicator for hot/cold lamination
6 OFF - turn off
7 COLD - cold lamination
8 HOT - hot lamination

1. If you wish to use the device for hot laminating, push the sliding switch to the right. The red indicator light is on.
2. When the blue light comes on, the machine is ready for hot pouches lamination (fig. 1). The warm-up time takes approx. 3-5 minutes.

3. Place the item to be laminated into the laminating sleeve, centring it within the sleeve. Please make sure your document or picture is positioned as close to the sealed edge as possible.

4. The laminator does not require the use of a carrier in order to operate.

5. The laminator can laminate pouches from 80 microns to 100 microns. It works with most types of heat-sealing laminating pouches.

6. If you want to use cold pouches when the laminator is in cold condition, please push the sliding switch to the left position, the Red light comes on at the same time, and it is ready to laminate with cold pouches.

7. If you want to use cold pouches when the laminator is in hot condition, please push the sliding switch from the right position to the left position, and wait for approx. 3 hours until the LEDs turn from blue to red.

8. Insert the sealed edge of the laminating sleeve straight into the CENTRE of the laminator opening.
9. Remove the sleeve from the rear of the machine after is has stopped moving.
10. Some types of paper do not laminate evenly, or appear somewhat cloudy. In such cases, the lamination can be fed through the machine a second time and the lamination process may be repeated.
11. If there is a jam, please press the ABS button located at the back of the machine. The laminator will stop then. Please pull out the laminating pouches with one hand slowly.

CARE AND CLEANING

Only authorised service teams should perform any servicing other than cleaning and user maintenance. Do not immerse in water.

To reduce the risk of fire or electrical shock, do not remove the base. No user serviceable parts are inside. Repair should be done by authorised service personnel only.

• Keep your hands and the cord away from hot parts of the appliance during operation.
• Never clean with scrubbing powders or hard implements.
• Wipe clean with a soft cloth.

TECHNICAL DATA

Voltage 230 V-240 V, 50/60 Hz

Current 1.1 A

Power max. 265 W

Film thickness 80-100 microns [8 1/4" x 11 3/4")

Max. document size A4

Warm-up time approx. 3-5 mins

Laminating speed approx. 230~mm / min

Max. document thickness 0.6 mm

DISPOSAL

The crossed out wheelie bin symbol on this product is to remind you that electrical products should not be disposed of with household waste.

Please dispose of in a responsible manner at an approved waste or recycling facility.

WARRANTY

The warranty period for your appliance is 24 months.

It is essential that you retain your proof of purchase and the original packaging.

Should any problem arise with your appliance, please contact your dealer.
