| Product type | Induction hob |
| Brand | IKEA |
| Model | TREVLIG |
| Power supply | 230 V single-phase or 400 V three-phase (depending on configuration) |
| Number of cooking zones | 4 induction zones |
| Control type | Touch controls with digital display |
| Main functions | Pan detection, residual heat indicator, safety shutdown |
| Care and cleaning | Clean with a soft cloth and a hob cleaner. Do not use a steam cleaner or abrasive sponges. |
| Safety | Residual heat indicator, pan detection, child lock (not specified), automatic shutdown in case of overheating |
| Protection class | Class II (double insulation) |
| Warranty | 5 years (IKEA contractual warranty) |
| Surface material | Ceramic glass |
| Pot compatibility | Only pots with ferromagnetic base (stainless steel, cast iron, etc.) |
| Energy consumption | Energy class A+ (estimate) |
Frequently Asked Questions - TREVLIG IKEA
User questions about TREVLIG IKEA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual TREVLIG - IKEA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TREVLIG by IKEA.

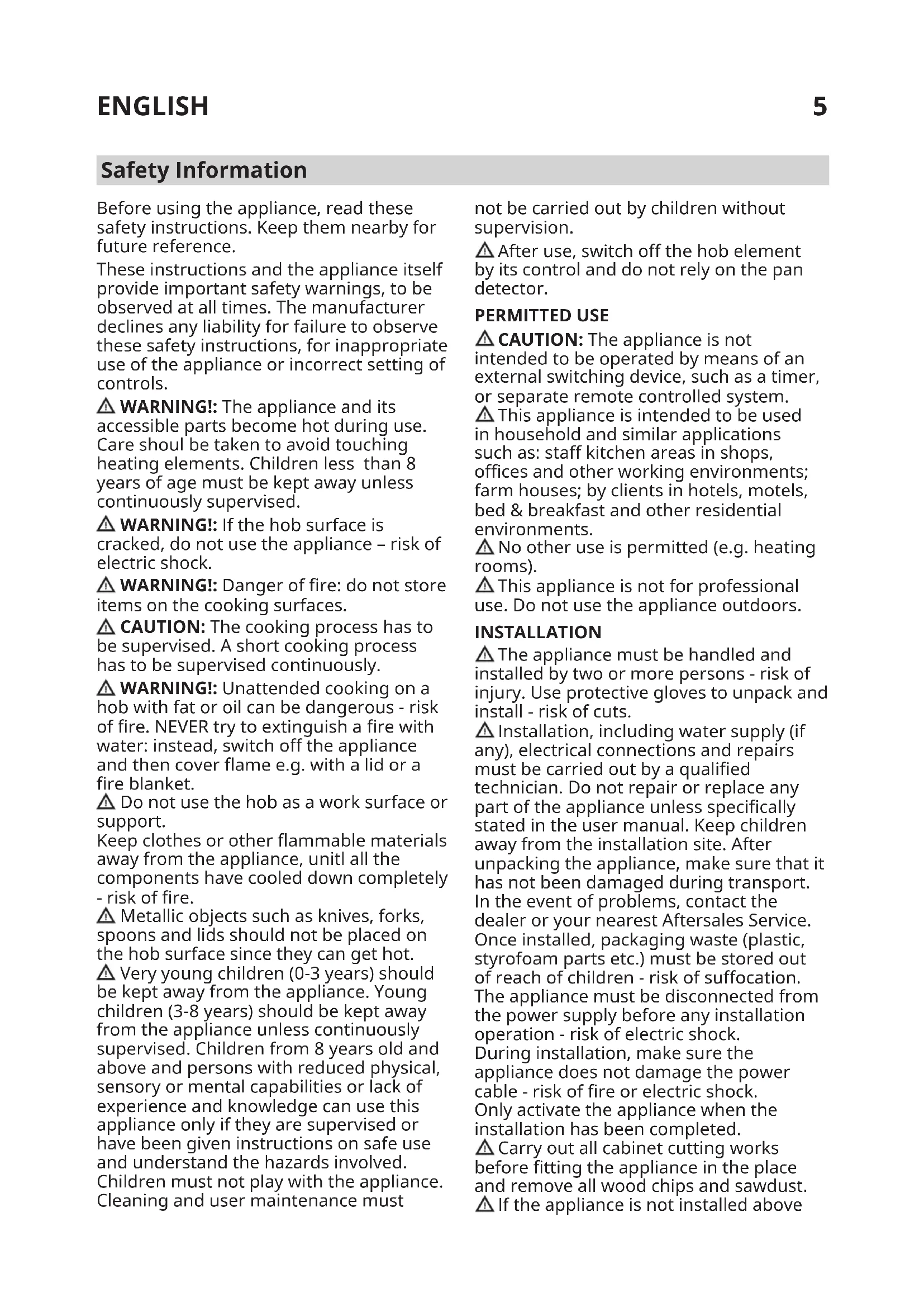

USER MANUAL TREVLIG IKEA
Before using the appliance, read these safety instructions. Keep them nearby for future reference.
These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
WARNING!: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age must be kept away unless continuously supervised. WARNING!: If the hob surface is cracked, do not use the appliance - risk of electric shock. WARNING!: Danger of fire: do not store items on the cooking surfaces. CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously. WARNING!: Unattended cooking on a hob with fat or oil can be dangerous - risk of fire. NEVER try to extinguish a fire with water: instead, switch off the appliance and then cover flame e.g. with a lid or a fire blanket. Do not use the hob as a work surface or support. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely - risk of fire. Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot. Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must
not be carried out by children without supervision.
After use, switch off the hob element by its control and do not rely on the pan detector.
PERMITTED USE
CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments. No other use is permitted (e.g. heating rooms). This appliance is not for professional use. Do not use the appliance outdoors.
INSTALLATION
The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts. Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed. Carry out all cabinet cutting works before fitting the appliance in the place and remove all wood chips and sawdust. If the appliance is not installed above
an oven, a separator panel (not included) must be installed in the compartment under the appliance.
ELECTRICAL WARNINGS
It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards. Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot.
Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.
NOTE: People with a pacemaker or similar medical device should use care when standing near this induction hob while it is on. The electromagnetic field may affect the pacemaker or similar device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction hob.
Environmental concerns
WARNING! Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.
Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycle symbol. The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.
The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Make the most of your hot plate's residual heat by switching it off a few minutes before you finish cooking.
The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted.
Cover your pots and pans with tight-fitting lids while cooking and use as little water as possible. Cooking with the lid off will greatly increase energy consumption.
Use only flat-bottomed pots and pans.
DECLARATION OF CONFORMITY
This appliance meets the Eco Design requirements of European Regulations n. 66/2014 in conformity to the European standard EN 60350-2.
Manufacturer
Ikea of Sweden AB - SE-343 81 Almhult, Sweden
Cleaning and maintenance
WARNING:
- Do not use steam cleaning equipment.
- Before cleaning, make sure the cooking zones are switched off and that the residual heat indicator ("H") is not displayed.
Important:
- Do not use abrasive sponges or scouring pads as they may damage the glass. After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue.
- A surface that is not kept suitably clean may reduce the sensitivity of control panel buttons.
- Use a scraper only if residues are stuck to the hob. Follow the scraper manufacturer's instructions to avoid scratching the glass.
- Sugar or foods with a high sugar content can damage the hob and must be immediately removed. Salt, sugar and sand could scratch the glass surface.
- Use a soft cloth, absorbent kitchen paper or a special hob cleaner (follow the Manufacturer's instructions).
- Spills of liquid in the cooking zones can cause the pots to move or vibrate. After cleaning the hob, dry thoroughly.
Electrical connection
230V 2L 2N~
220-240V~
220-240V3~
L1 = R: black
L2 = S: brown
N = N: blue
N = T: blue (grey)
E: yellow/green
L1 = R: black
L2 = S: brown
N = N: blue
N = T: blue (grey)
E: yellow/green
L1 = R: black
L1 = S: brown
N = N: blue
N = T: blue (grey)
E: yellow/green
L1 = R: black
L2 = S: brown
N = N: blue
N = T: blue (grey)
E: yellow/green
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five years from the original date of purchase of your appliance at IKEA. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.
Who will execute the service?
IKEA service provider will provide the service through its own service operations or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault (e.g. repairs, parts, labour and travel) will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions, the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.
What is not covered under this guarantee?
Normal wear and tear. - Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions. - Consumable parts including batteries and lamps. - Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences. - Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers. - Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults. - Cases where no fault could be found during a technician's visit. - Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used. - Repairs caused by installation which is faulty or not according to specification. - The use of the appliance in a non-domestic environment i.e. professional use. - Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA. - Cost for carrying out the initial installation of the IKEA appliance. - However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary.
- This does not apply within Ireland; customers should contact the local IKEA dedicated after-sales line or the appointed Service Provider for further information.
(just for GB)
These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.
How country law applies
The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However, these conditions do not limit in any way consumer rights described in the local legislation.
Area of validity
For appliances purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.
An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:
- the technical specifications of the country in which the guarantee claim is made;
- the Assembly Instructions and User Manual Safety Information.
The dedicated AFTER SALES for IKEA appliances
Please don't hesitate to contact IKEA appointed Authorized Service Centre to:
make a service request under this guarantee; - ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture; - ask for clarification on functions of IKEA appliances.
To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.
How to reach us if you need our service
Please refer to the last page of this manual for the full list of IKEA appointed Authorized Service Centre and relative national phone numbers.
In order to provide you a quicker service, we recommend to use the specific phone numbers listed on this manual. Always refer to the numbers listed in the booklet of the specific appliance you need an assistance for. Please also always refer to the IKEA article number (8 digit code) and 12 digit service number placed on the rating plate of your appliance.
SAVE THE SALES RECEIPT!
It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.
Do you need extra help?
For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.
IKEA GUARANTEE (FRANCE)
IKEA GUARANTEE AND AFTER-SALES SERVICE CONTRACT
L1 = R: black L2 = S: brown N = N: blue N = T: blue (green) E: yellow/green
380-415V 3N~
380-415V 2N~
L1 = R: black L2 = S: brown N = N: blue N = T: blue (green) E: yellow/green
220-240V~
L1 = R: black L1 = S: brown N = N: blue N = T: blue (green) E: yellow/green
220-240V 3~
L1 = R: black L2 = S: brown N = N: blue N = T: blue (green) E: yellow/green
IKEA GUARANTEE
L1 = R: black L2 = S: brown N = N: blue N = T: blue (gray)
E: yellow/green
L1 = R: black
L2 = S: brown
N = N: blue
L1 = R: black L2 = S: brown N = N: blue N = T: blue (grey)
= E: yellow/green
L1 = R: black L2 = S: brown N = N: blue N = T: blue (grey) E: yellow/green
L1 = R: black L1 = S: brown N = N: blue N = T: blue (grey) = E: yellow/green
L1 = R: black L2 = S: brown N = N: blue N = T: blue (grey) 1 = E: yellow/green
IKEA WARRANTY
NOTE: People with a pacemaker or similar medical device should use care when standing near this induction hob while it is on. The electromagnetic field may affect the pacemaker or similar medical device. Consult your doctor, or the manufacturer of the pacemaker or similar medical device for additional information about its effects with electromagnetic fields of the induction hob.
Environmental concerns
Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.
DISPOSAL OF PACKAGING
This appliance meets the Eco Design requirements of European Regulations n. 66/2014 in conformity to the European standard EN 60350-2.
C
Manufacturer
Ikea of Sweden AB-SE-343 81 Almhult,Sweden
If the appliance is damaged, make sure it is unplugged and not connected to the power supply; never use a damaged appliance for cooking - there is a risk of electric shock.
Do not use abrasive or corrosive cleaning agents, chlorine-based products, or solvents.
DISPOSAL OF PACKAGING MATERIALS
The packaging material is 100% recyclable and is marked with the recycling symbol. Therefore, the different parts of the packaging must be disposed of responsibly, in full compliance with the regulations of the local authorities responsible for waste collection.
DISPOSAL OF HOUSEHOLD ELECTRICAL APPLIANCES
This appliance is manufactured with materials that are recyclable or suitable for reuse. When disposing of it, follow local regulations for waste disposal. For further information on the treatment, recovery, and recycling of household electrical appliances, contact your local competent authorities, the household waste collection service, or the store where you purchased the appliance. This appliance is marked in accordance with European Directive 2012/19/EU on
waste electrical and electronic equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent potential negative consequences for the environment and human health.
The symbol on the product or its documentation indicates that this appliance must not be treated as household waste, but must be taken to an appropriate collection point for the recycling of electrical and electronic equipment.
TIPS FOR ENERGY SAVING
Make the most of the residual heat of the oven by turning it off a few minutes before the end of the cooking time.
The base of your pots and pans should just cover the hotplate; using cookware that is smaller than the hotplate will lead to energy loss.
During cooking, cover pots and pans with suitable lids or use as little water as possible. Cooking without lids will significantly increase energy consumption.
Use only flat-bottomed pots and pans.
DECLARATION OF CONFORMITY
This appliance complies with the requirements of the European Regulation No. 66/2014 on ecodesign, in accordance with the European standard EN 60350-2.
Ikea of Sweden AB-SE-343 81 Almhult, Sweden
Instructions for use
WARNING:
Do not use abrasive cleaners. - Before cleaning, unplug the appliance and wait for it to cool down. The residual heat indicator will show if the surface is still hot.
Important:
Do not use abrasive sponges or cloths, as they may damage the glass. Regular cleaning with a suitable cleaner (when cool) will remove food residues. A surface that is not cleaned properly may become permanently stained. - Use a scraper only if there is a green residue.
Residual food. Follow the scraper manufacturer's instructions to avoid scratching the glass.
Sugar or food with high sugar content may damage the glass and must be removed immediately. - Salt, sugar, and sand may scratch the glass surface. - Use a ceramic hob cleaner, a special sponge, or a cloth for glass ceramic hobs (follow the manufacturer's instructions). - When boiling liquids, the hot zone may cause the cookware to move and vibrate. - Dry the surface well after cleaning.
Connecting to the mains supply
230V 2L 2N~
380-415V 3N\~ 380-415V 2N\~
220-240V~
220-240V3~
L1 = R: brown L2 = S: black N = N: blue N = T: blue (blue)
L1 = R:upleH
L2 = S:KaΦAB
N = N:CNH
N = T: cNH (CNB)
E:KbNT/3eJenH
L1 = R:upleh
L1 = S:KaΦAB
N = N:CNH
N = T: cNH (CNB)
E:KbNT/3eJIeH
L1 = R:уерен
L2 = S:KaΦAB
N = N:CNH
N = T:CNH (CNB)
IKEA warranty
How long is the IKEA warranty valid?
This warranty is valid for a period of 5 years from the date of purchase of your product at IKEA. The proof of purchase is required, namely the original receipt. If during the warranty period the product is repaired, this does not extend the warranty period for the product.
Who provides the service?
IKEA service provider performs the service through its own service or through an authorized service partner.
What does this warranty cover?
The warranty covers defects of the product that are caused by defective construction or defective material, from the date of purchase from IKEA. This warranty applies only for domestic use.
The exceptions are listed below in the statement "What is not covered by this warranty?". Within the
warranty period, the costs for rectifying defects are covered, such as repair, parts, labor and transport, provided that the product is delivered for repair without special costs. Under these conditions, the directives of the EU (99/44/EC) and the relevant local regulations apply. Replaced parts become the property of IKEA.
What will IKEA do to fix the problem?
The designated IKEA service provider will check the product and decide at its discretion whether it is covered by this warranty. If it is determined that it is covered, the IKEA service provider or its authorized service partner through its own service will, at its discretion, either repair the defective product or replace it with an equivalent product.
What is not covered by this warranty?
Damage caused by wear and tear or mishandling. - Damage caused by negligence, damage caused by failure to follow the operating instructions, damage caused by incorrect installation or connection to an unsuitable voltage, damage caused by chemical or electrochemical reaction, rust, corrosion, or water damage, including but not limited to damage caused by excessive amounts of lime in the water supply, damage caused by abnormal conditions of the surrounding environment. Consumables, including batteries and electrical bulbs. Non-replaceable parts that do not depend on normal use of the device, including scratches and possible differences in color. Damage caused by insects or animals, as well as clogging of filters, drainage systems, or the siphon. - Damage to the following parts: glass ceramic, accessories, dishes for cooking and frying, utensils, etc. Lids, handles, knobs, and parts of the housing. Unless it can be proven that such damage is due to a manufacturing defect. Cases where no defect is found upon inspection by the technician. - Repairs not carried out by our authorized service providers/authorized service partners or repairs using non-original parts. - Repairs caused by installation that is defective or does not meet the specifications. - Use of the device in an environment that is not domestic, i.e., professional use. - Damage from transportation. If the customer transports the product to their own home or another address, IKEA is not responsible for any damage that may occur during transportation. However, if IKEA delivers the product to an address provided by the customer, then damage
to the product occurring during delivery will be covered by IKEA.
Costs for carrying out the initial installation of the device by IKEA. However, if the service provider or authorized service partner performs the initial installation or replacement of the device under the terms of this warranty, the service provider or authorized service partner will not be responsible for repairing the device unless it is necessary to replace the spare part.
These restrictions do not apply to work performed without defects by a qualified specialist using original parts, provided that it is carried out in accordance with the technical safety specifications of another EU country.
How the legislation of the country applies
The IKEA warranty gives you specific legal rights, which cover or supplement all local legal requirements. However, these conditions do not limit any rights of the customer described in local legislation.
Area of validity
For devices purchased in one EU country and transferred to another EU country, service will be provided within the framework of the warranty conditions, normal for the new country. The obligation to provide service within the framework of the warranty exists only if the device complies with and is installed in accordance with:
The technical data plate, the country where the warranty claims are directed; - the installation instructions and safety information included in the user manual.
Specialized service for IKEA appliances
Do not hesitate to contact the authorized IKEA after-sales service for service:
Warranty claims under the terms of this warranty are handled by the authorized IKEA service center or by the specialized IKEA kitchen furniture service; issues regarding the functions of IKEA appliances are handled by the authorized IKEA service center. To ensure that we provide you with the best possible assistance, please read the installation instructions and/or the user manual carefully before contacting us.
How to reach us if you need our service
Check the last page of this manual for the full list of IKEA appointed service centers and the relevant national phone numbers.
To provide you with faster service, we recommend that you use the specific phone numbers listed in this manual. Always use the numbers listed in the booklet for the appliance that needs service. Please also have the article number of the IKEA appliance (8-digit code) and the 12-digit service number, indicated on the data plate of your appliance, ready.
KEEP THE SALES RECEIPT!
This is your proof of purchase and is required for the warranty to be valid. The sales receipt shows the IKEA article name and number (8-digit code) for each appliance you have purchased.
Do you need additional help?
For any additional questions not related to after-sales service, please contact your nearest IKEA store customer service. We recommend that you read the appliance documentation carefully before contacting us.
Safety information
Before using the appliance, read these safety instructions. Keep them for future reference.
This manual and the appliance itself contain important safety warnings that must always be followed. The manufacturer declines any liability in case of failure to observe these safety instructions, for improper use, or for incorrect setting of controls.
WARNING: The appliance and its accessible parts become hot during use. Be careful not to touch the heating elements. Children under 8 years of age should be kept away from the appliance unless under supervision. WARNING!: If the surface of the cooking plate is cracked, do not use the appliance - risk of electric shock. WARNING: Fire hazard: do not place items on the cooking surfaces. CAUTION: The cooking process must be supervised. A short cooking process must be continuously supervised. WARNING!: Cooking food in fat or oil without supervision of the built-in plate can be dangerous: fire hazard. NEVER attempt to extinguish a fire with water: instead, turn off the appliance and cover the flame, for example, with a lid or a fire blanket. Do not use the cooking plate as a work surface or base. Do not bring clothing or other flammable materials near the appliance until the components have completely cooled down: fire hazard. Metal objects such as knives, forks, spoons, and lids should not be placed on the surface of the cooking plate because they can become very hot. Very young children (0-3 years) should not be allowed near the appliance. Young children (3-8 years) should not be allowed near the appliance unless under supervision. Children over 8 years and persons with reduced
physical, sensory, and mental capabilities or persons without sufficient experience and knowledge may use the appliance only under supervision or if they have received instructions on safe handling of the appliance and understand the potential hazards. Children must not play with the appliance. Children must not clean or maintain the appliance without supervision.
After use, turn off the cooking plate using its control and do not rely on the pan detection sensor.
PERMITTED RANGE OF USE
L1 = R:black L1 = S:brown N = N:blue N = T:blue (grey) E:yellow/green
220-240V 3~
L1 = R:black L2 = S:brown N = N:blue N = T:blue (grey)
= E: yellow/green
IKEA WARRANTY
L1 = R:black L2 = S:brown N = N:blue N = T:blue
= E:green/yellow
380-415V 3N~ 380-415V 2N~ L1 = R:black L2 = S:brown N = N:blue N = T:blue (grey)
= E:green/yellow
220-240V~ L1 = R:black L1 = S:brown N = N:blue N = T:blue(grey) E:green/yellow
220-240V3~
L1 = R: black L2 = S: brown N = N: blue N = T: blue (grey)
$= \mathbb{E}: green / yellow
Safety instructions
Before using the appliance, read these safety instructions. Keep them at hand for future reference. These instructions contain important safety warnings for the appliance itself. They must be read and followed at all times. The manufacturer declines all responsibility for consequences resulting from failure to observe these safety instructions, improper use of the appliance, or incorrect settings on the control panel. WARNING! The appliance and its accessible parts become hot during use. Be careful to avoid touching the heating elements. Children under 8 years of age must be kept away from the appliance unless continuously supervised. WARNING! If the surface of the cooking plate is cracked, do not use the appliance – risk of electric shock. WARNING! To avoid fire: do not place objects on the cooking plate. CAUTION: Supervise the cooking process. A short cooking process requires constant supervision. WARNING! Leaving the cooking plate unattended while cooking with oil or fat is dangerous – risk of fire. Do not attempt to extinguish a fire with water: switch off the appliance and cover the pan with a lid or a fire blanket. Do not use the cooking plate as a work surface or for storage. Keep clothing and other flammable materials away from the appliance until all its parts have completely cooled down: risk of fire. Do not place metal objects, such as knives, forks, spoons, or lids
on the surface of the cooking plate, as they may heat up to very high temperatures.
Very young children (under 3 years) should not be left near the appliance. Children aged 3 to 8 may be near the appliance only under constant supervision by an adult. Children aged 8 and above, as well as persons with reduced physical, sensory, or mental capabilities, or those lacking experience and knowledge, may use the appliance only under supervision or after having received instructions on the safe use of the appliance and understanding the hazards involved. Do not let children play with the appliance. Children may perform cleaning and maintenance only under adult supervision. After use, switch off the heating zone using the corresponding knob; do not rely on the pan detector.
Intended use
This device is not intended for use with external switching devices, such as timers, or remote control systems. This device is intended for household use, as well as in the following cases: in staff kitchens in shops, offices and other workplaces; on farms; by clients in hotels, motels and other residential-type environments. It is forbidden to use the device for any other purposes (for example, for heating rooms). This device is not intended for professional use. Do not use the device outdoors.
INSTALLATION
The device must be moved and installed by two or more people to avoid injury. When unpacking and installing the device, use protective gloves to avoid cuts.
Installation, including connection to the water supply system (if present) and electrical network, as well as repair work, must be carried out by qualified personnel. It is forbidden to repair or replace any parts of the device, except in cases specifically specified in the operating manual. Do not allow children to come close to the installation site. After unpacking the device, make sure that it was not damaged during transportation. If any problems are found, contact the seller or the nearest service center. After installation is complete, packaging waste (plastic, foam plastic parts, etc.) must be stored in a place inaccessible to children to avoid the danger of suffocation. Before performing any installation operations, disconnect the device from the electrical network: there is a risk of electric shock.
When installing, be careful not to damage the power cord with the device body: there is a risk of fire and electric shock. Do not turn on the device until installation is complete.
Before installing the device, perform all work on cutting the necessary holes in the furniture, remove all shavings and sawdust. If the device is not a built-in hood, a separating panel must be installed in the compartment under the device (not included in the kit).
ELECTRICAL SAFETY INSTRUCTIONS
Be sure to provide the possibility of disconnecting the device from the electrical network by unplugging it from the socket (if accessible) or by switching off a multi-pole switch installed in front of the socket. The device must be grounded in accordance with national electrical safety standards.
Do not use extension cords, adapters or splitters. After installation, electrical components must be inaccessible to the user. Do not touch the device with wet hands or if you are standing in water.
Do not use the device if its power cord or plug is damaged, if it is malfunctioning, or if it has been damaged as a result of an impact or fall.
In case of damage to the power cord, to avoid dangerous situations, it must be replaced by the manufacturer, a service center employee, or a qualified specialist: there is a risk of electric shock.
CAUTION: People with a pacemaker or similar implanted medical device should exercise caution when near an induction hob while it is switched on. The electromagnetic field may affect a pacemaker or similar device. Consult your doctor or the manufacturer of the pacemaker or similar medical device for additional information about the effects of electromagnetic fields from induction hobs.
Environmental protection recommendations
WARNING! Before carrying out technical maintenance of the appliance, make sure that it is switched off and disconnected from the power supply. Never use a steam cleaner - risk of electric shock. Do not use abrasive or corrosive agents, chlorine-based cleaners, or metal scouring pads for cleaning the hob.
DISPOSAL OF PACKAGING MATERIAL
Packaging material can be fully recycled, as evidenced by the symbol . Dispose of the various packaging materials in full compliance with current local regulations on waste disposal.
DISPOSAL OF HOUSEHOLD APPLIANCES
This appliance is made from materials that can be recycled or reused. Dispose of the appliance in accordance with local regulations on waste disposal. For further information on the correct disposal of household electrical appliances, contact your local authorities, the household waste collection service, or the store where you purchased the appliance.
This appliance is marked in accordance with European Directive 2012/19/EC on waste electrical and electronic equipment (WEEE). By ensuring the correct disposal of this product, you will help prevent potential negative consequences for the environment and human health.
X
The symbol on the product or on its accompanying documentation indicates that this product shall not be treated as household waste but must be taken to an appropriate collection point for the recycling of electrical and electronic equipment.
ENERGY SAVING TIPS
Use the residual heat of the cooking zone, switching off a few minutes before the dish is ready. The base of the pan or pot should completely cover the cooking zone; using cookware smaller than the zone leads to energy loss. For dishes that require a tightly fitting lid, use as little water as possible. Cooking without a lid significantly increases energy consumption. Use pots and pans with flat bottoms.
DECLARATION OF CONFORMITY
This appliance complies with the requirements of European Regulation No. 66/2014, developed on the basis of European Standard EN 60350-2.
Manufacturer
Ikea of Sweden AB - SE - 343 81 Almhult, Sweden
Do not use the appliance. Before cleaning, make sure that the heating element is switched off and that the appliance has cooled down.
Important:
Do not use abrasive sponges or cleaning agents for the hob, as they may damage it. - After each use, clean the ceramic hob (after it has cooled down) from food residues. - The sensitivity of the touch controls may decrease due to insufficient cleaning of the surface.
Use a scraper only if food residues are stuck to the ceramic hob. Follow the scraper manufacturer's instructions to avoid scratching the glass. Sugary foods with a high sugar content may damage the ceramic hob. Therefore, they should be removed as quickly as possible. Salt, sugar, and sand may scratch the surface of the hob. - Use a soft cloth, damp kitchen towels, or special cleaners for ceramic hobs (follow the manufacturer's instructions). - Liquid splashes in the heating zones may cause hissing or vibration of the cookware. - After cleaning, dry the ceramic hob thoroughly.
L1 = R: black, L2 = S: brown, N = N: blue, N = T: blue (grey)
= E: yellow/green
L1 = R: black, L2 = S: brown, N = N: blue, N = T: blue (grey), E: yellow/green
L1 = R: black, L1 = S: brown, N = N: blue, N = T: blue (grey), E: yellow/green
L1 = R: black, L2 = S: brown, N = N: blue, N = T: blue (grey), E: yellow/green
WARRANTY
Warranty period
The warranty period is 5 years from the date of purchase. The warranty begins on the date of purchase. Keep the receipt as proof of purchase and date.
The service is performed by a service center authorized by IKEA.
What does this warranty cover?
This warranty covers defects in the product caused by design or material defects that become apparent after purchase. This warranty applies only to household use of the product. All exclusions are listed in the section "What is not covered by this warranty?"
Within the warranty, reimbursement of costs associated with the repair of defects is provided, for example, costs for repair, spare parts, labor, and travel expenses, provided that access to the appliance for repair is not obstructed and does not cause significant expenses. Under these conditions, the standards of the EC (No. 99/44/EG) and the corresponding national rules and regulations apply. Replaced spare parts become the property of IKEA.
What will IKEA do to fix the problem?
The service center authorized by IKEA will examine the product and decide whether it is covered by this warranty.
If it is decided that the product is covered by the warranty, the IKEA service center or its authorized partner will repair the defective product or replace it with the same or a similar product.
What is not covered by this warranty?
- Natural wear and tear; intentional damage; damage due to careless handling, caused by inattention, failure to follow the instructions for use, incorrect installation or connection to an electrical supply with a voltage that does not meet the technical requirements of the appliance; damage caused by chemical or electrochemical reactions; damage caused by rust, corrosion, or the action of water, including but not limited to damage caused by increased water hardness supplied to the water supply system; damage caused by abnormal environmental conditions; consumable materials and parts, including batteries and lamps; damage to non-functional and decorative parts that do not affect the normal operation of the device, including possible differences in color. Accidental damage caused by the presence of foreign objects and/or substances, as well as cleaning or removing blockages in filters, drainage systems, or dispensers of detergents. Damage to glass parts: ceramic glass, accessories, baskets, and cutlery baskets of dishwashers, supply and drain hoses, seals, lamps and lamp covers, screens, handles, housing and housing parts (these parts are covered by the warranty only if the service center concludes that the cause of the damage was a manufacturing defect). Cases where defects were not detected by a specialist during the inspection. Repairs performed by unauthorized service organizations or non-authorized service partners, as well as the use of non-original spare parts.
- Damage caused by incorrect installation. Damage arising from abnormal use of the product. Damage arising during transport. If you transport the product yourself to your home or to another address, IKEA is not responsible for damage arising during transport. However, if the delivery service was ordered through IKEA, IKEA is responsible for damage arising during transport (but not within the framework of this guarantee). Conditions for the installation of IKEA household appliances, except in cases where the need for installation is caused by
repair of incorrectly installed parts. When purchasing household appliances at IKEA, the installation service is not initially included in the price of the product. If authorized IKEA service organizations or authorized service partners carry out repairs or replacement of household appliances in accordance with the conditions of this guarantee, the authorized service organizations or authorized service partners will, if necessary, carry out a new installation of the repaired household appliance or the household appliance that replaced the defective one.
This limitation does not apply if the installation was carried out by a qualified specialist using original spare parts and the household appliance meets the technical safety requirements of another EU country.
Applicability of the legislation of a specific country
The guarantee provided by IKEA fully covers or exceeds all requirements of local legislation, which may differ in different countries. The conditions of this guarantee do not in any way restrict the rights of the consumer established by the legislation of a specific country.
Area of validity
If the product was purchased in one EU country and transported to another EU country, the guarantee service will be provided under the conditions in force in the second country. Service obligations within the framework of the guarantee are performed only if the product was installed in compliance with the following requirements:
the country where the customer requests the guarantee service; - the technical requirements adopted in the country where the customer requests the guarantee service; - the safety regulations given in the instructions
IKEA authorized service center
You can also contact the IKEA guarantee service providers on the following issues:
- execution of guarantee repairs;
- recommendations and technical consultations on the installation of appliances purchased at IKEA into IKEA kitchen furniture;
- for clarification of the functions and rules of operation of appliances purchased at IKEA.
To ensure that we can provide you with the best possible assistance, please read the instructions for use carefully before contacting the service center.
How to contact us if you need help
IKEA, please familiarize yourself with the list of service centers, authorized by IKEA, which is provided on the last page of this instruction.
To speed up service, please call the telephone number indicated on the last page of this warranty. When calling, please provide the 8-digit article number and the 12-digit serial number of the product, which are shown on the factory label.
IMPORTANT: KEEP THE RECEIPT!
The receipt is proof of purchase and must be presented when requesting warranty service. The receipt also shows the product name and its article number (8-digit product code).
Need additional help?
For all additional questions not related to warranty service, please contact the customer service department of your nearest IKEA store. Please carefully read the accompanying documents before contacting us.
Additional information
N = T: blue (grey)
= E : yellow/green
L1 = R: black
L2 = S: brown
N = N: blue
N = T: blue (grey)
E: yellow/green
L1 = R: black
L1 = S: brown
N = N: blue
N = T: blue (gray)
E: yellow/green
L1 = R: black
L2 = S: brown
N = N: blue
N = T: blue (gray)
E: yellow/green
IKEA WARRANTY
Opening hours: Monday - Friday 8.00am - 6.00pm
Saturday 8.30am - 4.30pm
Sunday 9.30am-3.30pm
- PERMITTED USE
- INSTALLATION
- ELECTRICAL WARNINGS
- ENVIRONMENTAL CONCERNS
- DISPOSAL OF PACKAGING MATERIALS
- DISPOSAL OF HOUSEHOLD APPLIANCES
- ENERGY SAVING TIPS
- DECLARATION OF CONFORMITY
- MANUFACTURER
- CLEANING AND MAINTENANCE
- WARNING
- IMPORTANT
- ELECTRICAL CONNECTION
- IKEA GUARANTEE
- HOW LONG IS THE IKEA GUARANTEE VALID
- WHO WILL EXECUTE THE SERVICE
- WHAT DOES THIS GUARANTEE COVER
- WHAT WILL IKEA DO TO CORRECT THE PROBLEM
- WHAT IS NOT COVERED UNDER THIS GUARANTEE
- (JUST FOR GB)
- HOW COUNTRY LAW APPLIES
- AREA OF VALIDITY
- THE DEDICATED AFTER SALES FOR IKEA APPLIANCES
- HOW TO REACH US IF YOU NEED OUR SERVICE
- SAVE THE SALES RECEIPT
- DO YOU NEED EXTRA HELP
- IKEA GUARANTEE (FRANCE)
- IKEA GUARANTEE AND AFTER-SALES SERVICE CONTRACT
- IKEA WARRANTY
- DISPOSAL OF PACKAGING
- DO NOT USE ABRASIVE OR CORROSIVE CLEANING AGENTS, CHLORINE-BASED PRODUCTS, OR SOLVENTS
- DISPOSAL OF HOUSEHOLD ELECTRICAL APPLIANCES
- TIPS FOR ENERGY SAVING
- INSTRUCTIONS FOR USE
- CONNECTING TO THE MAINS SUPPLY
- HOW LONG IS THE IKEA WARRANTY VALID
- WHO PROVIDES THE SERVICE
- WHAT DOES THIS WARRANTY COVER
- WHAT WILL IKEA DO TO FIX THE PROBLEM
- WHAT IS NOT COVERED BY THIS WARRANTY
- HOW THE LEGISLATION OF THE COUNTRY APPLIES
- SPECIALIZED SERVICE FOR IKEA APPLIANCES
- KEEP THE SALES RECEIPT
- DO YOU NEED ADDITIONAL HELP
- SAFETY INFORMATION
- PERMITTED RANGE OF USE
- SAFETY INSTRUCTIONS
- INTENDED USE
- ELECTRICAL SAFETY INSTRUCTIONS
- ENVIRONMENTAL PROTECTION RECOMMENDATIONS
- DISPOSAL OF PACKAGING MATERIAL
- X
- WARRANTY
- WARRANTY PERIOD
- APPLICABILITY OF THE LEGISLATION OF A SPECIFIC COUNTRY
- IKEA AUTHORIZED SERVICE CENTER
- HOW TO CONTACT US IF YOU NEED HELP
- IMPORTANT: KEEP THE RECEIPT
- NEED ADDITIONAL HELP
- ADDITIONAL INFORMATION
Brand : IKEA
Model : TREVLIG
Category : Cooker
