USER MANUAL MC 32 DC CATA

2) Press “ MICROWAVE/GRILL /COMBI./CONVE.” for times or turn “ ” to select the

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. Specifications Model:Rated Voltage:Rated Input Power(Microwave):Rated Output Power(Microwave):Rated Input Power(Grill):Oven Capacity:Turntable Diameter:External Dimensions(WxDxH):Net Weight: If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. ADDENDUM 230V~50Hz 315mm

kgIMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning : Liquids and other foods must

not be heated in sealed containers since they are liable to explode.

2. Warning : It is hazardous for anyone other

than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

3. This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

4. Keep the appliance and its cord out of

5. Only use utensils suitable for use in

The oven should be cleaned regularly and any food deposits should be removed.

7. Read and follow the specific:"PRECAU-

8. When heating food in plastic or paper

containers, keep an eye on the oven due to the possibility of ignition.

9. If smoke is emitted, switch off or unplug

the appliance and keep the door closed in order to stifle any flames.

10. Do not overcook food.

11. Do not use the oven cavity for storage

purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Remove wire twist-ties and metal handles

from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in

accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled

eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. 15.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments.

16. If the supply cord is damaged, it must

be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

18. Do not use this oven near water, in a

wet basement or near a swimming pool.

19. The temperature of accessible surfaces

may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

21. Failure to maintain the oven in a clean

condition could lead to deterioration of the surface that could adversely

fect the life of the appliance and possibly result in a hazardous situation.

22. The contents of feeding bottles and

baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. reach of children less than 8 years.READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

23. Microwave heating of beverages can result in delayed eruptive boiling, therefore

care must be taken when handling the container. 24.The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 25.Children should be supervised to ensure that they do not play with the appliance. 26.The appliances are not intended to be operated by means of an external timer or separate remote-control system.

27. Accessible parts may become hot during use. Young children should be kept away.

28.Steam cleaner is not to be used. 29 During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

30. Only use the temperature probe recommended for this oven.(for ovens provided with a

facility to use a temperature-sensing probe.)

31. WARNING: The appliance and its accessible parts become hot during use.Care should

be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

32. The microwave oven must be operated with the decorative door open.(for ovens with a

decorative door.) 33.surface of a storage cabinet can get hot.DANGER Electric Shock Hazard

ouching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

ARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. To Reduce the Risk of Injury to Persons Grounding Installation CLEANING Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using

with a slightly damp cloth.

2. Clean the accessories in the usual way

3. The door frame and seal and

neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

1. A short power-supply cord is provided

to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is

used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord , use only a 3-wire extension cord. 2)The extension cord must be a grounding- type 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

4. Do not use harsh abrasive cleaners

or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

5. Cleaning Tip---For easier cleaning of the

cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.CAUTION Personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy

1. Fill a microwave-safe container with 1 cup of cold

water (250ml) along with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is

warm, do not use it for microwave cooking.

4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes. Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Use for short–term cooking/warming only. Do not leave oven unattended while cooking. Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Use as a cover to prevent splattering or a wrap for steaming. Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package. Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Browning dish Glass jars Glassware UTENSILS See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. Oven cooking bags Paper plates and cups Paper towels Parchment paper Plastic Plastic wrap DinnerwareA) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Materials to be avoided in microwave oven Utensils Remarks Aluminum tray Food carton with metal handle Metal or metal- trimmed utensils Metal twist ties Paper bags Plastic foam Wood

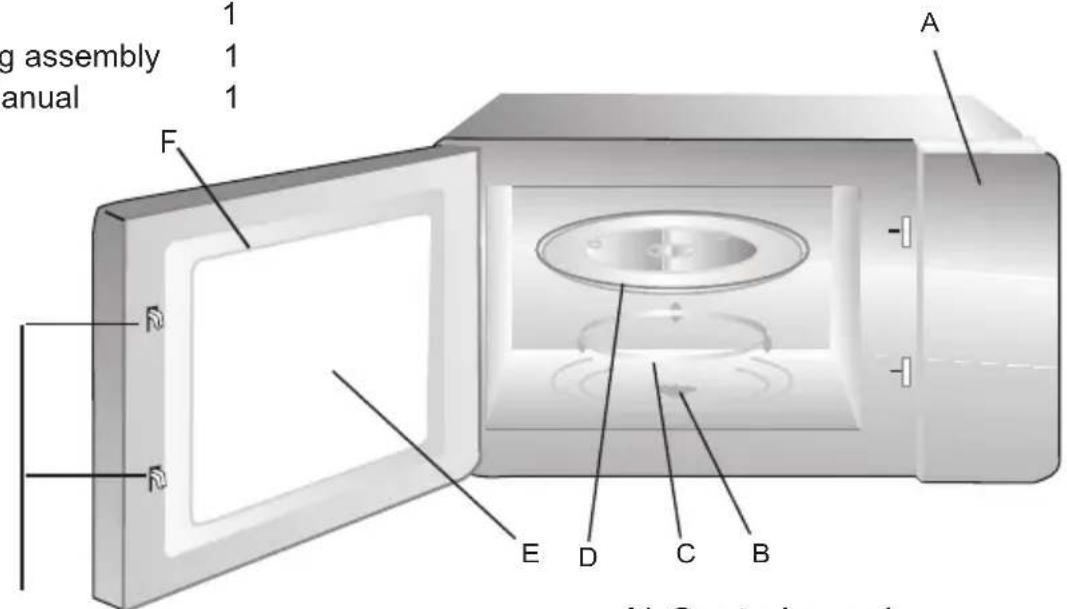

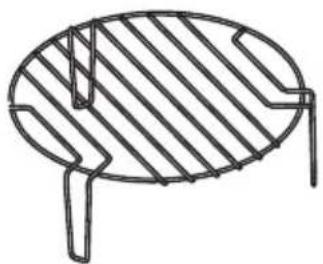

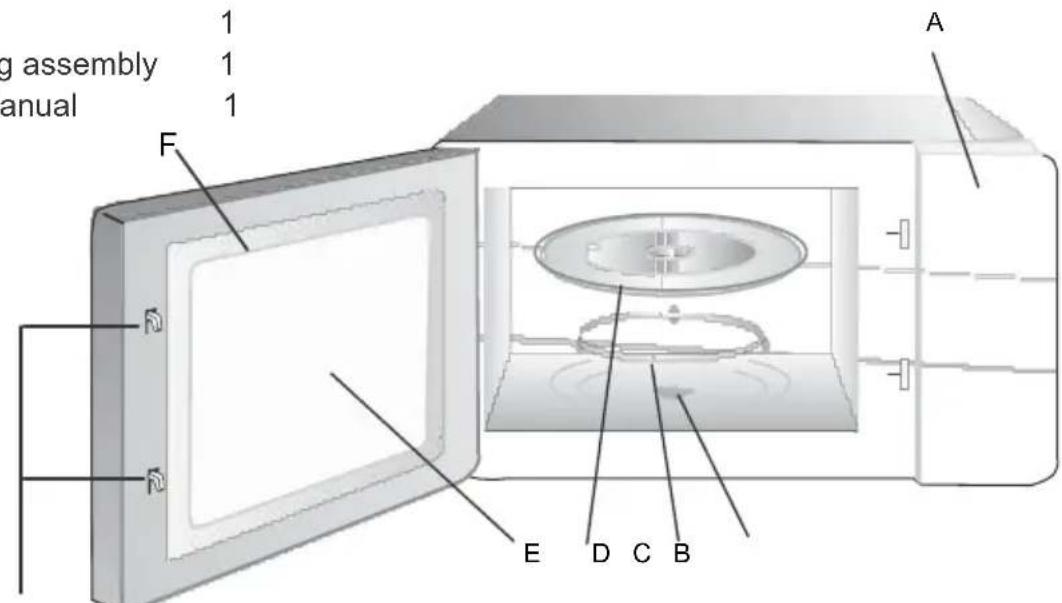

Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 Metal shields the food from microwave energy. Metal trim may cause arcing. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack. May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. May cause arcing and could cause a fire in the oven. Grill Rack( Only be used in grill function and be placed on the glass tray )Hub (underside) Glass tray

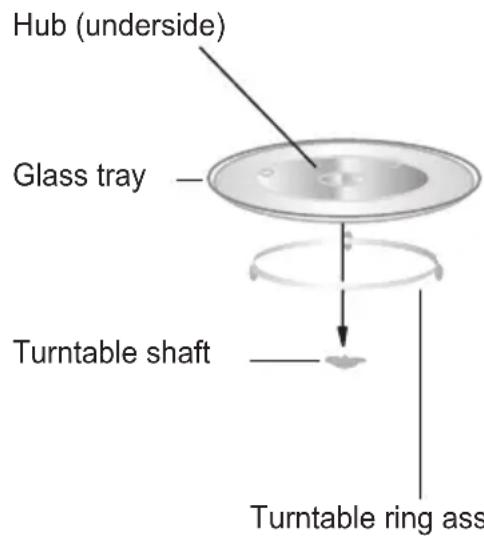

urntable ring assembly a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food are always placed on the glass tray for cooking. d. If glass tray

turntable ring assembly cracks or breaks, contact your nearest authorized service center. Turntable Installation Turntable shaft The accessible surface may be hot during operation. Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only.It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

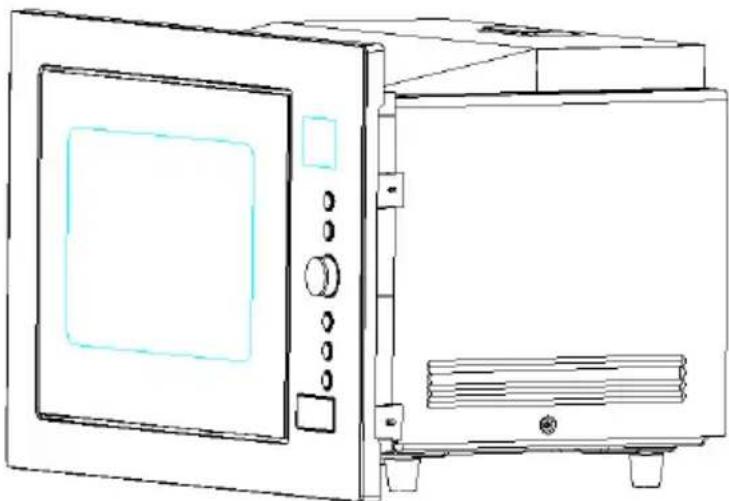

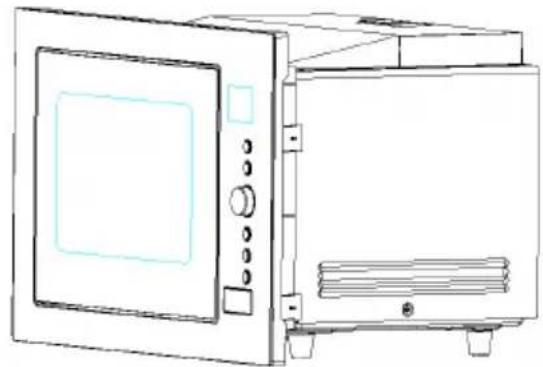

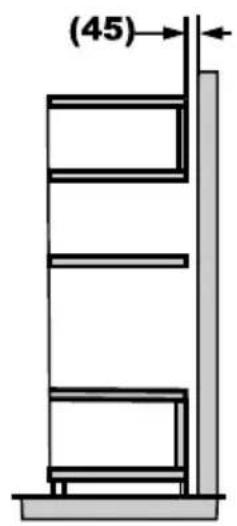

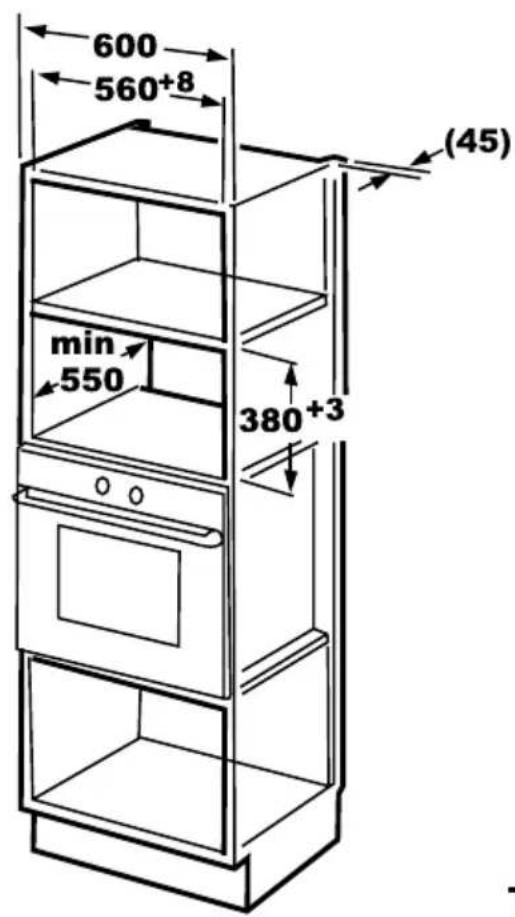

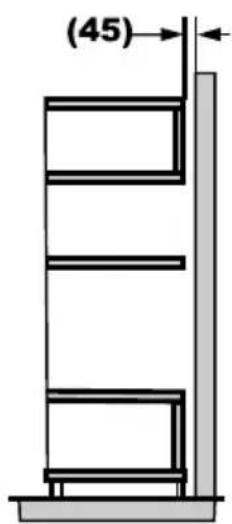

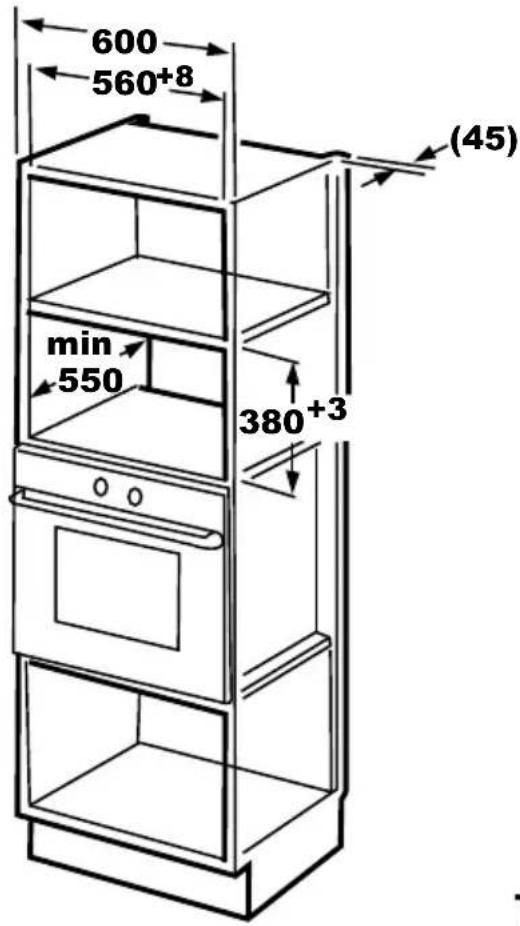

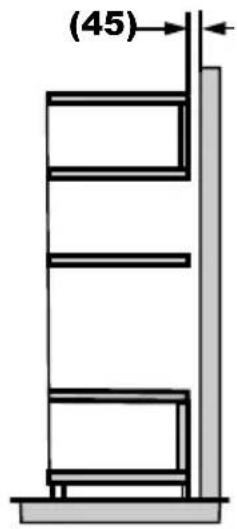

4.The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm of f the floor). 5.The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. 6.The mains voltage must correspond to the voltage specified on the rating plate. 7.The socket must be installed and connecting cable must only be replaced by a qualified electrician.If the plug is no longer to accessible following installation,an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. 8.Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.Installation Instructions Please Read the Manual Carefully Before Installation

Please Note Electrical connection The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm. TRIM-KIT PLASTICCOVERSCREWA. Built-in furniture The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points.

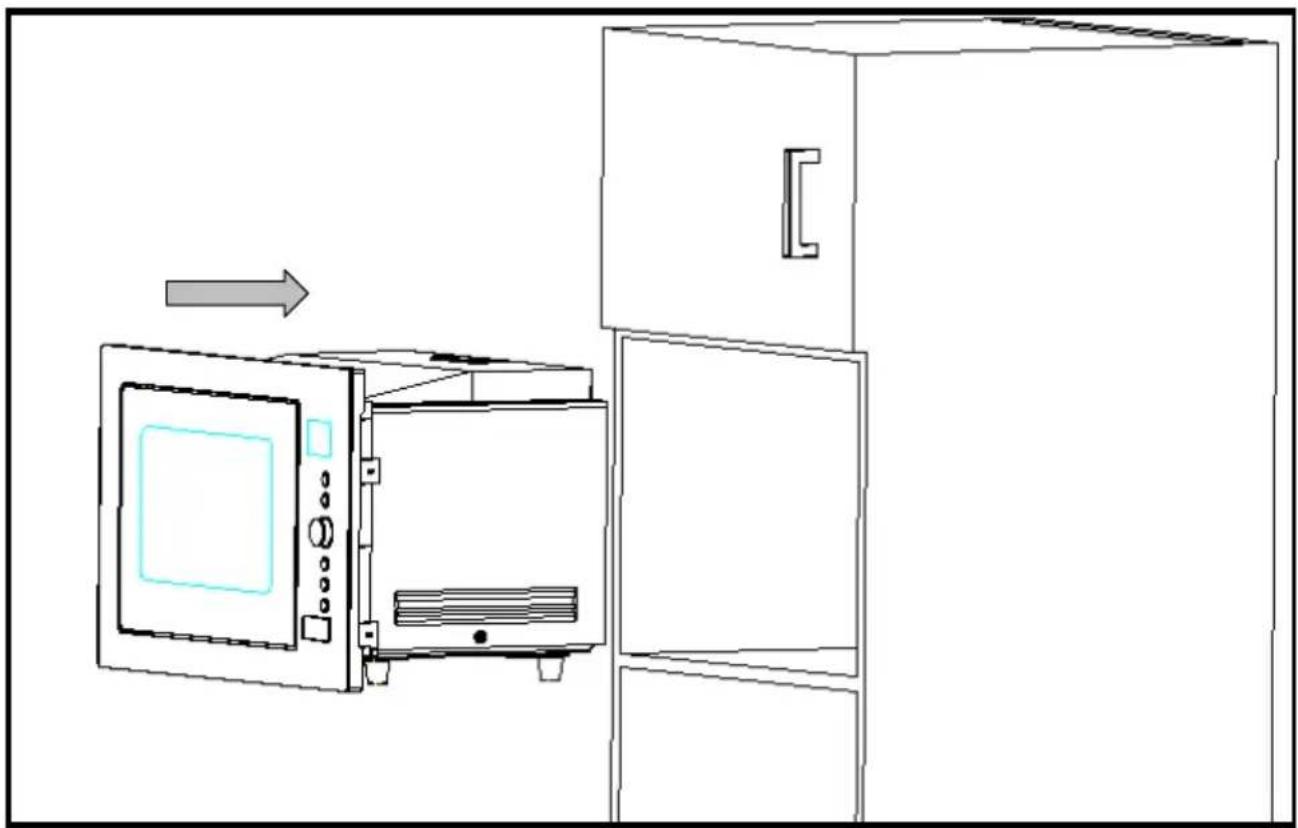

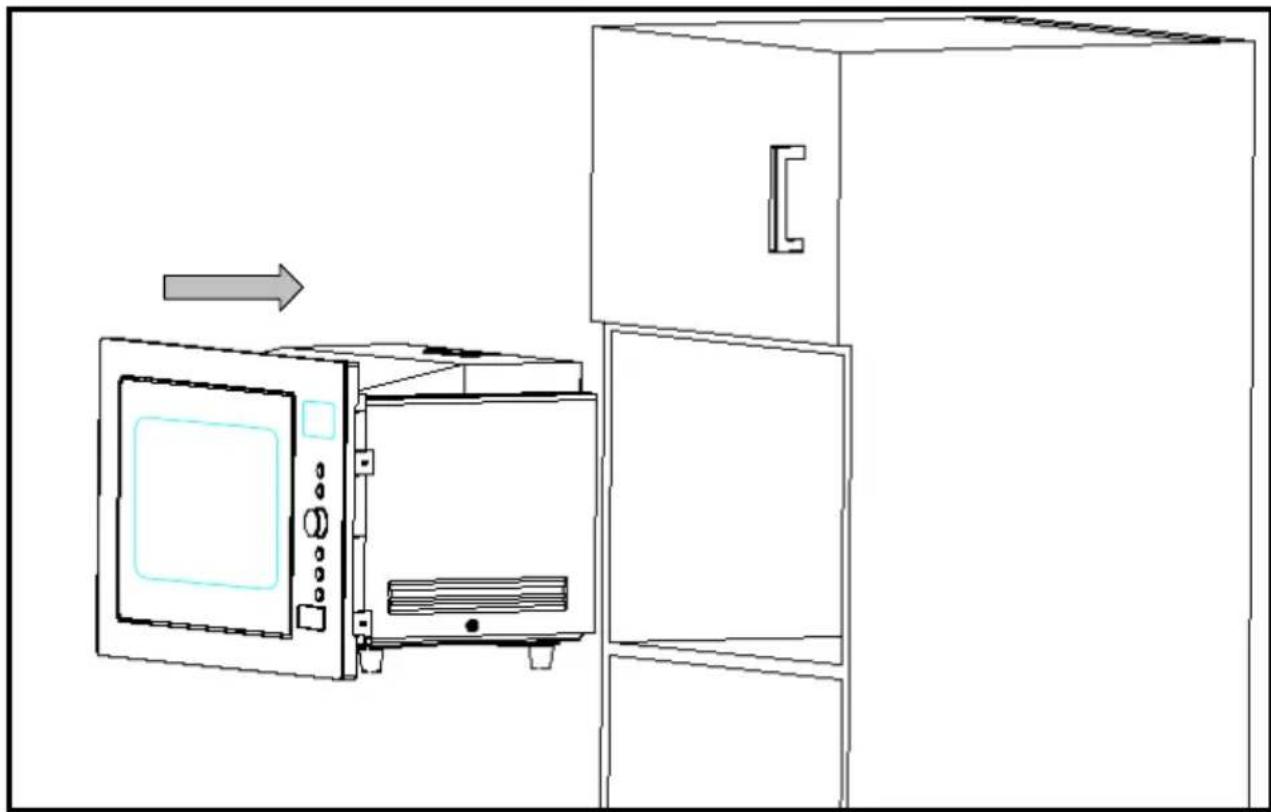

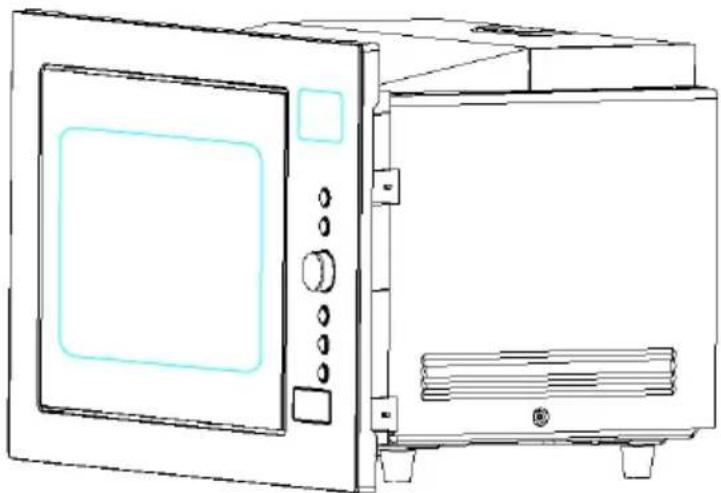

+3B. Install the Oven

Do not trap or kink the power cord. Make sure that the oven is installed in the center of the cabinet.

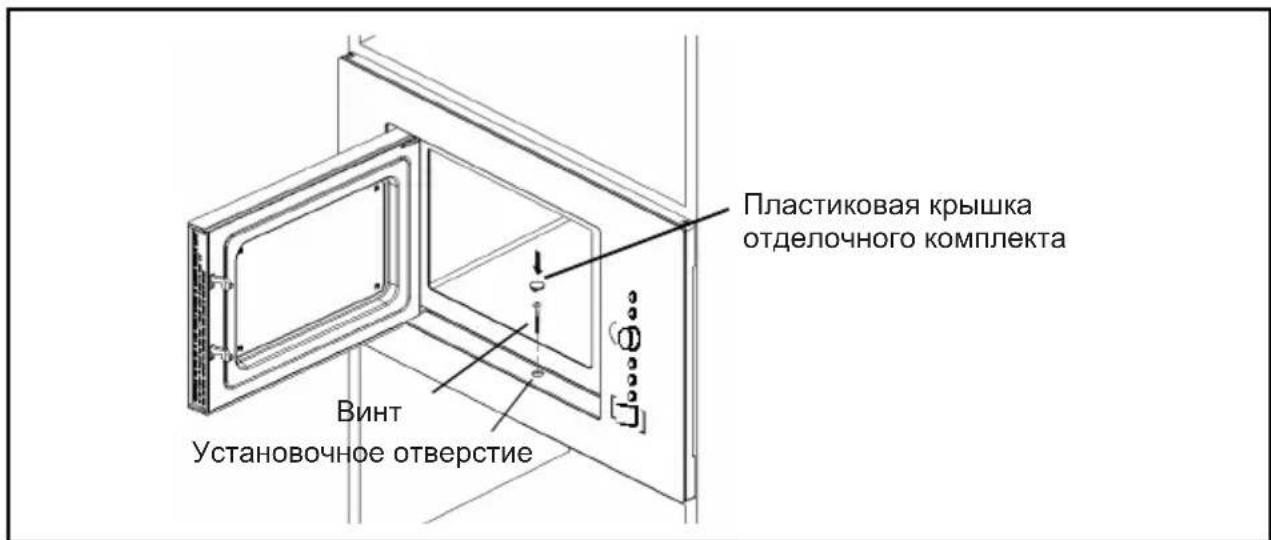

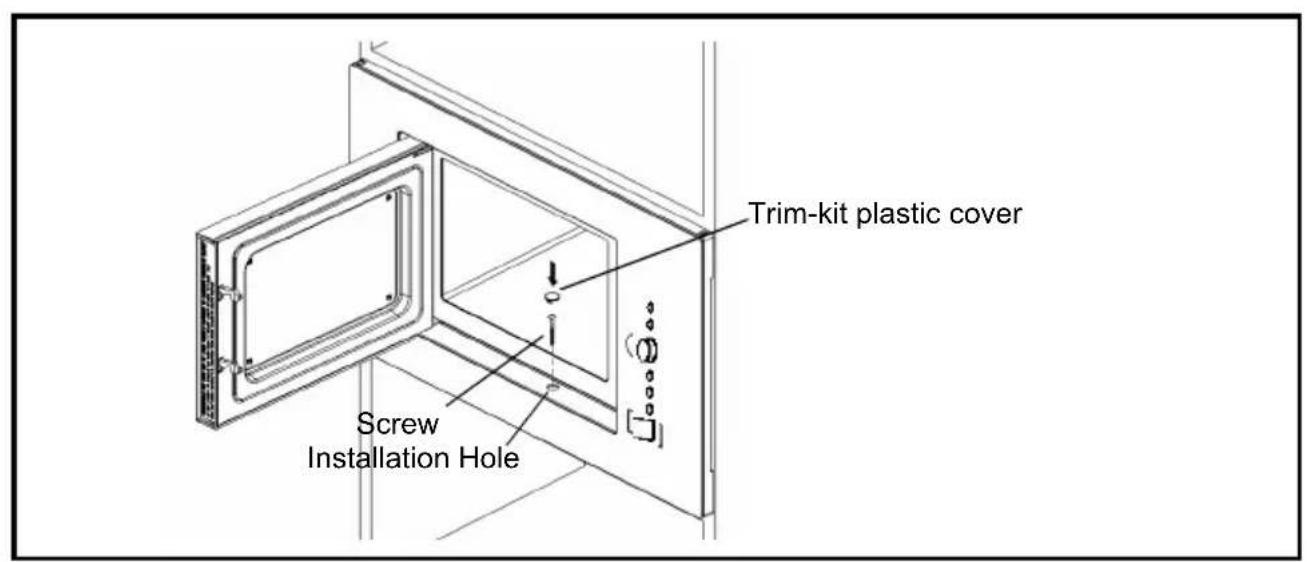

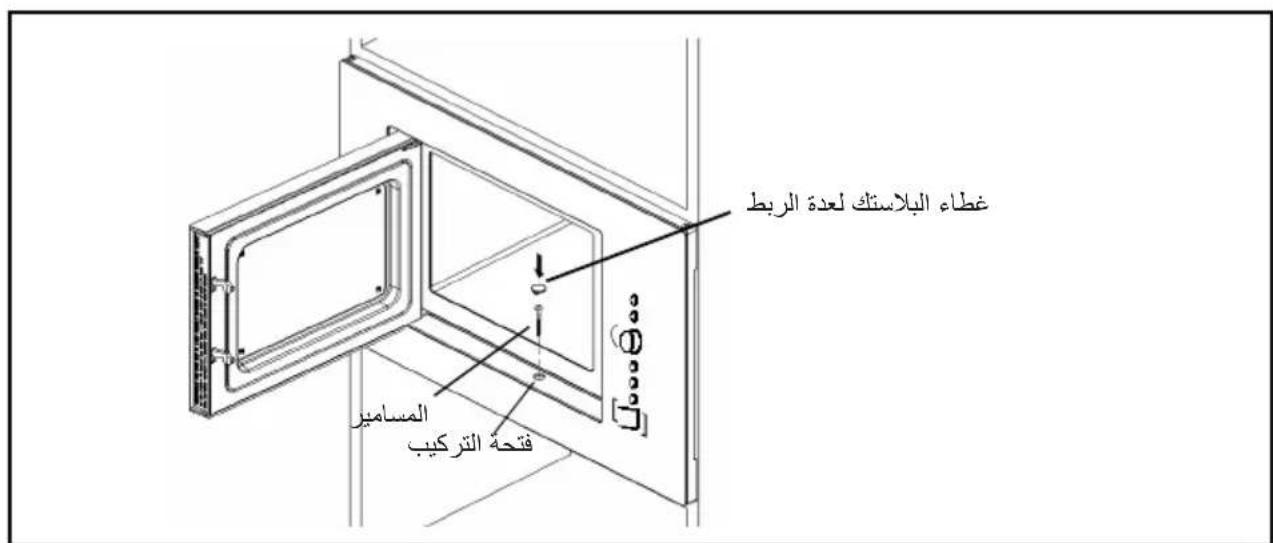

2. Open the door; fix the oven to the cabinet with SCREW at the

INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE. Installation Hole Screw Trim-kit plastic cover2. Microwave Cooking This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

2) Turn " " to adjust the hour figures, the input time should be within 0--23.

3) Press " KITCHEN TIMER/CLOCK ", the minute figures will flash.

5) Press " KITCHEN TIMER/CLOCK " to finish clock setting. ":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press " STOP/CLEAR ", it will

exit the setting state.

1) In waiting state, press " KITCHEN TIMER/CLOCK" twice, "00:00" displays.

Hour figures flash. OPERATION INSTRUCTION NOTE: the step quantities for the adjustment time of the coding switch are as follow: 0---1 min : 5 seconds 1---5 min : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes Microwave Power Chart Press Microwave Power Once Twice Thrice 4 times 5 times 80% 50% 30% 10%100%

4) Turn " " to adjust the minute figures, the input time should be within 0--59.

1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.

2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the

microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10"... will display in order.

3) Press "START/+30SEC./CONFIRM " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking.

5. Convection Cooking(With preheating funtion)

Instructions Microwave Grill Display Convection

1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.

2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the

grill function. When "G-1" displays, it indicates grill function.

3) Press "START/+30SEC./CONFIRM " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking.

1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.

2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the

combination function. Stop turning when "C-1","C-2","C-3","C-4" displays.

3) Press "START/+30SEC./CONFIRM " to confirm.

4)Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)

5) Press " START/+30SEC./CONFIRM " to start cooking.

C-1 C-2 C-3 C-4 The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. Note: Combination instructions Note: If half the grill time passes, the oven will sound twice to tell you to turn over the food. You can just leave it continue. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press"START/+30SEC./CONFIRM" to continue cooking.6. Convection Cooking( Without pre-heating function) 7.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu and preheating cannot be set as one of the multi-stage.

3) Press the " START/+30SEC./CONFIRM " to confirm the temperature.

4) Press the " START/+30SEC./CONFIRM " to start preheating.When the

preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.

5) Put the food into the oven and close the door.

Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

6) Press the " START/+30SEC./CONFIRM " key to start cooking.

3) Press the " START/+30SEC./CONFIRM " to confirm the temperature

4) Turn " " to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press the " START/+30SEC./CONFIRM " key to start cooking.

1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.

2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the

convection function. When convection temperature displays, it indicates convection function. The temperature can be chosen from 140 degrees to 230 degrees.

1) Press the "MICROWAVE/GRILL/COMBI./CONVE. " key once, and "P100" display.

2) Press " MICROWAVE/GRILL/COMBI./CONVE." for times or turn " " to select the

convection function. When convection temperature displays, it indicates convection function. The temperature can be chosen from 140 degrees to 230 degrees. Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "WEIGHT /TIME DEFROST " twice, the screen will display "dEF2";

2) Turn " " to adjust the defrost time of 5 minutes;

3) Press" MICROWAVE/GRILL/COMBI./CONVE." once;

4) Turn " " to choose 80% microwave power till "P80" display;2) Turn " " to adjust the timer. The MAX.time is 95 minutes.

3) Press " START/+30SEC./CONFIRM " to confirm.

1) In waiting state, press " KITCHEN TIMER/CLOCK " once, "00:00" displays.

Note: 1) The kitchen time is differ from 24-hour system, the Kitchen Timer is a timer.

2) During kitchen timer, anny program cannot be set. The timer can be stop by

pressing "STOP/CLEAR".

5) Press "START/+30SEC./CONFIRM" to confirm;

6) Turn " " to adjust the cooking time of 7 minutes;

7) Press "START/+30SEC./CONFIRM" to start cooking.

Note: 1)Cake menu is under convection cooking with 180 -warm-up function, and you should preheat first following the auto menu operation, when the oven reaches the temperature, it will stop working and sound to remind opening the door to put cake in, then press "Start/+30Sec./Confirm" to start cooking.

2) To roast chicken and frozen pizza, the food should be placed on the 40mm

3) To toast menu, the food should be placed on the 95mm height rack.

1) In waiting state, turn " " right to choose the function wanted,

and "A1","A2","A3"...."A10" will be displayed.

2) Press "START/ +30 SEC./CONFIRM" to confirm the menu you need.

3) Turn " " to choose the weight of menu,and "g" indicator will light.

4) Press "START/ +30 SEC./CONFIRM" to start cooking.

1) In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power

level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2) In waiting state, turn " " left to choose cooking time directly then press

"START/+30SEC./CONFIRM" key to cook with 100% microwave power. This program can be set as one of multi-stage.Auto menu Chart Menu Weight(g) Power

50(with cold water 450g) 100(with cold water 800g) 150(with cold water 1200g) 1(approx.230g) 2(approx.460g) 3(approx.690g) 200ml 400ml 600ml

Display 80% 100% 100% 80% 100% 100% 100%Micro/Conve. to 220 Grill Conve. to 180 with preheat 100%Micro/Conve. to 22012. Defrost by Time

(1) In cooking state, press "MICROWAVE/GRILL/COMBI./CONVE.", the current power will be displayed for 2-3 seconds. (2) During cooking state, press "KITCHEN TIMER/CLOCK" to check the current time. It will be displayed for 2-3 seconds.

(1) The buzzer will sound once when turning the knob at the beginning. (2) "START/+30 SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking. (3) If the cooking programme has been set but "START/+30 SEC./CONFIRM" is not pressed in 5 minutes, The current time will be displayed. The setting will be cancelled. (4) The buzzer sounds once by efficient press, inefficient press will be no responce. (5) The buzzer will sound five times to remind you when cooking is finished.

14. Lock-out Function for Children

Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and locked indicator will light. LED will display current time or 0:00. Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released, and " " indicator will disapear.

1) Press " WEIGHT/TIME DEFROST " key twice, the oven will display "dEF2"

2) Turn " " to select the cooking time. The maximum setting time is 95 minutes.

3) Press " START/+30SEC./CONFIRM" key to start defrosting.

The defrosting power is P30 and it cannot be changed.

1) Press "WEIGHT/TIME DEFROST" pad once,the oven will display "dEF1",.

3) Press "START/+30SEC./CONFIRM" key to start defrosting.

2) Turn " " to select the weight of food.At the same time, "g" will lights,

The weight should be 100-2000g. Note: If the food weight is no more than 200 grams,please place the food at the edge of the glass turntable but not the center to be defrosted.Trouble shooting According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available. It is forbidden to run the unit without any food inside. It is very dangerous.Four à micro-ondes MANUEL D'UTILISATION

Instructions Afchage Micro-ondes Grill Convection 1 C-1

3) Press the “START/+30SEC./CONFIRM “ to conrm the temperature.
