Product type	Built-in microwave oven
Brand	CATA
Model	MMA 20 X
Capacity	20 liters
Dimensions (W x D x H)	595 x 367 x 382 mm
Net weight	Approximately 16 kg
Rated voltage	230 V ~ 50 Hz
Microwave power (input)	1250 W
Microwave power (output)	800 W
Grill power	1000 W
Turntable diameter	245 mm
Cooking functions	Microwave, Grill, Combination (3 levels)
Microwave power levels	5 (Low, Medium-Low, Medium, Medium-High, High)
Included accessories	Glass tray, turntable ring assembly, grill rack
Safety	Safety door locks, grounding, overheating protection
Maintenance and cleaning	Clean interior with damp cloth; use half lemon and water for walls; avoid abrasives
Installation	Built-in in cabinet 60 cm width, min. height 85 cm
Intended use	Domestic and similar (staff kitchens, hotels, farms, etc.)

Frequently Asked Questions - MMA 20 X CATA

What to do if the oven does not start?

Check that the power cord is properly plugged in. If the fuse has blown, replace it or reset the breaker (by a professional). Also ensure the door is fully closed.

Can I use metal utensils in this microwave?

No, metal utensils or those with metal parts should be avoided as they can cause electric arcs. Use only microwave-safe containers (heat-resistant glass, microwave-safe plastic, etc.).

How to clean the interior of the oven?

Unplug the appliance. Clean the interior with a slightly damp cloth. For the walls, you can heat half a lemon in 300 ml of water for 10 minutes at maximum power, then wipe with a soft dry cloth. Do not use abrasive cleaners.

The oven makes noise during operation, is this normal?

A slight noise from the turntable may be normal. If the noise is excessive, check for food residue under the tray or turntable ring, and clean the affected parts.

How to install the oven in a cabinet?

The appliance is designed to be built into a cabinet 60 cm wide, at least 55 cm deep and 85 cm high. Attach screw A to the upper air tunnel, place the oven in the cabinet, adjust the 1 mm gap, then secure with screw B in the mounting hole.

Which materials are prohibited in the microwave?

Avoid aluminum trays, cardboard packaging with metal handle, paper bags, plastic foam, wood, and metal ties. They can cause electric arcs, fires, or damage.

How to defrost food with this oven?

Use the Medium-Low power level (defrost) by turning the power knob to the 33% microwave position. Set the timer according to weight and food type. Turn food halfway if necessary.

Can I operate the oven empty?

No, it is prohibited to operate the oven without food inside. This can overheat and damage the magnetron. If this happens accidentally, turn off the appliance immediately.

What to do if the door is damaged?

If the door or its hinges are damaged, do not use the oven and have it repaired by a qualified person. Do not attempt to force the safety locks.

Can this oven be used by children?

Yes, from 8 years old and under supervision, provided they have received instructions on safe use. Children under 8 must be kept away unless under continuous supervision.

USER MANUAL MMA 20 X CATA

Line drawing of a microwave oven with control knobs and a blank screen (no text or symbols on the device itself)

GB Microwave Oven Owner's Manual

MODELOS: MMA 20 WH MMA 20 X

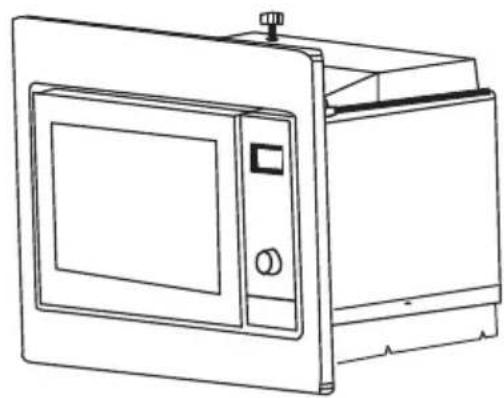

Line drawing of a microwave oven with front panel and side outlets (no text or symbols)

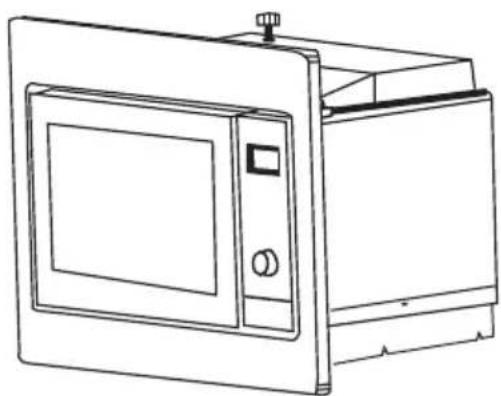

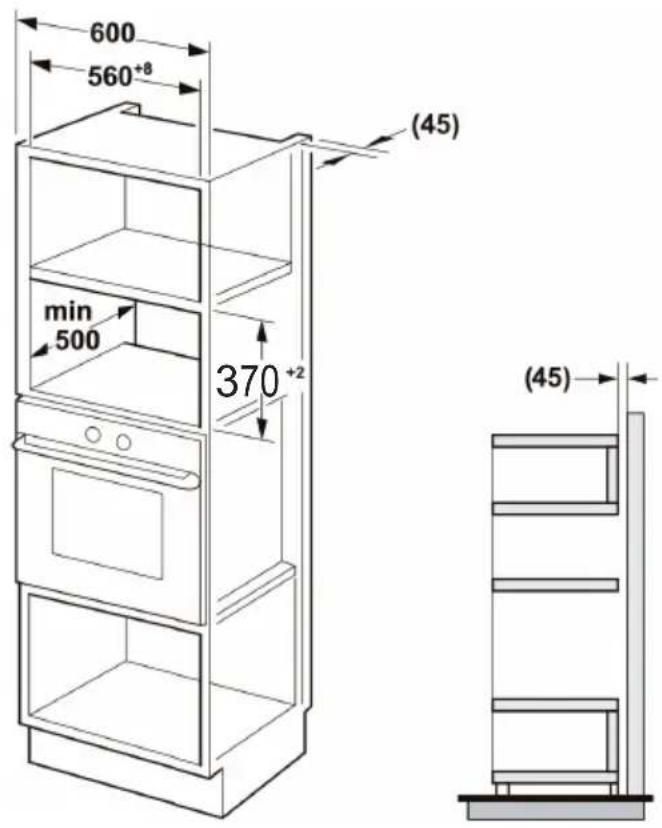

A. Mobiliario empotrado

Line drawing of a microwave oven with lid and control panel (no text or symbols)

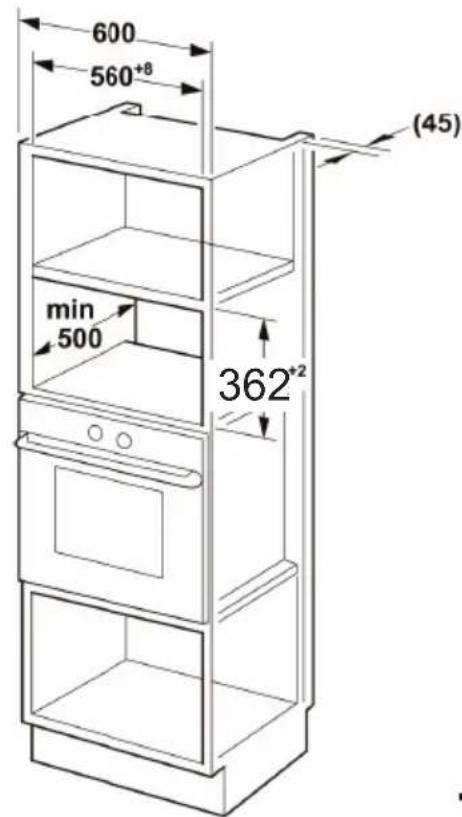

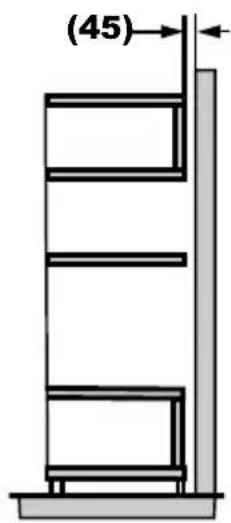

600 560+8 min 500 362+2 (45) (45)

Line drawing of a microwave oven with control panel and door (no text or symbols)

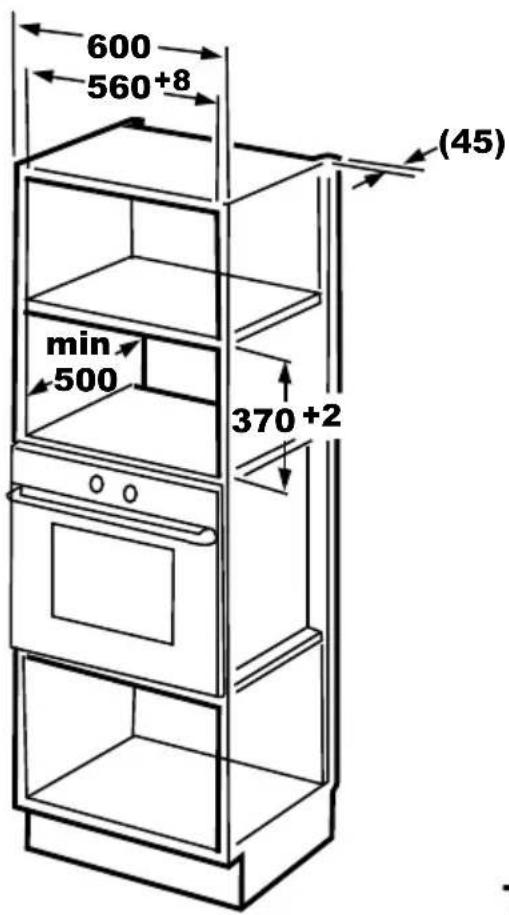

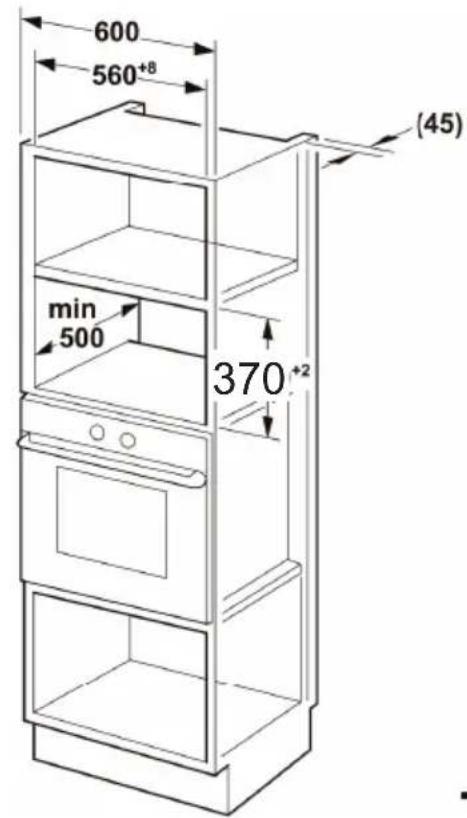

600 560+8 min 500 370+2 (45) (45)

Technical line drawing of a device with internal components and a close-up view of four labeled parts (no text or symbols present)

Technical line drawing of a device with internal components and a highlighted section showing four labeled parts (no text or symbols present)

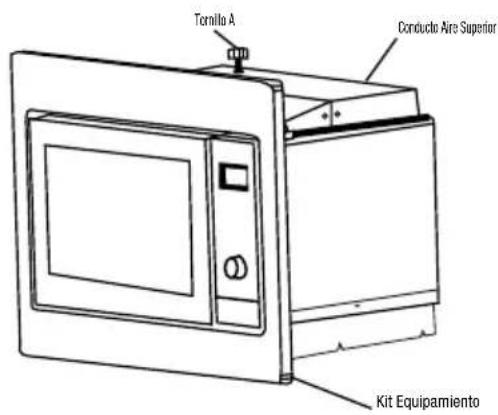

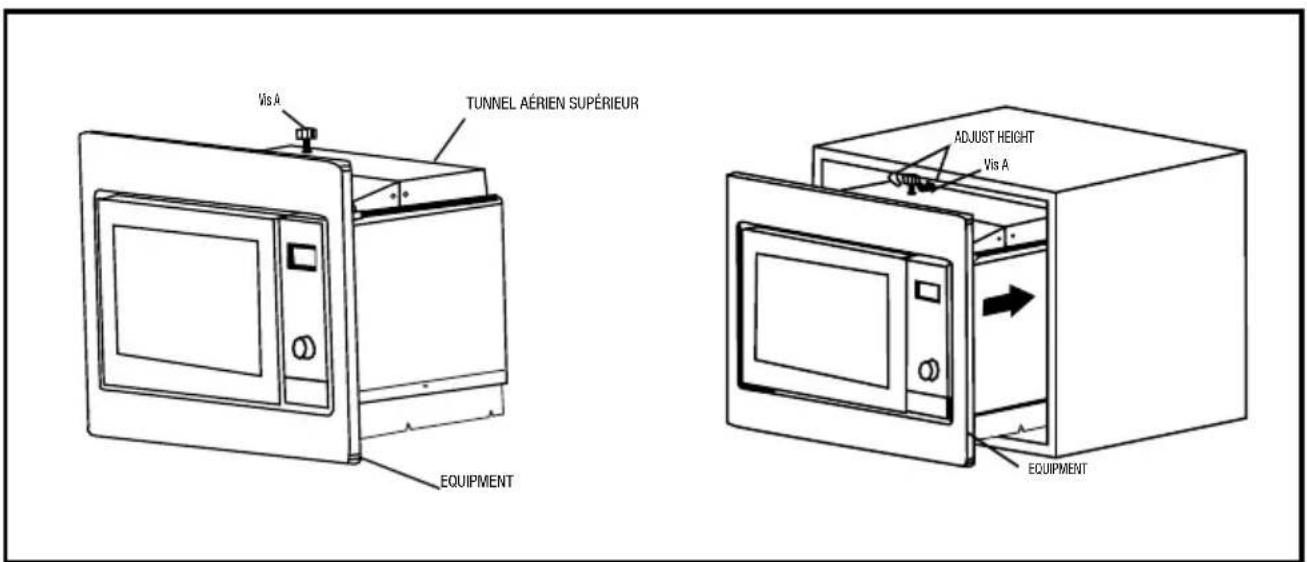

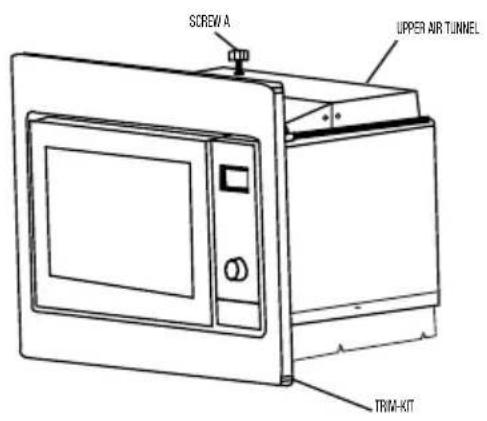

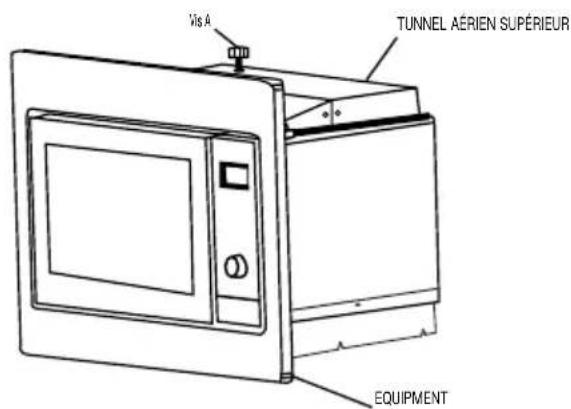

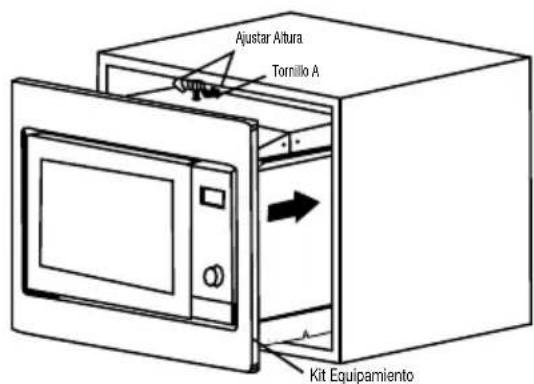

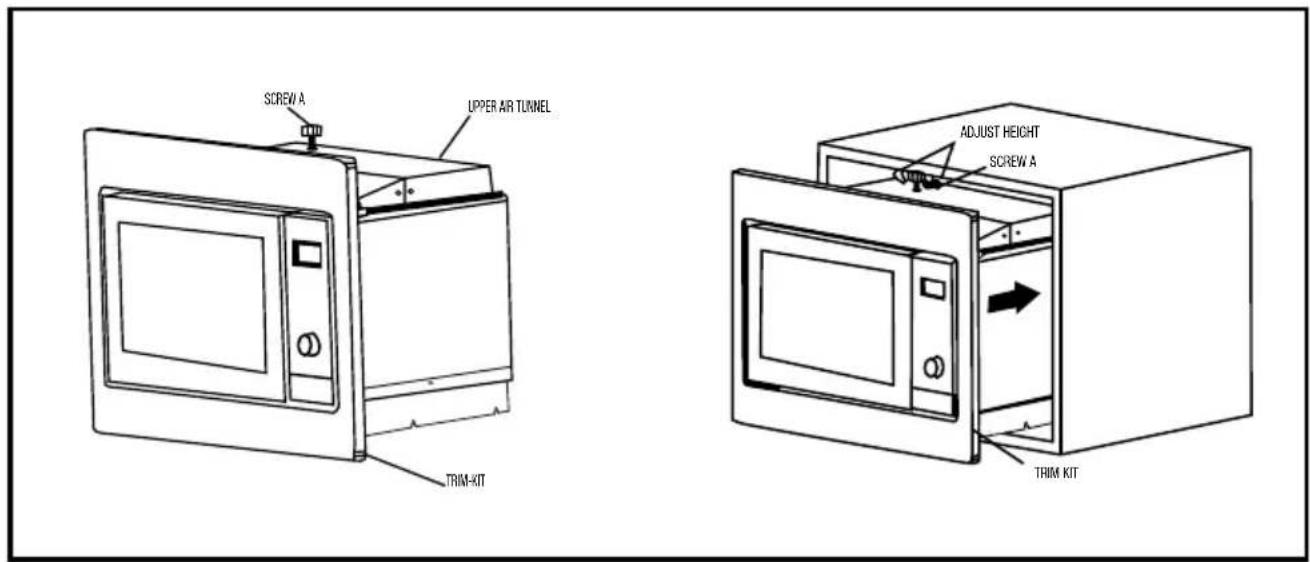

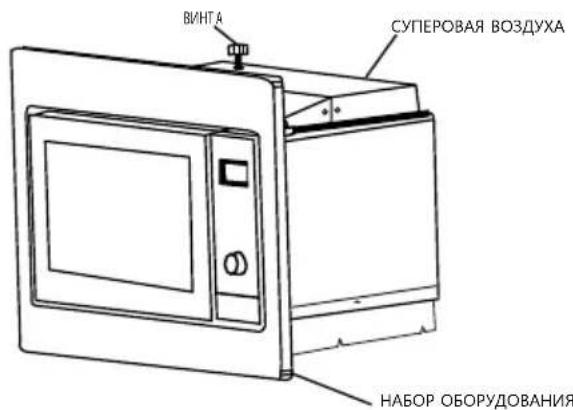

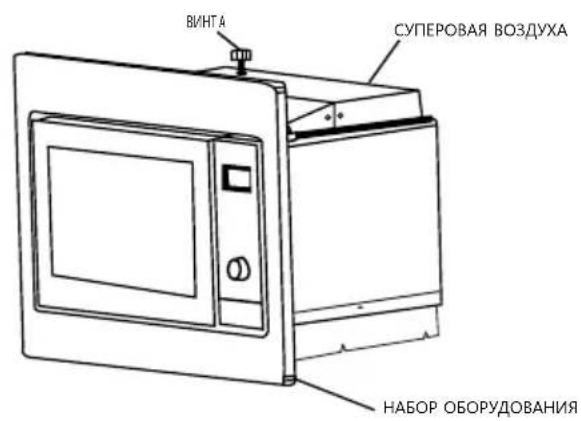

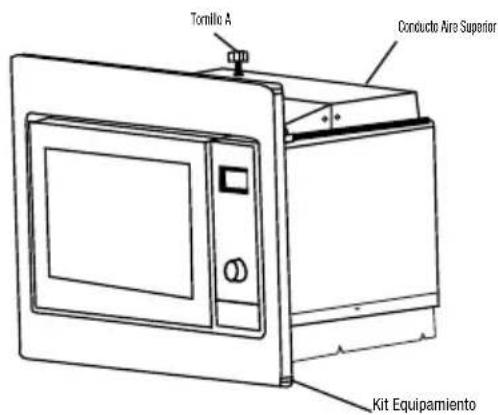

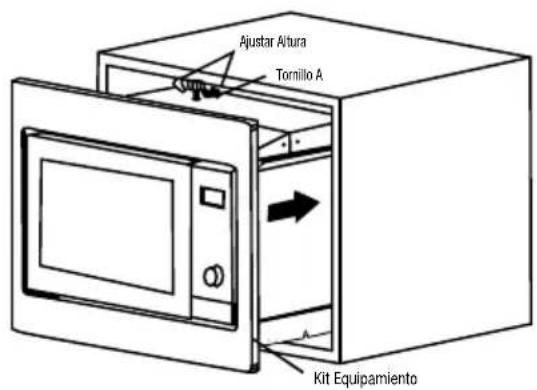

Tomillo A Conduco Air Superior Kit Equipamiento

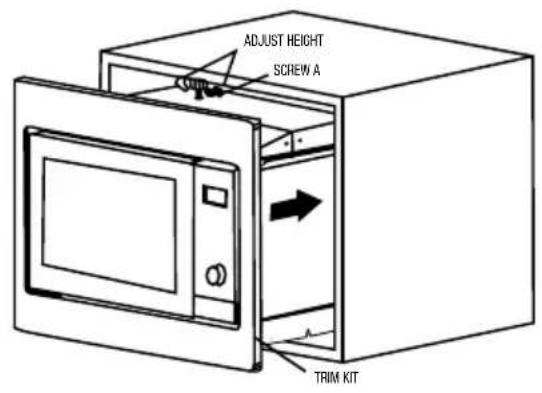

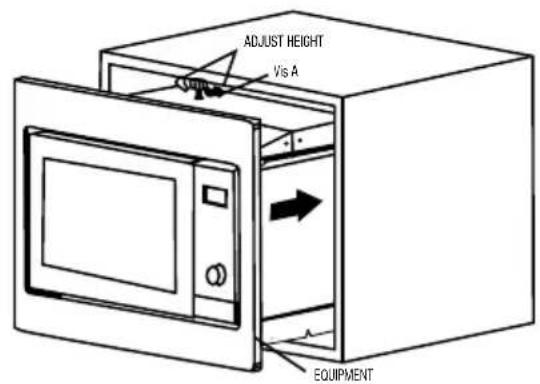

Ajustar Altura Tornillo A Kit Equipamiento

Technical line drawing of a device with internal components and a close-up view of four labeled parts (no text or symbols present)

Technical line drawing of a device with internal components and a highlighted section showing four labeled parts (no text or symbols present)

Torillo A Conduco Air Superior Kit Equipamiento

Ajustar Altura Tornillo A Kit Equipamiento

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

MODELOS: MMA 20 WH MMA 20 X

Line drawing of a microwave oven with front panel and side outlets (no text or symbols)

Line drawing of a microwave oven with lid and control panel (no text or symbols)

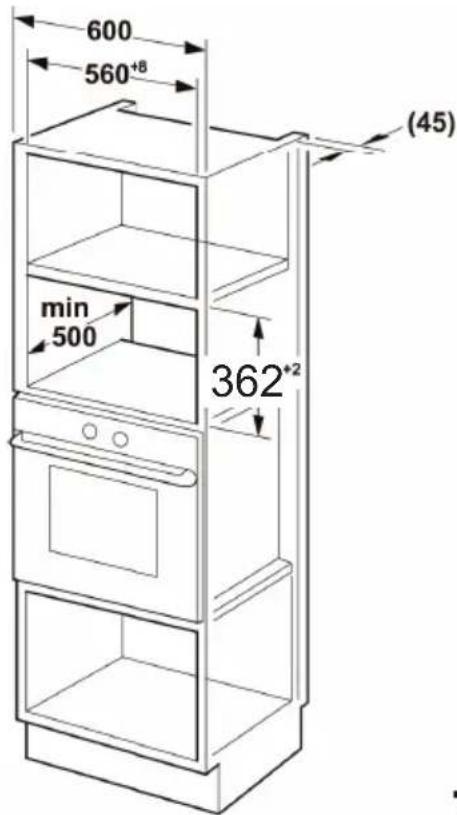

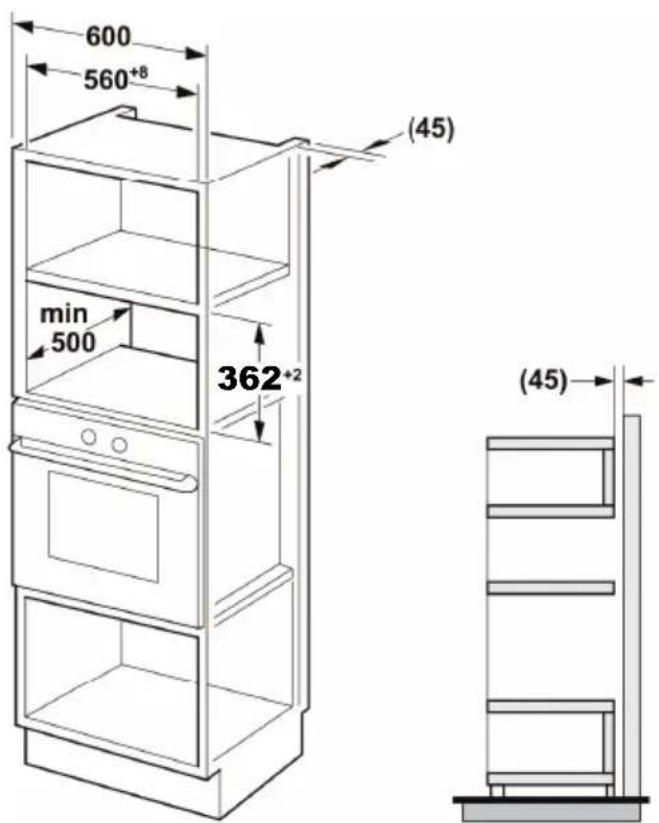

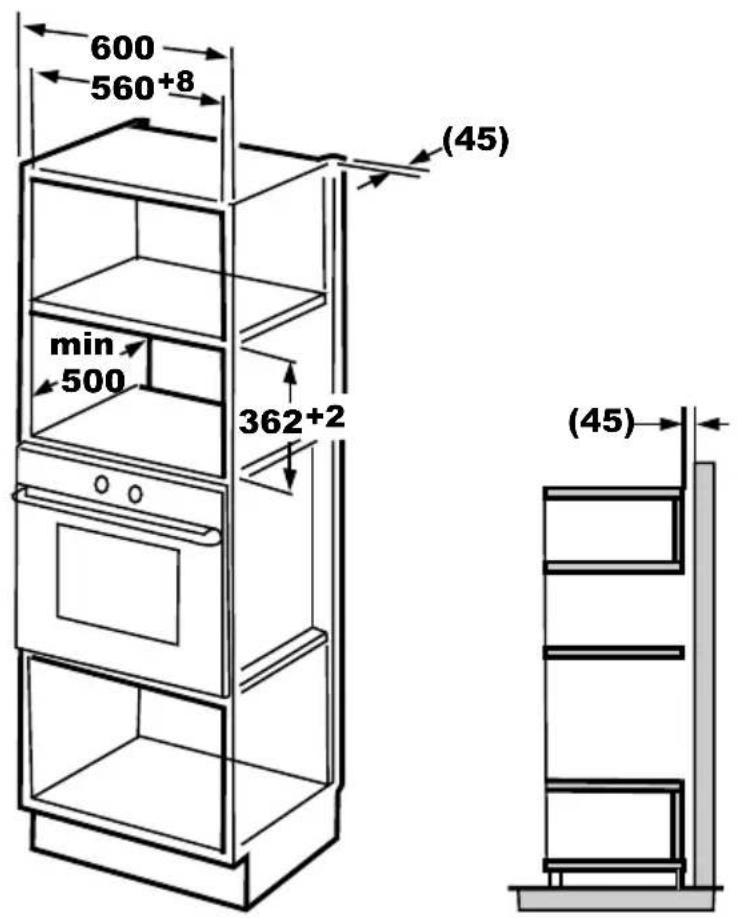

600 560+8 min 500 362+2 (45)

(45)

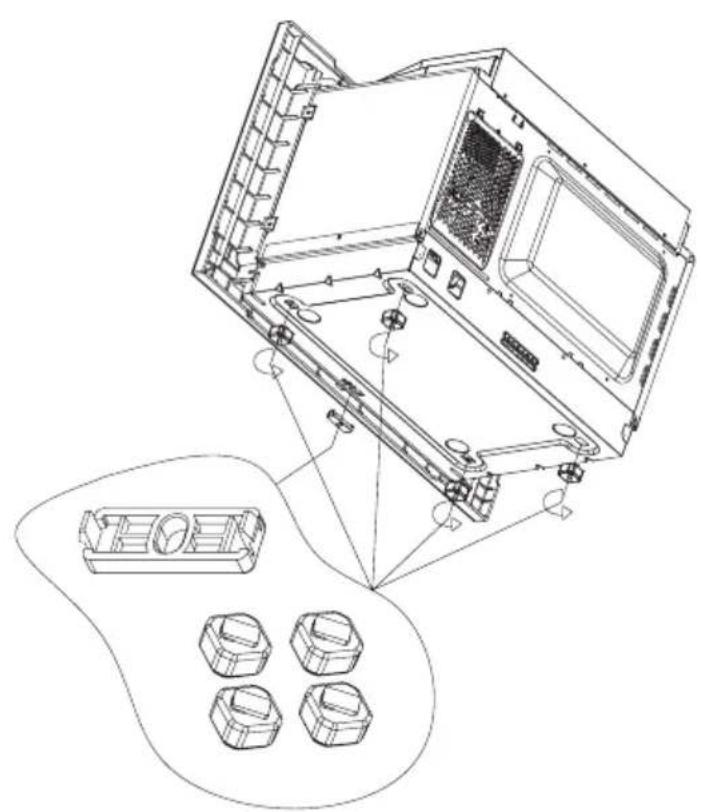

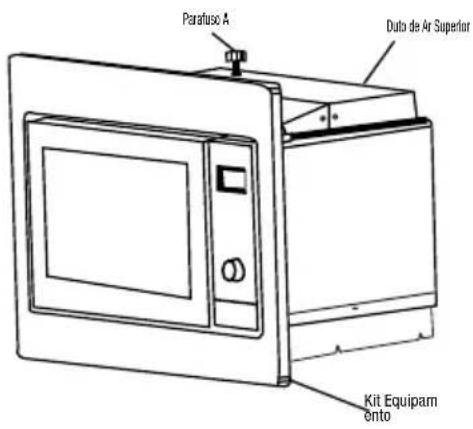

B. Instalar o forno

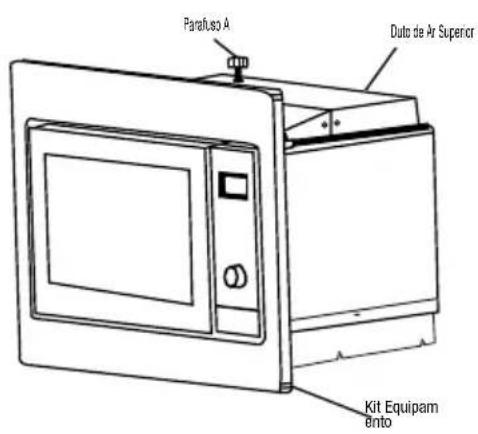

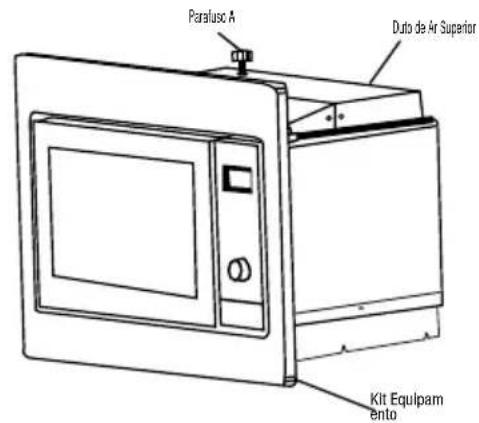

Parafuso A Duto de Ar Superior Kit Equiparn 8ento

Line drawing of a microwave oven with lid and control panel (no text or symbols)

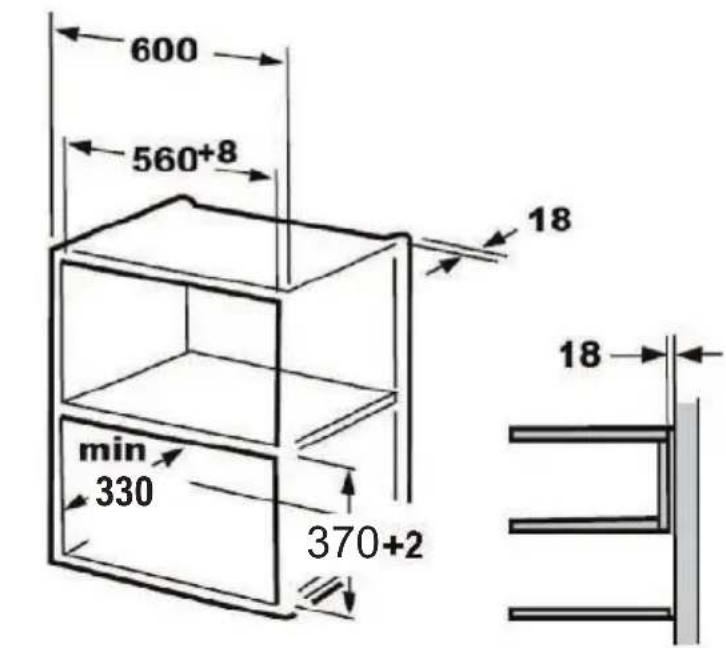

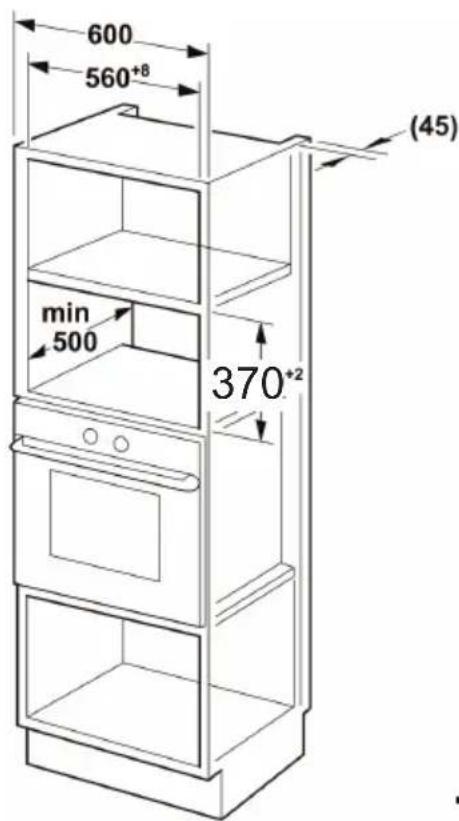

600 560+8 min 500 370+2 (45)

(45)

B. Instalar o forno

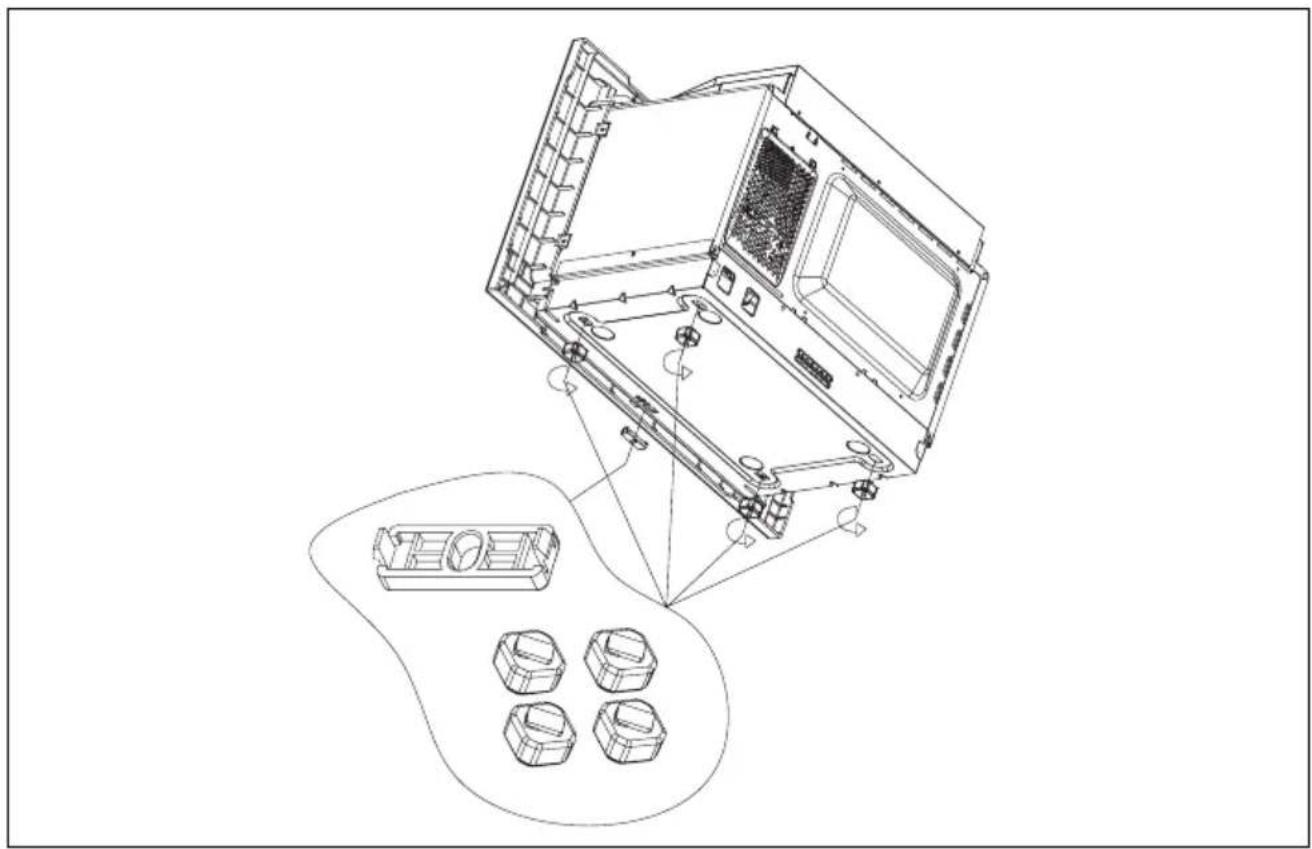

Technical line drawing of a device housing with internal components and a separate view of four numbered parts (no text or symbols present)

Technical line drawing of a device with internal components and a highlighted component (no text or symbols)

Parafuso A Duto de Air Superior Kit Equipam Bento

Line drawing of a microwave oven with lid and control panel (no text or symbols)

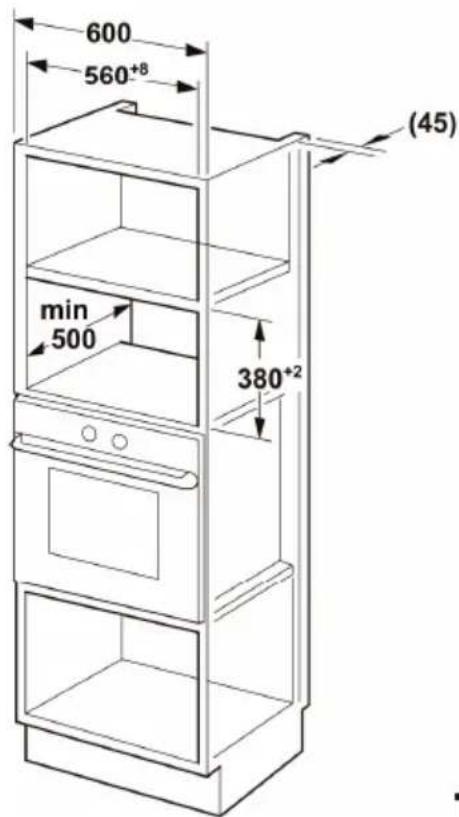

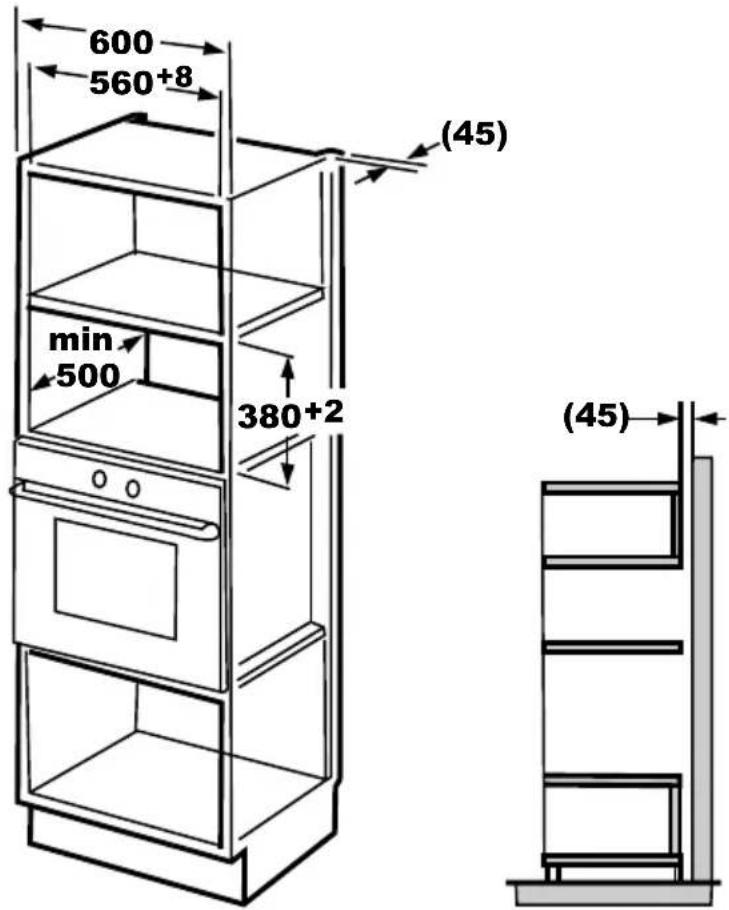

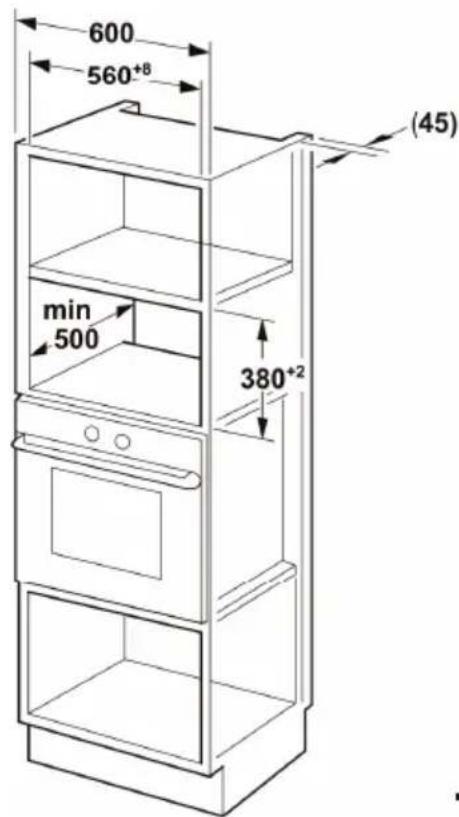

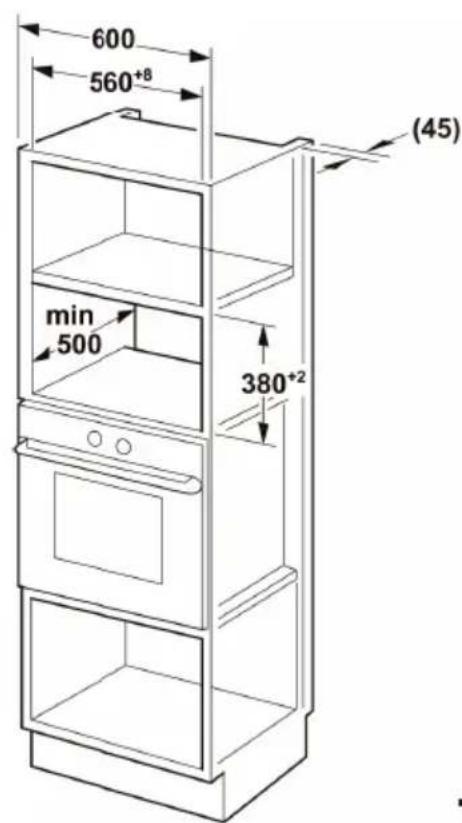

600 560⁺⁸ min 500 380⁺² (45)

(45)

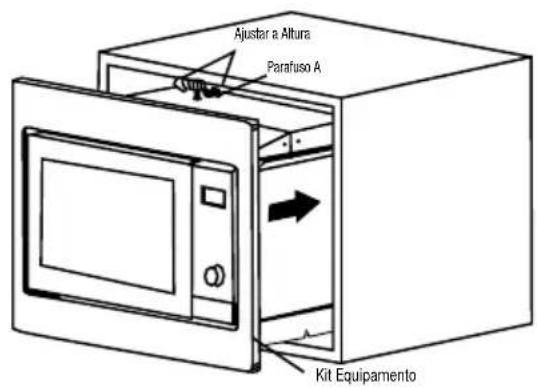

B. Instalar o forno

Technical line drawing of a device housing with internal components and a separate view of four numbered parts (no text or symbols present)

Technical line drawing of a device with internal components and a highlighted component (no text or symbols)

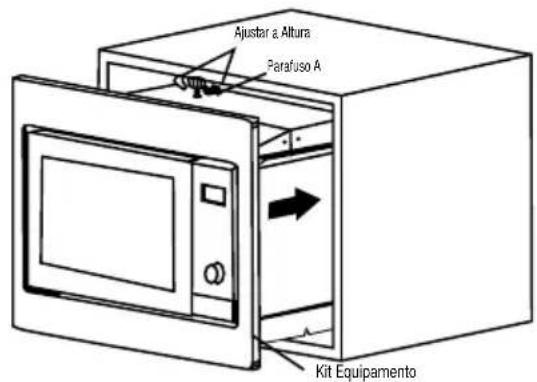

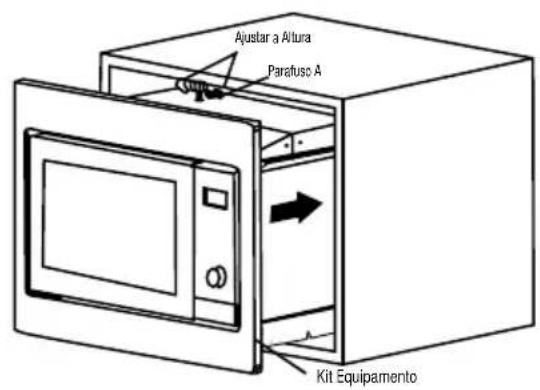

Parafuso A Duto de Ar Superior Kit Equipamento

Microwave Oven INSTRUCTIONS MANUAL MODEL: MMA 20 WH MMA 20 X

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MMA 20 WH / MMA 20 X
	zH05~V 032 :egalModetaR
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800W
Rated Input Power (grill):	1000W
Oven Capacity:	20 l
Turntable Diameter:	∅ 245 mm
External Dimensions (WxDxH):	595 x 367 x 382 mm
Net Weight:	Approx. 16kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

1. Keep the appliance and its cord out of reach of children less than 8 years.

2. Only use utensils suitable for use in microwave ovens.

3. The oven should be cleaned regularly and any food deposits should be removed.
4. Read and follow the specifi c:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
5. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
6. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.
7. Do not overcook food.
8. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
9. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
10. Install or locate this oven only in accordance with the installation instructions provided.
11. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
12. This appliance is intended to be used in household and similar applications such as:
13. staff kitchen areas in shops, offi ces and other working environments;
14. by clients in hotels, motels and other residential type environments;
15. farm houses;
16. bed and breakfast type environments.
17. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
18. Do not store or use this appliance outdoors.
19. Do not use this oven near water, in a wet basement or near a swimming pool.
20. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to
    get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

21. Do not let cord hang over edge of table or counter.

22. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

23. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
24. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
25. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
26. Children should be supervised to ensure that they do not play with the appliance.
27. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
28. Accessible parts may become hot during use. Young children should be kept away.
29. Steam cleaner is not to be used.
30. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
31. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
32. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
33. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
34. Surface of a storage cabinet can get hot.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualifi ed electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a groundingtype 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
   Wipe the oven clean using a soft, dry cloth.

UTENSILS

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fi re in the oven.
Paper bags May cause a fi re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

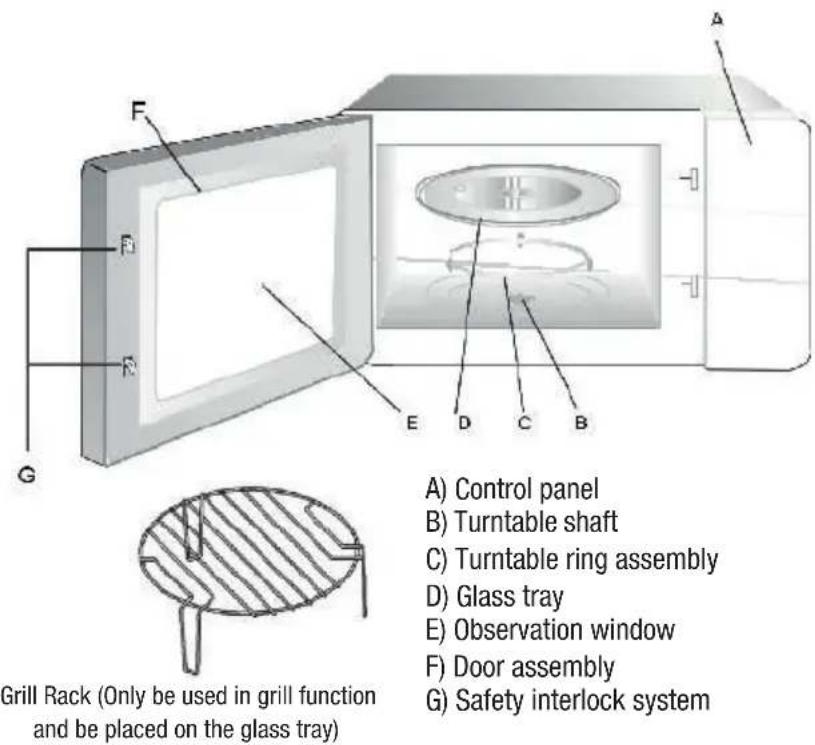

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

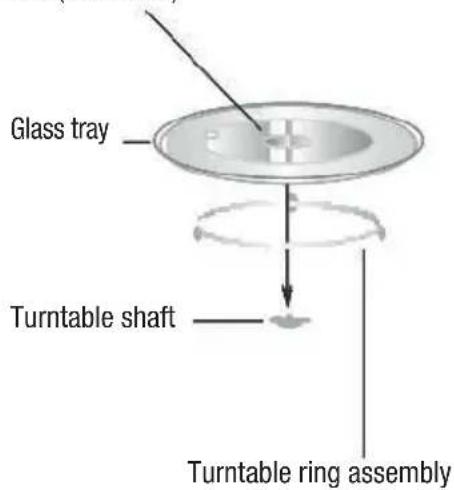

Turntable Installation

Hub (underside)

Glass tray Turntable shaft Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective fi lm found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fi re.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please Note:

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

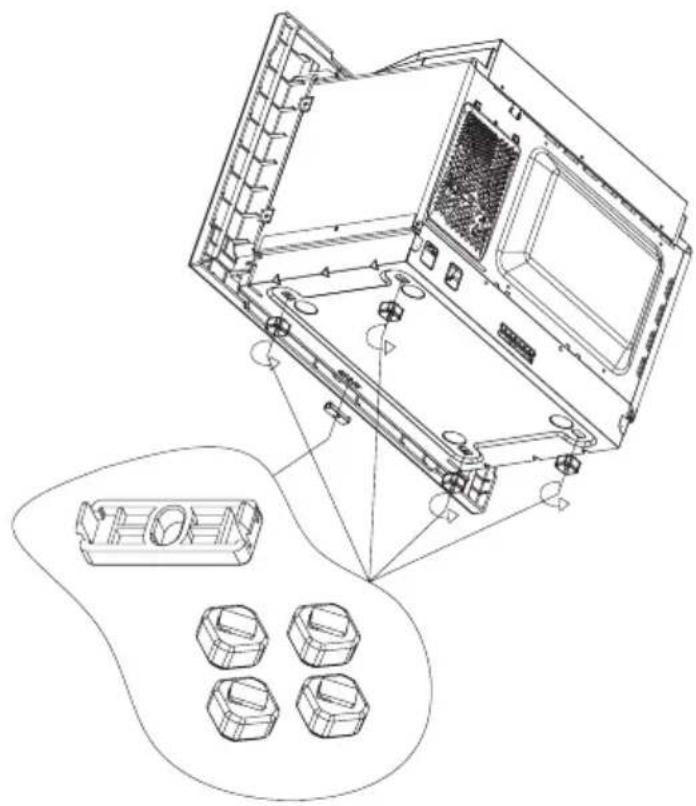

Screw A

Screw B

Trim-kit plastic cover

Bracket

Rubber Foot

Bracket

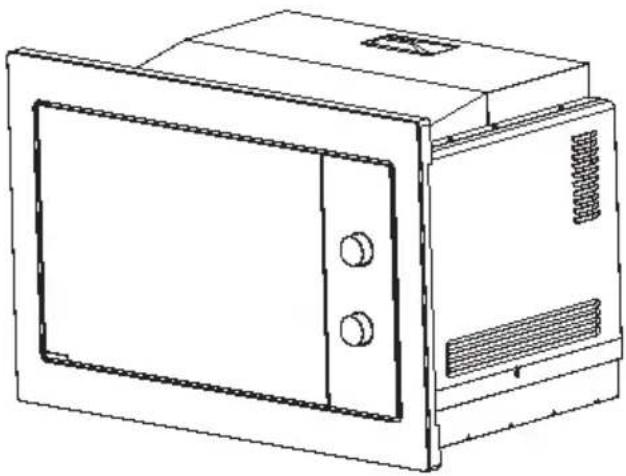

Line drawing of a microwave oven with front panel and side outlets (no text or symbols)

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points.

600 560+8 18 min 330 362+2 18

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 362+2 (45)

(45)

B. Install the Oven

SCREW A UPPER AIR TUNNEL TRIM-KIT ADJUST HEIGHT SCREW A TRIM KIT

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
   ● Make sure that the oven is installed in the center of the cabinet.

SCREW B TRIM-KIT PLASTIC COVER INSTALLATION HOLE

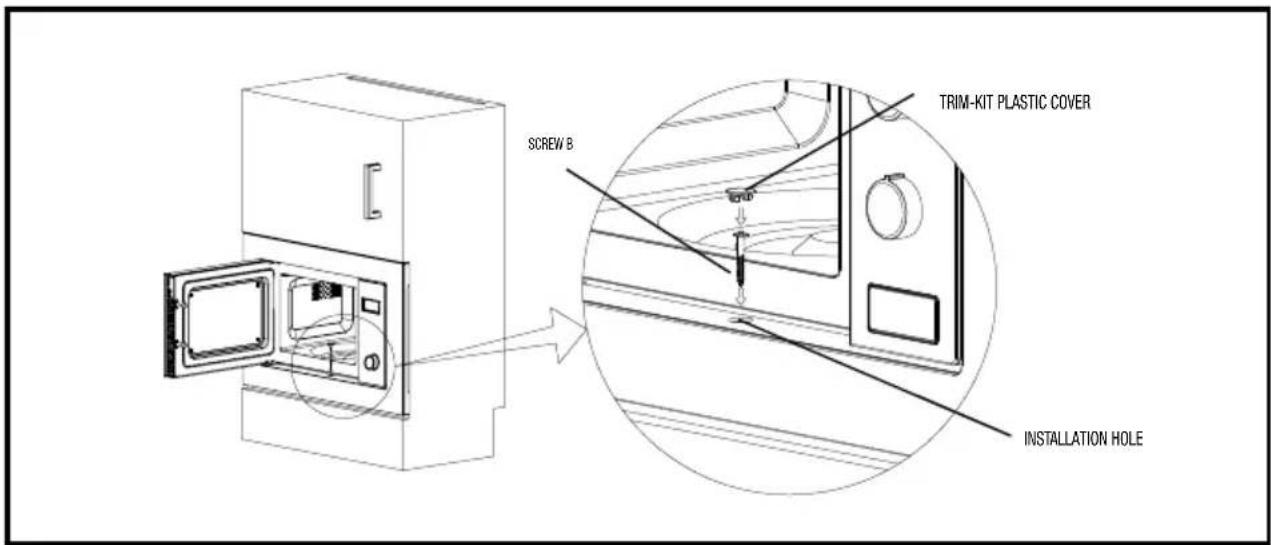

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

For the Cabinet with a height of 370mm

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

600 560+8 18 min 330 370+2 18

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 370+2 (45)

(45)

B. Install the Oven

Technical line drawing of a device with internal components and a highlighted part (no text or symbols)

SCREW A UPPER AIR TUNNEL TRIM-KIT

ADJUST HEIGHT SCREW A TRIM KIT

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
   ● Make sure that the oven is installed in the center of the cabinet.

SCREW B TRIM-KIT PLASTIC COVER INSTALLATION HOLE

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

600 560+8 18 min 330 380+2 18

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 380+2 (45)

(45)

B. Install the Oven

Technical line drawing of a device with internal components and a highlighted part (no text or symbols)

SCREW A UPPER AIR TUNNEL TRIM-KIT

ADJUST HEIGHT SCREW A TRIM KIT

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
   ● Make sure that the oven is installed in the center of the cabinet.

SCREW B TRIM-KIT PLASTIC COVER INSTALLATION HOLE

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

OPERATION

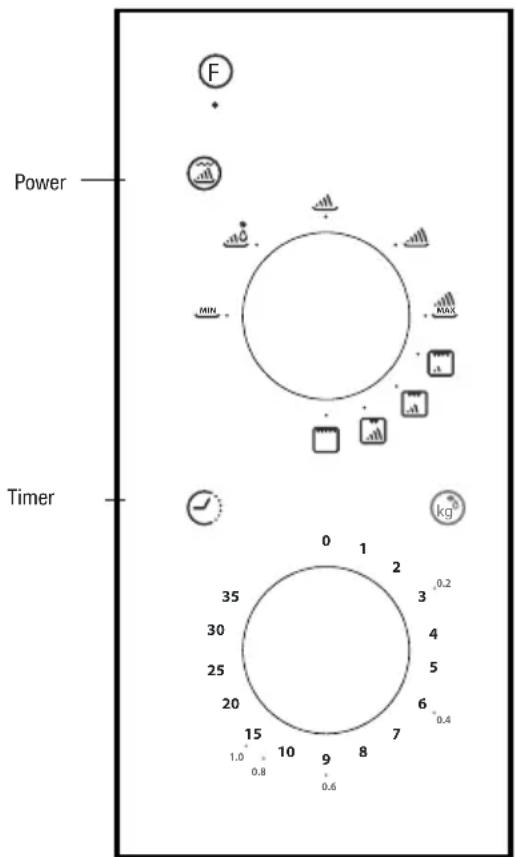

Control Panel and Features

Operation Instructions

Power Timer F MIN MAX kg 0 1 2 3 0.2 35 30 25 20 15 10 9 8 7 1.0 0.8 0.6

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low 17% micro. Soften ice	cream
Med. Low (Defrost) 33% micro. Soup stew, soften	butter or defrost
Med. 55% micro. Stew, fi sh
Med. High 77% micro. Rice, fi sh, chicken, ground	meat
High 100% micro. Reheat, milk, boil water, vegetables, beverage

Function/Power	Output	Application
Combi. 1 80% grill 20% micro. Sausage, Lamb, Kabobs, Seafood, Steak
Combi. 2 70% grill 30% micro. Chicken pieces, Chicken breasts, Pork chops
Combi. 3 60% grill 40% micro.		Whole chicken
Grill	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Normal

Microwave oven interfering TV reception

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

Dim oven light

In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents

In cooking, steam may come out of food. Most will get out from vents. But so me may accumulate on ool place like oven door. It is normal.

Oven started accidentally with no food in

It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible	Cause
Oven can not be started. 1) Power cord not plugged Unplug. Then plug again in tightly. after 10 seconds.
	2) Fuse blowing or circuit Replace fuse or breaker works. reset circuit breaker (repaired by professional personnel of our company)
	3) Trouble with outlet. Test outlet with other electrical
Oven doesnot heat. 4) Door not closed well. Close door well.
Glass turntable makes 5) Dirtyroller rest and noise when microwave oven bottom. Refer to “Maintenance of oven operates Microwave” to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dis-pose of this product with household waste. Please send this product to WEEE collecting points where available.

MODÈLE: MMA 20 WH MMA 20 X

Installation et raccordement

Line drawing of a microwave oven with front panel and side outlets (no text or symbols)

A. Meubles encastrés

Line drawing of a microwave oven with lid, door, and control panel (no text or symbols)

600 560+8 min 500 362+2 (45)

(45)

B. Installation

Vis A TUNNEL AÉRIEN SUPÉRIEUR EQUIPMENT ADJUST HEIGHT Vis A EQUIPMENT

Technical line drawing of a device with internal components and a highlighted inset showing four labeled parts (no text or symbols present)

Vis A TUNNEL AériEN SUPÉRIEUR EQUIPMENT

ADJUST HEIGHT View A EQUIPMENT

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

600 560+8 18 min 330 380+2 18

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 380+2 (45)

(45)

B. Installation

Technical line drawing of a device with internal components and a highlighted part (no text or symbols)

Vis A TUNNEL AériEN SUPÉRIEUR EQUIPMENT

ADJUST HEIGHT View A EQUIPMENT

Technical diagram of a microwave oven with labeled components A through R

Simple line drawing of a round table with three legs and a shaded top surface (no text or symbols)

Line drawing of a microwave oven with front panel and side outlets (no text or symbols)

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 362+2 (45) (45)

Line drawing of a microwave oven with control panel and door (no text or symbols)

600 560+8 min 500 370+2 (45)

(45)

Technical line drawing of a computer case with internal components and a close-up view of four labeled parts (no text or symbols present)

Technical line drawing of a device with internal components and a highlighted inset showing four labeled parts (no text or symbols present)

Line drawing of a microwave oven with lid and control panel (no text or symbols)

600 560+8 min 500 380+2 (45) (45)

В. Стенной шкаф

Technical line drawing of a computer chassis with internal components and a close-up view of four labeled parts (no text or symbols present)
