USER MANUAL MMA 20 WH CATA

GB Microwave Oven Owner's Manual

Microwave Oven INSTRUCTIONS MANUAL MODEL: MMA 20 WH MMA 20 X

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MMA 20 WH / MMA 20 X
	zH05~V 032 :egatModetaR
Rated Input Power (Microwave):	1250W
Rated Output Power (Microwave):	800W
Rated Input Power (grill):	1000W
Oven Capacity:	20 l
Turntable Diameter:	Ø 245 mm
External Dimensions (WxDxH):	595 x 367 x 382 mm
Net Weight:	Approx. 16kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
   Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. Only use utensils suitable for use in microwave ovens.

6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific c:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any fl ames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
13. Install or locate this oven only in accordance with the installation instructions provided.
14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
15. This appliance is intended to be used in household and similar applications such as:
16. staff kitchen areas in shops, offi ces and other working environments;
17. by clients in hotels, motels and other residential type environments;
    -farm houses;
18. bed and breakfast type environments.
19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
20. Do not store or use this appliance outdoors.
21. Do not use this oven near water, in a wet basement or near a swimming pool.
22. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

23. Do not let cord hang over edge of table or counter.

24. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

25. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
26. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
27. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
28. Children should be supervised to ensure that they do not play with the appliance.
29. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
30. Accessible parts may become hot during use. Young children should be kept away.
31. Steam cleaner is not to be used.
32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
33. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
34. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
35. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
36. Surface of a storage cabinet can get hot.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a quali ed electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a groundingtype 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

UTENSILS

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

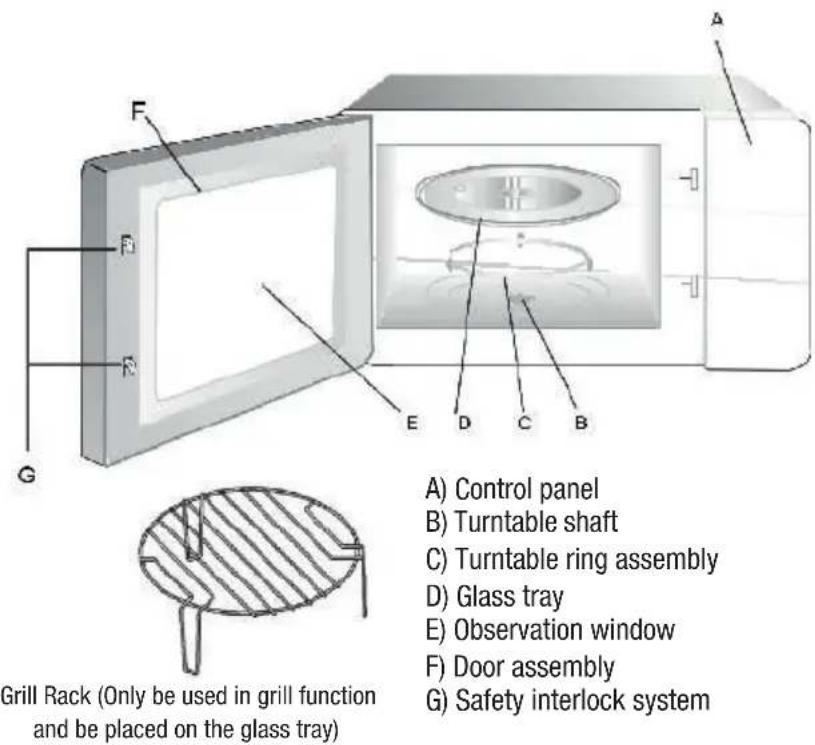

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

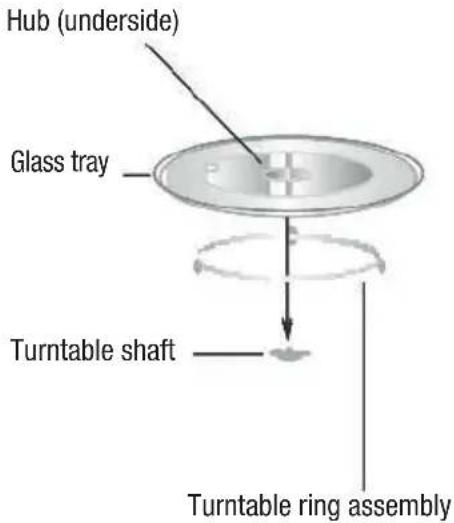

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective fi lm found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please Note:

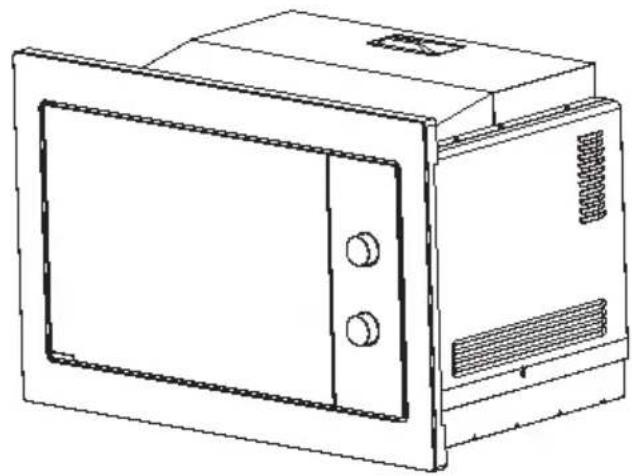

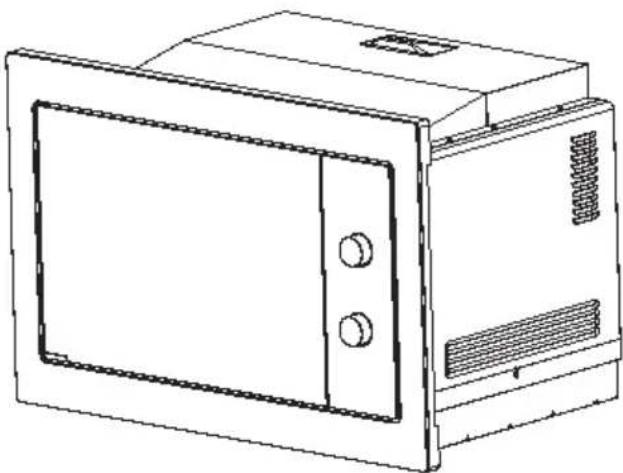

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm .

Screw A

Screw B

Trim-kit plastic cover

Bracket

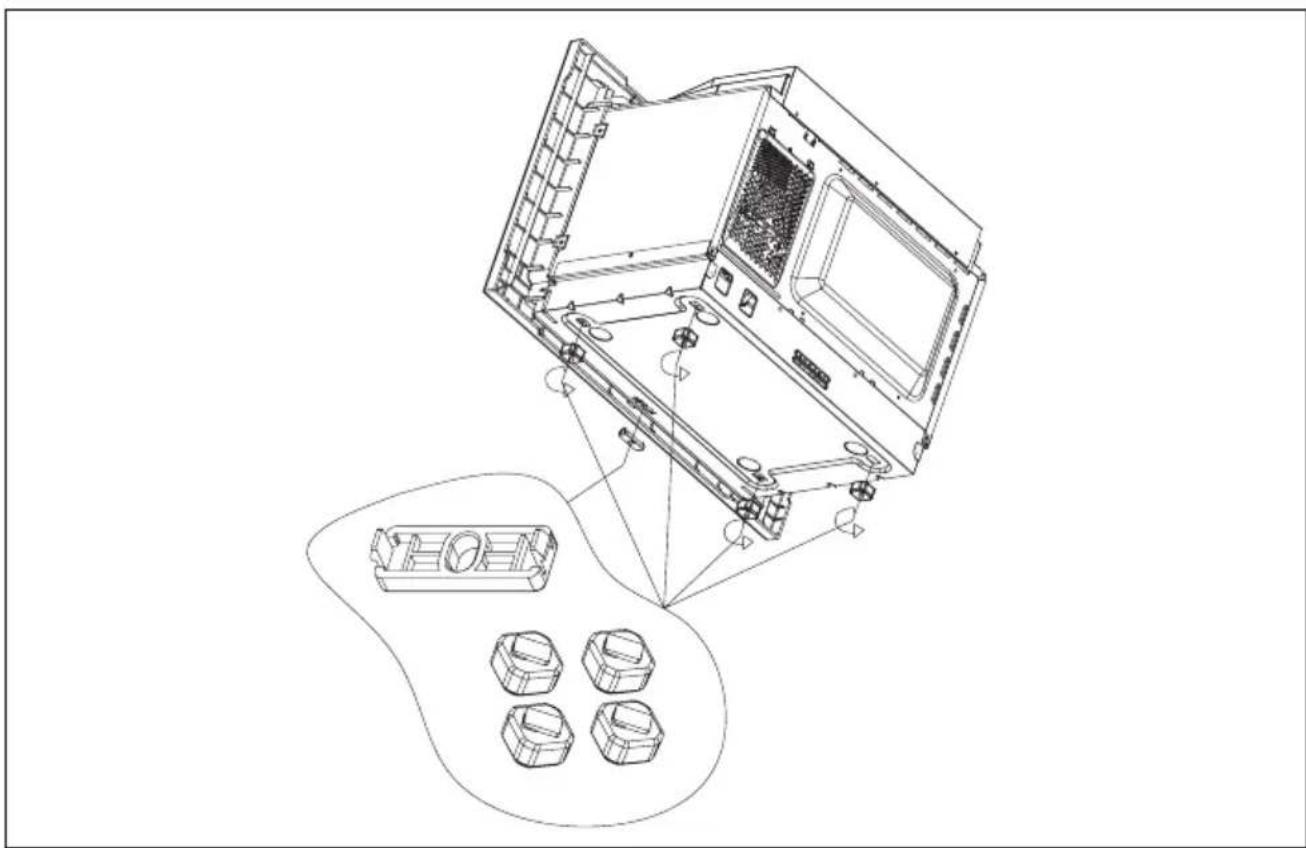

Rubber Foot

Bracket

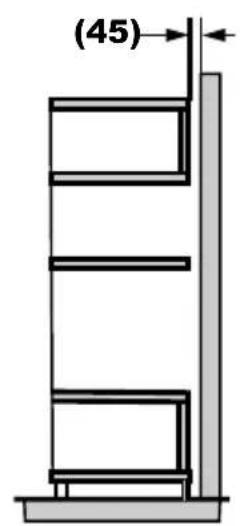

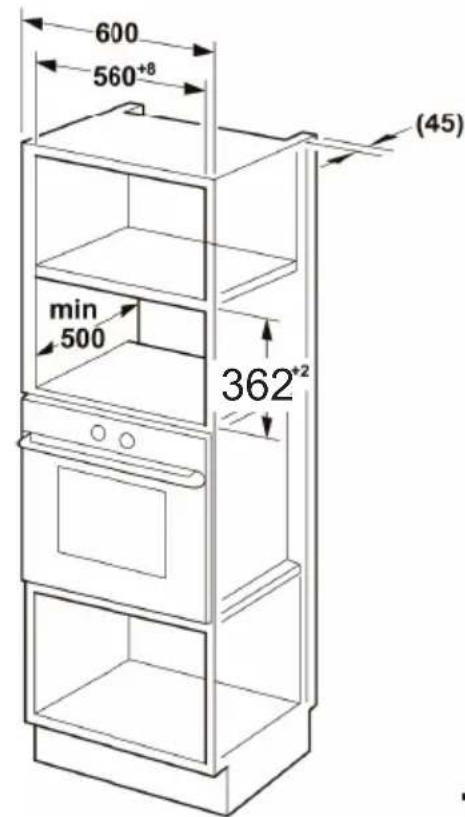

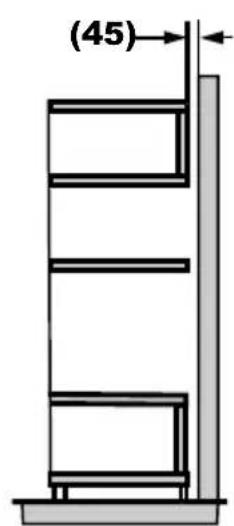

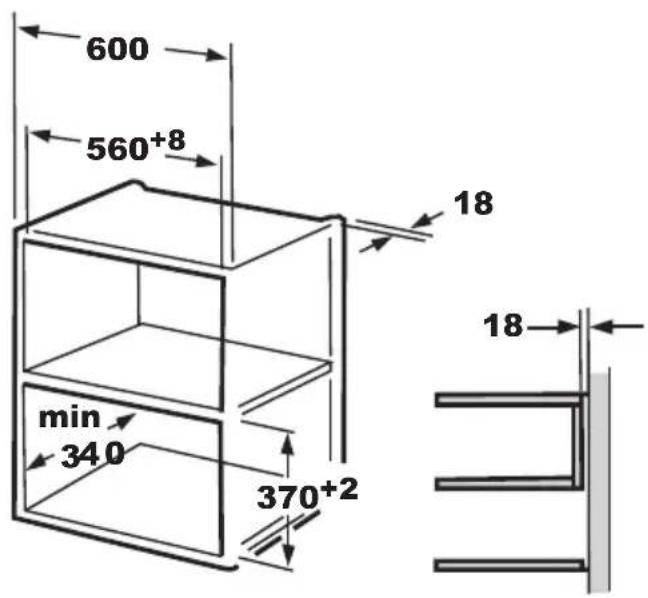

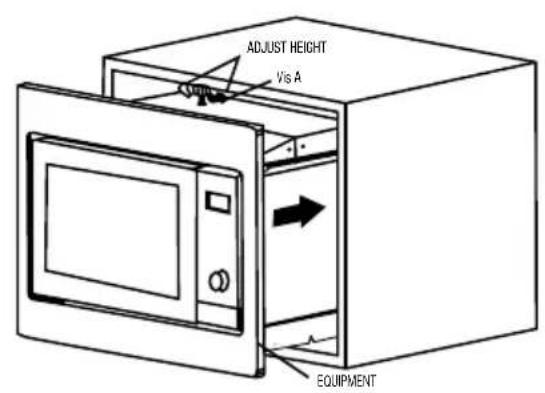

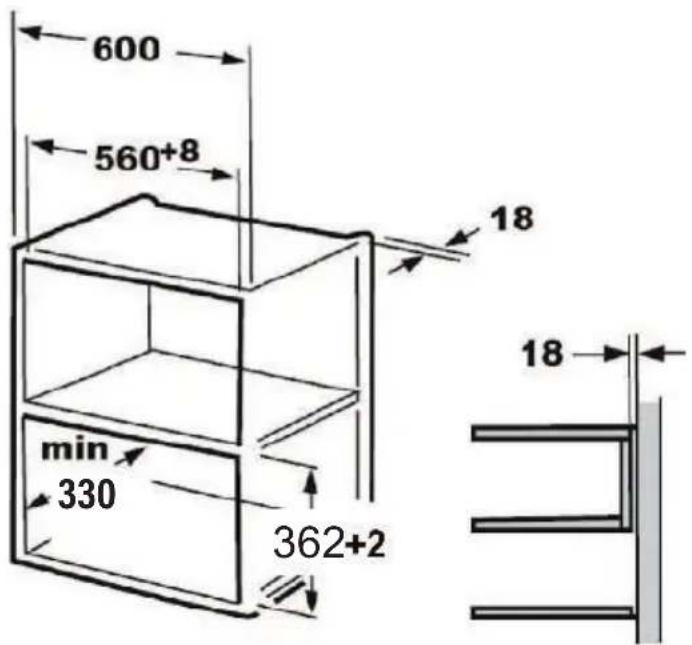

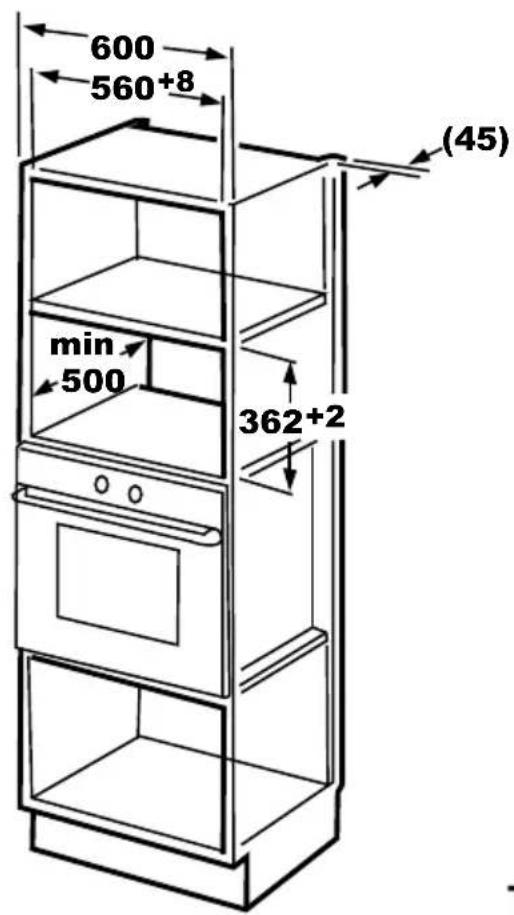

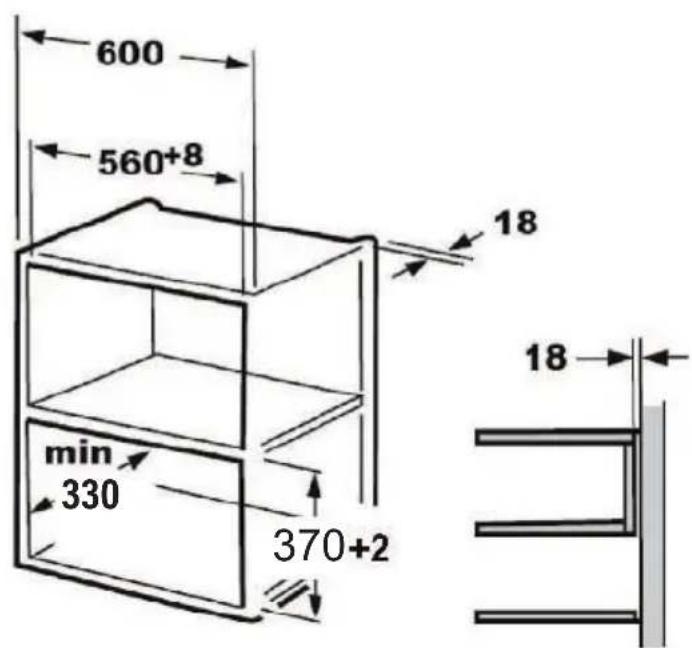

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points.

B. Install the Oven

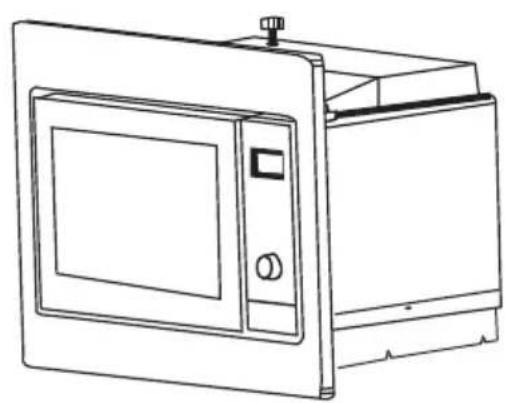

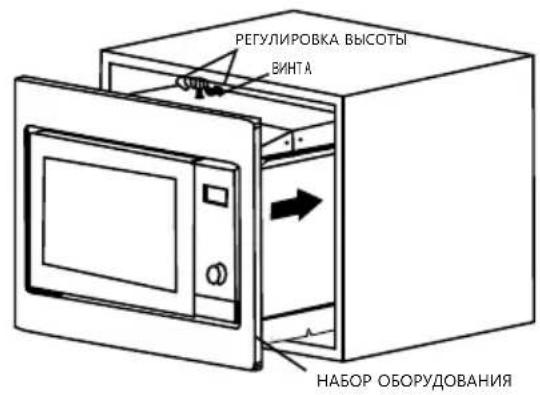

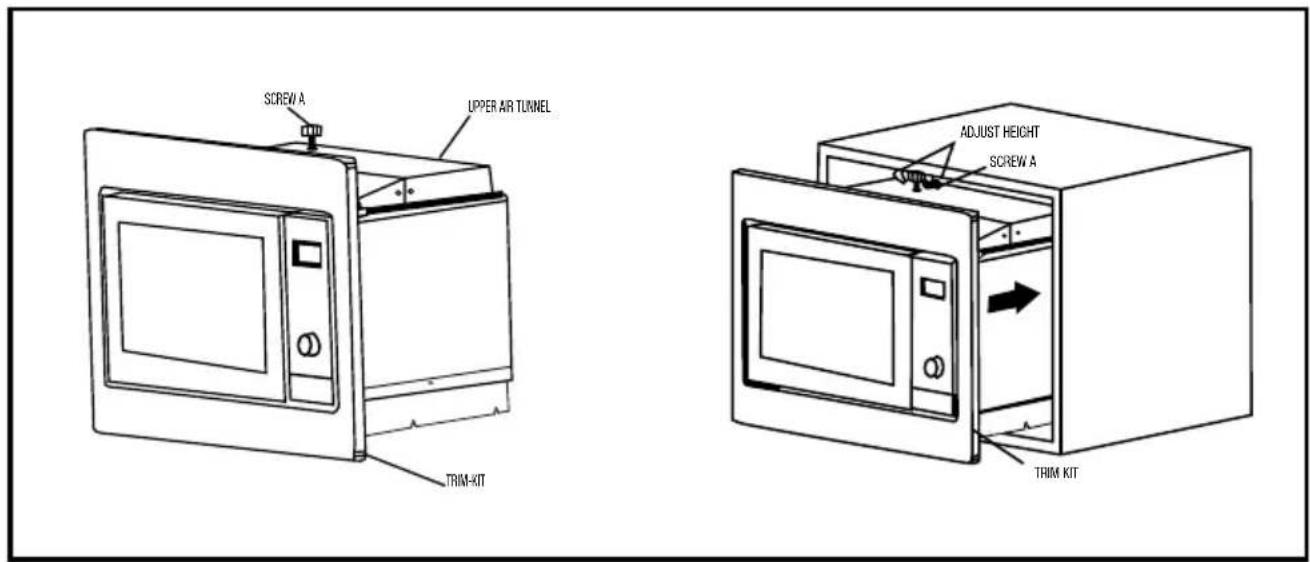

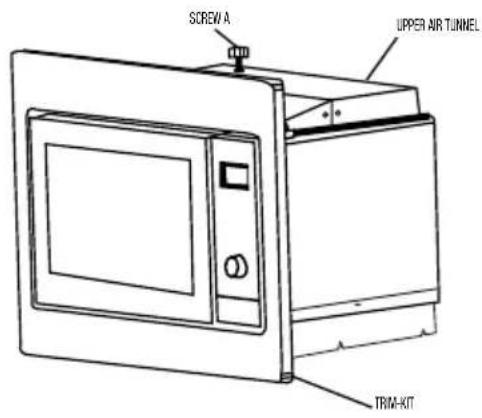

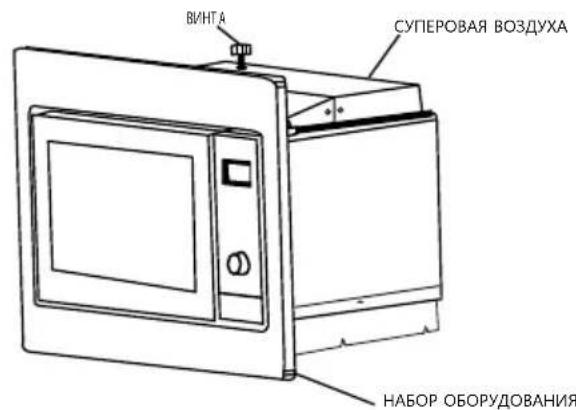

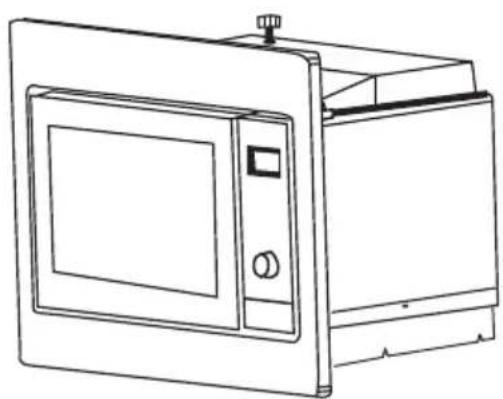

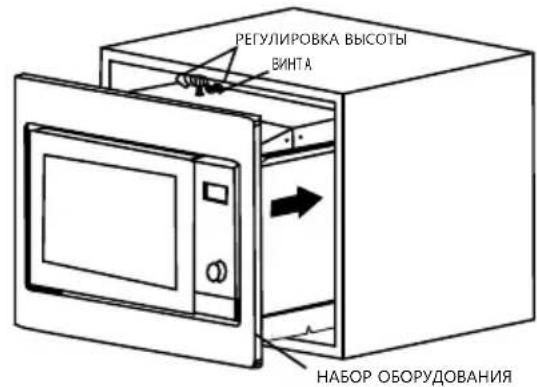

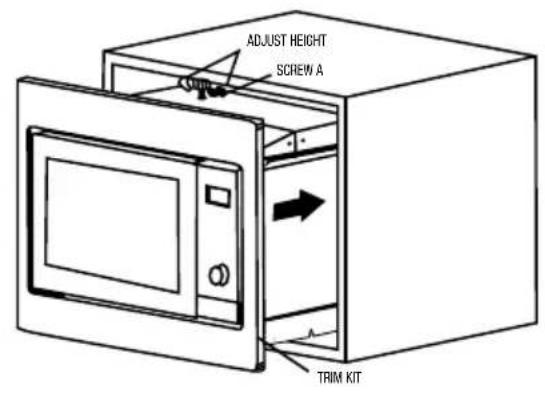

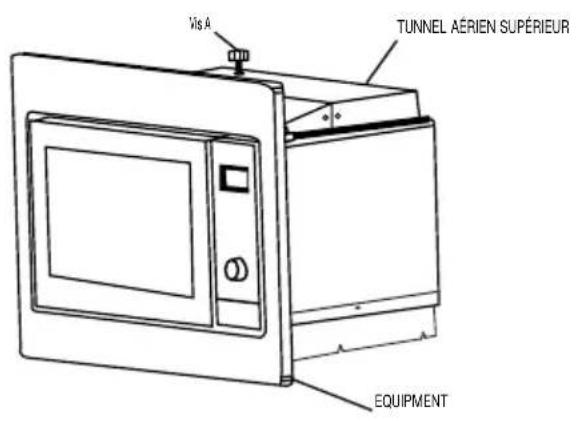

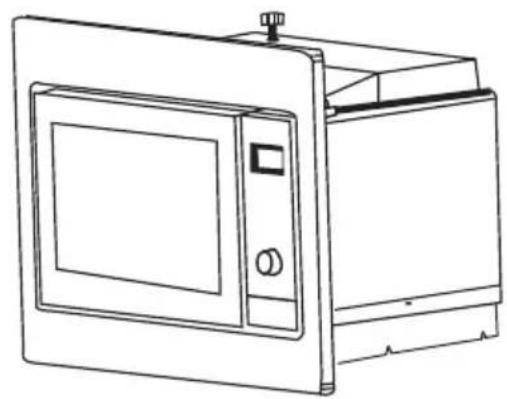

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the
   SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
4. Make sure that the oven is installed in the center of the cabinet.

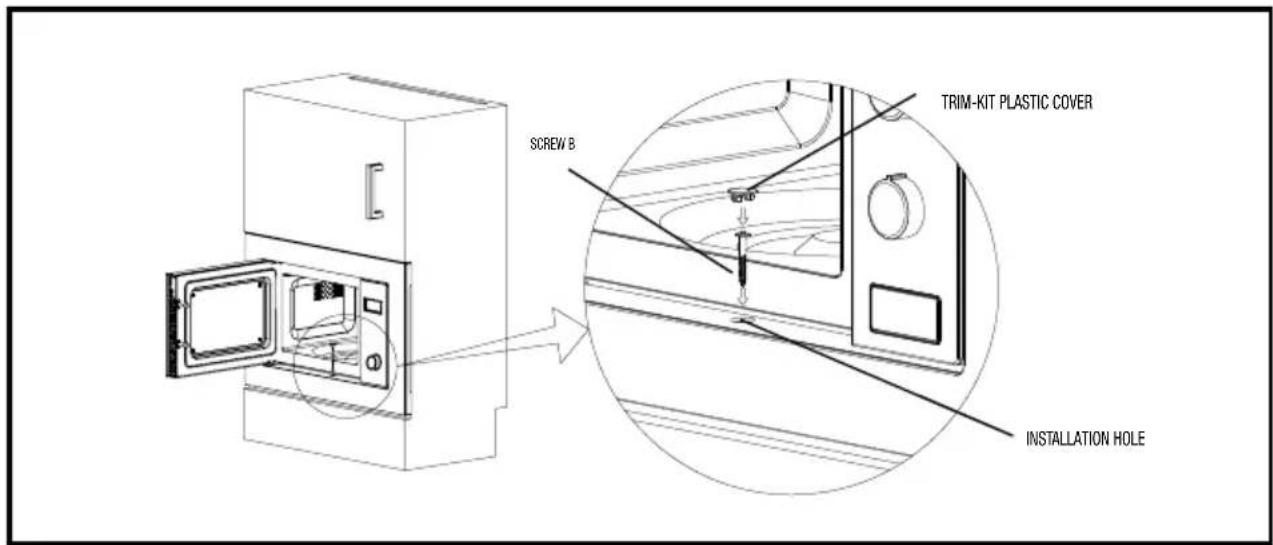

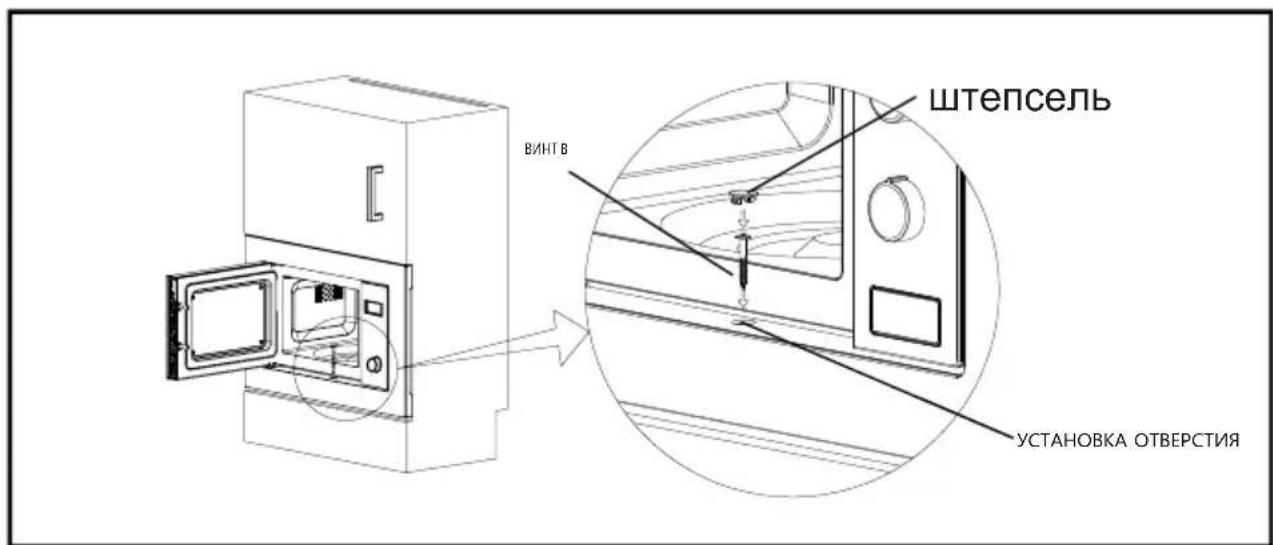

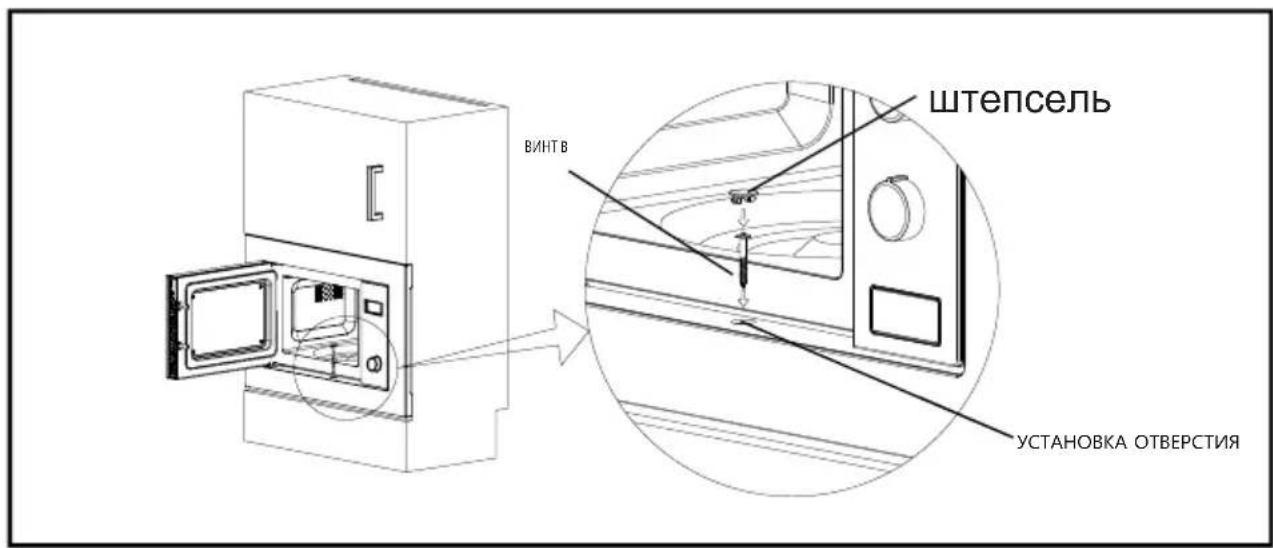

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

For the Cabinet with a height of 370mm

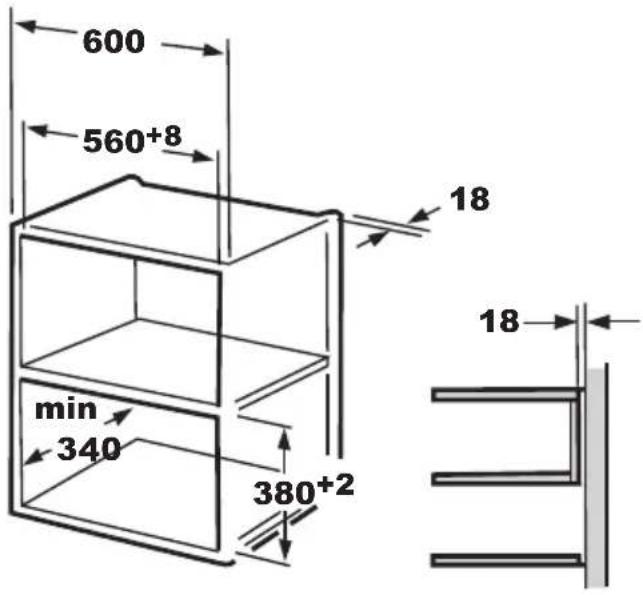

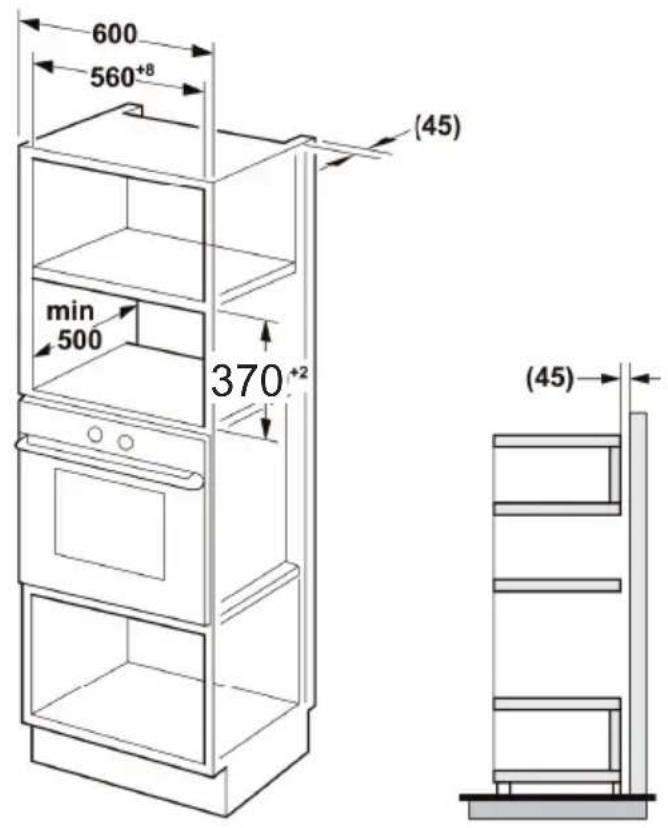

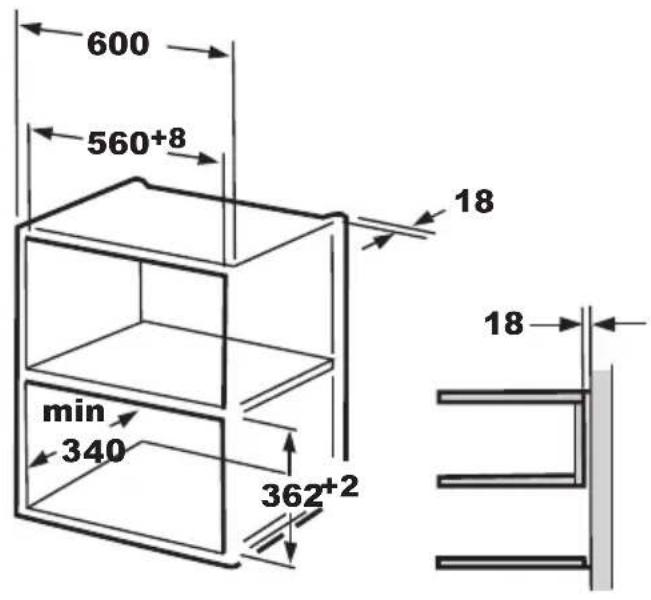

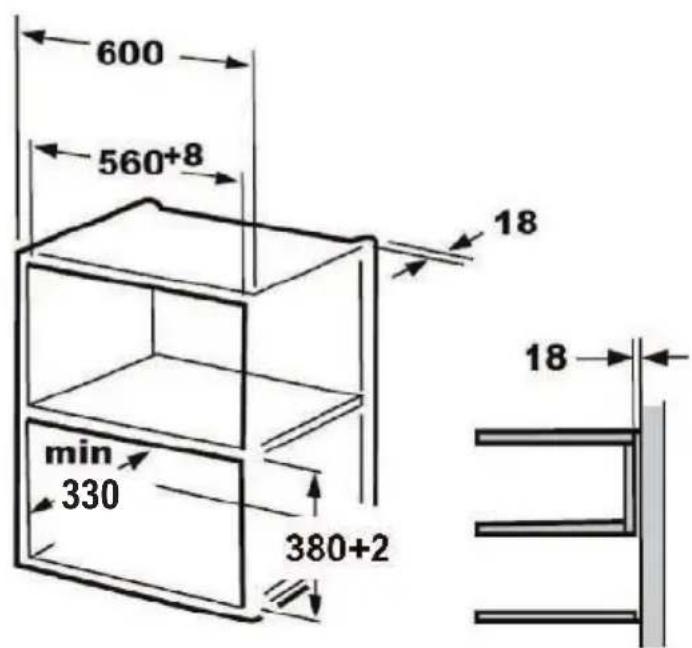

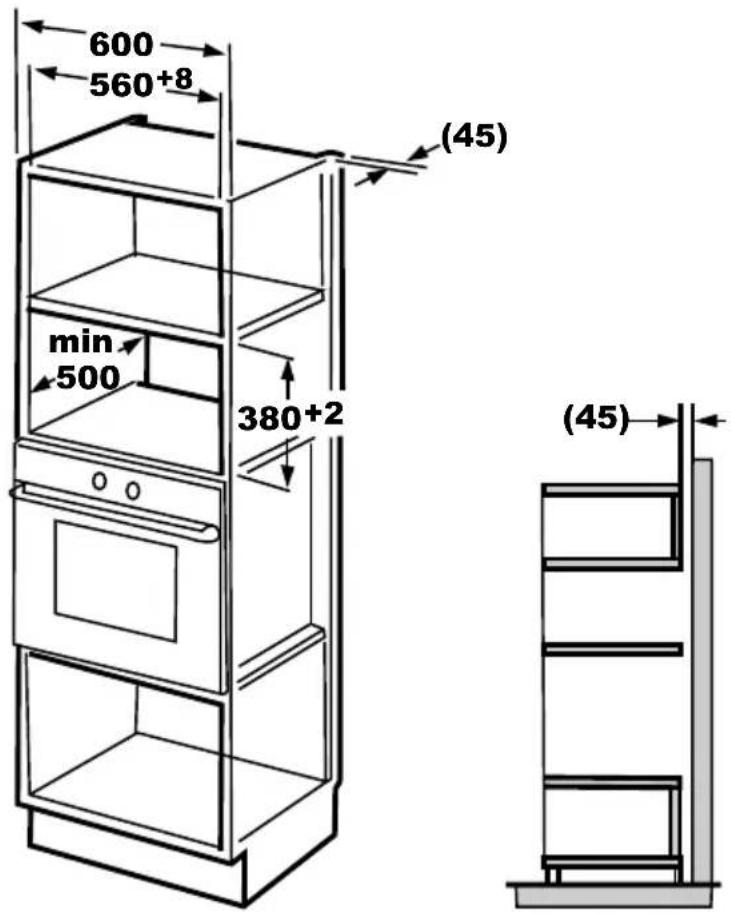

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

B. Install the Oven

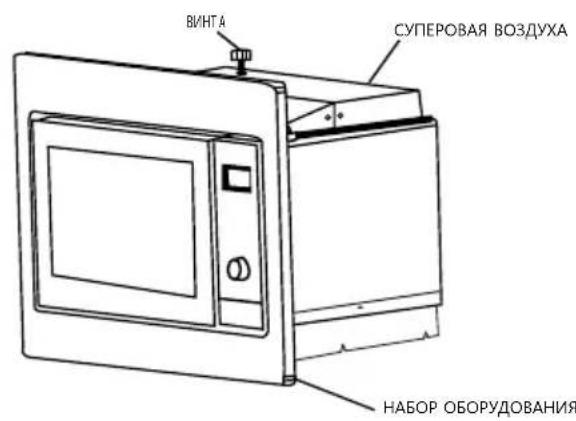

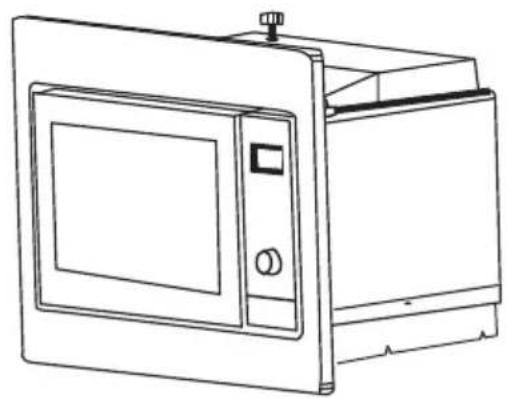

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
4. Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

For the Cabinet with a height of 380mm

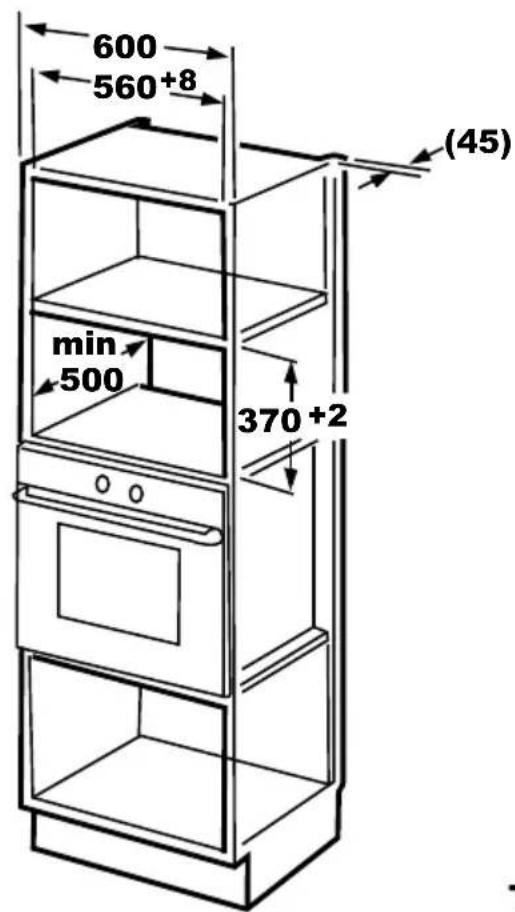

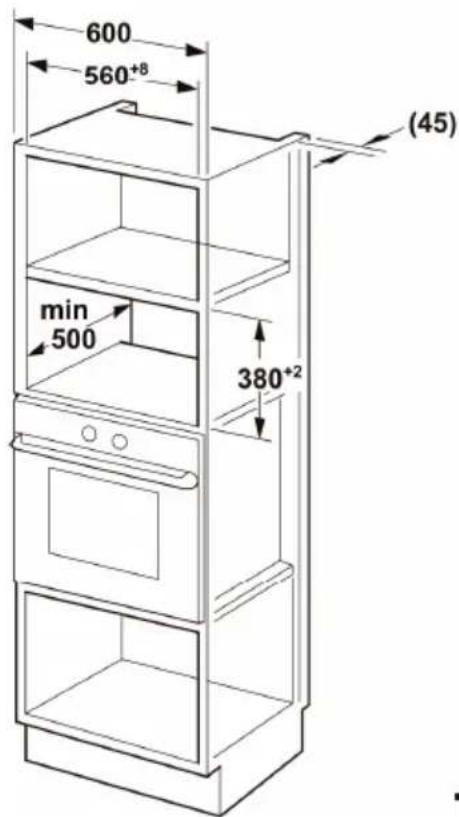

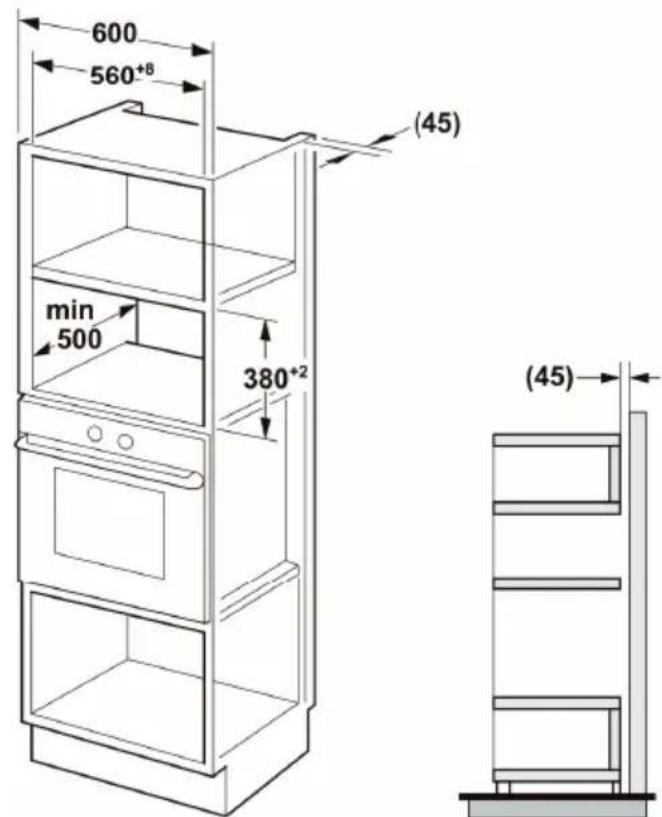

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

B. Install the Oven

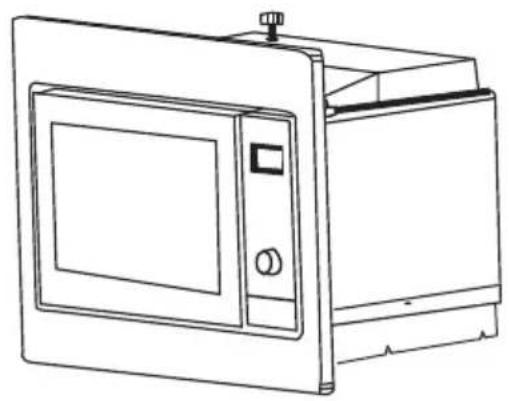

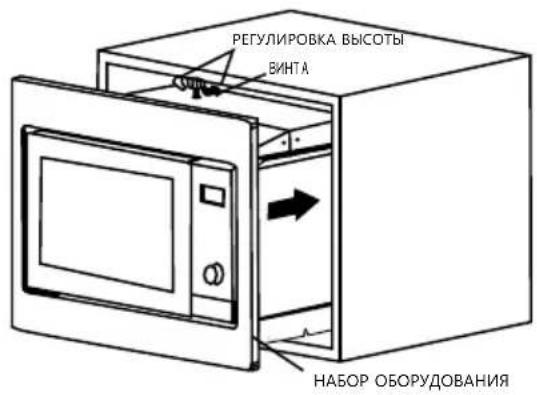

1. Fix SCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

2. Adjust the height of SCREW A to keep 1mm gap between the SCREW A and the top plane of cabinet.

3. Do not trap or kink the power cord.
4. Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

OPERATION

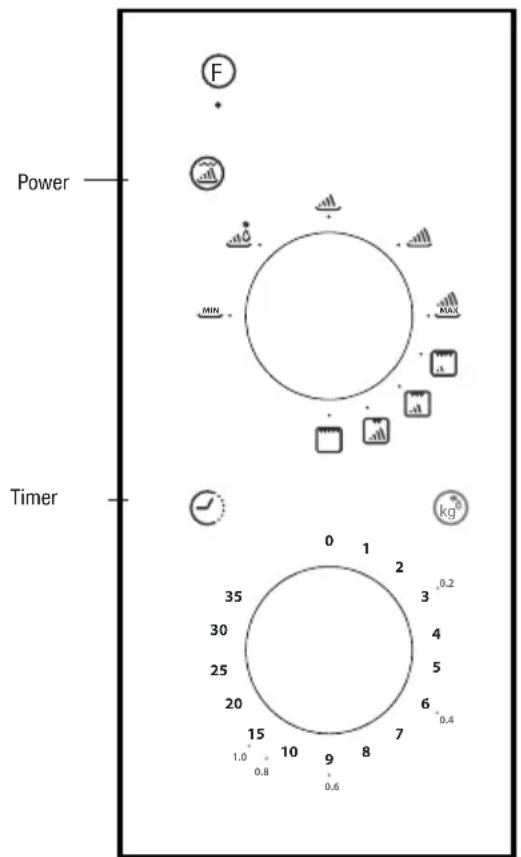

Control Panel and Features

Operation Instructions

1. To set cooking power by turning the power knob to desired level.
2. To set the time of cooking by turning the timer knob to desired time per your food cooking guide.
3. The microwave oven will automatically start cooking after power level and time are set.
4. After the cooking time is up, the unit will "Dong" to stop.
5. If the unit is not in use, always set time to "0".

Function/Power	Output	Application
Low 17% micro. Soften ice	cream
Med. Low (Defrost) 33% micro.	Soup stew, soften	butter or defrost
Med. 55% micro. Stew, fi sh
Med. High 77% micro. Rice	fi sh, chicken, ground	meat
High 100% micro. Reheat, milk, boil water, vegetables, beverage

Function/Power	Output	Application
Combi. 1 80% grill 20% micro. Sausage, Lamb, Kabobs, Seafood, Steak
Combi. 2 70% grill 30% micro. Chickenchicken breasts, Pork chops
Combi. 3 60% grill 40% micro. Whole chicken
Grill	100% grill	Baken bread, Slice food

Notice: When removing food from the oven, please ensure that the oven power is switched off by turning the timer switch to 0 (zero).

Failure to do so, and operating the microwave oven without food in it, can result in overheating and damage to the magnetron.

Trouble shooting

Normal

Microwave oven interfering TV reception

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

Dim oven light

In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents

In cooking, steam may come out of food. Most will get out from vents. But so me may accumulate on ool place like oven door. It is normal.

Oven started accidentally with no food in

It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible	Cause
Oven can not be started. 1) Power cord not plugged Unplug. Then plug again in tightly. after 10 seconds.
2) Fuse blowing or circuit Replace fuse or breaker works. reset circuit breaker (repaired by professional personnel of our company)
3) Trouble with outlet. Test outlet with other electrical
Oven doesnot heat. 4) Door not closed well. Close door well.
Glass turntable makes 5) Dirty roller rest and noise when microwave oven bottom. Refer to “Maintenance of oven operates Microwave” to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dis-pose of this product with household waste. Please send this product to WEEE collecting points where available.

MODELE: MMA 20 WH MMA 20 X

Installation et raccordement

For the Cabinet with a height of 380mm

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

B. Installation

He ydaIaTe CBETNo-KOpuHReByo CnIOyHO KpbIuKpy, npKpEnNeHHyO Ha BHyTppeHHe NOBepxHocTu KaMepbI MKNPOBOHOBO Neyn Dna3aunTb MaHrTeP0Ha.

YctaHOBkaI NOdklIoUeHne

1. 3To yCtpoCTBO pIpeHa3NaHeO TOnbKO IJN DAOMaHHeRo IpIMMeHEnIA.
2. 3Ta MKNPOBIOHOBa NcYb BCTPOeHHORO TnHa, He PneDHa3HaueHHa DnA YCTaHOBKn Ha NOBepXHOCTn CTOnA Wm BHYTpN uKaΦa.
3. Co6nJaTe CneuaJIbHbIe INCTpyKuIN NO MOHTaXy.
4. UCTPOCTBO MOXHO YCTaHaBnBaTb B 3akpeIeHHbI Ha CTHe 60 cm (CMOTPte PNCYHK1 2 B KOHc INCHpyKuIN).
5. UcpoCTBO OCHaIeHO BUNKO I DOJXHO NODKIOHOTBcA TObKO K HAdJIeXaIIM 06pa3OM yCTaHOBNEHHO IN 3a3EmJIeHHo pO3eTKe
6. HanpjaKeHne B cTeI dONJHO COOTBECTBOBaTb HAnpJaKeHIO, Yka3aHHOMy Ha NaCnOptTHo Ta6NIuYe.
7. yctahOBky po3ETKn n 3aemeHy cTeBoro shhpya dONJxH BbINONHrTb TOnbKO KBaIIHfNpOBAHHbI eNkTPNK. ECnn noCne yCTaHOBKn yCTpoiCTBa DoCTyn K po3ETke 6ydtet OrpaHueH, cIeDyET ppeYCMOTpeTB pa3MeJeHne CO tOPOhbl neu OTKIOUaIOero yCTpoiCTBa dNtOKIOUeHnRA BCex IpobODHnKOB cTeBoro Ka6eJI, pn 3a0p MeJy KOHTAKTMn TaKOro yCTpoiCTBa DOJXKeH coCTABnA rHe MeHee 3 MM.
8. He donyckaetca hncnoJIb3ObaHne nepexoHNKOB, MHOROXnIbHbIX uHH yDInHHTeJe. IpeBbIeHHe DonyctmOJ 3NeKTpuYeckoN Harpy3Kn MoXET npNBcTNI K NoXkapY.

DctynhIbe NOBepxHOCTMOryHArpeBaTbC npn pa6oTe neu.

Hnctpykunno MoNTaxky neu

IpeqmMOHTAXOM BHMaTeNbHO 03HaKOMbTeCb pyKOBoCTBOM

06paTte BHHMaHHe:

3neKtpueeckoe nooknloyenhe

MnKpOBONHOB a neb OcHauHe BnKo n DOnJHb NdoNkHa nOdoKo K HdJIeKaUm M oBa3OM yCTaHOBNEHHo 3aEmHeH0n pO3eTKe PHTAHn. YCTaHOBky po3eTKu n 3aMeHy ceTeBO r Ka6eRa pa3peAaeTc BAIOHNrT b TOnbKO KBaIINuPPOBAHHOMy 3JeKTPNKy B COOTBeTCTBN C DeiCTByIOUmm HopMaMM npabUNAM. Ecn noCne yTaHOBKn UcToPcTB DaocTy N po3eTke 6dyTe ORpaHueh, cNeDuYt PnpDyUCMOptB pa3MeUeHne Co CTOpHb I Neu pa3BeENHtEe I dI OTKluHey BCEX IpOBOnHKOB CeTeBO r Ka6eR, npn 3ToM 3a3Op MeKdy KOHTaKTAmu TaKOrO yCTpoCTBa DoJKeH coCTaBnTb He MeHee 3 MM

BnHT A

BnHT B

WTeNceJIb

KpoHsTeH

Pe3HOBaHoxKa

KpoHwTeH

A. WkaФДЯУсТановКи

MnKpOBoHOBo Neu He DonKeH MmTeb 3aDHe CteHK. MmHMaJIbHaB YaCTaHOBKn CoCTaBnEET 85 cm.

He 3aKpbIbAte OKHa DnB BeHTNJIaCm N OTBepCTn DnB BCaCbIbAHBO3Dyxa.

1. В蜱нite винь в Берхни BO3dYxOBOD B dYxOBKe, a 3aTeM yctahOBnTe dYXOBky B wkaΦ.

2. OTPeYInpyTe BbICOTy BNHTa A, YTO6bl NODepxNBaTb pacCTOJHne 1 MM MExdy BNHTOM N BepxHei YacTbIO ShkaΦa
   He 6nokpyte n He cnaTe uHyp nntaHa.

3. YbEInTeScb, UTO peYb HaxOaNTcB V ceHTpe WkaΦa.

1. OTKpoTe DBepu, BCTaBbTe MmKpOBoJHOByIO neyB WkaΦ C BNHTOM B BycTaHOBOUHoe OTBepTne KOMnJIeKTA o6OpyIDoBaHnI. 3aTeM 3aKpeNITe PnaCTNKOBYIO KpbIshKy.

A. ⅢkaФДЯУстановки

MnKpoBOLHOBoI neu He IOnKeH IMeTb 3aJHe cTeHKn. MinHMaJIbHaB YBaICota yCTaHOBKn CoCTaBJIaRET 85 cm.

He 3aKpbIbAte OKHa DnB BeHTINJUcHm N OTBepCTnN DnB BCaCbBaHn BO3DyXa.

1. В蜱нite вит A B Берхни BO3dYxOBOD B dYXOBKe, a 3aTeM yCTaHOBnTe dYXOBky B shkaΦ.

2. OTPerynpyte BbICOTy BnHTa A, yTO6bl noIepKnBaTb pacCTOHaHne 1 MM MeJdy BnHTOM n BepXHei qactbIO ukaq
   He 6Iokpyte n He cnaTe uHyp nItaHn.

3. Y6eIITecb, yTO neyb haxoIITcB B cHTpe shkaΦa.

1. OTKpoTe DBepu, BCTaBbTe MmKpOBoHOByIO neYb B uKaΦ C BuHTOM B BycTaHOBOUHoe OTBepCTne KOMnJIeKTA o6OpyIDobAHn. 3aTeM 3akpeNITe PnaCTNKOByIO KpbIshKy.

A.ⅢkaΦДЯУCTaHOBKn

MnKpOBoHOBo Neu He DoJnxKe HmTeb 3aDne CteKn. MnHMaJIbHaB YaCTaHOBKn CoCTaBnAeT 85 cm. He 3aKpbIbAte OKHa dJa BeHTnIaunu NTBePctna DnBaCacbIBaHn BO3dyxa.

B. CteHHoH uKaΦ

1. В蜱нite вит A B Берхни BO3dYxOBOD B dYXOBKe, a 3aTeM yCTaHOBnTe dYXOBky B shkaΦ.

2. OTPerynpyte BbICOTy BnHTa A, yTO6bl noIepKnBaTb pacCTOJHne 1 MM MeKdy BnHTOM n BepXHei qactbIO uKaΦa
   He 6Iokpyte n He cnaTe uHyp nItaHn.

3. Y6eIntecb, yTO neyb haxoIITcB B cHTpe shkaΦa.

1. OTKpoTe DBepu, BCTaBbTe MmKpOBoHOByIO neYb B uKaΦ C BuHTOM B BycTaHOBOUHoe OTBepCTne KOMnJIeKTA o6OpyIDobAHn. 3aTeM 3akpeNITe PnaCTNKOByIO KpbIshKy.

3KcPIJYATAUHA
