Product type	Microwave oven
Brand	CATA
Model	MC 28 D WH
Color	White
Capacity	28 liters
Dimensions (W x H x D)	50 x 30 x 40 cm
Net weight	12 kg
Power supply	230 V / 50 Hz
Microwave power	900 W
Grill power	1000 W (estimated)
Main functions	Microwave, grill, defrost, auto cook, timer
Control type	Touch electronic
Display	Digital LED
Turntable	Yes, diameter 31.5 cm
Child lock	Yes
Timer	Up to 99 minutes
Power levels	10 levels
Keep warm function	Yes
Care and cleaning	Clean with a damp cloth and mild detergent. Avoid abrasive products.
Safety	Automatic shut-off in case of overheating, secure door
Spare parts available	Turntable, door gasket, fuse, bulb
Repairability	Repairability index: 7.5/10 (estimation)
Included accessories	Turntable, metal rack (for grill)
Certifications	CE, NF

Frequently Asked Questions - MC 28 D WH CATA

How to set the clock on the CATA MC 28 D WH microwave oven?

Press the Clock button for 3 seconds. Use the numeric keys to enter the time (24-hour format). Confirm by pressing Clock again.

How to defrost food with this microwave?

Place the food in a suitable dish. Select the Defrost function using the dedicated button. Enter the weight of the food (in grams) and press Start. The microwave automatically adjusts time and power.

What types of containers can I use?

Only use containers suitable for microwave use: glass, ceramic, heat-resistant plastic (microwave symbols). Avoid metal, aluminum, or crystal. For grilling, use the provided metal rack.

How to clean the inside of the oven?

Unplug the appliance. Clean the walls with a damp cloth and mild detergent. Rinse and dry. For stubborn stains, heat a bowl of water with lemon for 1 minute to soften residues.

What to do if the microwave stops heating?

First check that the door is properly closed and the lock is active. Make sure the timer is set. If the problem persists, the fuse or magnetron may be defective. Contact after-sales service.

The turntable does not turn, what should I do?

Check that the turntable is correctly positioned on the central axis. Clean grease marks under the turntable. If the motor is stuck, remove the turntable and check if the bottom wheel rotates freely.

How to activate the child lock?

Press simultaneously the Stop and Start buttons for 3 seconds. A lock symbol is displayed. To deactivate, repeat the operation.

Can I use the microwave without the turntable?

No, the turntable is essential for even cooking. Its absence may damage the appliance and reduce cooking efficiency.

What is the warranty of the CATA MC 28 D WH?

The standard warranty is 2 years (parts and labor). It may be extended depending on the retailer. Keep your purchase invoice.

How to replace the interior lamp?

Unplug the appliance. Remove the rear panel (screws). Unclip the defective bulb and replace it with an identical bulb (25W/230V, E14). Reassemble the panel.

USER MANUAL MC 28 D WH CATA

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

GB Microwave Oven Owner's Manual

Line drawing of a microwave oven inside a cabinet, with an arrow indicating direction (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a microwave oven inside a cabinet, with an arrow indicating direction (no text or symbols)

Microwave Oven INSTRUCTIONS MANUAL MODEL: MC 28 D

Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model: MC 28 D
Rated Voltage: 230 V~50 Hz
Rated Input Power(Microwave):	1450
Rated Output Power(Microwave):	900
Rated Input Power(Grill): 1000 W
Oven Capacity: 25 l
Turntable Diameter: ∅ 315 mm
External Dimensions(WxDxH): 594 x 388 x 410 mm
Net Weight: Aprox. 19.7 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fi re, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
   Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specifi c:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

12. Install or locate this oven only in accordance with the installation instructions provided.

13. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. This appliance is intended to be used in household and similar applications such as:
15. staff kitchen areas in shops, offi ces and other working environments;
16. by clients in hotels, motels and other residential type environments;
17. farm houses;
18. bed and breakfast type environments.
19. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
20. Do not store or use this appliance outdoors.
21. Do not use this oven near water, in a wet basement or near a swimming pool.
22. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
23. Do not let cord hang over edge of table or counter.
24. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
25. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
26. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
27. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
28. Children should be supervised to ensure that they do not play with the appliance.
29. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
30. Accessible parts may become hot during use. Young children should be kept away.
31. Steam cleaner is not to be used.
32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
33. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
34. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
35. The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
36. Surface of a storage cabinet can get hot.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the interna components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualifi ed electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a groundingtype 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.
   Wipe the oven clean using a soft, dry cloth.

UTENSILS

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Materials you can use in microwave oven

Utensils	Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Utensils Remarks

Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metaltrimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fi re in the oven.
Paper bags May cause a fi re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

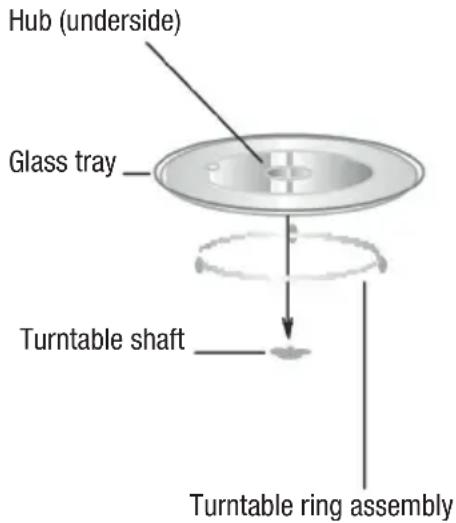

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard(at lease 55cm deep and 85cm off the floor).
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fi re.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please Note:

Electrical connection

EThe oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

A. Built-in furniture

The built-in cabinet shall not have a rear wall behind the appliance. Minimum installation height is 85cm. Do not cover ventilation slots and air intake points.

B. Install the Oven

Line drawing of a microwave oven inside a cabinet, with an arrow indicating direction (no text or symbols)

1. • Do not trap or kink the power cord.
2. Make sure that the oven is installed in the center of the cabinet.

1. Open the door; fi x the oven to the cabinet with SCREW at the INSTALLATION HOLE of TRIM KIT. Then fi x the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press √ Kitchen Timer/Clock twice to select clock function, the hour fi gures will fl ash.
2) Turn “” to adjust the hour fi gures, the input time should be within 0--23.
3) Press Kitchen Timer/Clock, the minute fi gures will fl ash.
4) Turn “” to adjust the minute figures, the input time should be within 0--59.
5) Press ⏻ Clock/Kitchen Timer to finish clock setting. “:” will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered. 2) During the process of clock setting, if you press "STOP/CLEAR", it will exit the setting state.

2. Microwave Cooking

Press Microwave./Grill/Combi. the LED will display "P100".

Press ☑ Microwave./Grill/Combi. for times or turn “ 🎨 ” “ to choose the power you want, and “P100”, “P80” “P50”, “P30” or “P10” will display for each added press. Then press ⏱ Start/+30Sec./Confirm “ to confirm, and turn “ 🎨 ” to set cooking time from 0:05 to 95:00. Press ⏱ Start/+30Sec./Confirm again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press Microwave./Grill/Combi. once, the screen display "P100".
2) Press 📄 Microwave./Grill/Combi. once again or turn “ ” to choose 80% microwave power.
3) Press Ⓥ Start/+30Sec./Confirm to confirm, and the screen displays "P 80".
4) Turn “” to adjust the cooking time until the oven displays “20:00”.
5) Press Ⓥ Start/+30Sec./Confirm to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press Once Twice Thrice 4 times 5 times

Microwave Power 100% 80% 50% 30% 10%

“Micro/Grill/Combi.” Pad instructions Display		Microwave Power	Grill Power
1 P100 100 %
2 P80 80 %
3 P50 50 %
4 P30 30 %
5 P10 10 %
6	G	0 %	100 %
7	C-1	55 %	45 %
8	C-2	36 %	64 %

3. Grill or Combi. Cooking

Press 📄 Microwave./Grill/Combi. the LED will display "P100", and press 📄 Microwave./Grill/Combi. for times or turn the 📋 to choose the power you want, and "G", "C-1" or "C-2" will display for each added press.

Then press 📋 Start/+30Sec./Confirm to confirm, and turn “ 🔍 ” to set cooking time from 0:05 to 95:00.

Press Ⓥ Start/+30Sec./Confirm again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press Microwave./Grill/Combi. once, the screen display "P100".
2) Press 📄 Microwave./Grill/Combi. once again or turn “ 🔥 ” to choose combi. 1 mode.
3) Press 🕒 Start/+30Sec./Confirm to confirm, and the screen displays "C-1".
4) Gire “” to adjust the cooking time until the oven displays “10:00”.
5) Press Ⓥ Start/+30Sec./Confirm to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then if no operation the oven will continue cooking.

4. Quick Start

1) In waiting state, Press 📋 Start/+30Sec./Confirm to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of 📋 Start/+30Sec./Confirm can increase 30 seconds of cooking time.
3) In waiting state, turn "____" left to set cooking time with 100% microwave power, then
press Ⓥ Start/+30Sec./Confirm to start cooking.

5. Defrost By Weight

1) Press Weight/Time Defrost once, and the oven will display "dEF1".
2) Turn “” to select the weight of food from 100 to 2000 g.
3) Press Ⓥ Start/+30Sec./Confirm to start defrosting.

6. Defrost By Time

1) Press : Weight/Time Defrost twice, and the oven will display “dEF2”.
2) Turn “” to select the defrost time. The MAX time is 95 minutes.
3) Press ⏻ Start/+30Sec./Confirm to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

1) Press Kitchen Timer/Clock once, LED will display 00:00.
2) Gire “” to enter the correct timer.(The maximum cooking time is 95 minutes.)
3) Press Ⓥ Start/+30Sec./Confirm to confirm setting.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock be set(24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) Turn “” right to choose the menu, and “A-1” to “A-8” will display, which means auto reheat, vegetable, fi sh, meat, pasta, potato, pizza and soup.
2) Press ☑ Start/+30Sec./Confirm to confirm.
3) Turn “” to choose the default weight as the menu chart.
4) Press 📋 Start/+30Sec./Confirm to start cooking.

Example: If you want to use "Auto Menu" to cook fi sh for 350g.

1) Turn “ ” clockwise till “A-3” display.
2) Press ☑ Start/+30Sec./Confirm to confirm.
3) Turn “” to select the weight of fi sh till “350” display.
4) Press 📋 Start/+30Sec./Confirm to start cooking.

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Pulse Weight/Time Defrost twice, and the oven will display "dEF2".
2) Gire " " to select the defrost time till "5:00" display.
3) Pulse Microwave./Grill/Combi. once, the screen display "P100".
4) Pulse 📄 Microwave./Grill/Combi. once again or turn “ 🔥 ” to choose 80% microwave power.
5) Pulse 📋 Start/+30Sec./Confirm to confirm, and the screen di splays "P 80".
6) Gire “” to adjust the cooking time till the oven displays “7:00”.
7) Pulse 📋 Start/+30Sec./Confirm to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking fi nish, buzzer sounds fi ve times.

Auto menu Chart

Menu	Weight	(g)	Display
A1VEGETABLE	150	150	350500
	350
	500
A2FISH	150		150250350450650
	250
	350
	450
	650
A3MEAT	150	150	300450600
	300
	450
	600
A4PASTA 50 (with cold water 450 g) 50100 (with cold water 800 g) 100 80%150 (with cold water 1200 g) 150
A5POTATO	1 (approx. 230 g)	1	100%
	2 (approx. 460 g)	2
	3 (approx. 690 g)	3
A6SOUP	200ml	200	400 100%600
	400ml
	600ml
A7ROAST CHICKEN	800 800		100%Micro/Conve. to 220 °C1200
	1000	1000
	1200
A8TOAST	50	50	100 Grill150
	100
	150
A9 CAKE	475 475	Conve. to 180 °C with preheat
A10PIZZA	200	200	to 220 °C400
	300 300	100%Micro/Conve.
	400

10. Inquiring Function

1) In states of microwave, grill and combination cooking, press 📂 Microwave./Grill/Combi. , the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2) In cooking state, press ⏻ Clock/ Kitchen Timer to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press ⑪ Stop/Clear for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display “”.

Lock quitting: In locked state, press Stop/Clear for 3 seconds, there will be a long “beep” denoting that the lock is released.

Trouble shooting

Normal

Microwave oven interfering TV reception

Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

Dim oven light

In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents

In cooking, steam may come out of food. Most will get out from vents. But so me may accumulate on ool place like oven door. It is normal.

Oven started accidentally with no food in

It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble	Possible	Cause
Oven can not be started. 1) Power cord not plugged Unplug. Then plug again in tightly. after 10 seconds.
2) Fuse blowing or circuit Replace fuse or breaker works. reset circuit breaker (repaired by professional personnel of our company)
	3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven doesnot heat.	4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	5) Dirtyroller rest and oven bottom.	Refer to “Maintenance of Microwave” to clean dirty parts.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dis-pose of this product with household waste. Please send this product to WEEE collecting points where available.

Installation et raccordement

Line drawing of a microwave oven inside a cabinet, with an arrow indicating direction (no text or symbols)

Simple line drawing of a round table with three legs and a shaded interior (no text or symbols)

Line drawing of a microwave oven inside a cabinet, with an arrow indicating direction (no text or symbols)
