USER MANUAL BRM 56 BSA Grizzly

Red and silver lawn mower with 'Grizzly!' branding, no visible text or symbols on the device itself.

A 1 2 3 23 22 21 20 4 5 6 19 18 Grizzly 17 16 131415 12 10 11 7 8 9 24 25

B 26 C 1 20 4 20 5 26 5

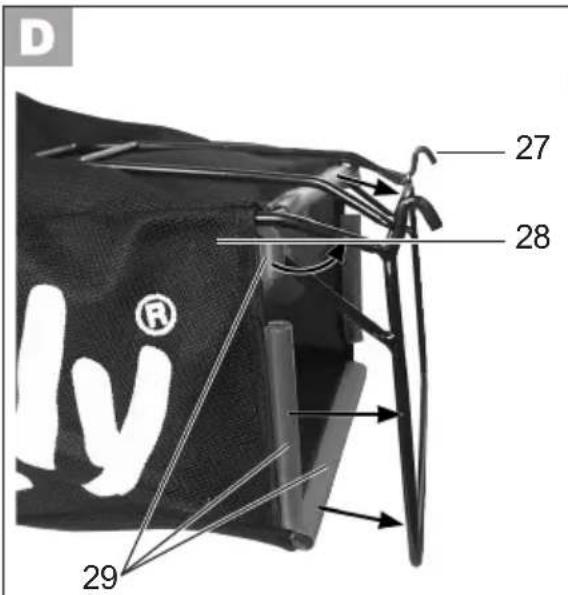

D 27 28 29

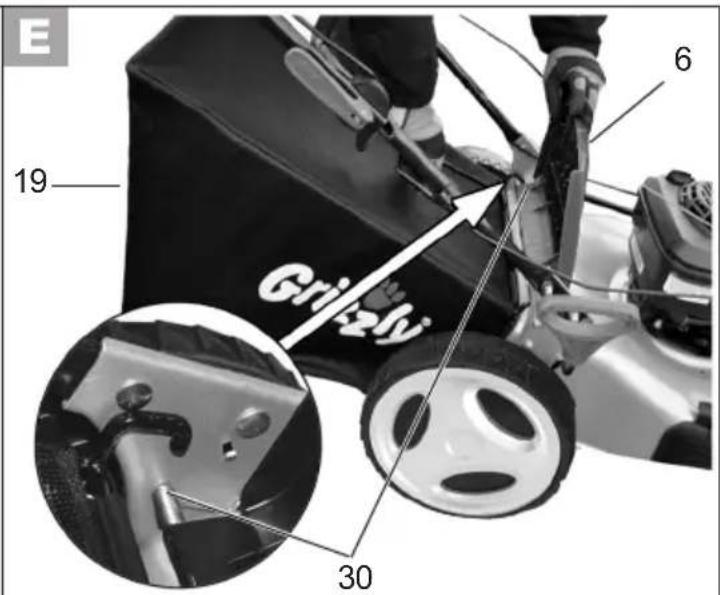

E 19 6 Grizzly 30

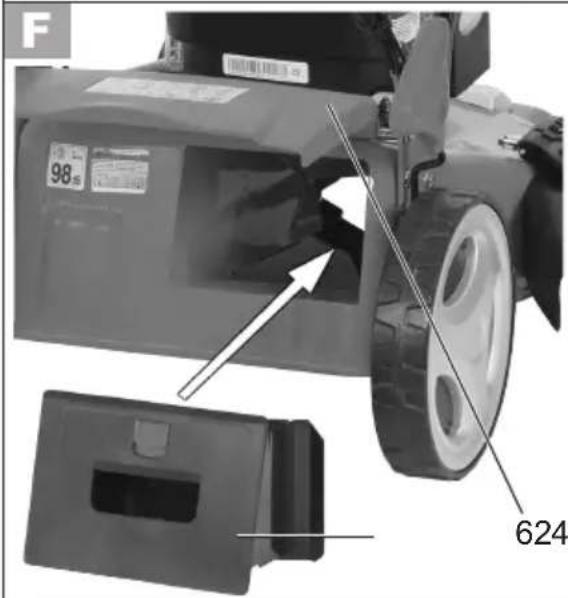

F 98 624

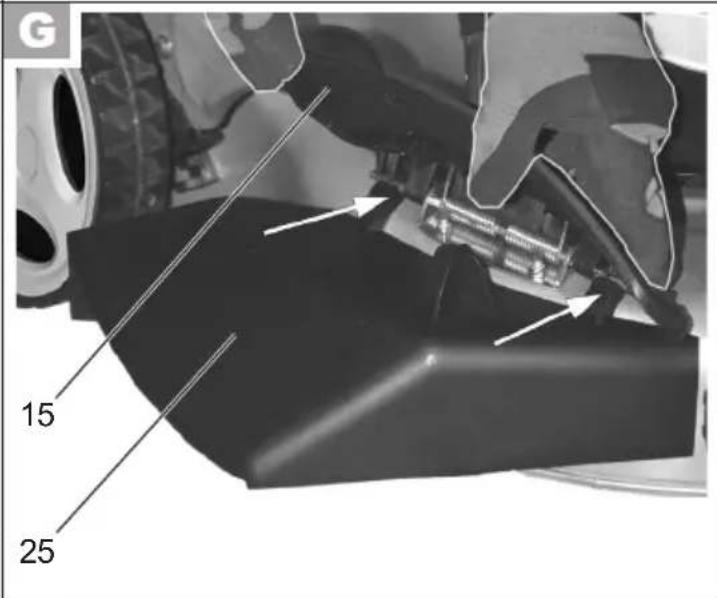

G 15 25

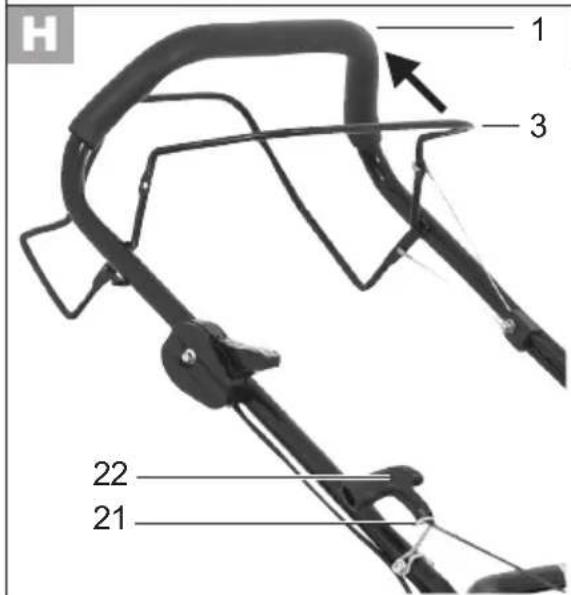

H 1 3 22 21

18

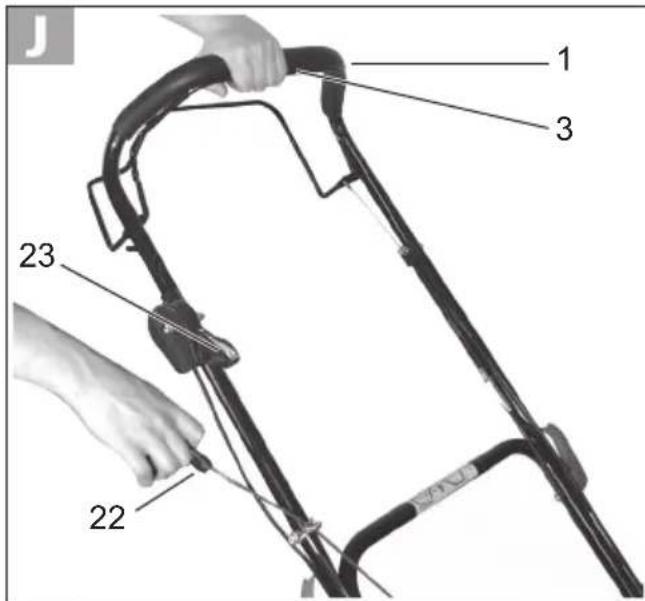

J 1 3 23 22

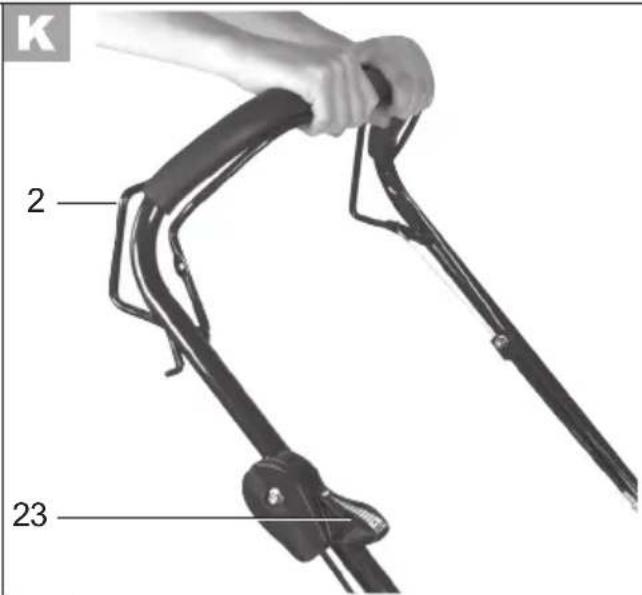

K 2 23

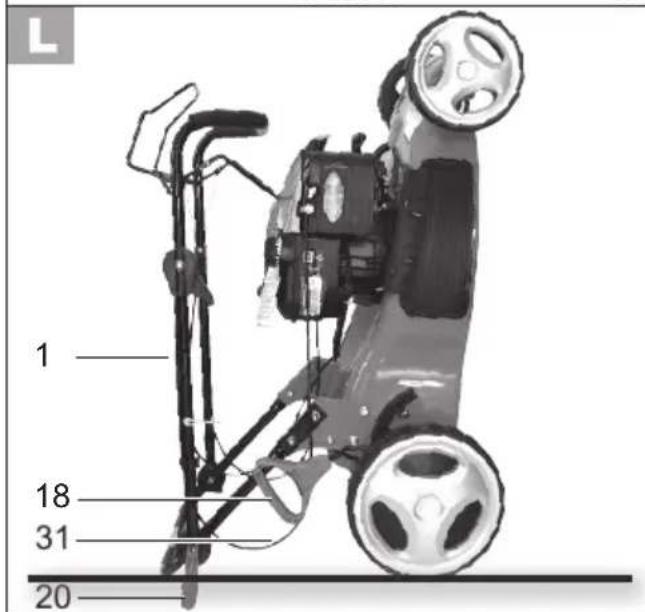

1 18 31 20

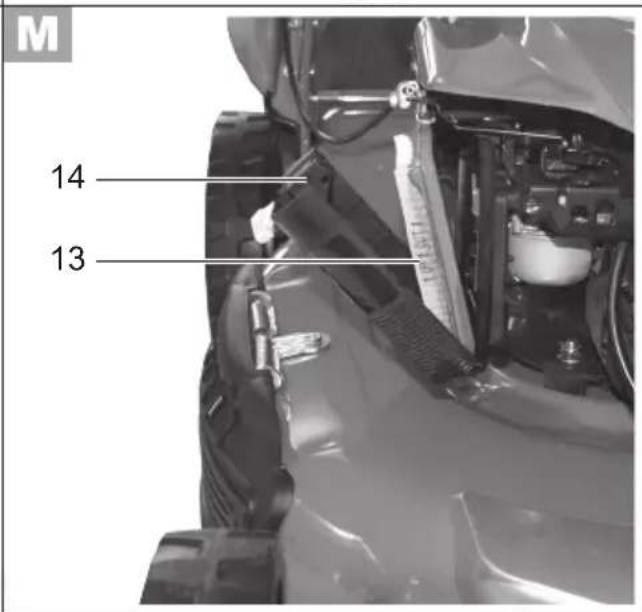

M 14 13

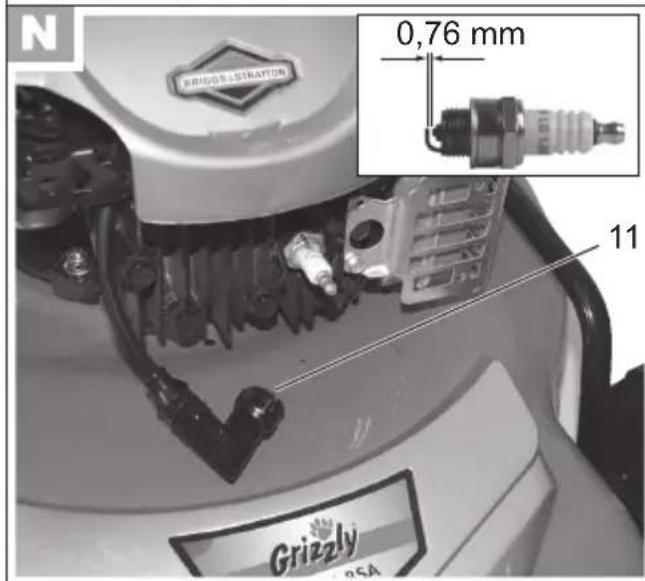

N BRIGUS LISTRAVTON 0,76 mm 11 Grizzly USA

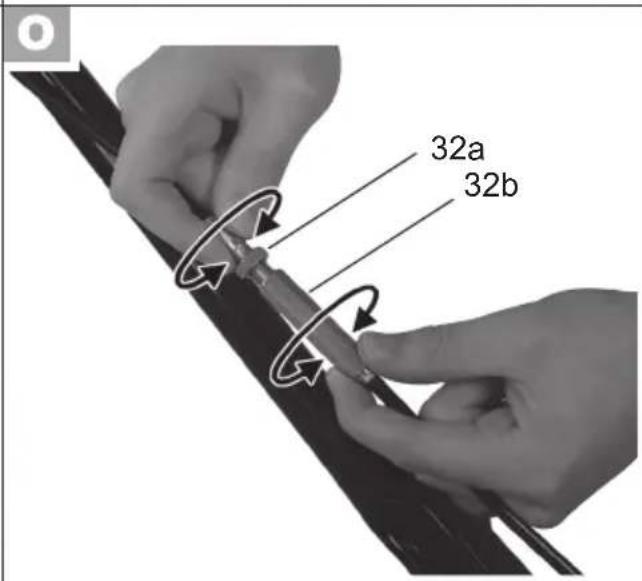

32a 32b

UK Translation of the original instructions for use 75

Grizzly Service-Center 127

Verwendungszweck

Simple line drawing of a bicycle frame with a gear and motion arrows (no text or symbols)

Gerät stoppen:

Simple line drawing of a vehicle ramp with a directional arrow and motion lines (no text or symbols)

6 Protection anti-choc

(LpA) 84,0 dB(A); K=3,0 dB(A)

Simple line drawing of a mechanical device with a gear and handle, no text or symbols present

Zatrzymywanie

urządzenia:

Puść pałąk

zabezpieczający

Włączanie napędu

kółek:

Pociągnij pałąk

napędowy do siebie

Grizzly Service-Center 127

Gebruiksdoeleinde

Simple line drawing of a mechanical component with an upward arrow and motion arrows (no text or symbols)

Volume benzinetank....1,0 l

Octaangetal 95-98

Volume motorolietank....600 ml

Motorolie ......HD SAE 30

Bougie ....Champion RJ19LM

Snoeicirkel 560 mm

Snoeihoogte ....10-stufig, 25-80 mm

Volume grasvangmand....75 l

Gewicht....37 kg

Geluidsdrukniveau

(L_pA) .....84,0 dB(A); K=3,0 dB(A)

Akoestisch niveau (LWA)

gemeten....94,2 dB(A); K=1,94 dB(A)

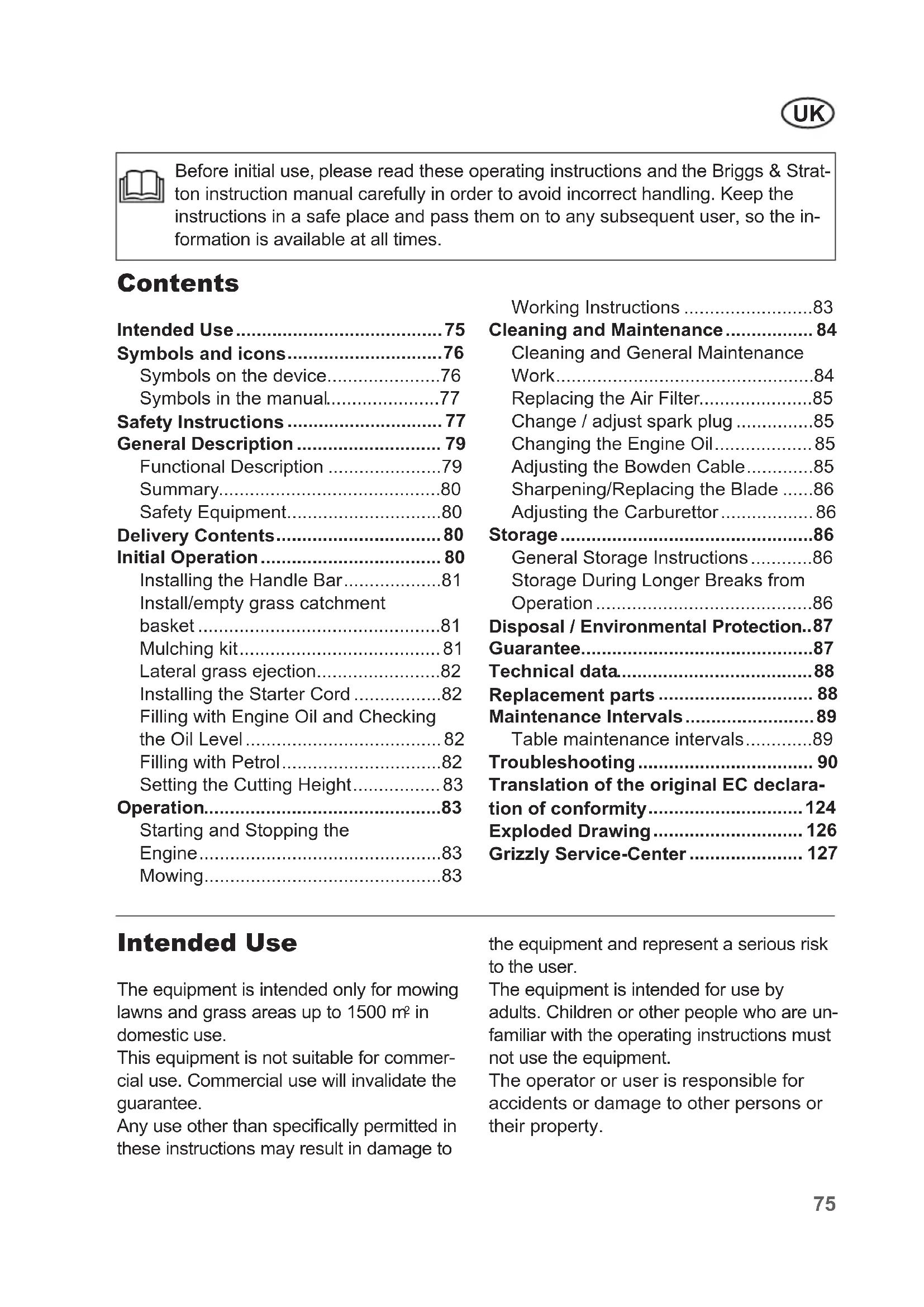

Before initial use, please read these operating instructions and the Briggs & Stratton instruction manual carefully in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user, so the information is available at all times.

Contents

Intended Use....75

Symbols and icons....76

Symbols on the device....76

Symbols in the manual....77

Safety Instructions 77

General Description 79

Functional Description ....79

Summary......80

Safety Equipment....80

Delivery Contents......80

Initial Operation....80

Installing the Handle Bar....81

Install/empty grass catchment basket 81

Mulching kit....81

Lateral grass ejection....82

Installing the Starter Cord ....82

Filling with Engine Oil and Checking the Oil Level....82

Filling with Petrol....82

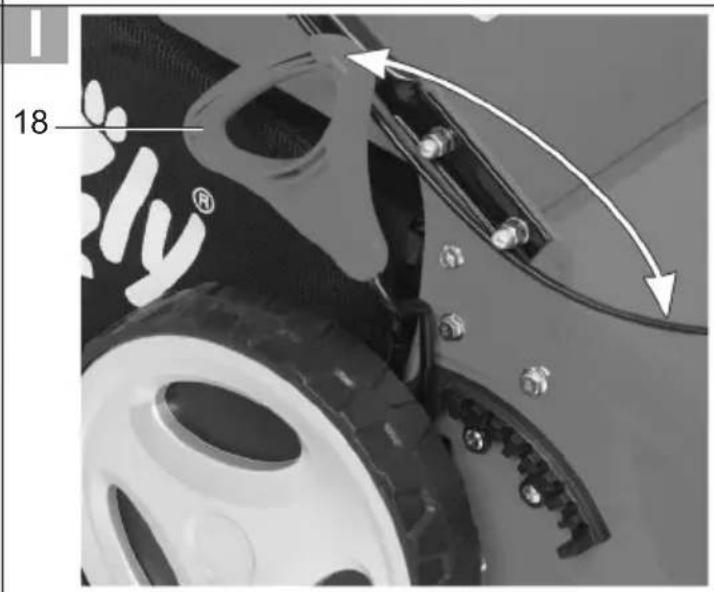

Setting the Cutting Height......83

Operation....83

Starting and Stopping the Engine....83

Mowing....83

Working Instructions 83

Cleaning and Maintenance 84

Cleaning and General Maintenance Work....84

Replacing the Air Filter....85

Change / adjust spark plug .....85

Changing the Engine Oil 85

Adjusting the Bowden Cable......85

Sharpening/Replacing the Blade .....86

Adjusting the Carburettor 86

Storage....86

General Storage Instructions......86

Storage During Longer Breaks from Operation....86

Disposal / Environmental Protection..87

Guarantee....87

Technical data....88

Replacement parts 88

Maintenance Intervals....89

Table maintenance intervals....89

Troubleshooting 90

Translation of the original EC declaration of conformity....124

Exploded Drawing.... 126

Grizzly Service-Center 127

Intended Use

The equipment is intended only for mowing lawns and grass areas up to 1500 m² in domestic use.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

Any use other than specifically permitted in these instructions may result in damage to

the equipment and represent a serious risk to the user.

The equipment is intended for use by adults. Children or other people who are unfamiliar with the operating instructions must not use the equipment.

The operator or user is responsible for accidents or damage to other persons or their property.

Symbols and icons

Symbols on the device

Risk of injury from parts being flung out. bystanders away from the equipment.

Risk of injury from sharp blades. feet and hands away.

Caution – toxic fumes! Not operate the equipment in enclosed areas.

Caution – petrol is flammable! Not smoke and keep away heat sources

Caution – risk of injury! intenance work, switch off the engine and take out the spark plug connector.

hot surfaces! Risk of burning.

Caution – risk of injury! and ear protection

Danger! Is and feet away.

Information of the acoustic power level L_wa in dB.

Symbols on the handle bar:

STOP

Simple line drawing of a vehicle ramp with a directional arrow and a small figure icon (no text or symbols)

Stop the equipment: Release the safety catch

Wheel drive on: Pull up the drive catch

Symbols on the filler cap:

Note on the petrol filler

Caution! Before starting, check the oil level.

Symbols on the oil filler cap:

Note on the oil filler

Pictorial symbols on gas lever:

Setting fast

tting slow

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Safety Instructions

This section deals with the basic safety procedures when working with the equipment.

WARNING! Read all of the safety instructions and directions. Failure to observe the safety instructions and directions may result in electric shock, fire and/or serious injury.

Instructions:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Read the operating instructions carefully. Familiarise yourself with the controls and with the correct use of the equipment.
• Do not allow children or other people

who are unfamiliar with the operating instructions to use the equipment. Local regulations may set a minimum age for the user.

• Do not mow whilst people – especially children – or animals are nearby. If distracted, you may lose control of the equipment.
• The operator or user is responsible for accidents or damage to other persons or their property.
• Observe noise control and local regulations.

Preparatory Measures:

• When mowing, always wear sturdy shoes and long trousers. Do not mow barefoot or in light sandals. Loose clothing, jewellery or long hair can become caught in moving parts. Wearing suitable clothing reduces the risk of injury.
• Check the area on which the equipment is to be used and remove all objects (stones, sticks, wires) that could be caught and flung out.

- Warning: Petrol is highly flammable. Fire or explosions can result in serious burns:

• Keep petrol only in containers intended for this purpose;
• Only refuel outdoors and do not smoke whilst refuelling;
• Fill with petrol before starting the engine. Do not open the filler cap or refill with petrol whilst the engine is running or the equipment is hot:
• If petrol is spilled, do not attempt to start the engine. Instead, remove the equipment from the surface on which the petrol has been spilled. Avoid any ignition attempt until the petrol fumes have evaporated;
• For reasons of safety, replace petrol

UK

and other filler caps in the event of damage.

• Replace defective silencers.
• Before use, always carry out a visual inspection to check whether the cutting tools, mounting bolts and entire cutting unit are worn or damaged. To avoid imbalance, only replace worn or damaged tools and bolts in sets.
  • Take care with equipment that has several cutting tools, as the movement of one blade may result in rotation of other blades.
• Use only replacement parts and accessories supplied and recommended by the manufacturer. The use of parts from other manufacturers may result in injuries and will result in immediate invalidation of the guarantee.

Handling:

• Do not run the combustion engine in enclosed spaces, in which dangerous carbon monoxide can collect.
• Mow only in daylight or with good artificial lighting. An unlit working area can result in accidents.
• If possible, avoid using the equipment on wet grass.

• Always ensure a safe stance, particularly on slopes. This will give you better control of the equipment in unexpected situations.

• Always work across the slope, never upwards or downwards.

• Take particular care when changing the direction of travel on the slope.

• Do not mow on excessively steep slopes (max. 10°).

• Run the equipment only at walking speed.
  • Take particular care when turning the equipment around or pulling it towards you.

• Stop the cutting tool if the equipment has to be tipped up for transportation over a surface other than grass and when moving the equipment from and to the surface to be mown.

• Do not use the equipment with damaged safety equipment or guards or with no safety equipment attached, e.g. impact protection and/or grass catchers. This ensures that the equipment remains safe.
• Do not change the engine regulator setting and do not over-rev it. This may damage the equipment.
• Before starting, the engine, disengage all cutting tools and drives.
• Start or operate the start switch with care and in accordance with the manufacturer's instructions. Ensure sufficient space between feet and the cutting tool. Risk of injury.
• When starting or activating the engine, do not tip the equipment unless the equipment has to be lifted for this procedure. In this case, tip the equipment only as far as is absolutely necessary and lift only the side that is away from the user.
• Do not start the engine when standing in front of the ejection channel.
• Switch on the engine in accordance with the instructions and only if your feet are a safe distance away from the cutting tools.
• Do not place hands or feet under rotating parts. Always keep away from the ejection opening. A moment of carelessness when using the equipment may result in serious injury.
• Do not leave or carry the equipment when the engine is running.

• Switch off the engine, take out the spark plug connector and ensure that all moving parts are still:

• Before releasing blockages or removing obstructions in the ejection channel;

• Before checking, cleaning or working on the equipment;
• If a foreign body is struck. Look for damage to the equipment and carry out the necessary repairs before re-starting and working with the equipment;
• If the equipment starts to vibrate unusually strongly, an immediate check is required.

- Switch off the engine

- When leaving the equipment;

- Before refuelling;

- Close the throttle valve when stopping the engine.

- Do not leave the equipment unattended in the workplace.

- Do not work with equipment that is damaged or incomplete or has been converted without the approval of the manufacturer.

Using machines for applications other than those intended may result in dangerous situations.

Maintenance and Storage:

• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition. Many accidents are caused by poorly maintained equipment.
• Do not keep the equipment with petrol in the tank inside a building in which petrol fumes could potentially come into contact with open fire or sparks.
• Allow the engine to cool before placing the equipment in enclosed spaces. Risk of fire.
  • To avoid the risk of fire, keep the engine, exhaust and area around the fuel

tank free of grass, leaves or leaking grease (oil).

- Check the grass catcher regularly for wear or loss of function.

- For reasons of safety, replace worn or damaged parts. Replace defective silencers.

- If the fuel tank is to be drained, do this outdoors.

- Handle your equipment with care. Keep the tools sharp and clean to enable you to work better and more safely. Follow the maintenance directions.

- Do not attempt to repair the equipment yourself unless you are trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres authorised by us.

- Keep the equipment in a dry place and out of reach of children. Machines are dangerous if used by inexperienced people.

General Description

The illustration of the principal functioning parts can be found on pages 2 - 4.

Functional Description

The equipment is driven by a powerful four-stroke engine (Briggs & Stratton 675 Series) angetrieben. The Ready-Start-System with temperature adjusted automatic choke, rear-axle drive and blade-brake function facilitate the operation of the equipment.

The device is equipped with a high quality sheet metal casing and a collapsible handlebar. The operator has the choice of three functions: mowing with grass catch-

ment basket, mulch-mowing or mowing with lateral grass ejection.

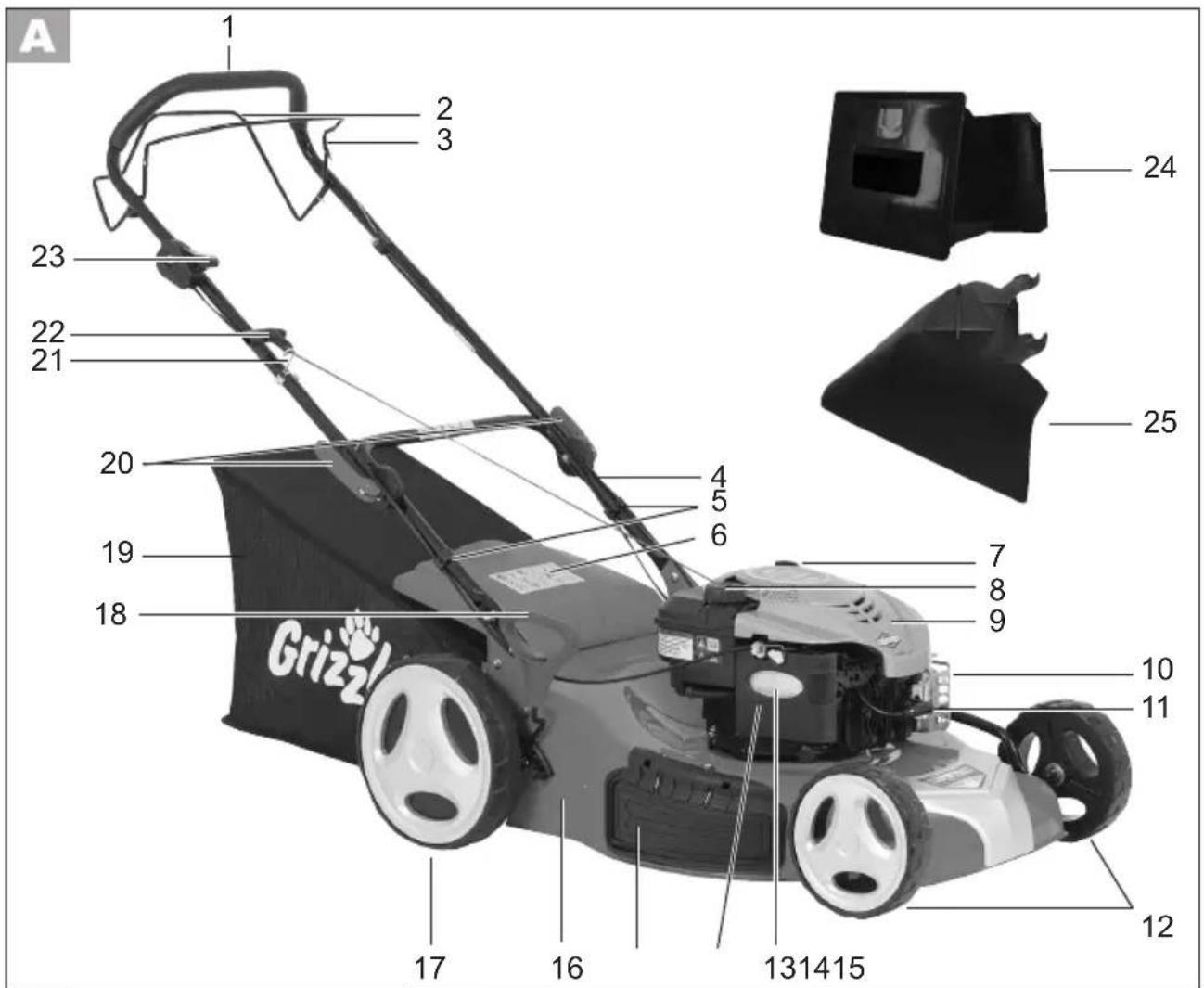

Summary

1 Upper handle bar

2 Drive catch

3 Safety catch

4 Lower handle bar

5 2 Cable clamps

6 Impact protection

7 Oil filler cap with dipstick

8 Filler cap

9 Engine cover

10 Exhaust guard

11 Spark plug connector with spark plug

12 2 front wheels

13 Air filter

14 Air filter cover

15 Lateral grass ejection with shock protection

16 Sheet steel housing

17 2 rear wheels

18 Lever for cutting height adjustment

19 Grass collection box (two parts)

20 2 Locking lever to fix bar

21 Starter cord guide

22 Starter handle with starter cord

23 Gas lever

24 Mulching kit

25 Lateral ejection canal

Safety Equipment

3 Safety catch

The equipment stops when the safety catch is released.

6 Impact protection

protect the operator from parts that are flung out and from accidentally touching the blades

when mowing with no grass collection box.

10 Exhaust guard

prevents hands or combustible materials from coming into contact with a hot exhaust

15 Lateral ejection with shock protection

prevents the lateral hurling of grass clippings and solid particles and lines up the clippings on the side.

Delivery Contents

Carefully unpack the appliance and check that it is complete:

• Petrol lawn mower (pre-assembled)
• Collapsed handle bar
• Grass collection box
• Mulching kit
• Lateral ejection canal
• 2 cable clamps
• Assembly accessories for fixing the bar (at bar mounting)
• Spark plug wrench
• Operating instructions
• Briggs & Stratton operating instructions

Initial Operation

Caution! Risk of injury from rotating blades. Carry out work on the equipment only when the blade is switched off and stationary.

Observe the Briggs & Stratton instruction manual supplied.

Before starting the equipment, you must

• Remove the Protective Caps
• Install the handle bar
• Install grass catchment basket/mulching kit/lateral ejection canal if required
• Install the starter cord
• Fill with engine oil
• Fill with petrol
• adjust cutting height if required

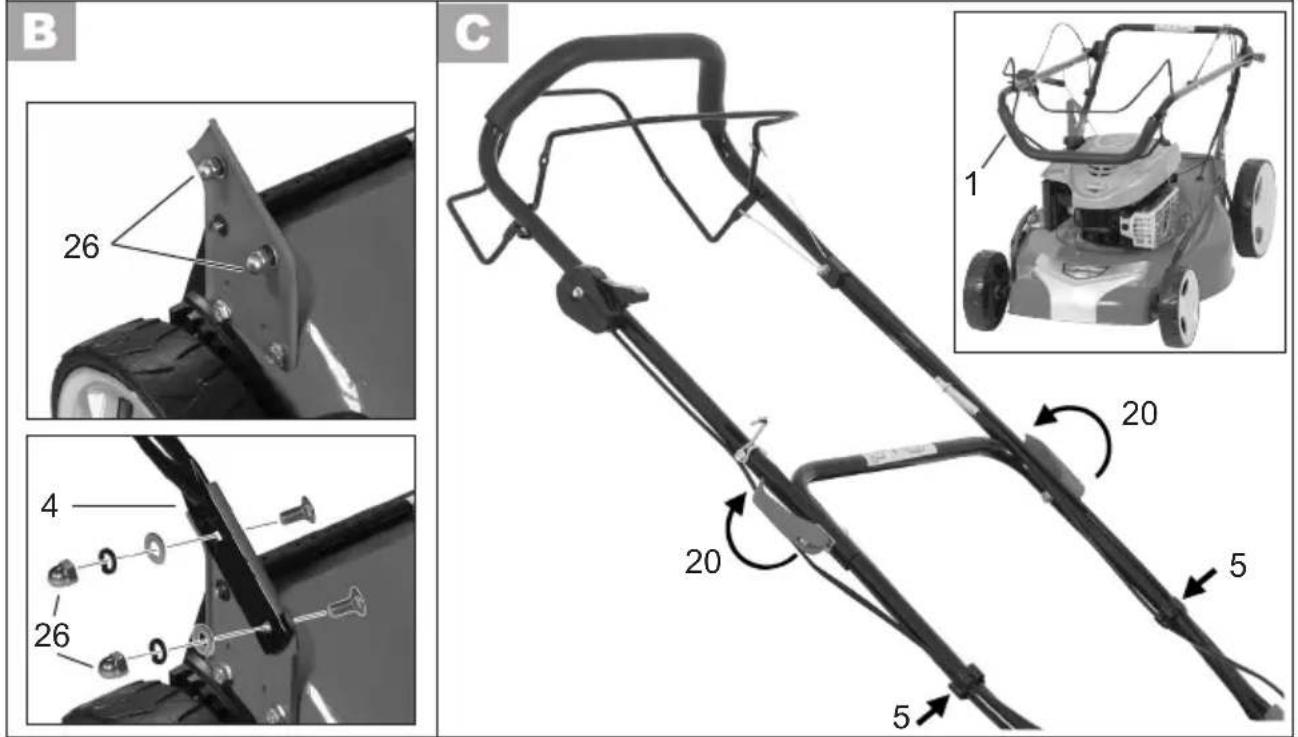

Installing the Handle Bar

Caution! When installing the handle bar, ensure that the Bowden cables are not squashed.

1. With a wrench (size 13) remove bar mounting and nuts (26) on equipment

2. Attach lower handlebar (4) with screws and nuts (26) of handlebar.

1. Unfold upper handlebar (1) (small picture) and push locking lever (20) toward bar.

2. Fix the Bowden cables to the bar using the cable clamp (5)

Install/empty grass catchment basket

Caution: Do not operate the equipment with the grass collection box or impact protection installed incompletely. Risk of injury

Assemble grass catchment basket:

1. Push basket rods (27) into basket net (28).
2. Pull plastic loops (29) over basket rods.

Fixing the Grass Collection Box onto the Equipment:

Before using the catchment basket, the mulching kit and the lateral ejection canal have to be removed. (see F, Q)

1. Lift up shock protection (6).
2. Hook the grass collection box (19) into the mounting provided for this (30) on the rear of the equipment.
3. Release the impact protection (6). It holds the grass collection box in position.

Dismantling/Empty out the Grass Collection Box:

1. Lift the impact protection (6) and remove the grass collection box (19).
2. Empty catchment basket (see chapter „Disposal / Environmental Protection“) and re-install it.

Mulching kit

Before using the mulching kit, the lateral ejection canal has to be removed. (see G)

Installing mulching kit

1. Remove the catchment basket (E 19), if mounted.
2. Lift the shock protection (6).
3. Insert mulching kit (24). The red safety button clicks in.

Remove mulching kit

1. Lift the shock protection (6).
2. Push the red safety button down and remove the mulching kit. (24)

Lateral grass ejection

Before using the lateral grass ejection, the mulching kit (F 24) has to be inserted and the grass catchment basket (E 19) has to be removed.

Install lateral ejection canal

1. Lift the shock protection on the side (15).

2. Mount the lateral ejection canal (25) and take off the lateral shock protection (15). It holds the lateral ejection canal in position.

Installing the Starter Cord

1. Pull the safety catch (3) towards the handle bar (1) and hold it.

2. Slowly pull the starter cord on the starter handle (22) towards the bar and hook the starter cord into the starter cord guide (21).

3. Release the safety catch (3).

Filling with Engine Oil and Checking the Oil Level

Place the equipment on a level base.

1. Unscrew the oil filler cap and dipstick (7) and pour oil into the tank. The oil tank holds 0.6 l oil. Use brand oil (e.g. SAE 30).

2. To check the oil level, wipe the dipstick on a clean cloth and replace it in the tank until it stops.

3. After pulling it out, read off the oil level on the dipstick. The oil level should be in the marked area between the minimum and maximum marks.

1. Wipe off any spilt oil and close the oil filler cap (7).

Check the oil level every time before mowing and add oil when the lower marking point is reached.

Filling with Petrol

Warning! Petrol is flammable and hazardous to health:

• Keep petrol in containers intended for this purpose;
• Only refuel outdoors and never with the engine running or when the machine is hot;
• Open the filler cap carefully to allow excess pressure to escape;
• Do not smoke whilst refuelling;
• Avoid skin contact and inhalation of the fumes;
• Remove spilt petrol;
• Keep petrol away from sparks, open flames and other ignition sources;

- Do not use petrol/oil mixtures;

- Use normal or super unleaded petrol;

- Only use clean, fresh petrol;

- Do not store petrol for longer than one month, as its quality deteriorates.

1. Unscrew the filler cap (A 8) and pour in the petrol to the lower edge of the filler. Do not fill the tank entirely, to allow the petrol room to expand.

2. Wipe away petrol residues around the filler cap and close the filler cap.

Setting the Cutting Height

The equipment has 10 positions for setting the cutting heigh (25-80 mm):

1. Pull the lever (18) outwards and push it to the desired position.
2. Push the lever back in.

The correct cutting height is around 30 – 45 mm for an ornamental lawn and around 40 – 65 mm for a utility lawn.

Select a greater cutting height for the first cut of the season.

Operation

Observe the noise protection and local regulations.

Starting and Stopping the Engine

Warning! Petrol is flammable. Start the engine at least 3 m away from the filling location.

Start the equipment on a sturdy, level base, if possible not in long grass. Ensure that the cutting tool is touching neither objects nor the ground.

Regularly check petrol and oil level (see „Initial Operation“) and refill in due time.

Starting the Engine:

1. Set petrol lever (23) to position

1. Pull the safety catch (3) towards the handle bar (1) and hold it.
2. Pull the starter cord (22), the engine starts.

Stopping the Engine:

1. Release the safety catch (3), the engine stops and the blade is slowed

Mowing

1. Start the engine (see ).
2. Wheel drive:

On: Pull the drive catch (2)

towards the handle bar. The mower moves forwards. Off: Release the drive catch (2) The equipment stops.

Set petrol lever (23) to position for short breaks and to reduce noise.

The change in motor revolutions via both positions

does not influence the speed of the power wheels. They cannot be regulated.

Working Instructions

• As far as possible, mow the lawn when it is dry in order to protect the turf.
• Set the cutting height such that the equipment is not overloaded.
• Run the equipment at walking speed in lines that are as straight as possible. For uninterrupted mowing, the lines should always overlap by a few centimetres.
• Do not move backwards.
• On slopes, always work across the slope.
• If the blade comes into contact with a foreign body, switch off the engine ds immediately. Wait until the blade is stationary and check the equipment for damage. Restart work only if the equipment is undamaged.

UK

• Switch off the equipment during longer breaks and for transportation and wait until the blade is stationary.
• Clean the equipment after each use, as described in the “cleaning and maintenance” chapter.

Cleaning and Maintenance

Have any repair and maintenance work not described in these instructions carried out by a specialist workshop. Use only original Grizzly replacement parts. Risk of accidents!

Carry out maintenance and cleaning work strictly with the engine switched off and spark plug connectors removed. Risk of injury!

Allow the equipment to cool before any maintenance and cleaning work. Elements of the engine are hot. Risk of burning!

Wear gloves when handling the blade.

For cleaning and maintenance work, also observe the Briggs & Stratton instruction manual supplied.

We recommend contacting an authorised Briggs & Stratton dealer for maintenance work on the engine.

Cleaning and General Maintenance Work

Tip the Equipment (Service Position): To clean the underside of the equipment, tip the equipment backwards on the upper handle bar (1).

1. remove the grass collection box (E 19), if it is installed.
2. set the cut height to the highest position (18).
3. loosen the quick release tensioning levers (20) and fold the top handle bar (1) towards the equipment (see "Assembling the Handle Bar").
   The Bowden cables (31) must not be caught when doing this.

Ensure that the quick release tensioning levers (20) come to a stop on the side.

When cleaning or servicing the appliance, ask someone to hold the tilted appliance.

Risk of injury if the equipment tilts back.

Do not tilt the equipment sideways or forwards. Operating fluids could leak out and the engine could be damaged.

• Always keep the equipment clean. To clean, use a toothbrush or cloth but no corrosive cleaning agents or solvents. Do not use water to clean the engine as it could contaminate the fuel system.
- After mowing, remove plant remains that are stuck to the equipment by using a piece of wood or plastic. Clean the vent holes, ejection hole and blade area especially. Do not use hard or pointed objects, which could damage the equipment.
- Oil the wheels from time to time.
- Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts bolts and screws are sitting firmly.
- Check covers and guards for damage

and that they are sitting correctly. Replace if necessary.

Replacing the Air Filter

Do not operate the equipment without the air filter otherwise dust and dirt will get into the engine and result in damage to the machine

1. Release the screw at the air filter cover (14) and flip open the cover

2. Remove air filter (13).

3. Replace a defective air filter with a new filter (see "Spare Parts").

4. To install, place new air filter (13) into the air filter cover (14) (see arrow ↓ on air filter).

5. Close the air filter cover and fasten screw again.

Change / adjust spark plug

A worn spark plug or a spark gap that is too large will result in a reduction of engine performance.

1. Disconnect the spark plug connector (11) from the spark plug by simultaneously pulling and turning.

2. Unscrew spark plug counter clockwise with spark plug socket.

3. Check the spark gap using a feeler gauge (available from specialist shops). The spark gap must be at least 0.76 mm.

4. If necessary, adjust the gap by carefully bending the ground electrode on the spark plug.

5. Clean the spark plug with a wire brush.

6. Insert the cleaned and adjusted

spark plug or replace a damaged spark plug with a new one (recommended torque 20 Nm, determined with a torque wrench) (see "replacement parts").

Changing the Engine Oil

For oil change, tilt equipment backward with handlebar. Do not place equipment on side to prevent operating liquids from leaking.

- Change the engine oil for the first time after around 5 operating hours then every 50 operating hours or annually.

• Change the engine oil when the engine is warm.

• Dispose of the used oil in an ecofriendly manner (see “disposal / environmental protection”).

• Open oil drainage screw (internal square socket) at the base of the equipment.

• Drain the motor oil into a suitable container.
• Wipe up spilled motor oil and refasten oil drainage screw.
• Place equipment upright and refill motor oil (see „Initial Operation“).

Adjusting the Bowden Cable

If the Bowden cable becomes misplaced for the drive and has too much play, it can be adjusted.

1. Loosen the small lock nut (32a).
2. • Turn the adjusting nut (32b) anticlockwise:

The Bowden cable shortens.

- Turn the adjusting nut (32b) clockwise:

The Bowden cable lengthens.

Sharpening/Replacing the Blade

• Always have a blunt blade resharpened by a specialist workshop, as an imbalance check can be carried out there.
  • Always have a specialist workshop change a damaged or imbalanced blade. Incorrect installation can result in serious injury.

Adjusting the Carburettor

The carburettor has been preset in the factory for optimum performance. If readjustments are required, have the adjustments made by a specialist workshop.

Storage

General Storage Instructions

Do not store the equipment with a full collection box. In hot weather, the grass begins to ferment when heat is generated. Risk of fire.

• Clean and service the equipment before storage.
• Allow the engine to cool before storing the equipment in enclosed areas.
• Use suitable and authorised containers for storing fuel.
• Keep the equipment in a dry place that is protected from dust and out of reach of children.
• For space-saving storage, the upper handle bar can be folded down (see small image C) Release the quick-release lever and fold down the handle bar so the equipment takes up less space. The Bowden cables must not be squashed when doing this.

- Do not wrap the equipment in nylon bags as damp and mould could form

Storage During Longer Breaks from Operation

Non-observance of the storage instructions may cause starting problems or permanent damage as a result of fuel residues in the carburettor.

• Empty petrol tank in a well-ventilated place.
• Empty carburettor: For this purpose, start motor and leave it running until the motor stops. Let motor cool down.

• Change the oil (see "changing the engine oil").

• Preserve the engine:

• Unscrew the spark plug (see "cleaning and maintenance" - Change/adjust spark plug;
• Pour a tablespoon of engine oil through the spark plug hole into the engine compartment;
• Pull the starter cord slowly several times with the safety catch pulled in order to distribute the oil inside the engine;
• Screw the spark plug tight.
• Dispose of used oil and petrol residues in an ecofriendly manner (see "disposal / environmental protection").

There is no need to drain the petrol tank if a fuel stabiliser is added to the petrol (see “replacement parts” and Briggs & Stratton instruction manual).

Disposal / Environmental Protection

- Return the tool, accessories and packaging to a recycling centre when you have finished with them.

• Carefully drain the petrol and oil tanks and take your equipment to a recycling centre. The plastic and metal parts that are used can be separated by type and thus recycled.
• Take used oil and petrol residues to a disposal point and do not pour them into the sewer system or down the drain.

• Please contact your Grizzly dealer.

• Defective units returned to us will be disposed of for free.

• Do not throw cut grass in the dust-bin but rather compost it or spread it under bushes and trees as a mulch layer.

Guarantee

• The guarantee period for this equipment is 2 years from the date of purchase and it is applicable only for the initial buyer. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
• Please note any different guarantee conditions for the motor and read the enclosed operating instructions from motor manufacturer “Briggs & Stratton” carefully. This guarantee does not affect your legal guarantee rights. The respective „Briggs & Stratton“ Service is responsible for motor issues of your lawn mower; please see attached dealer list. If you have any other problems, please return the equipment intact to

your dealer together with purchase and guarantee certificate.

• The guarantee does not include:

• Damage caused by natural wear, overloading or improper use.
• Equipment employed for commercial use.
• Damages arising as the result of non-compliance with the operating instructions or if the cleaning intervals have not been observed.

• Equipment on which technical interventions have been undertaken.

• The following parts are subject to normal wear and therefore not covered by the guarantee: cutter, spark plugs, air filter, starter cord.

• Please do not send equipment to our service points without prior agreement by telephone, as you could otherwise incur costs for non-acceptance.
• The repair or replacement of the equipment will neither result in extension of the guarantee period nor the commencement of a new guarantee period for the equipment or any replacement parts installed as a result of this work. This also applies if on-site service is used.
• Defective units returned to us will be disposed of for free.

Technical data

Petrol lawn mowe......BRM 56 BSA

Performance....2,36 kW

Engine 4-stroke ....

Briggs & Stratton 675 Series

Engine size ....190 cm ^4

Blade rotation speed ....2800 min ^-1

Blade torque 45 Nm

Wheel drive....3.3 km/h

Petrol tank volume 1,0 l

Octane rating....95-98

Engine oil tank volume....600 ml

Motoroil HD SAE 30

Spark plug.....Champion RJ19LM

Cutting circle....560 mm

Cutting height .....10-steps, 25-80 mm

Grass collection box volume ..... 75 l

Weight 37 kg

Sound pressure level

(L_pA) 84,0 dB(A); K = 3,0 dB(A)

Sound power level (LWA)

measured .....94,2 dB(A); K=1,94 dB(A)

guaranteed.... 98 dB(A)

Vibration (an)

at the handle....4,932 m/s ^2 ; K=1,5 m/s ^2

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Safety precautions aimed at protecting

the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee.

Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Replacement parts

Replacement parts can be ordered directly from our service centre. Please indicate the machine type and the number of the spare part with your order.

Replacement blade....1370 0420

Original Air filter 30250010

Original Spark plug 30220210

B&S fuel stabiliser, 125 ml......30230028

B&S Engine oil, 600 ml......30230029

Maintenance set ....30270000

(air filter, 30 ml fuel stabiliser,

600 ml engine oil, spark plug)

Replacement parts and accessories for the engine (e.g. air filters and spark plugs) can also be ordered directly from Briggs & Stratton. If further spare parts should be necessary, please find the part number on the exploded drawing.

Maintenance Intervals

Regularly carry out the maintenance work listed in the “maintenance intervals” table. Regular maintenance prolongs the life of the equipment. It also gives optimum cutting performance and avoids accidents.

Table maintenance intervals

Maintenance Work(See “cleaning and maintenance”)	Before	After	After 1^st 5 Hrs.	After8 Hrs.	After50 Hrs.	Annual
	Work
Check and tighten screws,nuts and bolts	√
Check the engine oil level /petrol level and refill with engine oil / petrol if required	√			√
Clean operating elements /the area around the silencer		√		√
Clean the finger protectionb				√
Change the engine oil			√ √	√
Replace the air filtera						√
Clean/adjust the spark plugReplace the spark plug				√		√
Check the silencer and spark catcherb					√	√
Clean the air cooling systema,b						√

^a Clean more often if there is a high level of dust or heavy dirt ^b See Briggs & Stratton instruction manual

Troubleshooting

Problem Possible	Cause Fault Correction
Engine does not start	Too little petrol in the tank Fill with petrol
	Incorrect starting sequence	Follow the instructions for starting the engine (see "operation")
	Spark plug connector not put on correctly Sooted spark plug	Attach the spark plug connector Clean, adjust or replace the spark plug (see "cleaning and maintenance")
	Incorrectly adjusted carburettor mix	Have the carburettor adjusted by a specialist workshop
Engine starts but equipment does not run at full power	Dirty air filter	Replace the air filter (see "cleaning and maintenance")
	Incorrectly adjusted carburettor mix	Have the carburettor adjusted by a specialist workshop
	Gas lever not in correct position	Gas lever in position (see „Operation")
Engine splutters, stops	Incorrectly adjusted carburettor mix	Have the carburettor adjusted by a specialist workshop
	Sooted spark plug	Clean, adjust or replace the spark plugs (see "cleaning and maintenance")
Engine overheats	Ventilation holes blocked Clean the ventilation slot
	Incorrect spark plug Change the spark plug
	Too little engine oil in the engine	Fill with engine oil (see "initial operation")
Drive does not switch on	Bowden cables misadjusted	Adjust the Bowden cables or have them adjusted by a specialist work-shop
Output unsatisfactory or engine labouring	Grass too short or too long	Change the cutting height (see "setting the cutting height")
	Blade blunt	Have the blade sharpened or replaced by a specialist workshop
	Blade blocked with grass, grass collection box full, ejection channel blocked	Remove the grass (see "cleaning and maintenance")
Blade does not turn	Blade blocked with grass Remove the grass
	Blade not installed correctly	Have the blade installed by a specialist workshop
Abnormal noises, rattling or vibrations	Blade not installed correctly	Have the blade installed by a specialist workshop
	Blade damaged

Grizzly Service-Center 127

Účel použitia

Simple line drawing of a car ramp with an arrow indicating motion (no text or symbols)

Grizzly Service-Center 127

Účel použití

Simple line drawing of a car front view with a directional arrow and silhouette (no text or symbols)

Grizzly Service-Center

Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]
