Product type	Electric lawn mower
Brand	Grizzly
Model	ERM 1637 G
Power consumption	1600 W
Mains voltage	220-240 V~, 50 Hz
Protection class	II
Protection type	IP24
Idle speed	3250 min⁻¹
Cutting diameter	37 cm
Cutting heights	6 positions: 25 / 35 / 45 / 55 / 65 / 75 mm
Grass catcher volume	40 L
Weight	17 kg
Sound pressure level (LpA)	84 dB(A), KpA=3 dB
Guaranteed sound power level (LwA)	96 dB(A)
Vibration (an)	2,5 m/s², K=1,8 m/s²
Housing material	Robust plastic
Handle type	Foldable loop handle
Fill level indicator	Yes, on the grass catcher
Cutting height adjustment	Central, 6 positions
Safety start	Unlock button + start lever
Impact protection	Yes
Max. extension cable capacity	75 m, min. cross-section 2.5 mm²
Blade change	Possible with wrench
Warranty	24 months (excluding normal wear)

Frequently Asked Questions - ERM 1637 G Grizzly

How to start the Grizzly ERM 1637 G lawn mower?

To start, first press the unlock button located on the handle, then hold down the start lever. Release the unlock button while continuing to hold the lever. To stop, simply release the start lever.

How to adjust the cutting height?

Before any adjustment, switch off the appliance, unplug it and wait for the blade to stop completely. Grasp the cutting height adjustment lever (11) and move it to the desired position among the 6 notches: 25, 35, 45, 55, 65 or 75 mm.

What to do if the lawn mower does not start?

First check that the mains socket works and that the power cord is not damaged. Make sure the start lever is fully pressed. If the problem persists, it may be due to worn carbon brushes, a defective motor or a defective switch – contact the after-sales service.

How to empty the grass catcher?

Lift the impact protection at the rear, then unhook the grass catcher. Fold the impact protection backwards. Empty the catcher and reinstall it in reverse order. The fill level indicator shows when the catcher is full (flap closed).

How to change the lawn mower blade?

Unplug the appliance and wait for the blade to stop completely. Turn the mower over. Wear thick gloves, hold the blade (25) and unscrew the blade screw (26) counterclockwise with a wrench. Install the new blade correctly and retighten firmly.

What is the ideal cutting height for a lawn?

For an ornamental lawn, a height of 30 to 45 mm is recommended. For a utility lawn, choose 30 to 65 mm. At the start of the season, opt for a higher height to avoid stressing the grass.

How to clean the lawn mower after use?

After unplugging the appliance and waiting for the blade to stop, use a brush or cloth to remove grass residues. Never use water or solvents. Remove grass clumps around the blade and in the ejection opening with a wooden or plastic spatula.

What safety precautions should I take?

Wear sturdy shoes and long trousers. Never mow in the rain or on wet grass. Keep children and animals at a distance. Before any intervention, always unplug and wait for the blade to stop completely – it continues to rotate for a few seconds after stopping.

How to store the lawn mower for winter?

Clean the appliance thoroughly. Loosen the handle screws and fold the loop handle and the lower bar for compact storage. Store the mower in a dry place out of reach of children. Let the motor cool down before storing in a closed room.

What accessories and spare parts are available?

You can order the replacement blade (ref. 91095530) and the grass bag (ref. 91095515) from your dealer or the Grizzly service center. Use only original parts to preserve the warranty.

USER MANUAL ERM 1637 G Grizzly

Red and black lawn mower with attached black frame, no visible text or symbols

ERM 1637 G

Translation of the original instructions for use

Technical diagram showing labeled parts of a mechanical bracket with numbered annotations

Mechanical component diagram showing a lever mechanism with labeled parts (2 and 3), no readable text or symbols beyond labels

Mechanical component diagram showing a lever mechanism with labeled parts (3), no text or symbols present

E

① 19 9

② 19 20 21

③ 20 22

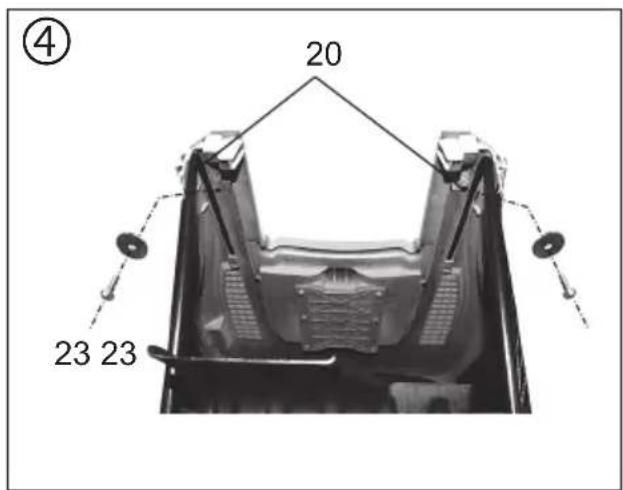

④ 20 23 23

F 5 24 7

Close-up of a sewing machine component with a labeled part (11), no visible text or symbols on the main subject.

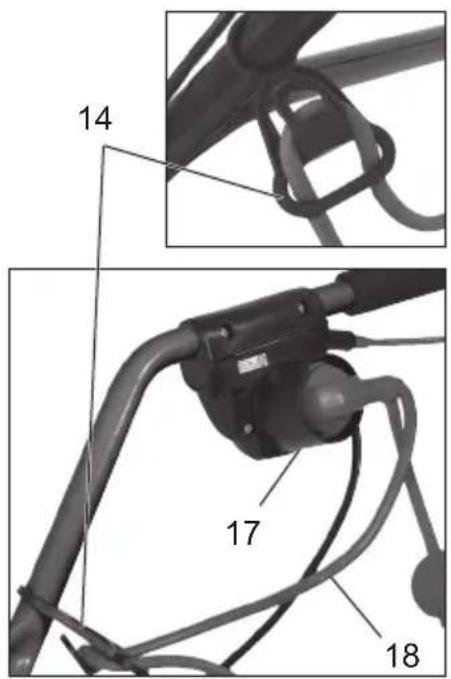

H 2 16

14 17 18

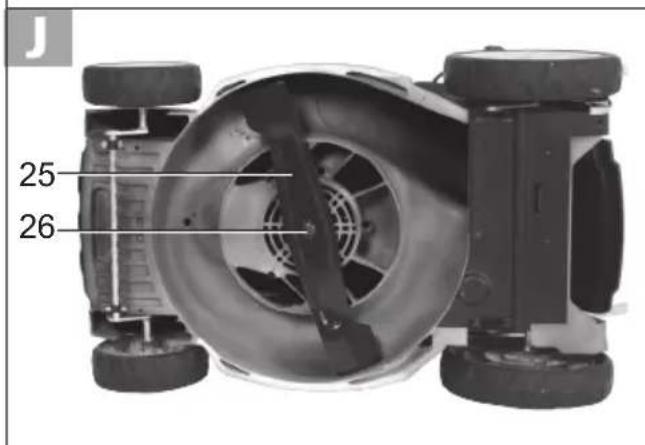

J 25 26

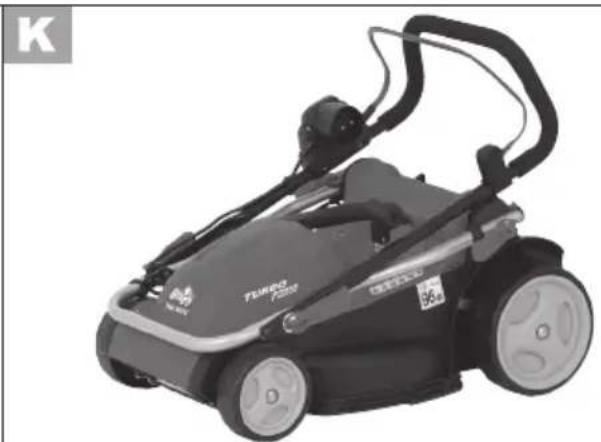

Black and white photo of a TURNO 700 lawn mower with visible branding and wheels (no text or symbols on the device itself)

DE Originalbetriebsanleitung....6
GB Translation of the original instructions for use .....18
NL Vertaling van de originele gebruiksaanwijzing......29
FR Traduction de la notice d'utilisation originale .....41
IT Traduzione delle istruzioni per l'uso in originale ...54
PT Tradução do manual de instruções original .....66
PL Tłumaczenie oryginalnej instrukcji obsługi......78
CZ Překlad originálního návodu k obsluze....91
SK Preklad originálneho návodu na obsluhu .....102
BG Превод на оригиналното ръководство за употреба ....113
LT Vertimas iš originalių eksploatavimo instrukcijoje ....126

Grizzly Service-Center 143

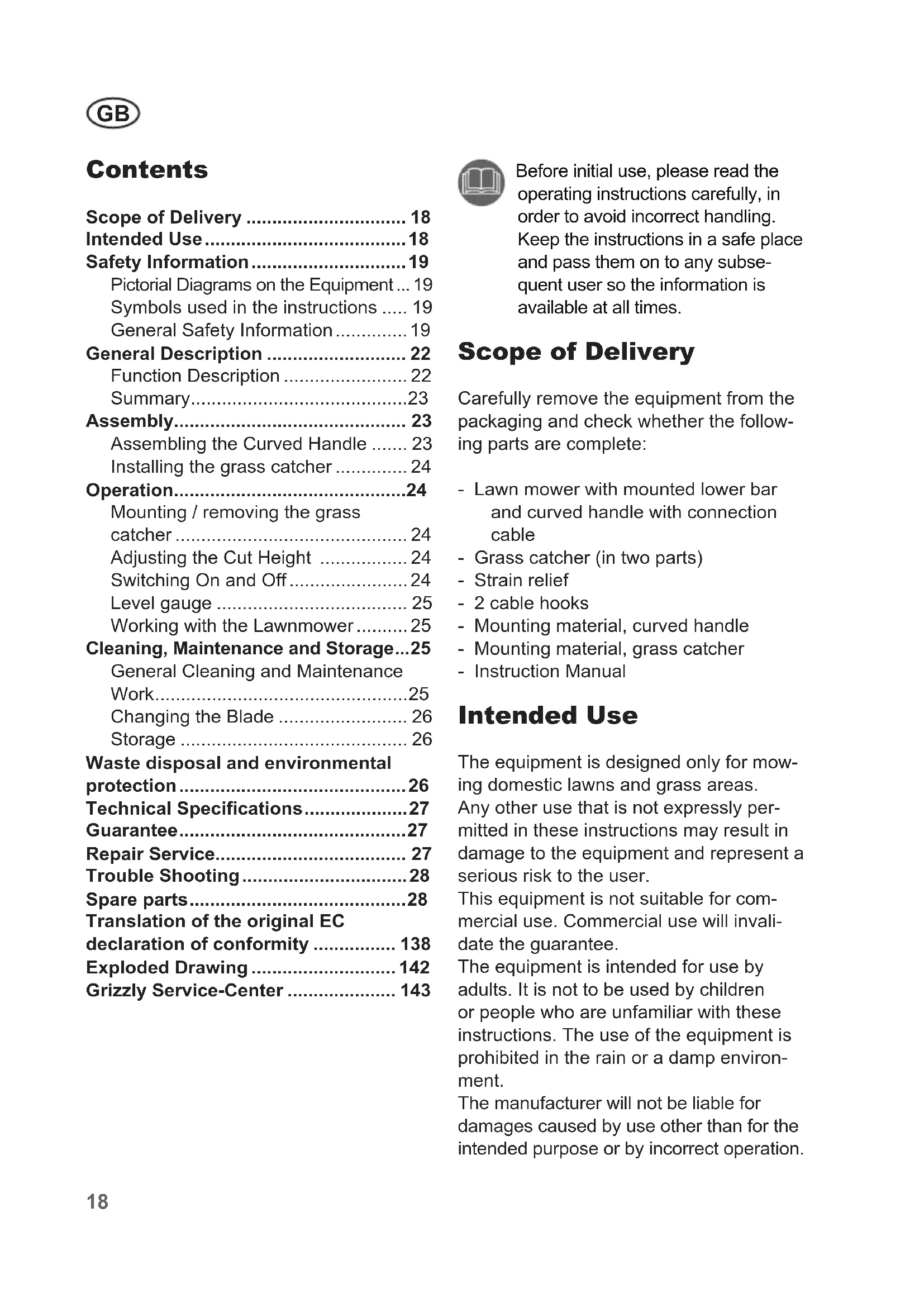

Lieferumfang

Scope of Delivery 18

Intended Use....18

Safety Information....19

Pictorial Diagrams on the Equipment ... 19

Symbols used in the instructions ..... 19

General Safety Information...... 19

General Description 22

Function Description 22

Summary......23

Assembly.... 23

Assembling the Curved Handle ..... 23

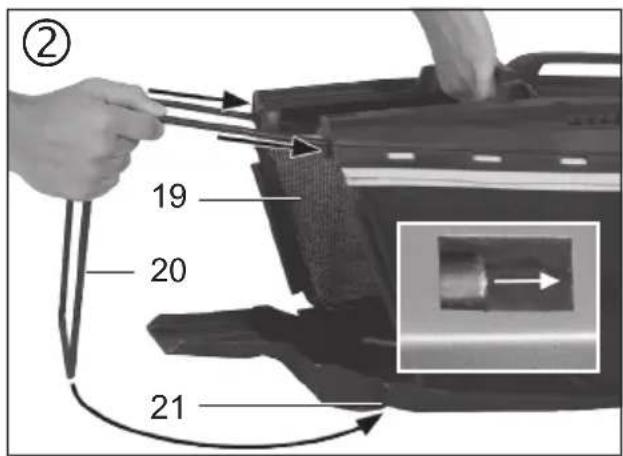

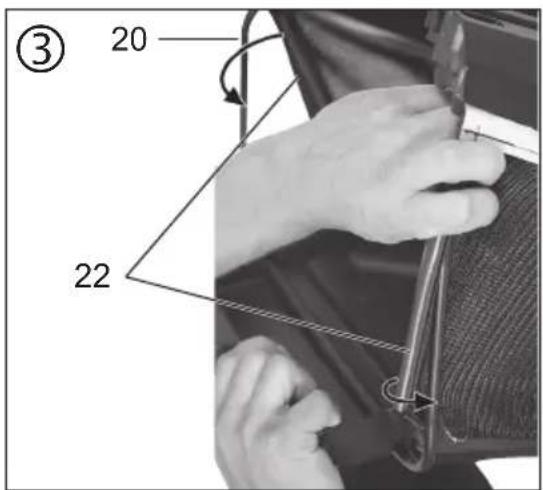

Installing the grass catcher 24

Operation....24

Mounting / removing the grass catcher 24

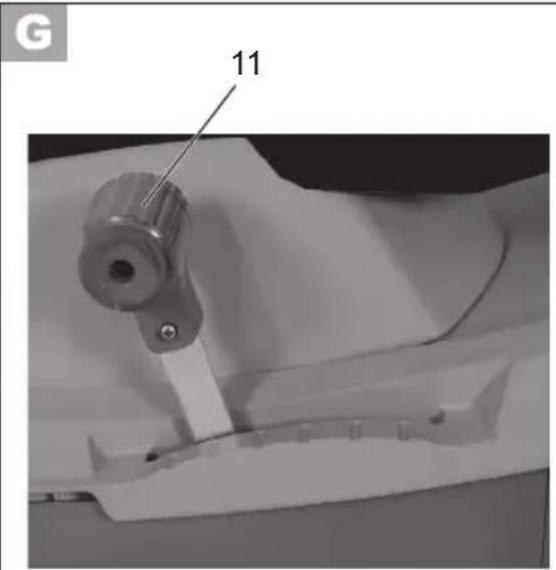

Adjusting the Cut Height 24

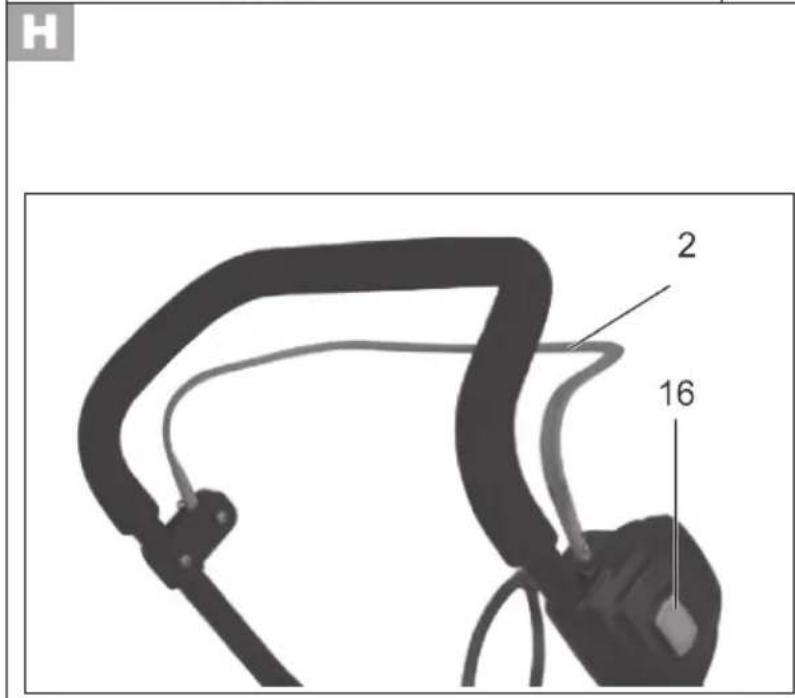

Switching On and Off 24

Level gauge 25

Working with the Lawnmower 25

Cleaning, Maintenance and Storage...25

General Cleaning and Maintenance Work....25

Changing the Blade 26

Storage 26

Waste disposal and environmental protection....26

Technical Specifications....27

Guarantee....27

Repair Service.... 27

Trouble Shooting....28

Spare parts....28

Translation of the original EC declaration of conformity .... 138

Exploded Drawing 142

Grizzly Service-Center 143

Before initial use, please read the operating instructions carefully, in order to avoid incorrect handling. Keep the instructions in a safe place and pass them on to any subsequent user so the information is available at all times.

Scope of Delivery

Carefully remove the equipment from the packaging and check whether the following parts are complete:

• Lawn mower with mounted lower bar and curved handle with connection cable
• Grass catcher (in two parts)
• Strain relief
• 2 cable hooks
• Mounting material, curved handle
• Mounting material, grass catcher
• Instruction Manual

Intended Use

The equipment is designed only for mowing domestic lawns and grass areas.

Any other use that is not expressly per- mitted in these instructions may result in damage to the equipment and represent a serious risk to the user.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The equipment is intended for use by adults. It is not to be used by children or people who are unfamiliar with these instructions. The use of the equipment is prohibited in the rain or a damp environment.

The manufacturer will not be liable for damages caused by use other than for the intended purpose or by incorrect operation.

Safety Information

This section covers the basic safety regulations when working with the electric lawnmower.

Pictorial Diagrams on the Equipment

Caution!

Read the operating instructions carefully.

Wear eye and ear protection.

Do not expose the equipment to the damp. Do not work in the rain and do not cut wet grass.

Risk of injury from parts being thrown up.

ep nearby people away from the mower.

Caution – sharp cutting blade!

Keep feet and hands away. Risk of injury!

ch off the motor and disconnect the plug before adjustment or repair work or if the power cable is caught or damaged.

Danger of damaged power cable.

Keep the power cable away from the cutting blade!

Caution!

The lawnmower blade continues to run after switching off.

Noise level specification

L_wa in dB.

Protection class II

Do not dispose of electrical equipment in domestic waste.

Cutting circle

Level gauge:

Flap open:

grass catcher empty

Flap closed:

grass catcher full

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

General Safety Information

Important! Please read the operating instructions carefully and keep the manual for future reference.

This equipment may cause serious injury in the case of improper use. In order to avoid injury to people and damage to property, the following safety information must be observed and users must familiarise themselves with all operating parts.

Preparation:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not allow the use of this equipment by children or others who are unfamiliar with these operating instructions. Local regulations may specify the minimum age of the operator.
• Do not use the equipment when people and particularly children or pets are nearby.
• Children must be supervised in order to ensure that they do not play with the equipment.
• The operator or user is responsible for accidents, injuries to other people or damage to the property of others.
• Check the terrain on which the equipment is to be used and remove stones, sticks, wires and other foreign objects that could become caught and thrown up.
• Wear suitable work clothing such as stable shoes with non-slip soles and robust, long trousers. Do not use the equipment when barefoot or when wearing open sandals. Do not wear loose clothing or clothes that straps or belts suspend from.
• Before each use, carry out a visual inspection of the equipment. Do not use the equipment if protective devices (e.g. collision guard or grass bag), parts of the cutting device or bolts are missing, worn or damaged. To avoid imbalance, damaged tools and bolts are to be replaced only in sets.

• Take care with equipment that has several cutting tools, as the movement of one blade may result in the rotation of the other blades.
- Use only spare parts and accessories supplied and recommended by the manufacturer. The use of non-original parts will immediately invalidate the guarantee.
- Prior to use, always check the cord and extension cord for signs of damage or wear. Immediately disconnect the cord from the mains in case it is damaged in use. Do not touch the cord until it is unplugged. Do not operate the appliance if the cord is worn or damaged.

Working with the Equipment:

Do not place feet or hands near or under rotating parts when working. Risk of injury!

Observe the noise protection and local regulations.

• Switch on the motor according to the instructions and only when your feet are at a safe distance from the cutting tools.
• Do not use the equipment in the rain, in poor weather, in a damp environment, or on wet grass. Work only in daylight or with good lighting.
• Do not work with the equipment when tired, lacking concentration or under the influence of alcohol or drugs. Always take breaks in good time. Take a sensible approach to the work.
• When working, ensure a firm stance, particularly on slopes. Always work across the slope, never upwards or

downwards. Take particular care when changing the direction of travel on the slope. Do not work on excessively steep slopes.

• Run the equipment only at a walking pace. Take particular care when turning the equipment around, pulling it towards you or going backwards.
• Switch on the equipment carefully and in accordance with the directions in these instructions. Ensure sufficient distance between feet and the rotating blades.
• Do not tilt the equipment when starting other than if it is necessary to do so when starting up in long grass. In this case, tilt the equipment by pressing down the handle bar such that the front wheels of the equipment are raised. Always check that both hands are in the working position before returning the equipment to the ground.
• Do not work without the grass bag or collision guard. Keep away from the ejection hole at all times.
• Do not start the motor while standing in front of the discharge duct.

Caution! Danger! The blade continues to run after switching off. There is a risk of injury.

• The equipment is not to be lifted or transported while the motor is running. Switch off the equipment if it has to be tilted in transit, when crossing surfaces other than grass, and when the equipment is being transported to and from the surfaces to be mowed.
  • Always keep the grass ejection hole clean and clear. Remove cut material only when the equipment is stopped.
• Do not leave the equipment unat-

tended in the workplace.

• Do not work with equipment that is damaged, incomplete, or has been modified without the authorisation of the manufacturer. Do not use the equipment with damaged safety devices or screens or with missing safety equipment such as deflection and/or grass collection devices.
• Do not overload the equipment. Work only within the specified power range and do not change the regulator settings on the motor. Do not use low-powered machines for heavy work. Do not use your equipment for purposes other than those for which it is designed.
• Do not use the equipment near inflammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• Do not lift or carry the equipment when the motor is running.

• Turn off the appliance, unplug it from the mains and check that all moving parts are at rest:

• Whenever you leave the machine,

• Before cleaning the ejection hole or removing blockages,
• When the equipment is out of use,
• Before checking, cleaning or working on the equipment,
• If the power cable is damaged or frayed,
• If the equipment has hit a foreign object or if strange vibrations occur during work. In this case, check the equipment for damage and have it repaired if applicable.

- Do not place feet or hands near or under rotating parts. Do not stand in front of the grass ejection hole during sickle mowing.

Maintenance and Storage:

When servicing the blades, remember that they can move even if the power source is off.

• Ensure that all nuts, bolts and screws are tightened firmly and the equipment is in safe working condition.
• Check the mower for any damages.
• Repair damaged parts as appropriate.
• Do not attempt to repair the equipment yourself unless you have been trained to do so. Any work not specified in these instructions is to be carried out only by customer service centres that we have authorised.
• Keep the equipment in a dry location and out of reach of children.
• Handle the equipment with care. Keep tools sharp and clean, in order to facilitate better and safer work. Follow the maintenance instructions.
• Wear protective gloves when changing the cutting device.
• Regularly check the grass collection device for wear and strains. For safety reasons, replace worn or damaged parts. When adjusting the blades, take particular care to avoid fingers being trapped between the rotating blades and fixed parts of the machine.
• Check that only replacement tools authorised by the manufacturer are used.

Electrical Safety:

• Ensure that the mains voltage matches the specifications on the rating plate.
• If possible, connect the equipment only to a socked with a residual current-operated protective device (RCD) with a release current of more than 30 mA.
• Avoid bodily contact with earthed

parts (e.g. metal fences, metal posts).

• Use only authorised power cables of type H05VV-F or H05RN-F, which are no more than 75 m long and suitable for outdoor use. The power cable wire cross section must be at least 2.5 mm ^2 . Always completely unroll cable drums before use. Check the cable for damage.
• To fix on the power cable, use the cable suspension intended for the purpose.
• Keep the power cable away from the cutting tool when working. The cutting blades may damage the power cable and result in contact with live parts. Always run the power cable behind the operator.
• Do not use the power cable to pull the plug from the socket. Protect the power cable from heat, oil and sharp edges.
• Switch off the equipment and disconnect the plug from the socket if the power cable is damaged. If the power cable is damaged, it must be replaced by the manufacturer, the customer services of the same, or a qualified person, in order to avoid hazards.
• Do not connect a damaged power cable to the mains. Do not touch a damaged power cable when it is connected to the mains. A damaged power cable may result in contact with live parts.

General Description

Function Description

The electric lawnmower has a cutting tool, which turns parallel to the cutting level. It features a powerful electrical drive, a sturdy plastic casing, a safety switch, a

collision guard as well as a grass catcher with level gauge. Additionally, the equipment is height adjustable to six levels and has smooth-running wheels.

For the function of the operating parts, please refer to the descriptions below.

The illustration how to handle the appliance can be found on page 2-4.

Summary

1 Curved handle

2 Start lever

3 Top clamping levers

4 Lower bar

5 Collision guard

6 Bottom clamping levers

7 Grass catcher

8 Back wheels

9 Front wheels

10 Housing

11 Cutting height adjuster

12 2 carrying handles

13 Cable holder

14 Cable strain relief

15 Connection cable

16 Release button (not visible)

17 Power inlet

Assembly

Disconnect the plug before any work on the equipment. There is a risk of injury.

Assembling the Curved Handle

Install lower bar:

① Slightly spread the ends of the lower bar (4) and place them on the threaded bolts on the right and left of the housing.

② Put on the washers from the package and screw on the bottom clamping levers (6).

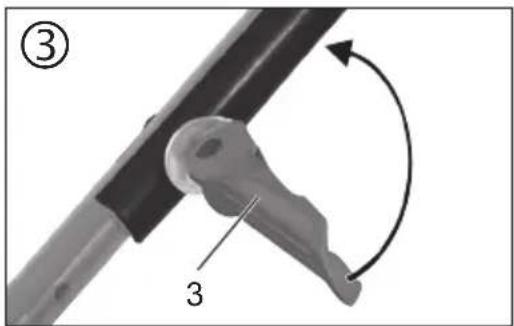

③ Tip up the bottom bar (4) to your favourite angular position.

Lock the bottom clamping levers (6) by pushing them towards the bar (4). Clamping levers to be tightened and contacting the bar such that they clamp at average force.

Otherwise you may have to tighten (turn clockwise) or loosen them (turn anticlockwise).

Attach cable strain relief:

Push the cable strain relief (14) over the bottom bar (4).

Install curved handle:

1. Use the screws and washers from the package as well as the top clamping levers (3) to mount the curved handle (1) on the right and left ends of the bottom bar (4). Three positions are possible.

2. Turn the clamping levers (3) clockwise.

3. Lock the clamping levers (3) by pushing them towards the bar (4). Clamping levers to be tightened and contacting the bar such that they clamp at average force.

Otherwise you may have to tighten (turn clockwise) or loosen them (turn anticlockwise).

Clip on the cable hook:

Clip on the cable hooks (A 13) to the bottom bar to fasten the connection cable (A 15).

Installing the grass catcher

Assemble the grass catcher:

① Clip the rubber lip of the grass catcher net (19) into the hard plastic tray of the grass catcher (9).
② Insert the linkage tubes (19) into the grass catcher net (20). Make sure to fully insert the tubes (see ill. detail).

The tube bows fit into the groove (21) at the bottom of the grass catcher

③ Pull the plastic straps (22) over the linkage tubes (20).
④ Use the screws and washers (23) from the package to mount the linkage tubes (20).

Operation

Attention: Do not operate the appliance until the collision guard and grass catcher are fully installed. Risk of injury!

Mounting / removing the grass catcher

1. Lift the collision guard (5).

2. Place the grass catcher (7) on the mounting bracket (24) provided at the back of the lawn mower.

3. Lower the collision guard (5) onto the grass catcher (7) - it will keep it in place.
4. To remove the grass catcher (7), lift the collision guard (5) and unhook the grass catcher from the mounting bracket. Flap down the collision guard to the housing.

On emptying the grass catcher also refer to section “Disposal/environment”.

Adjusting the Cut Height

Switch off the equipment, disconnect the plug and wait for the blade to stop. There is a risk of injury.

Hold the cutting height adjuster (11) and move it to the correct cutting height, as appropriate.

There are six different cutting heights:

25 - 35 - 45 - 55 - 65 - 75 mm

The correct height is around 30 – 45 mm for a decorative lawn and around 30 – 65 mm for a used lawn.

A higher cut height should be selected for the first cut of the season.

Switching On and Off

1. Plug the mains lead (18) into the appliance's power inlet (17).

2. Turn the end of the mains lead into a loop and hook it into the cable strain relief (14).

3. Connect the equipment to the power supply.

4. Before switching on, ensure that the equipment is not in contact with any objects.
5. To switch on, press the release button (16) on the handle at the same time as pressing the start lever (2). Release the release button (16).
6. To switch off, release the start lever (2).

After switching off the equipment, the blade continues to turn for several seconds. Do not touch the moving blade. There is a risk of injury.

Level gauge

The level gauge is located on the side of the grass catcher. The aerodynamic air guidance provided by the flap also optimises the filling.

Flap open: grass catcher empty

Flap closed: grass catcher full

Working with the Lawnmower

Regular mowing encourages increased foliation of the grass and kills off weeds at the same time. Therefore, not only does each mowing increase the density of the lawn, it also produces an evenly resilient lawn. The first cut is to be made in around April, at a growth height of 70 – 80 mm. In the main vegetation period, the lawn is to be mowed at least once a week.

• The two handles (see A 12) make it easier to carry the appliance.
• Start mowing near the socket and work away from the socket.
  • Always keep the extension cable behind you and when you turn, move it to the side that has already been mowed.
• Run the equipment at a walking pace, in tracks that are as even as possible. For gap-free mowing, the tracks should always overlap by a few centimetres.
• Adjust the cut height so the equipment

is not overloaded. Otherwise, the motor may be damaged.

• On slopes, always work across the slope. Take particular care when going backwards and pulling the equipment.
• Clean the equipment after each use, as described in the chapter on “Cleaning, Maintenance and Storage”.

Switch off the equipment after work and in order to transport it, disconnect the plug and wait until the blade stops. There is a risk of injury.

Cleaning, Maintenance and Storage

Have work that is not described in these instructions carried out by a customer service centre that we have authorised. Use only original parts.

Wear gloves when handling the blade

Switch off the equipment before all maintenance and cleaning work, disconnect the plug and wait until the blade stops.

General Cleaning and Maintenance Work

Do not hose down the lawnmower with water.

• Always keep the equipment clean. To clean, use a brush or cloth but no detergent or solvent.
• After mowing, use a piece of wood or plastic to remove adherent plant remains from the wheels, ventilation

GB

holes, ejection hole and blade area. Do not use hard or pointed objects, as these may damage the blade.

• Oil the wheels from time to time.
• Before each use, check the lawnmower for obvious defects such as loose, worn or damaged parts. Check that all nuts, bolts and screws are sitting firmly.
• Check the covers and protective devices for damage and check that they are sitting correctly. Replace them if necessary.

Changing the Blade

If the blade is blunt, it can be sharpened by a specialist workshop. If the blade is damaged or showing signs of imbalance, it must be replaced (see chapter on "Spare Parts").

1. Turn the equipment over.

2. Use sturdy gloves and hold the blade firmly (25). Turn the blade screw (26) anticlockwise off of the motor spindle using a screwdriver.

3. Install the new blade in the reverse order. Ensure that the blade is positioned correctly and the screw tightened firmly.

Storage

To reduce the space required in storage, loosen the four clamping levers and flap down the curved handle and bottom bar. Make sure the cables are not caught.

• Keep the equipment dry and out of reach of children.
• Allow the motor to cool before storing

the equipment in a confined space.

- Do not cover the equipment with nylon bags as moisture could build up.

We will not be liable for damages caused by our equipment where these are caused by improper repair or the use of non-original parts or by use other than for the intended purpose.

Waste disposal and environmental protection

Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

• The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.
• Defective units returned to us will be disposed of for free.

Technical Specifications

Electric Lawnmower......ERM 1637 G

Motor input power....1600 W

Mains voltage ...... 220-240 V\~, 50 Hz

Protection class....II □

Protection type....IP24

Idling speed 3250 min ^-1

Cutting circle....37 cm

Cut height 25/35/45/55/65/75 mm

Weight 17.0 kg

Lawn bag volume 40 l

Sound pressure specification

(L_pA) 84 dB(A), K_pA = 3 dB

Noise level specification ( L_wA )

guaranteed....96 dB(A)

measured 93 dB(A), K_wA = 3 dB

Vibration (a_n) 2,5 m/s², K=1.8 m/s²

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee.

Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Guarantee

• This appliance has a 24-month guarantee.
• This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts

are subject to a normal wear and are excluded from the guarantee. In particular, these include: blade.

• Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
- Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

- Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Trouble Shooting

Problem Possible Cause	Cause Fault Fixing
Equipment does not start	Power is off	Check the socket, cable, wire and plug and have any repairs carried out by an electrician
	Defective on/off switch	Repair by customer servicesWorn carbon brus
	Defective motor
	Grass too long	Set a greater cut height. Lift the front wheels slightly by pressing down on the handle bar.
Motor stops Blockage by foreign object Remove the foreign object
Result unsatisfactory or motor labours	Cut height too low Set a higher cut height
	Blade blunt	Have the blade sharpened or replace it
	Blade area blocked Clean the equipment
	Blade assembled incorrectly	Install the blade correctly
Blade fails to turn	Blade blocked by grass Remove the grass
	Blade screw loose Tighten the blade screw
Strange noises, rat- tling or vibrations	Blade screw loose Tighten the blade screw
	Blade damaged Replace the blade

Spare parts

When ordering spare parts, please use the indicated Service-Center address or fax number. Please indicate the part number with your order.

Spare blade 91095530

Grass catcher 91095515

Grizzly Service-Center 143

Volume grasvangmand....40 l

Geluidsdrukniveau

(L_pA) 84 dB(A), K_pA = 3 dB

Geluidsvermogensniveau ( L_wA )

Grizzly Service-Center 143

Grizzly Service-Center 143

Volume di fornitura

Grizzly Service-Center 143

Volume de fornecimento

Grizzly Service-Center 143

Grizzly Service-Center 143

Objem dodávky

Grizzly Service-Center 143

Exploded view diagram of a lawn mower system with numbered components for identification

informativ • informative • informatief • informatif • informativo • pouczający • informační • informatívny • информативен

Grizzly Service-Center

Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF"

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

I.T.S. Winschoten bv
