USER MANUAL WG783E WORX

L-1 L-2 L-3 M-1 M-2 M-3

Cordless lawn mower EN

• Not all the accessories illustrated or described are included in standard delivery.8 Cordless lawn mower EN TECHNICAL DATA Voltage 24V Cutting diameter 33cm Cutting height 20-60 mm Cutting height positions 3 positions Grass collection capacity 30L Battery type Lead acid Battery model WA3216 Charging time 5-7 hrs Charger model WA3720 Charger rating Input: AC 220-240V, 50/60Hz, Output: 29.5V , 1.0A Machine weight 13.6kg

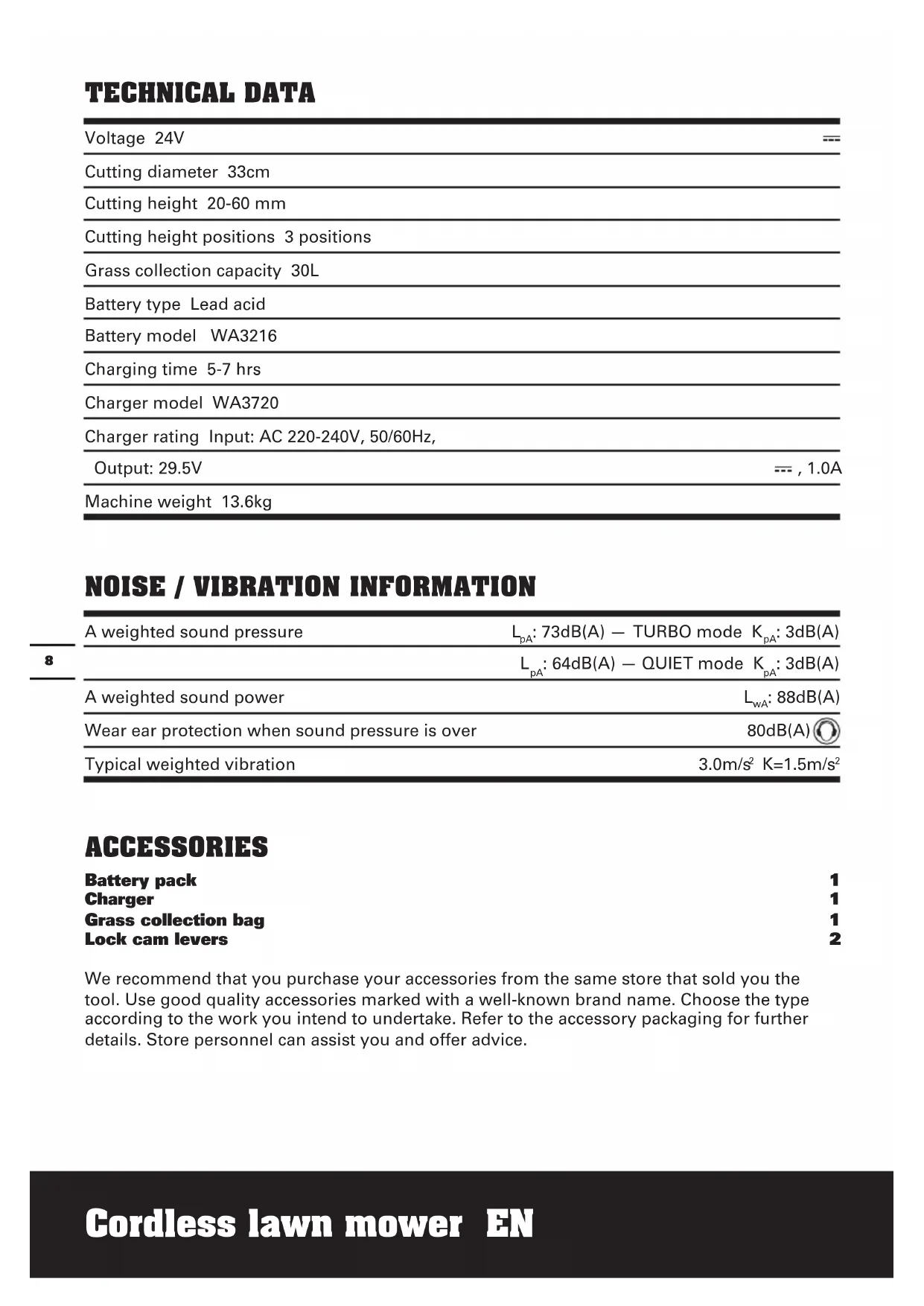

NOISE / VIBRATION INFORMATION

A weighted sound pressure L

ACCESSORIES Battery pack 1 Charger 1 Grass collection bag 1 Lock cam levers 2 We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.9 Cordless lawn mower EN

SAFETy WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. TRAINING

1) Read the instructions carefully. Be familiar

with the controls and the proper use of the equipment;

2) Never allow children or people unfamiliar

with these instructions to use the lawnmower. Local regulations can restrict the age of the operator;

3) Never mow while people, especially

children, or pets are nearby;

4) Keep in mind that the operator or user

is responsible for accidents or hazards occurring to other people or their property. PREPARATION

1) While mowing, always wear substantial

footwear and long trousers. Do not operate the equipment when barefoot or wearing open sandals;

2) Thoroughly inspect the area where the

equipment is to be used and remove all objects which can be thrown by the machine;

3) Before using, always visually inspect to

see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance;

4) On multi-bladed machines, take care as

rotating one blade can cause other blades to rotate. OPERATION

1) Mow only in daylight or in good artificial

2) Avoid operating the equipment in wet

grass, where feasible;

3) Always be sure of your footing on slopes;

across the face of slopes, never up and down;

6) Exercise extreme caution when changing

direction on slopes;

7) Do not mow excessively steep slopes;

8) Use extreme caution when reversing or

pulling the lawnmower towards you;

9) Stop the blade(s) if the lawnmower has to

be tilted for transportation when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed;

10) Never operate the lawnmower with

defective guards, or without safety devices, for example deflectors and/or grass catchers, in place;

11) Switch on the motor carefully according

to instructions and with feet well away from the blade(s);

12) Do not tilt the lawnmower when

switching on the motor, except if the lawnmower has to be tilted for starting In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator;

13) Do not put hands or feet near or under

rotating parts. Keep clear of the discharge opening at all times;

14) Not to touch the blades before the

disabling device has been removed and the blades have come to a complete stop;

15) To remove the disabling device

– Whenever leaving the machine unattended, – Before clearing a blockage, – Before checking, cleaning or working on10 Cordless lawn mower EN the machine, – After striking a foreign object, – Whenever the machine starts vibrating abnormally.

MAINTENANCE AND STORAGE

1) Keep all nuts, bolts and screws tight to

be sure the equipment is in safe working condition;

2) Check the grass catcher frequently for

wear or deterioration;

3) Replace worn or damaged parts for safety.

BATTERY TOOL USE AND CARE

1) Recharge only with the charger

specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

2) Use power tools only with

specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

3) When battery pack is not in use,

keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

4) Under abusive conditions, liquid

may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. ADDITIONAL SAFETy INSTRUCTIONS FOR yOUR BATTERy CHARGER

1. Before charging, read the instructions.

2. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. After charging, disconnect the battery

charger from the supply mains. Then remove the battery pack.

4. Do not charge a leaking battery.

5. Do not use chargers for works other than

those for which they are designed.

6. Before charging, ensure your charger is

matching the local AC supply.

7. The charging device must be protected

8. Do not use the charging device in the

9. Do not short out the contacts of battery or

11. Do not open the unit and keep out of the

12. Do not charge the batteries of other

manufactures or ill-suited models.

13. Ensure that the connection between the

battery charger and battery is correctly positioned and is not obstructed by foreign bodies.

14. Keep battery charger’s slots are free of

foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.

15. When charging batteries, ensure that the

battery charger is in a well-ventilated area and away from inflammable materials. Batteries can get hot during charging. Do not overcharge any batteries. Ensure that batteries and chargers are not left unsupervised during charging.

16. Do not recharge non-rechargeable

batteries, as they can overheat and break.

17. Longer life and better performance can

be obtained if the battery pack is charged when the air temperature is between 18º and 24º. Do not charge the battery pack in air temperatures below 4.5º, or above 40.5º. This is important as it can prevent serious damage to the battery pack.11 Cordless lawn mower EN SyMBOLS Read instruction handbook before operation this machine. Warning Keep bystanders away. Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them. Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove plug from mains before maintenance or if cord is damaged. Keep the supply flexible cord away form the blades. Do not expose to rain or water. Do not burn. Do not dispose of batteries. Return exhausted batteries to your local collection or recycling point. Contains Pb battery. Battery must be recycled or disposed of properly. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Only use the battery charger indoors12 Cordless lawn mower EN INTENDED USE This product is intended for domestic lawn mowing. CHARGER SAFETy RULES

1. Plug charger directly into an electrical

outlet. DO NOT ABUSE THE CORD. Never carry charger by cord. Do not disconnect the charger from the outlet or mower by pulling it by the cord.

2. CAUTION: To reduce the risk of fire,

electrical shock, or personal injury do not attempt to use this charger with any other product. Likewise, do not attempt to charge the mower with any other charger.

3. Do not service mower with charger or

safety key installed.

4. Do not operate a damaged charger.

Replace damaged cords or charger immediately at an authorized WORX service depot.

5. Always charge the mower in a dry area

protected from the weather. Do not expose the mower or charger to rain. Do not charge in wet locations. Do not charge mower when temperature is above 104°F (40°C) or below 41°F (5°C).

6. Keep the mower and charger away

from water, heat sources, (Such as radiators, heaters, stoves...etc.) flames, or chemicals. Be careful not to damage the charger cord, by keeping cord away from sharp edges. CHARGING PROCEDURE

1. Charging can be carried out either with

the battery FITTED (See A1) or REMOVED from the machine (See A2).

2. Plug the charger connector into the

receptacle on the battery. (See A1,A2)

3. Insert the plug of the charger into the wall

4. Press the button on the charger, the red

light should come on indicating that you have power and the battery is being charged.

5. The red light will turn off and the green

light will come on when charging is complete (approximately 5-7 hours to charge a fully discharged battery)

6. After the battery is fully charged the

green light will turn on and stay it for 15 seconds to indicate a full charge. After 15 seconds the green light and charges will turn off to save power. NOTE: If the battery is defective, the red light will flash. The lights will only function when the charger is connected to both the battery and wall receptacle.

7. The charger is a smart charger and can

stay connects to the battery and wall receptacle for extant periods of time without fear of damaging the battery or charger. The charger will automatically turn on to ensure the battery is fully charged. BATTERy CARE The battery in your cordless lawnmower is a 24-volt sealed lead acid system. The mower can be stored in any position without fear of leakage.

• ฀For฀optimal฀battery฀life฀and฀performance฀ the battery should be fully charged every 2 months during storage

• ฀For฀optimal฀battery฀life฀and฀performance฀ the battery should be fully charged after each use

• ฀฀The฀battery฀does฀not฀need฀to฀be฀fully฀ discharged before recharging.

• ฀Initially฀2฀to฀3฀charging฀cycles฀may฀ be required after purchase to achieve maximum run time capacity. ADDITIONAL BATTERIES can be obtained from the Customer Helpline.13 Cordless lawn mower EN ASSEMBLy IMPORTANT! Before you assemble the lawn mower, check the accessories according above information, make sure the accessories are completed.

1) Insert the lower handle (9) into the holes

on the deck provided.

2) Secure with the screws provided.(Fig B1)

3) Attach the upper handle (1) with the bolts

and lock cam lever (8) to the lower handle (9). (Fig B2)

4) Tightening the two Lock cam levers.

Check that the handle is FULLY secured. The cam lever pressure can be adjusted by adjusting the lock cam lever (8) clockwise/counter-clockwise. DO NOT OVER TIGHTEN. NOTE: Ensure the bolts are fully inserted through the handles before fitting the handle knobs.

5) Attach the cable clips (3) provided, to the

upper and lower handle. Insert the cable into the clips ensuring there is enough cable slack .(Fig B3)

2. GRASS COLLECTION BAG ASSEMBLY

Connect the grass box handle to the box top as shown in Fig C1-C4. Step 1. Press the front of the handle briefly. (Fig C2) Step 2. Then push it forward. (Fig C2) Step 3. Push down the back of the handle. (Fig C2) Step 4. Clip the plastic clips over the metal frame. (Fig C3)

WARNING: Don’t fit the handle in

reversed direction. Fit the handle as shown in Fig C1.

3. GRASS COLLECTION BAG FITTING

(See Fig D1, D2, D3)

1) Turn the mower off, wait until blade stops

and remove safety key (7).

2) Raise the safety flap (10) and hold it up.

3) Pick up the grass bag by the handle, and

position grass bag on the lower hooks (a) on the mower deck (Fig. D2).

4) Release the safety guard to lock the grass

bag into position. Ensure the grass bag is installed securely (Fig. D3). NOTE: Depress the grass bag slightly to ensure that it is completely installed.

4. REMOVING/EMPTYING

Hold the grass bag, lift the safety flap (10) and hold up. Remove grass bag (5).

WARNING: Always check the safety

flap can close the discharge outlet tightly before using. Never lift the safety flap (10) when the lawn mower is being used without fitted grass bag.

5. FITTING/REMOVING BATTERY (See

E1, E2) REMOVING BATTERY Pull out the battery with the battery handle directly. (See E1) NOTE: Be careful not to drop the battery onto your foot or on the ground when removing it. FITTING BATTERY Put the battery into the battery container; make sure the battery is fitted correctly. (See E2) OPERATION

1. STARTING AND STOPPING (See F1,

WARNING: The blade continues

to rotate for a few seconds after the machine is switched off. Allow the motor/blade to stop rotating before switching “on” again. Do not rapidly switch off and on. STARTING

1) Insert safety key into the housing of the

2) Slide the key to the right and hold in

3) Pull the lever bar towards the handle and

the mower will start.

4) Release the safety key.

STOPPING Release the switch lever.14 Cordless lawn mower EN

To remind you immediately to empty when the grass bag is full, the mower provides an indicator on the top of bag to show the collection status. And you can follow as below: Empty status: flap float (a) Fully status: flap fall down (b)

3. REAR DISCHARGE (See H)

The mower provides a rear discharge function, so that you can mower without bag collection. The debris will be discharged from the rear chute.

4. WORK MODE DIAL (See I)

Status1: QUIET mode Select QUIET mode when mowing in everyday conditions, removing approximately 20mm of grass at a time. Status2: TURBO mode Set the dial to TURBO mode when cutting dense or overgrown grass.

5. BATTERY STATUS LED’S (See J)

NOTE: The Status LED’s will indicate the battery condition when the button on the battery is pressed. The LED’s constantly senses and displays the battery condition as follows: Press the button “POWERTEST”, the light button is illuminated. When the three green lights are illuminated, the battery is in a highly charged condition. When two lights ( ) are illuminated, the battery is in a moderately charged condition. When only one green light ( ) is illuminated, the battery charge is depleted. Before using your new mower for the first time, it is recommended that the unit be charged overnight to ensure that the battery is fully charged. IMPORTANT When only one light is illuminated, your battery is overly discharged, even though the mower may still be capable of cutting grass. Continuing to operate your lawnmower with the battery in this discharged condition may reduce the life and performance of your battery.

WARNING: Before adjusting the mower

height, wait for the mower to completely stop. Mower blades continue to rotate after the machine is switched off and a rotating blade can cause injury. Wait until all machine components have completely stopped before touching them. Before your first cut, adjust the mower cutting depth to the desired position. The lawnmower can be set to 3 cutting heights between 20mm and 60mm. Grip one wheel and pull it out of the groove and reposition it in the required height. ALL other wheels should be positioned at the same height.

NOTE: Always inspect area where mower is to be used and remove all stones, sticks, wire, metal and other debris which might be thrown by the rotating blade.

1) Mow across the face of slopes, never

up-and-down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes. Always maintain good footing.

2) Release switch lever to turn mower “OFF”

when crossing any graveled area (stones can be thrown by the blade).

3) Set mower at highest cutting height when

mowing in rough ground or in tall weeds. Removing too much grass at one time can cause circuit breaker to trip, which stops mower.

4) If a grass collection bag is used during

the fast growing season, the grass may tend to clog up at the discharge opening. Release switch lever to turn mower “OFF”.15 Cordless lawn mower EN Remove the grass collection bag and shake the grass down to the back end of the bag. Also clean out any grass or debris which may be packed around the discharge opening. Replace the grass collection bag.

5) If mower should start to vibrate

abnormally, release switch lever to turn mower “OFF”. Check immediately for cause. Vibration is a warning of trouble. Do not operate mower until a service check has been made.

6) ALWAYS RELEASE SWITCH LEVER TO

TURN MOWER “OFF” AND REMOVE

WARNING: Stop the mower and

remove the safety key before removing the grass bag. NOTE: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose fittings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower. Carry out any necessary maintenance or repairs before operating mower. If the mower should happen to fail despite regular maintenance, please call our customer helpline for advice. BLADE SHARPENING

CUT GRASS CLEANLY OR MULCH PROPERLY.

WEAR PROPER EYE PROTECTION WHILE

REMOVING, SHARPENING, AND INSTALLING

BLADE ENSURE THAT SAFETY KEY IS

REMOVED. Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BENT OR DAMAGED BLADE

IMMEDIATELY. WHEN SHARPENING THE BLADE:

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting

3. Sharpen cutting edges on both ends

of blade, removing equal amounts of material from both ends. TO SHARPEN BLADE IN A VISE (See L)

1. Be sure the switch lever is released, the

blade has stopped and the safety key removed before removing the blade.

2. Remove blade from mower. See

instructions for removing and attaching blade.

3. Secure blade L-1 in a vise L-2.

4. Wear safety glasses and be careful not to

5. Carefully file the cutting edges of

the blade with a fine tooth file L-3 or sharpening stone.

6. Check balance of blade. See instructions

for blade balancing.

7. Replace blade on mower and tighten

securely. Refer to instructions below. BLADE BALANCING (See M) Check balance of blade by placing center hole in blade M-1 over a nail or screwdriver shank M-2, clamped horizontally in a vise M-3. If either end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops. BLADE MAINTENANCE (See N1, N2) Renew your metal blade after 50 hours mowing or 2 years, which ever is the sooner- regardless of condition. Follow these procedures to remove and replace the blade. You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the blade. Hold the blade (15) and unscrew the blade bolt (14) counter- clockwise using a spanner wrench, and then remove blade. To re-assemble, position the blade (15) with the cutting edges towards the ground. Then16 Cordless lawn mower EN securely tighten the blade bolt (14). STORAGE: (See O) Stop the mower and always remove the safety key. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots. Turn the machine on its side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement. Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, release the handle cam lever, and rotate or fold the upper handle. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT (UK & IRELAND ONLy) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: Blue = Neutral Brown = Live As the colors of the wires in the electrical cord of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. The wire which is colored blue must be connected to the terminal which is marked with N. The wire which is colored brown must be connected to the terminal which is marked with L. WARNING! Never connect live or neutral wires to the earth terminal of the plug. Only fit an approved 13Amp BS1363/A plug and the correct rated fuse. NOTE: If a moulded plug is fitted and has to be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. Connect Blue to N (neutral) Outer sleeve firmly clamped Cable grip Brown L (live) 13 Amp fuse approved to BS136217 Cordless lawn mower EN

CONFORMITy We, POSITEC Germany GmbH Theodor-Heuss-Ring 1-3 50668 Köln Declare that the product Description WORX Cordless lawn mower Type WG783E Function Mowing grass Complies with the following Directives, EC Machinery Directive 2006/42/EC EC Low Voltage Directive 2006/95/EC EC Electromagnetic Compatibility Directive 2004/108/EC Noise Emission in the Environment by Equipment for Use Outdoors Directive 2000/14/EC amended by 2005/88/EC Conformity assessment procedure as per Annex VI. Measured Sound Power Level 85dB(A) TURBO mode 76dB(A) QUIET mode Declared Guaranteed Sound Power Level 88dB(A) The notified body involved Name: Intertek Testing & Certification Ltd Address: Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL Standards conform to, EN 60335-1 EN 60335-2-77

REMARQUE: EXAMINEZ TOUJOURS

3. ACHTERAFVOER (Zie H)

VEDLIKEHOLD OG LAGRING

OPPRETTHOLD KNIVEN SKARP FOR BEST

for kniv balansering.
