USER MANUAL Truckmate Pro S5000 SNOOPER

Installing the Micro-SD Card

Page 5 Charging the Internal Battery
Page 6 Powering the Truckmate using the Built-in Battery
Page 7 Installing your Truckmate using the Windscreen Suction Cup bracket

Page 8 Operating Instructions

Starting Up

Easy Set Up

Screen Settings

Page 10 Volume Control
Page 11 Setting up Truckmate
Page 12 Quick Start Guide to Navigation
Page 15 Quick Menu

Using the Multi-route Function

Page 18 TMC
Page 20 System Security Code
Page 21 System Requirements and Software Installation
Page 22 Downloading the AURA TM Camera Database

Accessories & Price List

Page 23 Vehicle Specific Professional Mounting Brackets

TRUCKMATE QUICK START GUIDE

Truckmate has been designed to route your vehicle safely and legally, avoiding hazards and legal restrictions such as low bridges and roads that are unsuitable for use by larger vehicles. Truckmate will create safe routes for you based on the attributes of your vehicle and will alert you to any hazards if you should accidentally turn off that route for any reason. However Truckmate will also alert you to hazards if it is used without a route programmed to ensure your chosen route is a safe one.

These are the hazards and restrictions Truckmate will route you around and give you advanced warning of:

Restrictions

Height

Width

Length

Weight

No trucks allowed

No trailers

No U-turn for trucks

No right turn for trucks

No left turn for trucks

Trucks with hazardous goods forbidden

Trucks with natural goods harmful to water forbidden

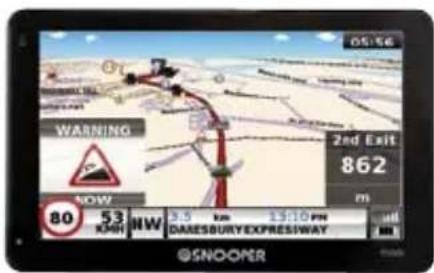

Warning

Steep road up ahead

Steep road down ahead

Tight bend ahead

Side winds

Risk of grounding

3·UK

To utilise the AURA™ Camera database you will need to register your Truckmate and perform a download. Please refer to 'Registering your Truckmate', 'System Requirements' and Software Installation later in this Quick Start Guide for further information.

Start Up

1. Installing the Micro-SD Card

Before using your Truckmate, you will need to install the Micro-SD Card included with the device. The Micro-SD Card comes complete with a digital map of the UK and Ireland or Western Europe depending on the model purchased and is also where the AURA™ camera database is stored if you choose to subscribe and download it.

Remove the Micro-SD card from its packaging and insert it into the Micro-SD Card slot as indicated. Switch on the device by pressing and holding the standby power button located on the top left hand side of the unit for 2 seconds. As soon as the device is switched on, the Truckmate will automatically synchronise with the Micro-SD Card. Once the synchronisation is completed, the Micro-SD Card will not function with any other device. Your Truckmate is now ready to navigate and the camera database can be downloaded if necessary.

Please note that if the unit does not activate when you press and hold the standby power button for 2 seconds it may require charging. Refer to the section 'Charging the internal battery' later in this guide.

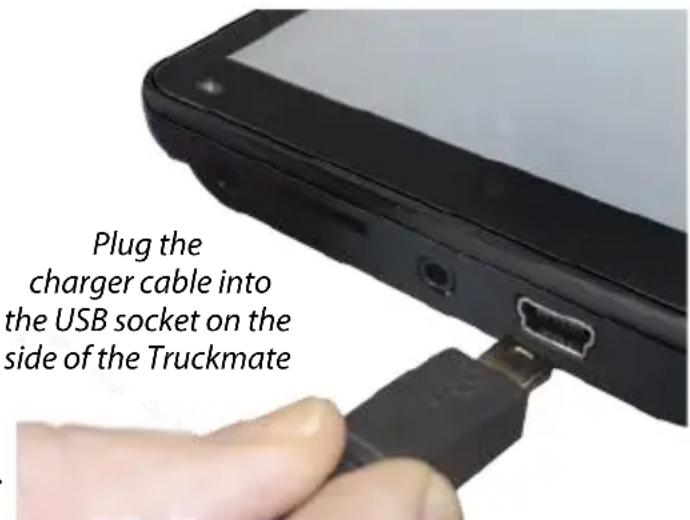

2. Charging the internal battery

Although the Truckmate can be charged using the cigarette lighter in your vehicle, a complete charge is more easily achieved by using the 240V AC mains charger included. When new, the battery in your Truckmate contains a nominal charge.

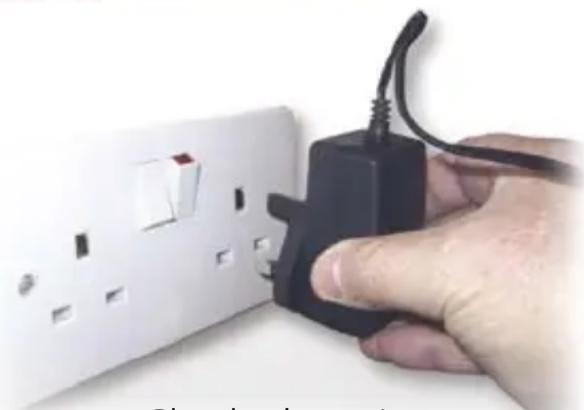

Connect the 240V AC mains charger as indicated in the picture on the right. The battery light on the Truckmate will illuminate and will take approximately 3 hours to charge. When the internal battery is fully charged, the LED will turn blue. Once fully charged the battery will last approximately 3 hours during normal use.

Note: The new battery's full performance is only achieved after two or three complete charges and discharges.

Plug the charger into a

240V AC mains socket

CAUTION

THERE IS A RISK OF EXPLOSION IF THE BATTERY IS REPLACED WITH AN UNAPPROVED TYPE. USING THE WRONG TYPE OF BATTERY MAY DAMAGE YOUR UNIT AND INVALIDATE YOUR WARRANTY. ONLY SNOOPER AUTHORISED PERSONNEL SHOULD REPLACE THE BATTERY. FURTHER INFORMATION CAN BE FOUND IN THE USER MANUAL.

3. Powering the Truckmate using the built-in battery

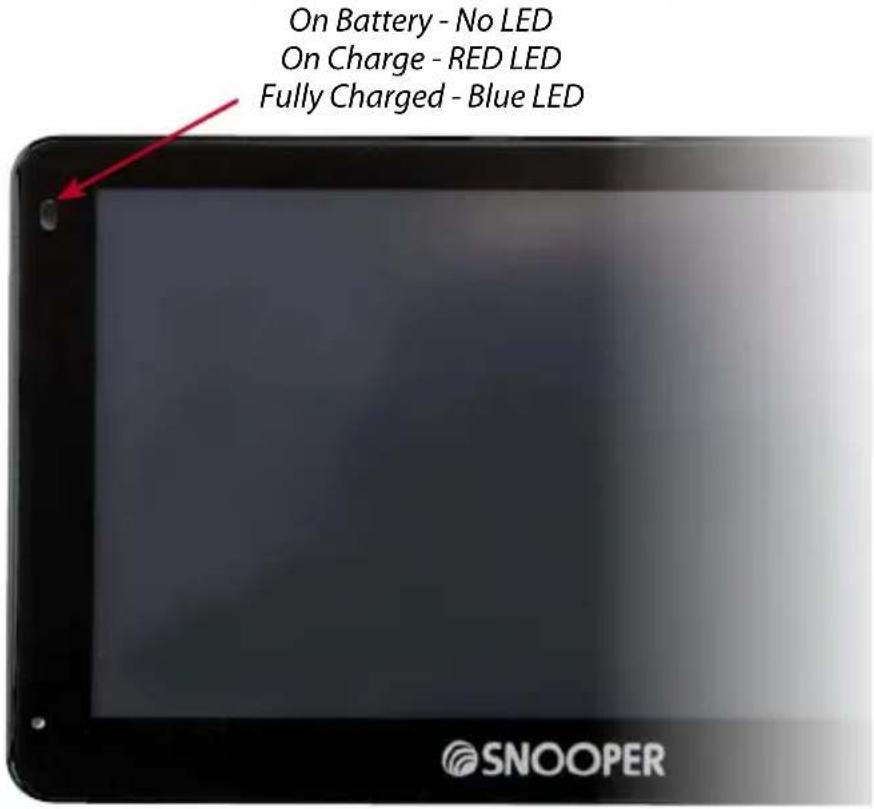

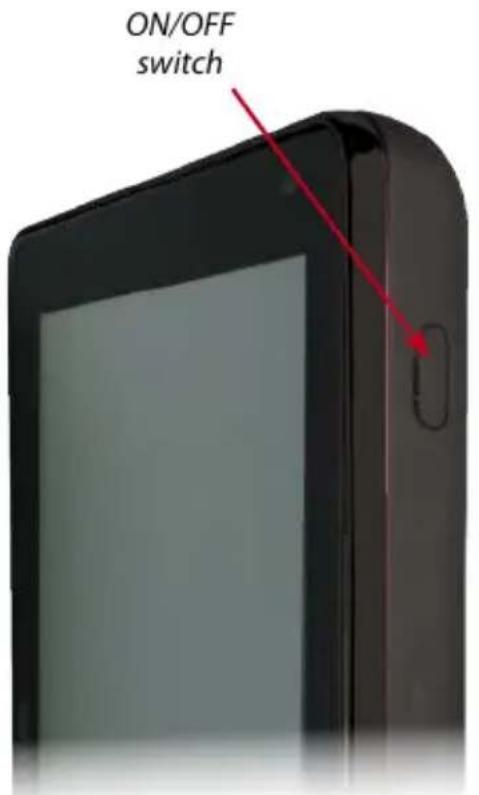

Once the Truckmate is fully charged, it is ready for use. Press and hold the standby/power switch on the top left hand side of the unit for 2 seconds to switch on the device.

WARNING

PLEASE DO NOT USE OR LEAVE THE TRUCKMATE IN Either WET OR HUMID CONDITIONS, OR IN EXTREME TEMPERATURES, AS THIS COULD PERMANENTLY DAMAGE THE UNIT AND THE BATTERY. WHEN NOT IN USE DO NOT LEAVE THE UNIT ATTACHED TO THE WINDSCREEN, ESPECIALLY WHEN THE WEATHER IS WARM, TO AVOID DAMAGE TO THE UNIT AND ALSO REDUCE THE RISK OF THEFT

WARNING

THE DEVICE MAY START IF EXPOSED TO STATIC ELECTRICITY, PLEASE AVOID TOUCHING THE USB SOCKET ON THE LEFT HAND SIDE OF THE UNIT.

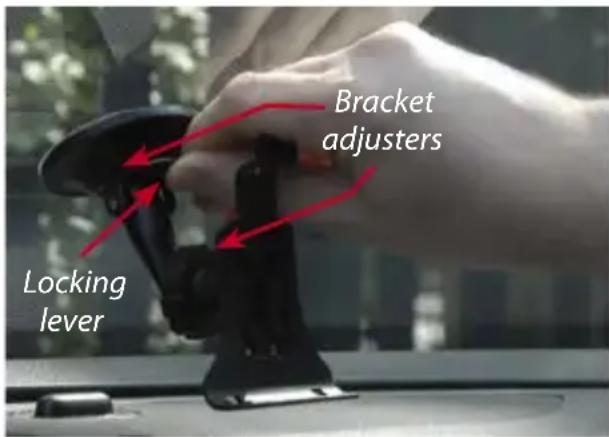

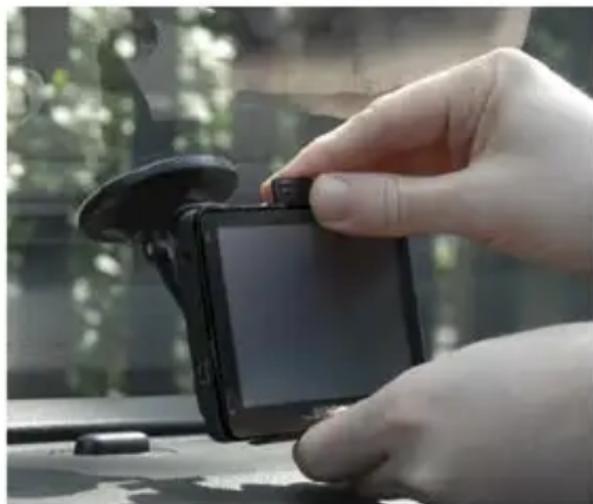

4. Installing the Truckmate using the Windscreen Suction Cup bracket

You can mount your Truckmate to the inside of your vehicles windscreen using the

windscreen bracket provided.

Clean the area where you wish to position the bracket thoroughly with a good quality glass cleaner. This allows a more secure seal on the windscreen.
- Place the suction cup and bracket on the windscreen and push the locking lever towards the windscreen to secure the bracket.
- Adjust the angle of the bracket so that when the unit is attached to it you can view the display and operate the controls safely.
- Position Truckmate onto the bracket, by inserting the bottom of the unit first and finally clipping the top of the bracket into the slot on the top of the unit. To remove Truckmate simply unclip the unit, by pushing the top of the bracket and taking the unit from the holder.
- Truckmate can be powered directly either from the internal battery if it is fully charged or powered from the cigarette lighter socket. To use the cigarette lighter

socket, plug the USB connector on one end of the power cable into the USB socket on the left hand side of the Truckmate and plug the larger plug into the cigarette lighter socket of your vehicle.

Please Note: Only use the cigarette lighter power cable provided with Truckmate. Truckmate operates on 5V and using any other cigarette lighter power cable will damage your device and void the warranty.

Operating Instructions

1. Starting Up

Once you have synchronised the Micro-SD Card it is time to perform the first Start Up.

• First make sure your vehicle is parked in as open a space as possible, clear of tall trees and buildings so that the built in GPS antenna has a clear view of the sky above.
• Next, switch the unit on by pressing and holding the standby power switch on the top left hand side of the unit for 2 seconds.
• Press the 'I Agree' button when available and the screen will display a section of a map.
• Truckmate needs to acquire a minimum of four satellites in order to work. Once this has been achieved the Truckmate will ascertain your position and this will be indicated by a green arrow icon on the on-screen map and the GPS signal strength will be shown to the bottom right hand corner of the display. Your Truckmate is now ready to navigate.

As the GPS engine and antenna have never been used before, the first 'Cold' start could take anywhere from 15 – 30 minutes to establish a satellite connection. Once initialised, subsequent start ups will take less time and eventually should take only a matter of minutes.

2. Easy Set Up

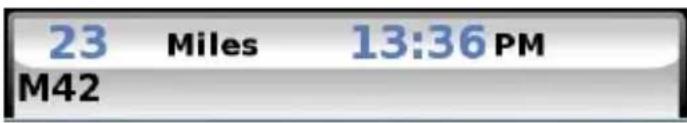

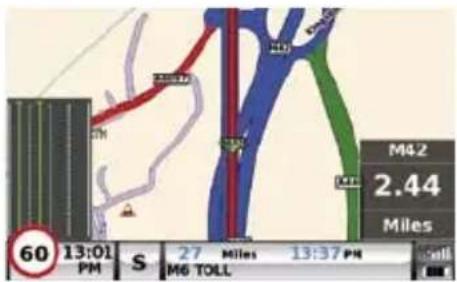

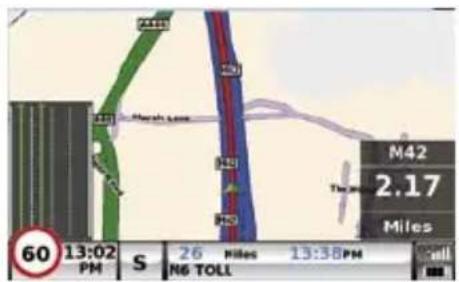

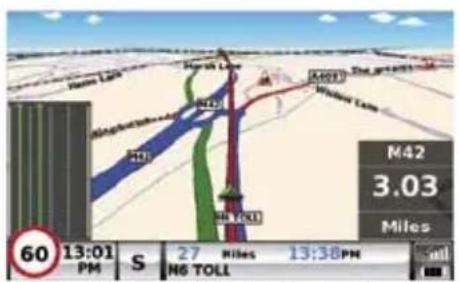

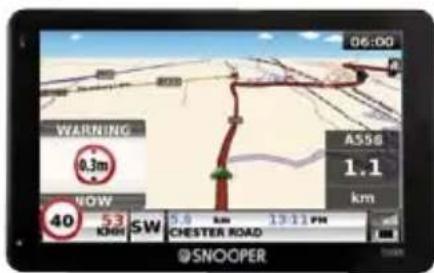

Screen settings - There are a number of map views or different types of information that can be displayed on the screen at any one time:

3D 2D North

Distance to destination

Current time or vehicle speed

Estimated journey time or Estimated time of arrival

Name of road

GPS Signal strength

Battery status

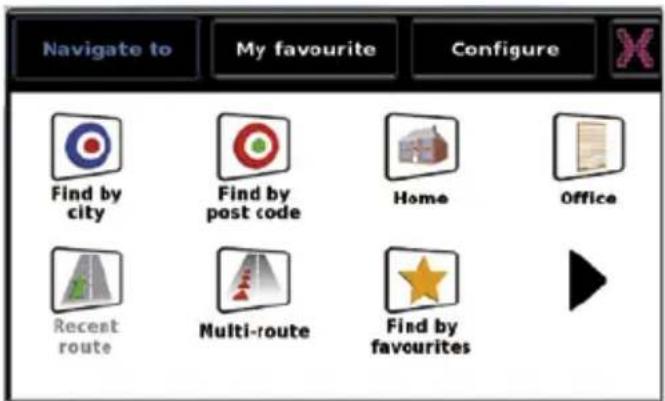

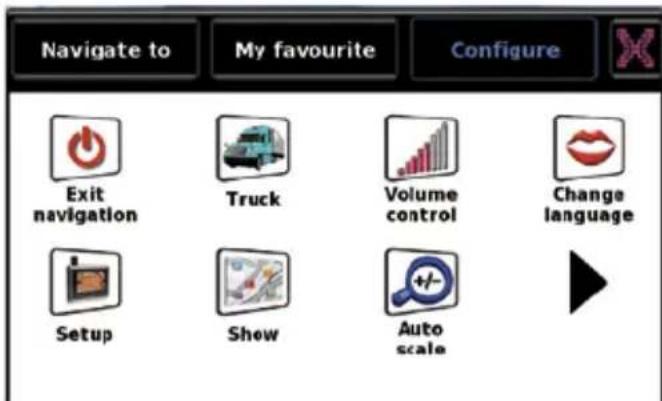

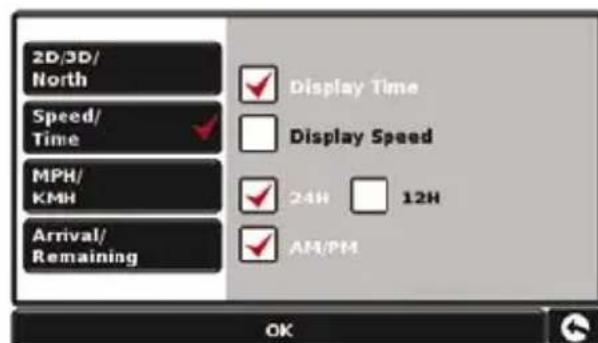

To modify the information shown press the centre of the screen to access the menu and then press the 'Configure' button.

Next press the Setup icon where you will see the list of options

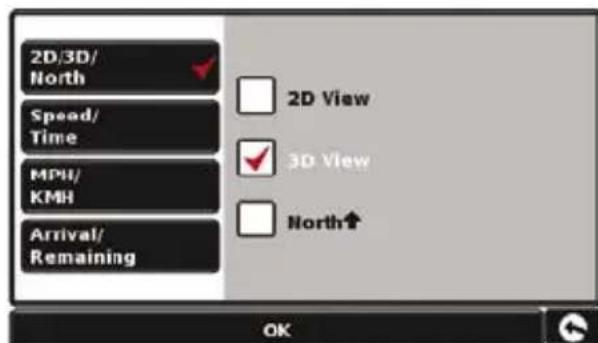

To change a setting press it with your finger and a list of the options available will be shown next to a tick box. Simply press the tick box to indicate which option you would like to choose.

Press 'OK' at the bottom of the screen. Your chosen settings will now be saved and will appear on the screen each time you use your Truckmate. If you want to switch between your Current Speed and the Atomic Clock or the Estimated Time of Arrival and the Time to Destination during your journey simply touch the LCD screen where either piece of information is displayed and the unit will display the alternative setting and vice versa. However, each time you switch on the device the original setting will be displayed.

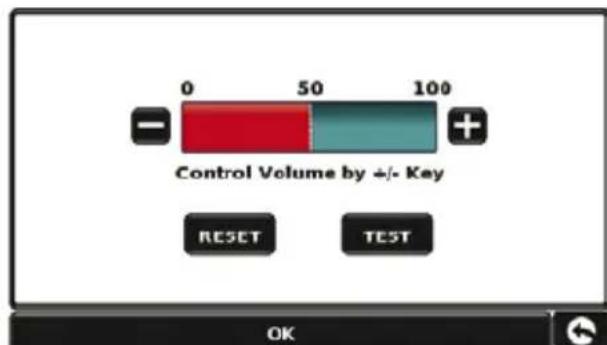

Volume Control - The volume can be adjusted within the 'Configure' Menu. To set this function press the centre of the screen to access the menu and then press the 'Configure' button. The screen will then display a number of different icons.

Press the Volume icon. Press either the +' button to increase the volume or the -' button to decrease the volume. Finally select the OK button to confirm the setting.

Note: The arrow icon in the bottom right hand corner of the display will return you to the 'Configure' menu if pressed but will not store any changes you have made. You need to select the 'OK' button in order to save your changes.

10·UK

3. Setting up Truckmate

For Truckmate to calculate a route suitable for your vehicle it needs to know certain information about the vehicle itself such as its height, weight and width. It is possible to save the settings of 10 different trucks. Follow these instructions to enter your vehicles details.

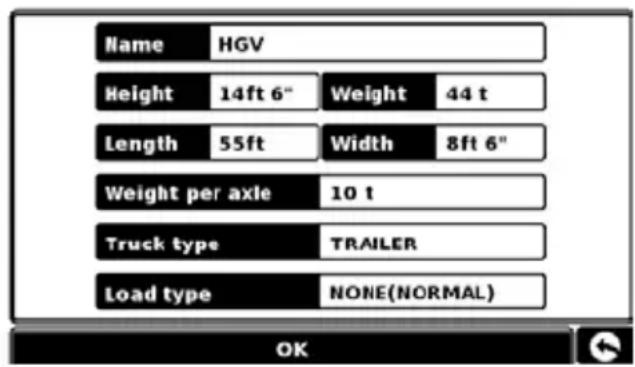

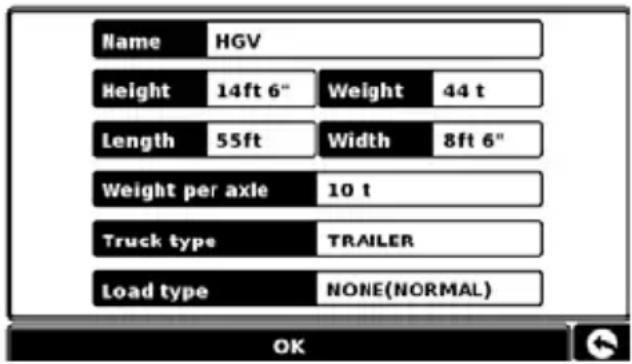

Press the centre of the screen to access the menu and then press the 'Configure' button. Next tap the 'Truck' icon.

Name: Enter the name here.

Height: Enter the height of the vehicle here.

Length: Enter the length of the vehicle here.

Weight: Enter the weight of the vehicle here.

Width: Enter the width of the vehicle here.

Weight per axle: Enter the weight per axle of the vehicle here

Truck type:

• Truck: Standard setting for fixed axle vehicles.
• Trailer: Specific traffic rules exist for trucks with trailers. For example, there are roads that are forbidden for vehicles with trailers. These will be avoided.
• Delivery: Specific traffic rules exist for delivery vehicles. For example, trucks are only allowed in certain areas if they are delivering goods.
• Public: Certain vehicles are allowed to use the traffic rules of public vehicles such as buses and money transport vehicles.

Load type:

-None (Normal)
- Hazardous: Hazardous goods that are not explosive or harmful for water.
- Explosive and Flammable
Harmful for water

ATTENTION!

Please don't forget to register your Truckmate via the Internet at www.snooperne.co.uk.

To register you will need the serial number which can be found on the back of your Truckmate.

4. Quick Start Guide to Navigation using 'Find by post code'

Take your Truckmate outside so that the GPS receiver can locate your position. This may take between 15 - 30 minutes the first time. When satellite lock is achieved, the screen will display your current position on its map in a '3D' navigation view. Your position (and direction) is indicated by the icon.

Tip: To reduce the 'cold start' GPS time remain stationary.

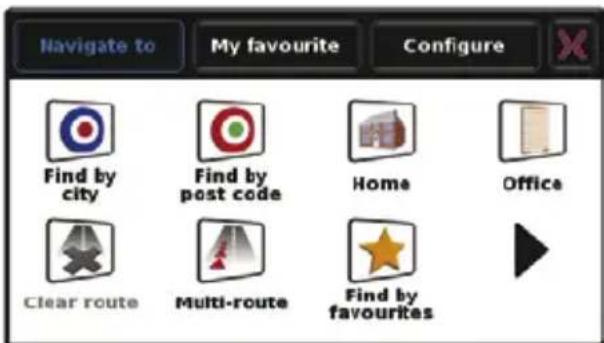

Bring up the main navigation menu by touching the centre of the display. Select

Tip: The icon always means that there are more options to see on the next screen

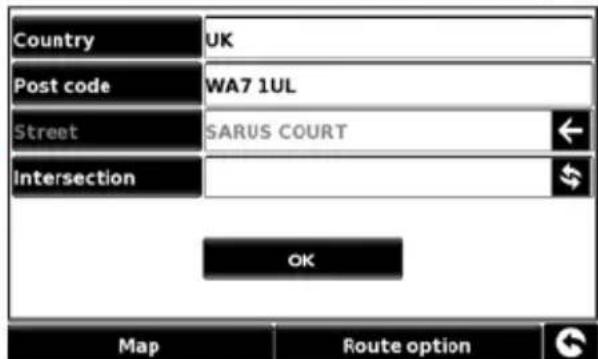

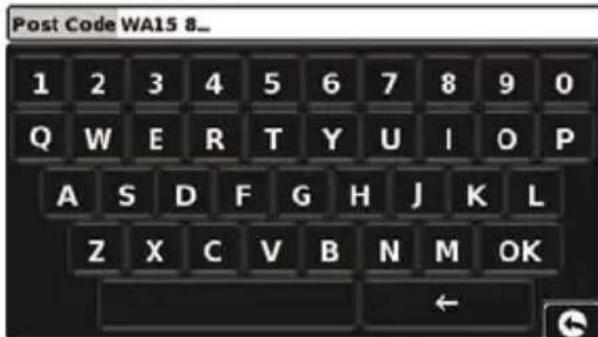

You will see a standard browser screen, used for entering postcodes. Enter the full UK postcode using the keyboard and press OK

Important: Use the key to separate the two segments of the post code.

Tip: The default route options are set to 'Quickest Route'. To change the route options please refer to the extended user guide on the software CD.

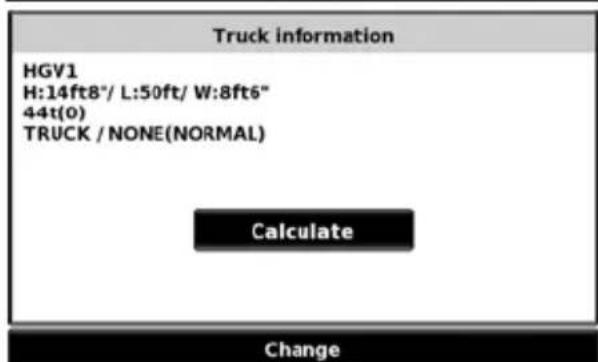

Press OK the next screen will display the default vehicle details. To change to an alternative vehicle press

Change if

not press Trickmate will calculate the fastest route from your current position to your destination.

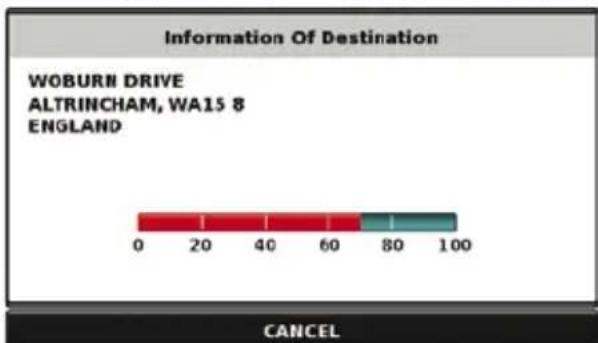

This should only take a few seconds and a progress bar is shown on the screen.

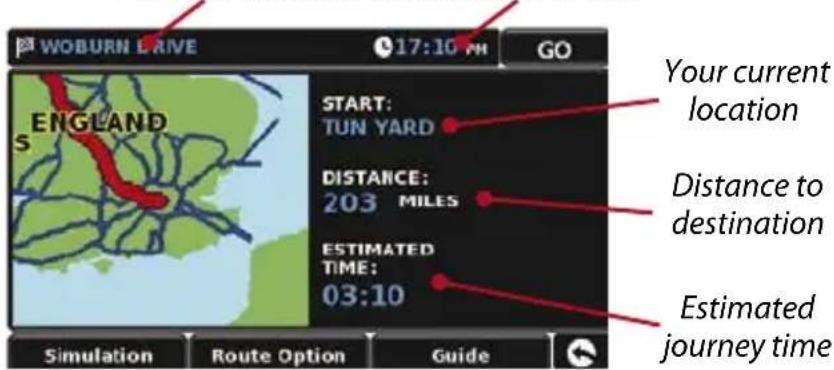

A journey summary screen will then be displayed.

Refer to the extended user guide on the software CD for a more detailed explanation of these features.

Final destination Estimated arrival time

Select

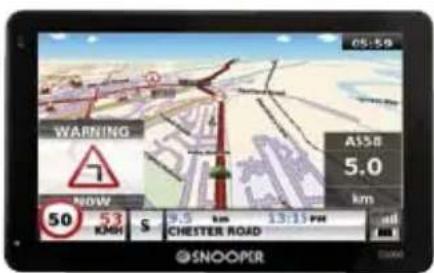

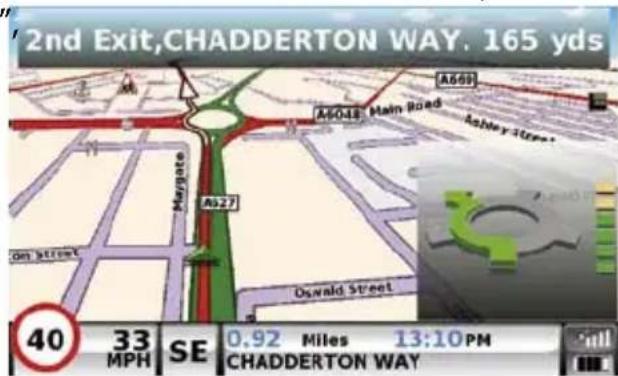

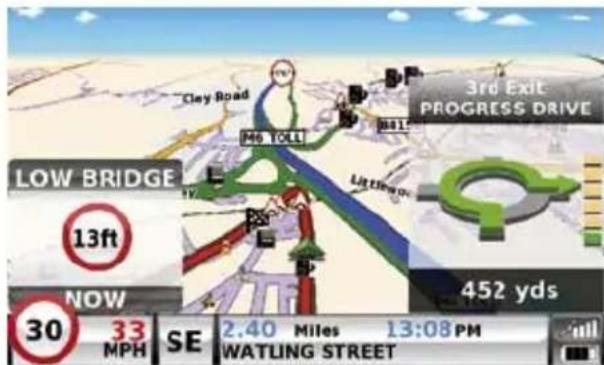

The navigation view will now be displayed, but with the route now highlighted for you. As you approach a specific turn in the calculated route, the Truckmate will advise you

what to do. For example, "After 200 yards, turn left followed by "Now turn left". As you proceed along your journey, following the voice instructions, you will notice that the navigation view is updated constantly, always showing approaching roads and junctions and presenting the best route to you.

Tip: If you miss a turn or drive down a wrong road, a new fastest route will be calculated automatically,

based on your new position and direction of travel, a tone will be heard to confirm re-routing. The Truckmate will always give you clear instructions that will take you to your chosen destination.

5. Quick Start Guide to Navigation using 'Find By City'

If you do not know the post code of the destination you want to drive to you can calculate a route using the country, town or city and the road name. To do this,

simply press the centre of the display to access the menu and then press the

Find By

icon.

Enter the country, town or city name and then enter the road name following the on-screen prompts and keyboard. Once you have found the address press the 'Calculate' button.

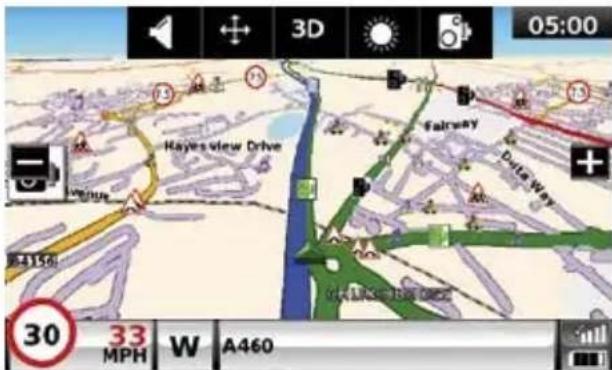

6. Quick Menu

If at any time you want to adjust the units' volume, screen brightness, mute an alert, switch between day and night modes or between the 2D and 3D screen views you can do so by touching the screen at the top. This will display the Quick Menu, which will be displayed for approximately 2 seconds. Simply touch the feature you require from the information bar displayed. The Quick Menu will automatically close if no features are selected.

7. Using the Multi-route Function

With the Truckmate you have the facility to enter more than one destination at a time (for instance if you wish to visit other locations before reaching your ultimate destination). You can store up to 16 individual destinations. The unit will process and calculate the destinations in the following order: A to B, B to C, and C to D etc. When entering the destinations you are able to review the routes and change the order of the routes before pressing 'Go'.

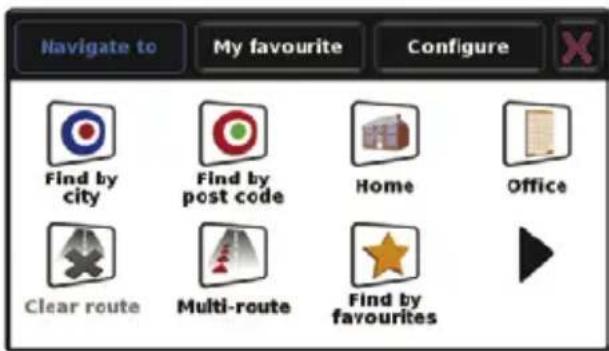

Press the centre of the screen to access the menu and press the

Multi-route icon. You will

then see the 'Multi-route' screen that allows you to either create a multi-route, use or edit a previously stored multi-route or delete a multi-route.

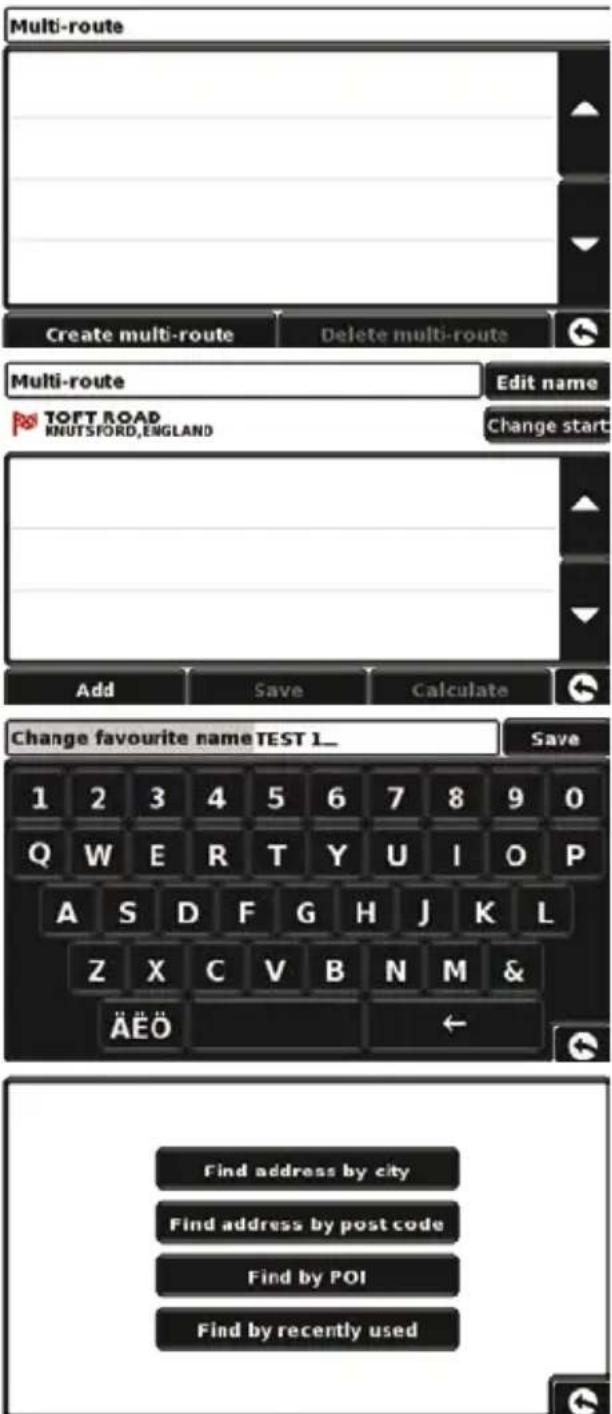

Create a Multi-route

• Press 'Create multi-route' to begin. A screen is displayed where you can edit the name of the multi-route, change the start point and add your destinations.

• Press 'Edit Name' to create a name for your new multi-route. Once you have created a name press the 'Save' button in the top right hand corner. (In the example shown on the right, we have called it 'Test 1')

• If you wish to change the start position of the multi-route, press 'Change Start' to change it. If you are happy with the start position, you can now begin to enter the data of your first destination.

• Press 'Add' - you are provided with several options to find your destination. For this example, select 'Find address by post code'.

• If you have the European version of the Truckmate, you will need to select the 'Country' first BEFORE typing the postcode. After you have selected the correct country press 'Post Code'.

• Enter the postcode using the keypad that is displayed. If you make a mistake when entering the post code you can press the 'Arrow' key at the bottom of the keypad to erase the data and then re-type the information. When you have entered the correct postcode press the 'OK' button on the keypad.

IMPORTANT: You must enter a space between the two sections of the postcode.

• The Truckmate will then go back to the previous screen with the Country, Postcode and Street fields completed. You can also view this destination by pressing 'Map' at the bottom of the screen. Once you have entered the data press 'Set'.
• The destination will now appear in the multi-route screen. Repeat the steps above to enter further destinations.
• Once you have entered all your destinations press 'Save'.

Editing the Multi-route

If you wish to change the order or delete any of the multi-route destinations, press one of the destinations listed and some new options will appear near the bottom of the display.

To move the selected destination press the 'UP' or 'Down' arrow.
- To delete the destination press the 'Bin' icon.
- To return to the destination list press the 'Return Arrow'.

Note: These functions only apply to the destination that you have selected. To edit the other destinations in the list press the 'Return Arrow' and select the new destination. Once you have made your desired changes press 'Save'.

Using the Multi-route

Now press 'Calculate' and the Truckmate will calculate the route to each destination and provide a new summary screen with the distance to each destination along with the estimated duration of the journey to each destination from the start point.

• If you wish to view the calculated route on a map, press 'Map'.
• If you wish to start using the Multi-route, press 'Go'

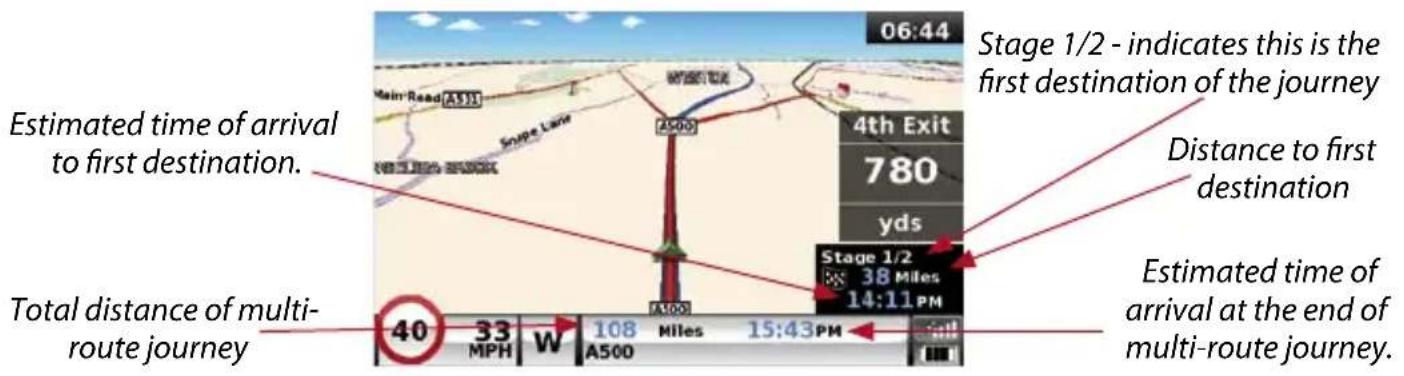

The Truckmate will now display your current map position along with a small summary screen that displays the estimated journey time and distance to your first destination.

If, during the journey, you wish to cancel the current stage and begin travelling to the next stage in your multi-route journey press the summary screen and the message 'Delete current stage?' will be displayed. Press 'OK' and the unit will calculate your route to the next stage in the multi-route from your current position.

Note: If the Truckmate is turned 'OFF' and then 'ON' during the multi-route journey the device will retain the current route and ask you if you wish to continue with the current destination or with the next stage of the destination or to cancel the multi-route.

8. TMC (Traffic Message Channel)

Mounting the Antenna

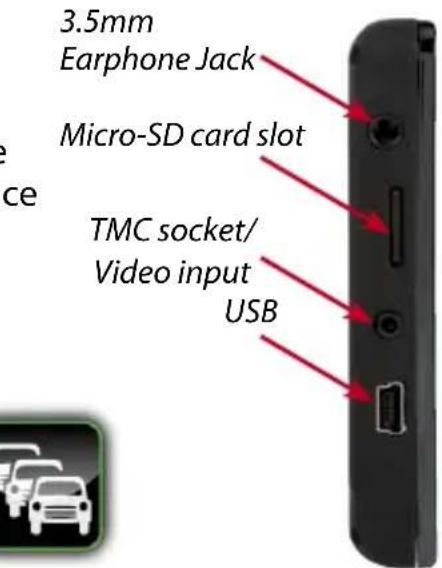

Plug the TMC antenna supplied into the TMC socket on the left hand side of the unit. Then attach it to the windscreen using the suckers provided. The antenna should be stretched out in a horizontal position either along the base or top of the windscreen depending on where you have mounted the device itself.

TMC Icon

Once the unit starts to receive any TMC alerts one of the two following icons will appear on the main screen.

This icon appears if the Truckmate has received TMC information but the delay or incident is not on your route.

This icon appears if the Tuckmate has received TMC information and the delay or incident affects your plotted route.

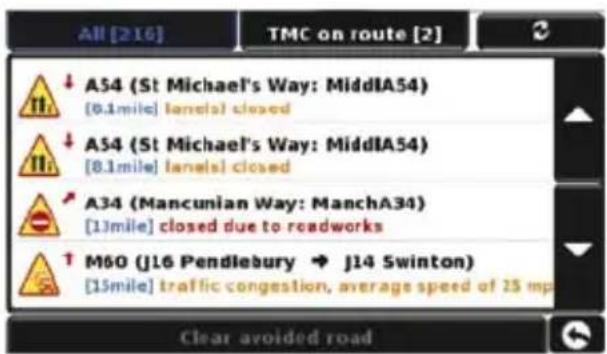

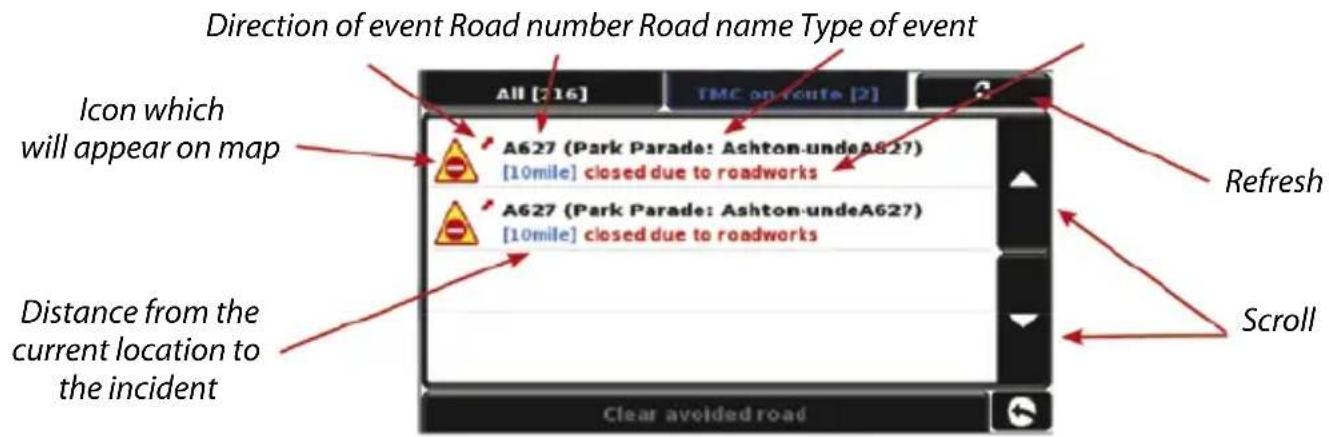

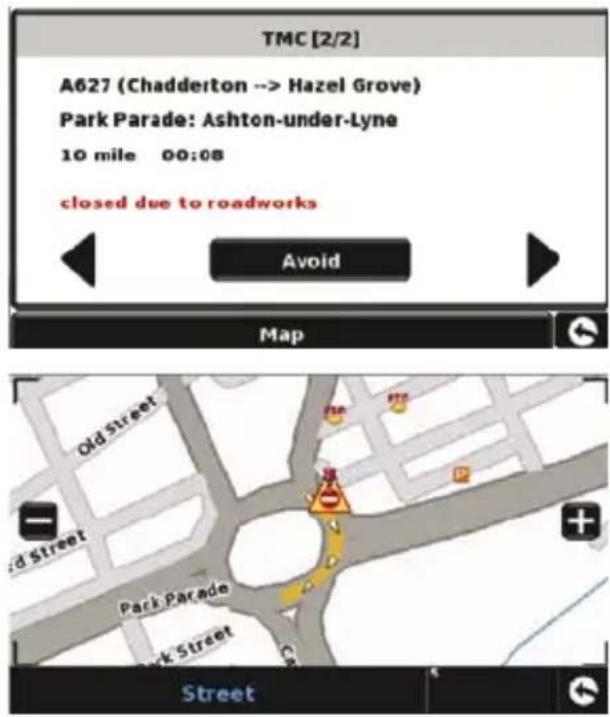

To show the TMC incident press the icon and the following screen is displayed:

To show TMC events which are NOT on your

To see a more detailed description press the TMC warning.

To avoid the incident press

the Truckmate will now calculate an alternative route.

To view the incident press

Map

To return to to the previous screen press

If you want to return to the original route (not avoiding the incident) then press the TMC icon

and press

the original route.

9. System Security Code

Truckmate incorporates pin code security protection so that only users with access to the pin code can use and operate the device. To activate the security code press the centre of the screen to access the menu, press 'Configure', press the black arrow twice and then press the 'System Security Code' icon. Select 'Yes' to switch the function on. Press the 'Enter code' button and enter the 4 digit code that you would like to use to protect your Truckmate and press 'OK'. Once this setting has been activated you will need to enter this code each time you power on your Truckmate or you will not be able to operate the device.

NB. It is important that you do not lose or forget this code. If you forget this code you will need to return your Truckmate so that the unit can be reset.

Configuration Security Code

It is also possible to protect the configuration settings using a security pin code. To activate the security code press the centre of the screen to access the menu, press 'Configure', press the black arrow twice and then press the 'Configuration Security Code' icon. Select 'Yes' to switch the function on. Press the 'Enter code' button and enter the 4 digit code that you would like to use to protect the configuration settings and then press 'OK'. Once this setting has been activated you will need to enter this code each time you want to amend the configuration settings on your Truckmate.

NB. It is important that you do not lose or forget this code. If you forget this code you will need to return your Truckmate so that the unit can be reset.

Registering your Truckmate

Register your Truckmate online to gain access to Snooper's AURA™ Speed Camera database throughout Europe. Register at www.snooperneo.co.uk

Please Note: A subscription is required for this service. Check website for further details.

System Requirements and Software Installation

Before you can begin to download the AURA™ database onto your Truckmate, you will need to install the Truckmate Updater software provided on the software CD.

Minimum Hardware Requirements

The computer must have an Intel Pentium Class processor or equivalent, a minimum of 32MB of RAM, a monitor with 256 (8-bit) colours or greater, a CD ROM drive, 20MB of free disc space and a spare USB connection

Minimum Software Requirements

The software will only operate on the following Windows based operating systems: Windows 2000, Windows XP (32bit), Windows Vista, Windows 7 and, in addition, will only work with Internet Explorer 6 or Netscape Navigator 6 or above.

NOTE: The Truckmate Updater software does not support Windows 95, 98, Millennium or Apple Macintosh operating systems. Windows XP (64bit) systems is not supported.

Downloading the AURA™ Camera Database

Please Note: You must register your Truckmate before you can perform a download.

Please refer to the software CD for installation and download instructions.

For a more detailed explanation of all the features of the Truckmate, please refer to the extended user guide on the software CD.

Accessories & Price List

The following accessories are available from your local Snooper dealer. For further details please contact our sales department on 01928 579579 (Option 2).

European Mapping Micro-SD Card £149.99

In-car charger (24v/12v DC to 5v DC USB) adaptor £19.99

Straight hard wire lead with fuse (24v/12v to 5vDC) £19.99

Windscreen mounting bracket, excluding unit holder £24.99

USB PC Connection lead £9.99

Custom Pro Fit Bracket, including fixing plate * £21.99

1-3 Lighter socket extension 27.99

25ml anti-static LCD display cleaner & protector £2.99

240v to 5v USB mains charger £19.99

Snooper Truckmate protective carry case £14.99

*Pro Fit brackets are a custom-made bracket that usually attaches to an air vent and are designed specifically for each make and model of vehicle. Therefore you should contact Performance Products, on 01928 579579 (Option 2), to check the availability and specification of the bracket for your vehicle.

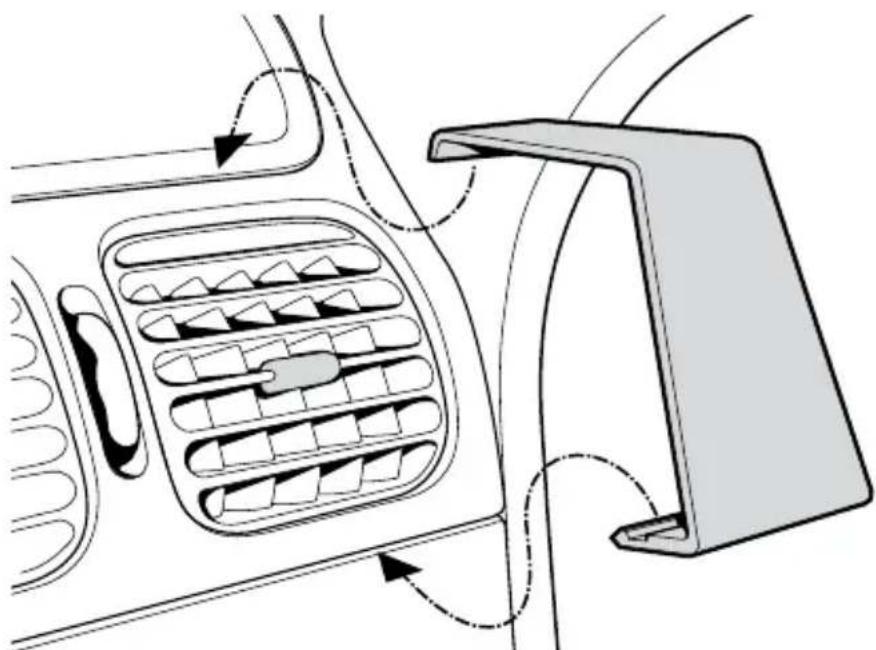

Vehicle Specific Professional Mounting Brackets

Snooper provide a range of custom fit brackets for our Truckmate satellite navigation system. These brackets have been specifically designed to individually fit your vehicle and there is a bracket available to fit most cars, trucks, coaches, buses and mobile homes on the market.

This bracket is particularly unique as you do not need to drill any holes in to your dashboard or centre console to install it. Depending on the vehicle the bracket either clips to the side of the centre console or to your vehicles air vents for a convenient trouble free installation.

Furthermore we can also now provide a 24V/12V to 5V 'hardwire' cable for your system. You can then connect Truckmate directly to the vehicles electrical system providing a discreet, professional installation.

To order a bracket and hardwire cable pack please call 01928 579579 (Option 2) with the make, model and year of your vehicle or speak to your local Snooper dealer.

23·UK

KURZANLEITUNG·UK

INHALT

Page 26 Einleitung

Current time or vehicle speed

8. TMC (informations traffic)

Selecteer. Find By Post Code

8. TMC (Traffic Message Channel)

De antennemonteren

Anchura: Enter the width of the vehicle here.

8. TMC (Traffic Message Channel)

*Subscription may be required. Check online for further details.

Autolaturi(24v/12v DC to 5v DC USB)

Windscreen mounting bracket, excluding unit holder

Tuulilasiteline USB-piuha

USB-piuha

Trucks with natural goods harmful to water forbidden

Ostrzeżenia

Stromy podjazd

Stromy zjazd

Wysoko: Enter the height of the vehicle here.

Dlugo: Enter the length of the vehicle here.

Ciezar: Enter the weight of the vehicle here.

Szeroko: Enter the width of the vehicle here.

Nacisk na o: Enter the weight per axle of the vehicle here

Typ噤zarówki:

8. TMC (Traffic Message Channel)

Performance Products Ltd

Cleaver House, Sarus Court, Manor Park, Runcorn WA7 1UL UK

www.snooper.eu / [e-mail]
