Product type	Smart battery charger
Brand	Velleman
Model	VLEVP4
Compatible batteries	Li-ion 3.6/3.7 V : 10440, 16340, 14500, 14650, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 26650
Input power	12 V DC / 1,0 A
Charge current options	0.25 A, 0.5 A, 1.0 A (constant current)
Cut-off voltage	4.2 V
Number of channels	4 independent channels
Display	LCD screen: voltage, current, charge status, battery level
Protections	Overheating, short circuit, reverse polarity, soft start
Special functions	Reactivation of over-discharged batteries (0 V), fireproof casing, DC-DC Buck circuit
Dimensions	147 x 115 x 35 mm
Weight	218 g
Operating temperature	0 °C to 40 °C
Maintenance and cleaning	Clean the casing with a damp cloth
Warranty	24 months (consumer)

Frequently Asked Questions - VLEVP4 VELLEMAN

What types of batteries can I charge with the VLEVP4?

The VLEVP4 is compatible with rechargeable lithium-ion (Li-ion) batteries of 3.6 V / 3.7 V, including sizes 10440, 16340, 14500, 14650, 17670, 18350, 18500, 18650, 18700, 22650, 25500, and 26650.

How to choose the charging current?

Use the current button to select 0.25 A, 0.5 A, or 1.0 A. For small batteries (10440 to 18700), prefer 0.25 A. For batteries with capacity ≥ 2500 mAh, use 0.5 A. For fast charging of batteries ≥ 2000 mAh, choose 1.0 A (only if channels 2 and 3 are empty).

Does the charger stop automatically?

Yes, once the battery is fully charged, charging stops automatically. The voltage is maintained at 4.2 V and the indicator turns green.

Can I charge different types of batteries at the same time?

Yes, each channel is independent. You can charge batteries of different sizes and capacities simultaneously, provided they are all Li-ion 3.6/3.7 V.

What to do if my charger does not detect the battery?

Check that the battery is inserted in the correct direction (+/-). If the voltage is below 1.0 V, the charger may not display it. Try activating the 0 V function by placing the battery in the channel and selecting a low current (0.25 A).

Does the charger heat up during use?

The VLEVP4 has overheat protection and an efficient DC-DC Buck circuit that reduces power loss. Slight warmth is normal, but if excessive overheating occurs, unplug it and let it cool down.

How to clean the charger?

Unplug the charger and clean the casing with a soft, damp cloth. Do not use solvents or abrasive products.

Is the VLEVP4 compatible with Ni-MH batteries?

No, this charger is designed only for lithium-ion (Li-ion) batteries of 3.6 V / 3.7 V. Do not use with other battery types.

What to do if the screen shows nothing?

Check that the power adapter is properly plugged in and the outlet works. In standby mode, the screen displays the default current. If the screen remains black, press and hold the current button to turn it back on.

How can I know if the battery is charging?

The LED indicator is red during charging. The LCD screen displays level bars: 0-20% (flashing red), 20-40%, etc. Once full, the indicator turns green and the bars stop flashing.

USER MANUAL VLEVP4 VELLEMAN

Black VPA 1240832 power supply unit with three batteries and ventilation slots (no visible text or symbols on main body)

USER MANUAL 3 GEBRUIKERSHANDLEIDING 8 MODE D'EMPLOI 13 MANUAL DEL USUARIO 18 BEDIENUNGSANLEITUNG 23 INSTRUKCJA OBSŁUGI 29 MANUAL DO UTILIZADOR 35

CE

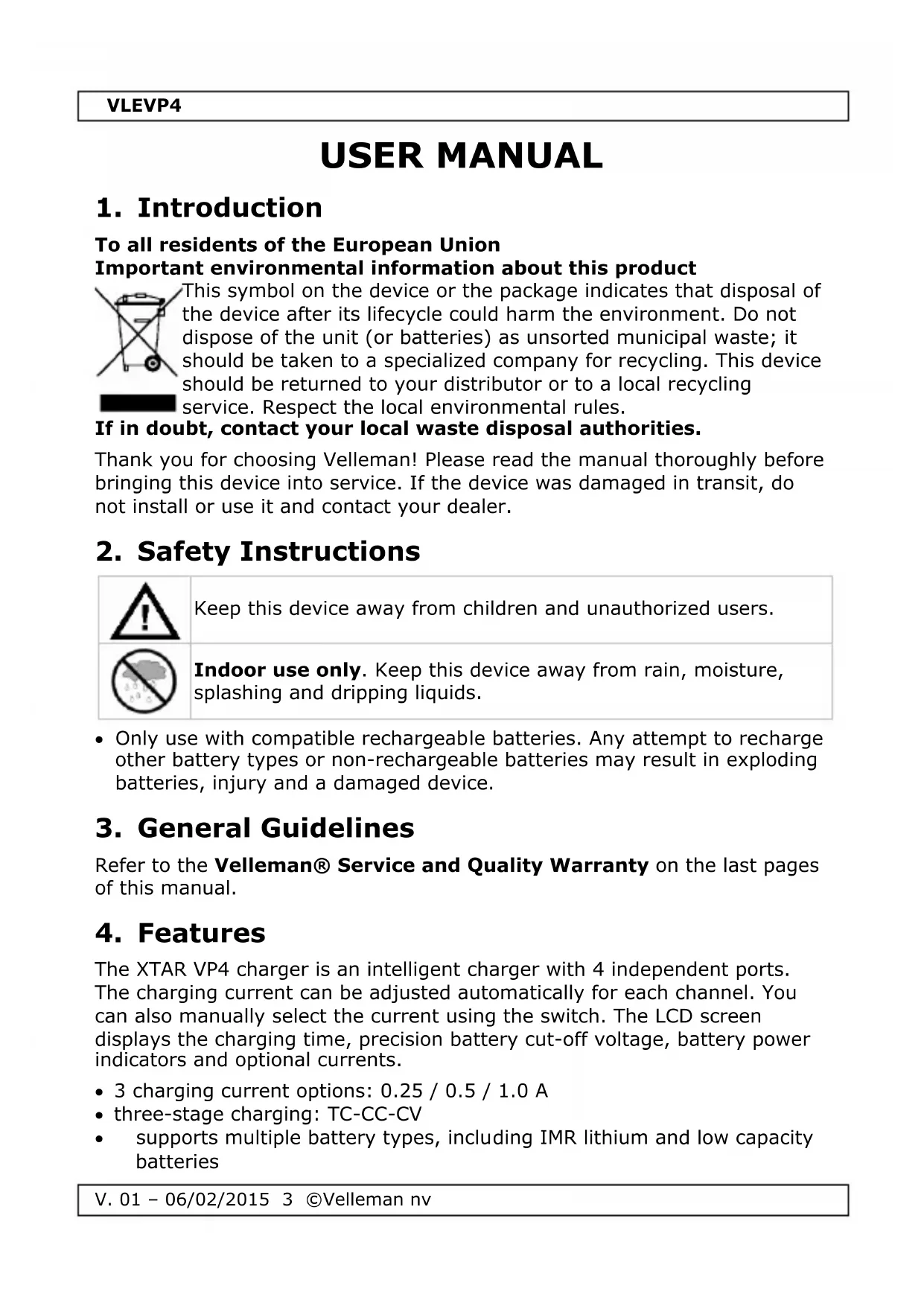

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

- Only use with compatible rechargeable batteries. Any attempt to recharge other battery types or non-rechargeable batteries may result in exploding batteries, injury and a damaged device.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

4. Features

The XTAR VP4 charger is an intelligent charger with 4 independent ports. The charging current can be adjusted automatically for each channel. You can also manually select the current using the switch. The LCD screen displays the charging time, precision battery cut-off voltage, battery power indicators and optional currents.

• 3 charging current options: 0.25 / 0.5 / 1.0 A
- three-stage charging: TC-CC-CV
- supports multiple battery types, including IMR lithium and low capacity batteries

VLEVP4

• 4 independent channels
- soft-start function prevents damage from large charge current while charging
• automatic cut off when the battery is fully charged
- precision cut-off voltage at 4.2 V
• overheat protection
• LCD displays the status of each battery in real time
- Use high power intelligent step-down DC - DC circuit, greatly reduce the energy loss
- reverse-polarity and short circuit protection
- fireproof housing
- 0 V function to reactivate over-discharged batteries

5. Overview

Refer to the illustrations on page 2 of this manual.

1	charging channel
2	charging current

3	power indicator
4	charging voltage

Charging State and Battery Power Indication

charging

0% - 20%

20% - 40%

40% - 60%

60% - 80%

80% - 99%

100%

- When the battery voltage reaches the next stage, one more bar will be added. No battery level icon will be displayed in the corresponding channel when the charger is in one of the following conditions:

• no battery is placed in the channel
  ○ short circuit
  ○ battery voltage < 1.0 V
  o battery is reversed or poorly connected

Charging LED Indication

status		LED indication
charger self-check		red (2 seconds)
charger stand-by		green
battery activated	1.0 V - 2.0 V	red flash
	< 1.0 V	green
charging		red
fully charged		green

• Due to different battery types, deviation between the value on the indicator and the battery's actual capacity exist. In addition, when the battery is charging, the LCD displays the battery's charging voltage (including the voltage generated by the battery's internal resistance). When the battery is fully charged or not connected, the LCD displays the no-load voltage of the battery.
• When batteries are fully charged, the charger will stop charging and the voltage of the battery will cut off at 4.2 V. The corresponding charging status indicators are green on, and all five battery indicator bars will stop blinking. Remove the batteries and disconnect the charger from the mains.

6. Operation

1. Plug the DC cord of the wall adapter into the VLEVP4 charger, and plug the other end of the wall adapter into the mains. The charger performs a self-check, the LCD displays all contents, the charge current indicators turn blue, and the charging status indicators are all red on for 2 seconds. Then the charging status indicators are green on, and the default 0.5 A charge current displays. At this time, the charger enters into stand-by mode.
2. Insert the rechargeable 3.6 / 3.7 V Li-ion batteries into the charging channels. Ensure the positive and negative ends correspond with the positive (+) and negative (-) symbols on the charger.

3. As long as there is a battery in channel 2 or channel 3, or 2 batteries in these 2 channels, no matter how many batteries in channel 1 and channel 4, the charging current will be 0.5 A default.

4. You can press the current button to change the charging process to 0.25 A or switch it back to 0.5 A again.

5. The charging current would be the max. 1.0 A automatically only when channel 2 and channel 3 are empty.
6. Press the current button to change the current from 1.0 A to 0.25 A or 0.5 A, or back to 1.0 A.

Battery Charging Current Configuration Settings

default	CH1	CH2	CH3	CH4
0.5 A					0.5 A↓0.25 A↓0.5 A(Note: only 0.5 A or 0.25 A can be selected)
1.0 A					1.0 A→0.5 A→0.25 A→1.0 A(Note: you can select 1.0 A or 0.5 A or 0.25 A)

Note:

Slot with battery Slot without battery

- The VLEVP4 features 4 charging channels. Each channel is independent and there is no influence to any channel while charging and monitoring batteries.

Tips

• While in charging mode, hold the current button pressed to switch off the LCD screen.
• Choose the most suitable charge current for your batteries:
  ○ 0.25 A: 10440 - 18700 Li-ion batteries
• 0.5 A: 18650 - 26650 Li-ion batteries with capacity ≥ 2500 mAh
• 1.0 A: Li-ion batteries with capacity ≥ 2000 mAh (1.0 A is the large charging current for fast charging mode)

Remarks

• The VLEVP4 has an integrated short-circuit protection to protect the charger if a short-circuit occurs in a battery. Note that this short-circuit protection protects the charger and does not prevent batteries from short-circuiting internally.
• The VLEVP4 is only for use with 3.6 V / 3.7 V rechargeable Li-ion batteries. Charging other battery types may be hazardous, and can damage the batteries and charger.
• The VLEVP4 features battery charging current configure settings. Please note, that while there is no battery in CH2 and CH3, only CH1 and CH4 can get 1.0 A charging current. As long as there is any battery in CH2 or CH3, the charging current will be 0.5 A for the 4 channels. The current button can only adjust the charging current to a lower one.

VLEVP4

• To lengthen the over-discharged battery lifespan, the 0.25 A charging current is strongly recommended.
• Because of different battery types, capacities and over-discharge conditions, the battery revive time may vary. Heavily over-discharge batteries may not be able to waken up.
• Keep the VLEVP4 away from water and excessive dust.
• Do not disassemble the VLEVP4 as damage may result.
• Do not use a damaged VLEVP4.

7. Cleaning and Maintenance

- This device does not need any particular maintenance. However, occasionally clean it with a damp cloth to keep it like new.

8. Technical Specifications

supported battery types		4x 10440 - 16340 - 14500 - 14650 - 17670 - 18350 - 18500 - 18650 (ICR18650-26) - 18700 or 2x 22650 - 25500 - 26650 lithium batteries
input power		12.0 VDC /1.0 A
charge current options
	0.25 A constant current	250 mA x 4
	0.5 A constant current	500 mA x 4
	1 A constant current	1000 mA x 4
cut-off voltage (output voltage)		4.2 V
operating temperature		0-40°C
dimensions		147 x 115 x 35 mm
weight		218 g
