Product type	Lithium-ion battery charger
Model	Velleman VLEVP1
Brand	Velleman
Dimensions	92 x 27 x 26 mm
Weight	24 g
Power supply	Micro USB port 5 V (mains adapter not included)
Compatible battery types	Li-ion 3.6/3.7 V: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650 to 25500, 26650
Charging current	Automatic selection: 0.5 A or 1.0 A
Charging time	Approximately 3 hours (depending on capacity)
Charging method	TC-CC-CV (Top Charge, Constant Current, Constant Voltage)
Cut-off voltage	4.2 V ±1%
Protections	Reverse polarity, short-circuit, overcharge protection
Special functions	Automatic shut-off, automatic reset, 0 V function (reactivation of over-discharged batteries)
LED indications	Red: charging in progress; Green: charging complete
Operating temperature	0 to 40 °C
Housing material	Robust and flame retardant
Intended use	Indoor use only, away from moisture
Maintenance and cleaning	Clean the housing with a damp cloth
Safety	Do not use outdoors, do not disassemble, do not immerse
Spare parts and repairability	No spare parts available; repair by Velleman or authorized dealer
Warranty	24 months for consumer products (conditions in manual)

Frequently Asked Questions - VLEVP1 VELLEMAN

What types of batteries can I charge with the VLEVP1?

The VLEVP1 charger is compatible with lithium-ion batteries of 3.6 V or 3.7 V, including formats: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 22650 to 25500, and 26650. Do not charge other types of batteries.

How to use the VLEVP1 charger?

Connect the charger to a 5 V USB power source (adapter not included). Insert the battery respecting polarity. Charging starts automatically. The red LED indicates charging, the green LED signals the battery is fully charged. Remove the battery after charging.

What do the LEDs on the charger mean?

No LED: no battery inserted or battery poorly connected. Red LED: charging in progress or battery activated. Green LED: battery fully charged. If both LEDs flash or the red LED flashes, there may be reverse polarity or a short-circuit.

Can I leave the battery in the charger overnight?

Yes, the VLEVP1 has automatic shut-off and automatic reset functions. When the battery voltage drops below 4.1 V, the charger automatically restarts a charging cycle. It is however recommended to remove the battery once charging is complete.

What charging current is used?

The charger automatically selects the charging current between 0.5 A and 1.0 A depending on the battery to optimize its lifespan.

What to do if the battery is over-discharged?

The VLEVP1 has a 0 V function that can reactivate over-discharged batteries. Insert the battery normally; if charging does not start, try inserting the battery before connecting the power.

Does the charger protect against short-circuits?

Yes, the VLEVP1 includes protection against reverse polarity and short-circuits on the charger side. However, this does not protect the battery against an internal short-circuit.

Can I use the charger outdoors?

The VLEVP1 is designed for indoor use only. Protect it from rain, humidity and water splashes. It can however be powered by a 5 V solar energy source for outdoor use, provided it is sheltered from water.

How to clean the charger?

Clean the housing regularly with a damp cloth. Do not use abrasive products or solvents. Make sure the charger is unplugged before cleaning.

What to do if the charger does not work?

First check the battery polarity, USB connection and power supply. If the problem persists, refer to the complete manual. Do not attempt to repair yourself; contact your dealer or Velleman after-sales service. The warranty covers manufacturing defects for 24 months.

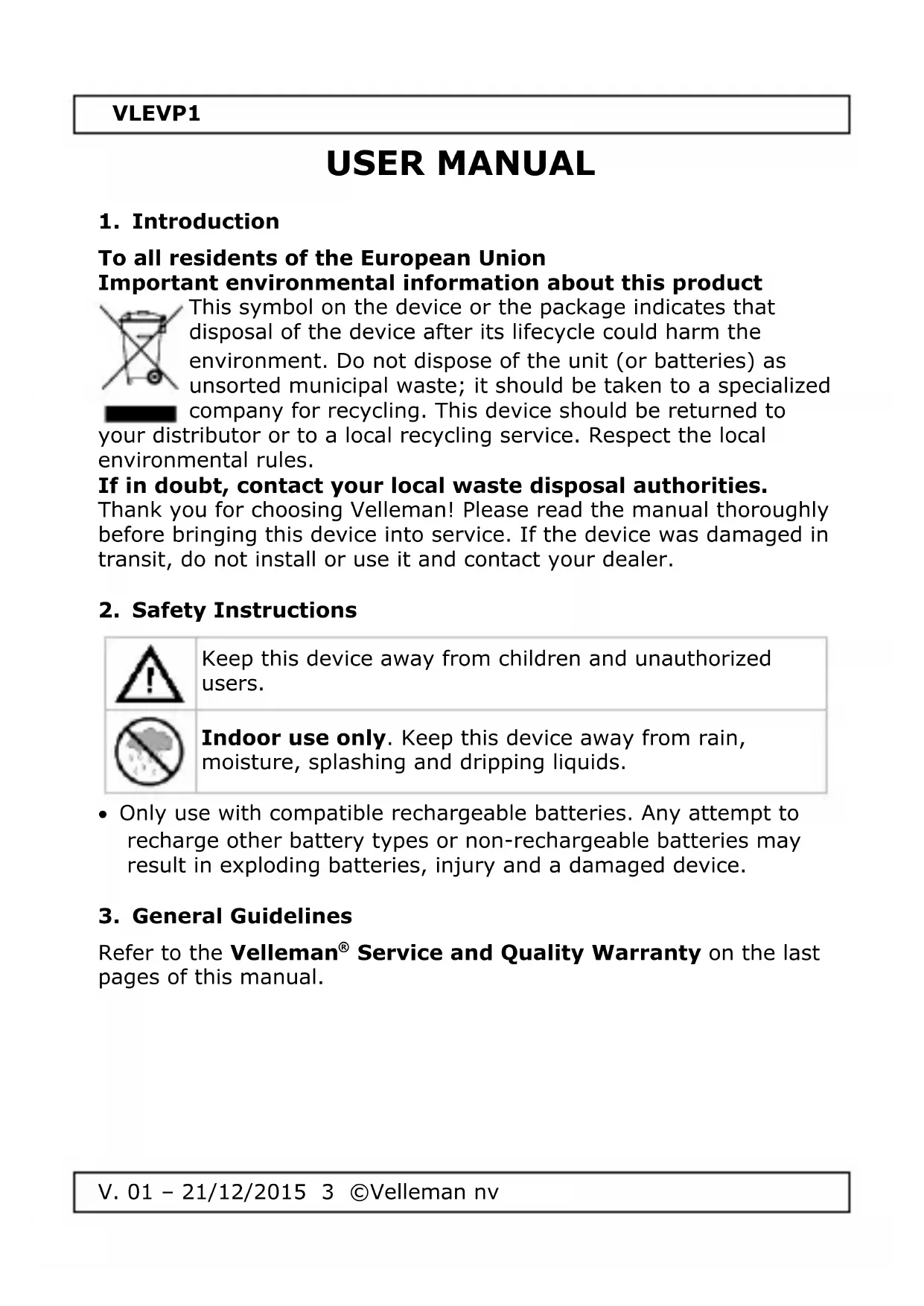

USER MANUAL VLEVP1 VELLEMAN

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to

your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

• Only use with compatible rechargeable batteries. Any attempt to recharge other battery types or non-rechargeable batteries may result in exploding batteries, injury and a damaged device.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

VLEVP1

4. Features

The maximum charging current of the VLEVP1 is 1 A current. Fully charging a 18650 battery takes 3 hours. The device automatically chooses the most suitable charging current (0.5 A or 1.0 A) to ensure the longest lifespan for your batteries. Just insert your battery in the charger and it will take care of the rest.

• user-friendly: automatically chooses the most suitable charging current (0.5 A, 1.0 A)
• micro USB port compatible with any adapter and any 5 V USB power including 5 V solar power, perfect for outdoor activities
• automatically stops charging when complete; with restart charging function, so you can keep the batteries in the charger overnight
• protections: reverse polarity and short circuit
• durable fireproof shell with perfect heat dissipation and high temperature resistance
• no temperature rise or overheating
• voltage cuts off at exactly 4.2V for maximum battery lifespan
• uses the best charging method (TC-CC-CV) for Li-ion batteries
• soft start can avoid sudden high-current impact
• save time and money: the mini charger can charge both 10440 and 26650 size battery, no need to buy many chargers
• 0 V activation function can rescue your over-discharged batteries (normally you need to throw away those over-discharged batteries, but the XTAR chargers allow you to rescue and reuse them)

5. Operation

Charging

1. Before charging your batteries, check that the battery types are compatible with the VLEVP1.
2. Connect the charger to the power source using the included USB cable. The charger goes into stand-by.
3. Insert the battery into the charging slot. Mind the polarity. Charging starts automatically.
4. The VLEVP1 will stop charging when the battery is fully charged. Also, the LED will turn from red to green. Remove the battery from the charger.

VLEVP1

LED Indication

no LED on	reversed battery polarity
red LED on	battery being charged
	battery being activated
	short-circuit
green LED on	charging completed
	no battery inserted
	poor connection

Remarks

• The VLEVP1 is only for use with 10440 - 14500 - 14650 - 16340 - 17335 - 17500 - 17670 - 18350 - 18490 - 18500 - 18650 - 18700 - 22650 - 25500 - 26650 3.6 V and 3.7 V Li-ion batteries. Charging other battery types may be hazardous, and can damage the batteries and charger.
• Keep the VLEVP1 away from water and excessive dust.
• Do not disassemble the VLEVP1 as damage may result.
• Do not use a damaged VLEVP1.

Tips

• Because of different battery types, capacities and over-charge depths, the battery revive time may vary. Heavily over-discharged batteries may not be able to be revived.
• To top up a battery with a voltage of 4.0V or higher, insert the battery first before plugging in an AC adapter (not incl.). If you do the opposite, the charger may not charge the battery.
• It is recommended to remove the battery from the charger once charging has completed. If the battery is left in the charger, the charger will automatically restart the charging cycle when the battery voltage drops below 4.1 V.
• The VLEVP1 has an integrated short-circuit protection. Note that this protection only protects the charger but does not prevent the battery from short-circuiting internally.
• Specifications and features are subject to change. Please find the most recent description and specifications of the VLEVP1 on the Velleman website.

VLEVP1

6. Cleaning and Maintenance

This device does not need any particular maintenance. However, occasionally clean it with a damp cloth to keep it like new.

7. Technical Specifications

input. 5.0 VDC, 1000 mA

0.5 A constant current 500 ± 50 mA

1.0 A constant current 1000 ± 80 mA

cut-off voltage. 4.2 V ± 0.05 V

operation temperature. 0-40 °C

dimensions 92 x 27 x 26 mm

weight 24g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

sperspanning. 4.2 V ± 0.05 V

entree .5.0VCC,1000mA

0.5 A de courant constant 500 ± 50 mA

1.0 A de courant constant 1000 ± 80 mA

tension de coupure 4.2 V ± 0.05 V

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
