USER MANUAL PCAE 1001 PROFICOOK

Location of Controls 3
General Safety Instructions 34
Special Safety Instructions for this Machine 35
Designated use 35
Supplied parts 35
Unpacking the appliance 35
Description of the Parts 35
Preparations 35
Electric Connection 36
Operation of the Juicer 36
Cleaning 37
Storage 37
Troubleshooting 37
Technical Data 38
Disposal - Meaning of the "Wheelie Bin" Symbol 38

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If dam

age is found the device must not be used.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
  Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

Children and Frail Individuals

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
  Children should be supervised at all times in order to ensure that they do not play with the device.

Special Safety Instructions for this Machine

WARNING:

• Risk of cuts! The centrifuge sieve is sharp!
  If the rotating sieve is damaged, the device shall not be operated.
  Always use the supplied tamper. Do not insert your fingers or tools into the filler opening.
• Do not operate the mixer for more than 1 minute! Afterwards, let it cool for approximately 3 minutes before you use it again.
• Do not touch any moving parts of the machine and always wait for it to stop.
• The machine should only be used under supervision!
• Do not manipulate any of the safety switches!
• Do not remove the lid during operation.
• Do not put your fingers into the filler opening.

Designated use

This appliance is intended to extract juice from fruit and vegetables.

Do not use for too hard foodstuffs such as nuts or chocolate.

It is intended for the use in private households and similar applications.

It is only to be used as instructed in this user manual. The appliance is not intended for commercial use.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

The manufacturer shall not be liable for damages caused by not intended use.

Supplied parts

1 base device with motor
1 transparent cover
1 tamper
1 centrifuge sieve

1centrifuge housing
1 pomace container

Unpacking the appliance

1. Remove the device from its packaging.
2. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
3. Check the scope of deliveries for completeness.

i NOTE:

There may still be dust or production remains on the device. We recommend that you clean the device as described under "Cleaning".

Description of the Parts

1 Tamper
2 Filler opening
3 Transparent cover
4 Safety switch
5 Centrifugal sieve
6 Centrifuge casing
7 Drive wheel
8 Safety bracket
9 Control panel
10 Base device with motor
11 Pomace container

Preparations

For assembly, also refer to the illustrations on page 3.

1. Set the device so that the switch points towards you.
2. Tilt the safety handle to the right.
3. Attach the pulp container on the left side. In the next step it is secured by the collar of the centrifuge casing.
4. Attach the centrifuge casing on top of the base casing. The base casing has a recess. Here the spout of the centrifuge casing must be placed.

WARNING risk of cuts! The centrifugal sieve is sharp!

1. Place the centrifugal sieve on top of the drive wheel. Press it down. It clicks in place on the drive wheel.

2. Check the centrifugal sieve! Feel under the sieve edge. It should not loosen under slight tension.

3. Attach the transparent cover. It reaches all the way over the pulp container.

i NOTE

Your appliance is equipped with a safety switch (4). It prevents accidental motor start. Check the correct attachment of all components, centrifugal sieve and transparent cover.

1. Lock the safety bracket over the transparent cover.
2. Place the juice jug to the right of the appliance.
3. Ensure that the control knob is set to "OFF" position.

Electric Connection

• Before inserting the power plug into the outlet, check that the mains voltage to be used matches that of the device. You can find the required information on the nameplate.
• Connect the device only to a correctly installed safety socket for 220 - 240V 50Hz .

Operation of the Juicer

Display

Your automatic juicer is equipped with a display to read out the switch settings. It is best visible if you look at it horizontally.

Switch Settings

• Press the "P" button for the motor to start immediately with the highest speed.
• Turn the control knob from "OFF" to "ON" for the motor to start at level 1.
  Operation is in addition displayed with an icon.
  Use the control knob to select one of 9 levels.

Which level to select for which fruit?

Please see the following overview to answer this question.

1 - 2 Tomatoes, Melons

2 - 4 Plums, Pears (soft), Peaches, Man- goes (peeled), Kiwis (peeled)

4 - 6 Oranges (peeled)

6 - 8 Cucumber

9 Pineapple (peeled), Pears (hard), Car- rots, Celery, Apples

• Wash the fruit to be processed.
• Cut the fruit in pieces to fit through the filler opening.
• Remove larger pips and stems.

Extracting Juice

i NOTE:

The appliance is intended for short-term use. Allow a pause of 3 minutes after 1 minute of operation.

W

Check all accessories again for proper attachment before switching the appliance on.

1. Set the switch to the desired position. The motor starts running.
2. Insert the fruit pieces in the filler opening and push them down with the tamper. Please note! The tamper has a guideway in the filler opening.
3. The juice flows out at the right side of the casing. The pulp is collected in the pulp container.

I NOTE:

• Observe the juice jug. Stop operation in time to prevent overflowing.
• Small fruit, such as berries, are difficult to process with the centrifugal method. Use the berry press instead.

Stop Operation And Disassembly

1. Set the control knob to "OFF" position and wait until the centrifugal sieve has come to a complete standstill.

2. Disconnect from mains power supply.

3. Take the juice jug to the side and open the safety bracket.
4. Remove the transparent cover.
5. Remove the centrifugal sieve with the centrifuge casing. Use both hands to lift the centrifuge casing up.

WARNING risk of cuts! The centrifugal sieve has sharp knives! Only take hold of the outer plastic edge.

1. Lift the centrifugal sieve out of the centrifuge casing.

Cleaning

WARNING:

• Before cleaning always disconnect from mains power supply.
• Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.
  The centrifuge sieve is very sharp! Danger of injury!

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not leave the pulp to dry on the centrifugal sieve. The fine pores will clog and become useless.

Tip

• Remove residues in the centrifugal sieve immediately under running water. Use a dishwashing brush.
  For cleaning the outside of the machine use only a damp washing-up cloth.

Plunger, Transparent Cover, Centrifuge Sieve, Centrifuge Housing, Juice/Pulp Container

WARNING in regard to risk of cuts! The centrifuge sieve is sharp!

Clean these components in a rinsing bath.

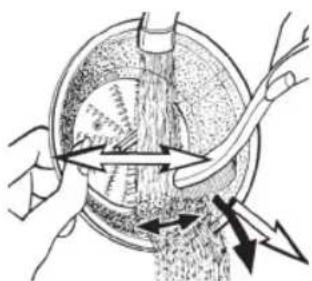

- Clean the centrifugal sieve with a dishwashing brush. See Figure.
Rinse with clean water.

Storage

• Clean the device as described. Let the accessories dry completely.
  We recommend that you store the device in its original packaging when it is not to be used for a longer period.
  Always store the device at a well ventilated and dry place outside the reach of children.

Troubleshooting

Malfunc-tion	Possible cause	Remedy
The device does not function.	The device is not supplied with power.	Check the outlet with a different device.
		Insert the power plug correctly.
		Check your domestic fuse.
	The safety handle has not been closed.	Check if all components were properly attached.
	The device is defective.	Contact our Service or a specialist.
The juice quantity is small.	Wrong fruit type.	Select a fruit type producing more juice.
The juice quantity is small.	Wrong fruit type.	Juice cannot be extracted from small berries in the centrifuge.
	Too much residue in the centrifuge sieve.	Clean the centri-fuge sieve.
Loud noise and imbalance during operation.	Bad assembly.	Check that all components have been installed correctly.
	Too much residue in the centrifuge sieve.	When processing larger quantities clean the centrifugal sieve in-between.

Disposal - Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

Technical Data

Model: PC-AE 1001

Power supply: 220-240 V~50 Hz

Nominal power consumption: 1000 W

Max. power consumption: 1200 W

Sound pressure level: 88.7 dB(A)

Protection class:

Short-time operation/Pause: 1/3 minutes

Net weight: approx. 4.45kg

Subject to technical changes without prior notice!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.
