USER MANUAL BHG 500W AEG

BHG 500 W BHG 750 W BHG 750 C BHG 1000 W

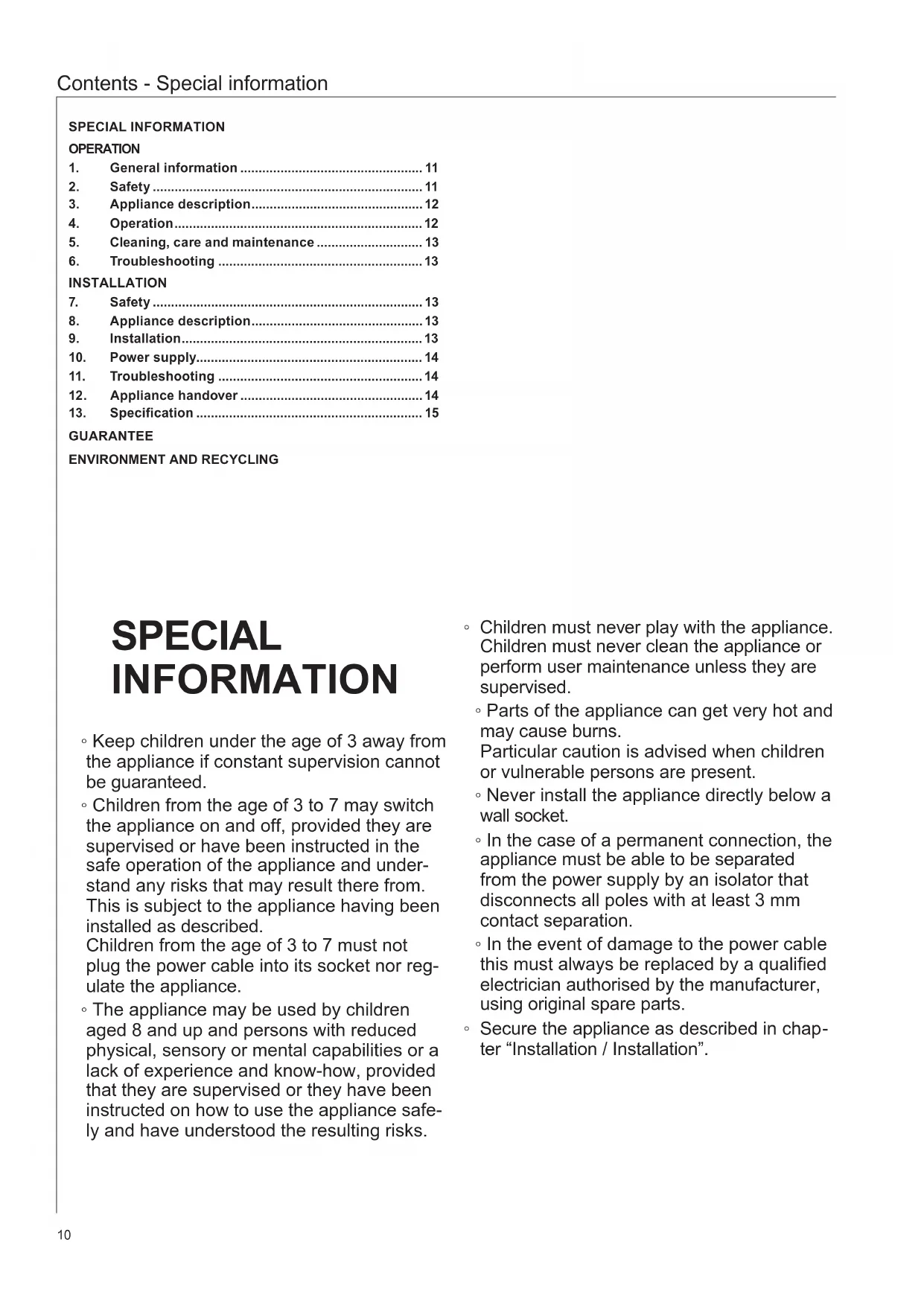

• Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed.

• Children from the age of 3 to 7 may switch the appliance on and off, provided they are supervised or have been instructed in the safe operation of the appliance and under- stand any risks that may result there from. This is subject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor reg- ulate the appliance.

• The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safe- ly and have understood the resulting risks.

• Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

• Parts of the appliance can get very hot and may cause burns. Particular caution is advised when children or vulnerable persons are present.

• Never install the appliance directly below a wall socket.

• In the case of a permanent connection, the appliance must be able to be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.

• In the event of damage to the power cable this must always be replaced by a qualied electrician authorised by the manufacturer, using original spare parts.

• Secure the appliance as described in chap- ter “Installation / Installation”.11 Operation - for users and contractors OPERATION

1. General information

The chapter "Operation" is intended for appliance users and qualied contractors.The chapter "Installation" is intended for qualied con-tractors. Note Read these instructions carefully before using the appliance and retain them for future reference.Pass on the instructions to a new user if required.1.1 Safety instructions1.1.1 Structure of safety instructions

KEYWORD Type of riskHere, possible consequences are listed that may re-sult from failure to observe the safety instructions. » Steps to prevent the risk are listed.1.1.2 Symbols, type of riskSymbol Type of risk

Burns(burns, scalding) 1.1.3 KeywordsKEYWORD MeaningDANGER Failure to observe this information will result in seri-ous injury or death.WARNING Failure to observe this information may result in seri-ous injury or death.CAUTION Failure to observe this information may result in non-serious or minor injury.1.2 Other symbols in this documentation Note General information is identified by the symbol shown on the left. » Read these texts carefully.Symbol Meaning

Material losses(appliance damage, consequential losses and envi-ronmental pollution)

Appliance disposal » This symbol indicates that you have to do something. The action you need to take is described step by step.1.3 Units of measurement Note All measurements are given in mm unless stated otherwise.

2.1 Intended useThe appliance is an electric direct heater for installation on a wall.This appliance has been designed as a booster heater for use between seasons. It is particularly suitable for bathrooms and drying bathrobes and towels.This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.2.2 General safety instructions

WARNING Injury º Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed. º Children from the age of 3 to 7 may switch the appliance on and off, provided they are super-vised or have been instructed in the safe opera-tion of the appliance and understand any risks that may result there from. This is subject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor regulate the appliance. º The appliance may be used by children aged 8 and up and persons with reduced physical, sensory or mental capabilities or a lack of expe-rience and know-how, provided that they are su-pervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. º Children must never play with the appliance. Children must never clean the appliance or per-form user maintenance unless they are super-vised. CAUTION BurnsParts of the appliance can get very hot and may cause burns. Particular caution is advised when children or vulnerable persons are present. Note Operate the appliance only when fully installed and with all safety equipment tted.

!12 Operation - for users and contractors

3. Appliance description

This appliance has been designed as a booster heater and is particularly suitable for bathrooms, as well as dry-ing and warming bathrobes and towels. You can place your towels at various heights.The appliance heats the room through natural convection and radiated warmth. The integral room thermostat keeps the room at the set temperature. For this, it is important that the appliance's heating output matches the room's heat demand. This only applies if no towels or bathrobes are hung on the appliance.The boost function enables the appliance to be operated at full heating output without temperature control for a limited period of 2 hours. You can program the time at which the appliance starts automatically every day.The appliance is ready for operation when it has been xed to the wall and plugged into the mains.

4.1 User interface description

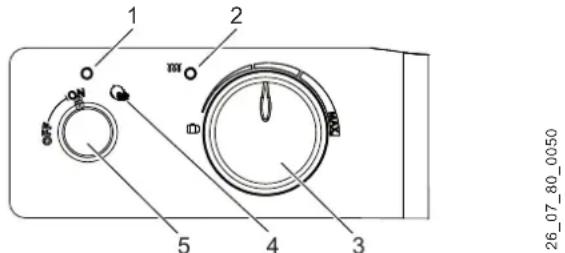

You operate the appliance by means of its user interface.26_07_80_0050 5 341 ON/OFF indicator2 Heat indicator3 Temperature selector4 "24h auto" setting range5 Rotary selector

4.2 Switching the appliance on

» Set the mode selector to "ON". » Set the required room temperature with the temper-ature selector. You can choose between 10 °C and 30 °C.The heat indicator lights up when the appliance starts to heat. The heat indicator goes off when the temperature set at the temperature selector is reached. Note If several appliances are installed in one room, a different temperature can be set at each one. Note To avoid excessive power consumption when win-dows are open, stop the appliance while venting.

4.3 2 h boost function

Enable » Switch the appliance on. » Press the mode selector for about a second.The ON/OFF indicator and the heat indicator illuminate. The appliance heats for 2 hours at full output.At the end of the 2 hours, the appliance returns to stand-ard operation with the temperature selector. The heat indicator and ON/OFF indicator extinguish. Disable » Press the mode selector for about a second.The heat indicator and ON/OFF indicator extinguish. The appliance returns to normal operation controlled by the temperature selector.

4.4 24 h automatic function

The 24 h automatic function repeats the 2 h boost function automatically every 24 hours. Enable Turn the mode selector fully clockwise to "24 h auto".The ON/OFF indicator and the heat indicator illuminate. The appliance heats for 2 hours at full output. At the end of the 2 hours, the appliance returns to stand-ard operation with the temperature selector. The heat indicator and ON/OFF indicator extinguish.The 2h boost function starts the following day 45 minutes before the time when the appliance was set to "24h auto". Example: You would like your bathroom to be at the required tem-perature at 07:00 h in the morning. » On the rst day at 07:00 h in the morning, set the ro-tary selector to "24h auto".The appliance immediately starts heating as per the 2 h boost function. The next day, the 2h boost function auto- matically starts at 06:15 h in the morning, in order to heat up the bathroom for 07:00 h. Interruption You can interrupt the 2 h boost function at any time with-out changing the start time. » Press the mode selector for about a second. The heat indicator and ON/OFF indicator extinguish. The appliance returns to normal operation controlled by the temperature selector.On the following day the 2 h boost function will resume from the usual start time. Disable » Turn the mode selector fully anti-clockwise to "ON".The heat indicator and ON/OFF indicator extinguish. The appliance returns to normal operation controlled by the temperature selector.

This function prevents the temperature setting from being changed unintentionally.If the childproof setting is active, the temperature and mode selectors are not operational. The ON/OFF indica-tor ashes if you adjust the mode selector/temperature selector. Enable » Press and hold the mode selector for more than three seconds. The ON/OFF indicator ashes consecutively ve times. This tells you that the childproof setting is active.You can also use the 2 h boost function as usual when childproong has been enabled. Disable » Press and hold the mode selector for more than three seconds. The ON/OFF indicator ashes consecutively ve times. This tells you that the childproof setting is disabled.13 Operation - Installation 4.6 Shutting down the system » Stop the appliance by turning the rotary selector to "OFF".The ON indicator goes off. » Pull the mains plug out of the wall socket.

5. Cleaning, care and

maintenance Clean the surfaces when cold with a soft cloth and ordi-nary cleaning products. Note Avoid abrasive or corrosive cleaning products.

6.1 Fault tableFault Cause RemedyThe heated air smells unpleasant.This can be caused by dust during com-missioning.The smell will dissipate within a few minutes.The appliance does not heat up.The MCB/fuse has responded/blown.Replace the fuse/reset the MCB. The appliance heats continuously.The appliance is sub-ject to a continuous draught.Remedy the cause of the draught.The temperature set-ting was changed.Set the required room temperature at the temper-ature selector.There is a fault with the power supply.Disconnect the appliance from the power supply for 10 minutes and then switch it back on. If the problem occurs regularly, arrange for your power supply utility to check the power supply.The 24 h automatic function is not per-formed.There was a power failure.Set the 24 h automatic function again.The setting at the op-erating mode selec-tor was changed.Set the 24 h automatic function again.The clocks have changed to summer/wintertime.Set the 24 h automatic function again.The elements at the very top and bottom don't get as warm as the rest of the appliance.The elements at the top have not com-pletely filled.The heating medium ex-pands when it gets warm. It takes a little longer for these elements to heat up.Dirty marks appear on the wall around the appliance.Dirty marks are caused by contam-inated air from the interior (candles, cig-arette smoke, poor ventilation etc.).Remedy the cause of any air contamination.If you cannot remedy the fault, notify your qualied con-tractor. To facilitate and speed up your request, provide the number from the type plate (000000-0000-000000).The type plate is located underneath the appliance on the right hand side. INSTALLATION

Only a qualied contractor should carry out installation, commissioning, maintenance and repair of the appliance.7.1 General safety instructionsWe guarantee trouble-free function and operational relia-bility only if original accessories and spare parts intended for the appliance are used.7.2 Instructions, standards and regulations Note Observe all applicable national and regional regula-tions and instructions.

8. Appliance description

8.1 Standard delivery ◦ Wall mounting bracket with xing materials ◦ 2 bathrobe hooksThe appliance is delivered fully wired.

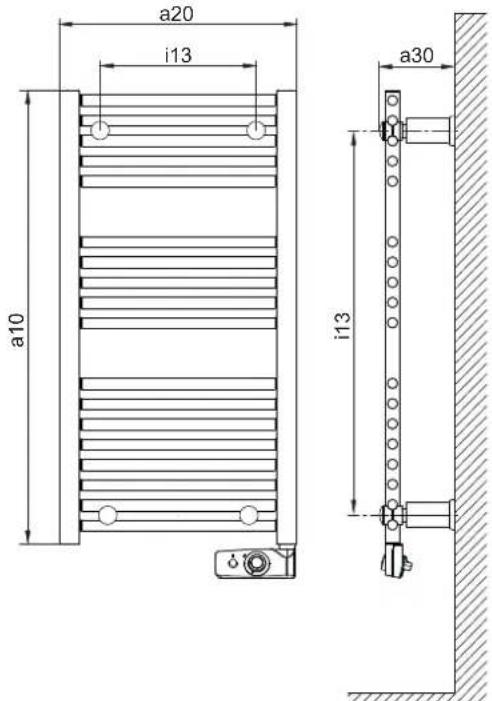

9.1 Installation site

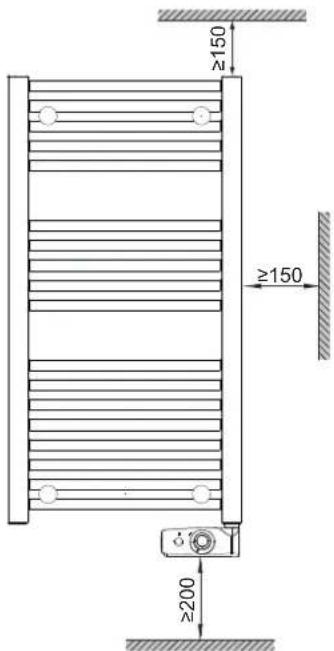

Material lossesObserve the minimum clearances in chapter "Spec-ication".

Material lossesFit the appliance to a vertical wall that is tempera-ture-resistant to at least 80 °C.

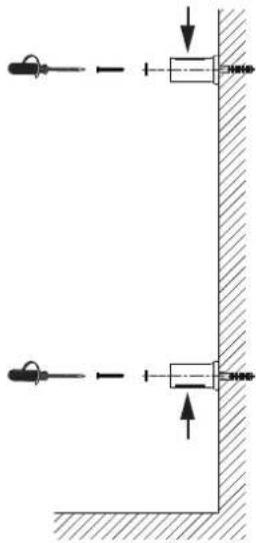

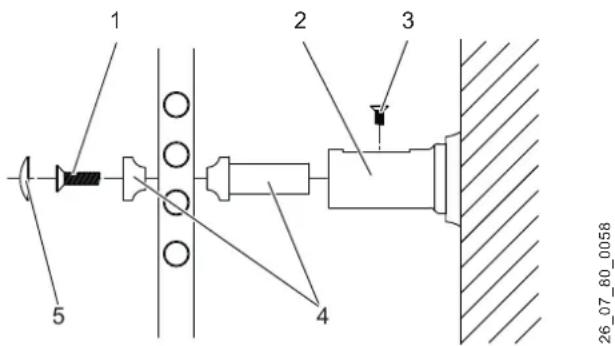

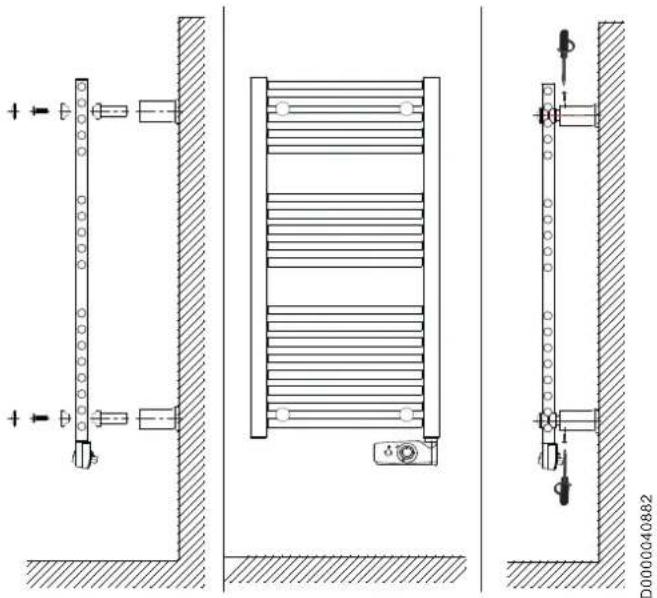

Material lossesNever install the appliance directly below a wall socket.9.2 Wall mounting Note Observe the dimensions and minimum clearances in chapter "Specication". » Drill the holes and insert rawl plugs.26_07_80_0058 45321 Retainer screw2 Wall sleeve3 Lock screw4 Retainer5 Cap14 Installation - for contractors 26_07_80_0054 Note Note the alignment of the wall sleeves. » Use screws to secure the wall sleeves. » Secure the retainers to the rungs. Do not yet tighten the retainers.26_07_80_0056 » Fit the wall mounting bracket. For this, observe the slot position. The slot must point respectively up or down.D0000040882 » Assemble the appliance and wall mounting bracket. » Insert and tighten the screws to secure the appliance.

9.3 Fitting the bathrobe hooks

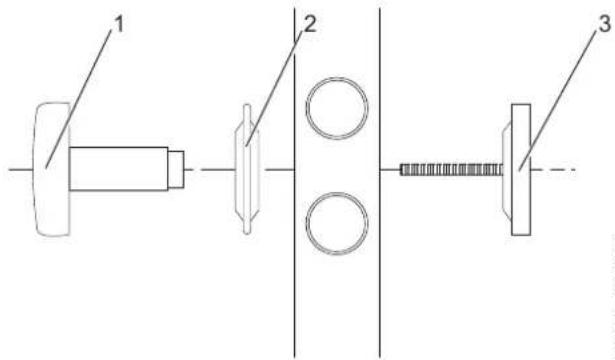

26_07_80_00551 321 Bathrobe hook2 Washer3 Bathrobe hook backplate » Fit the bathrobe hooks as shown.

WARNING ElectrocutionIn wet rooms such as shower rooms and kitchens, install the ush box at least 25 cm above the oor. WARNING ElectrocutionNever operate the appliance with an extension cable or a multiple socket.

Material lossesEnsure the appliance can be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation. For this, use contactors, mains isolators, fuses, etc. Installa- tion with a permanent power cable is not permitted.

Material lossesObserve the type plate. The specied voltage must match the mains voltage. Note Carry out all electrical connection and installation work in accordance with national and regional reg-ulations. Note Ensure a standard socket or junction box for a per-manent power supply is installed at a distance of at least 10 cm from the side of the appliance.

The power cable must only be replaced by a qualied contractor using original spare parts.

12. Appliance handover

» Explain the functions of the appliance to the user. » Draw special attention to the safety instructions. » Pass on the operating and installation instructions to the user.15 Installation - for contractors GUARANTEE

ENVIRONMENT AND RECYCLING

Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant-ed if the subsidiary has issued its own terms of guarantee. No other guarantee will be granted.We shall not provide any guarantee for appliances acquired in countries where we have no subsidiary to sell our products. This will not aect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.
