USER MANUAL VH 206 AEG

Operation and installation 11

Fan heater

26 07 31 0079

3.1 Scope of delivery

26 07 31 0077

26_07_31_0078

1. General information 12
2. Safety 12
3. Appliance description....13
4. Operation....13
5. Cleaning, care and maintenance 15
6. What to do if....15

INSTALLATION

1. Safety 16
2. Installation....16
3. Specification 17

GUARANTEE

ENVIRONMENT AND RECYCLING

SPECIAL INFORMATION

• Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed. Children from the age of 3 to 7 may switch the appliance on and off, provided they are supervised or have been instructed in the safe operation of the appliance and understand any risks that may result therefrom. This is subject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor regulate the appliance. The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and know-how, provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks. Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

• If operated on a time switch, the appliance may continue to heat the room unchecked. Ensure constant supervision if the appliance is used in a small room and the persons within that room cannot leave the room on their own. - Parts of the appliance can get very hot and may cause burns. Particular caution is advised when children or vulnerable persons are present. - Never cover the appliance. - Never install the appliance directly below a wall socket. • Install the appliance in such a way that the control equipment cannot be touched by a person in the bath or shower. • In the case of a permanent connection, the appliance must be able to be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation. • The power cable must only be replaced (for example if damaged) with the original spare part by a qualified electrician authorised by the manufacturer. - Secure the appliance as described in chapter "Installation / Installation".

OPERATION

1. General information

The chapters "Special Information" and "Operation" are intended for both the user and qualified contractors.

The chapter "Installation" is intended for qualified contractors.

Note

Read these instructions carefully before using the appliance and retain them for future reference. Pass on the instructions to any new user where appropriate.

1.1 Safety instructions

1.1.1 Layout of safety instructions

KEYWORD Type of risk

Here, possible consequences are listed that may result from failure to observe the safety instructions. Steps to prevent the risk are listed.

1.1.2 Symbols, type of risk

Symbol Type of risk
	Injury
	Electrocution
	Burns(burns, scalding)

1.1.3 Keywords

KEYWORD	Meaning
DANGER	Failure to observe this information will result in serious injury or death.
WARNING	Failure to observe this information may result in serious injury or death.
CAUTION	Failure to observe this information may result in non-serious or minor injury.

1.2 Other symbols in this documentation

Note

General information is identified by the adjacent symbol.

Read these texts carefully.

Symbol Meaning
	Material losses(appliance damage, consequential losses and environmental pollution)
	Appliance disposal

This symbol indicates that you have to do something. The action you need to take is described step by step.

1.3 Information on the appliance

Symbol Meaning
	Never cover the appliance

1.4 Units of measurement

Note

All measurements are given in mm unless stated otherwise.

2. Safety

2.1 Intended use

The appliance provides tempering and heating for small rooms or rooms used only for short periods.

This appliance is intended for domestic use. It can be used safely by untrained persons. The appliance can also be used in a non-domestic environment, e.g. in a small business, as long as it is used in the same way.

Any other use beyond that described shall be deemed inappropriate. Observation of these instructions and of instructions for any accessories used is also part of the correct use of this appliance.

2.2 General safety instructions

Observe the following safety instructions and regulations. Operate the appliance only when fully installed and with all safety equipment fitted.

WARNING Burns

Never operate this appliance...

• in rooms where the appliance is at risk of fire or explosion as a result of chemicals, dust, gases or vapours.
• in the direct proximity of pipes or receptacles that carry or contain flammable or explosive materials.
• if work such as laying cables, grinding or sealing is carried out in the installation room.
• if naphtha, sprays, floor polish or similar products are handled. Ventilate the room sufficiently before heating.
• if the minimum clearances to adjacent surfaces are not maintained.

WARNING Burns

Never place any flammable, combustible or insulating objects or materials, such as laundry, blankets, magazines, containers with floor polish or naphtha, spray cans or similar on the appliance or in direct proximity to it.

CAUTION Burns

Parts of the appliance can get very hot and may cause burns. Particular caution is advised when children or vulnerable persons are present.

WARNING: Injury

Keep children under the age of 3 away from the appliance if constant supervision cannot be guaranteed. Children from the age of 3 to 7 may switch the appliance on and off, provided they are supervised or have been instructed in the safe operation of the appliance and understand any risks that may result therefrom. This is subject to the appliance having been installed as described. Children from the age of 3 to 7 must not plug the power cable into its socket nor regulate the appliance.

The appliance may be used by children aged 8 and older and persons with reduced physical, sensory or mental capabilities or a lack of experience and knowledge,

provided that they are supervised or they have been instructed on how to use the appliance safely and have understood the resulting risks.

Children must never play with the appliance. Children must never clean the appliance or perform user maintenance unless they are supervised.

2.3 Safety clearances

For all objects, such as furniture, net curtains, curtains, textiles or other flammable or non-flammable materials, the following minimum clearances from the appliance, particularly the air outlet grille, must be maintained:

(see also chapter "Specification")

Minimum clearances
To the air outlet grille 500 mm
to the sides of the appliance 100 mm
to the top of the appliance 200 mm
to the bottom of the appliance 100 mm
to the appliance back panel 26 mm
to the socket 100 mm

The hot air must be able to escape without hindrance.

2.4 CE designation

The CE designation shows that the appliance meets all essential requirements according to the:

Electromagnetic Compatibility Directive (Council Directive 2004/108/EC)

• Low Voltage Directive (2006/95/EC)

3. Appliance description

The appliance is an electric direct heater for installation on a wall. It is suitable as, for example, a complete heating system in bathrooms, or for use between seasons and use as a booster heater in smaller rooms, such as hobby and guest rooms.

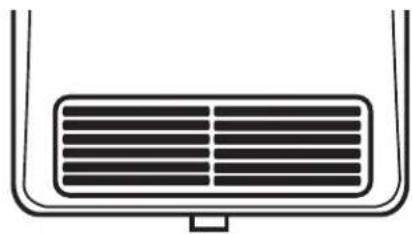

For heating, the room air is drawn in by the appliance fan via apertures in the back panel, heated by the heating element, and blown out evenly, without sensation of a draught, via the air outlet grille at the bottom of the appliance.

3.1 Standard delivery

• Rapid wall mounted heater with power cable and profiled plug
• Wall retainer
• Screws and rawl plugs • Operation and installation instructions

4. Operation

The required room temperature can be infinitely adjusted with the temperature selector. The set temperature of the room air is then constantly maintained by repeated, brief heating via the thermostat in the appliance.

If you want to use the appliance as a frost stat, turn the temperature selector anti-clockwise as far as it will go. In this position, the thermostat switches on the heating automatically if the room temperature drops to approx. 6°C.

Note

To shut down, unplug the appliance.

4.1 Appliance type controls

Rotary selector/appliance type	VH 206	VH 227	VH 229
Temperature selector	x	x	x
60 min time switch		x
24 hour timer			x

4.2 Temperature selector

The required temperature range can be set at the temperature selector. When the room temperature falls below the set value, full heating output switches on, and when the set room temperature is achieved, it switches off again.

4.3 60 min time switch

CAUTION Burns

The appliance could continue to heat the room unchecked if it is operated on a time switch. Ensure constant supervision if the appliance is used in a small room and the persons within that room cannot leave the room on their own.

The appliance operates in two output stages:

1. In controller mode: The temperature selector is operational; the appliance operates with the standard heating output of 1000 W.
2. In operation with the time switch: The appliance operates with full heating output until the end of the set time. During this period, the temperature selector is non-operational. After this the temperature selector takes control of the appliance again. The operating time selected can be interrupted at any point by turning back the time switch.

4.4 24 hour selection

CAUTION Burns

The appliance could continue to heat the room unchecked if it is operated on a time switch. Ensure constant supervision if the appliance is used in a small room and the persons within that room cannot leave the room on their own.

With the switch to the right of the timer, select one of three operating modes

1 Controller mode: In this mode the appliance is operated at the temperature selector. 2 Constant mode: The appliance heats continuously with 2000 W until controller mode or timer mode is reselected. 3 Timer mode switch: The appliance switches on and off in the pre-programmed heating times. During the heating time the appliance heats continuously (2000 W). During the switch-off time, operate the appliance at the temperature selector.

4.4.1 Operating the timer

Standard time setting

Scale on the timer = 24 hour clock.

Set the marking to the current time.

Programming the heating time

Note

To adjust the heating time, set the operating mode to "Timer mode".

1 tab = 30 minutes' heating time

Specify the beginning and end of the heating time or times. Then pull up the tabs opposite the corresponding numbers.

1 tab up (30 minutes): Heating starts: 12:30 h - heating ends: 13:00 h

2 tabs up (60 minutes): Heating starts: 05:30 h - heating ends: 06:30 h

Note

To achieve energy-saving operation in timer mode, at the temperature selector set a lower standard temperature for the switch-off time than the required room temperature. During the heating time the appliance heats with 2000 W. To save energy, never select a longer than necessary usage time.

5. Cleaning, care and maintenance

If a pale brownish discolouration appears on the appliance casing, wipe this off as soon as possible with a damp cloth. Clean the appliance when cold with ordinary cleaning products. Avoid abrasive or corrosive cleaning products.

Material losses

Never spray cleaning spray into the air slot.

6. What to do if...

...the appliance does not heat:

» Check the temperature set at the appliance and the MCB/fuse in your fuse box.

If you cannot remedy the fault, notify your qualified contractor. To facilitate and speed up your request, provide the number from the type plate (000000-0000-000000).

26.07.31.0083

INSTALLATION

7. Safety

7.1 Country-specific safety information

Observe these installation instructions during installation. We guarantee trouble-free function and operational reliability only if the original accessories and spare parts intended for the appliance are used.

7.2 Instructions, standards and regulations

WARNING Electrocution

All electrical connection and installation work must be carried out in accordance with VDE regulations (DIN VDE 0100) [or local regulations], the rules of your local power supply utility, and relevant national and local regulations.

WARNING Electrocution

Never use a permanently installed connecting cable. The appliance must be able to be separated from the power supply by an isolator that disconnects all poles with at least 3 mm contact separation.

WARNING: Electrocution

Install the appliance in such a way that control equipment cannot be touched by a person in the bath or shower.

Material losses

Only fit the appliance to a vertical wall that is temperature-resistant to at least 85 °C. Maintain minimum clearances to adjacent surfaces. Never install the appliance directly below a wall socket.

Material losses

Only remove appliance and accessory packaging at the installation location; look out for the separate pack. When unpacking, ensure that no accessory parts are left in the packaging.

Material losses

Observe the type plate. The specified voltage must match the mains voltage.

Note

Observe the Building and Garage Regulations [or local regulations].

Note

When installing the heating appliance in rooms with a bath and/or shower, observe the safety zone according to VDE 0100, section 701, in accordance with the details on the appliance type plate.

8. Installation

8.1 Appliance installation

To secure the appliance, proceed as follows:

Unpack the appliance carefully. Drill the fixing holes in accordance with the dimensioned drawing in the chapter "Specification". Insert the rawl plugs. The rawl plugs supplied are suitable for solid walls. For other wall structures, suitable rawl plugs must be provided on site.

Insert the first screw into the top hole drilled in the wall, leaving approx. 3 mm of the screw protruding. Then hook the appliance into the gap between the wall and the screw head.

Using the second screw, secure the additional wall retainer, located at the lower rear part of the appliance, to the wall. The appliance can now no longer be removed from the wall.

8.2 Power supply

Select a power cable with an adequate cross-section.

Install a socket for permanent power supply at a distance of at least 10 cm from the side of the appliance.

The power cable must not touch the appliance. Trim it so it leads directly to the socket. Then strip the wires and cut the cores to size.

9. Specification

9.1 Data table

Type VH 206 VH 227 VH 229
Dimensions H / W / D mm 400 / 300 / 105 400 / 300 / 105 400 / 300 / 105
Weight kg 4.6 4.7 4.7
Supply		1/N/PE ~ 230 V 50 Hz	1/N/PE ~ 230 V 50 Hz	1/N/PE ~ 230 V 50 Hz
Output	W	2000	2000	2000
Temperature setting range	°C	5 ... 30	5 ... 30	5 ... 30
Frost protection	≈ °C	6	6	6
Time switch			60 min timer	24 hour timer
Protection rating		IP 23 (splash-proof)	IP 23 (splash-proof)	IP 23 (splash-proof)
Certifications		see appliance type plate	see appliance type plate	see appliance type plate

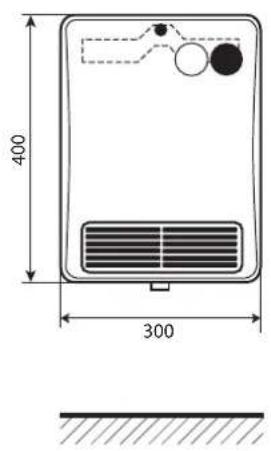

9.2 Dimensions

Guarantee

The warranty conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products, it is increasingly the case that warranties can only be issued by those subsidiaries. Such warranties are only granted if the subsidiary has issued its own terms of warranty. No other warranty will be granted.

We shall not provide any warranty for appliances acquired in countries where we have no subsidiary to sell our products. This will not affect warranties issued by any importers.

Environment and recycling

We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations.

SPECIAL INFORMATION

OPERATION

WARNING: BURN HAZARD

Urzhumskaya street 4,

building 2

129343 Moscow

Tel. [phone]

Fax [phone]

Switzerland

STIEBEL ELTRON AG

Industrie West

Gass 8

5242 Lupfig

Tel. [phone]

Fax [phone]

Subject to errors and technical changes!
