OBJ_BUCH-2041-002.book Page 7 Monday, January 12, 2015 10:35 AM8 | Deutsch 1 609 92A 14Z | (12.1.15) Bosch Power Tools Wartung und Reinigung Halten Sie das Elektrowerkzeug und die Lüftungs- schlitze sauber, um gut und sicher zu arbeiten. Säubern Sie nach jedem Gebrauch das Einsatzwerkzeug, die Werkzeugaufnahme und die Lüftungsschlitze des Elektro- werkzeugs sowie die Lüftungsschlitze des Akkus. Kundendienst und Anwendungs- beratung Der Kundendienst beantwortet Ihre Fragen zu Reparatur und Wartung Ihres Produkts sowie zu Ersatzteilen. Explosions- zeichnungen und Informationen zu Ersatzteilen finden Sie auch unter: www.bosch-pt.com Das Bosch-Anwendungsberatungs-Team hilft Ihnen gerne bei Fragen zu unseren Produkten und deren Zubehör. www.powertool-portal.de, das Internetportal für Handwer- ker und Heimwerker. Geben Sie bei allen Rückfragen und Ersatzteilbestellungen bitte unbedingt die 10-stellige Sachnummer laut Typenschild des Elektrowerkzeuges an. Deutschland Robert Bosch GmbH Servicezentrum Elektrowerkzeuge Zur Luhne 2 37589 Kalefeld – Willershausen Unter www.bosch-pt.com können Sie online Ersatzteile bestellen oder Reparaturen anmelden. Kundendienst: Tel.: (0711) 40040480 Fax: (0711) 40040481 E-Mail: Servicezentrum.Elektrowerkzeuge@de.bosch.com Anwendungsberatung: Tel.: (0711) 40040480 Fax: (0711) 40040482 E-Mail: Anwendungsberatung.pt@de.bosch.com Österreich Unter www.bosch-pt.at können Sie online Ersatzteile bestellen. Tel.: (01) 797222010 Fax: (01) 797222011 E-Mail: service.elektrowerkzeuge@at.bosch.com Schweiz Unter www.bosch-pt.com/ch/de können Sie online Ersatz- teile bestellen. Tel.: (044) 8471511 Fax: (044) 8471551 E-Mail: Aftersales.Service@de.bosch.com Farbclip montieren/demontieren 12 209 Bithalter montieren/demontieren 13 209 Mechanische Gangwahl 14 209 Ein-/Ausschalten 15 210 Akku-Ladezustand prüfen 16 210 Zubehör auswählen – 211 – 212 Handlungsziel Bild Beachten Sie Seite OBJ_BUCH-2041-002.book Page 8 Monday, January 12, 2015 10:35 AMEnglish | 9 Bosch Power Tools 1 609 92A 14Z | (12.1.15) Luxemburg Tel.: +32 2 588 0589 Fax: +32 2 588 0595 E-Mail: outillage.gereedschap@be.bosch.com Transport Die enthaltenen Li-Ionen-Akkus unterliegen den Anforderun- gen des Gefahrgutrechts. Die Akkus können durch den Benut- zer ohne weitere Auflagen auf der Straße transportiert wer- den. Beim Versand durch Dritte (z.B.: Lufttransport oder Spediti- on) sind besondere Anforderungen an Verpackung und Kenn- zeichnung zu beachten. Hier muss bei der Vorbereitung des Versandstückes ein Gefahrgut-Experte hinzugezogen wer- den. Versenden Sie Akkus nur, wenn das Gehäuse unbeschädigt ist. Kleben Sie offene Kontakte ab und verpacken Sie den Ak- ku so, dass er sich nicht in der Verpackung bewegt. Bitte beachten Sie auch eventuelle weiterführende nationale Vorschriften. Entsorgung Elektrowerkzeuge, Akkus, Zubehör und Verpackun- gen sollen einer umweltgerechten Wiederverwertung zugeführt werden. Werfen Sie Elektrowerkzeuge und Akkus/Batterien nicht in den Hausmüll! Nur für EU-Länder: Gemäß der europäischen Richtlinie 2012/19/EU müssen nicht mehr gebrauchs- fähige Elektrowerkzeuge und gemäß der eu- ropäischen Richtlinie 2006/66/EG müssen defekte oder verbrauchte Akkus/Batterien getrennt gesammelt und einer umweltge- rechten Wiederverwendung zugeführt werden. Nicht mehr gebrauchsfähige Akkus/Batterien können direkt abgegeben werden bei: Deutschland Recyclingzentrum Elektrowerkzeuge Osteroder Landstraße 3 37589 Kalefeld Schweiz Batrec AG 3752 Wimmis BE Änderungen vorbehalten. English General Power Tool Safety Warnings Read all safety warnings and all in- structions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seri- ous injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool. Work area safety Keep work area clean and well lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an exten- sion cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoid- able, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while op- erating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. WARNING OBJ_BUCH-2041-002.book Page 9 Monday, January 12, 2015 10:35 AM10 | English 1 609 92A 14Z | (12.1.15) Bosch Power Tools Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or en- ergising power tools that have the switch on invites acci- dents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a ro- tating part of the power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewel- lery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust ex- traction and collection facilities, ensure these are con- nected and properly used. Use of dust collection can re- duce dust-related hazards. Power tool use and care Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or bind- ing of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tool, accessories and tool bits etc. in ac- cordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Battery tool use and care Recharge only with the charger specified by the manu- facturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another bat- tery pack. Use power tools only with specifically designated bat- tery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from oth- er metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addition- ally seek medical help. Liquid ejected from the battery may cause irritation or burns. Service Have your power tool serviced by a qualified repair per- son using only identical replacement parts. This will en- sure that the safety of the power tool is maintained. Safety Warnings for Drills and Screw- drivers Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accesso- ry and fasteners contacting a “live” wire may make ex- posed metal parts of the power tool “live” and could give the operator an electric shock. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility com- pany for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property dam- age. Switch off the power tool immediately when the tool in- sert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: — the power tool is subject to overload or — it becomes wedged in the workpiece. Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws. Secure the workpiece. A workpiece clamped with clamp- ing devices or in a vice is held more secure than by hand. Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Do not open the battery. Danger of short-circuiting. Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion. In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. OBJ_BUCH-2041-002.book Page 10 Monday, January 12, 2015 10:35 AMEnglish | 11 Bosch Power Tools 1 609 92A 14Z | (12.1.15) Use the battery only in conjunction with your Bosch product. This measure alone protects the battery against dangerous overload. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. Additional Safety and Working Instructions Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health and cause allergic reactions, lead to res- piratory infections and/or cancer. Materials containing asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Prevent dust accumulation at the workplace. Dusts can easily ignite. Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and stor- age, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries. The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. Read the operating instructions of the battery charger. Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off. Adjust the gear switch only when the machine is at a complete stop. Always push the gear selector through to the stop. Oth- erwise, the machine can become damaged. To save energy, only switch the power tool on when using it. Symbols The following symbols are important for reading and under- standing the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner. Symbol Meaning GSR14,4V-EC FC2/GSR18V-EC FC2: Cordless Drill Driver Grey-marked area: Handle (insulated gripping surface) Article number Read all safety warnings and all instructions Before any work on the machine itself, remove the battery Always wear ear protection. Movement direction Reaction direction Drilling and screwdriving Low speed High speed Switching On Switching Off Right/left rotation Battery Capacity U Rated voltage

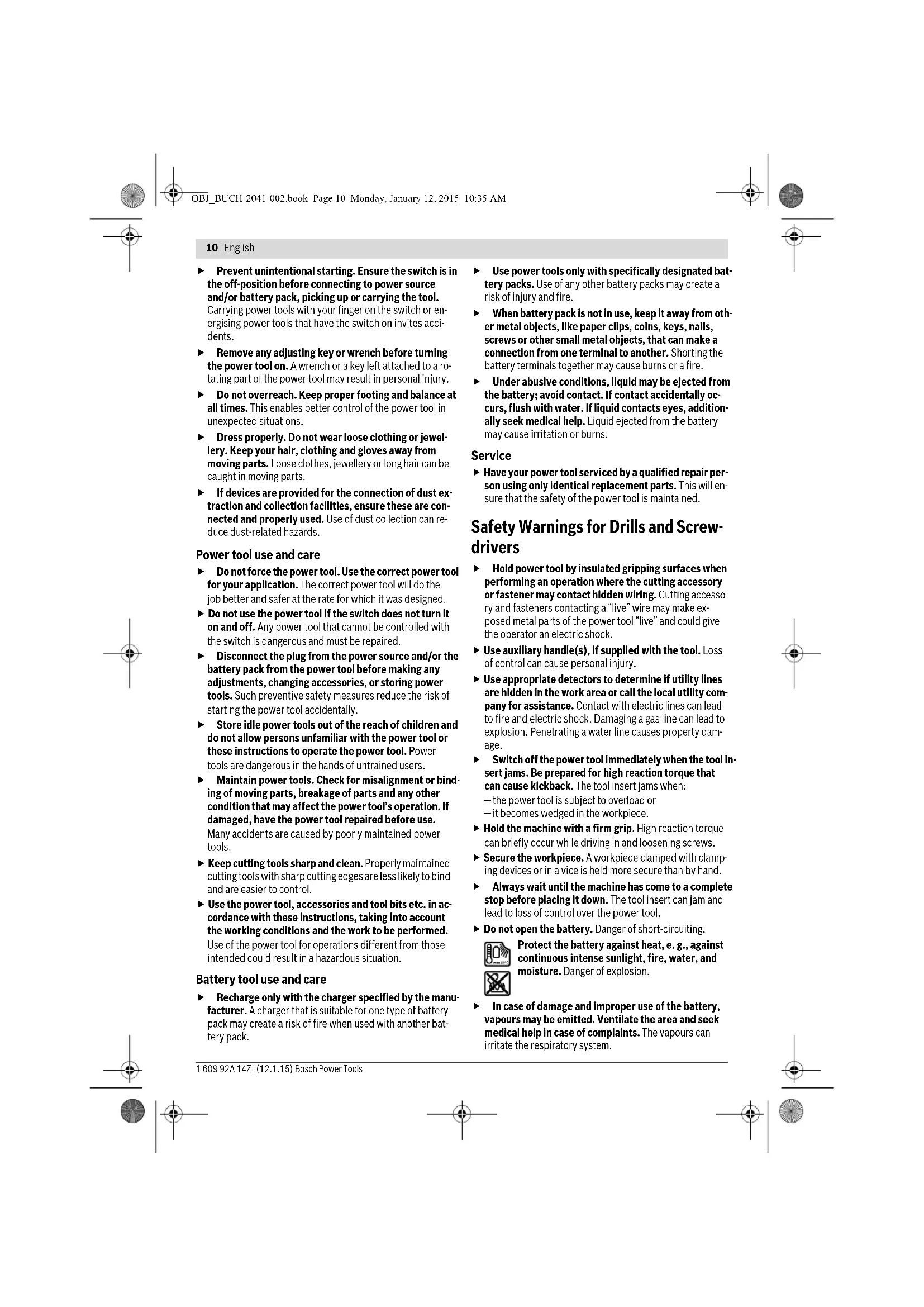

2 No-load speed (2. gear) M Maximum torque according to ISO 5393 Metal Wood Ø Drilling diameter, max. Ø Max. screw dia. Chuck clamping range Tool holder Weight according to EPTA-Procedure 01/2003 Symbol Meaning OBJ_BUCH-2041-002.book Page 11 Monday, January 12, 2015 10:35 AM12 | English 1 609 92A 14Z | (12.1.15) Bosch Power Tools Delivery Scope Cordless drill/driver, keyless chuck (GFA FC2). The battery, application tool and other accessories shown or described are not part of the standard delivery scope. A complete overview of accessories can be found in our ac- cessories program. Intended Use The power tool is intended for driving and loosening screws and for drilling in wood, metal and plastic. The power tool can be used with an angle drill head (GWA FC2) (accessory), off-set angle adapter (GEA FC2) (accessory) or keyless chuck (GFA FC2) (delivery scope). Angle drill head (GWA FC2), off-set angle adapter (GEA FC2) and keyless chuck (GFA FC2) may be used only with the cord- less drill/drivers GSR 14,4 V-EC FC2 and GSR 18 V-EC FC2. Note: A torque must be pre-selected when driving or tightening met- ric screws using the angle drill head (GWA FC2). Otherwise there is a risk of gearbox damage. The light of this power tool is intended to illuminate the power tool’s direct area of working operation and is not suitable for household room illumination. Technical Data The technical data of the machine are listed in the table on page 203. Declaration of Conformity We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with all rele- vant provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2004/108/EC, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-1, EN 60745-2-2. Technical file (2006/42/EC) at: Robert Bosch GmbH, PT/ETM9, 70764 Leinfelden-Echterdingen, GERMANY Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY Leinfelden, 12.01.2015 Noise/Vibration Information The measured values of the machine are listed in the table on page 203. Sound emission values determined according to EN 60745-2-1. Vibration total values a

(triax vector sum) and uncertainty K determined according to EN 60745. The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work pat- terns. Audible engagement (multiple)

• Value dependent of the battery pack being used

Permitted ambient temperature during charging

Permitted ambient temperature during operation

and storage (** Limited performance at temperatures <0 °C) Recommended batteries Recommended chargers Symbol Meaning Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9 OBJ_BUCH-2041-002.book Page 12 Monday, January 12, 2015 10:35 AMEnglish | 13 Bosch Power Tools 1 609 92A 14Z | (12.1.15) Mounting and Operation The following table indicates the action objectives for mounting and operation of the power tool. The instructions for each action objective are shown aside. Depending on the type of application, various instruction combinations are required. Observe the safety instructions. Action Figure Please observe Page Removing the battery 1 204 Inserting the battery 2 204 Mounting application tools 3 204 Reversing the rotational direction 4 205 Setting the torque 5 205 Setting the torque (only when using GWA FC2 angle drill head)

Selecting the drilling position 7 206 Mounting the keyless chuck (GFA FC2) or off-set angle adapter (GEA FC2) or angle drill head (GWA FC2)

Mounting the application tool in the keyless chuck (GFA FC2), off-set angle adapter (GEA FC2) or angle drill head (GWA FC2)

Changing the position of engagement (GEA FC2)

Changing the position of engagement (GWA FC2)

OBJ_BUCH-2041-002.book Page 186 Monday, January 12, 2015 10:35 AM한국어 | 187 Bosch Power Tools 1 609 92A 14Z | (12.1.15)

(GEA FC2)(GFA FC2) (GWA FC2)

(GFA FC2) (GWA FC2)(GEA FC2)

(GEA FC2)(GWA FC2) (GFA FC2)

(GFA FC2) (GEA FC2) (GWA FC2)

(GFA FC2) (GEA FC2) (GWA FC2)

(GEA FC2)(GWA FC2) (GFA FC2)

OBJ_BUCH-2041-002.book Page 204 Monday, January 12, 2015 10:35 AM| 205 Bosch Power Tools 1 609 92A 14Z | (12.1.15)

OBJ_BUCH-2041-002.book Page 206 Monday, January 12, 2015 10:35 AM| 207 Bosch Power Tools 1 609 92A 14Z | (12.1.15)

OBJ_BUCH-2041-002.book Page 207 Monday, January 12, 2015 10:35 AM1 609 92A 14Z | (12.1.15) Bosch Power Tools 208 |

OBJ_BUCH-2041-002.book Page 208 Monday, January 12, 2015 10:35 AM| 209 Bosch Power Tools 1 609 92A 14Z | (12.1.15)

OBJ_BUCH-2041-002.book Page 209 Monday, January 12, 2015 10:35 AM1 609 92A 14Z | (12.1.15) Bosch Power Tools 210 |
