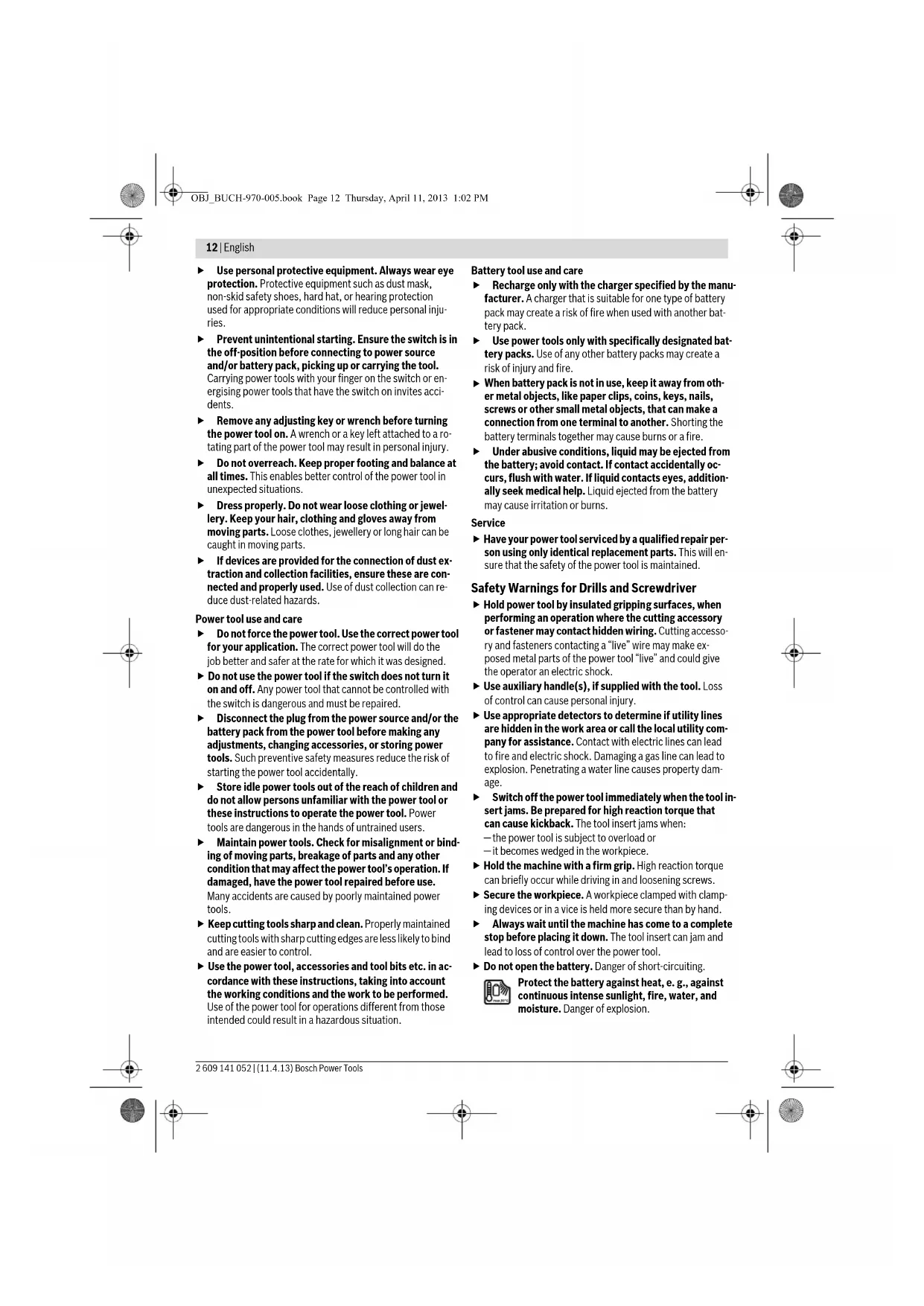

When battery pack is not in use, keep it away from oth- er metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally oc- curs, flush with water. If liquid contacts eyes, addition- ally seek medical help. Liquid ejected from the battery may cause irritation or burns. Service Have your power tool serviced by a qualified repair per- son using only identical replacement parts. This will en- sure that the safety of the power tool is maintained. Safety Warnings for Drills and Screwdriver Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accesso- ry and fasteners contacting a “live” wire may make ex- posed metal parts of the power tool “live” and could give the operator an electric shock. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility com- pany for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property dam- age. Switch off the power tool immediately when the tool in- sert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: — the power tool is subject to overload or — it becomes wedged in the workpiece. Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws. Secure the workpiece. A workpiece clamped with clamp- ing devices or in a vice is held more secure than by hand. Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool. Do not open the battery. Danger of short-circuiting. Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion. OBJ_BUCH-970-005.book Page 12 Thursday, April 11, 2013 1:02 PMEnglish | 13 Bosch Power Tools 2 609 141 052 | (11.4.13) In case of damage and improper use of the battery, va- pours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irri- tate the respiratory system. Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload. Use only original Bosch batteries with the voltage list- ed on the nameplate of your power tool. When using oth- er batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries. Product Description and Specifica- tions Read all safety warnings and all instruc- tions. Failure to follow the warnings and in- structions may result in electric shock, fire and/or serious injury. While reading the operating instructions, unfold the graphics page for the machine and leave it open. Intended Use The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic. The light of this power tool is intended to illuminate the power tool’s direct area of working operation and is not suitable for household room illumination Product Features The numbering of the product features refers to the illustra- tion of the machine on the graphics page. 1 Keyless chuck 2 Torque presetting ring 3 Gear selector 4 Battery unlocking button* 5 Battery pack* 6 Rotational direction switch 7 On/Off switch 8 Battery charge-control indicator 9 “PowerLight” 10 Handle (insulated gripping surface) 11 Universal bit holder* 12 Screwdriver bit* *Accessories shown or described are not part of the standard de- livery scope of the product. A complete overview of accessories can be found in our accessories program. Technical Data Noise/Vibration Information Measured sound values determined according to EN 60745. Typically the A-weighted sound pressure level of the product is 71 dB(A). Uncertainty K=3 dB. The noise level when working can exceed 80 dB(A). Wear hearing protection! Vibration total values a

(triax vector sum) and uncertainty K determined according to EN 60745: Drilling into metal: a

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with anoth- er. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main ap- plications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly in- crease the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may sig- nificantly reduce the exposure level over the total working pe- riod. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep hands warm, organise work patterns. Declaration of Conformity We declare under our sole responsibility that the product de- scribed under “Technical Data” is in conformity with the fol- lowing standards or standardisation documents: EN 60745 according to the provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2004/108/EC, 2006/42/EC. Cordless Drill/Driver GSR 10,8-2-LI Article number 3 601 H68 1.. Rated voltage V= 10.8 No-load speed –1st gear –2nd gear min

0–400 0 – 1300 Max. torque for hard/soft screw- driving application according to ISO 5393 Nm 30/15* Max. drilling dia. – Steel – Wood

Assembly Battery Charging (see figure A) Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lith- ium ion battery of your power tool. Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time. The lithium ion battery can be charged at any time without re- ducing its service life. Interrupting the charging procedure does not damage the battery. The Lithium-Ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates. Do not continue to press the On/Off switch after the machine has been automatically switched off. The bat- tery can be damaged. To remove the battery 5 press the unlocking buttons 4 and pull out the battery downwards. Do not exert any force. The battery is equipped with a NTC temperature control which allows charging only within a temperature range of be- tween 0 °C and 45 °C. A long battery service life is achieved in this manner. Observe the notes for disposal. Changing the Tool (see figure B) Before any work on the machine itself (e. g. mainte- nance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch. The drill spindle is locked when the On/Off switch 7 is not pressed. This makes quick, convenient and easy changing of the tool in the drill chuck possible. Open the keyless chuck 1 by turning in rotation direction , until the tool can be inserted. Insert the tool. Firmly tighten the collar of the keyless chuck 1 by hand in ro- tation direction . Dust/Chip Extraction Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders. Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treat- ment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists. – Provide for good ventilation of the working place. – It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked. Prevent dust accumulation at the workplace. Dusts can easily ignite. Operation Starting Operation Inserting the battery Use only original Bosch lithium ion batteries with the voltage listed on the nameplate of your power tool. Us- ing other batteries can lead to injuries and pose a fire haz- ard. Note: Use of batteries not suitable for the machine can lead to malfunctions of or cause damage to the power tool. Set the rotational direction switch 6 to the centre position in order to avoid unintentional starting. Insert the charged bat- tery 5 into the handle so that it can be felt to engage and faces flush against the handle. Reversing the rotational direction (see figure C) The rotational direction switch 6 is used to reverse the rota- tional direction of the machine. However, this is not possible with the On/Off switch 7 actuated. Right Rotation: For drilling and driving in screws, push the rotational direction switch 6 left to the stop. Left Rotation: For loosening and unscrewing screws and nuts, press the rotational direction switch 6 through to the right stop. Setting the torque With the torque presetting ring 2 the required torque setting can be preselected in 20 steps. With the correct setting, the insert tool is stopped as soon as the screw is screwed flush in- to the material or when the adjusted torque is reached. The safety clutch is deactivated in the “ ” position, e. g. for drilling. Select a higher setting or switch to the “ ” symbol when un- screwing screws. Gear selection, mechanical Actuate the gear selector 3 only when the machine is at a standstill. Two speed ranges can be preselected with the gear selector

Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9 OBJ_BUCH-970-005.book Page 14 Thursday, April 11, 2013 1:02 PMEnglish | 15 Bosch Power Tools 2 609 141 052 | (11.4.13) Gear I: Low speed range; for screwdriving or working with large drill- ing diameter. Gear II: High speed range; for working with small drilling diameter. If the gear selector 3 cannot be pushed through to the stop, lightly turn the drill chuck with drill. Switching On and Off To start the machine, press the On/Off switch 7 and keep it pressed. The power light 9 lights up when the On/Off switch 7 is slightly or completely pressed, and allows the work area to be illumi- nated when lighting conditions are insufficient. To switch off the machine, release the On/Off switch 7. To save energy, only switch the power tool on when using it. Adjusting the Speed The speed of the switched on power tool can be variably ad- justed, depending on how far the On/Off switch 7 is pressed. Light pressure on the On/Off switch 7 results in a low rotation- al speed. Further pressure on the switch results in an increase in speed. Fully automatic spindle locking (Auto-lock) When the On/Off switch 7 is not pressed, the drill spindle and thus the tool holder are locked. This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriv- er. Run-on Brake When the On/Off switch 7 is released, the chuck brakes to a stop, thus preventing the run-on of the tool. When driving in screws, wait until the screw is screwed in flush with the material and then release the On/Off switch 7. By doing so, the head of the screw does not penetrate into the material. Battery Charge-control Indication The battery charge-control indicator 8 consists of three green LEDs, and indicates the charge condition of the battery for a few seconds when the On/Off switch 7 is pressed halfway or fully. Temperature Dependent Overload Protection When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature range of 0–70 °C is exceeded, the speed is re- duced. The power tool will not run at full speed until reaching the allowable battery temperature. Working Advice Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off. After longer periods of working at low speed, allow the ma- chine to cool down by running it for approx. 3 minutes at max- imum speed with no load. For drilling in metal, use only perfectly sharpened HSS drill bits (HSS=high-speed steel). The appropriate quality is guar- anteed by the Bosch accessories program. Before screwing larger, longer screws into hard materials, it is advisable to predrill a pilot hole with the core diameter of the thread to approx.

(Li-Ion) (Li-Ion) (Li-Ion) (ECP)
