Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Limitation of liability

All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.

No claims may be derived from the specifications, figures and descriptions in these operating instructions.

The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

Intended use

This appliance serves as a wireless doorbell system to announce visitors, allowing for the operation of a door bell without any wiring. The appliance is not intended for any other purpose, nor for use beyond the scope described. The appliance is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.

Warnings used

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could result in death or serious physical injury.

▶ Follow the instructions in this warning notice to avoid the risk of death or serious injury.

CAUTION!

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

▶ Follow the instructions in this warning notice to prevent property damage.

NOTE

▶ A note provides additional information that will assist you in using the appliance.

Safety

This section contains important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety guidelines

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities, or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■ Pull out the plug to disconnect the appliance from the mains electricity. Ensure that access to the plug is not obstructed.

Risk of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

- Do not place any sources of naked flames, such as lighted candles, on the appliance.

GB IE

• Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.
• Do not expose the appliance to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.
• Do not expose the receiver to water spray or drips, and do not place liquid-filled objects such as vases or open drink containers on or near the receiver.
  Warning: electrical voltage!

Never open the housing of the receiver. There are no user-serviceable or replaceable components inside the appliance.

■ Do not make any unauthorised modifications or alterations to the appliance.

All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

■ Unplug the appliance immediately if you smell burning or notice smoke. Have the appliance checked by a qualified specialist before using it again.

DANGER

Mishandling the batteries can cause fires, explosions, leakages or other hazards! In order to handle batteries safely, please observe the following safety instructions:

▶ Do not throw the batteries into a fire and do not subject them to high temperatures.
▶ Do not open, deform or short-circuit batteries, since this can lead to chemical leakage.
▶ Do not attempt to recharge the batteries.
▶ Check the condition of the batteries at regular intervals. Leaking chemicals can cause permanent damage to the appliance. Take particular care when handling damaged or leaking batteries. Risk of acid burns! Wear protective gloves.
▶ Chemicals that leak from a battery can cause skin irritation. In the event of contact with the skin, rinse with plenty of water. If the chemicals come into contact with your eyes, rinse thoroughly with water, do not rub and consult a doctor immediately.

DANGER

▶ Keep batteries out of the reach of children.
Children might put batteries into their mouth and swallow them. If a battery has been swallowed, seek medical assistance IMMEDIATELY.
▶ Always insert the batteries the right way round (observe correct polarity) otherwise there is a danger that they could explode.
▶ If you do not intend to use the appliance for a long time, remove the batteries.
- Do not ingest the battery – there is a risk of chemical burns!
This product contains a button cell battery. Swallowing the button cell battery can cause severe internal burns in just 2 hours and can lead to death.
▶ Keep new and old batteries away from children.
If the battery compartment does not close securely, stop using the product and keep it away from children.

DANGER

Do not allow children to play with the packaging material! Keep all packaging materials out of the reach of children. Risk of suffocation!

Descriptions of components

(See fold-out page for illustrations)

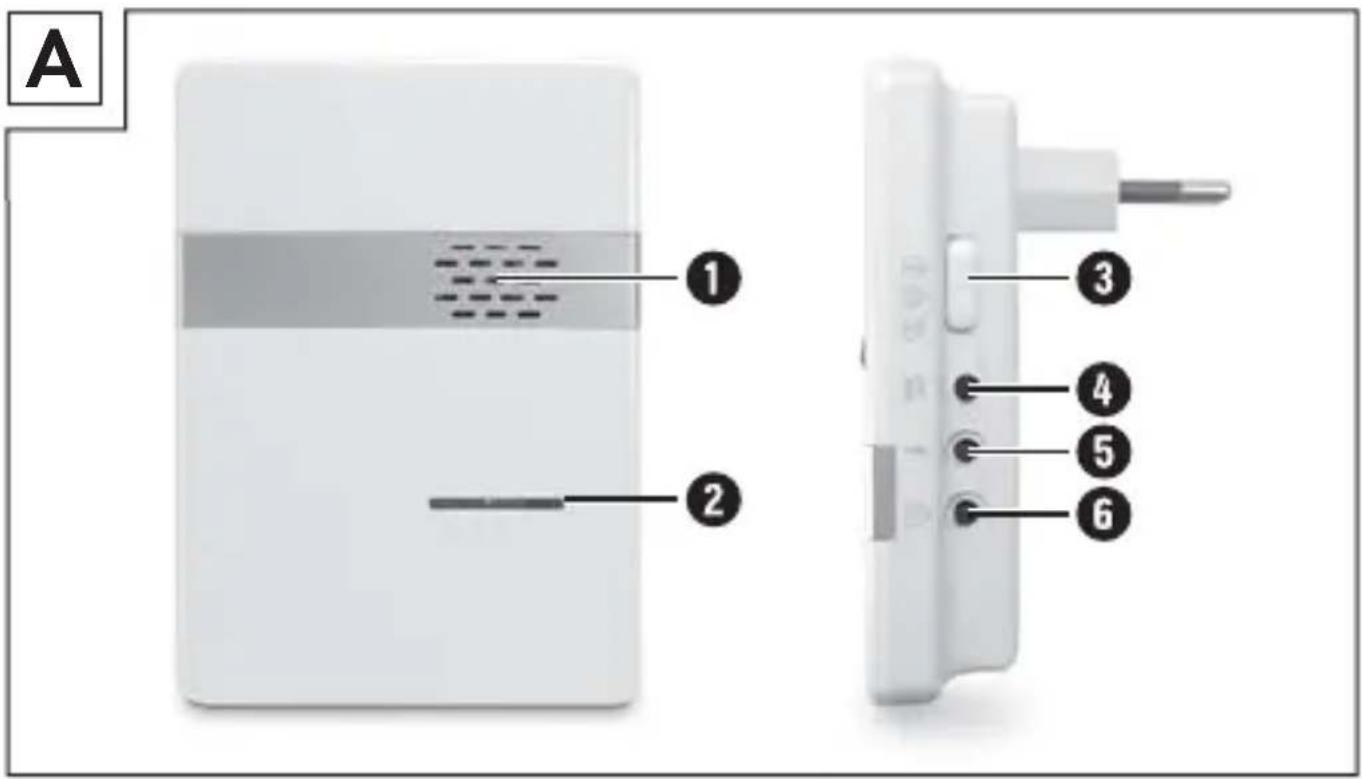

Receiver (Fig. A)

① Speaker
② Signal display
③ Signal type switch (optical/acoustic)
4 Volume button (VOL 1/2/3)
⑤ Melody selection button
6 Synchronisation button

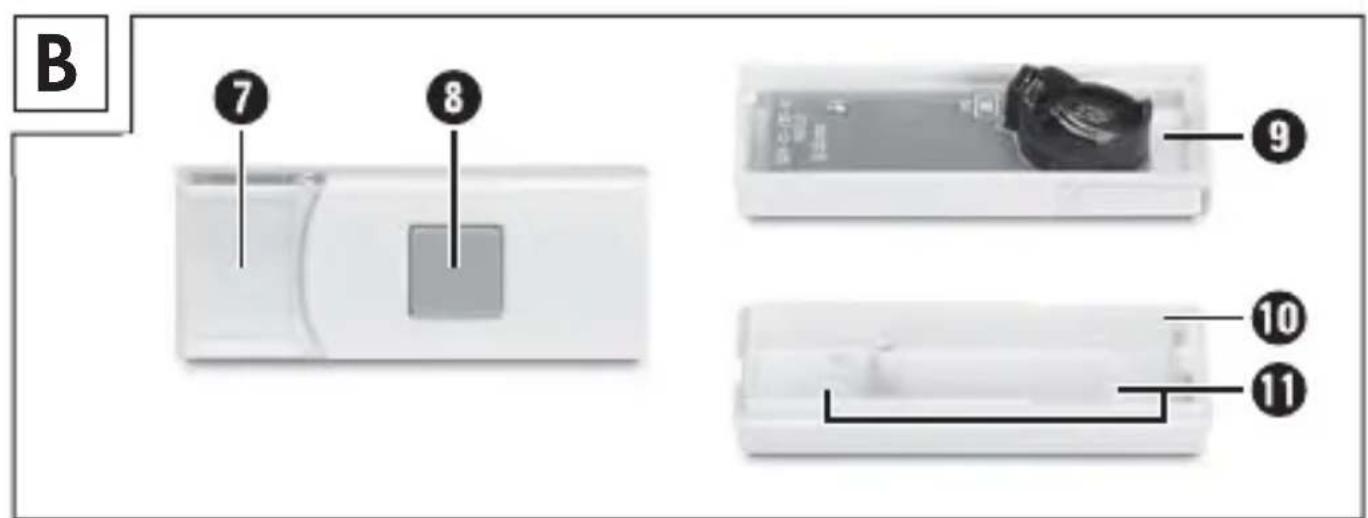

Sender (Fig. B)

⑦ Nameplate cover

8 Ringer button

⑨ Battery compartment

10 Mounting plate

⑪ Mounting holes

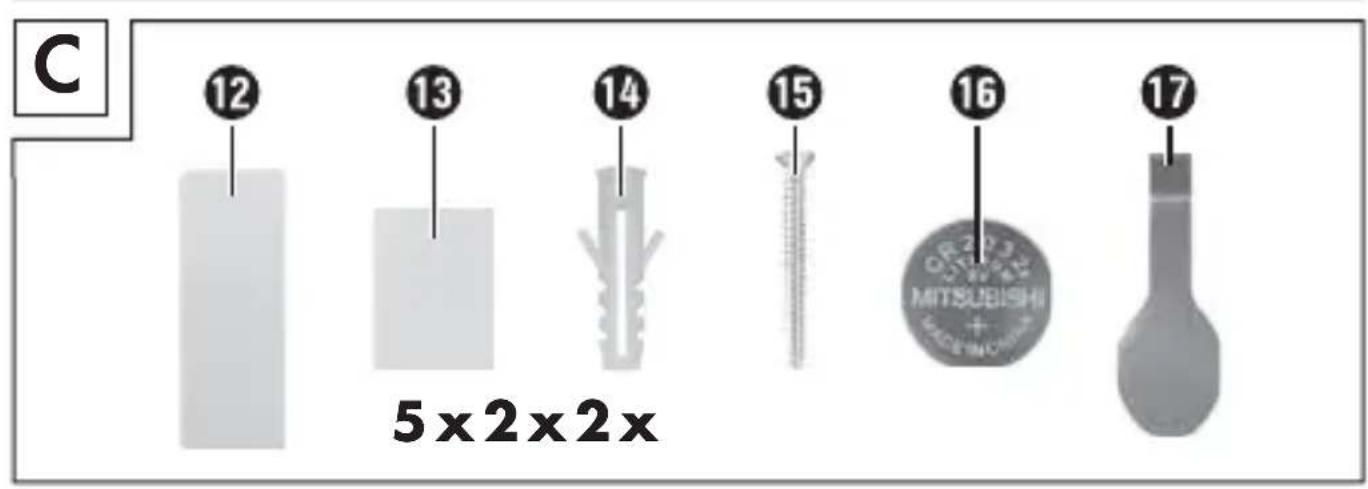

Accessories (Fig. C)

12 Double-sided adhesive tape

13 Name plate

14 Wall plug

15 Screw

16 3 V battery, type CR2032

17 Unlocking tool

GB IE

Operation

Check the package contents

(See fold-out page for illustrations)

The scope of delivery includes the following components:

• 1 x receiver
• 1 x sender
• 1 x 3 V battery, type CR2032
• 5 x name plates
• 2 x wall plugs with screws for sender assembly
• 1 x double-sided adhesive tape
• 1 x unlocking tool for the mounting plate for the transmitter housing
  • These operating instructions

◆ Remove all parts of the appliance from the packaging and remove all packaging materials.

◆ Check the package for completeness and for signs of visible damage.

If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see chapter entitled Service).

Disposal of packaging materials

The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Power supply: receiver

The receiver is plugged into a properly installed mains power outlet and does not require batteries.

Inserting/replacing the batteries

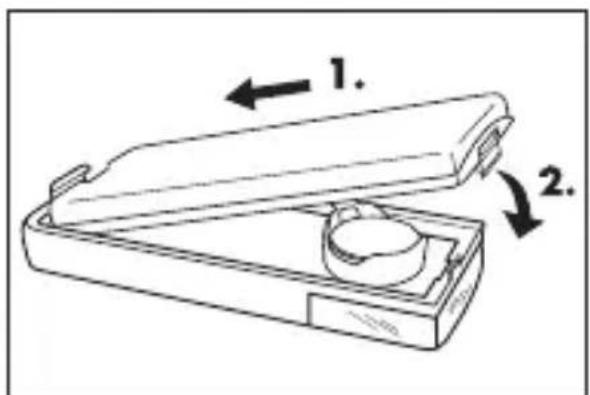

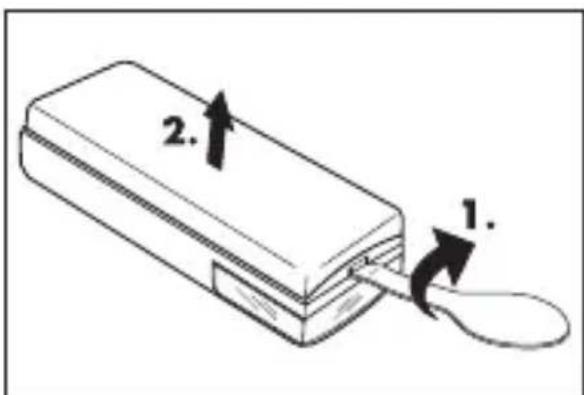

Insert the unlocking tool 17 into the recess on the side of the transmitter and turn it to the side to remove the mounting plate 10 (see Fig. 1).

- Insert a 3 V battery, type CR 2032, into the battery compartment ⑨. The side of the battery marked with a “+” must be facing upwards.

Replace the mounting plate 10 on the transmitter and click it audibly into place (see Fig. 2). Ensure that the sealing ring is properly inserted into the frame of the mounting plate. Otherwise, IP protection is not provided.

2. 1.

1. 2.

Fig. 1 Fig. 2

NOTE

If the performance of appliance reduces or completely stops, it means the battery is exhausted. Replace the used battery with a new one of the same type.

Handling and operation

Selecting the signal type

The receiver can indicate the reception of a door-ring signal either optically, acoustically, or optically and acoustically.

To select, move the signal type switch ③ to the desired position:

• acoustic ringer signal only, the selected melody will be played
• optical ringer signal only, the signal display flashes
• optical and acoustic ringer signal

Adjusting the signal sound volume

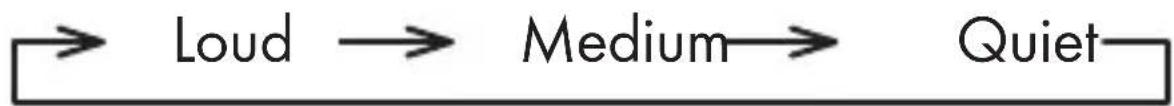

Press the VOL. 1/2/3 button ④ repeatedly until the desired volume is set.

Selecting the ringer melody

There are 36 different ringer melodies stored in the appliance.

◆ Press the melody select button ⑤.
- Stop the selection when you hear the desired melody. The appliance will use the last-played melody.

Synchronising the sender and receiver

The transmitter and receiver of this wireless doorbell system can communicate with each other via a number of different codings. This means that you can operate up to 5 transmitters with one receiver. In addition, you can extend the wireless doorbell system with any number of receivers. This is only possible if the sender and receiver within a system are working on the same frequency, however. For this, you must synchronise the appliances as follows:

◆ Press the synchronisation button=⑥ on the receiver.

Now press the ringer button ⑧ on the transmitter. If the synchronisation has been a success, the receiver notifies you of the programmed call signal. Should the receiver not react as described, repeat the synchronisation.

Mounting the transmitter

- Select a suitable positioning for the sender, close to your outer door.

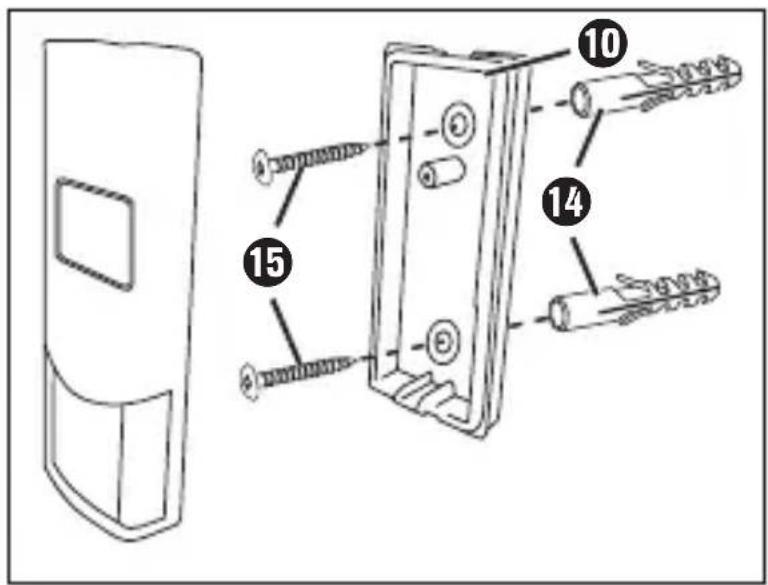

◆ Pierce the pre-stamped mounting holes ⑪ on the inner side of the mounting plate ⑩ with a pointed object.

Mark the positions for the required drill holes with the help of the mounting plate 10 and drill the holes for the supplied wall plugs 14 (6 mm drill).

◆ Push the wall plugs into the drill holes and screw the mounting plate ⑩ onto the wall using the screws ⑮ (see Fig. 3).

◆ Push the transmitter onto the mounting plate 10 until it clicks audibly into place.

Technical diagram showing exploded view of a mechanical assembly with numbered parts and screw fasteners

Fig.
3

NOTE

▶ Alternatively, you can mount the transmitter onto a suitable surface using the double-sided adhesive tape 12.

• Label one of the supplied name plates ⑬. If you label the name plate by hand, make sure you use a waterproof pen.
  Remove the name plate cover ⑦ from the transmitter and insert your name plate into the recess on the transmitter.
  ◆ Replace the name plate cover ⑦ on the transmitter.

Maintenance

The appliance is maintenance-free. No form of maintenance, either on or in the appliance, is intended for execution by the user. In the event of malfunction or apparent damage, contact Customer Services. If the appliance is not going to be used for an extended period, remove the batteries.

Troubleshooting

There is no ring when pressing the ringer button

◆ Check whether there is a battery (type CR2032) in the transmitter.
◆ Check whether the power outlet being used for the receiver is working properly.
It is possible that the transmitter is not synchronised with the receiver. Repeat the synchronisation.
◆ Ensure that the signal type switch is set to the
position
or

The range is reduced

A weak battery will reduce the range. Change the battery every 12–18 months.

◆ Metal constructions, walls, ceilings or other appliances that use the same frequency can affect the range. Try to avoid mounting the transmitter in the immediate vicinity of any metal parts.

NOTE

If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see chapter entitled Service).

Cleaning

CAUTION!

Possible damage to the appliance. There are no serviceable parts or parts requiring cleaning inside the appliance. Moisture can cause damage to the appliance.
▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the appliance.
- Clean the housing of the appliance with a lightly moistened cloth and a mild detergent only.

Storage when not in use

◆ Store the appliance in a location which is clean, dry, dust-free and not in direct sunlight.

Disposal

Disposal of the appliance

The adjacent symbol of a crossed-out wheelie bin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be handed over to specially set-up collection locations, recycling depots or disposal companies.

This disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

You can obtain further information from your local disposal company or the city or local authority.

Disposal of batteries

Used batteries may not be disposed of in domestic waste. Batteries can contain poisons which are damaging to the environment. Therefore, dispose of the batteries/rechargeable batteries in accordance with statutory regulations. All consumers are statutorily obliged to dispose of batteries at a collection site in their community/city district or with a collection company.

The purpose of this requirement is to ensure that batteries are disposed of in an environmentally friendly manner.

Appendix

Technical data

Power supply: receiver 110-240 V ~, 50/60 Hz
Power consumption: receiver	Operation: 200 mA Standby: 1.3 mA
Power supply: transmitter	1 x 3 V battery, type CR2032
Transmitting frequency 433 MHz
Range 100 m (free field)
Number of ringer tones 36
Protection class: transmitter	IP 44

Notes on the Declaration of Conformity

This appliance complies with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC and the Low Voltage Directive 2006/95/EC. The complete Declaration of Conformity is available from the importer.

Warranty

The warranty for this appliance is for 3 years from the date of purchase.

The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our Customer Service Department.

Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for domestic use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorised service branch.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 271729

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 271729

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

GB IE

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Sisällysluettelo

Johdanto ..... 26

Technical diagram showing exploded view of a mechanical assembly with numbered parts and screw fasteners

Kuva
3

OHJE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Technical diagram showing exploded view of a device with numbered parts and screw installation details

3

OBSERVERA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction ..... 7 4

Technical diagram showing exploded view of a mechanical assembly with numbered parts and screw fasteners

Fig.
3

REMARQUE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 · 44867 BOCHUM · GERMANY

www.kompernass.com

Inhoud

Inleiding....98

Accessoires (afb. C)

Technical diagram showing exploded view of a device with numbered parts and screw fasteners

Afb. 3

OPMERKING

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 · 44867 BOCHUM · GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung ..... 1 2 2

Technical diagram showing exploded view of a mechanical assembly with numbered parts and screw fasteners

Abb. 3

HINWEIS

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Tietojen tila

Informationsstatus · Version des informations

Stand van de informatie · Stand der Informationen:

09 / 2015 · Ident.-No.: SFKS2A1-072015-3

IAN 271729
