KG 2389 - Grill plate SEVERIN - Free user manual and instructions

Product type	Grill plate (contact grill)
Brand	Severin
Model	KG 2389
Number of plates	2 removable non-stick plates
Cooking functions	Contact (panini, escalope), Gratin (toast), Barbecue (steak, chop)
Temperature adjustment	Variable from MIN (keep warm) to MAX (grill)
Indicator light	Main red (preheating)
Fat collection tray	2 removable trays under the drainage system
Handle	Insulated handle (do not use for carrying)
Safety	Hot surfaces, keep out of reach of children under 8 years
Cleaning	Removable plates washable with warm soapy water, do not use abrasives
Maintenance	Wipe exterior surfaces with a damp cloth
Power supply	Grounded plug, voltage according to rating plate
Color	Not specified (black plastic/usually)
Warranty	2 years against material and manufacturing defects
Material	Heat-resistant plastic, non-stick coating
Dimensions	Approximately 35 x 25 x 15 cm (estimate)
Weight	Approximately 3 kg (estimate)
Power cord	With ground, length approx. 1 meter

Frequently Asked Questions - KG 2389 SEVERIN

How to clean the non-stick plates?

Remove the plates after cooling and wash them with warm slightly soapy water using a soft brush. Do not use abrasive products or scrapers.

What cooking modes are available?

The grill allows three positions: contact (upper plate lowered onto food), gratin (upper plate vertical above lower), and barbecue (plates aligned flat).

How to adjust the temperature?

Use the temperature control knob from MIN (keep warm) to MAX (intense cooking). The red light turns off once preheating is complete.

Can I use metal utensils on the plates?

No, to avoid damaging the non-stick coating, use wooden, silicone, or heat-resistant plastic utensils.

What to do if the grill does not heat up?

Check the mains connection and that the temperature is set above MIN. If the light does not come on, contact Severin customer service.

Does the grill emit odor or smoke on first use?

This is normal: let it heat empty for 15 minutes in MAX position in a ventilated room to eliminate the new smell. Slight smoke may occur.

How to remove the cooking plates?

Open the grill in barbecue position, push the release button on the handle, then lift and remove the plate by pulling it toward you.

Can children use this appliance?

Yes, children over 8 years can use it under supervision, provided they understand the risks. Children under 8 must stay away.

How to empty the fat tray?

Place a tray under the drainage system. Empty it regularly during cooking to prevent overflow. Both trays must be in place in barbecue mode.

Where to find customer service?

Check the list of approved service centers in the manual. For France, contact Degupa (address at the end of the manual). Attach the proof of purchase for warranty.

USER MANUAL KG 2389 SEVERIN

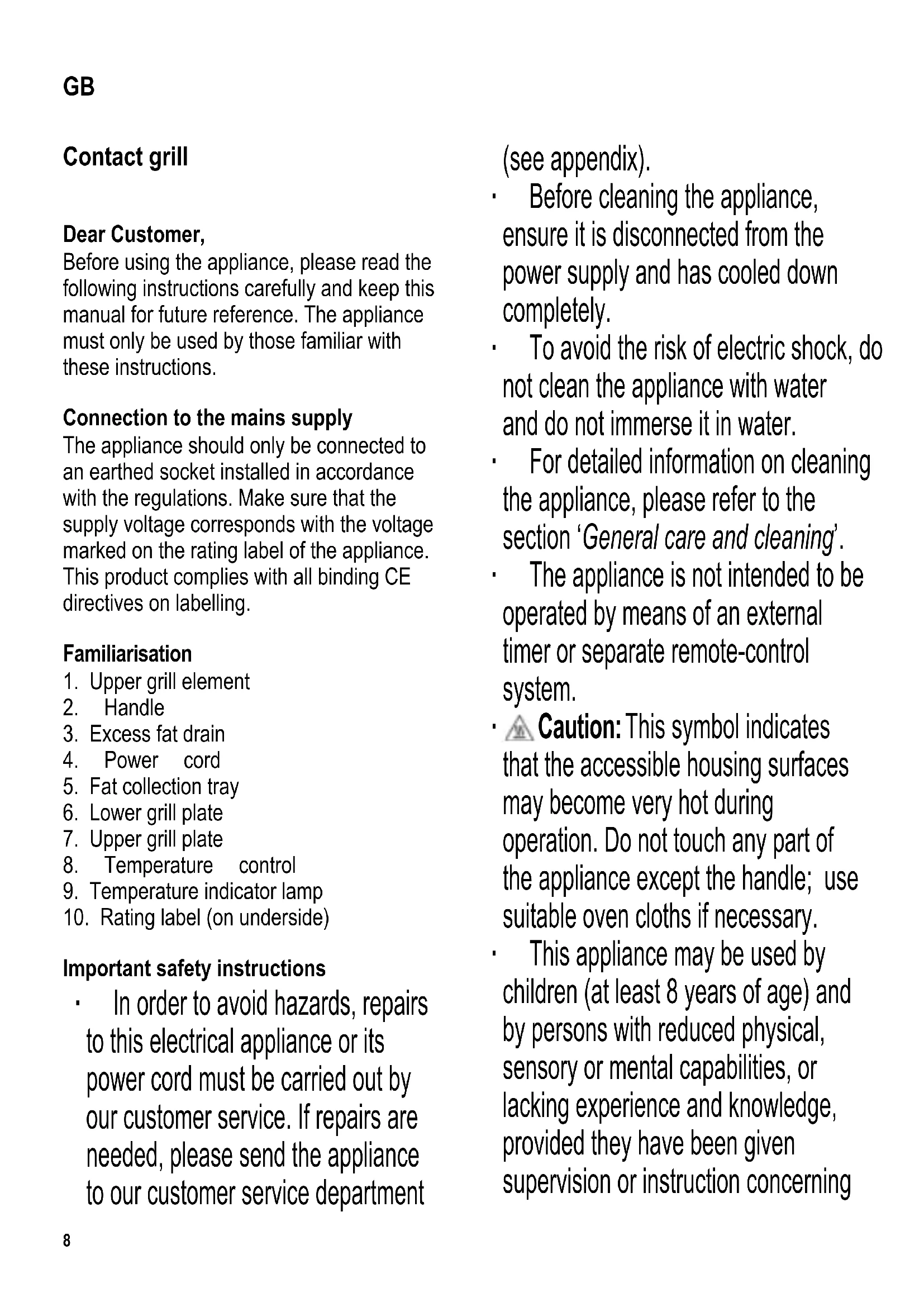

GB Instructions for use Contact grill 8

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by those familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE directives on labelling.

Familiarisation

1. Upper grill element
2. Handle
3. Excess fat drain
4. Power cord
5. Fat collection tray
6. Lower grill plate
7. Upper grill plate
8. Temperature control
9. Temperature indicator lamp
10. Rating label (on underside)

Important safety instructions

In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please send the appliance to our customer service department

(see appendix).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• For detailed information on cleaning the appliance, please refer to the section 'General care and cleaning'.
  The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Caution: This symbol indicates that the accessible housing surfaces may become very hot during operation. Do not touch any part of the appliance except the handle; use suitable oven cloths if necessary.
• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning

the use of the appliance and fully understand all dangers and safety precautions involved.
Children must not be permitted to play with the appliance.
Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
The appliance and its power cord must be kept well away from children under 8 at all times.
- Caution: Keep any packaging materials well away from children - such materials are a potential source of danger, e.g. of suffocation.
- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.
- Do not allow the housing or the power cord to touch hot surfaces (e.g. cooker hotplates) or come into contact with any other heat sources.
- Do not operate the grill without the grill plates fitted.
During operation, the appliance must be placed on a heat-resistant surface,

impervious to splashes and stains.

When cooking food with a high fat or moisture content, splashes are not always avoidable.

Always switch off and remove the plug from the wall socket

• after use,
  -in cases of malfunction, and

• during cleaning.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
  Before moving or storing the appliance, ensure it has cooled down completely.

• Do not use the handle to carry the appliance.

• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.
  This appliance is intended for domestic or similar applications, such as

• in shops, offi ces and other similar working environments,

• in agricultural areas,
• by customers in hotels, motels etc. and similar establishments,
• in bed-and breakfast type environments.

Indicator lamp

The main red indicator lamp remains lit while the appliance is pre-heating.

Temperature control

The required grill temperature can be adjusted continuously from MIN (keeping warm) to MAX (grilling).

Before using for the first time

Clean the fitted grill plates with a damp, lint-free cloth and wipe dry afterwards.
- Close the unit.

• Insert the plug into a suitable wall outlet. Set the temperature control to its MAX position.
• Let the grill heat up for about 15 minutes without any food. This will remove the smell typically encountered when first switching on a grill. (A little smoke may be emitted; this is quite normal, but ensure there is sufficient ventilation.)
• Let the appliance cool down.
  Clean the grill plates afterwards as described in the 'General care and cleaning' section.

Operation

• Set the appliance up in the desired operating position.

Contact grilling

E.g. cutlet or escalope, sandwich, panini etc.:

Fold the upper grill element straight down onto the food to be grilled.

Cooking 'au gratin'

E.g. toasted dishes:

Put the upper grill element in a vertical position, pull it up and then move it down again towards the front (see picture I), so it is above the lower plate.

Barbecue-type grilling

E.g. steak, cutlet or escalope:

Put the upper grill element in a vertical position, pull it up and move it down again towards the rear (see picture II), so that the grill plates are aligned with each other and level.

• Ensure that the grill plates have been correctly fitted.
• Ensure that the fat collection tray is placed properly under the excess fat drain; always empty it in good time during operation. (with barbecue-type grilling,

both fat collection trays should be in position.)

• Insert the plug into a suitable wall outlet.
• Use the temperature control to choose the desired temperature level.
• Wait until pre-heating is complete and the temperature indicator lamp goes out.
• The non-stick grill plates only need to be slightly greased when first used.
  The grill is now ready for use.
• Open the lid if necessary.
• Place the items to be cooked into the unit. The cooking or grilling time depends largely on the nature of the food concerned.
  In order to prevent the non-stick grill plates from being damaged, do not use sharp or pointed objects while placing or removing food items.
  After cooking is finished, remove the plug from the wall socket and allow sufficient time for the unit to cool down.

General care and cleaning

• Before cleaning the appliance, remove the plug from the wall socket and make sure that the grill has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• The outside of the grill may be cleaned with a soft damp cloth only. Wipe dry with a dry cloth afterwards.

• Cleaning the non-stick grill plates:

• The plates can be removed for easy cleaning: open the unit into the 'Barbecue-type grilling' position (see picture II).

• Push the clamp on the plastic handle outwards and lift up the grill plate.

• Remove the plate by pulling it out.
  Once removed, the plates may be cleaned in hot water using a little detergent, and a suitable soft brush; do not scrape the plates, and do not use any harsh or abrasive cleaning agents.
  Dry the plates thoroughly.

• When replacing the plates after cleaning, ensure that the lugs on the plate are inserted properly into the corresponding brackets on the unit. Fold down the plate until it is heard to lock into the clamp at the front.

The fat collection trays can also be cleaned with hot soapy water.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover

wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
