EW98 - Alarm bell OREGON SCIENTIFIC - Free user manual and instructions

Brand	Oregon Scientific
Model	EW98
Product type	Radio-controlled alarm chime with indoor/outdoor thermometer
Dimensions (receiver)	81 x 38 x 137 mm
Dimensions (sensor)	58 x 23 x 100 mm
Weight (receiver)	196 g
Weight (sensor)	52 g
Power (receiver)	2 AA 1.5 V batteries
Power (sensor)	2 AAA 1.5 V batteries
Sensor signal frequency	433 MHz
Transmission range	30 m (98 ft) indoors without obstacles
Time reception	Radio-controlled (DCF-77, EU/UK compatible)
Time projection	Yes, with focus and 180° rotation
Indoor thermometer range	-5°C to 50°C (23°F to 122°F)
Outdoor thermometer range	-20°C to 60°C (-4°F to 140°F)
Frost alert	Between -2°C and 3°C (28°F to 37°F) with flashing
Min/max memory	24 hours (indoor and outdoor temperature)
Alarm function	With 8-minute snooze
Backlight	Activated 5 seconds on button press
°C/°F selection	By switch
Sensor channels	3 (optional sensors)
Number of included sensors	1 (model EW-99)
Maintenance	Clean with a soft cloth, avoid water and abrasive products
Recycling	Device and batteries to be recycled according to local regulations
Warranty	Consult Oregon Scientific customer service

Frequently Asked Questions - EW98 OREGON SCIENTIFIC

How to set the time manually?

Press SET CLOCK in normal mode. Use +/CHANNEL or -/MIN.MAX. to adjust the values (12/24h format, hours, time zone, year, date). Press SET CLOCK to confirm and exit.

How to set the alarm?

Press SET ALARM to enter setting mode. Use +/CHANNEL and -/MIN.MAX. to set the hour and minutes. Press SET ALARM to save. The alarm activates automatically.

How to switch between °C and °F?

Slide the °C/°F switch located on the receiver to toggle between Celsius and Fahrenheit units.

Why is the outdoor temperature not showing?

Check that the sensor is powered (batteries inserted, correct channel). Make sure the distance does not exceed 30 m and no large metal obstacles interfere with the signal. Press SENSOR to restart the search.

How to reset the device?

Use a thin object to press the RESET button located in the battery compartment of the receiver or sensor. All settings will return to default values.

What does the frost alert mean?

The frost icon flashes when the outdoor temperature (channel 1) is between -2°C and 3°C (28°F to 37°F). This indicates a risk of frost.

How to use the projector?

Slide the PROJECTION ON/OFF switch to activate it. Turn the FOCUS wheel to focus. Press 180° FLIP to flip the image. Use on a dark surface at a distance of 1 to 4 meters.

How to replace the outdoor sensor batteries?

Open the battery compartment cover, remove the old batteries and insert 2 new AAA batteries observing polarity. Press RESET after replacement.

How to adjust the time zone?

In time setting mode (press SET CLOCK), after setting the time, you can adjust the time zone by ±23 hours using the +/CHANNEL and -/MIN.MAX. buttons.

How to turn off the alarm?

In normal mode, press ALARM ON/OFF once to display the alarm time, then press again to turn off the alarm. The alarm icon disappears from the screen.

USER MANUAL EW98 OREGON SCIENTIFIC

Radio Controlled Projector Alarm Clock

With Indoor/ Outdoor Thermometer and Ice Alert

Model: EW98

USER MANUAL

Radio Controlled Projector Alarm Clock With Indoor/ Outdoor Thermometer and Ice Alert Model: EW98

USER MANUAL

CONTENTS

Brief Introduction ......2

Overview 2

Receiver 2

LCD Display 4

Sensor 4

Reception of Sensor Signal ....5

Operating the Main Unit ....5

Operating the Sensor ....5

Reception of Radio Controlled Time Signal ....6

Signal Reception Indicator 6

Time And Calendar Manual Setting ....7

Alarm Time Setting 7

Using Alarm Function ....8

To Silence the Alarm ....8

Using the Projector ....8

Reading Indoor & Outdoor Temperature Records ..9

Viewing the Min. & Max. Temperature Records ...9

Using Ice Alert Function 9

Battery Replacement 9

Placement of Main Unit and Sensor ....10

Precautions ......10

Specifications 11

About Oregon Scientific ....12

EU-Declaration of Conformity ....12

FCC Statement 12

Declaration of Conformity 13

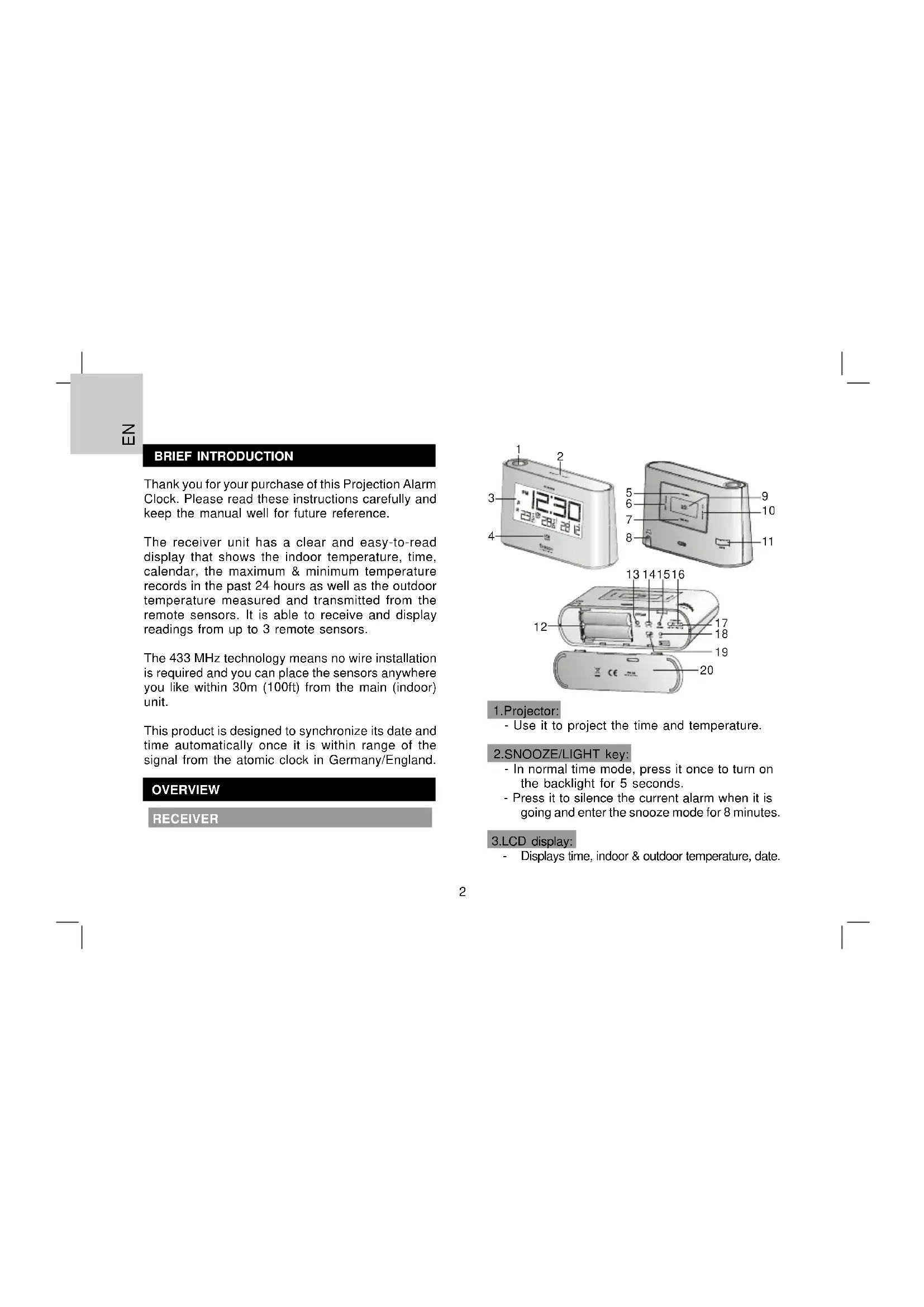

BRIEF INTRODUCTION

Thank you for your purchase of this Projection Alarm Clock. Please read these instructions carefully and keep the manual well for future reference.

The receiver unit has a clear and easy-to-read display that shows the indoor temperature, time, calendar, the maximum & minimum temperature records in the past 24 hours as well as the outdoor temperature measured and transmitted from the remote sensors. It is able to receive and display readings from up to 3 remote sensors.

The 433 MHz technology means no wire installation is required and you can place the sensors anywhere you like within 30m (100ft) from the main (indoor) unit.

This product is designed to synchronize its date and time automatically once it is within range of the signal from the atomic clock in Germany/England.

OVERVIEW

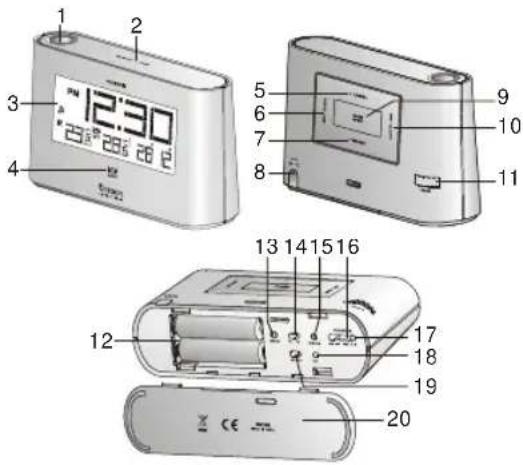

RECEIVER

1 2 3 ~12:30 28°28'28'16 4 5 6 7 8 9 10 11 13 14 15 16 12 17 18 19 20

1. Projector:

- Use it to project the time and temperature.

2.SNOOZE/LIGHT key:

• In normal time mode, press it once to turn on the backlight for 5 seconds.
• Press it to silence the current alarm when it is going and enter the snooze mode for 8 minutes.

3.LCD display:

- Displays time, indoor & outdoor temperature, date.

4. Ice alert indicator light:

- Flashes when the outdoor temperature is between -2.0°C(28 °F) and 3.0°C(37 °F).

5.+/CHANNEL key:

- Press it once to switch among Channel 1, 2 and 3.

- Press and hold it for 2 seconds to view the channels automatically Press it again to exit the automatic display mode.

- In time setting mode, press it to increase the setting values.

6.SET CLOCK key:

- In normal time mode, press it once to enter the normal time setting mode.

- In normal time setting mode, press it to step the setting items. Press and hold it to exit the setting mode in any step.

- In normal time setting mode, press it to step the setting items. Press and hold it to exit the setting mode in any step.

7.-/MIN.MAX. key:

- Press it to show the minimum and maximum temperature records in the past 24 hours.

- Press and hold it for 3 seconds to delete the minimum and maximum temperature records.

- In time setting mode, press it to decrease the setting values.

8.DC jack:

- Plug DC adaptor to power the clock.

9.ALARM ON/OFF key:

- Press it once to turn on the backlight and display the alarm time for 5 seconds.

- Press it again to turn on/off the alarm.

10.SET ALARM key:

- Press it once to turn on the backlight for 5 seconds, and press it again to enter the alarm time setting mode.

- In alarm time setting mode, press it to step the setting items.

11.FOCUS turning knob:

- Focus the projected image.

12.BATTERY COMPARTMENT:

- Accommodates 2 AA size batteries.

13. RESET key:

- Press it to return all values to default values.

- In case of malfunction, the unit may be required to reset.

14.°C/°F slide switch:

- Slide it to switch between Celsius and Fahrenheit.

15.SENSOR key:

• Press it once to turn on the reception of transmitter signal (433 MHz).
• During the reception period, press and hold it for 3 seconds to stop the reception.

16.PROJECTION ON/OFF slide switch:

- Slide it to turn on/off the projector.

17.180° FLIP key:

- Press it to rotate the projected image by 180°.

18.RCC key:

- In normal time mode, press it once to receive the RC signal for reception testing.

19.UK/EU slide switch:

- Slide it to select the country version between EU (Germany) and UK (England).

20.BATTERY DOOR

LCD DISPLAY

1. Low battery indicator
2. Signal reception indicator
3. Indoor temperature

4. Channel

5. Sensor signal

6. Outdoor temperature
7. °C & °F
8. Alarm time & Date
9. Min. and Max. temperature 4567
10. Time

SENSOR

1 2 3 4 5 6

1. LED indicator:

- Flashes when the remote unit transmits a reading.

2.Wall-mounting holder:

- Supports the sensor on the wall.

3. RESET key:

- Press it to restart the sensor and return all values to default values.

4.CHANNEL slide switch:

- Assign the sensor to channel 1, 2 or 3.

5.BATTERY COMPARTMENT:

Accommodates 2 AAA size batteries.

1. BATTERY DOOR

RECEPTION OF SENSOR SIGNAL

OPERATING THE MAIN UNIT

1. Remove the battery door and slide "UK/EU" switch to select the desired country version.
2. Insert 2 new AA size batteries as per the polarity information marked on the battery compartment.
3. Press "RESET" key to restart the clock.
4. Slide "°C/°F" switch to select between Celsius and Fahrenheit.
5. Replace the battery door.
6. Press "+/CHANNEL" key to select the desired channel.

	Main unit is searching for the sensor(s) (the icon will be flashing)
	The sensor(s) cannot be found
	Sensor 1 has been found (the icon will be displayed, but won't flash)
and “--.” (Outdoor temperature Area)	The sensor(s) cannot be found after operating the main unit for 15 minutes

Note When the sensor signal is received, the icon "will be displayed on the LCD.

OPERATING THE SENSOR

1. Remove the battery door and slide "CHANNEL" switch to synchronize the channel with receiver.
2. Insert 2 new AAA size batteries as per the polarity information marked on the battery compartment.
3. Press "RESET" key to restart the clock.
4. Replace the battery door.

Note

• Place the sensor out of direct sunlight and moisture.
• Do not place the sensor more than 30 m (100 ft) from the main (indoor) unit.
• Position the sensor so that it faces the main (indoor) unit, minimizing obstructions such as doors, walls, and furniture.
• Place the sensor in a location with a clear view to the sky, away from metallic or electronic objects.
• Position the sensor close to the main unit during cold winter months as below-freezing temperatures may affect battery performance and signal transmission.

The transmission range may vary depending on many factors. You may need to experiment with various locations to get the best results.

Standard Alkaline batteries contain significant amounts of water. Because of this they will freeze in low temperatures of approximately -12^ ( 10^ ). Disposable Lithium batteries have a much lower threshold for temperature with an estimated freezing range of below -30^ (- 22^ ).

Wireless ranges can be impacted by a variety of factors such as extremely cold temperatures. Extreme cold may temporarily reduce the effective range between the sensor and the base station. If the unit's performance fails due to low temperature, the unit will resume proper functioning as the temperature rises to within the normal temperature range (i.e. no permanent damage will occur to the unit due to low temperatures).

RECEPTION OF RADIO CONTROLLED TIME SIGNAL

The time and calendar are radio-controlled. The current time and calendar are automatically synchronized with time signal transmitted from Germany/England.

When used for the first time (after inserting batteries or pressing "RESET" key), the clock will start to receive the time signals and the signal reception indicator will be flashing for 5 minutes.

SIGNAL RECEPTION INDICATOR

The wave segment flashing means time signals are being received. The signal quality could be classified into 3 types:

Note

1. The unit will automatically search for the time signal at 2:00 (3:00 or 4:00 is also available if the signal is not received at 2:00), 8:00, 14:00 and 20:00 each day.
2. Always place the unit away from interfering sources such as TV set, computer, etc.
3. Avoid placing the unit on or next to metal plates.
4. Closed area such as airport, basement, tower block or factory is not recommended.
5. Do not start reception in moving articles such as vehicles or trains.

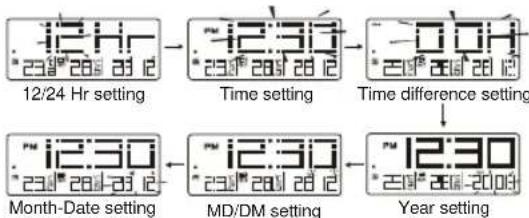

TIME AND CALENDAR MANUAL SETTING

If you are out of reach of the Radio Controlled sensor or if the reception is not reachable, the time and calendar can be set manually. As soon as the signal of sensor is received again, the clock will automatically synchronize with the exact time and calendar.

1. In normal time mode, press "SET CLOCK" key once to enter the time setting mode.

2. Press "+/CHANNEL" or "-/MIN.MAX." key to change the settings.

3. Press "SET CLOCK" to confirm. The setting order is: 12/24-hr format, time, +/-23 hours time difference, year, day/month format, date.

4. Press "SET CLOCK" key to save and exit the setting mode.

Note

1. During the setting period, press and hold the "+/CHANNEL" or "-/MIN.MAX." key to speed up the change of settings.
2. Through “+/-23 hours time difference” setting, the precise time of another area will be shown.

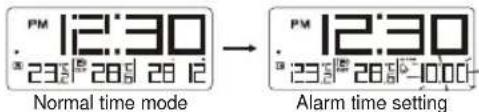

ALARM TIME SETTING

1. In normal time mode, press "SET ALARM" key once to enter the alarm time setting mode.

2. Press "+/CHANNEL" or "-/MIN.MAX." key to set hour/minute.

3. Press "SET ALARM" key to save and exit the setting mode "☐" indicates alarm is ON.

PM 12:30 235 285 28 12 Normal time mode PM 12:30 235 285 4000- Alarm time setting

Note

1. The alarm will be automatically turned on when you set the alarm time.
2. During the alarm time setting period, press and hold "+/CHANNEL" or "-/MIN.MAX." key to speed up the change of settings.

USING ALARM FUNCTION

1. Set the alarm time as the above section.
2. In normal time mode, press "ALARM ON/OFF" key once to display the current alarm time.
3. Press it again to turn alarm ON/OFF.

TO SILENCE THE ALARM

1. Press "SNOOZE/LIGHT" to silence the alarm for 8 minutes. The "☐ will be flashing."

2. Press any other key to turn the alarm off and activate it again after 24 hours.

3. If no key is pressed within 120 seconds, the alarm will be turned off and be activated again after 24 hours.

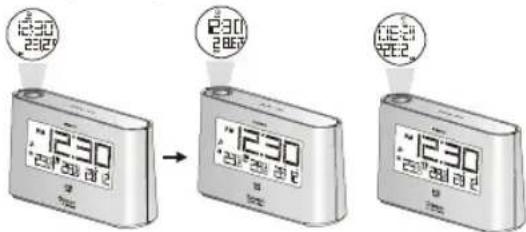

USING THE PROJECTOR

Slide "PROJECTION ON/OFF" switch to turn on/off the projector, and project to a dark background within 1-4 meters so that the projected image (time & temperature) will be shown as below:

12:30 2:30 12:30 2:30 12:30 2:30 12:30 2:30 12:30

Note

1. Slide "PROJECTION ON/OFF" to turn on the projection function.
2. Press "SNOOZE/LIGHT" to turn on the projector for 5 seconds.

3. When using DC power adapter, the projector will be turned on all the time.

4. The indoor and outdoor temperature will be projected alternatively for 5 seconds.

5. If alarm is turn on, the alarm icon "?" will also be projected.
6. Press "180 FLIP" to rotate the projected image by 180°.
7. Turn "FOCUS" knob to focus the projected image.

READING INDOOR & OUTDOOR TEMPERATURE RECORDS

Slide "gC/gF" switch to select between Celsius and Fahrenheit.

Note

1. If no signals are received or the transmission is interfered, “--” will appear on the display.
2. Relocate the clock or sensor in other positions to try out where your clock receives the signals best. After several trials in vain, please reset the clock thoroughly.

VIEWING THE MIN. & MAX. TEMPERATURE RECORDS

1. In normal mode, press "-MIN./MAX." key twice to show the minimum indoor & outdoor temperature records in the past 24 hours.

2. Press it thrice to show the maximum temperature records.

3. Press it once again to exit.

Note Press and hold it for 3 seconds to delete the minimum and maximum temperature records. MAX.temperature records MIN.temperature records

USING ICE ALERT FUNCTION

If the outdoor temperature range is -2.0^ 3.0^ (28.4°F \~ 37.4°F), the ice alert indicator light will be turned on and flash.

BATTERY REPLACEMENT

If the low battery indicator "displays beside the outdoor temperature, it means that the battery power of transmitter is not enough, and you should replace with 2 AAA size batteries at once. While if the low battery indicator "displays beside the time, it indicates that you should replace batteries of the main unit with 2 new AA size batteries.

Low battery indicator

Note

Attention! Please dispose of the used unit or batteries in an ecologically safe manner.

PLACEMENT OF MAIN UNIT AND SENSOR

For the sensor, place the screw on the desired wall and hang the sensor by the recessed hole in the back of it or simply place it on the desktop. For the main unit, you can just place it on the table by itself.

12:30 A B 28:28 28:28

PRECAUTIONS

This product is engineered to give you years of satisfactory service if you handle it carefully. Here are a few precautions:

• Do not cover the ventilation holes. Make sure items that are nearby such as newspapers, tablecloths, curtains etc cannot accidentally cover the ventilation holes.
• Do not subject the unit to excessive force, shock, dust, temperature or humidity, which may result in malfunction, shorter electronic life span, damaged battery and distorted parts.
• Placement of this product on wood surfaces with certain types of ünishes, such as clear varnish, may result in damage to the ünish. Consult the furniture manufacturer's care instructions for direction as to the types of objects that may safely be placed on the wood surface. Oregon Scientific shall not be responsible for any damage to wood surfaces from contact with this product.
• Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.

• Do not clean the unit with abrasive or corrosive materials.

• Do not tamper with the unit's internal components. Doing so will invalidate the warranty on the unit and may cause unnecessary damage. The unit contains no user-serviceable parts.

• Only use fresh batteries as speciued in the user's instructions. Do not mix new and old batteries.
• Due to printing limitations, the displays shown in this manual may differ from the actual display.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
• Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

Note

The technical specifications for this product and the contents of the user manual are subject to change without notice.

SPECIFICATIONS

TYPE	DESCRIPTION
MAIN UNIT
L x W x H	138 x 42 x 82 mm(5.43 x 1.65 x 3.23 in)
Weight	196g
Signal frequency	433 MHz
Temperature range	-5°C to 50°C (23 )
Temperature resolution	0.1°C (0.2 ) °F
Ice alert temperature range	3°C to -2°C(37 ) °F to 28°F
Power	2 x AA 1.5V batteries

REMOTE UNIT (EW-99)

L x W x H	58 x 23 x 100 mm(2.28 x 0.9 x 3.94 in)
Weight
Signal frequency	433 MHz
Number of channel	3
Transmission range	30 m (98 ft) unobstructed
Temperature range	-20°C to 60°C (-4 )
Power	2 x AAA 1.5V batteries

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products such as digital cameras; MP3 players; children's electronic learning products and games; projection clocks; health and fitness gear; weather stations; and digital and conference phones. The website also includes contact information for our Customer Care department in case you need to reach us, as well as frequently asked questions and customer downloads.

We hope you will find all the information you need on our website, however if you're in the US and would like to contact the Oregon Scientific Customer Care department directly, please visit: http://www2.oregonscientific.com/service/default.asp

OR

Call 1-800-853-8883.

For international inquiries, please visit: www2.oregonscientific.com/about/international.asp

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that the Indoor / Outdoor Thermometer (Model EW98) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.

CE

COUNTRIES RTTE APPROVAL COMPLIED ALL EU countries, Switzerland CH and Norway N

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

DECLARATION OF CONFORMITY

The following information is not to be used as contact for support or sales. Please call our customer service number (listed on our website at www.oregonscientific.com or on the warranty card for this product) for all inquiries instead.

We

Name: Oregon Scientific, Inc.

Address: 19861 SW 95th AVe., Tualatin, Oregon 97062 USA

Telephone No.: 1-800-853-8883

Declare that the product

Product No.: EW98

Product Name: Radio Controlled Projector Alarm Clock With Indoor/ Outdoor Thermometer and Ice Alert

Manufacturer: IPM Concepts Limited

Address: Block C, 9/F, Kaiser Estate, Phase 1,41 Man Yue St., Hung Hom, Kowloon, Hong Kong

is in conformity with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause undesired operation.

- Use it to project the time.

2.SNOOZE/LIGHT key:

- In normal time mode, press it once to turn on the backlight for 5 seconds.

1 2 3 12:30 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

- Press it to silence the current alarm when it is going and enter the snooze mode for 8 minutes.

3.LCD display:

- Display time, indoor temperature and date.

- Plug DC adaptor to power the clock.

9. Tasto ALARM ON/OFF:

10. Tasto SET ALARM:

- Focus the projected image.

12. BATTERY COMPARTMENT:

- Accommodates 2 AA size batteries.

13. RESET key:

• Press it to return all values to default values.
• In case of malfunction, the unit may be required to reset.

14.°C/°F slide switch:

- Slide it to switch between Celsius and Fahrenheit.

1. Tasto SENSOR:

- Slide it to turn on/off the projector.

17.180° FLIP key:

- Press it to rotate the projected image by 180^ .

18.RCC key:

- In normal time mode, press it once to receive the RC signal for reception testing.

19.UK/EU slide switch:

- Slide it to select the country version between EU (Germany) and UK (England).

20.BATTERY DOOR

Display LCD

Illustration of a digital refrigerator with clock display and front panel (no text or symbols)

PRECAUTIONS

ALARM STUMMSCHALTEN 8

DEN PROJEKTOR VERWENDEN .....9

Three different household appliances: a digital air conditioner, a refrigerator with a side panel, and a refrigerator with a handle (no visible text or symbols)

VORSICHTSMASSNAHMEN

Diagram showing three digital clocks with time labels and circular indicators above each, illustrating a sequence of time adjustments.

NOTA

Three different household appliances: a digital timer, a refrigerator, and a refrigerator with a door (no visible text or symbols)

PRECAUCIÓN

9.ALARM ON/OFF knop:

Three different household appliances: a digital air conditioner, a refrigerator with a side panel, and a refrigerator with a side panel (no visible text or symbols)

WAARSCHUWINGEN

9.ALARM ON/OFF-knapp:

10. SET ALARM-knapp:

Illustration of three different household appliances: a digital 12:30 front panel, a refrigerator with front panel, and a refrigerator with front panel (no text or symbols visible)

FÖRSIKTIGHETSÅTGÄRDER
